CN110664273A - a steam oven - Google Patents

Abstract

The invention provides a steam oven, comprising: a box body, including an air outlet arranged on the box body; and further comprising: an air guide assembly, including a plurality of air guide pieces arranged on the air outlet, the air guide pieces The exhaust port is divided into several exhaust channels. When the hot air is discharged from the box through the air outlet, it will be discharged along the air exhaust channel under the influence of the guide of the air guide. Therefore, by setting exhaust passages with different orientations, the hot air is discharged in the set area, so as to avoid a space for users to operate. Thus, the hot air is prevented from being directly discharged toward the user, and the user experience is improved.

Description

a steam oven

technical field

The invention relates to the technical field of kitchen equipment, in particular to a steam oven.

Background technique

A steamer is a commonly used kitchen equipment, and there is a steam generating device inside the steamer that can produce steam. The steamer also includes an inner tank capable of holding dishes. The steam generating device inputs steam into the inner pot, and the steam contacts the food so as to heat and cook the food.

With the development of science and technology, many steam ovens are now integrated steam ovens. Not only can steam be injected into the inner tank to cook the ingredients, but also hot air can be blown into the inner tank to heat the ingredients.

However, no matter if it is a steamer, an oven or an all-in-one steamer. The space of the inner tank is relatively closed, and with the continuous input of steam or hot air, the pressure of the inner tank will gradually increase. For the sake of cooking safety, there is an air duct connected to the inner tank on the oven, so that steam and hot air can be discharged to the outside environment.

Since the air outlet of the air duct is directly set on the surface of the steam box, when the user uses it, the discharged steam or hot air is directly discharged to the user, which affects the user experience.

SUMMARY OF THE INVENTION

Therefore, the technical problem to be solved by the present invention is to overcome the defect that the steam oven in the prior art discharges steam and/or hot air toward the user, thereby providing a steam oven.

A steam oven comprising:

a box body, including an air outlet set on the box body;

Also includes:

The air guide assembly includes a plurality of air guide members arranged on the air outlet, and the air guide member divides the air outlet into a plurality of air discharge channels.

The air outlet extends in a horizontal direction, and the air outlet channel is inclined to both ends in the length direction of the air outlet.

The angle A between the exhaust passage and the direction facing the steam oven is (0, 60°].

The air guide includes:

a connecting shaft, which is rotatably connected to the box body;

The protruding block is arranged on the connecting shaft, and the box body is provided with a limiting hole for the protruding block to rotate.

The limiting hole is fan-shaped.

Also includes:

an air exhaust chamber, which is arranged in the box body, one end is used to communicate with the inner tank, and the other end is an air exhaust port;

The fan is arranged in the exhaust chamber, the input end of the fan is connected to the inner tank, and the output end is arranged toward the exhaust port.

The fan is arranged away from the air outlet.

Also includes:

The protruding part is arranged between the fan and the air outlet, and protrudes from the side wall of the air discharge chamber to the air discharge chamber, and forms an air guide arc surface.

The raised portion includes:

The first raised part and the second raised part are arranged close to the output end of the fan, and the first raised part and the second raised part are formed to guide the steam and/or the hot air away from the fan of the exhaust channel flow.

The air guide is arc-shaped.

The thickness of the air guide member gradually decreases along the direction away from the box body.

The technical scheme of the present invention has the following advantages:

1. The steam oven provided by the present invention includes: a box body, including an air outlet arranged on the box body; and also includes: an air guide assembly, including several air guide pieces arranged on the air outlet, the air guide The air outlet is divided into several air exhaust channels.

When the hot air is discharged from the box through the air outlet, it will be discharged along the air exhaust channel under the influence of the guide of the air guide. Therefore, by setting exhaust passages with different orientations, the hot air is discharged in the set area, so as to avoid a space for users to operate. Thus, the hot air is prevented from being directly discharged toward the user, and the user experience is improved.

2. In the steam oven provided by the present invention, the air outlet extends in a horizontal direction, and the air outlet channel is inclined to both ends of the air outlet in the length direction.

The length direction of the discharge port corresponds to the width of the front of the steamer. When the user uses and operates the steamer, they usually operate the steamer. In this solution, the exhaust channel is inclined towards both ends of the length direction of the exhaust port, which avoids the area in front of the steamer. The situation where the hot air is blown towards the user improves the user's experience.

3. In the steamer provided by the present invention, the angle A between the exhaust passage and the direction facing the steamer is (0, 60°].

Since the inclination angle of the exhaust channel is controlled by the air guide, in this solution, the inclination angle of the exhaust channel is prevented from being in the range of (0, 60°), and the exhaust channel is prevented from being closed due to an excessively large inclination angle.

4. In the steam oven provided by the present invention, the air guide includes: a connecting shaft, which is rotatably connected to the box body; a bump is arranged on the connecting shaft, and the box body is provided with a A limit hole for the protrusion to rotate.

The convex block arranged on the connecting shaft rotates together with the connecting shaft, and the rotation of the connecting shaft can be controlled by toggling the convex block, so that the air guide member rotates to change the direction of the exhaust passage. The limiting hole is used to limit the rotation range of the protruding block, so that the air guide member rotates within a limited angle range.

5. In the steam oven provided by the present invention, the limiting hole is fan-shaped.

When the bump rotates with the connecting shaft as the center, the area swept is a sector. The fan-shaped limit hole is closer to the rotation trajectory of the bump. By setting the size of the central angle corresponding to the sector, the rotation range of the bump is indirectly limited.

6. The steam oven provided by the present invention further comprises: an exhaust chamber, which is arranged in the box, one end is used to communicate with the inner liner, and the other end is an exhaust port; a fan is arranged in the exhaust chamber, and the fan The input end is connected to the inner tank, and the output end is arranged toward the air outlet.

The exhaust chamber provides a temporary storage space for the discharge of hot air. After the hot air is drawn into the exhaust chamber by the fan, it flows in the exhaust chamber, consuming a certain amount of kinetic energy, reducing the kinetic energy when the hot air is discharged, thereby reducing the space range that is directly affected when the hot air is discharged to the outside world.

7. In the steam oven provided by the present invention, the fan is arranged away from the air outlet.

Increase the distance that the hot air moves to the air outlet after entering the exhaust chamber, thereby further increasing the consumption of kinetic energy before the hot air is discharged to the outside.

8. The steam oven provided by the present invention further comprises: a protruding part, which is arranged between the fan and the air outlet and protrudes toward the air outlet from the side wall of the air outlet, and forms a guide. Wind arc.

The air guide arc surface guides the hot air entering the exhaust chamber to move against the air guide arc surface.

9. In the steam oven provided by the present invention, the protruding part includes: a first protruding part and a second protruding part, which are arranged close to the output end of the fan; the first protruding part and the second protruding part are The exhaust passages for guiding steam and/or hot air to flow away from the fan are formed between the raised portions.

Since the fan is located at the output end opening of the exhaust chamber, the space relative to the exhaust chamber is small. The exhaust port is a strip-shaped opening that spans most of the exhaust chamber or even the entire exhaust chamber. Therefore, the air guide arc surface guides the hot air to flow evenly in the exhaust chamber and to the exhaust channel away from the fan. guiding role. Make the hot air volume exhausted between each exhaust channel more uniform.

10. In the steam oven provided by the present invention, the air guide is arc-shaped.

The arc-shaped air guide has a certain resistance to the hot air, and guides the hot air to change the direction of movement along its own surface shape. The kinetic energy of the hot air is reduced, and the direct impact range of the hot air's outward discharge is reduced.

11. In the steam oven provided by the present invention, the thickness of the air guide member gradually decreases along the direction away from the box body.

The thickness of the air guide member gradually decreases along the direction away from the box body, that is, when the air guide member extends out of the box body, the thickness gradually decreases along the direction extending out of the box body. The size of the opening of the exhaust passage formed by the adjacent air guides is gradually increased. Therefore, on the premise that the hot air flow remains unchanged, the flow velocity of the hot air is slowed down to a certain extent. Under the same air resistance, the hot air with a relatively slow flow velocity has a relatively smaller influence range of the outward spray.

Description of drawings

In order to illustrate the specific embodiments of the present invention or the technical solutions in the prior art more clearly, the following briefly introduces the accompanying drawings that need to be used in the description of the specific embodiments or the prior art. Obviously, the accompanying drawings in the following description The drawings are some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained based on these drawings without creative efforts.

Fig. 1 is the schematic diagram that the air outlet of the steamer of the present invention is horizontally arranged on the front of the box;

Fig. 2 is a schematic diagram showing the structure of air guide assembly at I in Fig. 1;

3 is a schematic diagram showing the structure of the top of the steam oven controlling the rotation of the air guide assembly;

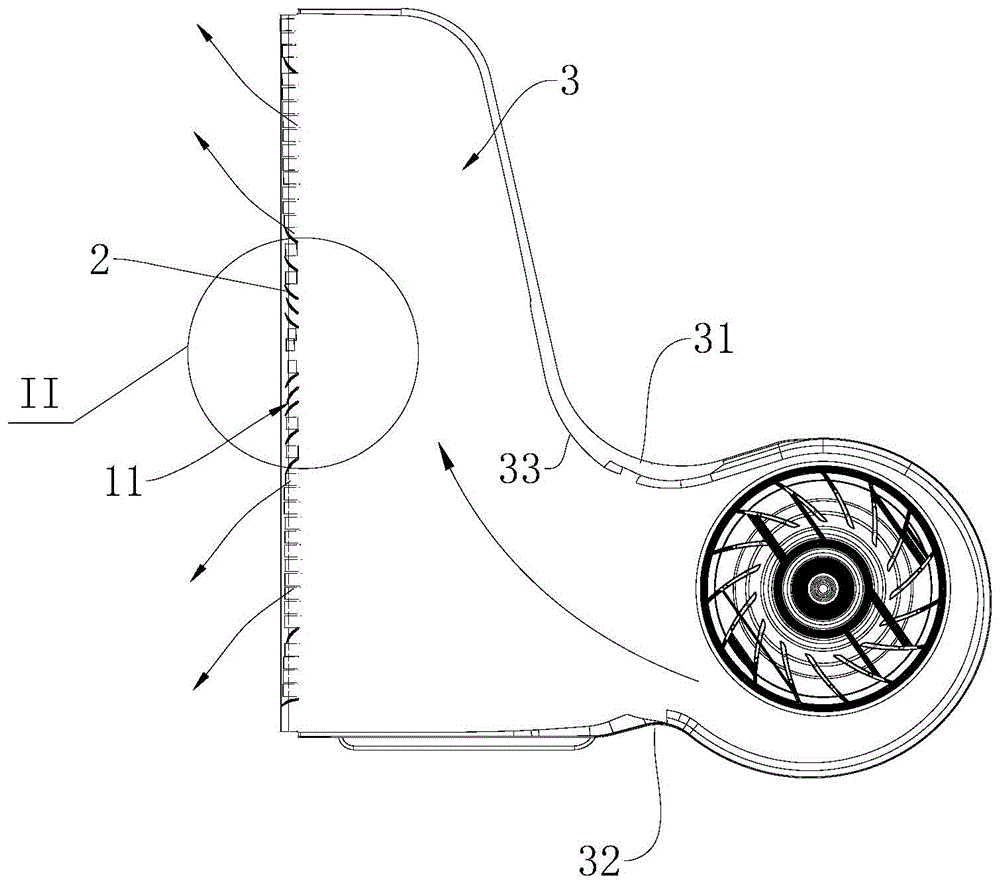

4 is a cross-sectional view of the structure of the exhaust chamber of the present invention;

FIG. 5 is a schematic diagram showing the distribution structure of the exhaust passage at II in FIG. 4;

FIG. 6 is a perspective view showing the structure of the air guide.

Description of reference numbers:

1. Box body; 11. Air outlet; 12. Limit hole; 2. Air guide; 21. Connecting shaft; 211. Bump; 3. Exhaust chamber; 31. First protrusion; 32. Two convex parts; 33, wind guide arc surface; 4, fan.

Detailed ways

The technical solutions of the present invention will be clearly and completely described below with reference to the accompanying drawings. Obviously, the described embodiments are a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. The indicated orientation or positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation or a specific orientation. construction and operation, and therefore should not be construed as limiting the invention. Furthermore, the terms "first", "second", and "third" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be noted that the terms "installed", "connected" and "connected" should be understood in a broad sense, unless otherwise expressly specified and limited, for example, it may be a fixed connection or a detachable connection Connection, or integral connection; it can be mechanical connection or electrical connection; it can be directly connected, or indirectly connected through an intermediate medium, and it can be internal communication between two elements. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

In addition, the technical features involved in the different embodiments of the present invention described below can be combined with each other as long as they do not conflict with each other.

Example 1

This embodiment provides a steam oven, as shown in FIG. 1 and FIG. 2 , including: a box body 1, including an air outlet 11 arranged on the box body 1; and further comprising: an air guide assembly, including an air outlet Several air guides 2 on the 11, and the air guides 2 divide the air outlet 11 into several air exhaust channels. When the hot air is discharged from the box body 1 to the outside through the air outlet 11 , the hot air is discharged along the air discharge channel under the influence of the guidance of the air guide member 2 . Therefore, by setting exhaust passages with different orientations, the hot air is discharged in the set area, so as to avoid a space for users to operate. Thus, the hot air is prevented from being directly discharged toward the user, and the user experience is improved.

There is no specific limitation on the distribution mode of the exhaust channels. In this embodiment, as shown in FIG. 4 and FIG. 5 , the exhaust channels are evenly distributed. As an alternative embodiment, the exhaust passages are distributed at both ends of the box body 1 in the width direction.

The extending direction of the air outlet 11 is not specifically limited. In this embodiment, as shown in FIG. The length direction of the discharge port corresponds to the width of the front of the steamer. When the user uses and operates the steamer, they usually operate the steamer. In this solution, the exhaust channel is inclined towards both ends of the length direction of the exhaust port 11, which avoids the area on the front of the steamer. The situation that the hot air blows to the user is avoided, and the user experience is improved. As an alternative embodiment, the length direction of the air outlet 11 is arranged along the vertical direction, and the air outlet channel is inclined toward both sides of the box body 1 .

There is no specific limitation on the inclination angle of the exhaust channel. In this embodiment, as shown in FIG. 5 , the angle A between the exhaust channel and the direction facing the steamer is (0, 60°). Since the exhaust channel The inclination angle is controlled by the air guide 2. In this solution, the inclination angle of the exhaust channel is prevented from being in the range of (0, 60°), and the exhaust channel is prevented from being closed due to the excessive inclination angle. As an alternative embodiment, the clip Angle A is 65°, 70°, 85°.

There is no specific limitation on the consistency of the inclination angles of the various exhaust channels. In this embodiment, as shown in FIG. 4 and FIG. 5 , the inclination angles of the various exhaust channels are consistent. And in the direction facing the box body 1, the middle of the box body 1 in the width direction is taken as the center of symmetry, and the exhaust channels on both sides are arranged in mirror symmetry. As an alternative embodiment, the inclination angles between the exhaust air passages are not uniform.

The structure of the air guide member 2 is not specifically limited. In this embodiment, as shown in FIGS. 2 , 3 and 6 , the air guide member 2 includes: a connecting shaft 21 , which is rotatably connected to the box body 1 ; The protruding block 211 is arranged on the connecting shaft 21 , and the box body 1 is provided with a limiting hole 12 for the protruding block 211 to rotate. The protrusion 211 on the connecting shaft 21 rotates together with the connecting shaft 21 , and the rotation of the connecting shaft 21 can be controlled by turning the protrusion 211 , so that the air guide 2 can be rotated to change the direction of the exhaust passage. The limiting hole 12 is used to limit the rotation range of the protruding block 211, so that the air guide member 2 rotates within a limited angle range.

The shape of the limiting hole 12 is not specifically limited. In this embodiment, as shown in FIG. 3 , the limiting hole 12 is fan-shaped. When the bump 211 rotates with the connecting shaft 21 as the center, the swept area is a sector. The fan-shaped limiting hole 12 is closer to the rotation track of the bump 211 . By setting the size of the central angle corresponding to the sector, the rotation range of the bump 211 is indirectly limited. As an alternative embodiment, the limiting hole 12 is circular or rectangular.

There is no specific limitation on the structure of the steaming oven. In this embodiment, as shown in FIG. 4 , it also includes: an exhaust chamber 3 , which is arranged in the box body 1 , one end is used to communicate with the inner tank, and the other end is an exhaust port 11 . ; Fan 4, located in the exhaust chamber 3, the input end of the fan 4 is connected to the inner tank, and the output end is set toward the exhaust port 11. The exhaust chamber 3 provides a temporary storage space for the discharge of hot air. After the hot air is drawn into the exhaust chamber 3 by the fan 4, it flows in the exhaust chamber 3, consuming a certain amount of kinetic energy, reducing the kinetic energy when the hot air is discharged, thereby reducing the space range that is directly affected when the hot air is discharged to the outside world.

There is no specific limitation on the installation position of the fan 4 . In this embodiment, as shown in FIG. 4 , the fan 4 is installed away from the air outlet 11 . The distance that the hot air moves toward the air outlet 11 after entering the air exhaust chamber 3 is increased, thereby further increasing the consumption of kinetic energy before the hot air is discharged to the outside. As an alternative embodiment, the fan 4 is arranged close to the air outlet 11 .

The structure of the exhaust chamber 3 is not specifically limited. In this embodiment, as shown in FIG. 4 , it further includes: a convex portion, which is arranged between the fan 4 and the exhaust port 11 and is exhausted from the side wall of the exhaust chamber 3 to the side. The air chamber 3 protrudes inside, and forms an air guide arc surface 33 . The air guide arc surface 33 guides the hot air entering the exhaust chamber 3 to move against the air guide arc surface 33 .

There is no specific limitation on the number of raised parts. In this embodiment, as shown in FIG. 4 , the raised parts include: a first raised part 31 and a second raised part 32, which are arranged near the output end of the fan 4, and the first raised part 31 and the second raised part 32 are provided. An exhaust channel for guiding steam and/or hot air to flow away from the fan 4 is formed between the raised portion 31 and the second raised portion 32 . Since the output end of the fan 4 located in the exhaust chamber 3 is open, the space relative to the exhaust chamber 3 is small. The exhaust port 11 is a strip-shaped opening that spans most of the exhaust chamber 3 or even the entire exhaust chamber 3. Therefore, the air guide arc surface 33 guides the hot air to flow evenly in the exhaust chamber 3, and further away from the exhaust chamber 3. The role of the exhaust channel guide at the 4th part of the fan. Make the hot air volume exhausted between each exhaust channel more uniform.

There is no specific limitation on the installation position of the fan 4 , in this embodiment, as shown in FIG. As an alternative embodiment, the fan 4 is disposed corresponding to the middle of the length direction of the air outlet 11 .

The shape of the air guide member 2 is not specifically limited. In this embodiment, as shown in FIG. 5 and FIG. 6 , the air guide member 2 is arc-shaped. The arc-shaped air guide 2 has a certain resistance to the hot air, and guides the hot air to change the moving direction along its own surface shape. The kinetic energy of the hot air is reduced, and the direct impact range of the hot air's outward discharge is reduced. As an alternative embodiment, the section of the air guide member 2 is rectangular.

The thickness of the air guide member 2 is not specifically limited. In this embodiment, as shown in FIGS. 5 and 6 , the thickness of the air guide member 2 gradually decreases along the direction away from the exhaust chamber 3 . The thickness of the air guide member 2 gradually decreases along the direction away from the exhaust chamber 3 , so that the size of the opening of the exhaust passage formed by the adjacent air guide members 2 gradually increases. Therefore, on the premise that the hot air flow remains unchanged, the flow velocity of the hot air is slowed down to a certain extent. Under the same air resistance, the hot air with a relatively slow flow velocity has a relatively smaller influence range of the outward spray. As an alternative embodiment, the thickness of the air guide 2 is the same everywhere.

Obviously, the above-mentioned embodiments are only examples for clear description, and are not intended to limit the implementation manner. For those of ordinary skill in the art, changes or modifications in other different forms can also be made on the basis of the above description. There is no need and cannot be exhaustive of all implementations here. And the obvious changes or changes derived from this are still within the protection scope of the present invention.

Claims (11)

1. A steaming oven, comprising:

the box body (1) comprises an air outlet (11) arranged on the box body (1);

it is characterized by also comprising:

the air guide assembly comprises a plurality of air guide pieces (2) arranged on the air outlet (11), and the air guide pieces (2) divide the air outlet (11) into a plurality of air exhaust channels.

2. The steaming and baking box as claimed in claim 1, wherein the air outlet (11) extends in a horizontal direction, and the air outlet passage is inclined toward both ends of the air outlet (11) in a length direction.

3. A steaming and baking box as claimed in claim 2, characterised in that the angle a between the exhaust duct and the direction of the box in front view is (0, 60 °).

4. The steaming oven according to any one of claims 1 to 3, wherein the air guide (2) comprises:

the connecting shaft (21), the said connecting shaft (21) is connected to the said container body (1) rotatably;

the lug (211) is arranged on the connecting shaft (21), and a limiting hole (12) for the lug (211) to rotate is formed in the box body (1).

5. The steaming oven according to claim 4, characterized in that the limiting hole (12) is sector-shaped.

6. The steaming oven of claim 1, further comprising:

the air exhaust chamber (3) is arranged in the box body (1), one end of the air exhaust chamber is used for communicating the inner container, and the other end of the air exhaust chamber is provided with an air exhaust port (11);

the fan (4) is arranged in the exhaust chamber (3), the input end of the fan (4) is communicated with the inner container, and the output end of the fan faces towards the exhaust outlet (11).

7. The steaming oven according to claim 6, characterized in that the fan (4) is arranged remote from the air outlet (11).

8. The steaming oven of claim 6 or 7, further comprising:

the bulge is arranged between the fan (4) and the air outlet (11) and is protruded in the air exhaust chamber (3) from the side wall of the air exhaust chamber (3) to form an air guide cambered surface (33).

9. The steaming oven of claim 8, wherein the raised portion comprises:

the first protruding portion (31) and the second protruding portion (32) are arranged close to the output end of the fan (4), and steam and/or hot air are guided to flow towards the air exhaust channel far away from the fan (4) through the first protruding portion (31) and the second protruding portion (32).

10. The steaming and baking box as claimed in any one of claims 1 to 3, 5 to 7 and 9, wherein the air guide (2) is curved.

11. The steaming oven according to claim 10, characterized in that the thickness of the air guide (2) is tapered in a direction extending out of the box body (1).
