Abstract

The invention discloses a children's toy, comprising a battery compartment fixed on a casing, two springs 1, two batteries and a compartment cover are installed on the battery compartment, and the two springs 1 and the two batteries are installed on the battery compartment. There is a connection structure between them, and the casing is provided with a groove 1, a cavity 1, and a cavity 2, and the cavity 1 is communicated with the groove 1 and the cavity 2 at the same time, and a button is placed in the groove 1. A plurality of springs 2 are fixedly installed in the cavity 1, and a push rod is fixedly installed together with the plurality of the springs 2, and one end of the push rod is rotatably connected to the button. The advantage is: for older children, you can prove to them that the battery is installed in the battery compartment, press the button to directly activate the toy switch without letting go of the hand, and prove to the child that the toy is "faulty". After being moved, a turning force is applied to the button to fix the button, so that children can also come to the conclusion of "failure" when verifying by themselves.

Description

a children's toy

technical field

The present invention relates to a toy, in particular to a children's toy.

Background technique

Children's toys refer to items specially used for children's games. At present, there are many types of children's toys on the market with different functions. For example, some children's toys can move and produce specific sounds (such as music) after installing batteries. Many children's toys have different functions. Families buy such toys for children to play with.

The sound of such toys is relatively loud. Sometimes when a relatively quiet environment is needed in the home, if the children are very interested in the toy at this time, it will be noisy when playing, and the toy is directly taken away, which is easy to cause children to cry. Therefore, many parents will choose to remove the battery and then trick the child into saying that the toy is faulty, and then use other toys that are relatively quiet to play to divert the child's attention;

However, the above operation can still have a certain effect when the child is very young, but when the child is slightly older (about two to four years old), this method cannot play the above role, and the child will find that the toy cannot be normal because of the battery removal. Playing around, doesn't have the desired effect.

SUMMARY OF THE INVENTION

The purpose of the present invention is to propose a children's toy in order to solve the problems found in the background art.

In order to achieve the above object, the present invention adopts the following technical solutions:

A children's toy, comprising a battery compartment fixed on a casing, two springs I, two batteries and a compartment cover are installed on the battery compartment, and a common arrangement between the two springs I and the two batteries In connection structure, a groove 1, a cavity 1 and a cavity 2 are provided on the casing, and the cavity 1 is communicated with the groove 1 and the cavity 2 at the same time, a button is placed in the groove 1, and the cavity A plurality of springs two are fixedly installed in the body, and a push rod is fixedly installed together with the plurality of the springs two. The pressing seat is provided with a second groove, the pressing seat is fixedly installed with a pressing block through a pressing rod, and the pressing block is located in the second cavity, and the lower end of the pushing rod is in contact with the upper surface of the pressing block, and the upper surface of the pressing block is has a certain slope.

In the above-mentioned children's toy, the connection structure includes a metal plate, a support seat, a limit groove, and a limit block, the support seat is fixedly installed in the shell, and the two sides of the support seat and the two sides of the shell are fixed. Each of the side walls is provided with a limit slot, each limit slot is slidably connected with a limit block, and a metal plate is fixedly installed between the corresponding two limit blocks, and one side of the metal plate is It is fixedly connected with the spring, and the other side of the metal plate is in contact with the corresponding battery.

In the above-mentioned children's toy, two moving blocks are fixedly installed on the outer wall of the button, and two moving grooves and two arc-shaped clamping grooves are opened on the inner wall of the first groove, and the arc-shaped clamping grooves are It communicates with the corresponding moving grooves, and the moving blocks are respectively located on the corresponding moving grooves, and the groove width of the arc-shaped clamping groove is equal to the length of the moving blocks.

Compared with the prior art, the advantages of the present invention are:

1: Through the cooperation of the push rod, the second spring, the pressing block and other structures, the button press can drive the battery down, so that the battery does not supply power to the toy normally, so that the toy cannot be used normally. After the pressure, it can automatically return to the pre-compression position.

2: Through the cooperation of the moving slot, the moving block and the arc-shaped card slot, the button can be pressed and rotated to achieve a fixed operation, which is convenient for handing over the toy to children for verification. Just turn the power.

3: The purpose of opening the second groove is that the pressing seat will not contact the protruding part of the battery, which is convenient for the normal installation and use of the battery when it is not pressed by the pressing seat, and the contact area between the pressing seat and the battery is relatively large, which is convenient for the pressing seat It is better to drive the battery down when moving down.

4: Through the cooperation of the metal plate, the support seat, the limit slot and the limit block, the spring can only be deformed in the direction parallel to the limit slot, so as to ensure that the child will not cause the battery to fall out of the battery compartment when the child drops the toy. Once the spring is irreversibly tilted and deformed.

To sum up, for older children, you can prove to them that after the battery is installed in the battery compartment, press the button to directly activate the toy switch without letting go, to prove to the child that the toy is "faulty". After being pressed, a turning force can be applied to the button to fix the button, so that children can also come to the conclusion of "failure" when verifying by themselves.

Description of drawings

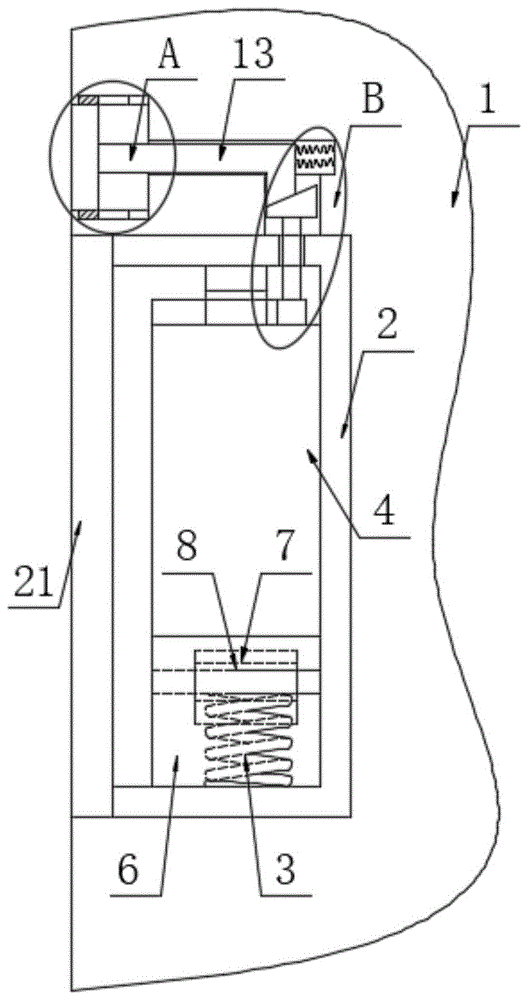

Fig. 1 is the structural representation of a kind of children's toy proposed by the present invention;

Fig. 2 is the structural enlargement schematic diagram of A part among Fig. 1;

Fig. 3 is the structural enlargement schematic diagram of part B in Fig. 1;

FIG. 4 is a left side view of the structure of the battery compartment part in FIG. 1;

FIG. 5 is an enlarged schematic view of the structure of part C in FIG. 4 .

In the picture: 1 shell, 2 battery compartment, 3 spring 1, 4 battery, 5 metal plate, 6 support base, 7 limit slot, 8 limit block, 9 groove 1, 10 cavity 1, 11 cavity 2 , 12 buttons, 13 push rods, 14 spring two, 15 pressing blocks, 16 pressing rods, 17 pressing seats, 18 moving slots, 19 moving blocks, 20 arc-shaped card slots, 21 warehouse covers.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", " The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, so as to The specific orientation configuration and operation are therefore not to be construed as limitations of the present invention.

Referring to Figures 1-5, a children's toy includes a battery compartment 2 fixed on a housing 1. The battery compartment 2 is provided with two springs 1 3, two batteries 4 and a compartment cover 21, two springs 1 3 A connection structure is provided in common with the two batteries 4;

The setting of the connection structure makes the battery 4 not in direct contact with the corresponding spring one 3, so as to avoid the irreversible tilting deformation of the spring one 3 when the child throws the toy and causes the battery 4 to fall out of the battery compartment 2, preventing damage to the compartment cover 21 or damage to the battery compartment 2. After the loss, the spring one 3 loses its original pressing effect (the common problem is that children drop the remote control, which causes the spring on the battery compartment of the remote control to irreversibly tilt and deform);

The connection structure includes a metal plate 5, a support seat 6, a limit slot 7, and a limit block 8. A support seat 6 is fixedly installed in the housing 1, and two sides of the support seat 6 and two side walls of the housing 1 are provided with a Limit slots 7, each limit slot 7 is slidably connected with a limit block 8, a metal plate 5 is fixedly installed between the corresponding two limit blocks 8, and one side of the metal plate 5 is connected to the spring-3 Fixed connection, and the other side of the metal plate 5 is in contact with the corresponding battery 4;

The limit slot 7 has a limiting effect on the limit block 8, so that the limit block 8 can only move in the direction parallel to the limit slot 7, and will not move in the direction perpendicular to the limit slot 7, thereby limiting The movement direction of the metal plate 5 is changed, so that the spring can only deform in the direction parallel to the limit groove 7, so as to ensure that the child will not cause irreversible tilt deformation of the spring 1 when the battery 4 falls out of the battery compartment 2 when the child drops the toy. .

The casing 1 is provided with a groove 1 9, a cavity 10, and a cavity 2 11, and the cavity 1 10 communicates with the groove 1 9 and the cavity 2 11 at the same time. A button 12 is placed in the groove 1 9. A plurality of second springs 14 are fixedly installed in the body one 10 , and a push rod 13 is fixedly installed with the plurality of spring two 14 , and one end of the push rod 13 is rotatably connected to the button 12 ;

It is particularly worth noting here that the end faces of the cavity 10 and the push rod 13 are square, and the purpose is that the push rod 13 can slide on the cavity 1 10, but the two will not rotate relative to each other.

One of the batteries 4 abuts with a pressing seat 17 , the pressing seat 17 is provided with a second groove, the pressing seat 17 is fixedly installed with a pressing block 15 through the pressing rod 16 , and the pressing block 15 is located in the second cavity 11 , and the push rod The lower end of 13 is in contact with the upper surface of pressing block 15;

It is particularly worth noting here that the upper surface of the pressing block 15 has a certain slope, the purpose of which is to facilitate the movement of the push rod 13 and the lower end of which will exert a force on the pressing block 15, which can be decomposed according to the force. Decomposed into vertical and horizontal forces, the inner wall of the second cavity 11 has a horizontal limiting effect on the pressing block 15 , so that the pressing block 15 can only move down in the vertical direction (the orientation shown in FIG. 3 ).

Two moving blocks 19 are fixedly installed on the outer wall of the button 12, and two moving slots 18 and two arc-shaped card slots 20 are opened on the inner wall of the groove one 9, and the arc-shaped card slots 20 communicate with the corresponding moving slots 18. , and the moving blocks 19 are respectively located on the corresponding moving slots 18, and the slot width of the arc slot 20 is equal to the length of the moving blocks 19;

Through the cooperation of the moving slot 18, the moving block 19 and the arc-shaped card slot 20, the moving block 19 can be rotated into the arc-shaped card slot 20 after moving to the connection between the moving slot 18 and the arc-shaped card slot 20. The inner wall of the slot 20 has a limiting effect on the moving block 19 so that it cannot move.

It is further stated that the above-mentioned fixed connection should be understood in a broad sense unless otherwise specified and limited. For example, it may be welding, gluing, or a conventional means known to those skilled in the art, such as integral molding.

In the present invention, the state shown in FIG. 1 is the state when the battery 4 is normally installed in the battery compartment 2. At this time, the battery 4 supplies power normally, and the lower surface of the pressing seat 17 (the orientation shown in FIG. 3) is in contact with the battery 4;

When it is necessary to trick the child into saying that the toy cannot be played, first prove to the child that the battery 4 is normally installed in the battery compartment 2, and then, before starting the toy, apply an inward pressing force on the button 12, and the button 12 moves by pushing The rod 13 drives the pressing block 15 to move downward (this part has been explained earlier), and the pressing block 15 moves downward to exert a downward (the orientation shown in FIG. 1 ) pressing force on the battery 4 through the pressing rod 16 and the pressing seat 17 , thereby The protruding part of the battery 4 is not in contact with the battery compartment 2, so that the battery 4 will not supply power to the toy, so that the toy cannot be used normally. If the child's attention is diverted in other ways, the child can give up playing the toy. .

If the child wants to carry out the verification that the toy cannot be used by himself, the adult can apply a rotational force to the button 12 after pressing the button 12 to rotate the moving block 19 from the moving slot 18 to the arc-shaped slot 20, and release it at this time. The position of the button 12 behind the hand will not change, so that the child cannot activate the toy even when he or she is verifying.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. The equivalent replacement or change of the inventive concept thereof shall be included within the protection scope of the present invention.

Claims (3)

1. A children's toy, comprising a battery compartment (2) fixed on a casing (1), the battery compartment (2) being mounted with two springs one (3), two batteries (4) and a compartment The cover (21) is characterized in that a connecting structure is commonly provided between the two springs (3) and the two batteries (4), and the casing (1) is provided with grooves (9), Cavity one (10), cavity two (11), and cavity one (10) communicates with groove one (9) and cavity two (11) at the same time, and a button is placed in said groove one (9) (12), a plurality of second springs (14) are fixedly installed in the cavity one (10), and a push rod (13) is fixedly installed together with the plurality of the second springs (14), and the push rod (13) One end of the battery is rotatably connected to the button (12), one of the batteries (4) is abutted with a pressing seat (17), the pressing seat (17) is provided with a second groove, and the pressing seat (17) The pressing block (15) is fixedly installed by the pressing rod (16), and the pressing block (15) is located in the second cavity (11), and the lower end of the pushing rod (13) is in contact with the upper surface of the pressing block (15), the said The upper surface of the pressing block (15) has a certain slope. 2. A children's toy according to claim 1, characterized in that the connection structure comprises a metal plate (5), a support seat (6), a limit groove (7), and a limit block (8), all of which A support seat (6) is fixedly installed in the housing (1), and a limit groove (7) is provided on both sides of the support seat (6) and the two side walls of the housing (1). A limit block (8) is slidably connected to the limit grooves (7), a metal plate (5) is fixedly installed between the corresponding two limit blocks (8), and the metal plate (5) is One side is fixedly connected with the spring one (3), and the other side of the metal plate (5) is in contact with the corresponding battery (4). 3. A children's toy according to claim 1, characterized in that, two moving blocks (19) are fixedly installed on the outer wall of the button (12), and an inner wall of the groove one (9) is provided with There are two moving slots (18) and two arc-shaped card slots (20), and the arc-shaped card slots (20) communicate with the corresponding moving slots (18), and the moving blocks (19) are respectively located in the corresponding moving slots ( 18), and the width of the arc slot (20) is equal to the length of the moving block (19).
