Abstract

本发明公开了一种计算机集成装置，具体涉及计算机配件领域，包括机箱，所述机箱内部设有组件室、水冷室和供电室，所述供电室设置于水冷室的底部，所述供电室与水冷室之间设有下隔板，所述组件室设置于水冷室的顶部，所述组件室与水冷室之间设有上隔板；所述水冷室内腔顶部设有水冷排，所述水冷排端部连接有进水管和出水管，所述水冷室一端设有进风口以及另一端设有出风口，所述进风口和出风口内均设有软磁防尘网。本发明在不影响计算机自身散热的同时，大大的提高了UPS的散热能力，延长了使用寿命，同时将UPS集成于机箱内部的这种方式，用户在使用时无法进行UPS安装，只需将部分连接线插接即可使用，提高了实用性。

Figure 201910434208

The invention discloses a computer integrated device, in particular to the field of computer accessories. A lower partition is arranged between the water-cooling chambers, the component chamber is arranged on the top of the water-cooling chamber, and an upper partition is arranged between the component chamber and the water-cooling chamber; The discharge end is connected with a water inlet pipe and a water outlet pipe, the water cooling chamber is provided with an air inlet at one end and an air outlet at the other end, and a soft magnetic dust-proof net is arranged in the air inlet and the air outlet. The invention greatly improves the heat dissipation capacity of the UPS and prolongs the service life without affecting the heat dissipation of the computer itself. At the same time, the UPS is integrated into the chassis. The user cannot install the UPS during use, and only needs to install part of the UPS. The connecting line can be used after being plugged in, which improves the practicability.

Figure 201910434208

Description

Computer integrated device
Technical Field
The invention relates to the field of computer accessories, in particular to a computer integration device.
Background
The USP power supply is an important external device capable of providing continuous, stable and uninterrupted power supply, can effectively purify the commercial power when the commercial power is abnormal, and can also supply power to devices such as computers for a certain time when the commercial power is suddenly interrupted, so that abundant response time is provided for users.
In the daily use process, two ways of connecting the UPS power supply with the computer are provided, namely internal and external. When the external UPS is connected with a computer, the UPS is inconvenient, for example, the integration level is too low, the UPS is too large and is not easy to carry, the wiring is troublesome when the UPS is externally connected, and the operation of a user is difficult; when the UPS is arranged in the computer case, the heat dissipation air channel of the computer case is easily influenced by the traditional air cooling heat dissipation due to the fact that the UPS generates large heat in the working process and is not easy to dissipate heat, so that the air channel is disordered, and the heat dissipation of the computer and the heat dissipation of the UPS are influenced.
Disclosure of Invention
In order to overcome the above defects of the prior art, embodiments of the present invention provide a computer integration apparatus, an upper partition plate is disposed at the top of a water cooling chamber, a lower partition plate is disposed at the bottom of the water cooling chamber, and a circulation fan, an air inlet and an air outlet are respectively disposed at two sides of the water cooling chamber, so that a circulation air duct in a front-back direction can be formed in the water cooling chamber, and heat dissipated by water cooling is dissipated to the outside of a case.
In order to achieve the purpose, the invention provides the following technical scheme: a computer integration device comprises a case, wherein a component chamber, a water cooling chamber and a power supply chamber are arranged in the case, the power supply chamber is arranged at the bottom of the water cooling chamber, a lower partition plate is arranged between the power supply chamber and the water cooling chamber, the component chamber is arranged at the top of the water cooling chamber, and an upper partition plate is arranged between the component chamber and the water cooling chamber;
the water cooling device is characterized in that a water cooling row is arranged at the top of an inner cavity of the water cooling chamber, the end part of the water cooling row is connected with a water inlet pipe and a water outlet pipe, one end of the water cooling chamber is provided with an air inlet, the other end of the water cooling chamber is provided with an air outlet, soft magnetic dust screens are arranged in the air inlet and the air outlet, a circulating fan is arranged on one side of each soft magnetic dust screen, and a wiring hole is formed in the rear side wall of the water cooling chamber;
the UPS is arranged in the inner cavity of the power supply chamber, three sockets are arranged at the front end of the UPS, three plugs are arranged at the rear end of the UPS, a storage battery is arranged in the UPS, a first water-cooling head is arranged at the top of the storage battery, a copper cover is arranged on one side of the storage battery, an inverter, a bypass switch and a rectifier are arranged at the bottom of the copper cover, a second water-cooling head is arranged at the top of the copper cover, the first water-cooling head and the second water-cooling head are connected through a cold water pipe, and a power supply is arranged on one side of the UPS;
the baffle is connected between the lower baffle and the case, a full-module adapter plate penetrates through the lower baffle, and adapter ports are formed in the top and the bottom of the full-module adapter plate.
In a preferred embodiment, the front end and the rear end of the component chamber are both provided with fan fixing plates, the front end of the component chamber is provided with an air inlet, the inner cavity of the component chamber is provided with a component fixing plate, the rear side wall of the component fixing plate is inwards bent to form a wiring groove, and the wiring groove is arranged right above the wiring hole.
In a preferred embodiment, the baffle is arranged on the front side of the full-module adapter plate, the baffle is detachably connected with the lower partition plate and the case through screwing, the lower partition plate and the upper partition plate are both fixedly connected with the inner wall of the case, and the width of the baffle is greater than the distance between the power supply and the UPS.
In a preferred embodiment, the water-cooling row is fixedly arranged at the bottom of the upper partition plate, the full-module adapter plate is arranged right below the water-cooling row, the soft magnetic dustproof net is arranged on the surface of the chassis, the number of the circulating fans is two, and the blowing directions of the two circulating fans are the same.
In a preferred embodiment, the bottom ends of the water inlet pipe and the water outlet pipe penetrate through the lower partition plate and extend to the interior of the UPS, the bottom end of the water inlet pipe is connected with the first water cooling head, and the water outlet pipe is connected with the second water cooling head.
In a preferred embodiment, the power supply is detachably connected with the power supply chamber through screws, and the UPS is electrically connected with the power supply through three plugs and an input port on the power supply.
In a preferred embodiment, the full-module adapter plate is disposed between the power supply and the UPS, the module line of the power supply is connected to the adapter port at the bottom of the full-module adapter plate, the adapter port at the top of the full-module adapter plate is connected to the power supply line of the internal components of the computer, and the component fixing plate is further provided with a plurality of line passing holes.
In a preferred embodiment, the size of the water cooling bar can be customized according to the power consumption of a computer, the chassis is an itx chassis, and the adapter interface includes, but is not limited to, an ATX24 PIN interface, a large D4PIN interface, a small 4PIN interface, a SATA interface, a 6PIN interface, and a 4PIN interface.
The invention has the technical effects and advantages that:
1. through directly setting up first water-cooling head and second water-cooling head in the main heating element in UPS: the top of the storage battery, the rectifier, the inverter and other elements utilizes the water cooling discharge, the water inlet pipe and the water outlet pipe to circulate cooling water, heat in the UPS is continuously conducted into the water cooling chamber, heat dissipation is carried out by the water cooling discharge, meanwhile, the top of the water cooling chamber is provided with the upper partition plate, the bottom of the water cooling chamber is provided with the lower partition plate, and the two sides are respectively provided with the circulating fan, the air inlet and the air outlet, so that a circulating air channel in the front-back direction can be formed in the water cooling chamber, the heat conducted out by the water cooling discharge is discharged to the outside of the case, by using the structure, the formed circulating air channel is mutually independent with the air channel in the top component chamber of the upper partition plate, the air channel disorder caused by mutual influence can not be caused, the heat dissipation capability of the UPS is greatly improved while the heat dissipation of the computer is not influenced, the service life is prolonged, and meanwhile, the mode of integrating the UPS into the case can not be used by a user, only need to peg graft partial connecting wire and can use, improved the practicality, be convenient for carry.
2. Through adopting full module keysets and switching mouth to be connected power supply line on with the computer subassembly power supply line, and set up the line hole, make the power supply line can neatly pass in the water-cooling chamber extends to the subassembly indoor, can not influence the indoor mutually independent duct system of water-cooling chamber and subassembly, the aesthetic measure has been promoted, the at utmost has improved the utilization ratio in quick-witted incasement space, and adopt this kind of mounting means, the degree of difficulty of computer when the equipment has been reduced, and the installation of being convenient for has improved the practicality.
Drawings

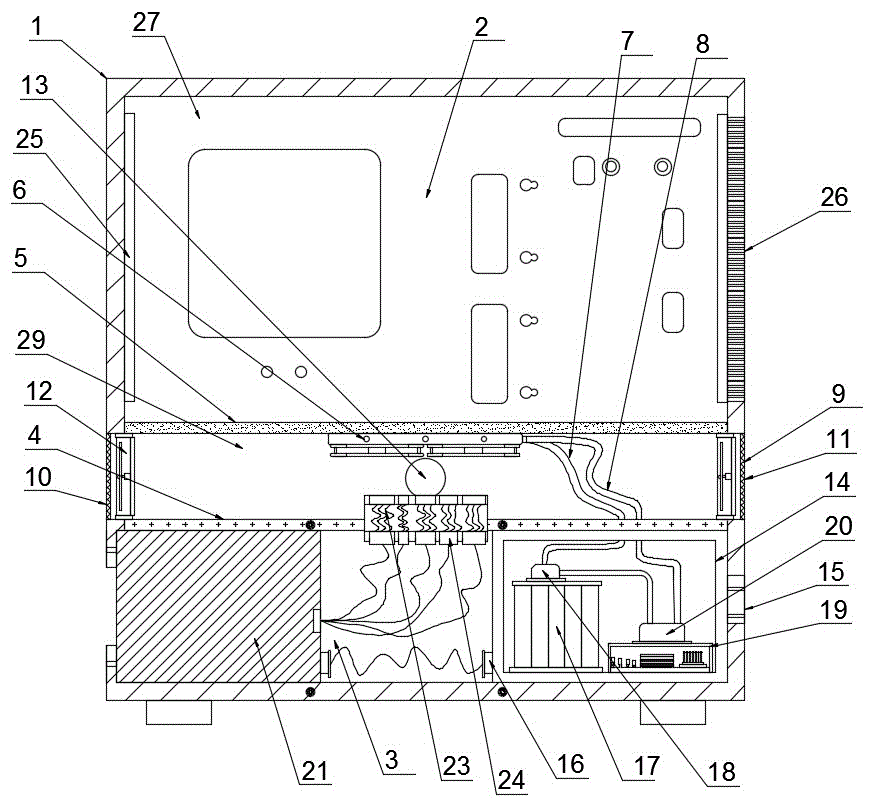

Fig. 1 is a schematic view of the internal structure of the present invention.
Fig. 2 is a schematic view of the internal structure of the baffle plate of the present invention when installed.
Fig. 3 is a schematic view of the internal rear structure of the present invention.
Fig. 4 is a schematic view of the overall structure of the present invention.
Fig. 5 is a schematic top view of the lower partition plate according to the present invention.
Fig. 6 is a schematic diagram of an internal structure of the UPS of the present invention.
The reference signs are: 1 chassis, 2 component rooms, 3 power supply rooms, 4 lower partition boards, 5 upper partition boards, 6 water cooling rows, 7 water inlet pipes, 8 water outlet pipes, 9 air inlets, 10 air outlets, 11 soft magnetic dust screens, 12 circulating fans, 13 wiring holes, 14UPS, 15 sockets, 16 plugs, 17 storage batteries, 18 first water cooling heads, 19 copper cover covers, 20 second water cooling heads, 21 power supplies, 22 baffle plates, 23 full-module adapter plates, 24 adapter ports, 25 fan fixing plates, 26 air inlet holes, 27 component fixing plates, 28 wiring grooves, 29 water cooling rooms and 30 cold water pipes.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1, 4 and 6, the computer integrated device includes a case 1, a module chamber 2, a water cooling chamber 29 and a power supply chamber 3 are arranged inside the case 1, the power supply chamber 3 is arranged at the bottom of the water cooling chamber 29, a lower partition plate 4 is arranged between the power supply chamber 3 and the water cooling chamber 29, the module chamber 2 is arranged at the top of the water cooling chamber 29, and an upper partition plate 5 is arranged between the module chamber 2 and the water cooling chamber 29;
the top of the inner cavity of the water cooling chamber 29 is provided with a water cooling bar 6, the end part of the water cooling bar 6 is connected with a water inlet pipe 7 and a water outlet pipe 8, one end of the water cooling chamber 29 is provided with an air inlet 9, the other end of the water cooling chamber is provided with an air outlet 10, soft magnetic dust screens 11 are respectively arranged in the air inlet 9 and the air outlet 10, one side of each soft magnetic dust screen 11 is provided with a circulating fan 12, and the rear side wall of the water cooling chamber 29 is provided with a wiring hole 13;
the UPS14 is arranged in the inner cavity of the power supply chamber 3, the front end of the UPS14 is provided with three sockets 15, the rear end of the UPS14 is provided with three plugs 16, a storage battery 17 is arranged in the UPS14, the top of the storage battery 17 is provided with a first water-cooling head 18, one side of the storage battery 17 is provided with a copper cover 19, the bottom of the copper cover 19 is provided with an inverter, a bypass switch and a rectifier, the top of the copper cover 19 is provided with a second water-cooling head 20, the first water-cooling head 18 and the second water-cooling head 20 are connected through a cold water pipe 30, and one side of the UPS14 is provided with a power supply 21;
the water cooling bar 6 is fixedly arranged at the bottom of the upper partition plate 5, the full-module adapter plate 23 is arranged right below the water cooling bar 6, the soft magnetic dustproof net 11 is arranged on the surface of the case 1, the number of the circulating fans 12 is two, and the blowing directions of the two circulating fans 12 are the same;
the bottom ends of the water inlet pipe 7 and the water outlet pipe 8 penetrate through the lower partition plate 4 and extend into the UPS14, the bottom end of the water inlet pipe 7 is connected with the first water-cooling head 18, the water outlet pipe 8 is connected with the second water-cooling head 20, the power supply 21 is detachably connected with the power supply chamber 3 through screws, and the UPS14 is electrically connected with the power supply 21 through three plugs 16 and input ports on the power supply 21;
the size of the water cooling bar 6 can be defined by user according to the power consumption of a computer, and the case 1 is an itx case.
The implementation mode is specifically as follows: when the UPS14 is used, a connecting line of a power supply 21 is plugged into three sockets 15 at the front end of the UPS14, three plugs 16 at the rear end of the UPS14 are plugged into input ports of the power supply 21, when a power supply system is normal, the UPS14 serves as an alternating current voltage stabilizer to supply power to the power supply 21 and a computer assembly connected with the power supply 21, and simultaneously charges a storage battery 17, when the power supply system is interrupted, the UPS14 immediately supplies 220V alternating current to the computer assembly through an inverter switching conversion method, so that the computer can maintain normal operation, abundant response time is provided for a user to carry out data and work backup and backup, and the first water cooling head 18 and the second water cooling head 20 are directly arranged on main heating elements in the UPS 14: the top of the storage battery 17, the rectifier, the inverter and other elements utilizes the water cooling row 6, the water inlet pipe 7 and the water outlet pipe 8 to circulate cooling water, heat in the UPS14 is continuously transmitted into the water cooling chamber 29, the water cooling row 6 is utilized to dissipate heat, meanwhile, the top of the water cooling chamber 29 is provided with the upper partition plate 5, the bottom of the water cooling chamber 29 is provided with the lower partition plate 4, and the two sides are respectively provided with the circulating fan 12, the air inlet 9 and the air outlet 10, so that a circulating air duct in the front-back direction can be formed in the water cooling chamber 29, the heat transmitted by the water cooling row 6 is discharged to the outside of the case 1, by using the structure, the formed circulating air duct is mutually independent from the air duct in the top component chamber 2 of the upper partition plate 5, the air duct disorder can not be caused by mutual influence, the heat dissipation of the computer is not influenced, the heat dissipation capability of the UPS14 is greatly improved, the service life is prolonged, and simultaneously, the UPS14 is integrated in the case 1, the UPS14 can not be installed when the user uses, only partial connecting wires need to be plugged for use, the practicability is improved, and the carrying is convenient.
As shown in fig. 1, fig. 2, fig. 3 and fig. 5, a baffle 22 is connected between the lower partition plate 4 and the chassis 1, a full module adapter plate 23 is arranged on the lower partition plate 4 in a penetrating manner, and adapter ports 24 are arranged at the top and the bottom of the full module adapter plate 23;
the front end and the rear end of the component chamber 2 are both provided with fan fixing plates 25, the front end of the component chamber 2 is provided with an air inlet 26, an inner cavity of the component chamber 2 is provided with a component fixing plate 27, the rear side wall of the component fixing plate 27 is inwards bent to form a wiring groove 28, and the wiring groove 28 is arranged right above the wiring hole 13;
the baffle 22 is arranged on the front side of the full-module adapter plate 23, the baffle 22 is detachably connected with the lower partition plate 4 and the case 1 through screwing, the lower partition plate 4 and the upper partition plate 5 are both fixedly connected with the inner wall of the case 1, and the width of the baffle 22 is larger than the distance between the power supply 21 and the UPS 14;
the power supply 21 is detachably connected with the power supply chamber 3 through screws, and the UPS14 is electrically connected with the power supply 21 through three plugs 16 and input ports on the power supply 21;
the full-module adapter plate 23 is arranged between the power supply 21 and the UPS14, a module wire of the power supply 21 is connected with the adapter port 24 at the bottom of the full-module adapter plate 23, the adapter port 24 at the top of the full-module adapter plate 23 is connected with a power supply line of an internal component of the computer, and the component fixing plate 27 is also provided with a plurality of wire passing holes;
the interfaces 24 include, but are not limited to, an ATX24 PIN interface, a large D4PIN interface, a small 4PIN interface, a SATA interface, a 6PIN interface, and a 4PIN interface.
The implementation mode is specifically as follows: when in use, the three plugs 16 on the UPS14 are plugged into the input port of the power supply 21, each module power supply line of the power supply 21 is connected with the adapter port 24 at the bottom of the full module adapter plate 23, then the power supply line of the computer component in the component chamber 2 passes through the wire passing hole on the component fixing plate 27, then extends into the wire passing hole 13 from the wire running groove 28 on the rear side wall of the component fixing plate 27, extends into the water cooling chamber 29, the end part of the power supply line is plugged into the adapter port 24 at the top of the full module adapter plate 23, after the power supply line and the module power supply line are straightened, the power supply line and the module power supply line are fixed and integrated by a ribbon, then the baffle plate 22 is fixed on the front side wall of the lower partition plate 4 by screws, the module power supply line at the bottom of the full module adapter plate 23 and the three plugs 16 are shielded, and the power supply line on the power supply 21 is connected with the computer component power supply line by the full module adapter plate 23 and the adapter port 24, and set up wiring hole 13 for the power supply line can neatly pass in water-cooling chamber 29 extends to assembly room 2, can not influence water-cooling chamber 29 and the indoor mutually independent air duct system of assembly 2, has promoted pleasing to the eye degree, and furthest's improvement the utilization ratio of quick-witted case 1 inner space, and adopt this kind of mounting means, reduced the degree of difficulty of computer when the equipment, the installation of being convenient for has improved the practicality.
The working principle of the invention is as follows:
referring to the attached drawings 1, 4 and 6 of the specification, an upper partition plate 5 is arranged at the top of a water cooling chamber 29, a lower partition plate 4 is arranged at the bottom of the water cooling chamber 29, and a circulating fan 12, an air inlet 9 and an air outlet 10 are respectively arranged on two sides of the water cooling chamber 29, so that a circulating air duct in the front-back direction can be formed in the water cooling chamber 29, and heat conducted by the water cooling exhaust 6 is exhausted to the outside of a case 1;
referring to the attached drawings 1, 2, 3 and 5 of the specification, a full-module adapter plate 23 and an adapter port 24 are adopted to connect a power supply line on a power supply 21 with a power supply line of a computer assembly, and a wiring hole 13 is formed, so that the power supply line can regularly penetrate through a water cooling chamber 29 and extend into the assembly chamber 2, independent air duct systems in the water cooling chamber 29 and the assembly chamber 2 cannot be influenced, the attractiveness is improved, and the utilization rate of the internal space of a case 1 is improved to the greatest extent.
The points to be finally explained are: first, in the description of the present application, it should be noted that, unless otherwise specified and limited, the terms "mounted," "connected," and "connected" should be understood broadly, and may be a mechanical connection or an electrical connection, or a communication between two elements, and may be a direct connection, and "upper," "lower," "left," and "right" are only used to indicate a relative positional relationship, and when the absolute position of the object to be described is changed, the relative positional relationship may be changed;
secondly, the method comprises the following steps: in the drawings of the disclosed embodiments of the invention, only the structures related to the disclosed embodiments are referred to, other structures can refer to common designs, and the same embodiment and different embodiments of the invention can be combined with each other without conflict;
and finally: the above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the invention, and any modifications, equivalents, improvements and the like that are within the spirit and principle of the present invention are intended to be included in the scope of the present invention.

Claims (8)

1.一种计算机集成装置，其特征在于：包括机箱(1)，所述机箱(1)内部设有组件室(2)、水冷室(29)和供电室(3)，所述供电室(3)设置于水冷室(29)的底部，所述供电室(3)与水冷室(29)之间设有下隔板(4)，所述组件室(2)设置于水冷室(29)的顶部，所述组件室(2)与水冷室(29)之间设有上隔板(5)；1. A computer integrated device, characterized in that: it comprises a chassis (1), and the chassis (1) is provided with a component chamber (2), a water cooling chamber (29) and a power supply chamber (3), and the power supply chamber ( 3) It is arranged at the bottom of the water cooling chamber (29), a lower partition (4) is arranged between the power supply chamber (3) and the water cooling chamber (29), and the component chamber (2) is arranged in the water cooling chamber (29) The top of the assembly chamber (2) and the water cooling chamber (29) are provided with an upper partition plate (5); 所述水冷室(29)内腔顶部设有水冷排(6)，所述水冷排(6)端部连接有进水管(7)和出水管(8)，所述水冷室(29)一端设有进风口(9)以及另一端设有出风口(10)，所述进风口(9)和出风口(10)内均设有软磁防尘网(11)，所述软磁防尘网(11)一侧设有循环风扇(12)，所述水冷室(29)后侧壁上开设有走线孔(13)；The top of the inner cavity of the water cooling chamber (29) is provided with a water cooling row (6), the end of the water cooling row (6) is connected with a water inlet pipe (7) and a water outlet pipe (8), and one end of the water cooling chamber (29) is provided with a water inlet pipe (7) and a water outlet pipe (8). There is an air inlet (9) and the other end is provided with an air outlet (10), both the air inlet (9) and the air outlet (10) are provided with a soft magnetic dustproof net (11), the soft magnetic dustproof net (11) A circulating fan (12) is provided on one side, and a wiring hole (13) is provided on the rear side wall of the water-cooling chamber (29); 所述供电室(3)内腔设有UPS(14)，所述UPS(14)前端设有三项插口(15)以及后端设有三项插头(16)，所述UPS(14)内部设蓄电池(17)，所述蓄电池(17)顶部设有第一水冷头(18)，所述蓄电池(17)一侧设有铜盖罩(19)，所述铜盖罩(19)底部设有逆变器、旁路开关和整流器，所述铜盖罩(19)顶部设有第二水冷头(20)，所述第一水冷头(18)和第二水冷头(20)通过冷水管(30)连接，所述UPS(14)一侧设有电源(21)；The inner cavity of the power supply room (3) is provided with a UPS (14), the front end of the UPS (14) is provided with a three-way socket (15) and the rear end is provided with a three-way plug (16), and a battery is provided inside the UPS (14). (17), the top of the battery (17) is provided with a first water cooling head (18), one side of the battery (17) is provided with a copper cover (19), and the bottom of the copper cover (19) is provided with a reverse Inverter, bypass switch and rectifier, the top of the copper cover (19) is provided with a second water cooling head (20), the first water cooling head (18) and the second water cooling head (20) pass through the cold water pipe (30) ) connection, a power supply (21) is provided on one side of the UPS (14); 所述下隔板(4)和机箱(1)之间连接有挡板(22)，所述下隔板(4)上贯穿设有全模组转接板(23)，所述全模组转接板(23)顶部和底部均设有转接口(24)。A baffle plate (22) is connected between the lower partition plate (4) and the chassis (1), and a full-module adapter plate (23) is penetrated through the lower partition plate (4). The top and bottom of the adapter plate (23) are provided with adapter ports (24). 2.根据权利要求1所述的一种计算机集成装置，其特征在于：所述组件室(2)前端和后端均设有风扇固定板(25)，所述组件室(2)前端开设有进风孔(26)，所述组件室(2)内腔设有组件固定板(27)，所述组件固定板(27)后侧壁向内弯曲有走线槽(28)，所述走线槽(28)设置于走线孔(13)的正上方。2 . The computer integrated device according to claim 1 , wherein a fan fixing plate ( 25 ) is provided at the front end and the rear end of the assembly chamber ( 2 ), and a fan fixing plate ( 25 ) is provided at the front end of the assembly chamber ( 2 ). 3 . The air inlet hole (26), the inner cavity of the component room (2) is provided with a component fixing plate (27), and the rear side wall of the component fixing plate (27) is bent inwardly with a wiring groove (28), the The wire groove (28) is arranged just above the wire routing hole (13). 3.根据权利要求1所述的一种计算机集成装置，其特征在于：所述挡板(22)设置于全模组转接板(23)的前侧，所述挡板(22)通过螺动与下隔板(4)和机箱(1)可拆卸连接，所述下隔板(4)和上隔板(5)均与机箱(1)内壁固定连接，所述挡板(22)的宽度大于电源(21)和UPS(14)之间的距离。3 . The computer integrated device according to claim 1 , wherein the baffle plate ( 22 ) is arranged on the front side of the full-module adapter plate ( 23 ), and the baffle plate ( 22 ) is screwed 3 . The movable and detachable connection between the lower partition (4) and the chassis (1), the lower partition (4) and the upper partition (5) are both fixedly connected with the inner wall of the chassis (1), the baffle (22) The width is greater than the distance between the power supply (21) and the UPS (14). 4.根据权利要求1所述的一种计算机集成装置，其特征在于：所述水冷排(6)固定设置于上隔板(5)的底部，所述全模组转接板(23)设置于水冷排(6)的正下方，所述软磁防尘网(11)设置于机箱(1)的表面，所述循环风扇(12)的数量设置为两个，两个所述循环风扇(12)的吹风方向相同。4. A computer integrated device according to claim 1, characterized in that: the water cooling row (6) is fixedly arranged at the bottom of the upper partition plate (5), and the full-module adapter plate (23) is arranged Right below the water cooling row (6), the soft magnetic dust-proof net (11) is arranged on the surface of the chassis (1), the number of the circulation fans (12) is set to two, and the two circulation fans ( 12) The blowing direction is the same. 5.根据权利要求1所述的一种计算机集成装置，其特征在于：所述进水管(7)和出水管(8)的底端贯穿下隔板(4)且延伸至UPS(14)内部，所述进水管(7)底端与第一水冷头(18)连接，所述出水管(8)和第二水冷头(20)连接。5. A computer integrated device according to claim 1, characterized in that: the bottom ends of the water inlet pipe (7) and the water outlet pipe (8) penetrate through the lower partition plate (4) and extend to the inside of the UPS (14) The bottom end of the water inlet pipe (7) is connected with the first water cooling head (18), and the water outlet pipe (8) is connected with the second water cooling head (20). 6.根据权利要求1所述的一种计算机集成装置，其特征在于：所述电源(21)通过螺钉与供电室(3)可拆卸连接，所述UPS(14)通过三项插头(16)和电源(21)上的输入口与电源(21)电性连接。6 . The computer integrated device according to claim 1 , wherein the power supply ( 21 ) is detachably connected to the power supply chamber ( 3 ) through screws, and the UPS ( 14 ) is connected through a three-way plug ( 16 ). 7 . and the input port on the power supply (21) is electrically connected with the power supply (21). 7.根据权利要求2所述的一种计算机集成装置，其特征在于：所述全模组转接板(23)设置于电源(21)和UPS(14)之间，所述电源(21)的模组线与全模组转接板(23)底部的转接口(24)连接，所述全模组转接板(23)顶部的转接口(24)与计算机内部组件的供电线连接，所述组件固定板(27)上还设有多个过线孔。7. A computer integrated device according to claim 2, characterized in that: the full-module adapter board (23) is arranged between the power supply (21) and the UPS (14), and the power supply (21) The modular line is connected with the transfer port (24) at the bottom of the full-module adapter board (23), and the transfer port (24) on the top of the full-module adapter board (23) is connected with the power supply line of the internal components of the computer, The component fixing plate (27) is also provided with a plurality of wire passage holes. 8.根据权利要求1所述的一种计算机集成装置，其特征在于：所述水冷排(6)的尺寸可根据计算机功耗进行自定义，所述机箱(1)为itx机箱，所述转接口(24)包括且不限于ATX24针接口、大D4PIN接口、小4PIN接口、SATA接口、6pin接口和4pin接口。8. A computer integrated device according to claim 1, characterized in that: the size of the water cooling row (6) can be customized according to the power consumption of the computer, the chassis (1) is an itx chassis, and the The interface (24) includes but is not limited to an ATX 24-pin interface, a large D4PIN interface, a small 4PIN interface, a SATA interface, a 6pin interface and a 4pin interface.
