Abstract
The invention discloses an environment-friendly exhaust gas treatment device convenient to mount, which comprises an air inlet pipe, a flow dividing assembly, a heat dissipation assembly, an air pump and a water absorption assembly, wherein the flow dividing assembly is mounted at one end of the air inlet pipe and comprises a clamping sleeve, a circular clamping plate and an end cover; the invention reduces the violent movement of the air flow and prolongs the service life of the equipment; the impact force of the gas is reduced, and the service life of the equipment is prolonged; is favorable for improving the purity of waste gas and is convenient for replacing the water absorbing part.
Description
Technical Field
The invention relates to the field of waste gas treatment equipment, in particular to waste gas treatment equipment which is environment-friendly and convenient to install.
Background
Nowadays, environmental protection is increasingly emphasized in life, and environmental protection projects are very important for waste gas treatment because the waste gas is necessary to be utilized and treated. The existing exhaust gas treatment device has the following defects: only the waste gas is introduced into the treatment tank for treatment, which is not beneficial to reducing the violent movement of the gas flow and the gas impact force, reducing the service life of the equipment and improving the cleanliness of the waste gas; in view of these drawbacks, it is desirable to design an exhaust gas treatment device that is environmentally friendly and easy to install.
Disclosure of Invention
The invention aims to provide the waste gas treatment equipment which is environment-friendly and convenient to install, so that the violent movement of airflow is reduced, and the service life of the equipment is prolonged; the impact force of the gas is reduced, and the service life of the equipment is prolonged; is favorable for improving the purity of waste gas and is convenient for replacing the water absorbing part.
The purpose of the invention can be realized by the following technical scheme: an environment-friendly and conveniently-installed waste gas treatment device comprises a gas inlet pipe, a flow dividing assembly, a heat dissipation assembly, an air suction pump and a water absorption assembly, wherein the flow dividing assembly is installed at one end of the gas inlet pipe and comprises a clamping sleeve, a circular clamping plate and an end cover, the gas inlet pipe is fixedly connected with one end of the clamping sleeve through a flange plate, a circular truncated cone-shaped flow dividing groove is formed in the other end of the clamping sleeve, a circular truncated cone fixing column is vertically installed at one end of the end cover, the central position of the end face of the circular truncated cone fixing column is connected with the middle position of one side of the circular clamping plate through a reset spring b, the circular clamping plate, the reset spring b and the circular truncated cone fixing column extend into the circular truncated cone-shaped flow dividing groove, an annular clamping block is clamped in the annular clamping groove, and the outer edge of the annular clamping block is connected with the inner wall of the annular clamping groove through a plurality of reset springs a which are distributed at equal angles, a plurality of overflow holes are uniformly formed in the plate surface of the annular clamping block, and a flow distribution channel is formed among the circular truncated cone fixing column, the circular clamping plate and the circular truncated cone-shaped flow distribution groove;
the end cover is connected with two shunt tubes corresponding to the positions of the shunt channels, the heat dissipation assemblies are sleeved on the shunt tubes, the water tank is mounted at the other ends of the shunt tubes, water is filled in the water tank, the upper space of the water in the water tank is connected with an air suction pump through a connecting pipe, the other end of the air suction pump is connected with a water suction assembly, and the outer edge of the annular clamping block abuts against the inner wall of the circular truncated cone-shaped shunt groove.
As a further scheme of the invention: the direction of the round table-shaped splitter box arranged on the clamping sleeve is open from the air inlet direction to the air outlet direction, and the direction of the round table fixing column is open from the air inlet direction to the air outlet direction.
As a further scheme of the invention: the heat dissipation assembly comprises an annular fixing sleeve, semiconductor refrigeration pieces and heat collection blocks, a plurality of heat collection blocks are distributed on the outer side of the flow dividing pipe, the outer side of each heat collection block is sleeved with the annular fixing sleeve, and the semiconductor refrigeration pieces are clamped on the inner wall of the annular fixing sleeve.
As a further scheme of the invention: the water absorption assembly comprises a left clamping plate, a right clamping plate, water absorption cotton, a left clamping groove and a right clamping groove, the air outlet end of the air pump is connected with one side of the left clamping plate through a connecting pipe, the left clamping groove is formed in the other side of the left clamping plate, the right clamping groove is formed in one side of the right clamping plate, the left clamping plate is fixedly connected with the right clamping plate through a bolt, and the water absorption cotton is clamped between the left clamping groove and the right clamping groove.
As a further scheme of the invention: and a spiral pipe is arranged in the middle of one side of the right clamping plate and is communicated with the right clamping groove.
The invention has the beneficial effects that:
1. waste gas enters a truncated cone-shaped shunt groove of the clamping sleeve through an air inlet pipe, the circular clamping plate is impacted by air flow, the reset spring b is stressed and compressed, meanwhile, the circular clamping plate moves due to impact, the circular clamping plate moves along the direction of the opening of the truncated cone-shaped shunt groove due to the moving direction, the reset spring a is contracted in the initial state, when the circular clamping plate moves, the reset spring a slowly recovers to press the annular clamping block, the outer aid of the annular clamping block is kept to press the inner wall of the truncated cone-shaped shunt groove, the air flow flows into a shunt channel through an overflow hole to shunt and reduce the flow rate, so that the violent movement of the air flow is reduced, and the service life of equipment is prolonged;
2. the gas flows into the flow dividing pipe, the heat collecting block absorbs heat, the semiconductor refrigerating sheet cools and radiates heat, and the temperature in the flow dividing pipe is reduced due to the heat balance principle, so that the gas impact force is reduced, and the service life of the equipment is prolonged;
3. the aquatic of water tank is entered into through the shunt tubes, through the multiple chemical in the water absorption waste gas, waste gas rises to the top space of the inside water of water tank again, and the aspiration pump takes it out, through the cotton that absorbs water, absorbs moisture, reduces the velocity of flow through the spiral pipe again, is favorable to improving the cleanliness of waste gas.
Drawings
The invention is further described with reference to the following figures and examples.

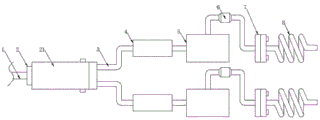

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a schematic structural diagram of the shunt assembly of the present invention.
Fig. 3 is a schematic structural diagram of a heat dissipation assembly of the present invention.
FIG. 4 is a schematic view of the structure of the water absorbing assembly of the present invention.
In the figure: 1. an air inlet pipe; 2. a flow diversion assembly; 21. a card sleeve; 22. a flange plate; 23. a round table-shaped splitter box; 24. a circular clamping plate; 25. an annular fixture block; 26. an overflow aperture; 27. an annular neck; 28. a return spring a; 29. a return spring b; 210. a round table fixing column; 211. an end cap; 3. a shunt tube; 4. a heat dissipating component; 41. an annular fixing sleeve; 42. a semiconductor refrigeration sheet; 43. a heat collection block; 5. a water tank; 6. an air pump; 7. a water absorbing assembly; 71. a left snap gauge; 72. a right snap-gauge; 73. absorbent cotton; 74. a left card slot; 75. a right card slot; 8. a spiral tube.
Detailed Description
As shown in fig. 1-4, an environment-friendly exhaust gas treatment device convenient to install comprises an air inlet pipe 1, a flow dividing assembly 2, a heat dissipation assembly 4, an air pump 6 and a water absorption assembly 7, wherein the flow dividing assembly 2 is installed at one end of the air inlet pipe 1, the flow dividing assembly 2 comprises a clamping sleeve 21, a circular clamping plate 24 and an end cover 211, the air inlet pipe 1 is fixedly connected with one end of the clamping sleeve 21 through a flange plate 22, a circular truncated cone-shaped flow dividing groove 23 is formed in the other end of the clamping sleeve 21, a circular truncated cone fixing column 210 is vertically installed at one end of the end cover 211, the central position of the end face of the circular truncated cone fixing column 210 is connected with the middle position of one side of the circular clamping plate 24 through a return spring b29, the circular clamping plate 24, a return spring b29 and the circular truncated cone fixing column 210 extend into the circular truncated cone-shaped flow dividing groove 23, an annular clamping groove 27 is formed in the outer edge of the circular clamping plate 24, an annular clamping block 25 is clamped in the annular clamping groove 27, the outer edge of the annular clamping block 25 is connected with the inner wall of the annular clamping groove 27 through a plurality of return springs a28 which are arranged at equal angle, a plurality of overflow holes 26 are uniformly formed in the surface of the annular fixture block 25, a flow distribution channel is formed among the circular truncated cone fixing column 210, the circular clamping plate 24 and the circular truncated cone-shaped flow distribution groove 23, and the outer edge of the annular fixture block 25 abuts against the inner wall of the circular truncated cone-shaped flow distribution groove 23;
the end cover 211 is connected with two shunt tubes 3 corresponding to the shunt channels, the shunt tubes 3 are sleeved with a heat dissipation assembly 4, the other ends of the shunt tubes 3 are provided with a water tank 5, the water tank 5 is filled with water, the space above the water in the water tank 5 is connected with an air suction pump 6 through a connecting tube, and the other end of the air suction pump 6 is connected with a water suction assembly 7;
the direction of the truncated cone-shaped shunt groove 23 arranged on the cutting sleeve 21 is open from the air inlet direction to the air outlet direction, and the direction of the truncated cone fixing column 210 is open from the air inlet direction to the air outlet direction, so that the gas shunt is facilitated;
the heat radiation assembly 4 comprises an annular fixed sleeve 41, a semiconductor refrigeration sheet 42 and a heat collection block 43, a plurality of heat collection blocks 43 are distributed on the outer side of the flow dividing pipe 3, the annular fixed sleeve 41 is sleeved on the outer side of the heat collection block 43, and the semiconductor refrigeration sheet 42 is clamped on the inner wall of the annular fixed sleeve 41, so that the temperature of gas can be reduced, and the impact force of the gas can be reduced;
the water absorption assembly 7 comprises a left clamping plate 71, a right clamping plate 72, water absorption cotton 73, a left clamping groove 74 and a right clamping groove 75, the air outlet end of the air suction pump 6 is connected with one side of the left clamping plate 71 through a connecting pipe, the other side of the left clamping plate 71 is provided with the left clamping groove 74, one side of the right clamping plate 72 is provided with the right clamping groove 75, the left clamping plate 71 is fixedly connected with the right clamping plate 72 through bolts, the assembly and disassembly are facilitated, the replacement of parts is facilitated, and the water absorption cotton 73 is clamped between the left clamping groove 74 and the right clamping groove 75, so that the water absorption cotton 73 in the air is favorably absorbed;
wherein, spiral pipe 8 is installed to right cardboard 72 one side intermediate position department, and spiral pipe 8 and right draw-in groove 75 UNICOM, are favorable to reducing gaseous velocity of flow.
The working principle of the invention is as follows: waste gas enters the truncated cone-shaped shunt groove 23 of the clamping sleeve 21 through the gas inlet pipe 1, the circular clamping plate 24 is impacted by airflow, the return spring b29 is stressed and compressed, meanwhile, the circular clamping plate 24 moves due to impact, the circular clamping plate 24 moves in the opening direction along the truncated cone-shaped shunt groove 23 due to the moving direction, the return spring a28 is contracted in the initial state, when the circular clamping plate 24 moves, the return spring a28 slowly recovers to press the annular clamping block 25, the outer aid of the annular clamping block 25 is kept to press the inner wall of the truncated cone-shaped shunt groove 23, the airflow flows into a shunt channel through the overflow hole 26 to be shunted and the flow velocity is reduced, so that the violent movement of the airflow is reduced, and the service life of the equipment is prolonged; the gas flows into the shunt tube 3, the heat collection block 43 absorbs heat, the semiconductor refrigeration sheet 42 cools and radiates heat, and due to the heat balance principle, the temperature in the shunt tube 3 is reduced, so that the gas impact force is reduced, and the service life of the equipment is prolonged; through shunt tubes 3 entering into the aquatic of water tank 5, through the multiple chemical in the water absorption waste gas, waste gas rises to the top space of the inside water of water tank 5 again, and aspiration pump 6 takes it out, through cotton 73 that absorbs water, absorbs moisture, reduces the velocity of flow through spiral pipe 8 again, is favorable to improving the cleanliness and the velocity of flow of waste gas.
The preferred embodiments of the invention disclosed above are intended to be illustrative only. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and the practical application, to thereby enable others skilled in the art to best utilize the invention. The invention is limited only by the claims and their full scope and equivalents.
Claims (2)
1. The utility model provides an exhaust-gas treatment equipment of installation of being convenient for is used to environmental protection, includes intake pipe (1), reposition of redundant personnel subassembly (2), radiator unit (4), aspiration pump (6) and subassembly (7) that absorb water, its characterized in that: the flow dividing assembly (2) is installed at one end of the air inlet pipe (1), the flow dividing assembly (2) comprises a clamping sleeve (21), a circular clamping plate (24) and an end cover (211), the air inlet pipe (1) is fixedly connected with one end of the clamping sleeve (21) through a flange plate (22), a circular truncated cone-shaped flow dividing groove (23) is formed in the other end of the clamping sleeve (21), a circular truncated cone fixing column (210) is vertically installed at one end of the end cover (211), the central position of the end face of the circular truncated cone fixing column (210) is connected with the middle position of one side of the circular clamping plate (24) through a return spring b (29), the circular clamping plate (24), the return spring b (29) and the circular truncated cone fixing column (210) extend into the circular truncated cone-shaped flow dividing groove (23), an annular clamping groove (27) is formed in the outer edge of the circular clamping plate (24), an annular clamping block (25) is clamped in the annular clamping groove (27), and the annular clamping block (25) is formed in the return spring a plurality of equiangularly distributed and the annular clamping block a plurality of equiangular outer edges a (28) and an annular clamping groove (28) and an annular clamping block (211) The inner walls of the clamping grooves (27) are connected, a plurality of overflow holes (26) are uniformly formed in the surface of the annular clamping block (25), a shunting channel is formed among the circular truncated cone fixing column (210), the circular clamping plate (24) and the circular truncated cone-shaped shunting groove (23), and the outer edge of the annular clamping block (25) is abutted to the inner wall of the circular truncated cone-shaped shunting groove (23);
the end cover (211) is connected with two shunt tubes (3) corresponding to the shunt channel positions, the shunt tubes (3) are sleeved with a heat dissipation assembly (4), a water tank (5) is installed at the other end of each shunt tube (3), water is filled in the water tank (5), the space above the water in the water tank (5) is connected with an air suction pump (6) through a connecting pipe, and the other end of the air suction pump (6) is connected with a water suction assembly (7);
the heat dissipation assembly (4) comprises an annular fixing sleeve (41), semiconductor refrigeration sheets (42) and heat collection blocks (43), a plurality of heat collection blocks (43) are uniformly distributed on the outer side of the flow dividing pipe (3), the annular fixing sleeve (41) is sleeved on the outer side of each heat collection block (43), and the semiconductor refrigeration sheets (42) are clamped on the inner wall of the annular fixing sleeve (41);
the water absorption assembly (7) comprises a left clamping plate (71), a right clamping plate (72), water absorption cotton (73), a left clamping groove (74) and a right clamping groove (75), the air outlet end of the air suction pump (6) is connected with one side of the left clamping plate (71) through a connecting pipe, the other side of the left clamping plate (71) is provided with the left clamping groove (74), one side of the right clamping plate (72) is provided with the right clamping groove (75), the left clamping plate (71) is fixedly connected with the right clamping plate (72) through bolts, and the water absorption cotton (73) is clamped between the left clamping groove (74) and the right clamping groove (75); the round table-shaped splitter box (23) arranged on the cutting sleeve (21) is open from the air inlet direction to the air outlet direction, and the round table fixing column (210) is open from the air inlet direction to the air outlet direction.
2. An environmentally friendly, easy to install exhaust gas treatment device according to claim 1, wherein: spiral pipe (8) are installed to right cardboard (72) one side intermediate position department, just spiral pipe (8) and right draw-in groove (75) UNICOM.
