Abstract

The invention discloses an easy-to-install multimedia advertisement display device in the technical field of advertising facilities. Tighten the nut, remove the U-shaped threaded rod, clamp the cutting opening to the street light pole or the outer wall of the vertical rod, and then fix it with the U-shaped threaded rod. You can use a wrench to insert between the support arch and the second round hole plate and rotate it for a long time. Make the end of the ordinary threaded rod against the outer wall of the thicker street light pole or vertical rod, and then use the U-shaped threaded rod to fix it. When it needs to be fixed vertically on the ground, remove the U-shaped threaded rod and use a wrench to turn the long nut. Furthermore, the insertion tube drives the conical shell to be inserted into the ground, and the pad is tapped to make the insertion firm.

Description

An easy-to-install multimedia advertisement display device

technical field

The invention relates to the technical field of advertising facilities, in particular to a multimedia advertising display device that is easy to install.

Background technique

Multimedia advertising is a means of publicity to transmit information to the public openly and widely through a certain form of media for a specific need. Advertisements are divided into broad and narrow senses. Advertising in a broad sense includes non-economic advertising and economic advertising. Non-economic advertising refers to advertising that is not for profit, also known as effect advertising, such as various announcements, notices, and statements from government administrative departments, social institutions, and even individuals. The main purpose is to Promotion; narrow advertising only refers to economic advertising, also known as commercial advertising, refers to advertising for the purpose of profit, usually an important means of communicating information between commodity producers, operators and consumers, or enterprises occupying the market, promoting products, An important form of providing labor services, the main purpose is to expand economic benefits.

Multimedia advertising has a wide coverage, and traditional media, whether television, newspapers, radio or light box posters, cannot cross geographical restrictions, and can only affect a specific area. But once any information enters the Internet, Internet users all over the world can see it on the electronic screen; the cost is low, although the radio and television advertisements are calculated in seconds, the cost is also tens of thousands; newspaper advertisements are also The price is not cheap, which is beyond the affordability of most individuals. The INTERNET computer network saves the printing of newspapers and the expensive production costs of radio and television, and the cost is greatly reduced, so that most individuals can afford it; the probability of transaction is high, and the advertising audience is very Most of the advertisements in traditional media are passively accepted and are not easy to produce results. If 200,000 people have seen a product advertisement on TV, but 95% of the audience may have no interest, and they will forget about it immediately after watching it. But on the Internet, most of the people who come to visit the advertisements inquire with the desire to buy, and the possibility of making a deal is extremely high; multimedia dynamic, Internet online advertisements can be made into a combination of sound, image and animation according to the requirements of the merchants of multimedia ads. This is unmatched by other newspapers, magazines and radio advertisements. Compared with TV multimedia advertising, the price difference is obvious; speediness, which refers to the release of information on the one hand, and the feedback and replacement of information on the other hand. For advertising operation, the time required from the submission of materials to the release can be several hours or less; however, most of the existing multimedia advertising display devices are fixed network display devices with a narrow scope of use, and outdoor equipment is installed. Trouble, based on this, the present invention designs a multimedia advertisement display device that is easy to install to solve the above problems.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a multimedia advertisement display device that is easy to install, so as to solve the problems of narrow application range and troublesome installation of the existing advertisement display device proposed in the above-mentioned background art.

In order to achieve the above purpose, the present invention provides the following technical solutions: a multimedia advertisement display device that is easy to install, comprising two sets of partitions, a rotating device, an advertisement display device and a supporting device, which are vertically welded on the upper and lower sides. The two sets of partitions are opposite to the center of the surface, the advertising display device is fixed on the center of the outer wall of the rotating device through anti-theft bolts, and the bottom of the partition at the bottom is fixed with a U-shaped seat through a horizontal chute and anti-theft bolts. The inner cavity is fixed with a support device through anti-theft bolts;

The rotating device includes two groups of circular welding blocks distributed at an upper and lower relative interval, a first optical axis is vertically welded between the opposite surfaces of the two groups of the circular welding blocks, and the outer wall of the first optical axis is rotated and sleeved by a bearing. A rotating tube, the top of the rotating tube is welded with a first circular orifice plate sleeved on the outer wall of the first optical axis, and a first threaded orifice plate is welded horizontally and tangentially on both sides of the middle of the outer wall of the rotating tube. The lower part of the inner wall of the tube is fixed with an inner gear ring through stepped grooves and countersunk head bolts, and the top of the round welding block at the bottom is close to the surface of the first optical axis and is fixed with a low-speed forward and reverse rotation motor through a support block. The top power output end is fixedly sleeved with a pinion, and the pinion meshes with the inner gear;

The support device includes a second threaded orifice plate, the bottom of the second threaded orifice plate is vertically welded with a second optical axis, and the bottom of the second optical axis is welded with a common threaded rod with a vertical T-shaped through groove on the outer wall. , the surface of the common threaded rod is fitted with a T-shaped block, the outer wall of the common threaded rod is sleeved with an insertion tube, and the inner wall of the insertion tube is welded with the outer end of the T-shaped block, and the top of the insertion tube is welded There is a second round hole plate, the inner cavity of the round hole of the second round hole plate is rotatably inserted with a long nut matched with a common threaded rod through a welding bearing, and the long nut is slidably sleeved on the outer wall of the second optical axis , the top of the second round hole plate is welded with a support arch, and the center of the top of the support arch is rotatably sleeved on the outer wall of the long nut through the through hole, and the top of the outer wall of the long nut is welded with a spacer block, and the spacer block The bottom of the insert tube is attached to the upper surface of the support arch, and the bottom of the insertion tube is connected with two sets of conical shells that are assembled into a conical shape through the rotation of the spring shaft. There are circular shearing openings, the outer wall of the conical shell is provided with rectangular through grooves in the left and right horizontal upper parts, the outer wall of the conical shell is provided with trapezoidal through grooves in the front and rear horizontal upper parts, and two sets of the rectangular through grooves are provided. A U-shaped threaded rod is inserted between the slots, two ends of the U-shaped bolt rod are screwed with locking nuts, and the locking nuts are fitted with the inner wall of the conical shell;

The low-speed forward and reverse motor is electrically connected to an angle controller, the angle controller is electrically connected to a timer through a wire and a transformer, the timer is electrically connected to a rain sensor switch, and the rain sensor switch is electrically connected to a dual power switch , the dual power switch is electrically connected with a commercial power module and a storage battery, the storage battery is electrically connected with a solar power generation device, the rain sensor switch and the solar power generation device are fixed on the upper surface of the partition plate on the top, the storage battery, A dual power switch and a timer are fixed on the lower surface of the partition at the top, and the angle controller is fixed on the lower surface of the partition at the bottom through a sealing box.

Preferably, the outer wall of the rotating tube is provided with a heat dissipation through hole whose opening is inclined downward.

Preferably, the surfaces of the second optical axis and the common threaded rod are coated with scale lines.

Preferably, the bottom end of the common threaded rod is in a concave crescent shape, and a non-slip rubber pad is glued on the inner surface of the concave crescent shape.

Preferably, the surface of the second round hole plate is provided with an injection hole with a threaded plug.

Preferably, the inner wall of the cutout is provided with transverse anti-skid lines.

Compared with the prior art, the beneficial effects of the present invention are: the present invention can deflect the advertisement display device to the left and right by a certain angle through the rotating device, which is convenient for observation; Trapezoidal through slot, unscrew the lock nut, remove the U-shaped threaded rod, clamp the cutting opening to the street lamp pole or the outer wall of the vertical rod, and then fix it with the U-shaped threaded rod. Use a wrench to insert the support arch and the second round hole Rotate the long nut between the plates to make the end of the common threaded rod against the thicker street light pole or the outer wall of the vertical rod, and then use the U-shaped threaded rod to fix it. When it needs to be fixed vertically on the ground, remove the U-shaped threaded rod and use The wrench rotates the long nut, and then inserts the tube to drive the conical shell into the ground, and taps the spacer to make the insertion firm.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

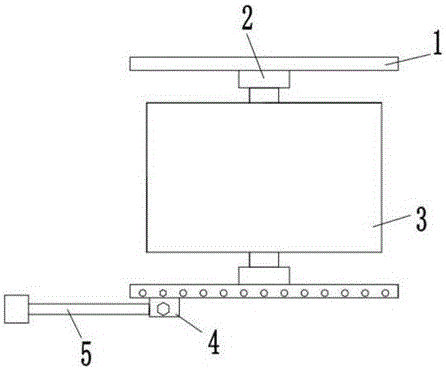

Fig. 1 is the structural representation of the present invention;

FIG. 2 is a schematic structural diagram of the rotating device in FIG. 1;

FIG. 3 is a schematic structural diagram of the support device in FIG. 1;

FIG. 4 is a control principle diagram of the present invention.

In the accompanying drawings, the list of components represented by each number is as follows:

1- partition, 2- rotating device, 3- advertising display device, 4- U-shaped seat, 5- supporting device, 6- angle controller, 7- timer, 8- rain sensor switch, 9- dual power switch , 10-mains module, 11-battery, 12-solar power generation device, 20-circle welding block, 21-first optical axis, 22-rotating tube, 23-first round orifice plate, 24-first threaded orifice plate , 25-internal ring gear, 26-forward and reverse rotation motor, 27-pinion gear, 500-second threaded orifice plate, 501-second optical shaft, 502-common threaded rod, 503-T block, 504-insertion tube , 505-Second round orifice plate, 506-Long nut, 507-Spacer, 508-Support arch, 509-Conical shell, 510-Cut opening, 511-Rectangular through slot, 512-Trapezoidal through slot, 513-U-Threaded Rod, 514-Lock Nut.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

1-4, the present invention provides a technical solution: a multimedia advertising display device that is easy to install, comprising two sets of partitions 1, a rotating device 2, an advertising display device 3 and a supporting device 5, which are distributed at a relative interval from top to bottom. The rotating device 2 is vertically welded on the center of the opposite surfaces of the two sets of partitions 1, the advertising display device 3 is fixed on the center of the outer wall of the rotating device 2 by anti-theft bolts, and the bottom of the bottom partition 1 is fixed with a U-shaped seat 4 through a horizontal chute and anti-theft bolts. , the inner cavity of the U-shaped seat 4 is fixed with a support device 5 through anti-theft bolts, and the support device 5 can be adjusted to be vertically fixed with the U-shaped seat 4 by using the anti-theft bolts. The position of U-shaped seat 4;

The rotating device 2 includes two groups of circular welding blocks 20 distributed at relative intervals up and down. A first optical axis 21 is vertically welded between the opposite surfaces of the two groups of circular welding blocks 20. Tube 22, the top of the rotary tube 22 is welded with a first circular orifice plate 23 sleeved on the outer wall of the first optical axis 21, and a first threaded orifice plate 24 is welded on both sides of the middle of the outer wall of the rotary tube 22 in the horizontal tangential direction. The lower part of the inner wall of 22 is fixed with an inner gear 25 through stepped grooves and countersunk head bolts, and the top of the bottom round welding block 20 is close to the surface of the first optical axis 21 and is fixed with a low-speed forward and reverse rotation motor 26 through a support block, and a low-speed forward and reverse rotation motor 26 The top power output end is fixedly sleeved with a pinion 27, which meshes with the inner gear 25. The advertising display device 3 can be an electronic screen or a matrix display, which is connected to the first threaded hole plate 24 through anti-theft bolts. The reversing motor 26 rotates, and then the pinion 27 is controlled to drive the inner gear 25 to rotate, and then the rotating tube 22 fixed with the advertisement display device 3 rotates, which is convenient for viewing advertisements in different directions;

The support device 5 includes a second threaded orifice plate 500, the bottom of the second threaded orifice plate 500 is vertically welded with a second optical axis 501, and the bottom of the second optical axis 501 is welded with a common threaded rod 502 with a vertical T-shaped through groove on the outer wall. , the surface of the ordinary threaded rod 502 is fitted with a T-shaped block 503, the outer wall of the ordinary threaded rod 502 is sleeved with an insertion tube 504, and the inner wall of the insertion tube 504 is welded with the outer end of the T-shaped block 503, and the top of the insertion tube 504 is welded. A second round hole plate 505 is welded, and the inner cavity of the round hole of the second round hole plate 505 is rotatably inserted with a long nut 506 matched with the ordinary threaded rod 502 through the welding bearing, and the long nut 506 is slidably sleeved on the second optical axis 501 On the outer wall of the second round hole plate 505, a support arch 508 is welded on the top of the second round hole plate 505, and the center of the top of the support arch 508 is rotated and sleeved on the outer wall of the long nut 506 through the through hole, and the top of the outer wall of the long nut 506 is welded with a spacer block 507, and the bottom of the cushion block 507 is attached to the upper surface of the support arch 508, and the bottom of the insertion tube 504 is connected with two sets of conical shells 509 that are assembled into a conical shape through the rotation of the spring shaft, and the two sets of conical shells 509 There is a circular shearing opening 510 on the bonding surface of the conical shell 509, a rectangular through groove 511 is arranged on the left and right horizontal upper parts of the outer wall of the conical shell 509, and a trapezoidal through slot 512 is arranged on the front and rear horizontal upper parts of the outer wall of the conical shell 509. , U-shaped threaded rods 513 are inserted between the two sets of rectangular through grooves 511, and locking nuts 514 are screwed on both ends of the U-shaped bolt rods 513, and the locking nuts 514 are attached to the inner wall of the conical housing 509. When on the street light pole or vertical rod, use a wrench to pass through the trapezoidal through groove 512, unscrew the lock nut 514, remove the U-shaped threaded rod 513, clamp the cut 510 to the outer wall of the street light pole or vertical rod, and then pass the The U-shaped threaded rod 513 is fixed, and a wrench can be inserted between the support arch 508 and the second round orifice plate 505 to rotate the long nut 506, so that the end of the ordinary threaded rod 502 is pressed against the outer wall of the thicker street light pole or the vertical rod, and then the long nut 506 is rotated. Use the U-shaped threaded rod 513 to fix it. At this time, as shown in Figure 1, when it needs to be fixed vertically on the ground, remove the U-shaped threaded rod 513, use a wrench to turn the long nut 506, and then insert the tube 504 to drive the conical shell 509 Insert into the ground, tap the pad 507 to make the insertion firm;

The low-speed forward and reverse rotation motor 26 is electrically connected to the angle controller 6, the angle controller 6 is electrically connected to the timer 7 through a wire and a transformer, the timer 7 is electrically connected to a rainwater sensing switch 8, and the rainwater sensing switch 8 is electrically connected to a dual power switch 9 , the dual power switch 9 is electrically connected with the mains module 10 and the battery 11, the battery 11 is electrically connected with the solar power generation device 12, the rain sensor switch 8 and the solar power generation device 12 are fixed on the upper surface of the top partition 1, the battery 11, the double The power switch 9 and the timer 7 are fixed on the lower surface of the top partition 1, the angle controller 6 is fixed on the lower surface of the bottom partition 1 through a sealing box, and the dual power switch 9 can also be connected to the advertising display device 3 through a transformer , so that it can work with electric power for a long time, and at the same time, the rain sensor switch 8 is disconnected in rainy days, and then the low-speed forward and reverse rotation motor 26 cannot move to a certain extent under the action of the angle controller 6, reducing the probability of water ingress.

Among them, the outer wall of the rotating tube 22 is provided with a heat dissipation through hole whose opening is inclined downward; it is convenient for the low-speed forward and reverse rotation motor 26 to dissipate heat, and at the same time, rainwater is prevented from being swept in. The surfaces of the second optical axis 501 and the common threaded rod 502 are coated with scale lines ; It is convenient to determine the position of the long nut 506 and prevent it from rotating downward beyond the length of the ordinary threaded rod 502. The bottom end of the ordinary threaded rod 502 is in the shape of a concave crescent, and the inner surface of the concave crescent is glued with a non-slip rubber pad; it is easy to resist The outer wall of the street light pole or the vertical pole, the surface of the second round hole plate 505 is provided with an injection hole with a threaded plug; use it to inject cement slurry for fixing, and the inner wall of the shear opening 510 is provided with a transverse anti-skid pattern, which increases and The friction between the street light poles or the outer walls of the vertical poles is firmly clamped.

A specific application of this embodiment is as follows: the anti-theft bolt is connected to the first threaded orifice plate 24, the low-speed forward and reverse rotation motor 26 rotates, and the pinion 27 is controlled to drive the inner gear 25 to rotate, and the rotation of the advertisement display device 3 is fixed. The rotation of the tube 22 is convenient for viewing advertisements in different directions. The dual power switch 9 can also be connected to the advertisement display device 3 through a transformer, so that it can obtain electric power for a long time. 26. The angle controller 6 cannot move left and right to a certain extent to reduce the probability of water ingress. When it needs to be fixed on the street light pole or vertical pole, use a wrench to pass through the trapezoidal through groove 512 and unscrew the lock nut 514 , remove the U-shaped threaded rod 513, clamp the cutting opening 510 to the street lamp pole or the outer wall of the vertical rod, and then fix it with the U-shaped threaded rod 513, and use a wrench to insert between the support arch 508 and the second round hole plate 505. Move the nut 506 to make the end of the ordinary threaded rod 502 abut against the outer wall of the thicker street light pole or vertical rod, and then use the U-shaped threaded rod 513 to fix it. At this time, as shown in Figure 1, when it needs to be vertically fixed on the ground, The U-shaped threaded rod 513 is disassembled, the long nut 506 is rotated with a wrench, and then the insertion tube 504 drives the conical housing 509 to be inserted into the ground, and the cushion block 507 is tapped to make the insertion firm.

In the description of this specification, description with reference to the terms "one embodiment," "example," "specific example," etc. means that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one aspect of the present invention. in one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The above-disclosed preferred embodiments of the present invention are provided only to help illustrate the present invention. The preferred embodiments do not exhaust all the details, nor do they limit the invention to only the described embodiments. Obviously, many modifications and variations are possible in light of the contents of this specification. The present specification selects and specifically describes these embodiments in order to better explain the principles and practical applications of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is to be limited only by the claims and their full scope and equivalents.

Claims (6)

1. The utility model provides a multimedia advertisement display device convenient to installation, includes two sets of baffles (1), rotary device (2), advertisement display device (3) and strutting arrangement (5) of relative interval distribution from top to bottom, its characterized in that: the rotary device (2) is vertically welded in the center of the opposite surfaces of the two groups of partition plates (1), the advertisement display device (3) is fixed in the center of the outer wall of the rotary device (2) through an anti-theft bolt, the bottom of the partition plate (1) on the lower side is fixed with a U-shaped seat (4) through a horizontal chute and the anti-theft bolt, and a supporting device (5) is fixed in the inner cavity of the U-shaped seat (4) through the anti-theft bolt;

rotating device (2) is including two sets of round welding block (20) of relative interval distribution from top to bottom, and is two sets of perpendicular welding has first optical axis (21) between the relative surface of round welding block (20), the outer wall of first optical axis (21) has cup jointed rotatory pipe (22) through the bearing rotation, the top welding of rotatory pipe (22) has first round hole board (23) of cup jointing at first optical axis (21) outer wall, the outer wall middle part both sides horizontal tangential of rotatory pipe (22) has all welded first screw hole board (24), the inner wall lower part of rotatory pipe (22) is fixed with ring gear (25) through ladder groove and countersunk head bolt, the bottom the top of round welding block (20) is close to first optical axis (21) surface and is fixed with low-speed positive reverse rotation motor (26) through the supporting shoe, the fixed cover of top power take off end of low-speed positive reverse rotation motor (26) has been cup jointed pinion (27), the pinion (27) is meshed with the inner gear ring (25);

the supporting device (5) comprises a second threaded hole plate (500), a second optical axis (501) is perpendicularly welded at the bottom of the second threaded hole plate (500), a common threaded rod (502) with a T-shaped through groove is welded at the bottom of the second optical axis (501), T-shaped blocks (503) are matched and slid on the surface of the common threaded rod (502), inserting pipes (504) are sleeved on the outer wall of the common threaded rod (502) at intervals, the inner wall of each inserting pipe (504) is welded with the outer end of the corresponding T-shaped block (503), a second round hole plate (505) is welded at the top of each inserting pipe (504), a long nut (506) matched with the corresponding common threaded rod (502) is rotatably inserted into a round hole inner cavity of the second round hole plate (505) through a welding bearing, the long nut (506) is slidably sleeved on the outer wall of the second optical axis (501), and a supporting arch (508) is welded at the top of the second round hole plate (505), the center of the top of the supporting arch frame (508) is rotatably sleeved on the outer wall of the long nut (506) through a through hole, a cushion block (507) is welded on the top of the outer wall of the long nut (506), the bottom of the cushion block (507) is attached to the upper surface of the supporting arch frame (508), the bottom of the insertion pipe (504) is rotatably connected with two groups of conical shells (509) which are spliced into a cone shape through a spring rotating shaft, shearing mouths (510) which are spliced into a circular shape are arranged on the attaching surfaces of the two groups of conical shells (509), a rectangular through groove (511) is arranged at the left and right horizontal upper parts of the outer wall of the conical shell (509), the front and back horizontal upper parts of the outer wall of the conical shell (509) are provided with trapezoidal through grooves (512), a U-shaped threaded rod (513) is inserted between the two groups of rectangular through grooves (511), two ends of the U-shaped threaded rod (513) are in threaded connection with locking nuts (514), and the locking nuts (514) are attached to the inner wall of the conical shell (509);

the low-speed forward and reverse rotation motor (26) is electrically connected with an angle controller (6), the angle controller (6) is electrically connected with a timer (7) through a lead and a transformer, the timer (7) is electrically connected with a rainwater sensing switch (8), the rainwater sensing switch (8) is electrically connected with a double-power-supply change-over switch (9), the dual-power supply switch (9) is electrically connected with a mains supply module (10) and a storage battery (11), the storage battery (11) is electrically connected with a solar power generation device (12), the rainwater sensing switch (8) and the solar power generation device (12) are fixed on the upper surface of the partition board (1) at the top, the storage battery (11), the double-power-supply switch (9) and the timer (7) are fixed on the lower surface of the top partition board (1), the angle controller (6) is fixed on the lower surface of the bottom of the partition board (1) through a sealing box.

2. An easily installable multimedia advertising display according to claim 1, wherein: and the outer wall of the rotating pipe (22) is provided with a heat dissipation through hole with an inclined opening downwards.

3. An easily installable multimedia advertising display according to claim 1, wherein: the surfaces of the second optical axis (501) and the common threaded rod (502) are coated with scale marks.

4. An easily installable multimedia advertising display according to claim 1, wherein: the bottom end of the common threaded rod (502) is in a concave crescent shape, and an anti-skid rubber pad is glued on the inner surface of the concave crescent shape.

5. An easily installable multimedia advertising display according to claim 1, wherein: and the surface of the second round hole plate (505) is provided with an injection hole with a threaded plug.

6. An easily installable multimedia advertising display according to claim 1, wherein: the inner wall of the shear opening (510) is provided with transverse anti-skid grains.
