Abstract
本发明公开了一种组合结构独立式后浇带钢支撑施工设备，包括混凝土顶板后浇带、木模板和模板木楞，所述混凝土顶板后浇带的底部固有木模板，所述木模板的底部固有模板木楞，所述模板木楞底部设有可调整固定节平台，所述可调整固定节平台的底端固定有支撑标准节，所述支撑标准节之间通过螺栓锚固件进行固接。本发明通过解决此项模板搭设及支撑问题，利用可调整固定节平台、支撑标准节、螺栓锚固件和后底坐板组装一套设备，利用插销锁、固定螺栓等原理，独立设置后浇带模板，达到后浇带模板独立支设效果，整体制作简单、安装操作方便、安装牢固，且便于拆装，一次制作多次周转，方便使用，实用性强，造价成本低。
The invention discloses a composite structure independent post-casting strip steel support construction equipment, which comprises a concrete roof post-casting strip, a wooden formwork and a formwork corrugation, the bottom of the concrete roof post-casting strip has an inherent wooden formwork, and the The bottom of the formwork flute is inherent, and the bottom of the formwork flute is provided with an adjustable fixed section platform, and the bottom end of the adjustable fixed section platform is fixed with a support standard section, and the support standard sections are fixed by bolt anchors. . The present invention solves the problem of erecting and supporting the formwork, assembles a set of equipment by using the adjustable fixed section platform, the supporting standard section, the bolt anchor and the rear bottom seat plate, and uses the principles of bolt locks, fixed bolts and the like to independently set the back pouring belt The template achieves the effect of independent support of the post-casting belt template. The overall production is simple, the installation is convenient, the installation is firm, and it is easy to disassemble and assemble. It is easy to use, practical, and low cost.
Description
Technical Field
The invention relates to the technical field of building equipment, in particular to an independent post-cast strip steel support construction device with a combined structure.
Background
The post-cast strip adopts an independent support form, namely, the template engineering construction is simultaneously provided with a post-cast strip independent support system, the post-cast strip independent support system is not influenced when templates on two sides of the post-cast strip are removed, and the structure of the post-cast strip is ensured not to be disturbed when the templates on two sides of the post-cast strip are removed; when the supporting frames on the two sides of the post-cast strip are dismantled, the independent supporting system of the post-cast strip cannot be dismantled until the concrete pouring completion side meeting the design requirement is dismantled.
In the house building construction, the drawing all can be equipped with the post-cast strip, can set up the template of post-cast strip template and basement roof together when the unit of construction operation is not normative, when causing the demolish template, together demolish the post-cast strip template, violate the standard requirement promptly and also cause the secondary to set up.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention provides the combined structure independent post-cast strip steel support construction equipment, and solves the problem of poor use effect of the combined structure independent post-cast strip steel support construction equipment.
(II) technical scheme
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides a composite construction stand alone type post-cast strip steel supports construction equipment, includes concrete roof post-cast strip, plank sheathing and template wood stupefied, the inherent plank sheathing in bottom of concrete roof post-cast strip, the inherent template wood stupefied in bottom of plank sheathing, template wood stupefied bottom is equipped with adjustable fixed knot platform, the bottom mounting of adjustable fixed knot platform has the support standard festival, carry out the rigid coupling through bolt anchor assembly between the support standard festival, bolt anchor assembly's bottom is fixed with the back bottom seat board.
Further optimize this technical scheme, adjustable fixed knot platform includes that adjustable is dull and stereotyped, but the dull and stereotyped bottom of adjustable is fixed with angle regulation shaped steel, but the inside cross fixation of angle regulation shaped steel has the angle regulation screw rod, be fixed with detachable adjustment bracing piece between dull and stereotyped portion of adjustable and the support standard festival.
Further optimizing the technical scheme, the standard supporting sections are manufactured into standard sections 400 x 400 by using L60 x 60 angle steel, the outer sides of the periphery of the standard supporting sections are firmly welded by using bolts of 11mm, and the standard supporting sections are connected with the standard supporting sections by using high-strength bolts of 8 mm.
Further optimizing this technical scheme, the specification of back end seat is set up to 1000mm 10mm backing plate, plans to establish according to 3m layer height, supports standard festival 400mm need 7 knots, fixes through adjustable flat top knot height-adjusting, reserves design height such as template wooden arris, plank sheathing.
Further optimize this technical scheme, removable adjustment bracing piece calculates the back according to floor height and standard festival, makes the removable adjustment bracing piece of mounting, and four removable adjustment bracing pieces of fixed of every adjustable flat board.
(III) advantageous effects
Compared with the prior art, the invention provides the independent post-cast strip steel supporting construction equipment with the combined structure, which has the following beneficial effects:
1. the independent post-cast strip steel supporting construction equipment with the combined structure solves the problems of erection and support of the template, utilizes the adjustable fixed section platform, the support standard section, the bolt anchoring part and the rear base plate to assemble one set of equipment, and utilizes the principles of bolt locks, fixing bolts and the like to independently arrange the post-cast strip template so as to achieve the independent support effect of the post-cast strip template.
2. This integrated configuration stand alone type post-cast strip steel supports construction equipment, whole simple manufacture, installation convenient operation, installation are firm, and the dismouting of being convenient for, once make turnover many times, facilitate the use, and the practicality is strong, and the cost is with low costs.
Drawings

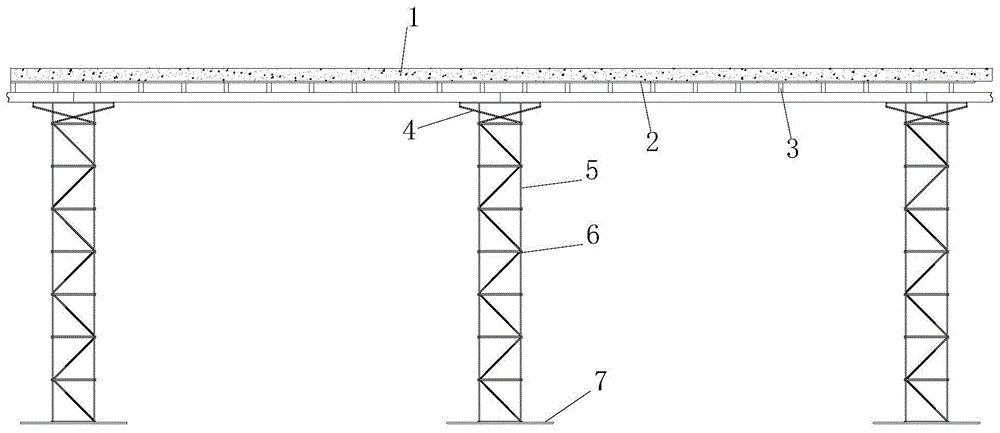

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the mounting structure of the present invention;
FIG. 3 is a top view of an adjustable plate structure according to the present invention;
FIG. 4 is a side view of an adjustable flat plate construction of the present invention;
FIG. 5 is a schematic view of an adjustable fixed joint platform according to the present invention.
In the figure: 1. post-pouring a strip on the concrete roof; 2. a wood template; 3. wood ridges of the template; 4. the fixed joint platform can be adjusted; 41. an adjustable flat plate; 42. angle-adjustable profile steel; 43. an angle-adjustable screw; 44. the adjusting support rod can be disassembled; 5. supporting a standard knot; 6. a bolt anchor; 7. a rear base plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a combined structure independent post-cast strip steel supporting construction device comprises a concrete top plate post-cast strip 1, a wood formwork 2 and a formwork wood ridge 3, wherein the bottom of the concrete top plate post-cast strip 1 is provided with a wood formwork 2, the bottom of the wood formwork 2 is provided with a formwork wood ridge 3, the bottom of the formwork wood ridge 3 is provided with an adjustable fixed joint platform 4, the bottom end of the adjustable fixed joint platform 4 is fixed with a support standard joint 5, the support standard joints 5 are fixedly connected through a bolt anchoring piece 6, the bottom of the bolt anchoring piece 6 is fixed with a rear bottom seat plate 7, the problem of erection and support of the formwork is solved, the adjustable fixed joint platform 4, the support standard joint 5, the bolt anchoring piece 6 and the rear bottom seat plate 7 are utilized to assemble a set of equipment, the post-cast strip steel supporting construction device is independently arranged by utilizing the principles of bolt locking, fixing bolts and the like, the effect of independent support of the post-cast strip steel supporting is achieved, the whole manufacturing is simple, The installation is firm, and the dismouting of being convenient for, and once preparation turnover many times facilitates the use, and the practicality is strong, and the cost is with low costs.
Specifically, adjustable fixed knot platform 4 includes adjustable dull and stereotyped 41, and adjustable dull and stereotyped 41's bottom is fixed with adjustable angle shaped steel 42, and adjustable angle shaped steel 42's inside is alternately fixed with adjustable angle screw 43, is fixed with removable adjustment bracing piece 44 between adjustable dull and stereotyped 41's portion and the support standard festival 5 for adjustable supporting effect carries out the definite and installation of length according to on-the-spot actual demand.
Specifically, the standard support section 5 is manufactured into a standard section with the size of 400 × 400mm by using angle steel with the size of L60 × 60mm, the outer sides of the periphery of the standard support section 5 are firmly welded by using bolts with the size of 11mm, the standard support section 5 is connected with the standard support section 5 by using high-strength bolts with the size of 8mm, and the standard support section is positioned on the stability of support connection.
Specifically, the specification of the rear bottom seat plate 7 is set to be 1000mm 10mm base plates, the rear bottom seat plate is supposed to be erected according to the height of 3m layers, 7 sections of 5400 mm standard sections are supported, the height of the top section of the adjustable flat plate 41 is adjusted to be fixed, the design heights of the reserved template wood beam 3, the wood template 2 and the like are reserved, and the customized reasonable design installation is carried out according to the actual requirements of drawings.
Specifically, after the detachable adjusting support bars 44 are calculated according to the floor height and the standard knots, the fixing detachable adjusting support bars 44 are manufactured, and four detachable adjusting support bars 44 are fixed on each adjustable flat plate 41.
When in use, the concrete roof post-cast strip 1 is supported and poured through the wooden template 2, and then plays a role of fixed bearing through the template wooden edge 3, and simultaneously, the rear bottom seat plate 7 can be installed, furthermore, the rear base plate 7 is provided with the standard supporting sections 5, the standard supporting sections 5 are fixed through the bolt anchoring parts 6, the supporting standard knot 5 is reinforced by bolts, and an adjustable fixed knot platform 4 is arranged on the supporting standard knot 5, the adjustable flat plate 41 on the adjustable fixed joint platform 4 and the template wood edge 3 are supported and reinforced, then the adjustable angle section steel 42 is respectively fixed on the adjustable flat plate 41 and the top of the support standard knot 5, and an adjustable angle screw 43 is further installed, and then a detachable adjusting support rod 44 is arranged between the supporting standard knot 5 and the adjustable flat plate 41 for installation and assembly, so that the assembly is completed.
In conclusion, this integrated configuration stand alone type post-cast strip steel supports construction equipment has solved the not good problem of integrated configuration stand alone type post-cast strip steel supports construction equipment result of use through setting up adjustable fixed knot platform 4, support standard festival 5, bolt anchor assembly 6 and back bottom seat board 7.
It should be noted that, in this document, terms such as "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (4)
