CN109707148B - A device for pipe body support for civil construction - Google Patents
A device for pipe body support for civil construction Download PDFInfo
- Publication number
- CN109707148B CN109707148B CN201811348286.7A CN201811348286A CN109707148B CN 109707148 B CN109707148 B CN 109707148B CN 201811348286 A CN201811348286 A CN 201811348286A CN 109707148 B CN109707148 B CN 109707148B
- Authority
- CN
- China
- Prior art keywords
- electric
- shaped
- pipe
- push rod
- round pipe
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 238000010276 construction Methods 0.000 title claims description 21
- 230000007246 mechanism Effects 0.000 claims description 17
- 238000009435 building construction Methods 0.000 claims description 2
- 230000009286 beneficial effect Effects 0.000 abstract description 3
- 230000000694 effects Effects 0.000 description 3
- 230000002349 favourable effect Effects 0.000 description 3
- 238000000034 method Methods 0.000 description 3
- 230000004888 barrier function Effects 0.000 description 2
- 230000008569 process Effects 0.000 description 2
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 description 2
- 230000009471 action Effects 0.000 description 1
- 238000010586 diagram Methods 0.000 description 1
- 230000003993 interaction Effects 0.000 description 1
- 239000007788 liquid Substances 0.000 description 1
- 238000004519 manufacturing process Methods 0.000 description 1
- 239000000463 material Substances 0.000 description 1
Images
Landscapes
- Refuge Islands, Traffic Blockers, Or Guard Fence (AREA)
- Supports For Pipes And Cables (AREA)
Abstract
本发明公开了一种用于土木建设管体支架的装置，包括底板、万向轮、电动转盘、U型板架、第一圆管、固定板、电动推杆、马达、第二圆管、U型活动座、电液推杆、电控箱、手动控制器、第一条形槽、橡胶片、第一卡块、第二条形槽、第二卡块、螺杆、内螺纹短管、圆柱块、弧形滑槽和T型滑块。本发明设计合理，有利于将管体支架夹持固定住，避免管体支架脱滑掉落，实现牵拉移动管体支架的功能，有利于件管体支架垂直竖立且倾斜移动角度固定，便于调节位置避开移动过程中的障碍物。
The invention discloses a device for a pipe body support for civil engineering, comprising a base plate, a universal wheel, an electric turntable, a U-shaped plate frame, a first circular pipe, a fixed plate, an electric push rod, a motor, a second circular pipe, U-shaped movable seat, electro-hydraulic push rod, electric control box, manual controller, first strip groove, rubber sheet, first clamping block, second strip groove, second clamping block, screw, internal thread short pipe, Cylindrical blocks, curved chutes and T-slides. The design of the invention is reasonable, which is beneficial to clamping and fixing the tube body bracket, preventing the tube body bracket from slipping and falling, realizing the function of pulling and moving the tube body bracket, and facilitating the vertical erection of the tube body bracket and the fixed inclined moving angle, which is convenient for Adjust the position to avoid obstacles during movement.
Description
Technical Field
The invention relates to a device for a support, in particular to a device for a pipe body support for civil construction, and belongs to the technical field of civil construction application.
Background
Civil engineering construction refers to both the materials and equipment used and the technical activities of surveying, designing, constructing, maintaining, repairing, etc. carried out, and the objects of engineering construction, i.e. various engineering facilities, such as houses, roads, railways, pipelines, tunnels, bridges, canals, dams, harbors, power stations, airports, ocean platforms, water supply and drainage, protection projects, etc. which are built on the ground or underground, on land or in water and serve for human life, production, military and scientific research directly or indirectly.
The body of scaffold usefulness when putting up needs constructor to carry, and some floor beam column are more and the space is comparatively complicated in addition the body is longer heavier for the transport brings inconveniently, and the situation of being not convenient for to carry out reasonable adjustment transport measure effectively according to the aforesaid proposes simultaneously, and lacks the structure of corresponding coordination adjustment, and when the scaffold frame is installed to the outer wall, constructor need stick up hard and adjust suitable inclination and pass or keep away the barrier, and comparatively hard. Therefore, a device for civil engineering construction pipe supports is proposed to solve the above problems.
Disclosure of Invention
The present invention has been made to solve the above problems, and an object of the present invention is to provide a device for civil engineering construction pipe supports.
The invention achieves the aim through the following technical scheme, the device for the pipe body support for civil construction comprises a bottom plate, universal wheels, a rotating mechanism, a clamping mechanism and a traction mechanism, wherein the universal wheels are arranged at the four corners of the bottom plate, an electric cabinet is arranged at one side of the top of the bottom plate, the rotating mechanism comprises two U-shaped plate frames, a first circular pipe, an electric rotating disc and an electric hydraulic push rod, the two U-shaped plate frames are symmetrically and vertically arranged at the middle position of the top of the corresponding electric rotating disc, the electric rotating disc is symmetrically arranged on the surface of the top of the bottom plate, one end of the first circular pipe is rotatably arranged at the top in each U-shaped plate frame, the top and the bottom of the inner wall of the first circular pipe are respectively provided with a first strip-shaped groove, one end of a first clamping block is rotatably arranged in the first strip-shaped groove, the other end of the electro-hydraulic push rod is movably mounted at the bottom of one side of the corresponding U-shaped plate frame, the clamping mechanism comprises a motor, a second round pipe, a second strip-shaped groove, a second clamping block, an arc-shaped chute, a T-shaped sliding block, a cylindrical block, an internal thread short pipe and a screw rod, two motors are symmetrically mounted on the annular side face of one end port of the second round pipe, the screw rods are mounted on the shafts of the two motors through the inner wall of the second round pipe, the screw rods are in threaded connection with the internal thread short pipe, the cylindrical block is mounted on the closed end face of one end of the internal thread short pipe, the T-shaped sliding block is mounted at one end of the cylindrical block, the T-shaped sliding block is slidably mounted in the arc-shaped chute, the arc-shaped chute is arranged in the middle of the annular face of one side of the second clamping block, one end of the second clamping block is movably mounted, and an electric push rod is installed on one side of the fixed plate, and one end of a telescopic rod of the electric push rod is fixedly installed in the middle of the annular surface corresponding to the second round pipe.
Preferably, an electric control element and a storage battery are installed in the electric cabinet, and the electric control element is electrically connected with the manual controller through a conducting wire.
Preferentially, the bottom of the T-shaped sliding block is an arc-shaped surface, and the end surfaces of the T-shaped sliding block are rectangular end surfaces.
Preferably, the cross section of the arc-shaped sliding groove is of a T-shaped structure.
Preferably, the second strip-shaped groove is respectively arranged at the top and the bottom in the second round pipe.
Preferentially, the structure of the first fixture block is the same as that of the second fixture block, and the rubber sheet is adhered to the surface of the first fixture block.
Preferably, a torsion spring is sleeved on the pin rod movably connected with one end of the first clamping block in the first strip-shaped groove, and the other ends of the two first clamping blocks in the same first round pipe are mutually attached together.
Preferentially, U-shaped movable seats are installed at two ends of the electro-hydraulic push rod.
Preferentially, the first round pipe and the second round pipe are located on the same central line, and the aperture of the second round pipe is the same as that of the first round pipe.
Preferably, the electric turntable, the electro-hydraulic push rod, the electric push rod and the motor are respectively connected with an electric control element and a storage battery in the electric cabinet through electric leads.
The invention has the beneficial effects that:
1. this kind of a device for building construction body support reasonable in design is favorable to fixing body support centre gripping, avoids body support sideslip to drop.
2. The device for the pipe body support for civil construction is compact in structure, achieves the function of drawing and moving the pipe body support, and is favorable for vertically erecting the pipe body support and fixing the inclined moving angle.
3. This kind of a device for civil construction body support simple operation, the barrier of the in-process of moving is avoided in the adjusting position of being convenient for.
Drawings

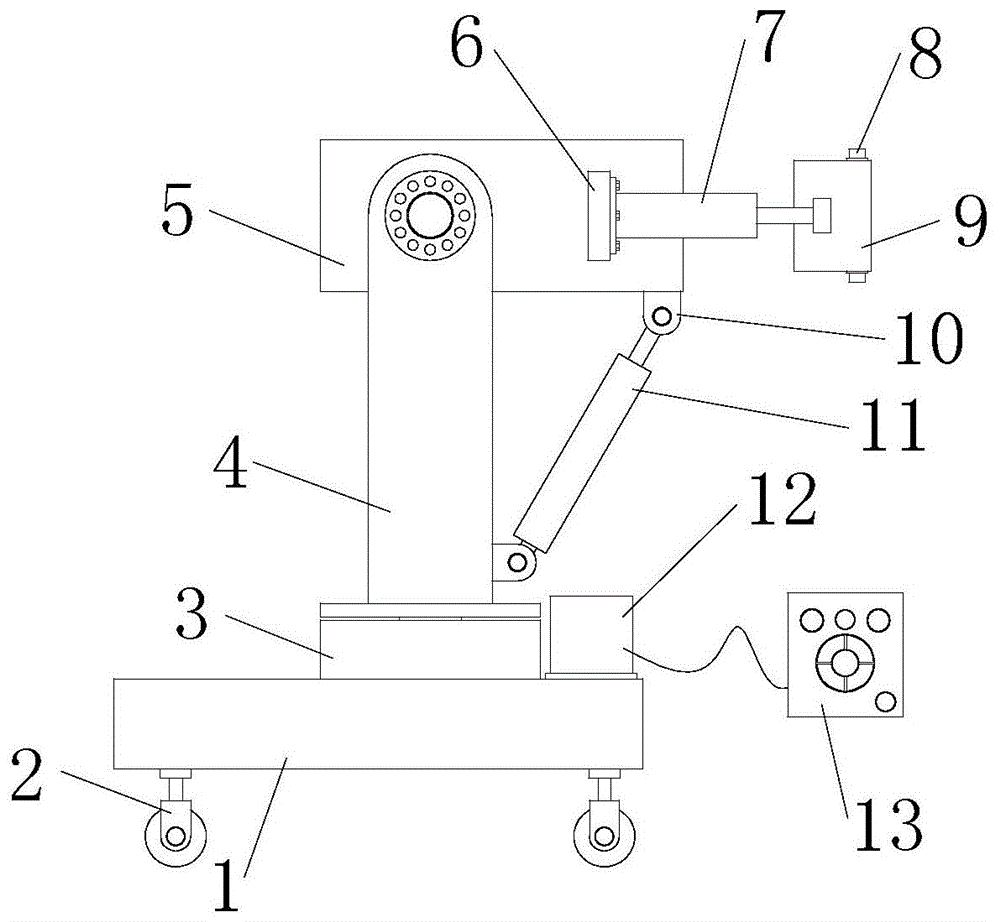

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the inner structure of the first round tube according to the present invention;
FIG. 3 is a schematic view of the inner structure of a second round tube according to the present invention;
fig. 4 is a schematic structural diagram of a second clamping block of the present invention.
In the figure: 1. the bottom plate, 2, the universal wheel, 3, electric turntable, 4, U type grillage, 5, first pipe, 6, the fixed plate, 7, electric putter, 8, the motor, 9, the second pipe, 10, U type sliding seat, 11, electric liquid push rod, 12, the electric cabinet, 13, manual control, 14, first bar groove, 15, the sheet rubber, 16, first fixture block, 17, the second bar groove, 18, the second fixture block, 19, the screw rod, 20, the internal thread nozzle stub, 21, the cylinder piece, 22, the arc spout, 23, T type slider.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, a device for a pipe support for civil construction comprises a bottom plate 1, universal wheels 2, a rotating mechanism, a clamping mechanism and a driving mechanism, wherein the universal wheels 2 are respectively installed at four corners of the bottom plate 1, an electric cabinet 12 is installed at one side of the top of the bottom plate 1, the rotating mechanism comprises two U-shaped plate frames 4, first circular pipes 5, electric rotating discs 3 and electric hydraulic push rods 11, the two U-shaped plate frames 4 are symmetrically and vertically installed at the middle positions of the tops of the corresponding electric rotating discs 3, the electric rotating discs 3 are symmetrically installed on the surface of the top of the bottom plate 1, one end of each first circular pipe 5 is rotatably installed at the top of the inner wall of each U-shaped plate frame 4, first strip-shaped grooves 14 are respectively formed at the top and the bottom of the inner wall of each first circular pipe 5, one end of each first clamping block 16 is rotatably installed at the first strip-shaped groove 14, one end, the other end of the electro-hydraulic push rod 11 is movably mounted at the bottom of one side of the corresponding U-shaped plate frame 4, the clamping mechanism comprises a motor 8, a second round pipe 9, a second strip-shaped groove 17, a second clamping block 18, an arc-shaped chute 22, a T-shaped sliding block 23, a cylindrical block 21, an internal thread short pipe 20 and a screw rod 19, two motors 8 are symmetrically mounted on the annular side face of one end port of the second round pipe 9, shafts of the two motors 8 penetrate through the inner wall of the second round pipe 9 and are provided with screw rods 19, the screw rods 19 are in threaded connection with the internal thread short pipe 20, a cylindrical block 21 is mounted on the closed end face of one end of the internal thread short pipe 20, the T-shaped sliding block 23 is mounted at one end of the cylindrical block 21, the T-shaped sliding block 23 is slidably mounted in the arc-shaped chute 22, the arc-shaped chute 22 is arranged in the middle, the traction mechanism comprises a fixing plate 6, an electric push rod 7 and a second round pipe 9, the fixing plate 6 is symmetrically installed on the annular side face of the other end port of the first round pipe 5, the electric push rod 7 is installed on one side of the fixing plate 6, and one end of a telescopic rod of the electric push rod 7 is fixedly installed in the middle of the annular face corresponding to the second round pipe 9.
An electric control element and a storage battery are installed in the electric cabinet 12, and the electric control element is electrically connected with the manual controller 13 through a conducting wire, so that electric equipment can be conveniently installed; the bottom of the T-shaped sliding block 23 is an arc-shaped surface, and the end surfaces of the T-shaped sliding block 23 are rectangular end surfaces, so that the T-shaped sliding block 23 is prevented from rotating in the arc-shaped sliding groove 22, and the T-shaped sliding block is beneficial to the spiral up-and-down movement of the internal thread short pipe 20; the cross section of the arc-shaped sliding chute 22 is of a T-shaped structure, so that the sliding connection between the T-shaped sliding block 23 and the arc-shaped sliding chute 22 is facilitated; the second strip-shaped grooves 17 are respectively formed in the top and the bottom of the second circular tube 9, so that a second clamping block 18 can be conveniently placed and installed; the structure of the first fixture block 16 is the same as that of the second fixture block 18, the rubber sheet 15 is adhered to the surface of the first fixture block 16, and the roughness of the rubber sheet 15 and the surface of the pipe body support can be increased by the aid of the rubber sheet 15 adhered to the surface of one side of the first fixture block 16; a torsion spring is sleeved on the pin rod which is movably connected with one end in the first strip-shaped groove 14 at one end of the first fixture block 16, and the other ends of the two first fixture blocks 16 which are positioned in the same first circular tube 5 are mutually attached together, so that the two first fixture blocks 16 can return to the initial position state; the two ends of the electro-hydraulic push rod 11 are respectively provided with a U-shaped movable seat 10, so that the effect of movable connection with a corresponding structure is achieved; the first round pipe 5 and the second round pipe 9 are positioned on the same central line, and the aperture of the second round pipe 9 is the same as that of the first round pipe 5, so that a pipe body support can be conveniently placed; the electric turntable 3, the electro-hydraulic push rod 11, the electric push rod 7 and the motor 8 are respectively connected with an electric control element and a storage battery wire in the electric cabinet 12 through electric leads, so that the effects of power supply and operation control are achieved.
When the pipe body support is used, one end of the pipe body support is placed into the first circular pipe 5 and the second circular pipe 9, the motor 8 connected with an external power supply and a controller is started to drive the screw rod 19 to rotate, the cylindrical block 21 arranged at the bottom of the interaction force and the internal thread short pipe 20 is in sliding connection with the arc-shaped sliding groove 22 through the T-shaped sliding block 23, so that the internal thread short pipe 20 pushes one ends of the corresponding second clamping blocks 18 to be close to each other, the surface of the pipe body support is clamped and fixed by the two second clamping blocks 18, the pipe body support is positioned between the two first clamping blocks 16 and can only be pulled in one direction, and the pipe body support is clamped and fixed by the two first clamping blocks 16 extruded on the surface of the pipe body support in the opposite direction, so that the pipe;
the second circular tube 9 and the internally fixed tube body support are pushed to move forwards for a certain distance by starting the electric push rod 7 of the external power supply and the controller to operate, meanwhile, the electric push rod 11 of the external power supply and the controller is started to push one end of the first circular tube 5 to rotate upwards for a proper angle and then stop operating to keep the current situation, at the moment, the second circular tube 9 is moved backwards for a certain distance to stop by extruding the two second clamping blocks 18 to fix the tube body support and the electric push rod 7 is started again, then the tube body support is clamped, fixed and moved forwards, and through the regular continuous operation, the function of pulling and moving the tube body support is realized, and the tube body support is favorable for being vertically erected and the inclined moving angle is fixed;
when the pipe support to be inclined or vertically erected moves to the position of the mounting scaffold and moves, the electric rotary table 3 which is started drives the corresponding U-shaped plate frame 4 and the connected part of the U-shaped plate frame to horizontally rotate for a proper angle, and meanwhile, under the action of the cooperation of the electric-hydraulic push rod 11, the first round pipe 5 is drawn by shrinkage and the pipe support fixed inside the first round pipe, the position of the pipe support can be conveniently adjusted to avoid obstacles in the moving process.
The electric push rod 7 adopts an electric push rod ANT-35 provided by Shanghai Shunchou motor company Limited and a matched power supply and circuit thereof.
The motor 8 is of the type 720 provided by the Telesky flagship store and its associated power supply and circuitry.
The electro-hydraulic push rod 11 adopts an electric hydraulic push rod HOB heavy type provided by the hydraulic pressure of the Foshan Tianhai and a matched power supply and circuit thereof.
It is well within the skill of those in the art to implement and protect the present invention without undue experimentation and without undue experimentation that the present invention is directed to software and process improvements.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (10)
1. The utility model provides a device for building construction body support which characterized in that: the clamping device comprises a bottom plate (1), universal wheels (2), a rotating mechanism, a clamping mechanism and a traction mechanism, wherein the universal wheels (2) are arranged at four corners of the bottom plate (1), and an electric cabinet (12) is arranged on one side of the top of the bottom plate (1);
the rotating mechanism comprises a U-shaped plate frame (4), a first round pipe (5), an electric rotating disc (3) and an electric hydraulic push rod (11), the number of the U-shaped plate frame (4) and the number of the electric rotating disc (3) are both two, the two U-shaped plate frames (4) are symmetrically arranged, the U-shaped plate frames (4) are vertically arranged at the middle positions of the tops of the corresponding electric turntables (3), the two electric turntables (3) are symmetrically arranged on the surface of the top of the bottom plate (1), one end of a first round pipe (5) is rotatably arranged at the top in the U-shaped plate frame (4), and the top and the bottom of the inner wall of the first round pipe (5) are both provided with a first strip-shaped groove (14), one end of a first clamping block (16) is rotatably arranged in the first strip-shaped groove (14), the top of the port at the other end of the first round pipe (5) is movably provided with one end of a telescopic rod of an electro-hydraulic push rod (11), the other end of the electro-hydraulic push rod (11) is movably arranged at the bottom of one side of the corresponding U-shaped plate frame (4);
the clamping mechanism comprises a motor (8), a second round pipe (9), a second strip-shaped groove (17), a second clamping block (18), an arc-shaped sliding groove (22), a T-shaped sliding block (23), a cylindrical block (21), an internal thread short pipe (20) and a screw rod (19), two motors (8) are symmetrically arranged on the annular side surface of one end port of the second round pipe (9), and the shafts of the two motors (8) are both provided with a screw rod (19) through the inner wall of the second round pipe (9), the screw rod (19) is in threaded connection with the internal thread short pipe (20), and a cylindrical block (21) is arranged on the closed end face of one end of the internal thread short pipe (20), a T-shaped sliding block (23) is arranged at one end of the cylindrical block (21), the T-shaped sliding block (23) is slidably arranged in the arc-shaped sliding groove (22), the arc-shaped sliding groove (22) is arranged in the middle of the annular surface at one side of the second clamping block (18), one end of the second clamping block (18) is movably arranged at one end in the second strip-shaped groove (17);
the traction mechanism comprises a fixing plate (6), an electric push rod (7) and a second round pipe (9), wherein the fixing plate (6) is symmetrically installed on the annular side face of the other end port of the first round pipe (5), the electric push rod (7) is installed on one side of the fixing plate (6), and the middle part of the annular face corresponding to the second round pipe (9) is fixedly installed at one end of a telescopic rod of the electric push rod (7).
2. A device for civil engineering construction pipe supports according to claim 1, characterised in that: an electric control element and a storage battery are installed in the electric cabinet (12), and the electric control element is electrically connected with the manual controller (13) through a conducting wire.
3. A device for civil engineering construction pipe supports according to claim 1, characterised in that: the bottom of the T-shaped sliding block (23) is an arc-shaped surface, and the end surfaces of the T-shaped sliding block (23) are rectangular end surfaces.
4. A device for civil engineering construction pipe supports according to claim 1, characterised in that: the cross section of the arc-shaped sliding chute (22) is of a T-shaped structure.
5. A device for civil engineering construction pipe supports according to claim 1, characterised in that: and the second strip-shaped groove (17) is respectively arranged at the top and the bottom in the second round pipe (9).
6. A device for civil engineering construction pipe supports according to claim 1, characterised in that: the structure of the first fixture block (16) is the same as that of the second fixture block (18), and a rubber sheet (15) is adhered to the surface of the first fixture block (16).
7. A device for civil engineering construction pipe supports according to claim 1, characterised in that: a torsion spring is sleeved on a pin rod movably connected with one end in the first strip-shaped groove (14) and one end of the first clamping block (16), and the other ends of the two first clamping blocks (16) in the same first circular tube (5) are mutually attached together.
8. A device for civil engineering construction pipe supports according to claim 1, characterised in that: and U-shaped movable seats (10) are arranged at the two ends of the electro-hydraulic push rod (11).
9. A device for civil engineering construction pipe supports according to claim 1, characterised in that: the first round pipe (5) and the second round pipe (9) are located on the same central line, and the aperture of the second round pipe (9) is the same as that of the first round pipe (5).
10. A device for civil engineering construction pipe supports according to claim 1, characterised in that: the electric turntable (3), the electro-hydraulic push rod (11), the electric push rod (7) and the motor (8) are respectively connected with an electric control element and a storage battery wire in the electric cabinet (12) through electric leads.
