Abstract
本发明公开了一种变压器，包括防护壳、支撑座、第一侧护板、第一风机、顶盖、防尘窗、太阳能电池板、第二侧护板、第二风机、通孔、限位槽、蓄电池、绕组接头、导电杆、输出接口、铁芯、绕组、第一插孔、连接冒、导电柱和第二插孔，所述防护壳的下端四个角分别固定连接有支撑座；所述防护壳侧壁固定连接有第二侧护板；所述防护壳另一侧壁固定连接有第一侧护板；所述防护壳上设置有第一风机和第二风机。该发明的有益效果是散热效果比较好，使用比较方便，通用性比较强，安装拆卸比较方便。
The invention discloses a transformer, comprising a protective shell, a support base, a first side shield, a first fan, a top cover, a dustproof window, a solar panel, a second side shield, a second fan, a through hole, a limiter Position slot, battery, winding connector, conductive rod, output interface, iron core, winding, first jack, connection cap, conductive column and second jack, the lower four corners of the protective shell are respectively fixed with support seats a second side shield is fixedly connected to the side wall of the protective shell; a first side shield is fixedly connected to the other side wall of the protective shell; a first fan and a second fan are arranged on the protective shell. The beneficial effects of the invention are that the heat dissipation effect is relatively good, the use is relatively convenient, the versatility is relatively strong, and the installation and disassembly are relatively convenient.
Description
Technical Field
The invention relates to the technical field of transformers, in particular to a transformer.
Background
The pace of social and economic development is accelerated, and all trades change day by day. Various electrical appliances have been developed and used in various fields. Among them, transformers become critical devices. Transformers are widely used in many situations, such as airports, hospitals or malls where a large amount of power is needed.
However, the existing transformer has the problems of poor heat dissipation effect, inconvenient use, poor universality and inconvenient installation.
Therefore, the transformer has the advantages of good heat dissipation effect, convenience in use, high universality and convenience in mounting and dismounting.
Disclosure of Invention
The invention aims to provide a transformer to solve the problems of poor heat dissipation effect, inconvenient use, poor universality and inconvenient installation in the background technology.
In order to realize the purpose, the invention provides the following technical scheme: the solar energy power generation device comprises a protective shell, a supporting seat, a first side protection plate, a first fan, a top cover, a dustproof window, a solar cell panel, a second side protection plate, a second fan, a through hole, a limiting groove, a storage battery, a winding joint, a conducting rod, an output interface, an iron core, a winding, a first jack, a connecting cap, a conducting post and a second jack, wherein four corners of the lower end of the protective shell are respectively and fixedly connected with the supporting seat; the side wall of the protective shell is fixedly connected with a second side guard plate; the other side wall of the protective shell is fixedly connected with a first side guard plate; the protective shell is provided with a first fan and a second fan; the upper end of the protective shell is provided with a limiting groove; the limiting groove is connected with a storage battery; the upper end of the protective shell is provided with a plurality of through holes; the upper end of the protective shell is fixedly connected with a top cover; two side walls of the top cover are respectively and fixedly connected with a solar cell panel; the top cover is provided with a dustproof window; an iron core is arranged at the central position in the protective shell; the iron core is provided with a winding; two side walls of the iron core are respectively and fixedly connected with a plurality of winding joints; the plurality of winding joints are respectively and fixedly connected with a conductive rod; the conducting rods are respectively and fixedly connected with output interfaces; the first fan and the second fan are respectively electrically connected with the storage battery; the storage battery is electrically connected with the solar cell panel.
Preferably, the output interface comprises a first jack, a connecting cap and a conductive column; the connecting cap is fixedly connected with a conductive column; the connecting cap is provided with a first jack; the conducting rod is provided with a second jack; the second jack is connected with the conductive column.
Preferably, rubber pads are arranged on the four supporting seats respectively.
Preferably, the second jack is adapted to the conductive post; the connecting cap is made of an insulator.
Preferably, the battery and the through hole are inside the top cover.
Preferably, the iron core is provided with a turn winding.
1. Compared with the prior art, the invention has the beneficial effects that: when the temperature in the transformer is too high, the first fan and the second fan are started, and hot air in the transformer is radiated out through the first fan, the second fan and the through holes; the radiating effect is better to use solar cell panel to convert absorptive light energy into the electric energy and store inside the battery, supply first fan and second fan to use, it is energy-concerving and environment-protective to compare.
2. In the transformer, an iron core is arranged at the central position in a protective shell; the iron core is provided with a winding; two side walls of the iron core are respectively and fixedly connected with a plurality of winding joints; the winding joints are respectively and fixedly connected with conductive rods; the conducting rods are respectively and fixedly connected with output interfaces; different currents can be obtained by inserting the electric equipment into different output interfaces, the more windings on the iron core are, the less the obtained currents are, the plurality of output interfaces are arranged, different currents can be obtained, and the universal property is stronger when the electric equipment is used with different electric equipment.
3. In the transformer, an iron core is arranged at the central position in a protective shell; the iron core is provided with a winding; two side walls of the iron core are respectively and fixedly connected with a plurality of winding joints; the winding joints are respectively and fixedly connected with conductive rods; the conducting rods are respectively and fixedly connected with output interfaces; when the electric equipment needs to use electricity, the electric equipment only needs to be inserted into different output interfaces, and the use is more convenient.
4. The output interface of the transformer comprises a first jack, a connecting cap and a conductive column; the connecting cap is fixedly connected with the conductive column; the connecting cap is provided with a first jack; a second jack is arranged on the conducting rod; the second jack is connected with the conductive column; when a plurality of output interfaces are required, only the winding joint is in butt joint with the conducting rod; the conducting rod is in butt joint with the output interface; the second jack is butted with the conductive column; the installation is more convenient.
Drawings

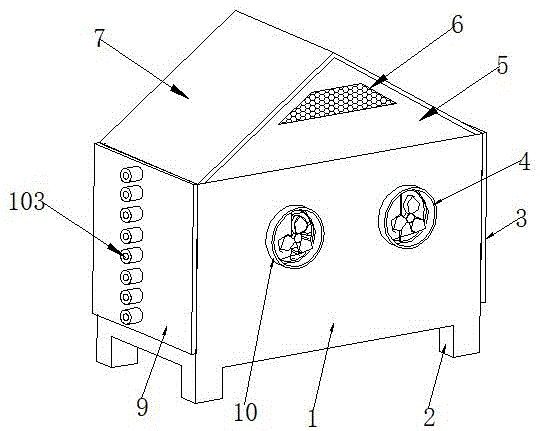

Fig. 1 is a schematic diagram of a transformer structure according to the present invention.
Fig. 2 is a schematic diagram of a partial structure of an inventive transformer.
Fig. 3 is a schematic diagram of a partial structure of an inventive transformer.
Fig. 4 is a schematic diagram of an internal structure of the transformer of the present invention.
Fig. 5 is a schematic diagram of a core winding structure of the transformer of the invention.
Fig. 6 is a schematic view of a connection structure between an output interface and a conductive rod of the transformer according to the present invention.
In the figure: 1-a protective shell; 2-a support seat; 3-a first side guard plate; 4-a first fan; 5-a top cover; 6-dust-proof window; 7-solar panels; 9-a second side guard plate; 10-a second fan; 11-a through hole; 12-a limiting groove; 13-a storage battery; 101-a winding joint; 102-a conductive rod; 103-an output interface; 105-a core; 106-winding; 1031-a first receptacle; 1032-connecting cap; 1033-conductive pillars; 1021-second jack.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a transformer, which comprises: the solar energy power generation device comprises a protective shell 1, a supporting seat 2, a first side protection plate 3, a first fan 4, a top cover 5, a dustproof window 6, a solar cell panel 7, a second side protection plate 9, a second fan 10, a through hole 11, a limiting groove 12, a storage battery 13, a winding joint 101, a conducting rod 102, an output interface 103, an iron core 105, a winding 106, a first jack 1031, a connecting cap 1032, a conducting post 1033 and a second jack 1021, wherein four corners of the lower end of the protective shell 1 are fixedly connected with the supporting seat 2 respectively; the side wall of the protective shell 1 is fixedly connected with a second side guard plate 9; the other side wall of the protective shell 1 is fixedly connected with a first side guard plate 3; the protective shell 1 is provided with a first fan 4 and a second fan 10; the upper end of the protective shell 1 is provided with a limiting groove 12; the limiting groove 12 is connected with a storage battery 13; the upper end of the protective shell 1 is provided with a plurality of through holes 11; the upper end of the protective shell 1 is fixedly connected with a top cover 5; two side walls of the top cover 5 are respectively and fixedly connected with a solar cell panel 7; the top cover 5 is provided with a dustproof window 6; an iron core 105 is arranged at the central position inside the protective shell 1; the iron core 105 is provided with a winding 106; two side walls of the iron core 105 are fixedly connected with a plurality of winding joints 101 respectively; the winding connectors 101 are respectively and fixedly connected with conducting rods 102; the conducting rods 102 are respectively and fixedly connected with output interfaces 103; the first fan 4 and the second fan 10 are respectively electrically connected with a storage battery 13; the storage battery 13 is electrically connected with the solar cell panel 7.
Preferably, the output interface 103 includes a first socket 1031, a connecting cap 1032 and a conductive post 1033; the connection cap 1032 is fixedly connected with a conductive column 1033; a first jack 1031 is arranged on the connecting cap 1032; the conducting rod 102 is provided with a second jack 1021; the second socket 1021 is connected to the conductive pillar 1033.
Preferably, rubber pads are respectively arranged on the four supporting seats 2.
Preferably, the second receptacle 1021 is compatible with the conductive post 1033; the connecting cap 1032 is made of an insulator.
Preferably, the accumulator 13 and the through hole 11 are inside the top cover 5.
Preferably, the iron core 105 is provided with 1000 turns of windings 106.
The working principle is as follows: when the temperature in the transformer is too high, the first fan 4 and the second fan 10 are started, and hot air in the transformer is radiated out through the first fan 4, the second fan 10 and the through holes 11; the radiating effect is better to use solar cell panel 7 to convert absorbed light energy into electric energy and store inside battery 13, supply first fan 4 and second fan 10 to use, it is energy-concerving and environment-protective to compare. In the transformer, an iron core 105 is arranged at the central position in a protective shell 1; the iron core 105 is provided with a winding 106; two side walls of the iron core 105 are fixedly connected with a plurality of winding joints 101 respectively; the winding joints 101 are respectively and fixedly connected with conductive rods 102; the conducting rods 102 are respectively and fixedly connected with output interfaces 103; different currents can be obtained by inserting the electric equipment into different output interfaces 103, the more windings are arranged on the iron core 105, the less the obtained currents are, different currents can be obtained by arranging the plurality of output interfaces 103, and the universality is stronger when the electric equipment is used with different electric equipment. In the transformer, an iron core 105 is arranged at the central position in a protective shell 1; the iron core 105 is provided with a winding 106; two side walls of the iron core 105 are fixedly connected with a plurality of winding joints 101 respectively; the winding joints 101 are respectively and fixedly connected with conductive rods 102; the conducting rods 102 are respectively and fixedly connected with output interfaces 103; when the electric equipment needs to use electricity, the electric equipment only needs to be inserted into different output interfaces 103, and the use is more convenient. In the transformer, the output interface 103 includes a first socket 1031, a connecting cap 1032 and a conductive pillar 1033; the connection cap 1032 is fixedly connected with a conductive column 1033; the connecting cap 1032 is provided with a first socket 1031; a second jack 1021 is arranged on the conducting rod 102; connected to the conductive post 1033 at the second receptacle 1021; when a plurality of output interfaces 103 are needed, only the winding joint 101 and the conducting rod 102 need to be butted; the conducting rod 102 is butted with the output interface 103; the second jack 1021 and the conductive column 1033 are butted; the installation is more convenient.
It will be apparent to those skilled in the art that various changes and modifications may be made in the present invention without departing from the spirit and scope of the invention. Thus, if such modifications and variations of the present invention fall within the scope of the claims of the present invention and their equivalents, the present invention is also intended to include such modifications and variations.
Claims (3)
1. A transformer, characterized by: the solar energy power generation device comprises a protective shell (1), a supporting seat (2), a first side protection plate (3), a first fan (4), a top cover (5), a dustproof window (6), a solar cell panel (7), a second side protection plate (9), a second fan (10), a through hole (11), a limiting groove (12), a storage battery (13), a winding joint (101), a conductive rod (102), an output interface (103), an iron core (105), a winding (106), a first jack (1031), a connecting cap (1032), a conductive post (1033) and a second jack (1021), wherein four corners of the lower end of the protective shell (1) are fixedly connected with the supporting seat (2) respectively; the side wall of the protective shell (1) is fixedly connected with a second side guard plate (9); the other side wall of the protective shell (1) is fixedly connected with a first side guard plate (3); the protective shell (1) is provided with a first fan (4) and a second fan (10); the upper end of the protective shell (1) is provided with a limiting groove (12); the limiting groove (12) is connected with a storage battery (13); the upper end of the protective shell (1) is provided with a plurality of through holes (11); the upper end of the protective shell (1) is fixedly connected with a top cover (5); two side walls of the top cover (5) are respectively and fixedly connected with a solar cell panel (7); a dustproof window (6) is arranged on the top cover (5); an iron core (105) is arranged at the central position in the protective shell (1); a winding (106) is arranged on the iron core (105); two side walls of the iron core (105) are fixedly connected with a plurality of winding joints (101) respectively; the winding connectors (101) are respectively and fixedly connected with conductive rods (102); the conducting rods (102) are respectively and fixedly connected with an output interface (103); the first fan (4) and the second fan (10) are respectively electrically connected with the storage battery (13); the storage battery (13) is electrically connected with the solar panel (7);
the output interface (103) comprises a first socket (1031), a connecting cap (1032) and a conductive post (1033); the connecting cap (1032) is fixedly connected with a conductive column (1033); a first jack (1031) is arranged on the connecting cap (1032); a second jack (1021) is arranged on the conducting rod (102); the second jack (1021) is connected with the conductive column (1033);
the second jack (1021) is adapted to the conductive post (1033); the connecting cap (1032) is made of an insulator;
the iron core (105) is provided with 1000 turns of windings (106).
2. A transformer according to claim 1, wherein: rubber pads are respectively arranged on the four supporting seats (2).
3. A transformer according to claim 1, wherein: the storage battery (13) and the through hole (11) are arranged inside the top cover (5).
