CN109602542B

CN109602542B - A leak-proof applicator

Info

Publication number: CN109602542B
Application number: CN201910030554.9A
Authority: CN
Inventors: 张勇; 高全立; 祁亚龙; 付晓敏; 何晓蕾; 尚艺曼
Original assignee: Henan Cancer Hospital
Current assignee: Henan Cancer Hospital
Priority date: 2019-01-14
Filing date: 2019-01-14
Publication date: 2021-07-20
Anticipated expiration: 2039-01-14
Also published as: CN109602542A

Abstract

The invention relates to a leak-proof applicator to solve the technical problem that fluid leakage often occurs after thoracoabdominal puncture or puncture and tube placement of the applicator in the prior art. The leak-proof applicator of the present invention covers the wound surface of the absorbent layer on the wound surface during use, and the protruding part with grooves on the overhanging end is covered on the periphery of the tube hole, which can achieve a better fixing effect. It can also absorb the effusion and effectively prevent the effusion from leaking out. In the case of a large amount of effusion, the effusion can also be absorbed by the absorbing layer through the communication hole, thereby increasing the liquid absorption effect of the application of the present invention. The protrusions can also be well positioned around the cannula hole without falling off when the patient moves, in which case the wound dressing in the groove can remain in contact with the cannula hole for continuous effect to promote cannula healing. Therefore, the present invention can avoid the outflow of effusion, prevent the application and the dressing from falling off, and reduce the pain of the patient and the risk of infection.

Description

Leak protection is applied ointment or plaster

Technical Field

The invention relates to a leak-proof application.

Background

Many patients, particularly those with advanced solid tumors and tuberculous pleurisy, are most often associated with pleural and peritoneal effusions, in which case most patients undergo thoracoabdominal paracentesis, or puncture catheterization. After the patient punctures or extracts the tube (especially under the condition that the drainage tube is left on the body for 10-15 days after the tube is punctured), a tube hole can be formed after the tube is extracted, and most of the influences of basic diseases such as diabetes and the like are removed, and the healing can be gradually carried out after 24-72 hours. The phenomenon of effusion leakage can appear in the tube hole after the operation or after the drainage tube is pulled out. The conventional application is usually fixed in the following way: and a plurality of adhesive tapes are added for pressurization and fixation after covering and applying, and the dressing is added for pressurization and bandaging and then is fixed by a chest belt or an abdominal belt. The fixed form is poor in patient perception, and the hot summer season also increases patient discomfort and does not prevent effusion from leaking out. In clinical application, the effect of only using the traditional application or dressing is poor, and effusion leakage cannot be avoided. The leakage of the accumulated liquid not only brings inconvenience to the patient, but also easily causes infection and increases the pain of the patient.

Disclosure of Invention

The invention aims to provide a leakage-proof application to solve the technical problem that effusion often leaks out after thoracoabdominal puncture or puncture catheterization by applying the application in the prior art.

In order to achieve the purpose, the anti-leakage application adopts the following technical scheme:

the leak-proof application comprises an application patch, wherein the application patch comprises a cushion layer and an absorption layer, the absorption layer comprises a wound surface and a back wound surface, the back wound surface is connected to the cushion layer, the leak-proof application further comprises a protruding part and a locking part, the protruding part protrudes out of the absorption layer and is arranged towards the wound surface, the locking part is used for fixing the protruding part on the cushion layer, the protruding part and the locking part are fixed through a mortise and tenon joint structure, the cushion layer is clamped and fixed between the protruding part and the locking part, a groove is formed in the protruding part, an opening of the groove is located on an overhanging end face of the protruding part, one or more of plant dressing, hydrocolloid dressing and hydrogel dressing are filled in the groove to absorb effusion, and a communication hole used for communicating the absorption layer with the inner space of the groove is formed in the protruding part.

The protruding portion is provided with an annular groove, the locking portion is provided with a tenon structure capable of being inserted into the annular groove, the middle of the cushion layer is provided with a through hole with the diameter larger than the outer diameter of the annular groove, and the locking portion comprises a clamping end face capable of being matched with the protruding portion to clamp the cushion layer at the edge of the through hole.

The convex part is made of flexible materials which can deform when stressed and rebound after external force is removed.

The protruding part is made of rubber materials or silica gel materials.

The patch is butterfly-shaped, and the bulge is fixed at the central position of the patch.

The patch further comprises a film coating layer, the film coating layer comprises a protective film and a cover cap fixed at the middle part of the protective film, a holding cavity for the protruding part to extend into is formed in the cover cap, the protective film is pasted on the side, facing the wound, of the absorbing layer, and the cover cap is used for covering the protruding part.

The leak-proof patch further comprises a fixing part, and the fixing part comprises an adhesive tape which can be used for adhering and fixing the patch on a human body or an elastic tape which can be used for tightly binding and fixing the patch on the human body.

The invention has the following beneficial effects: the leakage-proof application comprises an application piece and a protruding part, wherein the application piece comprises a cushion layer and an absorption layer, the absorption layer comprises a wound facing surface and a back wound surface, the back wound surface is connected to the cushion layer, the protruding part can be fixed on the cushion layer through the locking part, the probability that the protruding part is separated from the cushion layer is reduced, and the protruding part protrudes out of the absorption layer and is arranged towards the wound surface. When the disposable absorbent pad is used, the wound surface of the absorbent layer is covered on the wound surface, the protruding part with the groove at the overhanging end part is covered on the periphery of the pipe hole, so that a better fixing effect can be achieved, effusion can be absorbed, the effusion is effectively prevented from leaking, and the effusion can be absorbed by the absorbent layer through the communicating holes under the condition of more effusion, so that the imbibing effect of the disposable absorbent pad is improved. The projections also cover the periphery of the tube aperture well without falling off during patient movement, in which case the wound dressing in the recess can remain in contact with the tube aperture and continue to be effective to promote healing of the tube aperture. Therefore, the invention can avoid effusion from flowing out, avoid application and dressing from falling off, and relieve the pain of patients and the risk of infection.

Drawings

FIG. 1 is a schematic structural view of one embodiment of a leak resistant application of the present invention;

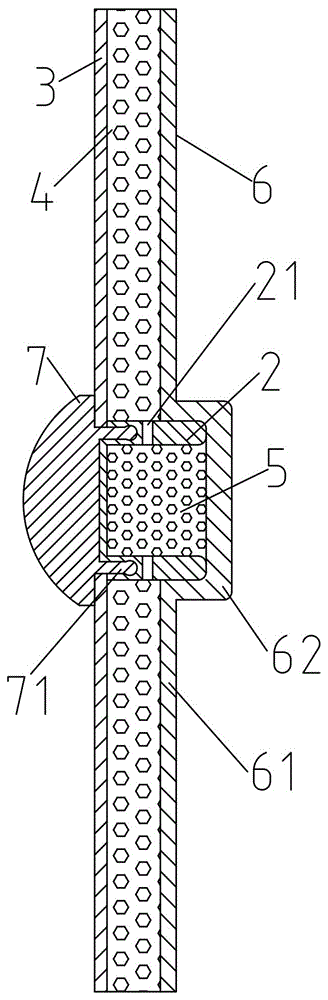

fig. 2 is a sectional view taken along the line a in fig. 1.

Detailed Description

A concrete structure of a leakproof application of the present invention is shown in FIGS. 1 and 2, and comprises an application sheet 1, a projecting portion 2 fixed to the application sheet 1, a lock portion 7 for fixing the projecting portion 2 to the application sheet 1, and a fixing portion for fixing the application sheet 1 to a human tissue. The patch 1 comprises a cushion layer 3, an absorption layer 4 and a film coating layer 6, wherein the absorption layer 4 comprises a wound surface and a back wound surface, the back wound surface is connected on the cushion layer 3, and the film coating layer 6 is pasted on the wound surface. The convex part 2 is arranged to protrude from the wound surface of the absorption layer 4. The protruding part 2 is provided with a groove, and the opening of the groove is positioned on the overhanging end face (i.e. towards the wound face) of the protruding part 2. The bulge 2 is used for covering the periphery of the pipe hole to prevent the effusion from leaking outside. In order to promote the healing of the tube hole and avoid effusion leakage, the groove is filled with wound dressing 5 which can be dissolved and adhered to the tube hole. The wound dressing 5 may be one or more of a plant-based dressing, a hydrocolloid-based dressing, and a hydrogel-based dressing. The wound dressing 5 can be dissolved and adhered to the tube hole, so that effusion can be prevented from leaking outside, and the wound healing can be promoted.

In order to increase the effect of the application of the invention on absorbing effusion, the bulge part 2 is provided with the communicating hole 21 for communicating the absorbing layer 4 with the inner space of the groove, in this case, the tissue fluid flowing out from the tube hole can be directly absorbed by the wound dressing 5 in the groove, and under the condition of large effusion quantity, the effusion can be absorbed by the absorbing layer 4 through the communicating hole 21, thus increasing the absorption effect of the application of the invention.

The fixing part can be an adhesive tape which can stick and fix the patch on the human body, and can also be an elastic tape which can tightly bind and fix the patch on the human body. In other embodiments, the securement portion may also serve as a complimentary member for use in cooperation with a leak resistant patch of the present invention to secure the leak resistant patch to the wound tissue.

The locking part 7 is used for fixing the protruding part 2 on the cushion layer 3, the protruding part 2 and the locking part 7 are fixed through a mortise and tenon joint structure, and the cushion layer 3 is clamped and fixed between the protruding part 2 and the locking part 7. Specifically, an annular groove is formed in the protruding portion 2, the diameter of the bottom of the annular groove is increased, and a tenon structure 71 capable of being inserted into the annular groove is formed in the locking portion 7. The through hole that the diameter is greater than the ring channel external diameter is seted up at the middle part of bed course 3, so tenon structure 71 can not be blockked by bed course 3 when impressing in the ring channel, as long as make tenon structure 71 shape and ring channel complete adaptation can guarantee that bulge 2 can press from both sides tightly to fix between the two with the bed course 3 after locking portion mortise-tenon joint. The part of the locking part 7 at the outer edge of the tenon structure 71 cooperates with the part of the protrusion 2 at the outer edge of the annular groove to clamp the cushion layer 3 at the edge of the through hole, and the part of the locking part 7 at the outer edge of the tenon structure 71 forms a clamping end surface. In other embodiments, in case the thickness of the cushion layer 3 is much smaller than the depth of the annular groove, the middle of the cushion layer 3 may also be provided without said through hole, but clamped directly between the protrusion 2 and the locking portion 7. An annular groove can be arranged on the locking part 7, and a tenon structure can be arranged on the convex part 2 so as to enable the locking part and the convex part to be in mortise and tenon connection.

The locking portion 7 cooperates with the projection 2 to clamp the cushion 3 with the following advantages: firstly, the convex part 2 is conveniently and quickly fixed on the cushion layer 3; secondly, the application can be more conveniently pasted through the locking part 7.

The film coating layer 6 comprises a protective film 61 and a cap 62 fixed in the middle of the protective film 61, the cap 62 is provided with a containing cavity for the protrusion 2 to extend into, the protective film 61 is adhered on the side of the absorbent layer facing the wound, and the cap 62 is used for covering the protrusion 2.

When the patch is used, the film coating layer 6 is firstly torn off, then the absorption layer 4 is pasted on the wound surface, the bulge part 2 is covered on the periphery of the pipe hole, and then the patch is fixed on the wound tissue by using the fixing part.

In this embodiment, bulge 2 is made by rubber materials or silica gel material, utilizes the better elasticity of material, has not only guaranteed to leak the travelling comfort when applying ointment or plaster the use, can adsorb in wound periphery more, plays fabulous fixed effect, and bulge 2 also can cover well when patient moves and establish in the tube hole periphery and can not drop, and wound dressing 7 in the recess can keep contacting with the tube hole and continuously take effect under this condition. The fixing part only needs simple auxiliary fixing without applying excessive pressure, thereby facilitating the fixation of the leak-proof application.

The bulge 2 made of rubber material or silica gel material also has the advantage of being difficult for organizing the adhesion, can not tear the tube hole again when changing and applying ointment or plaster. In other embodiments, the protruding portion 2 may also be made of other flexible materials that deform when stressed and rebound after the external force is removed, as long as the flexible materials are harmless to the human body and have better elasticity.

In this embodiment, the patch 1 has a butterfly shape, and the projecting portion 2 is provided at the center of the patch 1, which enables the patch 1 to be fixed at the orifice well in the case where the fixing portion is an adhesive tape or an elastic tape. By matching with the structural design of the bulge part 2, the leakage-proof application of the invention can avoid the phenomenon of application falling or effusion outflow along with the movement of a patient after the traditional application and dressing pressurization dressing.

Claims

1. a leak-proof applicator, comprising an applicator, the applicator comprising a cushion layer and an absorption layer, and the absorption layer includes a wound surface and a back wound surface, and its back wound surface is connected on the cushion layer, and is characterized in that: The leaky applicator also includes a protruding part and a locking part, the protruding part is arranged on the wound surface of the absorbing layer, the locking part is used to fix the protruding part on the cushion layer, and between the protruding part and the locking part Fixed by tenon-and-mortise structure, the cushion is clamped and fixed between the protruding part and the locking part, the protruding part is provided with a groove, the opening of the groove is located on the overhanging end surface of the protruding part, and the groove is filled with One or more of plant-based dressings, hydrocolloid dressings, and hydrogel-based dressings are used to absorb effusion, and the protruding portion is provided with a communication hole for connecting the absorption layer and the inner space of the groove; An annular groove is formed on the outgoing part, a tenon structure that can be inserted into the annular groove is formed on the locking part, a through hole with a diameter larger than the outer diameter of the annular groove is formed in the middle part of the cushion layer, and the locking part includes a protruding part It is matched with the clamping end face of the cushion layer at the edge of the clamping through hole; the protruding part is made of rubber material or silicone material that deforms when subjected to force and can rebound after the external force is removed.

2 . The leak-proof applicator according to claim 1 , wherein the applicator is in a butterfly shape, and the protruding portion is fixed at the center of the applicator. 3 .

3 . The leak-proof applicator according to claim 1 , wherein the applicator further comprises a coating layer, and the coating layer comprises a protective film and a cap fixed in the middle of the protective film. 4 . The cap is provided with an accommodating cavity into which the protruding portion is inserted, a protective film is pasted on the side of the absorbent layer facing the wound, and the cap is used to cover the protruding portion.

4. The leak-proof applicator according to any one of claims 1 to 3, wherein the leak-proof applicator further comprises a fixing portion, and the fixing portion includes a patch capable of being pasted and fixed on the human body. The adhesive tape or the elastic band that can fasten the patch to the human body.
