CN109568706B

CN109568706B - Constipation dredger

Info

Publication number: CN109568706B
Application number: CN201910067232.1A
Authority: CN
Inventors: 闫明文; 王彩霞
Original assignee: Individual
Current assignee: Individual
Priority date: 2019-01-23
Filing date: 2019-01-23
Publication date: 2021-09-14
Anticipated expiration: 2039-01-23
Also published as: CN109568706A

Abstract

The invention discloses a constipation unclogging device, comprising: a conveying pipe, a pushing channel is formed in the conveying pipe, a lever portion is provided on the pipe body of the conveying pipe; and a conveying member is movably arranged in the conveying pipe , the two ends of the conveying member are respectively a force-applying end and an entry end, the force-applying end extends out of one side nozzle of the conveying pipe, and is arranged opposite to the force-boring portion, and the force-applying end can be directed toward the force-boring portion. The side where it is located moves, so that the inlet end protrudes from the nozzle on the other side of the conveying pipe, and the inlet end has a water outlet hole that is communicated with the water supply pipe of the constipation unclogging device. The constipation unclogging device disclosed in the present invention has the advantage of being convenient for users to use.

Description

Constipation dredger

Technical Field

The invention relates to the technical field of constipation evacuation auxiliary tools, in particular to a constipation dredger.

Background

Constipation, i.e. constipation, is a common disease caused by various reasons, and is usually caused once in three to seven days, and constipation groups mainly occur in middle-aged and elderly people, pregnant women, long-lying patients and the like. Generally, in clinical practice, constipation is treated by medicines, purgation and accumulation elimination, intestine regulation and bowel relaxing, qi circulation promoting and stagnation removing, and the like, but doctors usually recommend drinking more water, eating more vegetables and fruits and doing more exercise according to the traditional method, and the medicine treatment should not be taken as the main treatment. In extreme cases, the drug is not effective. Often with the aid of external forces or various types of constipation treating devices.

The constipation therapeutic apparatus has a working principle that water flow is guided into the anus and the intestine to dredge the anus and the intestine and assist the human body to defecate. Generally, patients all use the constipation treatment instrument for the belly, and the water guide part on the existing constipation treatment instrument has the problem of inconvenient force application when the patients use the constipation treatment instrument, so that the patients are difficult to use the constipation treatment instrument.

Disclosure of Invention

The invention mainly aims to provide a constipation dredger and aims to solve the technical problem that an existing constipation therapeutic apparatus is inconvenient in force application and difficult to use by a user.

In order to achieve the above object, the present invention provides a constipation dredger, comprising:

the conveying pipe is internally provided with a pushing channel, and a force borrowing part is arranged on the pipe body of the conveying pipe; and the number of the first and second groups,

the conveying piece is movably arranged in the conveying pipeline, two ends of the conveying piece are respectively a force application end and an inlet end, the force application end extends out of a pipe orifice on one side of the conveying pipe and is opposite to the force borrowing part, the force application end can move towards one side where the force borrowing part is located, so that the inlet end extends out of a pipe orifice on the other side of the conveying pipe, and the inlet end is provided with a water outlet hole communicated with a water conveying pipe of the constipation dredger.

Optionally, the conveyer pipe includes body and separation blade, the body is formed with the propelling movement passageway, the separation blade is provided with two at least, and the annular array in body week side, the separation blade forms borrow power portion.

Optionally, the pipe body includes an installation pipe and a pushing pipe, the blocking piece is formed on the installation pipe, and the pushing pipe is detachably connected with the installation pipe.

Optionally, the pushing pipe includes a first vertical section, a second vertical section and a curved section, the first vertical section is detachably connected to the installation pipe, the extending direction of the second vertical section is staggered with the first vertical section, and two ends of the curved section are respectively connected to the first vertical section and the second vertical section.

Optionally, the conveying member includes a push rod and a transmission rod, the push rod is movably disposed in the installation pipe and has the force application end, the transmission rod is movably disposed in the push pipe and has the entrance end, and the push rod is detachably connected with the transmission rod.

Optionally, an abdicating channel is formed in the transmission rod, and a water supply pipe of the constipation dredger penetrates through the abdicating channel to be communicated with the water outlet hole.

Optionally, a limiting plate is arranged in the mounting pipe, a mounting hole is formed in the limiting plate, and the push rod penetrates through the mounting hole to be inserted into the mounting pipe.

Optionally, the transmission rod includes a flexible transmission section and a water feeding section, one side of the flexible transmission section is accommodated in the first vertical section and connected with the pushing rod, the other side of the flexible transmission section is accommodated in the second vertical section and abutted against the water feeding section, the water feeding section is arranged in the second vertical section, and the inlet end is formed at one side of the water feeding section, which is far away from the flexible transmission section.

Optionally, the outer side of the water feeding section is coated with a flexible protective layer.

Optionally, the constipation catharsis device further comprises a water supply device, and the water supply device is communicated with the water supply pipe of the constipation catharsis device to provide a water source.

The constipation dredger comprises a conveying pipe and a conveying piece, wherein a pushing channel is formed in the conveying pipe, a force borrowing part is arranged on the pipe body of the conveying pipe, the conveying piece is movably arranged in the conveying pipe, the two ends of the conveying piece are respectively a force application end and an inlet end, the force application end extends out of a pipe orifice at one side of the conveying pipe and is arranged opposite to the force borrowing part on the conveying pipe, when the constipation dredger is used, a user can borrow force from the force borrowing part on the conveying pipe and apply force to the force application end of the conveying piece so as to enable the conveying piece to move from the pipe orifice at one side of the conveying pipe to the pipe orifice at the other side of the conveying pipe and enable the inlet end to extend out of the pipe orifice at the other side of the conveying pipe, and a water outlet formed in the inlet end is used for conveying water flow; compared with the prior art, the constipation dredge that this application provided sets up in the conveyer pipe through carrying the piece, and set up the mode of borrowing power portion on the conveyer pipe, make the user when using the constipation dredge, can follow the conveyer pipe and borrow power in order to press the application of force end of carrying the piece, thereby will get into the end and send out the conveyer pipe, because the entering end has the apopore that the flow pipe is linked together, consequently can accomplish smoothly and carry water work to the anus intestines, the user of greatly having made things convenient for uses.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the structures shown in the drawings without creative efforts.

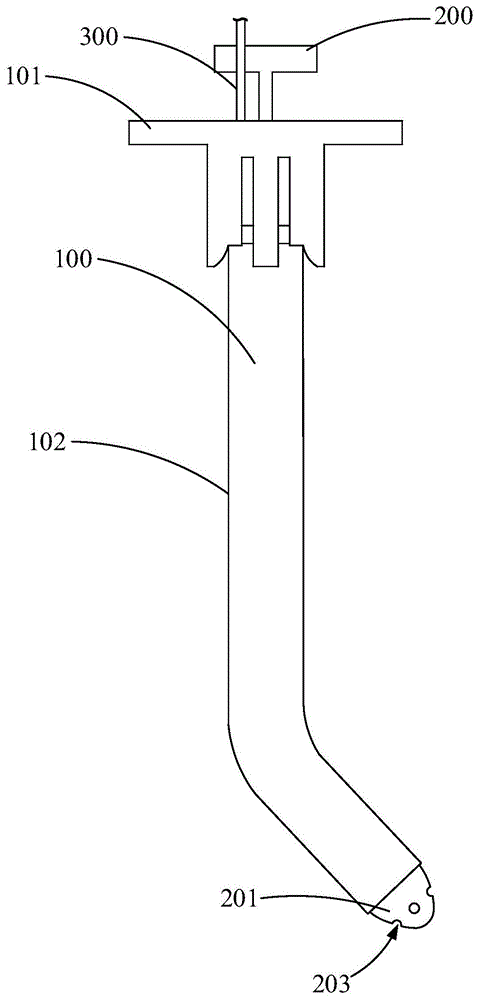

FIG. 1 is a schematic structural view of an embodiment of a constipation dredger according to the present invention;

FIG. 2 is a cross-sectional view of the embodiment of FIG. 1;

FIG. 3 is another sectional view of the constipation deoccluding device of the embodiment shown in FIG. 1;

fig. 4 is a block diagram showing the structure of the water supply apparatus in the embodiment shown in fig. 1.

The reference numbers illustrate:

the implementation, functional features and advantages of the objects of the present invention will be further explained with reference to the accompanying drawings.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

It should be noted that, if directional indications (such as up, down, left, right, front, and back … …) are involved in the embodiment of the present invention, the directional indications are only used to explain the relative positional relationship between the components, the movement situation, and the like in a specific posture (as shown in the drawing), and if the specific posture is changed, the directional indications are changed accordingly.

In addition, if there is a description of "first", "second", etc. in an embodiment of the present invention, the description of "first", "second", etc. is for descriptive purposes only and is not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In addition, the meaning of "and/or" appearing throughout is to include three juxtapositions, exemplified by "A and/or B" including either scheme A, or scheme B, or a scheme in which both A and B are satisfied. In addition, technical solutions between various embodiments may be combined with each other, but must be realized by a person skilled in the art, and when the technical solutions are contradictory or cannot be realized, such a combination should not be considered to exist, and is not within the protection scope of the present invention.

The invention provides a constipation dredger.

In an embodiment of the present invention, referring to fig. 1, the constipation dredger comprises a conveying pipe 100 and a conveying member 200, wherein a pushing channel is formed in the conveying pipe 100, and a force-assisting part 101 is formed on a pipe body of the conveying pipe 100; the conveying piece 200 is movably arranged in the conveying pipe 100, two ends of the conveying piece 200 are respectively a force application end and an inlet end 201, the force application end extends out of a pipe orifice at one side of the conveying pipe 100 and is arranged opposite to the force borrowing part 101 on the conveying pipe 100, and the inlet end 201 is provided with a water outlet 203 communicated with a water feeding pipe 300 of the constipation dredger; when in use, a user can borrow force from the force borrowing part 101 on the conveying pipe 100 and apply force to the force applying end of the conveying piece 200 so as to enable the conveying piece 200 to move from the pipe orifice at one side of the conveying pipe 100 to the pipe orifice at the other side, enable the inlet end 201 to extend out from the pipe orifice at the other side of the conveying pipe 100, and enable the water outlet hole 203 formed in the inlet end 201 to be used for conveying water flow.

It can be understood that, compared with the prior art, the constipation dredger provided by the application, through setting up the delivery member 200 in the delivery pipe 100, and set up the mode of borrowing power portion 101 on the delivery pipe 100, make the user when using the constipation dredger, can borrow power in order to press the application of force end of delivery member 200 from the delivery pipe 100, thereby send the access point 201 out of delivery pipe 100, because the access point 201 has apopore 203 that the delivery pipe 300 is linked together, consequently can accomplish smoothly to the water delivery work of anus intestines, the user of great convenience uses.

Further, as shown in fig. 1, in the present embodiment, the conveying pipe 100 includes a pipe body 102 and two blocking pieces, wherein the pipe body 102 forms a pushing channel, the blocking pieces are annularly arranged around the pipe body 102, and the blocking pieces form a force-assisting portion 101 on the conveying pipe 100. It can be understood that the blocking pieces are disposed around the tube body 102, so that the fingers of the user can be conveniently overlapped to assist the user in use. Meanwhile, due to the arrangement mode of the annular array, the user is less limited when the user constipation dredger is used, and the use by the user is facilitated. It should be noted that in other embodiments, the blocking plate may be provided with three, four or more blocking plates. It should be noted that, in other embodiments, the force-borrowing portion 101 may be provided in other forms, such as a flange formed on the pipe body 102, or a groove formed on the pipe body 102.

Further, as shown in fig. 2 and fig. 3, the tube body 102 includes an installation tube 110 and a pushing tube 120, wherein the blocking piece is formed on the installation tube 110, and the pushing tube 120 is detachably assembled with the installation tube 110. It can be understood that, for the hygiene, the constipation dredger is mostly disposable, the installation tube 110 and the pushing tube 120 are detachably assembled, and the installation tube 110 and the pushing tube 120 can be detached after the user uses the constipation dredger, so that the user only needs to discard the pushing tube 120, and the installation tube 110 can be recombined with the unused pushing tube 120 for use, thereby improving the utilization rate of the constipation dredger and reducing the use cost of the constipation dredger. It should be noted that, in other embodiments, the installation tube 110 and the pushing tube 120 may be configured to be non-detachable.

Further, referring to fig. 3, in the present embodiment, the pushing tube 120 and the mounting tube 110 are detachably connected by a snap. Specifically, a plurality of elastic buckling strips 111 are annularly arranged at a pipe orifice at one side of the installation pipe 110 close to the pushing pipe 120, a female buckle 112 is arranged at the inner side of the elastic buckling strips 111, a male buckle 124 is annularly arranged at a periphery of the pipe orifice at one side of the pushing pipe 120 close to the installation pipe 110, and when the pushing pipe 120 is inserted into the installation pipe 110, the female buckle 112 and the male buckle 124 are mutually clamped to fix the installation pipe 110 and the pushing pipe 120. To facilitate separation between the installation tube 110 and the push tube 120, the edges of the box 112 and the sub 124 are rounded. It can be understood that the detachable connection between the installation tube 110 and the push tube 120 is realized by means of a buckle, and the structure is simple, the assembly and disassembly are convenient, and the use by a user is convenient. It should be noted that, in other embodiments of the present application, the installation tube 110 and the push tube 120 may be detachably installed by a threaded connection, an insertion connection, or the like.

Further, referring to fig. 2, the pushing pipe 120 includes a first vertical section 121, a second vertical section 122 and a curved section 123, wherein the first vertical section 121 is detachably connected to the mounting pipe 110, the extending direction of the second vertical section 122 is staggered with respect to the first vertical section 121, and two ends of the curved section 123 are respectively connected to the first vertical section 121 and the second vertical section 122. It can be understood that because the user is generally self-service when using the constipation dredge, because the back of health is observed through twisting the upper part of the body to the human body very difficult again, consequently set up curved section 123 on push tube 120 to the extending direction that makes first vertical section 121 and second vertical section 122 is certain angle phase error, can use the constipation dredge by oneself by convenience of customers like this, reduces user's puzzlement. It should be noted that in other embodiments of the present application, the push pipe 120 may be vertically disposed.

Further, as shown in fig. 3, in order to facilitate the entrance end 201 of the transportation element 200 to enter into the anorectal cavity and reduce the risk of injury to the user, in the embodiment, the entrance end 201 is configured to be an arc, and the water outlet hole 203 is disposed on a side surface of the entrance end 201. Specifically, a water storage cavity 202 is further formed in the inlet end 201, the water supply pipe 300 of the constipation dredger is communicated with the water storage cavity 202, and correspondingly, due to the arrangement of the water storage cavity 202, a plurality of water outlet holes 203 are annularly formed on the peripheral surface of the inlet end 201, so that water flow can be divided, the impact of the water flow on the anus and the intestine is weakened, and the risk of injury of a user is further reduced.

Further, as shown in fig. 2 and fig. 3, the conveying element 200 includes a pushing rod 210 and a transmission rod 220, wherein the pushing rod 210 is movably disposed in the installation tube 110, the force applying end of the conveying element 200 is formed on the pushing rod 210, the transmission rod 220 is movably disposed in the pushing tube 120, the inlet end 201 of the conveying element 200 is formed on the transmission rod 220, and the pushing rod 210 is detachably connected to the transmission rod 220. It can be understood that, as the installation tube 110 and the push tube 120 are detachably assembled, the push rod 210 and the transmission rod 220 are detachably assembled, the push rod 210 is arranged on the installation tube 110, and the transmission rod 220 is arranged on the push tube 120, so that both the installation tube 110 and the push rod 210 can be repeatedly used, and the utilization rate of the constipation dredger is further improved.

Further, referring to fig. 3, a limiting plate 113 is disposed inside the mounting tube 110, the limiting plate 113 has a mounting hole, and the pushing rod 210 passes through the mounting hole to be inserted into the mounting tube 110. It can be understood that, by providing the limit plate 113 in the installation pipe 110 to install the limit rod, the movement direction of the push rod 210 can be limited, thereby improving the stability of the movement of the transmission rod 220. Specifically, the pushing rod 210 includes a pressing plate 211, a connecting rod 212 and a supporting plate 213, the pressing plate 211 and the supporting plate 213 are respectively disposed at two ends of the connecting rod 212, the connecting rod 212 passes through the mounting hole, so that the pressing plate 211 and the supporting plate 213 are respectively disposed at two ends of the limiting plate 113, wherein the pressing plate 211 is disposed outside the mounting tube 110, and the supporting plate 213 is supported by the transmission rod 220. It can be understood that the setting of the pressing plate 211 can increase the force-bearing contact area of the push rod 210, so that the user can use the push rod conveniently, and meanwhile, the pressing plate 211 can be limited by the mounting hole, so that the transmission rod 220 is prevented from entering into the anus and the intestine too much, and the risk of injury of the user is reduced.

Further, in the present embodiment, the pushing rod 210 and the transmission rod 220 are connected by abutting. Specifically, a limit protruding column 214 is disposed on one side of the abutting plate 213 abutting against the transmission rod 220, a limit hole is disposed on one side of the abutting plate 213 abutting against the transmission rod 220 corresponding to the limit protruding column 214, and the limit protruding column 214 can be inserted into the limit hole to improve the tightness of the abutting between the push rod 210 and the transmission rod 220. It can be understood that, by setting the connection mode between the pushing rod 210 and the transmission rod 220 to be abutting, after the user separates the installation tube 110 from the pushing tube 120, the pushing rod 210 and the transmission rod 220 can be separated, which is convenient and easy to use. And the cooperation between spacing projection 214 and the spacing hole can strengthen the compactness when butt between catch bar 210 and the transmission pole 220 to guarantee the stability of carrying 200 motion, thereby reduce the injured risk of user.

Further, as shown in fig. 2, an abdicating channel is formed in the transmission rod 220, and the water pipe 300 of the constipation dredger passes through the abdicating channel to communicate with the water storage cavity 202. It can be understood that the provision of the abdicating channel can make full use of the space in the conveying element 200 to reduce the volume of the conveying element 200. Correspondingly, the limiting plate 113 is also provided with corresponding abdicating holes for the water supply pipe 300 to pass through, so that the structure of the constipation dredger is more compact. In use, the water supply pipe 300 can be moved in the pipe body 102 by the transmission rod 220. It should be noted that in other embodiments of the present application, the water pipe 300 may directly communicate with the water outlet hole 203 through the abdicating channel.

Further, the transmission rod 220 includes a flexible transmission section and a water feeding section 222, wherein one side of the flexible transmission section 221 is accommodated in the first vertical section 121 and abuts against the push rod 210, the other side of the flexible transmission section is accommodated in the second vertical section 122 and is connected to the water feeding section 222, the water feeding section 222 is disposed in the second vertical section 122, and the inlet end 201 of the conveying member 200 is formed at a side of the water feeding section 222 away from the flexible transmission section 221. It will be appreciated that during use, the flexible drive section 221 is capable of transmitting power from the push rod 210 to the water feed section 222 while deforming within the curved section 123. The water feeding section 222 can gradually move away from the pipe body 102 under the pushing of the flexible transmission section 221. Specifically, in the present embodiment, the flexible transmission section 221 is made of a rubber tube, and in other embodiments, the flexible transmission section 221 may also be formed by filling a flexible material in the push tube 120, where the flexible material may be silica gel, rubber, soft gel, or the like.

Further, for the protection effect of reinforcing to the user, this water pipe 300's outside cladding has flexible inoxidizing coating, and in this embodiment, this flexible inoxidizing coating is silica gel, and the outside of flexible inoxidizing coating still coats and has the lubricating liquid.

Further, referring to fig. 4, in the present embodiment, the constipation dredger further comprises a water supply device 400, and the water supply device 400 is communicated with the water supply pipe 300 of the constipation dredger to provide a water source. Specifically, the water supply device 400 includes a water sump 410, a water temperature adjusting module 420, a water pressure adjusting module 430, and a water treatment module 440. The water sump 410 is used for storing water, and the water temperature adjusting module 420 can adjust the water temperature, so that the water in the water sump 410 can reach the temperature which is most suitable for users to use, and specifically, the water temperature adjusting module 420 is a water temperature adjuster; the water pressure adjusting module 430 can adjust the water pressure in the water feeding pipe 300, so as to control the water outlet pressure, so as to adapt to the use habits of different users, and specifically, the water pressure adjusting module 430 is a water pressure adjuster; the water treatment module 440 can sterilize the water in the sump 410 to prevent the user from being infected by bacteria, and specifically, the water treatment module 440 includes an activated carbon filter element and an ultraviolet light emitter disposed in the sump 410.

The above description is only a preferred embodiment of the present invention, and is not intended to limit the scope of the present invention, and all modifications and equivalents of the present invention, which are made by the contents of the present specification and the accompanying drawings, or directly/indirectly applied to other related technical fields, are included in the scope of the present invention.

Claims

1. A constipation dredge, comprising:

the conveying pipe is internally provided with a pushing channel, a force borrowing part is arranged on a pipe body of the conveying pipe, the conveying pipe comprises a pipe body, the pushing channel is formed in the pipe body, the pipe body comprises an installation pipe and a pushing pipe, the installation pipe is detachably connected with the pushing pipe, the pushing pipe comprises a first vertical section, a second vertical section and a bent arc section, the first vertical section is detachably connected with the installation pipe, the extending direction of the second vertical section is staggered with that of the first vertical section, and two ends of the bent arc section are respectively connected with the first vertical section and the second vertical section; and the number of the first and second groups,

the conveying piece is movably arranged in the conveying pipeline, two ends of the conveying piece are respectively a force application end and an inlet end, the force application end extends out of a pipe orifice at one side of the conveying pipe and is arranged opposite to the force borrowing part, the force application end can move towards one side where the force borrowing part is located, so that the inlet end extends out of a pipe orifice at the other side of the conveying pipe, and the inlet end is provided with a water outlet hole communicated with a water conveying pipe of the constipation dredger;

the conveying piece comprises a pushing rod and a conveying rod, the pushing rod is movably arranged in the installation pipe and is provided with the force application end, the conveying rod is movably arranged in the pushing pipe and is provided with the inlet end, and the pushing rod is detachably connected with the conveying rod;

the pushing rod comprises a pressing plate, a connecting rod and a pressing plate, the pressing plate and the pressing plate are respectively arranged at two ends of the connecting rod, the pressing plate is arranged outside the mounting pipe, and the pressing plate is abutted to the transmission rod;

a limiting convex column is arranged on one side of the abutting plate connected with the transmission rod, a limiting hole is correspondingly arranged on one side of the transmission rod connected with the abutting plate, and the limiting convex column is inserted in the limiting hole;

a yielding channel is formed in the transmission rod, and a water supply pipe of the constipation dredger penetrates through the yielding channel to be communicated with the water outlet hole;

the transmission rod comprises a flexible transmission section and a water feeding section, one side of the flexible transmission section is accommodated in the first vertical section and is abutted against the push rod, the other side of the flexible transmission section is accommodated in the second vertical section and is connected with the water feeding section, the water feeding section is arranged in the second vertical section, and the inlet end is formed at one side of the water feeding section, which is far away from the flexible transmission section.

2. The constipation dredger of claim 1, wherein the conveying pipe further comprises a blocking piece formed on the mounting pipe, the blocking piece is provided with at least two pieces, and is annularly arrayed around the mounting pipe, and the blocking piece forms the force-borrowing portion.

3. The constipation dredger of claim 1, wherein the mounting tube is internally provided with a limiting plate, the limiting plate is provided with a mounting hole, and the push rod passes through the mounting hole to be inserted into the mounting tube.

4. The constipation dredger of claim 1, wherein the water feeding section is coated with a flexible protective layer on the outside.

5. The constipation dredger according to any one of claims 1 to 4, further comprising a water supply device communicating with a water supply pipe of the constipation dredger to supply a water source.
