一种室内设计用组合隔断架，本发明涉及室内设计技术领域；每个组合隔断框体的左侧上下两角的后部均连接固定有一号螺纹连接柱，每个组合隔断框体的右侧上下两角前部均连接固定有二号螺纹连接柱，相邻的组合隔断框体之间利用二号螺纹连接柱和一号螺纹连接柱的配合，首尾相连，且相连的一号螺纹连接柱和二号螺纹连接柱之间利用一号连接螺栓旋接固定；每个组合隔断框体的内部均设有数个隔板，每个隔板上均设有数个立板，每个立板内均开设有螺纹连接孔。其能够根据使用情况，进行调节，以增强其适用性能，同时还方便多个模块之间的组合，以便于适应不同的使用环境，适用范围广，实用性更强。

Figure 201811373554

A combined partition frame for interior design, the invention relates to the technical field of interior design; the rear parts of the upper and lower corners of the left side of each combined partition frame are connected and fixed with a No. 1 threaded connecting column, and the right side of each combined partition frame The front parts of the upper and lower corners are connected and fixed with No. 2 threaded connecting columns, and the adjacent composite partition frames are connected end to end by the cooperation of No. 2 threaded connecting columns and No. 1 threaded connecting columns, and the connected No. 1 threaded connecting columns are connected. The No. 1 connecting bolt is used for screwing and fixing between the No. 2 threaded connecting column; each combined partition frame is provided with several partitions, and each partition is provided with several vertical plates, and each vertical plate has several partitions. A threaded connection hole is provided. It can be adjusted according to usage conditions to enhance its applicable performance, and at the same time, it is convenient to combine multiple modules so as to adapt to different usage environments, with a wide range of applications and stronger practicability.

Figure 201811373554

Description

Combined partition frame for indoor design
Technical Field
The invention relates to the technical field of indoor design, in particular to a combined partition frame for indoor design.
Background
The indoor design is to create an indoor environment which has reasonable function, is comfortable and beautiful and meets the requirements of people on material and spiritual life by applying technical means and building design principles according to the use properties of buildings, the environment and corresponding standards. Some indoor spaces are relatively large, but certain permeability needs to be ensured, so that the indoor spaces need to be separated by partitions.
Present wall frame all is the certain support body of size of making according to the interior space size, and inconvenient according to actual demand adjusts, and is unfavorable for aggregate erection, awaits urgent need to improve.
Disclosure of Invention
The invention aims to provide a combined partition frame for indoor design, which has a simple structure, is reasonable in design and convenient to use, can be adjusted according to the use condition so as to enhance the applicability of the combined partition frame, is convenient to combine a plurality of modules so as to adapt to different use environments, and has wide application range and stronger practicability.
In order to achieve the purpose, the invention adopts the technical scheme that: the combined partition frame comprises a combined partition frame body, wherein the combined partition frame body is composed of a combined partition frame body, a first threaded connecting column, a second threaded connecting column, a partition plate, a vertical plate and a storage plate; the rear parts of the upper and lower corners on the left side of each combined partition frame body are fixedly connected with a first threaded connecting column, the front parts of the upper and lower corners on the right side of each combined partition frame body are fixedly connected with a second threaded connecting column, the adjacent combined partition frame bodies are connected end to end by matching the second threaded connecting column with the first threaded connecting column, and the connected first threaded connecting column and the second threaded connecting column are fixedly screwed by a first connecting bolt; a plurality of partition plates are arranged inside each combined partition frame body, a plurality of vertical plates are arranged on each partition plate, and threaded connecting holes are formed in each vertical plate; the bottom of the transverse plate of the object placing plate is connected with a threaded connecting column, and the threaded connecting column is screwed in the threaded connecting hole.
Furthermore, the upper surface of the clapboard is provided with a plurality of slots; two inserting edges are symmetrically arranged at the bottom of the vertical plate, and the inserting edges are movably inserted into the inserting grooves; a second magnet layer is fixed at the bottom of the inserting edge; a first magnet layer is fixed on the bottom wall of the slot; the second magnet layer and the first magnet layer are attracted and fixed.
Furthermore, the lengths of the transverse edge and the vertical edge of the object placing plate are the same, the width of the vertical plate is the same as the length of the transverse edge of the object placing plate, and the ratio of the width of the vertical plate to the length of the slot is 1: 2.
Furthermore, two decorative painting layers are respectively adhered to the inner side surface and the outer side surface of the vertical plate of the object placing plate.
Furthermore, a silica gel sealing strip is embedded in a gap between the adjacent combined partition frame bodies.
Furthermore, the bottom of the combined partition frame body is arranged in the base, a third threaded connecting column corresponding to the first threaded connecting column is arranged at the front part of the left side in the base, and a fourth threaded connecting column corresponding to the second threaded connecting column is arranged at the rear part of the right side in the base; and the first threaded connecting column and the third threaded connecting column and the second threaded connecting column and the fourth threaded connecting column are screwed and fixed by a second connecting bolt.
Furthermore, the front side wall and the rear side wall of the base are both provided with a first decorative picture layer in an attached mode.
The working principle of the invention is as follows: according to the size required by indoor design, a plurality of combined partition frame bodies with the same standard and partition plates fixed in the combined partition frame bodies are processed and fixed; vertical plates with different numbers are inserted on the partition plates, and the placing direction and the height of the object placing plates are adjusted by rotating the object placing plates; when installing two risers in same slot for two put the thing board and set up around for the thing board is used for putting the article in the place ahead, and the thing board of putting at rear is used as decorating the background, makes wholly more have space stereovision, also can adjust around putting the thing board and be located not co-altitude, makes different articles be not co-altitude and puts.
After adopting the structure, the invention has the beneficial effects that:
1. the integral combined partition frame bodies 1 with the same specification are arranged, and the adjacent combined partition frame bodies 1 are connected and fixed by the first connecting bolt 11, so that the combined partition frame bodies 1 with proper number can be conveniently selected to be combined according to different indoor space requirements, and the application range of the combined partition frame bodies is enlarged;
2. the slot 4-1 for the vertical plate 5 to slide back and forth is arranged on the partition plate 4, the vertical plate 5 can be moved back and forth to a required position as required to place objects, the distance between the left side and the right side of the plurality of object placing plates 6 can be adjusted, the layering sense is provided for the left and right vertical planes of the whole combined partition frame, and the variability is strong;
3. the object placing plate 6 can rotate up and down to adjust the height, so that the adjustment of spaces with different heights can be realized conveniently according to the heights of different ornaments, and the application range and the practicability are increased;
4. the ratio of the width H1 of the vertical plate 5 to the length H2 of the slot 4-1 is set to be 1: 2, so that the two object placing plates 6 can be conveniently placed in the front and back direction for placing objects in the front and back direction, the layering sense of the front and back vertical surfaces of the whole combined partition frame is provided, and the background decoration effect is achieved.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.

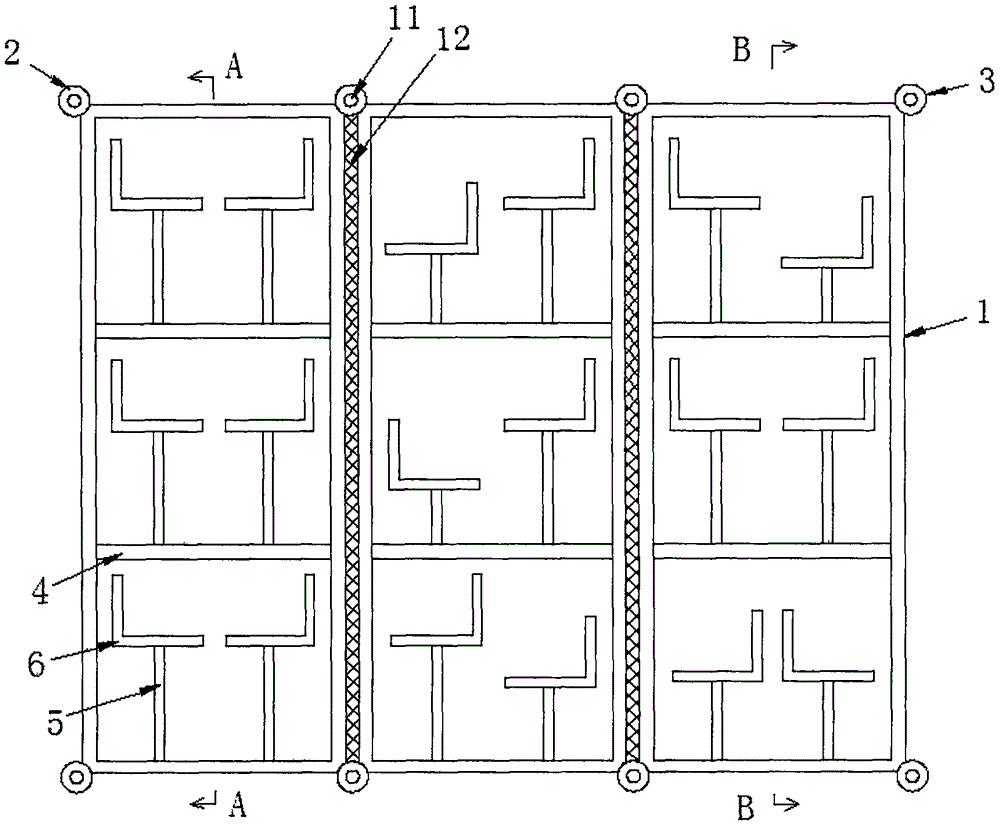

Fig. 1 is a schematic structural view of the present invention.
Fig. 2 is a schematic view of the structure of the separator in the present invention.
Fig. 3 is a sectional view taken along line a-a in fig. 1.
Fig. 4 is a sectional view taken along line B-B in fig. 1.
Fig. 5 is a schematic structural view of the vertical plate in the present invention.
Fig. 6 is a schematic structural view of the storage plate of the present invention.
Fig. 7 is a schematic structural diagram of an embodiment.
Fig. 8 is a schematic structural view of a base in an embodiment.
Fig. 9 is a sectional view taken along line C-C in fig. 8.
Fig. 10 is a sectional view taken along line D-D in fig. 8.
Fig. 11 is a schematic structural diagram of the embodiment.
Description of reference numerals:
the combined partition frame comprises a combined partition frame body 1, a first threaded connecting column 2, a second threaded connecting column 3, a partition plate 4, a slot 4-1, a vertical plate 5, a threaded connecting hole 5-1, a storage plate 6, a threaded connecting column 7, an inserting edge 8, a second magnet layer 9, a first magnet layer 10, a first connecting bolt 11, a silica gel sealing strip 12, a base 13, a through hole 13-1, a first decorative picture layer 14, a second connecting bolt 15, a third threaded connecting column 16, a fourth threaded connecting column 17 and a second decorative picture layer 18.
Detailed Description
The invention will be further described with reference to the accompanying drawings.
Referring to fig. 1 to 10, the technical solution adopted by the present embodiment is: the combined partition frame comprises a combined partition frame body (made of wood materials), wherein the combined partition frame body is composed of a combined partition frame body 1, a first threaded connecting column 2, a second threaded connecting column 3, a partition plate 4, a vertical plate 5 and an object placing plate 6; the rear parts of the upper and lower corners of the left side of each combined partition frame body 1 are integrally formed with a first threaded connecting column 2, the front parts of the upper and lower corners of the right side of each combined partition frame body 1 are integrally formed with a second threaded connecting column 3, the adjacent combined partition frame bodies 1 are connected end to end by matching the second threaded connecting column 3 with the first threaded connecting column 2 (the second threaded connecting column 3 is arranged in front of the first threaded connecting column 2), and the first threaded connecting column 2 and the second threaded connecting column 3 which are connected are screwed and fixed by a first connecting bolt 11 (the rear end of the first connecting bolt 11 passes through the first threaded connecting column 2 and is screwed and fixed with a nut); a plurality of partition plates 4 are arranged inside each combined partition frame body 1, a plurality of vertical plates 5 are arranged on each partition plate 4, and a plurality of slots 4-1 are formed in the upper surfaces of the partition plates 4; two inserting edges 8 are symmetrically and integrally formed at the bottom of the vertical plate 5, and the inserting edges 8 are movably inserted into the slots 4-1; a second magnet layer 9 is fixed at the bottom of the inserting edge 8 in an adhesive manner; a first magnet layer 10 is fixed on the bottom wall of the slot 4-1 in an adhesive manner; the second magnet layer 9 and the first magnet layer 10 are attracted and fixed; each vertical plate 5 is internally provided with a threaded connecting hole 5-1; the bottom of the transverse plate of the object placing plate 6 is bonded with a threaded connecting column 7 by wood glue, and the threaded connecting column 7 is screwed in the threaded connecting hole 5-1.
Furthermore, the lengths of the transverse edge and the vertical edge of the object placing plate 6 are the same, the width H1 of the vertical plate 5 is the same as the length of the transverse edge of the object placing plate 6, and the ratio of the width H1 of the vertical plate 5 to the length H2 of the slot 4-1 is 1: 2.
Furthermore, the two inner and outer side surfaces of the vertical plate of the object placing plate 6 are glued with a second decorative painting layer 18.
Furthermore, a silica gel sealing strip 12 is embedded in a gap between the adjacent combined partition frame bodies 1.
Furthermore, the bottom of the combined partition frame body is arranged in the base 13, a third threaded connecting column 16 corresponding to the first threaded connecting column 2 is arranged at the front part of the left side in the base 13 (the third threaded connecting column 16 is arranged in front of the first threaded connecting column 2), and a fourth threaded connecting column 17 corresponding to the second threaded connecting column 3 is arranged at the rear part of the right side in the base 13 (the fourth threaded connecting column 17 is arranged behind the second threaded connecting column 3); a first threaded connecting column 2 and a third threaded connecting column 16 and a second threaded connecting column 3 and a fourth threaded connecting column 17 are screwed and fixed through a second connecting bolt 15, the front end and the rear end of the second connecting bolt 15 are exposed out of the front side wall and the rear side wall of the base 13 after respectively penetrating through a through hole 13-1 in the front side wall and the rear side wall of the base 13, and the inner end of the second connecting bolt 15 is screwed and fixed with a nut after penetrating through the rear side wall of the base 13.
Furthermore, a first decorative painting layer 14 is glued on the front side wall and the rear side wall of the base 13.
Furthermore, the transverse plate and the vertical plate of the object placing plate 6 can be processed into different shapes, such as a lace shape, a convex tooth shape and the like, so as to be matched with the interior decoration.
The working principle of the specific embodiment is as follows: according to the size required by indoor design, a plurality of combined partition frame bodies 1 with the same standard and partition plates 4 fixed in the combined partition frame bodies are processed and fixed; vertical plates 5 with different numbers are inserted on the partition plate 4, and the placing direction and the height of the object placing plate 6 are adjusted by rotating the object placing plate 6; when installing two risers 5 in same slot 4-1 for two put thing board 6 front and back settings, wherein the place thing board 6 in the place ahead is used for putting the article, and the thing board 6 of putting in the back is used as decorating the background, makes wholly more have the space stereovision, also can adjust around putting thing board 6 and be located not co-altitude, makes different articles be not co-altitude and puts.
After adopting above-mentioned structure, this embodiment beneficial effect does: this embodiment provides a combination cuts off frame for indoor decoration, and it can be according to in service behavior, adjusts to strengthen its suitability, still makes things convenient for the combination between a plurality of modules simultaneously, so that adapt to different service environment, and application scope is wide, and the practicality is stronger.
Example (b):
referring to fig. 11, in the present embodiment, the two top-most shelf boards 6 in the left and right combined partition frame 1 are placed in front and at the back, and the vertical board of the rear shelf board 6 is used as a decorative background; the two object placing plates 6 in the middle layer are arranged symmetrically left and right and adjacently and can be used for placing larger objects; the two object placing plates 6 at the bottommost layer are arranged back to back; the two plant plates 6 on the uppermost layer in the middle combined partition frame body 1 are placed in front and at the back, and the articles placed on the article placing plate 6 at the back are higher than the articles placed on the article placing plate 6 at the front; the height of the object placing plates 6 on the rest partition plates 4 can be adjusted to be proper along with the size of the placed object and the required height and angle of a user.
The above description is only for the purpose of illustrating the technical solutions of the present invention and not for the purpose of limiting the same, and other modifications or equivalent substitutions made by those skilled in the art to the technical solutions of the present invention should be covered within the scope of the claims of the present invention without departing from the spirit and scope of the technical solutions of the present invention.

Claims (2)

1. The utility model provides an indoor decoration cuts off frame with combination which characterized in that: the combined partition frame comprises a combined partition frame body, wherein the combined partition frame body is composed of a combined partition frame body (1), a first threaded connecting column (2), a second threaded connecting column (3), a partition plate (4), a vertical plate (5) and an object placing plate (6); the rear parts of the upper and lower corners on the left side of each combined partition frame body (1) are respectively fixedly connected with a first threaded connecting column (2), the front parts of the upper and lower corners on the right side of each combined partition frame body (1) are respectively fixedly connected with a second threaded connecting column (3), the adjacent combined partition frame bodies (1) are matched with the first threaded connecting column (2) through the second threaded connecting column (3), and are connected end to end, and the first threaded connecting column (2) and the second threaded connecting column (3) which are connected are screwed and fixed through a first connecting bolt (11); a plurality of partition plates (4) are arranged inside each combined partition frame body (1), a plurality of vertical plates (5) are arranged on each partition plate (4), and threaded connecting holes (5-1) are formed in each vertical plate (5); the bottom of the transverse plate of the object placing plate (6) is connected with a threaded connecting column (7), and the threaded connecting column (7) is screwed in the threaded connecting hole (5-1); the upper surface of the clapboard (4) is provided with a plurality of slots (4-1); two inserting edges (8) are symmetrically arranged at the bottom of the vertical plate (5), and the inserting edges (8) are movably inserted into the inserting grooves (4-1); a second magnet layer (9) is fixed at the bottom of the inserting edge (8); a first magnet layer (10) is fixed on the bottom wall of the slot (4-1); the second magnet layer (9) and the first magnet layer (10) are attracted and fixed; the lengths of the transverse edge and the vertical edge of the object placing plate (6) are the same, the length of the width H1 of the vertical plate (5) is the same as that of the transverse edge of the object placing plate (6), and the ratio of the width H1 of the vertical plate (5) to the length H2 of the slot (4-1) is 1: 2; a second decorative picture layer (18) is respectively stuck on the inner side surface and the outer side surface of the vertical plate of the object placing plate (6); a silica gel sealing strip (12) is embedded in a gap between the adjacent combined partition frame bodies (1); a third threaded connecting column (16) corresponding to the first threaded connecting column (2) is arranged at the front part of the left side in the base (13), and a fourth threaded connecting column (17) corresponding to the second threaded connecting column (3) is arranged at the rear part of the right side in the base (13); the first threaded connecting column (2) and the third threaded connecting column (16) as well as the second threaded connecting column (3) and the fourth threaded connecting column (17) are screwed and fixed by a second connecting bolt (15); a first decorative picture layer (14) is respectively stuck on the front side wall and the rear side wall of the base (13).
2. The combined partition frame for indoor design according to claim 1, wherein: the working principle is as follows: according to the size required by indoor design, a plurality of combined partition frame bodies (1) with the same standard and partition plates (4) fixed in the combined partition frame bodies are processed and fixed; vertical plates (5) with different numbers are inserted on the partition plate (4), and the placing direction and the height of the object placing plate (6) are adjusted by rotating the object placing plate (6); when installing two risers (5) in same slot (4-1), make two put thing board (6) and set up around for, wherein the place thing board (6) in the place ahead are used for putting the article, and the thing board (6) of putting at rear use as decorating the background, make whole more have space stereovision, also can adjust around the back put thing board (6) and be located the co-altitude, make different articles be co-altitude and put.
