Abstract

The invention relates to the technical field of forestry equipment, in particular to a paint brushing device for municipal tree protection. , a discharge pipe is connected between the storage box and the feeding port of the material pump, one end of the moving rod is connected with a first electric telescopic rod through a pin shaft, and one side of the height adjustment device is fixedly installed with a A connecting rod, one end of the connecting rod is fixedly installed with a U-shaped plate, the output end of the second motor extends to the groove and is connected with a first gear, and the opposite ends of the two sliding blocks are connected with the first gear meshing rack. The invention has the advantages of simple structure and convenient use, and can spray materials on trees without dead ends, greatly reducing the work intensity of the staff, at the same time speeding up the spraying of materials on trees, and enabling the staff to work in a safe environment, which is safe, reliable and practical. Strong and worthy of promotion.

Description

A working method of a brushing device for municipal tree protection

technical field

The invention relates to the technical field of forestry equipment, in particular to a working method of a paint brushing device for municipal tree protection.

Background technique

With the acceleration of urban greening in my country, the proportion of greening in urban construction is increasing. In recent years, the number and variety of greening trees, especially landscape trees, have gradually increased. It is required that how to prevent frostbite, sunburn, germs, insect pests and other damages caused by excessive temperature difference, pests and diseases, and ensure the safe and healthy growth of trees is one of the main tasks of the daily management of green trees. Alkaline environment can effectively prevent the invasion of bacteria and avoid infection, thereby increasing the ability of trees to resist diseases, etc., but currently spraying this agent is generally manual operation, and the operator brushes the trees with a brush. Although the operation is simple, but The workload is large, time-consuming, labor-intensive, and waste of chemicals, which has a great impact on the health and health of the operator. In view of the above situation, we propose a brushing device for municipal tree protection.

SUMMARY OF THE INVENTION

The purpose of the present invention is to solve the shortcomings existing in the prior art, and thus proposes a paint brushing device for municipal tree protection.

In order to achieve the above object, the present invention adopts the following technical solutions:

Design a brushing device for municipal tree protection, including a base, the lower surface of the base is symmetrically installed with moving wheels on both sides, and the upper surface of the base is sequentially installed with batteries, rotating devices, feed pumps, A storage box and a push rod, a control panel is installed on one side of the push rod, a discharge pipe is connected between the storage box and the feeding port of the material pump, and a tee is connected to the discharge port of the material pump A guide sleeve is fixedly installed on the upper end of the rotating device, a moving rod runs through the inside of the guide sleeve, and one end of the moving rod is rotatably connected with a first electric telescopic rod through a pin shaft. The first electric telescopic rod One end of the moving rod is rotatably connected with the rotating device through a pin, the other end of the moving rod is fixedly connected with a height adjustment device, one side of the height adjustment device is fixedly installed with a connecting rod, and one end of the connecting rod is fixedly installed with a U-shaped One side of the U-shaped plate is fixedly installed with a horizontal plate, one side of the horizontal plate is provided with a groove, both sides of the groove are provided with sliding grooves, and one side of the horizontal plate is installed in the middle There is a second motor, the output end of the second motor extends to the groove and is connected with the first gear, the inside of the chute is equipped with a slider, and the opposite ends of the two sliders are connected with the first gear. A rack meshed with gears, a mounting block is installed on one side of the rack, a connecting block is fixedly installed in the middle of the mounting block, and a spraying device is installed at one end of the connecting block, and the control panel, battery, The second motor and the first electric telescopic rod are connected by wires.

Preferably, the rotating device includes an outer frame, the lower surface of the outer frame is fixedly connected to the base, the inner lower surface of the outer frame is rotatably connected with a rotating shaft, and the upper end of the rotating shaft penetrates the outer frame and is fixedly connected to the guide sleeve, One side of the rotating shaft is rotatably connected to the first electric telescopic rod through a pin shaft, a second gear is connected to the outside of the rotating shaft, a third motor is installed on the inner lower surface of the outer frame, and the output of the third motor is The end is connected with a third gear that meshes with the second gear, and the third motor, the battery and the control panel are connected by wires.

Preferably, the height adjusting device includes an L-shaped plate, one side of the vertical plate of the L-shaped plate is fixedly connected to the moving rod, and one side of the vertical plate and the horizontal plate of the L-shaped plate is provided with a T-shaped sliding plate. A sliding rod is installed inside the vertical T-shaped chute, a pusher is installed on one side of the upper end of the sliding rod, and a T-shaped block is installed inside the horizontal T-shaped sliding groove, and the T-shaped block is installed. One side of the support rod is installed with a support rod, one side of the support rod is provided with a push groove, one side of the L-shaped plate horizontal plate is installed with a second electric telescopic rod, and the output end of the second electric telescopic rod is connected to the T The mold block is fixedly connected, one side of the sliding rod is fixedly connected with the connecting rod, and the second electric telescopic rod, the control panel and the battery are connected by wires.

Preferably, the spraying device includes two vertical plates, one side of the vertical plate is fixedly connected with the connecting block, the upper and lower parts of one side of the vertical plate are fixedly installed with a fixed block, and one of the two fixed blocks is fixed. A threaded rod is installed between the threaded rods, one end of the threaded rod is connected to a third motor through the fixing block, three square holes are provided on one side of the vertical plate, and a threaded slider is threadedly connected to the outer side of the threaded rod. Both sides and the middle of the threaded slider are fixedly connected with movable connecting rods, and the movable connecting rods are connected with arc-shaped pipes through the square holes, and the opposite sides of the two arc-shaped pipes are provided with a plurality of discharge holes. The lower part of the arc-shaped pipe is provided with feeding holes, and the feeding holes are connected with two pipes of the three-way pipe, and the third motor, the control panel and the battery are connected by wires.

Preferably, a first motor is installed on the upper end of the storage box, a stirring rod is connected to the output end of the first motor through the storage box, and the first motor, the control panel and the battery are connected by wires.

Preferably, the two moving wheels on the right side are universal moving wheels.

Preferably, one end of the push rod is sleeved with a protective rubber sleeve.

The utility model provides a paint brushing device for municipal tree protection, which has the beneficial effects that the rotating device provided in the present invention can drive the spraying device to rotate, so that the device can spray materials on different trees at a certain position. The height adjustment device can change the height of the spraying device, so that the bottom of the tree can be sprayed, so that the dead corner of the tree can be sprayed. The spraying device can automatically spray the trees, greatly reducing the labor intensity of the staff. At the same time, the second motor provided at the same time drives the first gear to rotate, and the first gear drives the rack to move, so that the distance between the two spraying devices can be changed, and the trees of different thicknesses can be sprayed. The structure is simple and the use is convenient. It can spray the trees without dead ends, greatly reducing the work intensity of the staff, and at the same time speeding up the spraying of the trees, and it can also enable the staff to work in a safe environment. It is safe, reliable, and practical, and it is worthy of promotion.

Description of drawings

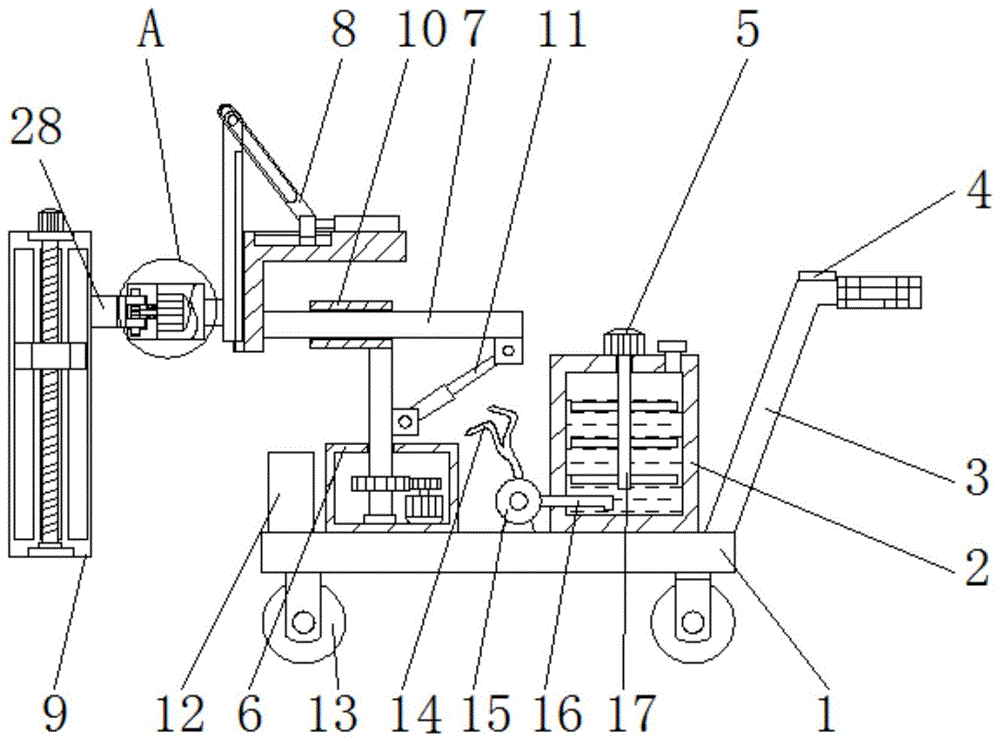

Fig. 1 is a kind of structural representation of the brushing device for municipal tree protection proposed by the present invention;

Fig. 2 is the U-shaped plate structure schematic diagram of a kind of municipal tree protection painting device proposed by the present invention;

3 is a schematic structural diagram of a spraying device of a paint brushing device for municipal tree protection proposed by the present invention;

4 is a schematic structural diagram of a spraying device of a paint brushing device for municipal tree protection proposed by the present invention;

5 is a schematic diagram of the structure A of a paint brushing device for municipal tree protection proposed by the present invention;

6 is a schematic structural diagram of a height adjustment device of a paint brushing device for municipal tree protection proposed by the present invention;

7 is a schematic structural diagram of a rotating device of a paint brushing device for municipal tree protection proposed by the present invention.

In the figure: base 1, storage box 2, push rod 3, control panel 4, first motor 5, rotating device 6, outer frame 61, third motor 62, second gear 63, third gear 64, rotating shaft 65, Moving rod 7, height adjustment device 8, T-shaped chute 81, L-shaped plate 82, sliding rod 83, T-shaped block 84, second electric telescopic rod 85, support rod 86, push groove 87, push head 88, spraying device 9. Fixed block 91, square hole 92, threaded rod 93, threaded slider 94, mobile connecting rod 95, vertical plate 96, third motor 97, discharge hole 98, arc tube 99, feed hole 910, guide sleeve 10. The first electric telescopic rod 11, the battery 12, the moving wheel 13, the tee pipe 14, the material pump 15, the discharge pipe 16, the stirring rod 17, the connecting rod 18, the U-shaped plate 19, the second motor 20, the horizontal plate 21. Slider 22, rack 23, mounting block 24, first gear 25, chute 26, groove 27, connecting block 28.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments.

Referring to Figures 1-7, a painting device for municipal tree protection includes a base 1, and movable wheels 13 are symmetrically installed on both sides of the lower surface of the base 1, and the two movable wheels 13 on the right side are universal moving wheels, which can facilitate Push the device, and at the same time greatly reduce the labor intensity of the staff.

The upper surface of the base 1 is installed with a battery 12, a rotating device 6, a material pump 15, a material storage box 2 and a push rod 3 in sequence from left to right. Department for protection.

The upper end of the storage box 2 is installed with a first motor 5, and the output end of the first motor 5 is connected with a stirring rod 17 through the storage box 2. The first motor 5, the control panel 4 and the battery 12 are connected by wires, which can The materials in the storage box 2 are stirred to prevent the materials from settling, and at the same time, the materials are mixed more uniformly.

The rotating device 6 includes an outer frame 61 , the lower surface of the outer frame 61 is fixedly connected with the base 1 , the inner lower surface of the outer frame 61 is rotatably connected with a rotating shaft 65 , and the upper end of the rotating shaft 65 penetrates the outer frame 61 and is fixedly connected with the guide sleeve 10 , the rotating shaft 65 One side of the shaft is rotatably connected to the first electric telescopic rod 11 through a pin shaft, a second gear 63 is connected to the outside of the rotating shaft 65, a third motor 62 is installed on the inner lower surface of the outer frame 61, and the output end of the third motor 62 is connected to a The third gear 64 meshing with the second gear 63, the third motor 62, the battery 12 and the control panel 4 are connected by wires, so that the guide sleeve 10 can be rotated, so that the spraying device 9 can be rotated, which is convenient for different positions. The trees are sprayed, thereby reducing the intensity of the staff.

A control panel 4 is installed on one side of the push rod 3, a discharge pipe 16 is connected between the material storage box 2 and the feeding port of the material pump 15, and a tee pipe 14 is connected to the discharge port of the material pump 15. A guide sleeve 10 is fixedly installed at the upper end, and a moving rod 7 runs through the inside of the guide sleeve 10. One end of the moving rod 7 is connected to a first electric telescopic rod 11 through a pin shaft, and one end of the first electric telescopic rod 11 is rotated through a pin shaft. The device 6 is rotatably connected, and the other end of the moving rod 7 is fixedly connected with a height adjusting device 8. The height adjusting device 8 includes an L-shaped plate 82, one side of the vertical plate of the L-shaped plate 82 is fixedly connected with the moving rod 7, and the L-shaped plate 82 One side of the vertical plate and the horizontal plate is provided with a T-shaped chute 81, a sliding rod 83 is installed inside the vertical T-shaped sliding groove 81, a pusher 88 is installed on the upper end of the sliding rod 83, and the horizontal T-shaped sliding A T-shaped block 84 is installed inside the groove 81, a support rod 86 is installed on one side of the T-shaped block 84, a push groove 87 is installed on one side of the support rod 86, and a second electric motor is installed on one side of the horizontal plate of the L-shaped plate 82. The telescopic rod 85, the output end of the second electric telescopic rod 85 is fixedly connected with the T-block 84, one side of the sliding rod 83 is fixedly connected with the connecting rod 18, the second electric telescopic rod 85, the control panel 4 and the battery 12 pass through The wire is connected, and the spraying device 9 can be moved up and down, so that the trees can be sprayed without dead ends, so that the effect of spraying on the trees is better.

A connecting rod 18 is fixedly installed on one side of the height adjusting device 8, a U-shaped plate 19 is fixedly installed on one end of the connecting rod 18, a horizontal plate 21 is fixedly installed on one side of the U-shaped plate 19, and one side of the horizontal plate 21 is provided with a concave. The groove 27, the two sides of the groove 27 are provided with sliding grooves 26, the middle of one side of the horizontal plate 21 is installed with the second motor 20, the output end of the second motor 20 extends to the groove 27 and is connected with the first gear 25, the sliding The sliding blocks 22 are installed inside the grooves 26. The opposite ends of the two sliding blocks 22 are connected with a rack 23 that meshes with the first gear 25. A mounting block 24 is installed on one side of the rack 23. A connecting block 28 is fixedly installed in the middle, and a spraying device 9 is installed at one end of the connecting block 28. The spraying device 9 includes two vertical plates 96, one side of the vertical plate 96 is fixedly connected with the connecting block 28, and the upper part of one side of the vertical plate 96 A fixing block 91 is fixedly installed at the lower part and the two fixing blocks 91; a threaded rod 93 is installed between the two fixing blocks 91; In the hole 92, the outer side of the threaded rod 93 is threadedly connected with a threaded slider 94, and the two sides and the middle of the threaded slider 94 are fixedly connected with a movable connecting rod 95, and the movable connecting rod 95 passes through the square hole 92 and is connected with an arc-shaped pipe 99 , the opposite sides of the two arc-shaped pipes 99 are provided with a plurality of discharge holes 98, the lower parts of the arc-shaped pipes 99 are provided with feed holes 910, and the feed holes 910 and the two pipes of the tee pipe 14 are provided Connection, the third motor 97, the control panel 4 and the battery 12 are connected by wires, which is convenient to use, can spray materials on trees in all directions, has no dead ends, is safe and reliable, and can greatly improve work efficiency.

The control panel 4 , the battery 12 , the second motor 20 and the first electric telescopic rod 11 are connected by wires.

Working principle: During use, the first motor 5, the second motor 20, the third motor 62, the first electric telescopic rod 11, the second electric telescopic rod 85 and the material pump 15 can be activated through the control panel 4, and the first motor 5 drives The stirring rod 17 rotates to realize the stirring of the materials in the storage box 2. The material pump 15 and the first motor 5 drive the stirring rod 17 to rotate to realize the stirring of the materials in the storage box 2. The materials can be extracted from the storage box 2, and then The third motor 62 can drive the rotating shaft 65 to rotate through the second gear 63 and the third gear 64, thereby driving the coating device 9 to rotate, and the first electric motor The telescopic rod 11 can drive the moving rod 7 to move, so that the spraying device 9 can move left and right, the second electric telescopic rod 85 can drive the T-block 84 to move, the T-block 84 drives the support rod 86 to move, and the push groove 87 on the support rod 86 The sliding rod 83 can be driven to move up and down by the pusher 88, so that the spraying device 9 can be moved up and down. The second motor 20 drives the first gear 25 to rotate, and the first gear 25 drives the rack 23 to move, thereby changing the two sprays through the block 24. The distance between the devices 9 realizes the spraying of trees of different thicknesses. The third motor 97 drives the threaded rod 93 to rotate, the threaded rod 93 drives the threaded slider 94 to move, and the threaded slider 94 drives the moving connecting rod 95 to move. The moving connecting rod 95 drives the arc tube 99 to move to realize automatic spraying of the trees.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. The equivalent replacement or change of the inventive concept thereof shall be included within the protection scope of the present invention.

Claims (3)

1. A working method of a municipal administration tree protection painting device comprises a base (1) and is characterized in that moving wheels (13) are symmetrically arranged on two sides of the lower surface of the base (1), a storage battery (12), a rotating device (6), a material pump (15), a material storage box (2) and a push rod (3) are sequentially arranged on the upper surface of the base (1) from left to right, a control panel (4) is arranged on one side of the push rod (3), a discharge pipe (16) is connected between the material storage box (2) and a feed inlet of the material pump (15), a discharge port of the material pump (15) is connected with a three-way pipe (14), a guide sleeve (10) is fixedly arranged at the upper end of the rotating device (6), a moving rod (7) penetrates through the guide sleeve (10), and one end of the moving rod (7) is rotatably connected with a first electric telescopic rod (11) through a pin shaft, one end of the first electric telescopic rod (11) is rotatably connected with the rotating device (6) through a pin shaft, the other end of the moving rod (7) is fixedly connected with a height adjusting device (8), one side of the height adjusting device (8) is fixedly provided with a connecting rod (18), one end of the connecting rod (18) is fixedly provided with a U-shaped plate (19), one side of the U-shaped plate (19) is fixedly provided with a transverse plate (21), one side of the transverse plate (21) is provided with a groove (27), two sides of the groove (27) are respectively provided with a sliding groove (26), one side middle part of the transverse plate (21) is provided with a second motor (20), the output end of the second motor (20) extends to the groove (27) and is connected with a first gear (25), a sliding block (22) is arranged inside the sliding groove (26), and two ends, opposite to the sliding block (22), are respectively connected with a rack (23) meshed with the, the spraying device is characterized in that mounting blocks (24) are mounted on one sides of the racks (23), connecting blocks (28) are fixedly mounted in the middles of the mounting blocks (24), spraying devices (9) are mounted at one ends of the connecting blocks (28), and the control panel (4), the storage battery (12), the second motor (20) and the first electric telescopic rod (11) are connected through wires; the spraying device (9) comprises two vertical plates (96), one side of each vertical plate (96) is fixedly connected with a connecting block (28), fixed blocks (91) are fixedly mounted on the upper portion and the lower portion of one side of each vertical plate (96), a threaded rod (93) is mounted between the two fixed blocks (91), one end of each threaded rod (93) penetrates through the fixed blocks (91) and is connected with a third motor A (97), three square holes (92) are formed in one side of each vertical plate (96), a threaded slider (94) is connected to the outer side of each threaded rod (93) in a threaded manner, movable connecting rods (95) are fixedly connected to the two sides and the middle of each threaded slider (94), the movable connecting rods (95) penetrate through the square holes (92) and are connected with arc-shaped pipes (99), a plurality of discharge holes (98) are formed in the opposite sides of the arc-shaped pipes (99), and feed holes (910) are formed in the lower, the feeding hole (910) is connected with two pipelines of the three-way pipe (14), and the third motor A (97), the control panel (4) and the storage battery (12) are connected through leads; the rotating device (6) comprises an outer frame (61), the lower surface of the outer frame (61) is fixedly connected with the base (1), the lower surface of the inner side of the outer frame (61) is rotatably connected with a rotating shaft (65), the upper end of the rotating shaft (65) penetrates through the outer frame (61) and is fixedly connected with the guide sleeve (10), one side of the rotating shaft (65) is rotatably connected with the first electric telescopic rod (11) through a pin shaft, the outer side of the rotating shaft (65) is connected with a second gear (63), the lower surface of the inner side of the outer frame (61) is provided with a third motor B (62), the output end of the third motor B (62) is connected with a third gear (64) meshed with the second gear (63), and the third motor B (62), the storage battery (12) and the control panel (4) are connected through wires; the height adjusting device (8) comprises an L-shaped plate (82), one side of a vertical plate of the L-shaped plate (82) is fixedly connected with a moving rod (7), one side of the vertical plate of the L-shaped plate (82) and one side of a horizontal plate are both provided with T-shaped sliding grooves (81), the T-shaped sliding grooves (81) are vertical to each other and are internally provided with sliding rods (83), pushing heads (88) are installed on one sides of the upper ends of the sliding rods (83), the T-shaped sliding grooves (81) are horizontally internally provided with T-shaped blocks (84), supporting rods (86) are installed on one sides of the T-shaped blocks (84), pushing grooves (87) are arranged on one sides of the supporting rods (86), a second electric telescopic rod (85) is installed on one side of the horizontal plate of the L-shaped plate (82), the output end of the second electric telescopic rod (85) is fixedly connected with the T-shaped blocks (84), one side of, the second electric telescopic rod (85), the control panel (4) and the storage battery (12) are connected through a lead; the upper end of the storage box (2) is provided with a first motor (5), the output end of the first motor (5) penetrates through the storage box (2) and is connected with a stirring rod (17), and the first motor (5), the control panel (4) and the storage battery (12) are connected through conducting wires;

the working method comprises the following steps: when the paint brushing device for protecting political affairs trees is used, the first motor, the second motor, the third motor A, the third motor B, the first electric telescopic rod, the second electric telescopic rod and the material pump are started through the control panel, the first motor drives the stirring rod to rotate so as to stir materials in the material storage box, the material pump extracts the materials from the material storage box and sprays the materials out of the discharge hole through the three-way pipe, spraying of the trees is realized, the third motor B can drive the rotating shaft to rotate through the second gear and the third gear so as to drive the spraying device to rotate, the first electric telescopic rod can drive the movable rod to move so as to drive the spraying device to move left and right, the second electric telescopic rod can drive the T-shaped block to move, the T-shaped block drives the support rod to move, the push groove on the support rod can drive the slide rod to move up and down through the push head, so as to realize the up-down movement, first gear drive rack removes to change the distance between two spraying devices through the installation piece, realize spouting the material to the trees of different thicknesses, third motor A drives the threaded rod and rotates, and the threaded rod drives the screw thread slider and removes, and the screw thread slider drives the removal connecting rod and removes, and the removal connecting rod drives the arc tube and removes, realizes spouting the material automatically to trees.

2. The working method of the painting device for protecting municipal trees according to claim 1, wherein the two right moving wheels (13) are universal moving wheels.

3. The working method of the painting device for protecting the municipal trees according to claim 1, wherein a protective rubber sleeve is sleeved at one end of the push rod (3).
