Abstract

The invention discloses an easy-to-use sanitary equipment, comprising a shower room body, a rack arranged in the shower room body, a sliding door movably matched with the shower room body, and a detachable connection with the shower room body The waste water reuse device; the bottom surface of the shower room body is provided with a water outlet and a filter screen detachably connected to the water outlet; the shower room body is provided with an anti-condensation device for preventing condensation water from dripping; In the invention, through the setting of the condensing device, the water vapor will not drip after condensing, so as to ensure the comfort of the user and avoid catching a cold.

Description

An easy-to-use bathroom fixture

technical field

The invention belongs to the technical field of sanitary equipment, and in particular relates to a sanitary equipment that is easy to use.

Background technique

The traditional bathroom construction is mainly to use cast-in-place concrete or masonry to enclose the main structure, and then separately carry out the waterproof construction of the bathroom, the plastering and leveling of the ground and wall panels, the installation of water and electricity pipes, the floor and the wall. This kind of construction method is inefficient, and it relies too much on the personal skills and responsibility of the on-site construction personnel, and the quality is difficult to guarantee. In addition, it is easy to generate drainage noise for the downstairs owners.

In order to solve the above problems, an integrated bathroom has appeared, such as the integrated bathroom structure disclosed in Chinese patent CN207499513U, which includes a chassis, a top plate, a wall panel, a door panel and a bathing utensil, and the wall panel is arranged between the chassis and the top panel. , and the two ends of the wall plate are respectively connected with the top plate and the bottom plate, the bottom plate, the wall plate and the top plate are enclosed to form a bathing space, and the wall plate is provided with a door hole, so The door panel cooperates with the opening and closing of the door opening, the bathing utensils are arranged on the chassis and located in the bathing space, the wall panel includes at least one sandwich panel, and the sandwich panel includes a first oppositely arranged first panel. A layer of steel plates, a second layer of steel plates, and a sandwich core filled between the first layer of steel plates and the second layer of steel plates, and the sandwich core is rock wool or aluminum alloy honeycombs.

Although the above bathroom equipment can improve the construction efficiency and the strength, fire resistance and sound insulation effect of the siding, when people take a bath in winter, the water vapor is very easy to condense into water and then drip onto the user, causing discomfort or even illness of the user.

SUMMARY OF THE INVENTION

In order to overcome the deficiencies of the prior art, the present invention provides an easy-to-use sanitary equipment that can reduce dripping of condensed water.

In order to achieve the above purpose, the present invention adopts the following technical solutions: an easy-to-use sanitary equipment, comprising a shower room body, a rack arranged in the shower room body, a sliding door movably cooperated with the shower room body, and a The shower room body is detachably connected to a waste water reuse device; the bottom surface of the shower room body is provided with a water outlet and a filter screen that is detachably connected to the water outlet; the shower room body is provided with a water outlet for preventing condensation Anti-condensation device for water dripping; through the setting of the condensing device, the water vapor will not drip after condensing, which ensures the comfort of the user.

Further, the anti-condensation device includes an inclined condensing plate, a pillar for supporting and fixing the condensing plate, and a water collecting tank matched with the condensing plate; It will only flow into the sump along the condensing plate without dripping onto the user, which ensures the comfort of the user and avoids catching a cold.

Further, the sliding door includes a door panel that can move back and forth, a door handle arranged on the door panel, and a movable assembly for realizing the movable cooperation between the door panel and the shower room body; through the arrangement of the above structure , so that the door panel can move back and forth, easy to open and close, and the operation is simple and convenient.

Further, the movable assembly includes a track fixedly connected with the shower room body, a movable slot provided in the track, and a pulley member that can move back and forth along the movable slot; through the arrangement of the above structure, the door panel is realized. The movable connection with the shower room body has the advantages of simple and effective structure, stable coordination and low failure rate.

Further, the pulley member includes a pulley that can move back and forth, a pulley rod that is rotatably matched with the pulley, and a pulley pad for connecting the pulley rod and the door panel; through the arrangement of the above structure, the door panel and the track are realized. The active cooperation between them enables the door panel to slide along the track, the structure is simple, and the failure rate is low.

Further, the waste water reuse device includes a box body, a partition plate arranged in the box body, a water storage cavity arranged above the partition plate, a cold water pipe arranged in the water storage cavity, and the The overflow channel communicated with the water storage cavity, the water outlet pipe for connecting the water storage cavity and the overflow channel, and the valve structure matched with the water outlet pipe; by arranging the cold water pipe in the water storage cavity, Therefore, after the hot water that has just finished bathing flows into the water storage cavity, the cold water pipe in the water storage cavity can be heated, so as to preheat the cold water, so that the cold water can be heated by the water heater as soon as possible, which greatly saves the heating needs. time and energy, making the utilization rate of energy higher, energy saving and environmental protection.

Further, the valve structure includes a baffle member that can move back and forth, a sealing ring arranged on the baffle member, a constant pressure support assembly for supporting the baffle member, and a constant pressure support for controlling the baffle member. The handle assembly of the assembly; the water outlet pipe is blocked by the setting of the baffle member and the sealing member, so that the waste water will not be lost when the water volume in the water storage cavity is small; There is a large amount of water in the water cavity, and when a certain pressure is exerted on the baffle member, the baffle member will open the water outlet pipe, and the water that has lost heat at the bottom of the water storage cavity will be discharged first. After a certain amount of water is discharged, the baffle member will The outlet pipe is re-blocked, thereby increasing the heat recovery rate from the waste water.

To sum up, in the present invention, through the arrangement of the condensing device, the water vapor will not drip after condensing, which ensures the comfort of the user and avoids catching a cold.

Description of drawings

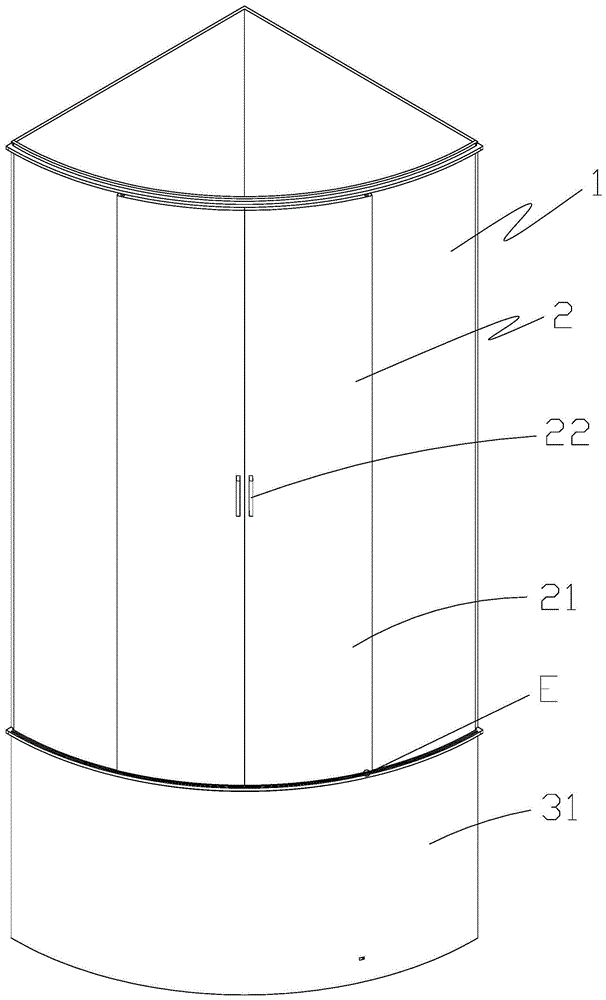

Fig. 1 is the three-dimensional structure schematic diagram of the present invention;

FIG. 2 is an enlarged schematic view of the position E in FIG. 1

Fig. 3 is the top view of the present invention;

4 is a cross-sectional view of the three-dimensional structure of the wastewater reuse device in the present invention;

Fig. 5 is the enlarged schematic diagram of A place in Fig. 4;

Fig. 6 is the enlarged schematic diagram at B place in Fig. 4;

Fig. 7 is the enlarged schematic diagram of C place in Fig. 4;

Fig. 8 is the enlarged schematic diagram at D in Fig. 4;

9 is a cross-sectional view of the three-dimensional structure of the handle portion in the present invention;

FIG. 10 is a schematic three-dimensional structure diagram of Embodiment 2 of the present invention.

Detailed ways

As shown in Figures 1-9, an easy-to-use sanitary equipment includes a shower room body 1, a shower head 11 made of metal material, a shelf 12 made of metal material, a sliding door 2 and a waste water reuse device; The head is installed on the side wall of the shower room body, and the rack is connected with the side wall of the shower room body by screws; the bottom surface of the shower room body 1 is provided with a water outlet 18, and a filter screen 19 is snap-connected to the water outlet, which is convenient for The waste water is discharged and the debris in the waste water is filtered; the sliding door is movably connected with the shower room body, so that the sliding door can slide back and forth to open and close the shower room.

Specifically, the sliding door includes a door panel 21, a door handle 22 and a movable assembly. The movable assembly includes a track 23, a movable slot 24 and a pulley member 25; the track is welded on the shower room body, the movable slot is opened on the track, and the pulley member is installed on the track. The pulley includes a pulley 251, a pulley rod 252 and a pulley pad 253; the pulley is located in the sliding groove and can roll back and forth along the movable groove, the pulley is installed on a rotating shaft, and the rotating shaft is screwed On the pulley rod, the pulley and the pulley rod can be directly cooperated with each other; the top of the pulley rod is screwed with a pulley pad, and the door panel is installed on the pulley pad, so that the door panel can slide back and forth to open and close the shower room , and in order to facilitate the movement of the door panel, the door handle is screwed on the door panel.

Specifically, the waste water reuse device includes a box body 31 made of metal material, a partition 32 and a filter screen member 33 made of metal material; the box body includes an outer box body 311, an inner box body 312, a support rod 313, and a water outlet 314 and overflow channel 315; the outer box is arranged below the shower room body and is bolted to the shower room body; the inner box body is installed in the outer box body, and the support rod is installed between the outer box body and the inner box body, and is respectively connected with the inner and outer boxes. The inner box is supported and fixed in the outer box; the upper surface of the inner box is lower than the upper surface of the outer box, and an overflow channel is formed between the outer wall of the inner box and the inner wall of the outer box , so that when the water in the inner box is too full, it will overflow from the inner box into the overflow channel, enter the bottom of the outer box, and then discharge into the sewer through the drain opening at the bottom of the outer box, thereby preventing waste water from the tank. In order to make the collected waste water more clean, a filter screen is set on the inner box, so that the impurities in the waste water can be filtered out by the filter screen to obtain relatively clean waste water, so that the waste water can be directly used. , without additional processing, simple and convenient.

Specifically, the inner box is divided into a water storage cavity 3121 and a drying cavity 3122 by a partition 32, the water storage cavity is located above the partition, and the drying cavity is located below the partition; a cold water pipe 34 is installed in the water storage cavity, One end of the cold water pipe is communicated with the faucet, and the other end is communicated with the water heater; since the cold water pipe is installed in the water storage cavity, when the hot water generated by bathing flows into the inner box and is collected, the heat in the hot water will affect the The cold water pipe is heated, so that the cold water in the cold water pipe can be preheated, and then passed into the water heater, that is, it can be quickly heated, which greatly saves the time and heat required for heating, and utilizes the waste heat in the wastewater. In order to empty the water in the water storage cavity when the water storage cavity needs to be cleaned, a water outlet pipe 3123 is installed in the inner box, and one end of the water outlet pipe is installed. It is connected with the water storage cavity, and the other end is connected with the overflow channel, and a valve structure matched with the water outlet pipe is installed in the drying cavity; A first guide surface 321 and a second guide surface 322 are set on the board, and the inclination of the second guide surface is greater than that of the first guide surface, so that the waste water in the water storage cavity can flow along the guide The surface is better discharged into the water outlet pipe, so as to avoid the debris in the waste water from accumulating at the bottom of the water storage cavity, to avoid the breeding of bacteria, to ensure the sanitation of the shower room, and to ensure the health of the user.

Specifically, the valve structure includes a baffle member 41, a constant pressure support assembly and a handle assembly; the baffle member is installed in the water outlet pipe and is hingedly connected with the inner wall of the water outlet pipe, so that the baffle member can be turned back and forth in the water outlet pipe, where the baffle member is blocked. The shape of the plate is not limited. The shape of the baffle in the accompanying drawings is only a schematic diagram, which is subject to the actual production and use needs. In order to make the baffle better seal the outlet pipe, a baffle is installed A sealing ring 42 made of rubber material; the installation of the constant pressure support assembly makes the baffle member close the water outlet pipe under the action of the constant pressure support assembly when the water volume in the water storage chamber is small, so that the The hot water can better preheat the cold water in the cold water pipe; and when there is a large amount of water in the water storage cavity and is about to overflow, the baffle member will turn over under the action of water pressure, open the water outlet pipe, and store the water. The waste water that loses heat at the bottom of the cavity is preferentially discharged, so that the water storage cavity can accommodate newly generated waste water with a large amount of heat, better preheat the cold water pipe, and play a better role in recovering heat; and the handle assembly It cooperates with the constant pressure support assembly and plays the role of controlling the baffle, so that when the shower room is not in use, in order to avoid the growth of bacteria, the handle assembly can control the constant pressure support assembly to turn over, and the water in the water storage chamber can be turned over. Drain.

Specifically, the constant pressure support assembly includes a support plate 43 made of metal material, a telescopic sleeve rod 44 made of metal material, an outer sleeve 45 made of metal material, a support frame 46 made of metal material, and a support frame 46 made of metal material. The elastic part 47, the inner sleeve 48 made of metal material and the reset part 49 made of metal material; the elastic part and the reset part are both a spring; the support frame is installed on the bottom surface of the drying chamber 3122, and is connected with the drying chamber Screw connection, the outer sleeve is installed on the support frame and hingedly connected with the support frame, the telescopic sleeve rod is installed in the outer sleeve, and can slide back and forth along the outer sleeve; the inner sleeve is installed in the outer sleeve, and the outer sleeve of the inner sleeve is The diameter is smaller than the inner diameter of the telescopic sleeve rod, and the inner sleeve at least partially extends into the telescopic sleeve rod, and can slide back and forth along the inner wall of the telescopic sleeve rod; the elastic piece is installed in the telescopic sleeve rod, and one end acts on the telescopic sleeve rod groove. On the bottom surface of the inner sleeve, the other end acts on the end of the inner sleeve extending into the telescopic sleeve rod; the reset piece is installed in the outer sleeve, one end acts on the bottom surface of the inner sleeve, and the other end acts on the bottom surface of the inner wall of the outer sleeve; The support plate is installed on the end of the telescopic sleeve rod and is hingedly connected with the telescopic sleeve rod; the support plate is close to the bottom surface of the baffle member; so that when there is too much water in the water storage cavity, the baffle member will be under the action of water pressure Turn down and turn down to open the outlet pipe to drain excess waste water. At this time, the baffle member squeezes the support plate, and the support plate is turned over as the baffle member is turned over. At the same time, the telescopic sleeve rod is pushed to move into the outer sleeve. At this time, the corresponding The inner sleeve also shrinks into the telescopic sleeve rod, compressing the spring at the same time; and when the water volume in the water storage cavity decreases, the spring force of the spring is greater than the pressure of the water on the baffle member, and the spring will push the telescopic sleeve rod to the outer sleeve. The outer side slides, thereby pushing the support plate, and then driving the baffle member to close the water outlet pipe again.

Specifically, the handle assembly includes a limit sleeve 51 made of a metal material, a connector 52 made of a metal material, a handle part 53 and a limit part 54. The limit sleeve is installed in the drying chamber and is supported by the drying chamber. The rod is fixedly connected, one end of the limit sleeve is close to the outer sleeve, and does not affect the rotation of the outer sleeve; the connecting piece is a wire rope; the connecting piece is installed in the limit sleeve, and both ends extend out of the limit In the sleeve, one end of the connecting piece extends into the inner sleeve and is connected with the bottom surface of the inner wall of the inner sleeve, and the other end is adjacent to the handle part.

Specifically, the handle portion includes a fixing piece 531, a buckle portion 532 and a handle 533; the fixing piece is welded to one end of the connecting piece, and the buckle portion is mounted on the fixing piece and connected by a rotating shaft, so that the buckle portion can be relatively The fixing plate rotates, and the handle is installed on the buckle part and connected with the buckle part by screws; the limit part includes a first channel 541, a first limit groove 542 and a second limit groove 543; the first channel is opened in the box body 31, so that the handle part can move back and forth along the first channel, the first limit groove and the second limit groove are both opened in the first channel, so that the handle and the buckle part are rotated by a certain angle, that is, the Embedded in the limit groove, so that the handle can no longer move.

Specifically, when the water in the water storage cavity needs to be emptied, it is only necessary to hold the handle and pull the handle outward, and the handle will be driven by the connecting piece to pull the inner sleeve toward the outer sleeve. The movement of the outer sleeve also pulls the movement of the elastic member fixed on it, thereby driving the telescopic sleeve rod fixed on the other end of the elastic member to shrink into the outer sleeve, thereby driving the baffle member to turn over, opening the water outlet pipe, and discharging the stored water. Since it takes a certain time to drain, the user only needs to pull the handle part out of the first channel, and then rotate it at a certain angle, so that the buckle part is stuck by the outer surface of the box, which can ensure the water outlet pipe. It is easier and more convenient to open continuously without the user pulling the handle for a long time; and if you do not want the water in the water tank to be drained, or the spring force is insufficient to seal the water outlet pipe by the baffle, you can remove the handle At this time, due to the transmission effect of the connecting piece, the inner sleeve is pushed to the inside of the telescopic sleeve rod, compressing the elastic member, so that the telescopic sleeve rod is moved to the outside of the outer sleeve, and the baffle member is pushed upward. Turn it over to seal the water outlet pipe; at this time, the handle part reaches the second limit groove. If the handle part needs to be fixed, it only needs to rotate a certain angle to insert the buckle part into the second limit groove.

In order to further utilize the waste water in the water storage chamber, a connecting pipe 35 is installed in the drying chamber. One end of the connecting pipe is connected with the water outlet pipe 3123, and the other end is connected with the water inlet pipe of the toilet (the toilet and its water inlet pipe are both connected to each other). It is a common structure on the market, this is the prior art, and is not the focus of the present invention, so it will not be repeated here, and it is not shown in the accompanying drawings), a driving member 36 is installed on the connecting pipe, and the driving member is The water pump purchased on the market is an existing technology, so it will not be repeated here; after the water in the toilet tank is used up, the waste water in the water storage cavity can be sent into the toilet tank through the water pump, and the toilet can be flushed with the waste water. Therefore, the utilization rate of water resources is greatly improved, which plays a role in energy saving and emission reduction; in order to better pour the water in the water storage cavity into the toilet tank, the opening of the connecting pipe in the outlet pipe is opened on the baffle member. It is convenient for waste water to enter the connecting pipe.

Example 2:

As shown in FIG. 10 , the difference between this embodiment and Embodiment 1 is that an anti-condensation device is installed; specifically, the anti-condensation device includes a condensing plate 91 and a 92-level water collecting tank 93 of a pillar; the condensing plate and the shower room body 1 Through the screw connection, the condensing plate is inclined upward at a certain angle, so that after the water vapor encounters the condensing plate and condenses into water, it can slide down the condensing plate without dripping onto the user; It further ensures that the condensed water will not drip randomly, but will be discharged in a concentrated manner; the pillars play the role of supporting and fixing the condensing plate, so that the condensing plate always maintains a proper angle, thereby ensuring the condensing plate to prevent the condensed water from dripping. effect.

Claims (5)

1. An easy-to-use bathroom equipment, comprising a shower room body (1), a rack (12) arranged in the shower room body (1), and a sliding door movably cooperated with the shower room body (1) (2) and a waste water reuse device detachably connected to the shower room body (1); a water outlet (18) is provided on the bottom surface of the shower room body (1) and is detachable from the water outlet (18). Disassemble the connected filter screen (19); it is characterized in that: the shower room body (1) is provided with an anti-condensation device for preventing condensed water from dripping; The waste water reuse device includes a box body (31) made of metal material, a partition plate (32) and a filter screen member (33) made of metal material; the box body includes an outer box body (311) and an inner box body (312) , support rod (313), drain (314) and overflow channel (315); the outer box is arranged below the shower room body and is bolted to the shower room body; the inner box is installed in the outer box, and the support rod is installed outside The box body and the inner box body are respectively connected with the inner and outer box bodies with screws, so that the inner box body is supported and fixed in the outer box body; the upper surface of the inner box body is lower than the upper surface of the outer box body, and the outer wall of the inner box body and the outer box body are An overflow channel is formed between the inner walls of the outer box; The inner box is divided into a water storage chamber (3121) and a drying chamber (3122) by a partition plate (32), the water storage chamber is located above the partition plate, and the drying chamber is located below the partition plate; Pipe (34), one end of the cold water pipe is connected with the faucet, and the other end is connected with the water heater; a water outlet pipe (3123) is installed in the inner box, one end of the water outlet pipe is connected with the water storage cavity, and the other end is connected with the overflow The flow channels are connected, and a valve structure matched with the water outlet pipe is installed in the drying chamber; a first guide surface (321) and a second guide surface (322) are set on the partition, and the second guide The inclination of the flow surface is greater than the inclination of the first guide surface; The valve structure includes a baffle member (41), a constant pressure support assembly and a handle assembly; the baffle member is installed in the water outlet pipe and is hingedly connected with the inner wall of the water outlet pipe, and a rubber sealing ring ( 42); The constant pressure support assembly includes a support plate (43) made of metal material, a telescopic sleeve rod (44) made of metal material, an outer sleeve (45) made of metal material, and a support frame (46) made of metal material , an elastic piece (47) made of metal material, an inner sleeve (48) made of metal material and a reset piece (49) made of metal material; the elastic piece and the reset piece are both a spring; the support frame is installed On the bottom surface of the drying chamber (3122), it is screwed with the drying chamber, the outer sleeve is installed on the support frame, and is hingedly connected with the support frame, and the telescopic sleeve rod is installed in the outer sleeve and can slide back and forth along the outer sleeve; The sleeve is installed in the outer sleeve, the outer diameter of the inner sleeve is smaller than the inner diameter of the telescopic sleeve rod, and the inner sleeve at least partially extends into the telescopic sleeve rod, and can slide back and forth along the inner wall of the telescopic sleeve rod; the elastic piece is installed on the telescopic sleeve rod. In the sleeve rod, one end acts on the bottom surface of the telescopic sleeve rod groove, and the other end acts on the end of the inner sleeve extending into the telescopic sleeve rod; the reset piece is installed in the outer sleeve, and one end acts on the bottom surface of the inner sleeve The other end acts on the bottom surface of the inner wall of the outer sleeve; the support plate is installed on the end of the telescopic sleeve rod and is hingedly connected with the telescopic sleeve rod; the support plate is close to the bottom surface of the baffle member; The handle assembly includes a limit sleeve (51) made of metal material, a connector (52) made of metal material, a handle part (53) and a limit part (54), the limit sleeve is installed in the drying chamber, It is fixedly connected with the drying chamber through the support rod, one end of the limit sleeve is close to the outer sleeve, and does not affect the rotation of the outer sleeve; the connecting piece is a steel wire rope; the connecting piece is installed in the limit sleeve, and both ends Both extend out of the limiting sleeve, one end of the connector extends into the inner sleeve and is connected with the bottom surface of the inner wall of the inner sleeve, and the other end is adjacent to the handle; The handle part includes a fixing piece (531), a buckle part (532) and a handle (533); the fixing piece is welded with one end of the connecting piece, the buckle part is installed on the fixing piece, and is connected by a rotating shaft, and the handle is installed on the card The buckle part is screwed with the buckle part; the limit part includes a first channel (541), a first limit groove (542) and a second limit groove (543); the first channel is opened in the box body (31) so that the handle can move back and forth along the first channel, and both the first limit groove and the second limit groove are opened in the first channel; A connecting pipe (35) is installed in the drying chamber, one end of the connecting pipe is connected with the water outlet pipe (3123), and the other end is connected with the water inlet pipe of the toilet bowl, and a driving member (36) is installed on the connecting pipe. 2. The easy-to-use sanitary equipment according to claim 1, characterized in that: the anti-condensation device comprises a condensing plate (91) arranged at an inclination, a column (91) for supporting and fixing the condensing plate (91). 92) and a water collecting tank (93) matched with the condensation plate (91). 3. The easy-to-use bathroom equipment according to claim 2, characterized in that: the sliding door (2) comprises a door panel (21) that can move back and forth, a door handle (22) arranged on the door panel (21) ) and a movable assembly for realizing the movable cooperation between the door panel (21) and the shower room body (1). 4. The easy-to-use sanitary equipment according to claim 3, characterized in that: the movable component comprises a track (23) fixedly connected with the shower room body (1), and is arranged in the track (23) The movable groove (24) and the pulley member (25) that can move back and forth along the movable groove (24). 5. The easy-to-use sanitary equipment according to claim 4, characterized in that: the pulley member (25) comprises a pulley (251) that can move back and forth, and a pulley rod (252) rotatably matched with the pulley (251). ) and a pulley pad (253) for connecting the pulley rod (252) and the door panel (21).
