Abstract
本发明公开了一种多功能土性测试系统，固定筒左侧壁固定连接支撑架，支撑架下部焊接有加强筋，固定筒内部套设有分离筒，支撑架下部设置有驱动电机，驱动电机下部转动连接主动轴，主动轴下端轴承转动连接支撑架底部；主动轴中部滚动连接同步带左侧，同步带右侧滚动连接从动轴，从动轴上部穿过固定筒底部并与之轴承转动连接，其中，从动轴上端固定连接分离筒底部；所述分离筒上部设置有保持架。该系统通过旋转的分离筒使得多余的水液通过出水微管排出到固定筒内,利用循环泵抽吸固定筒内的水液重新排入分离筒内，对土料进行二次浸润，防止底部土料对水液吸收不充分，导致土料吸水性检测误差增大，节约了水源同时还提高了土料吸水性测试的准确性。
The invention discloses a multi-functional soil property testing system. The left side wall of a fixed cylinder is fixedly connected to a support frame, the lower part of the support frame is welded with reinforcing ribs, the inside of the fixed cylinder is sleeved with a separation cylinder, and the lower part of the support frame is provided with a drive motor, and the drive motor The lower part is rotatably connected to the driving shaft, and the lower bearing of the driving shaft is rotatably connected to the bottom of the support frame; the middle part of the driving shaft is rollingly connected to the left side of the synchronous belt, and the right side of the synchronous belt is rollingly connected to the driven shaft, and the upper part of the driven shaft passes through the bottom of the fixed cylinder and rotates with the bearing. The upper end of the driven shaft is fixedly connected to the bottom of the separation cylinder; the upper part of the separation cylinder is provided with a retainer. The system uses the rotating separation cylinder to discharge the excess water into the fixed cylinder through the water outlet micropipe, and uses the circulating pump to suck the water in the fixed cylinder and re-discharge it into the separation cylinder to perform secondary infiltration of the soil to prevent the bottom The soil material does not fully absorb water and liquid, which leads to an increase in the detection error of soil water absorption, which saves water sources and improves the accuracy of soil water absorption testing.
Description
Technical Field
The invention relates to a test system, in particular to a multifunctional soil property test system.
Background
The freezing method is one of the commonly used methods in mine shaft sinking, subway construction and other projects. With the wide application of the freezing method, the engineering problems brought by the freezing method are increased continuously, for example, after the frozen wall is thawed, the accidents such as deformation, even breakage and the like of a well wall or a tunnel lining are easy to occur. Soil property test of soil is required before construction.
The soil property refers to properties of drying dampness and being fertile, and also includes physicochemical properties of soil, the most common property of the soil is water absorption of the soil, the water absorption of the soil is often required to be tested when the soil property of the soil is detected, and the water absorption affects the bearing strength of the soil.
The problem that soil absorbs water too much and is saturated or bottom soil absorbs water insufficiently often exists among the present soil water absorption testing arrangement, leads to soil property test result to have great error.
Disclosure of Invention
The present invention is directed to a multifunctional soil property testing system, so as to solve the problems set forth in the background art.
In order to achieve the purpose, the invention provides the following technical scheme:
a multifunctional soil property testing system comprises a fixed cylinder, a separating cylinder, a driving motor, a driven shaft and a circulating pump, wherein the left side wall of the fixed cylinder is fixedly connected with a support frame, reinforcing ribs are welded at the lower part of the support frame, the separating cylinder is sleeved inside the fixed cylinder, the driving motor is arranged at the lower part of the support frame, the lower part of the driving motor is rotatably connected with a driving shaft, and a bearing at the lower end of the driving shaft is rotatably connected with the bottom of the; the middle part of the driving shaft is connected with the left side of the synchronous belt in a rolling way, the right side of the synchronous belt is connected with the driven shaft in a rolling way, the upper part of the driven shaft penetrates through the bottom of the fixed cylinder and is connected with a bearing of the fixed cylinder in a rotating way, and the upper end of the driven shaft is fixedly connected with the bottom of the separation cylinder; the upper part of the separation cylinder is provided with a retainer, the middle part of the retainer is fixedly connected with a rotating shaft, the rotating shaft penetrates through the upper end of the fixed cylinder and is rotatably connected with a bearing of the fixed cylinder, the upper end of the rotating shaft is fixedly connected with a rotating wheel, and the lower part of the rotating wheel is provided with a pointer;
the left side of the upper end of the fixed cylinder is fixedly connected with a feed hopper, the feed hopper is fixedly connected with the fixed cylinder and communicated with the inside of the fixed cylinder, a plurality of water outlet micro-pipes are circumferentially distributed on the side wall of the separation cylinder at equal intervals, a through pipe is arranged at the eccentric position of the bottom of the separation cylinder, the upper end of the through pipe is communicated with the inside of the separation cylinder, and the lower end of the through pipe is hermetically attached; the lower part of the through pipe is provided with a discharge pipe, and the lower end of the discharge pipe is provided with a sealing cover.
As a further scheme of the invention: the right side of the bottom of the fixed cylinder is communicated with the liquid guide pipe, the liquid guide pipe is fixedly connected with the outer wall of the fixed cylinder, the upper end of the liquid guide pipe is communicated with the right side of the circulating pump, the lower end of the circulating pump is fixedly connected with the base, the base is fixedly connected with the upper end of the fixed cylinder through bolts, and the left side of the circulating pump is communicated with the upper.
As a still further scheme of the invention: the lower end of the liquid guide pipe is communicated with a drainage pipe, and the middle part of the drainage pipe is provided with a rotary valve.
As a still further scheme of the invention: the right side of the bottom of the fixed cylinder is communicated with a reservoir, the bottom of the reservoir is provided with a sedimentation tank, and the bottom of the sedimentation tank is fixedly connected with the bottom of the support frame.
As a still further scheme of the invention: and a liquid discharging valve is arranged at the bottom of the reservoir.
As a still further scheme of the invention: the left side of the driving motor is fixedly connected with a motor base, and the motor base is fixedly connected with a support frame through bolts.
As a still further scheme of the invention: the driving motor is connected with the power supply and the switch through wires.
Compared with the prior art, the invention has the beneficial effects that: according to the system, redundant water liquid is discharged into the fixed cylinder through the water outlet micro-pipe through the rotating separating cylinder, the water liquid in the fixed cylinder is pumped by the circulating pump to be discharged into the separating cylinder again, soil is soaked for the second time, the situation that soil at the bottom cannot absorb the water liquid sufficiently is prevented, the soil water absorption detection error is increased, a water source is saved, and meanwhile, the accuracy of soil water absorption testing is improved.
Drawings

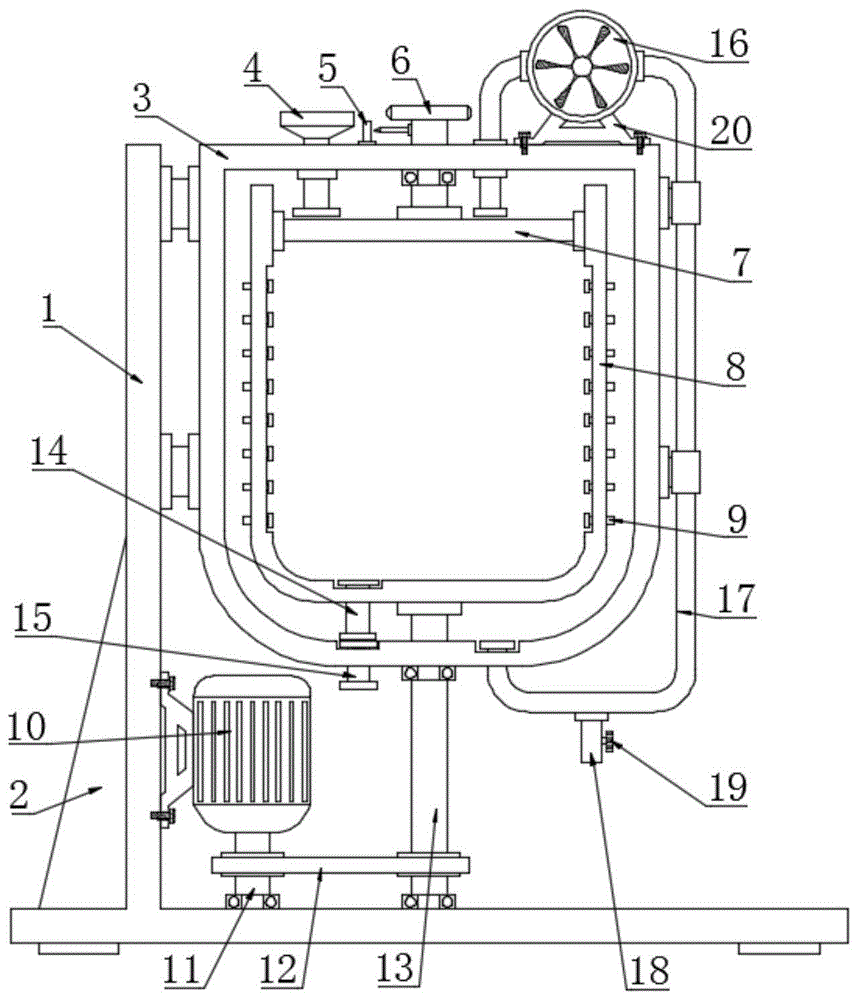

Fig. 1 is a schematic structural diagram of a multifunctional soil property testing system.
FIG. 2 is a top view of a holder in the multi-functional soil testing system.
FIG. 3 is a top view of a separation cylinder and a water outlet micro-pipe in the multifunctional soil property testing system.
FIG. 4 is a top view of a wheel in the multi-function soil testing system.
In the figure: 1-a support frame; 2-reinforcing ribs; 3-fixing the cylinder; 4-a feed hopper; 5-upright column; 6-rotating wheel; 7-a cage; 8-a separation cylinder; 9-water outlet microtubes; 10-a drive motor; 11-a drive shaft; 12-a synchronous belt; 13-a driven shaft; 14-a through pipe; 15-a discharge pipe; 16-a circulation pump; 17-a catheter; 18-a drain pipe; 19-a stopcock; 20-a base; 21-pointer.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example 1
Referring to fig. 1-4, in an embodiment of the present invention, a multifunctional soil property testing system includes a fixed cylinder 3, a separation cylinder 8, a driving motor 10, a driven shaft 13 and a circulating pump 16; the left side wall of the fixed cylinder 3 is fixedly connected with a support frame 1, a reinforcing rib 2 is welded on the lower portion of the support frame 1, the bottom of the support frame 1 is horizontal, a separation cylinder 8 is sleeved inside the fixed cylinder 3, a driving motor 10 is arranged on the lower portion of the support frame 1, a motor base is fixedly connected to the left side of the driving motor 10, the motor base is fixedly connected with the support frame 1 through bolts, the lower portion of the driving motor 10 is rotatably connected with a driving shaft 11, a bearing at the lower end of the driving shaft 11 is rotatably connected with the bottom of the support frame 1, a lead of the driving motor 10 is connected with; the middle part of the driving shaft 11 is connected with the left side of a synchronous belt 12 in a rolling way, the right side of the synchronous belt 12 is connected with a driven shaft 13 in a rolling way, a bearing at the lower end of the driven shaft 13 is connected with the bottom of the support frame 1 in a rotating way, and the upper part of the driven shaft 13 penetrates through the bottom of the fixed cylinder 3 and is connected with the bearing in a rotating way, wherein the upper end of the driven shaft 13 is fixedly connected with the bottom of the separation cylinder 8, the driven shaft 11 which rotates drives the; the separating cylinder 8 upper portion is provided with holder 7, and holder 7 edge fixed connection separating cylinder 8 inner wall, holder 7 middle part fixed connection pivot, the pivot passes the fixed cylinder 3 upper end and rotates with its bearing and be connected, and pivot upper end fixed connection runner 6, 6 lower parts of runner are provided with pointer 21, pointer 21 fixed connection is in pivot upper portion, keeps separating cylinder 8 firm through pivot and driven shaft 13.
A feed hopper 4 is fixedly connected to the left side of the upper end of the fixed cylinder 3, the feed hopper 4 is fixedly connected with the fixed cylinder 3 and communicated with the inside of the fixed cylinder, a plurality of water outlet micro-tubes 9 are circumferentially distributed on the side wall of the separation cylinder 8 at equal intervals, a through pipe 14 is arranged at the eccentric position of the bottom of the separation cylinder 8, the upper end of the through pipe 14 is communicated with the inside of the separation cylinder 8, the lower end of the through pipe 14 is hermetically attached to the bottom of the fixed cylinder 3, soil materials and water liquids are respectively added into the separation cylinder 8 through the feed hopper 4, the water liquids are absorbed by the soil materials, the rotating separation cylinder 8 enables the surplus water liquids to be discharged into the fixed cylinder 3 through the water outlet micro-tubes 9, and it; the lower part of the through pipe 14 is provided with a discharge pipe 15, the discharge pipe 15 is fixedly connected with the bottom of the fixed barrel 3, the lower end of the discharge pipe 15 is provided with a sealing cover, the rotating wheel 6 is rotated to drive the rotating shaft and the separating barrel 8 to rotate along with the rotating shaft, when the pointer 21 on the rotating shaft is aligned with the upright post 5, the through pipe 14 is just communicated with the discharge pipe 15, and the sealing cover is opened at the moment to discharge soil infiltrated in the separating barrel 8.
The right side of the bottom of the fixed cylinder 3 is communicated with a liquid guide pipe 17, the liquid guide pipe 17 is fixedly connected with the outer wall of the fixed cylinder 3, the upper end of the liquid guide pipe 17 is communicated with the right side of a circulating pump 16, the lower end of the circulating pump 16 is fixedly connected with a base 20, the base 20 is fixedly connected with the upper end of the fixed cylinder 3 through a bolt, the left side of the circulating pump 16 is communicated with the upper part of the inside of the separating cylinder 8, the lower end of the liquid guide pipe 17 is communicated with a drainage pipe 18, a rotary valve 19 is arranged in the middle of the drainage pipe 18, separated water liquid enters the fixed cylinder 3, the water in the fixed cylinder 3 is pumped by the circulating pump 16 and is drained into the separating cylinder 8 again, soil is subjected to secondary infiltration, insufficient absorption of the soil at the bottom to.
Example 2
Referring to fig. 1-4, in an embodiment of the present invention, a multifunctional soil property testing system includes a fixed cylinder 3, a separation cylinder 8, a driving motor 10, a driven shaft 13 and a circulating pump 16; the left side wall of the fixed cylinder 3 is fixedly connected with a support frame 1, a reinforcing rib 2 is welded on the lower portion of the support frame 1, the bottom of the support frame 1 is horizontal, a separation cylinder 8 is sleeved inside the fixed cylinder 3, a driving motor 10 is arranged on the lower portion of the support frame 1, a motor base is fixedly connected to the left side of the driving motor 10, the motor base is fixedly connected with the support frame 1 through bolts, the lower portion of the driving motor 10 is rotatably connected with a driving shaft 11, a bearing at the lower end of the driving shaft 11 is rotatably connected with the bottom of the support frame 1, a lead of the driving motor 10 is connected with; the middle part of the driving shaft 11 is connected with the left side of a synchronous belt 12 in a rolling way, the right side of the synchronous belt 12 is connected with a driven shaft 13 in a rolling way, a bearing at the lower end of the driven shaft 13 is connected with the bottom of the support frame 1 in a rotating way, and the upper part of the driven shaft 13 penetrates through the bottom of the fixed cylinder 3 and is connected with the bearing in a rotating way, wherein the upper end of the driven shaft 13 is fixedly connected with the bottom of the separation cylinder 8, the driven shaft 11 which rotates drives the; the separating cylinder 8 upper portion is provided with holder 7, and holder 7 edge fixed connection separating cylinder 8 inner wall, holder 7 middle part fixed connection pivot, the pivot passes the fixed cylinder 3 upper end and rotates with its bearing and be connected, and pivot upper end fixed connection runner 6, 6 lower parts of runner are provided with pointer 21, pointer 21 fixed connection is in pivot upper portion, keeps separating cylinder 8 firm through pivot and driven shaft 13.
A feed hopper 4 is fixedly connected to the left side of the upper end of the fixed cylinder 3, the feed hopper 4 is fixedly connected with the fixed cylinder 3 and communicated with the inside of the fixed cylinder, a plurality of water outlet micro-tubes 9 are circumferentially distributed on the side wall of the separation cylinder 8 at equal intervals, a through pipe 14 is arranged at the eccentric position of the bottom of the separation cylinder 8, the upper end of the through pipe 14 is communicated with the inside of the separation cylinder 8, the lower end of the through pipe 14 is hermetically attached to the bottom of the fixed cylinder 3, soil materials and water liquids are respectively added into the separation cylinder 8 through the feed hopper 4, the water liquids are absorbed by the soil materials, the rotating separation cylinder 8 enables the surplus water liquids to be discharged into the fixed cylinder 3 through the water outlet micro-tubes 9, and it; the lower part of the through pipe 14 is provided with a discharge pipe 15, the discharge pipe 15 is fixedly connected with the bottom of the fixed barrel 3, the lower end of the discharge pipe 15 is provided with a sealing cover, the rotating wheel 6 is rotated to drive the rotating shaft and the separating barrel 8 to rotate along with the rotating shaft, when the pointer 21 on the rotating shaft is aligned with the upright post 5, the through pipe 14 is just communicated with the discharge pipe 15, and the sealing cover is opened at the moment to discharge soil infiltrated in the separating barrel 8.
3 bottom right sides of solid fixed cylinder intercommunication cistern, the cistern bottom is provided with the sedimentation tank, sedimentation tank bottom and 1 bottom fixed connection of support frame, and the cistern bottom is provided with the bleeder valve, inside water liquid after the separation got into solid fixed cylinder 3, water liquid in the solid fixed cylinder 3 got into the cistern, wherein muddy part deposits and falls into the sedimentation tank, open the bleeder valve and emit the clear water on cistern upper strata and add once more in the knockout drum 8, prevent that bottom soil material from absorbing water liquid inadequately, lead to soil material hydroscopicity detection error increase.
The working principle of the invention is as follows: when the switch is opened to enable the driving motor 10 to work by electrifying to drive the driving shaft 11 to rotate, the rotating driving shaft 11 drives the driven shaft 13 to rotate by utilizing the synchronous belt 12, the driven shaft 13 drives the separating cylinder 8 to rotate, the separating cylinder 8 is kept stable by the rotating shaft and the driven shaft 13, soil materials and water liquids are respectively added into the separating cylinder 8 by the feed hopper 4, wherein the water liquids are absorbed by the soil materials, the rotating separating cylinder 8 enables the redundant water liquids to be discharged into the fixed cylinder 3 through the water outlet micro-pipe 9, it should be noted that the water outlet micro-pipe 9 only allows the water liquids to pass through, the soil materials cannot pass through, the rotating wheel 6 drives the rotating shaft and the separating cylinder 8 to rotate along with the rotating, when the pointer 21 on the rotating shaft is aligned with the upright post 5, the through pipe 14 is just communicated with the discharging pipe 15, at the moment, the sealing cover is opened to discharge the soaked soil materials in the separating cylinder, the siphunculus 14 communicates discharging pipe 15 just, it can be discharged with the soil material of being soaked in the cylinder 8 to open sealed lid this moment, water liquid after the separation gets into inside the solid fixed cylinder 3, pump the water liquid in the solid fixed cylinder 3 through circulating pump 16 and discharge again in the cylinder 8, carry out the secondary infiltration to the soil material, prevent that bottom soil material from absorbing the water liquid inadequately, lead to soil material hydroscopicity detection error increase, open the water liquid that the rotary valve 19 can be discharged the solid fixed cylinder 3 after the test finishes, or utilize the cistern to receive the water liquid in the solid fixed cylinder, wherein muddy part deposits and falls into the sedimentation tank, open the bleeder valve and discharge the clear water on the cistern upper strata and add again in the cylinder 8.
It should be particularly noted that, driving motor and circulating pump are prior art's application in this application, utilize rotatory knockout drum to discharge unnecessary moisture in the soil material after will infiltrating, and the discharged aqueous solution adds again and carries out the secondary infiltration to the soil material in the knockout drum, prevents that bottom soil material from absorbing the aqueous solution inadequately, leads to soil material hydroscopicity detection error to increase to the innovation point of this application, and it has effectively solved the big problem of hydroscopicity test error in the soil property detects.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (4)
1. A multifunctional soil property testing system comprises a fixed cylinder (3), a separating cylinder (8), a driving motor (10), a driven shaft (13) and a circulating pump (16), and is characterized in that the left side wall of the fixed cylinder (3) is fixedly connected with a support frame (1), reinforcing ribs (2) are welded on the lower portion of the support frame (1), the separating cylinder (8) is sleeved inside the fixed cylinder (3), the driving motor (10) is arranged on the lower portion of the support frame (1), the lower portion of the driving motor (10) is rotatably connected with a driving shaft (11), and a bearing at the lower end of the driving shaft (11) is rotatably connected with the bottom of the support frame (; the middle part of the driving shaft (11) is connected with the left side of a synchronous belt (12) in a rolling mode, the right side of the synchronous belt (12) is connected with a driven shaft (13) in a rolling mode, the upper part of the driven shaft (13) penetrates through the bottom of the fixed cylinder (3) and is in rotary connection with a bearing of the fixed cylinder, and the upper end of the driven shaft (13) is fixedly connected with the bottom of the separation cylinder (8); a retainer (7) is arranged at the upper part of the separation barrel (8), the middle part of the retainer (7) is fixedly connected with a rotating shaft, the rotating shaft penetrates through the upper end of the fixed barrel (3) and is rotatably connected with a bearing of the fixed barrel, the upper end of the rotating shaft is fixedly connected with a rotating wheel (6), and a pointer (21) is arranged at the lower part of the rotating wheel (6);
the left side of the upper end of the fixed cylinder (3) is fixedly connected with a feed hopper (4), the feed hopper (4) is fixedly connected with the fixed cylinder (3) and communicated with the interior of the fixed cylinder, a plurality of water outlet micro-pipes (9) are circumferentially distributed on the side wall of the separation cylinder (8) at equal intervals, a through pipe (14) is arranged at the eccentric position of the bottom of the separation cylinder (8), the upper end of the through pipe (14) is communicated with the interior of the separation cylinder (8), and the lower end of the through pipe (14) is hermetically attached to; a discharge pipe (15) is arranged at the lower part of the through pipe (14), and a sealing cover is arranged at the lower end of the discharge pipe (15); fixed cylinder (3) bottom right side intercommunication liquid guide pipe (17), liquid guide pipe (17) fixed connection fixed cylinder (3) outer wall, liquid guide pipe (17) upper end intercommunication circulating pump (16) right side, circulating pump (16) lower extreme fixed connection base (20), base (20) bolt fixed connection fixed cylinder (3) upper end, and circulating pump (16) left side intercommunication knockout drum (8) inside top.
2. The multifunctional soil property testing system of claim 1, wherein the lower end of the liquid guide pipe (17) is communicated with a drainage pipe (18), and a cock (19) is arranged in the middle of the drainage pipe (18).
3. The multifunctional soil property testing system of claim 1, wherein a motor base is fixedly connected to the left side of the driving motor (10), and the motor base is fixedly connected with the support frame (1) through bolts.
4. The multifunctional soil property testing system according to any one of claims 1-3, wherein the driving motor (10) is connected with a power supply and a switch through wires.
