CN109044704B - A kind of multifunctional nursing bed for obstetrics and gynecology - Google Patents

Abstract

The invention relates to the technical field of medical appliances, in particular to a multifunctional nursing bed for obstetrics and gynecology, which comprises a movable bed board, a conversion device and a leg support device. The left end of the fixed bed board is provided with a first opening slot, the first opening is The fixed bed boards at the front and rear ends of the slot are inserted with first connecting columns, the first connecting columns are sleeved with a movable bed board and the right end of the movable bed board is adapted to the fixed bed board. The structure of the present invention is reasonable in design. Through the mutual cooperation of the conversion device, the auxiliary device and the leg support device, when the runner is rotated counterclockwise, the push rod pushes the leg support device to the right to rotate 135 degrees counterclockwise upward, and the second support plate Rotate 180 degrees clockwise from horizontal to left to horizontal to right. At this time, the first support plate and the second support plate are at 90 degrees to each other. At the same time, the left end pulls the movable bed plate from vertical upward to horizontal to left, which is commonly used in obstetrics and gynecology. The bladder lithotomy position is fully functional and easy to move, and has a good promotion prospect.

Description

A kind of multifunctional nursing bed for obstetrics and gynecology

technical field

The invention relates to the technical field of medical appliances, in particular to a multifunctional nursing bed for obstetrics and gynecology.

Background technique

The gynecological examination bed is used to examine the body of female patients. During the examination, it is usually necessary to fully expose the surgical field for examination with the doctor. Usually, the lithotomy position of the bladder is used, that is, the legs are separated at 90 degrees, and the legs are placed in the lithotomy position. On the tray frame, the knee joint is bent at 90 degrees, and the legs are abducted at 90 degrees. However, the examination beds in hospitals are usually bare beds. When the patient is examining the body, the medical tools need to be picked and placed separately, which will prolong the examination time; In addition, the current clinical examination of obstetrics and gynecology will bring great trouble to pregnant women with limited mobility, so it is inconvenient to use and needs to be improved.

Announcement No. CN106109157B is an auxiliary device for gynecological diagnosis and treatment, which has made great efforts to reduce the seat plate to the lowest position and adjust the seat plate to a suitable angle at the same time, so as to facilitate the patient to sit on the seat plate and pass the diagnosis and treatment. It is necessary to adjust the backrest to an appropriate angle through the backrest angle adjustment device, and to adjust the seat plate to an appropriate height through the lifting device at the lower part of the seat plate. Moreover, it makes gynecological patients more comfortable in the process of diagnosis and treatment. When the vagina of gynecological patients is cleaned and disinfected, the waste liquid washed out is collected in a collection bucket. In the process of gynecological examination, it is mostly used in the supine position or the bladder lithotomy position. The supine position can be achieved by general hospital beds, but the bladder lithotomy position requires specific devices. The above devices cannot meet the needs and are difficult for patients with mobility. needs to be improved.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a multifunctional nursing bed for obstetrics and gynecology in order to overcome the above-mentioned technical shortcomings. When the push rod pushes the leg support device to the right to rotate 135 degrees counterclockwise, the second support plate rotates 180 degrees clockwise from the horizontal to the left to the horizontal to the right. At this time, the first support plate and the second support plate are 90 degrees away At the same time, the left end pulls the movable bed board from vertical upward to horizontal to left, which meets the bladder lithotomy position commonly used in obstetrics and gynecology, with complete functions and convenient movement.

The technical scheme adopted by the present invention to solve the technical problem is as follows: a multifunctional nursing bed for obstetrics and gynecology, comprising a movable bed board, a fixed bed board, an auxiliary device, a fixed box, a conversion device and a leg support device, and the left end of the fixed bed board is provided with a A first opening slot, a first connecting column is inserted into the fixed bed at the front and rear ends of the first opening slot, a movable bed is sleeved on the first connecting column, and the right end of the movable bed is adapted to the fixed bed. A third opening slot is arranged in the middle of the right end of the bed plate, the third opening slot is semi-circular and a second opening slot is respectively provided on the front and rear sides, and a second connecting column is inserted into the second opening slot, and the middle of the lower end of the fixed bed plate is in the middle. A fixed box is fixedly connected, the upper end of the fixed box is open, the middle of the bottom is horizontally provided with a fourth chute, and the middle of the front and rear ends of the fixed box is respectively provided with a second through hole and a second through groove from top to bottom, and the left and right two A third through slot and a first through hole are respectively set in the middle of the end from top to bottom, and a conversion device is inserted into the first through hole, and the conversion device is composed of a first rotating shaft, a second sliding block, and a third sliding groove. , a rack, a second rotating shaft, a second gear, a push rod, a U-shaped frame, a fourth opening slot, a third connecting rod, a fourth connecting rod and a runner, and the fourth chute is clamped with a second There is a third chute in the middle of the slider and the second slider. The third chute is formed by connecting the upper and lower horizontal through grooves and a chute in the middle, and the two are at 135 degrees to each other. A first rotating shaft is inserted inside, and the front and rear ends of the first rotating shaft pass through a second through slot to be fixedly connected to the wheel, a second rotating shaft is inserted into the second through hole, and the middle of the second rotating shaft is fixedly connected There is a second gear, which drives the wheel to rise and fall by rotating the runner. The second gear meshes with the rack fixed on the upper end of the second slider, and the middle of the left and right ends of the second slider is fixed. There is a push rod, and the other end of the push rod passes through a first through hole and is fixedly connected to the lower end of the U-shaped frame, and the upper end of the U-shaped frame is provided with two fourth opening slots, and the fourth opening slot on the left side is inside A third link is hinged and the other end of the third link is hinged to the lower end of the movable bed board, and a fourth link is hinged in the fourth opening slot on the right side, and the other end of the fourth link is hinged to the leg support At the upper left end of the device, the leg support device is composed of a first support plate, a third shaft, a third gear, a fourth gear, a fourth shaft, a second support plate, a strap and a snap ring. The second open slot A first support plate is fixed on the second connecting column inside, the first support plate is hollow inside, a third rotating shaft is inserted at the middle and lower ends, and a belt is sleeved between the second connecting column and the third rotating shaft. The third rotating shaft at the front and rear ends of the belt is fixedly connected with a third gear, the lower end of the third rotating shaft is provided with a fourth rotating shaft, and one end of the fourth rotating shaft is fixedly connected with a fourth gear that meshes with the third gear, and the other end passes through the third gear. The first support plate is fixedly connected with the second support plate. The middle of the front end surface of the first connecting plate is fixed with a strap, and the middle of the rear end surface is fixed with a snap ring, which is convenient for the fixing of the legs. Both ends are provided with longitudinal first through grooves, the middle and lower ends of the first through grooves are provided with a first chute, and the upper right end of the first chute is fixed with a third connecting column, which is on the third connecting column. An auxiliary device is hinged, the auxiliary device The device is composed of a first connecting rod, a second connecting rod, a support pad, a second chute, a first sliding rod, a hinge seat, a first sliding block and a first gear, and the upper part of the first sliding block is clamped on the first A hinge seat is fixed in the chute and at the upper right end of the first sliding block, the center of the hinge seat and the third connecting column are on the same horizontal plane, the rear end of the hinge seat is hinged with a second connecting rod, and the second connecting rod is hinged. The other end is hinged to the lower right end of the support pad, the middle of the lower end of the support pad is provided with a second chute to the left, a first sliding rod is clamped in the second chute, and a first connecting rod is sleeved on the third connecting column. The other end of the first connecting rod is sleeved on the first sliding rod, the lower end of the first sliding block is fixed with a rack and extends out of the first through slot to engage with the first gear fixed on the second rotating shaft , the first gear is provided with two and located on the front and rear sides of the second gear respectively, the lower left end of the third through slot is fixed with a baffle plate, the baffle plate is located at the right end of the second gear and the bottom is higher than the second sliding plate A waste liquid box is inserted into the third through groove, and the waste liquid box faces the third opening groove after being pulled out.

Further, the lowest point and the highest point of the second chute are flush with the lowest point and the highest point of the second through groove respectively, and when the first shaft is located at the highest point of the second through groove, the bottom of the wheel is off the ground and is high. At the bottom of the fixed box, the limitation of the up and down movement distance of the wheel is realized.

Further, the length of the fourth connecting rod is 2/3 of the third connecting rod and the transmission ratio of the third gear and the fourth gear is 4:3, so that when the wheel is rotated counterclockwise, the push rod pushes to the right. The first support plate in the leg support device is rotated 135 degrees counterclockwise, and the second support plate is rotated 180 degrees clockwise from horizontal to left to horizontal to right. At this time, the first support plate and the second support plate are at 90 degrees to each other. , and at the same time, the left end pulls the movable bed board from vertical upward to horizontal to left to form the bladder lithotomy position.

Further, the front end of the second rotating shaft protrudes out of the second through hole and is fixedly connected to the rotating wheel, so as to facilitate the rotating operation.

Further, the notch of the third opening slot and the center of the two second opening slots form an angle of 90 degrees, which meets the requirement that the legs are separated by 90 degrees in the bladder lithotomy position.

The beneficial effects of the present invention are: the structure of the present invention is reasonably designed, and through the mutual cooperation of the conversion device, the auxiliary device and the leg support device, when the runner is rotated counterclockwise, the push rod pushes the leg support device to the right counterclockwise. Rotate up 135 degrees, the second support plate rotates 180 degrees clockwise from the horizontal to the left to the horizontal to the right, at this time the first support plate and the second support plate are at 90 degrees to each other, and the left end pulls the movable bed plate from vertical to horizontal. To the left, it satisfies the bladder lithotomy position commonly used in obstetrics and gynecology, has complete functions and is easy to move, and has a good promotion prospect.

Description of drawings

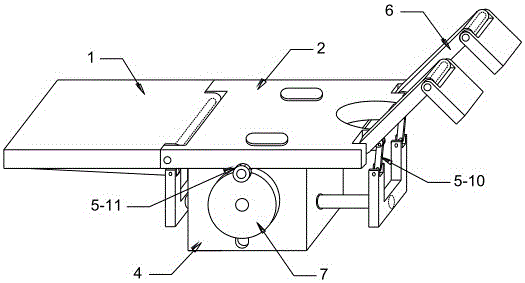

Figure 1 is a schematic diagram of the stretching structure of the present invention.

Figure 2 is a schematic structural diagram of the shrinkage of the present invention.

FIG. 3 is a schematic structural diagram of the conversion device of the present invention.

4 is a schematic diagram of the internal structure of the fixed box of the present invention.

FIG. 5 is a schematic structural diagram of the fixing box of the present invention.

FIG. 6 is a schematic structural diagram of the fixed bed board of the present invention.

Figure 7 is a rear view of the auxiliary device of the present invention.

FIG. 8 is a schematic structural diagram of the leg support device of the present invention.

Detailed ways

The present invention will be described in detail below in conjunction with accompanying drawings 1-8.

As shown in Figures 1 to 8, the present invention includes a movable bed board 1, a fixed bed board 2, an auxiliary device, a fixed box 4, a conversion device and a leg support device, and the left end of the fixed bed board 2 is provided with a first opening slot 2-1, A first connecting column 2-2 is inserted on the fixed bed board 2 at the front and rear ends of the first opening slot 2-1, and a movable bed board 1 is sleeved on the first connecting column 2-2, and the right end of the movable bed board 1 is fixed to the fixed bed board 2. The bed board 2 is adapted, the middle of the right end of the fixed bed board 2 is provided with a third opening slot 2-4, the third opening slot 2-4 is semicircular, and the front and rear sides are respectively provided with a second opening slot 2-3 and the third opening slot 2-4. A second connecting column 2-5 is inserted into the two opening grooves 2-3, a fixing box 4 is fixedly connected in the middle of the lower end of the fixed bed board 2, the upper end of the fixing box 4 is open, and a fourth chute 4 is horizontally arranged in the middle of the bottom. -5, the middle of the front and rear ends of the fixed box 4 is respectively provided with a second through hole 4-3 and a second through slot 4-1 from top to bottom, and the middle of the left and right ends is respectively provided with a third through slot from top to bottom 4-4 and a first through hole 4-2, a conversion device is inserted into the first through hole 4-2, and the conversion device consists of a first rotating shaft 5, a second sliding block 5-1, and a third chute 5-2, rack 5-3, second shaft 5-4, second gear 5-5, push rod 5-6, U-shaped frame 5-7, fourth opening slot 5-8, third connecting rod 5 -9. The fourth connecting rod 5-10 and the runner 5-11 are composed, the fourth chute 4-5 is clamped with a second sliding block 5-1, and a second sliding block 5-1 is arranged in the middle of the second sliding block 5-1. Three chutes 5-2, the third chutes 5-2 are connected by two upper and lower horizontal through grooves and a chute in the middle, and the two are at 135 degrees to each other, and the third chutes 5-2 are inserted inside A first rotating shaft 5 is connected, and the front and rear ends of the first rotating shaft 5 pass through a second through groove 4-1 to be fixedly connected to the wheel 8, and a second rotating shaft 5-4 is inserted into the second through hole 4-3. , the middle of the second rotating shaft 5-4 is fixed with a second gear 5-5, the wheel 8 is driven to rise and fall by rotating the rotating wheel 5-11, the second gear 5-5 is fixed with the second gear 5-5 The racks 5-3 at the upper ends of the two sliding blocks 5-1 mesh with each other, and a push rod 5-6 is fixed between the left and right ends of the second sliding block 5-1, and the other end of the push rod 5-6 is The first through hole 4-2 passing through the U-shaped frame 5-7 is fixedly connected to the lower end of the U-shaped frame 5-7, and the upper end of the U-shaped frame 5-7 is provided with two fourth opening slots 5-8. The left fourth opening slot 5 A third connecting rod 5-9 is hinged in each of -8 and the other end of the third connecting rod 5-9 is hinged on the lower end of the movable bed board 1, and a fourth connecting rod is hinged in the fourth opening groove 5-8 on the right side. 5-10 and the other end of the fourth link 5-10 is hinged to the upper left end of the leg support device, the leg support device is composed of the first support plate 6, the third shaft 6-1, the belt 6-2, the third The gear 6-3, the fourth gear 6-4, the fourth shaft 6-5, the second support plate 6-6, the strap 6-7 and the snap ring 6-8 are composed of the second opening groove 2-3. A first support plate 6 is fixedly connected to each of the second connecting columns 2-5. The first support plate 6 is hollow inside, and a third rotating shaft 6-1 is inserted at the middle and lower ends. The second connecting column 2-5 with the first A belt 6-2 is sleeved in the middle of the three rotating shafts 6-1, and a third gear 6-3 is fixed on the third rotating shaft 6-1 at the front and rear ends of the belt 6-2. The lower end of the third rotating shaft 6-1 is provided with a A fourth rotating shaft 6-5, one end of the fourth rotating shaft 6-5 is fixedly connected with a fourth gear 6-4 to mesh with the third gear 6-3, and the other end passes through the first support plate 6 and the second support plate 6 -6 fixed connection, the middle of the front end surface of the first connecting plate is fixed with a strap 6-7, and the middle of the rear end surface is fixed with a snap ring 6-8, which is convenient for the fixing of the legs. Both ends are provided with a longitudinal first through groove 2-6, the middle and lower ends of the first through groove 2-6 are provided with a first chute 2-7, and the upper right end of the first chute 2-7 is fixed with a first chute 2-7. Three connecting columns 2-8, an auxiliary device is hinged on the third connecting column 2-8, and the auxiliary device is composed of a first connecting rod 3, a second connecting rod 3-1, a support pad 3-2, a second sliding rod The groove 3-3, the first sliding rod 3-4, the hinge seat 3-5, the first sliding block 3-6 and the first gear 3-7 are composed, and the upper part of the first sliding block 3-6 is clamped on the first sliding block 3-6. A hinge seat 3-5 is fixed in the chute 2-7 and at the upper right end of the first slider 3-6, the center of the hinge seat 3-5 and the third connecting column 2-8 are located on the same horizontal plane, The rear end of the seat 3-5 is hinged with a second connecting rod 3-1, and the other end of the second connecting rod 3-1 is hinged on the lower right end of the support pad 3-2. Two sliding grooves 3-3 and a first sliding rod 3-4 is clamped in the second sliding groove 3-3, and a first connecting rod 3 is sleeved on the third connecting column 2-8 and the first connecting rod 3 The other end of the sliding block is sleeved on the first sliding rod 3-4, the lower end of the first sliding block 3-6 is fixed with a rack 5-3 and extends out of the first through slot 2-6 and is fixed on the second rotating shaft The first gear 3-7 on the 5-4 meshes, the first gear 3-7 is provided with two and is located on the front and rear sides of the second gear 5-5 respectively, and the lower left end of the third through slot 4-4 is fixed. A baffle 7 is connected, the baffle 7 is located at the right end of the second gear 5-5 and the bottom is higher than the top of the second slider 5-1, and a waste liquid box 7 is inserted into the third through groove 4-4 -1, the waste liquid box 7-1 faces the third opening groove 2-4 after being pulled out, which is convenient for collecting waste liquid.

In this embodiment, the lowest point and the highest point of the second chute 3-3 are flush with the lowest point and the highest point of the second through groove 4-1, and when the first shaft 5 is located in the second through groove 4 -1 At the highest point, the bottom of the wheel 8 is separated from the ground and higher than the bottom of the fixed box 4, which realizes the limitation of the moving distance of the wheel 8 up and down.

In this embodiment, the length of the fourth connecting rod 5-10 is 2/3 of that of the third connecting rod 5-9, and the transmission ratio of the third gear 6-3 and the fourth gear 6-4 is 4:3, so as to realize When the wheel 5-11 is turned counterclockwise, the push rod 5-6 pushes the first support plate 6 in the leg support device to the right to rotate 135 degrees counterclockwise, and the second support plate 6-6 moves from horizontal to left. Turn the hour hand 180 degrees to the horizontal to the right. At this time, the first support plate 6 and the second support plate 6-6 are at 90 degrees to each other. At the same time, the left end pulls the movable bed plate 1 from the vertical upward to the horizontal to the left to form the bladder lithotomy position.

In this embodiment, the front end of the second rotating shaft 5-4 protrudes out of the second through hole 4-3 and is fixedly connected to the rotating wheel 5-11, which is convenient for rotating operation.

In this embodiment, the notch of the third open groove 2-4 and the center of the two second open grooves 2-3 form an angle of 90 degrees, which meets the requirement that the legs are separated by 90 degrees in the bladder lithotomy position.

When in use, when the runner 5-11 is turned clockwise, the push rod 5-6 moves to the left to push the movable bed 1 to rotate 90 degrees clockwise from the horizontal to the vertical upward, while pulling the first support plate 6 in the leg auxiliary device. Rotate 135 degrees clockwise and vertically downward, the second support plate 6-6 rotates counterclockwise 180 degrees horizontally to the right, and the first slider 3-6 horizontally drives the support pad 3-2 to the right to move upward to form a wheelchair. When turning the runner 5-11, the push rod 5-6 pushes the leg support device to the right and rotates up 135 degrees counterclockwise, and the second support plate 6-6 rotates 180 degrees clockwise from the horizontal to the left to the horizontal to the right. When the first support plate 6 and the second support plate 6-6 are at 90 degrees to each other, at the same time the left end pulls the movable bed plate 1 from vertical upward to horizontal to left, which meets the bladder lithotomy position commonly used in obstetrics and gynecology.

Claims (5)

1. A multifunctional nursing bed for obstetrics and gynecology, comprising a movable bed board, a fixed bed board, an auxiliary device, a fixed box, a conversion device and a leg support device, it is characterized in that: the left end of the fixed bed board is provided with a first opening groove, The fixed bed boards at the front and rear ends of the first opening slot are inserted with a first connection column, a movable bed board is sleeved on the first connection column, the right end of the movable bed board is adapted to the fixed bed board, and the middle of the right end of the fixed bed board is provided with a movable bed board. The third opening slot, the third opening slot is semi-circular, and the front and rear sides are respectively provided with a second opening slot, and a second connecting column is inserted into the second opening slot, and a fixing box is fixed in the middle of the lower end of the fixed bed plate , the upper end of the fixed box is open, the middle of the bottom is horizontally provided with a fourth chute, the middle of the front and rear ends of the fixed box is respectively provided with a second through hole and a second through groove from top to bottom, and the middle of the left and right ends is from top to bottom. A third through-slot and a first through-hole are respectively provided at the bottom, and a conversion device is inserted into the first through-hole, and the conversion device consists of a first rotating shaft, a second The second rotating shaft, the second gear, the push rod, the U-shaped frame, the fourth opening slot, the third connecting rod, the fourth connecting rod and the runner are composed. A third chute is arranged in the middle of the slider. The third chute is formed by connecting the upper and lower horizontal through grooves and a chute in the middle, and the two are at 135 degrees to each other. A rotating shaft and the front and rear ends of the first rotating shaft pass through a second through slot to be fixedly connected to the wheel, a second rotating shaft is inserted into the second through hole, and a second gear is fixed in the middle of the second rotating shaft. The second gear meshes with the rack fixed on the upper end of the second sliding block, the middle of the left and right ends of the second sliding block is fixed with a push rod, and the other end of the push rod passes through the first passage. The hole is fixedly connected with the lower end of the U-shaped frame, and the upper end of the U-shaped frame is provided with two fourth opening grooves, and a third connecting rod is hinged in the fourth opening groove on the left side, and the other end of the third connecting rod is hinged on the movable bed board At the lower end, a fourth connecting rod is hinged in the fourth opening slot on the right side, and the other end of the fourth connecting rod is hinged at the upper left end of the leg support device. A third gear, a fourth gear, a fourth rotating shaft, a second support plate, a strap and a snap ring are formed. A first support plate is fixed on the second connecting column in the second opening slot, and the first support plate is The inside of the plate is hollow, the middle and lower ends are inserted with a third rotating shaft, a belt is sleeved between the second connecting column and the third rotating shaft, and a third gear is fixed on the third rotating shaft at the front and rear ends of the belt, and the third rotating shaft is The lower end is provided with a fourth rotating shaft, one end of the fourth rotating shaft is fixedly connected with a fourth gear to mesh with the third gear, and the other end penetrates the first supporting plate and is fixedly connected to the second supporting plate, and the front end surface of the first connecting plate is fixed. The middle of the fixed bed is fixed with a strap, the middle of the rear end face is fixed with a snap ring, the front and rear ends of the fixed bed are provided with a longitudinal first through groove, and the middle and lower ends of the first through groove are provided with a first chute And the upper right end of the first chute is fixed with a third connecting column, and an auxiliary device is hinged on the third connecting column. , the first sliding rod, the hinge seat, the first sliding block and the first gear set The upper part of the first slider is clamped in the first chute, and the upper right end of the first slider is fixed with a hinge seat, the center of the hinge seat and the third connecting column are located on the same horizontal plane, the hinge seat The rear end is hinged with a second connecting rod, and the other end of the second connecting rod is hinged on the lower right end of the support pad, a second chute is provided in the middle of the lower end of the support cushion to the left, and a first sliding rod is clamped in the second chute , a first connecting rod is sleeved on the third connecting column and the other end of the first connecting rod is sleeved on the first sliding rod, the lower end of the first sliding block is fixed with a rack and extends out of the first The slot meshes with the first gear fixed on the second rotating shaft. The first gear is provided with two and located on the front and rear sides of the second gear respectively. The lower left end of the third through slot is fixed with a baffle plate. The baffle is located at the right end of the second gear and the bottom is higher than the second sliding block. A waste liquid box is inserted into the third through groove, and the waste liquid box faces the third opening groove after being pulled out. 2 . The multifunctional nursing bed for obstetrics and gynecology according to claim 1 , wherein the lowest point and the highest point of the second chute are flush with the lowest point and the highest point of the second through groove, respectively. 3 . , and when the first shaft is located at the highest point of the second through groove, the bottom of the wheel is off the ground and is higher than the bottom of the fixed box. 3 . The multifunctional nursing bed for obstetrics and gynecology according to claim 1 , wherein the length of the fourth connecting rod is 2/3 of that of the third connecting rod and the transmission between the third gear and the fourth gear is 3 . The ratio is 4:3. 4 . The multifunctional nursing bed for obstetrics and gynecology according to claim 1 , wherein the front end of the second rotating shaft protrudes from the second through hole and is fixedly connected to the rotating wheel. 5 . 5 . The multifunctional nursing bed for obstetrics and gynecology according to claim 1 , wherein the third opening slot and the center of the two second opening slots form an angle of 90 degrees. 6 .
