CN109009913B - Postpartum shank massage device for pregnant woman in obstetrics and gynecology department - Google Patents
Postpartum shank massage device for pregnant woman in obstetrics and gynecology department Download PDFInfo
- Publication number
- CN109009913B CN109009913B CN201810644200.9A CN201810644200A CN109009913B CN 109009913 B CN109009913 B CN 109009913B CN 201810644200 A CN201810644200 A CN 201810644200A CN 109009913 B CN109009913 B CN 109009913B
- Authority
- CN
- China
- Prior art keywords
- plate
- rod
- spring
- massage
- pregnant woman
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 244000309466 calf Species 0.000 claims abstract 10
- 238000009434 installation Methods 0.000 claims description 2
- 230000017531 blood circulation Effects 0.000 abstract description 3
- 210000002414 leg Anatomy 0.000 description 36
- 210000001699 lower leg Anatomy 0.000 description 30
- 230000009471 action Effects 0.000 description 5
- 238000011144 upstream manufacturing Methods 0.000 description 5
- 230000000694 effects Effects 0.000 description 4
- 244000309464 bull Species 0.000 description 3
- 230000006872 improvement Effects 0.000 description 3
- 230000008439 repair process Effects 0.000 description 2
- 239000011435 rock Substances 0.000 description 2
- 230000008719 thickening Effects 0.000 description 2
- 208000027418 Wounds and injury Diseases 0.000 description 1
- 230000002146 bilateral effect Effects 0.000 description 1
- 230000006835 compression Effects 0.000 description 1
- 238000007906 compression Methods 0.000 description 1
- 230000006378 damage Effects 0.000 description 1
- 230000007547 defect Effects 0.000 description 1
- 230000036541 health Effects 0.000 description 1
- 208000014674 injury Diseases 0.000 description 1
- 230000000284 resting effect Effects 0.000 description 1
Images
Classifications
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61H—PHYSICAL THERAPY APPARATUS, e.g. DEVICES FOR LOCATING OR STIMULATING REFLEX POINTS IN THE BODY; ARTIFICIAL RESPIRATION; MASSAGE; BATHING DEVICES FOR SPECIAL THERAPEUTIC OR HYGIENIC PURPOSES OR SPECIFIC PARTS OF THE BODY
- A61H7/00—Devices for suction-kneading massage; Devices for massaging the skin by rubbing or brushing not otherwise provided for
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61H—PHYSICAL THERAPY APPARATUS, e.g. DEVICES FOR LOCATING OR STIMULATING REFLEX POINTS IN THE BODY; ARTIFICIAL RESPIRATION; MASSAGE; BATHING DEVICES FOR SPECIAL THERAPEUTIC OR HYGIENIC PURPOSES OR SPECIFIC PARTS OF THE BODY
- A61H1/00—Apparatus for passive exercising; Vibrating apparatus; Chiropractic devices, e.g. body impacting devices, external devices for briefly extending or aligning unbroken bones
- A61H1/02—Stretching or bending or torsioning apparatus for exercising
- A61H1/0237—Stretching or bending or torsioning apparatus for exercising for the lower limbs
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61H—PHYSICAL THERAPY APPARATUS, e.g. DEVICES FOR LOCATING OR STIMULATING REFLEX POINTS IN THE BODY; ARTIFICIAL RESPIRATION; MASSAGE; BATHING DEVICES FOR SPECIAL THERAPEUTIC OR HYGIENIC PURPOSES OR SPECIFIC PARTS OF THE BODY
- A61H15/00—Massage by means of rollers, balls, e.g. inflatable, chains, or roller chains
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61H—PHYSICAL THERAPY APPARATUS, e.g. DEVICES FOR LOCATING OR STIMULATING REFLEX POINTS IN THE BODY; ARTIFICIAL RESPIRATION; MASSAGE; BATHING DEVICES FOR SPECIAL THERAPEUTIC OR HYGIENIC PURPOSES OR SPECIFIC PARTS OF THE BODY
- A61H15/00—Massage by means of rollers, balls, e.g. inflatable, chains, or roller chains
- A61H2015/0007—Massage by means of rollers, balls, e.g. inflatable, chains, or roller chains with balls or rollers rotating about their own axis
- A61H2015/0014—Massage by means of rollers, balls, e.g. inflatable, chains, or roller chains with balls or rollers rotating about their own axis cylinder-like, i.e. rollers
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61H—PHYSICAL THERAPY APPARATUS, e.g. DEVICES FOR LOCATING OR STIMULATING REFLEX POINTS IN THE BODY; ARTIFICIAL RESPIRATION; MASSAGE; BATHING DEVICES FOR SPECIAL THERAPEUTIC OR HYGIENIC PURPOSES OR SPECIFIC PARTS OF THE BODY
- A61H2201/00—Characteristics of apparatus not provided for in the preceding codes
- A61H2201/01—Constructive details
- A61H2201/0119—Support for the device
- A61H2201/0138—Support for the device incorporated in furniture
- A61H2201/0149—Seat or chair
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61H—PHYSICAL THERAPY APPARATUS, e.g. DEVICES FOR LOCATING OR STIMULATING REFLEX POINTS IN THE BODY; ARTIFICIAL RESPIRATION; MASSAGE; BATHING DEVICES FOR SPECIAL THERAPEUTIC OR HYGIENIC PURPOSES OR SPECIFIC PARTS OF THE BODY
- A61H2201/00—Characteristics of apparatus not provided for in the preceding codes
- A61H2201/12—Driving means
- A61H2201/1253—Driving means driven by a human being, e.g. hand driven
- A61H2201/1261—Driving means driven by a human being, e.g. hand driven combined with active exercising of the patient
- A61H2201/1269—Passive exercise driven by movement of healthy limbs
- A61H2201/1276—Passive exercise driven by movement of healthy limbs by the other leg or arm
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61H—PHYSICAL THERAPY APPARATUS, e.g. DEVICES FOR LOCATING OR STIMULATING REFLEX POINTS IN THE BODY; ARTIFICIAL RESPIRATION; MASSAGE; BATHING DEVICES FOR SPECIAL THERAPEUTIC OR HYGIENIC PURPOSES OR SPECIFIC PARTS OF THE BODY
- A61H2205/00—Devices for specific parts of the body
- A61H2205/08—Trunk
- A61H2205/081—Back
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61H—PHYSICAL THERAPY APPARATUS, e.g. DEVICES FOR LOCATING OR STIMULATING REFLEX POINTS IN THE BODY; ARTIFICIAL RESPIRATION; MASSAGE; BATHING DEVICES FOR SPECIAL THERAPEUTIC OR HYGIENIC PURPOSES OR SPECIFIC PARTS OF THE BODY
- A61H2205/00—Devices for specific parts of the body
- A61H2205/10—Leg
- A61H2205/106—Leg for the lower legs
Landscapes
- Health & Medical Sciences (AREA)
- Epidemiology (AREA)
- Pain & Pain Management (AREA)
- Physical Education & Sports Medicine (AREA)
- Rehabilitation Therapy (AREA)
- Life Sciences & Earth Sciences (AREA)
- Animal Behavior & Ethology (AREA)
- General Health & Medical Sciences (AREA)
- Public Health (AREA)
- Veterinary Medicine (AREA)
- Dermatology (AREA)
- Percussion Or Vibration Massage (AREA)
- Massaging Devices (AREA)
Abstract
本发明涉及一种按摩装置，尤其涉及一种妇产科孕妇产后小腿按摩装置。本发明的目的是提供一种能够对孕妇小腿按摩均匀，并且还能对小腿进行锻炼的妇产科孕妇产后小腿按摩装置。技术方案：一种妇产科孕妇产后小腿按摩装置，包括有底板、支腿、座板、靠板、第一轴承座、丝杆、第一锥齿轮、螺母、横杆、第二轴承座、转杆、转盘、摇杆等；底板顶部左侧安装有支腿，支腿顶部安装有座板，座板顶部左侧安装有靠板。本发明通过按摩轮的作用，能对孕妇的小腿进行按摩，进而无需人手动对小腿进行按摩，同时，还能使按摩力度均匀，通过锻炼装置，则能使孕妇对按摩后的小腿进行锻炼，进一步的促进血液循环。
The invention relates to a massage device, in particular to a postpartum calf massage device for pregnant women in obstetrics and gynecology. The purpose of the present invention is to provide a postpartum calf massage device for pregnant women in obstetrics and gynecology, which can massage the calf of pregnant women evenly and exercise the calf. Technical scheme: a postpartum calf massage device for pregnant women in obstetrics and gynecology, comprising a bottom plate, outriggers, a seat plate, a backing plate, a first bearing seat, a screw rod, a first bevel gear, a nut, a horizontal rod, a second bearing seat, Rods, turntables, rockers, etc.; legs are installed on the left side of the top of the bottom plate, a seat plate is installed on the top of the legs, and a backing plate is installed on the left side of the top of the seat plate. Through the function of the massage wheel, the invention can massage the calf of pregnant women, so that there is no need to manually massage the calf, and at the same time, the massage force can be uniform, and through the exercise device, the pregnant woman can exercise the massaged calf. Further promote blood circulation.
Description
Technical Field
The invention relates to a massage device, in particular to a massage device for postpartum shanks of pregnant women in obstetrics and gynecology department.
Background
After the pregnant woman gives birth to child, the health is very weak, then need lie and repair in bed, when long-time repair, pregnant woman's shank is easy to swell, need regularly massage and take exercise the shank, promote blood circulation, nevertheless massage pregnant woman's shank for the people hand usually, long-time massage, the easy ache of people's hand leads to follow-up massage dynamics inhomogeneous, and the pregnant woman is taken exercise for walking usually to the shank, because pregnant woman is more weak physically, long-time walking, the pregnant woman falls the injury easily.
Disclosure of Invention
In order to overcome the defect that the hands of a person are easy to ache and cause uneven subsequent massage strength due to the fact that the hands of the person massage the legs of a pregnant woman for a long time, the invention aims to provide the postpartum shank massage device for the pregnant woman, which can massage the shanks of the pregnant woman uniformly and can exercise the shanks.
The technical scheme is as follows: a postpartum shank massage device for pregnant women in obstetrics and gynecology department comprises a bottom plate, supporting legs, a seat plate, a backup plate, first bearing seats, a lead screw, a first bevel gear, a nut, a cross rod, second bearing seats, a rotating rod, a rotating disc, a rocking rod, a second bevel gear, a supporting rod, a sliding sleeve, a u-shaped frame, a vertical plate, a guide rod, a massage wheel and a first spring, wherein the supporting legs are arranged on the left side of the top of the bottom plate, the seat plate is arranged on the top of the supporting legs, the backup plate is arranged on the left side of the top of the seat plate, the first bearing seats are arranged on the left side of the bottom of the seat plate and the lower part of the left side surface of the supporting legs, the lead screw is connected between the first bearing seats on the upper side and the lower side, the nut is arranged on the lead screw, install the riser between U type frame top right side and the bottom right side, evenly spaced division has the guide hole on the riser, be equipped with the guide arm in the guide hole, be connected with first spring between guide arm right part and the riser right flank, first spring housing is on the guide arm, the massage wheel is installed to the guide arm right-hand member, the second bearing frame is installed on bedplate bottom right side, the second bearing frame is located between branch and the landing leg, install the bull stick in the second bearing frame, the carousel is installed to the bull stick right-hand member, the rocker is installed to carousel right flank eccentric position, second bevel gear is installed to the bull stick left end, second bevel gear is located first bevel gear right side.
The improvement as above-mentioned scheme, still including taking exercise the device, take exercise the device including the arc slide rail, the arc slider, place the board, the pulley, the second spring, the acting line, third spring and footboard, the arc slide rail is installed on bottom plate top right side, be equipped with on the arc slide rail rather than complex arc slider, arc slider and arc slide rail sliding fit, the board is placed in the installation of arc slider left surface, be connected with the second spring between arc slider bottom right side and the bottom plate top right side, the pulley is all installed with left surface upper portion to arc slide rail right flank lower part, the top pulley is located the arc slider top, the bottom plate top is equipped with the footboard, all be connected with the third spring between footboard bottom left and right sides and the bottom plate top right side, footboard right flank sub-unit connection has the acting line, two pulleys and arc slider top intermediate junction.
As the improvement of above-mentioned scheme, still including back massage device, back massage device is including the montant, the rack, L type pole, the apparatus further comprises a rotating shaft, the lug, cylinder and first gear, backup plate middle part is opened there is the through-hole, L type pole is installed to bedplate left surface lower part, the pivot is installed to L type pole top rotary type, first gear is installed to the pivot front end, the cylinder is installed to the pivot rear end, cylinder right side position is in the through-hole, the even spaced lug of installing of cylinder lateral surface circumference, the montant is installed to the horizontal pole left end, the rack is installed on the montant top, the rack is located first gear left side and its meshing.
As the improvement of above-mentioned scheme, still including sleeve, slide bar, fourth spring and handrail, the sleeve is installed to bilateral symmetry formula around the bedplate top right side, is equipped with the slide bar in the sleeve, and the handrail is installed to both sides all rotary type around the backup plate right flank lower part, and handrail bottom right side is connected with the slide bar top, is connected with the fourth spring between handrail bottom and the sleeve top, and the fourth spring housing is on the slide bar.
Firstly, a pregnant woman sits on the seat plate and leans against the back plate, and then the crus of the pregnant woman is contacted with the massage wheels, the pregnant woman can shake the rocking bar to rotate forward and backward alternately, the rocking bar rotates forward and backward alternately to drive the rotary disc to rotate forward and backward alternately, the rotary disc rotates forward and backward alternately to drive the rotary bar to rotate forward and backward alternately, the rotary bar rotates forward and backward alternately to drive the second bevel gear to rotate forward and backward alternately, the second bevel gear rotates forward and backward alternately to drive the first bevel gear to rotate forward and backward alternately to drive the screw rod to rotate forward and backward alternately, the screw rod rotates forward and backward alternately to drive the nut to move up and down, the nut moves up and down to drive the cross rod to move up and down, the cross rod moves up and down to drive the u-shaped frame to, due to the action of the first spring, the massage wheel is always in contact with the shank of the pregnant woman to massage the pregnant woman. When the shank of the pregnant woman is massaged for a proper time, the rocking bar can be stopped to rock, and the pregnant woman can get up from the seat board.
Initially, the second spring is tensile state, after the massage of pregnant woman's shank is accomplished, the pregnant woman can place one of them foot on placing the board, step on another foot on the footboard again, the pregnant woman can step on footboard downstream, the third spring compression, footboard downstream makes and acts as go-between and relax, and then because of the effect of second spring, arc slider downstream drives and places board downstream, place board downstream and drive the foot downstream of pregnant woman, the pregnant woman is loosening the footboard, because of the effect of third spring, footboard upstream drives arc slider upstream through acting as go-between, arc slider upstream drives and places board upstream, and then drive pregnant woman's foot upstream, so relapse, can continuously lift the foot and put down, and then temper the shank. When the exercise is carried out for a proper time, the feet can be put down from the pedal and the placing plate. Thus, the shank can be prevented from thickening without exercising for a long time.
When the pregnant woman leans on the backup plate, the lug contacts with pregnant woman back, and then when the pregnant woman shakes the positive and negative rotation in turn of rocker, the horizontal pole reciprocates and drives the montant and reciprocates simultaneously, the montant reciprocates and drives the rack and reciprocates, the rack reciprocates and drives the positive and negative rotation in turn of first gear, the positive and negative rotation in turn of first gear drives the positive and negative rotation in turn of pivot, the positive and negative rotation in turn of pivot drives the positive and negative rotation in turn of cylinder, the positive and negative rotation in turn of cylinder drives the positive and negative rotation in turn of lug, the positive and negative. When the pregnant woman massages for a proper time, the pregnant woman stops shaking the rocker, and then the lug stops rotating. Therefore, the pregnant woman can more comfortably sit on the seat plate to massage the legs.
When the pregnant woman sits on the seat board and takes exercise for the legs, the hand can be placed on the handrail, and the pregnant woman can better place the hand on the handrail under the action of the fourth spring. After the massage of the pregnant woman is finished, the hand of the pregnant woman can be put down from the handrail. Thus, the handrail can enable the pregnant woman to better sit on the seat board.
The invention has the following advantages: the massage wheel can massage the shanks of the pregnant woman under the action of the massage wheel, so that the shanks are not required to be manually massaged by a person, the massage force is uniform, the massaged shanks can be exercised by the pregnant woman through the exercise device, the blood circulation is further promoted, the back of the pregnant woman can be massaged through the back massage device, and the pregnant woman can sit on the seat more comfortably to massage the shanks.
Drawings

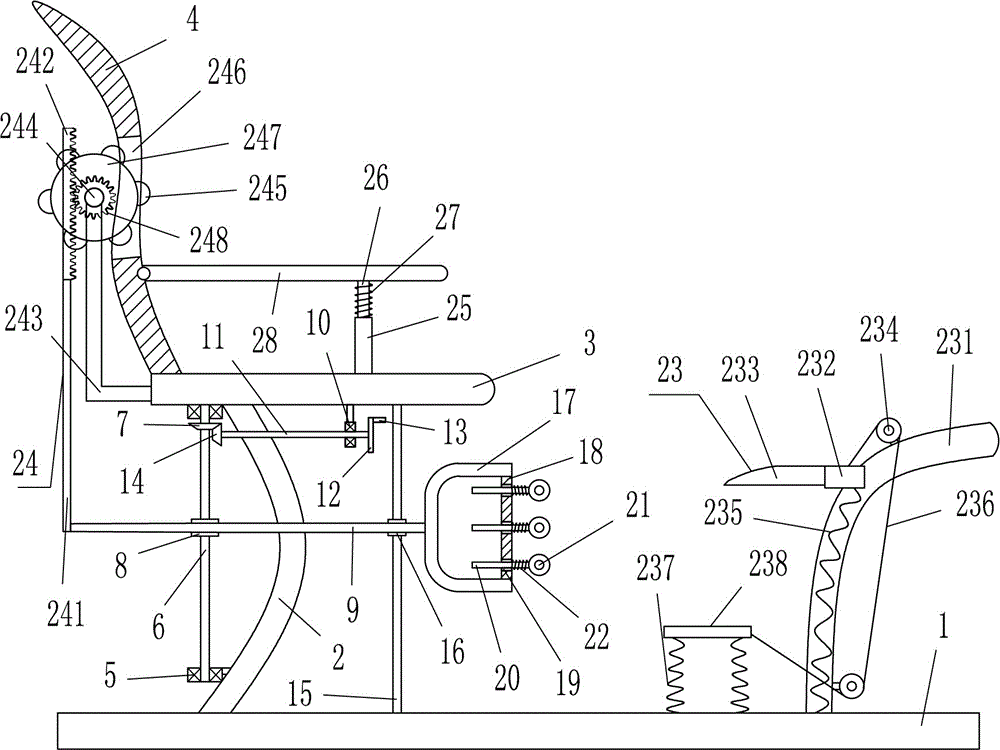

Fig. 1 is a schematic front view of the present invention.
Number designation in the figures: 1. the chair comprises a base plate, 2. supporting legs, 3. a chair plate, 4. a backup plate, 5. a first bearing seat, 6. a screw rod, 7. a first bevel gear, 8. a nut, 9. a cross rod, 10. a second bearing seat, 11. a rotating rod, 12. a rotating disc, 13. a rocker, 14. a second bevel gear, 15. a supporting rod, 16. a sliding sleeve, 17. a u-shaped frame, 18. a vertical plate, 19. a guide hole, 20. a guide rod, 21. a massage wheel, 22. a first spring, 23. an exercise device, 231. an arc-shaped sliding rail, 232. an arc-shaped sliding block, 233. a placing plate, 234. a pulley, 235. a second spring, 236. a stay wire, 237. a third spring, 238. a pedal, 24. a back massage device, 241. a vertical rod, 242. a rack, 243. an L-shaped rod, 244. a rotating shaft, 245. a bump, 246. a through hole, 247. a roller, 248. a first gear, 25. a sleeve, 26.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example 1
A postpartum shank massage device for pregnant women in obstetrics and gynecology department is shown in figure 1 and comprises a bottom plate 1, supporting legs 2, a seat plate 3, a backup plate 4, a first bearing seat 5, a screw rod 6, a first bevel gear 7, a nut 8, a cross rod 9, a second bearing seat 10, a rotating rod 11, a rotating disc 12, a rocker 13, a second bevel gear 14, a support rod 15, a sliding sleeve 16, a u-shaped frame 17, a vertical plate 18, a guide rod 20, a massage wheel 21 and a first spring 22, wherein the left side of the top of the bottom plate 1 is provided with the supporting legs 2, the top of the supporting legs 2 is provided with the seat plate 3, the left side of the top of the seat plate 3 is provided with the backup plate 4, the first bearing seat 5 is arranged on the left side of the bottom of the seat plate 3 and the lower part of the left side surface of the supporting legs 2, the screw rod 6 is connected, the supporting rod 15 is located on the right side of the supporting leg 2, a sliding sleeve 16 is arranged on the supporting rod 15, a cross rod 9 is arranged between the middle of the front side face of the sliding sleeve 16 and the middle of the front side face of the nut 8, a u-shaped frame 17 is arranged at the right end of the cross rod 9, a vertical plate 18 is arranged between the right side of the top and the right side of the bottom in the u-shaped frame 17, guide holes 19 are formed in the vertical plate 18 at uniform intervals, guide rods 20 are arranged in the guide holes 19, a first spring 22 is connected between the right portion of each guide rod 20 and the right side face of the corresponding vertical plate 18, the first spring 22 is sleeved on the corresponding guide rod 20, a massage wheel 21 is arranged at the right end of each guide rod 20, a second bearing seat 10 is arranged on the right side of the bottom of the seat plate 3, the second bearing 10 is located between the supporting rod 15 and the supporting leg 2.
Example 2
A postpartum shank massage device for pregnant women in obstetrics and gynecology department is shown in figure 1 and comprises a bottom plate 1, supporting legs 2, a seat plate 3, a backup plate 4, a first bearing seat 5, a screw rod 6, a first bevel gear 7, a nut 8, a cross rod 9, a second bearing seat 10, a rotating rod 11, a rotating disc 12, a rocker 13, a second bevel gear 14, a support rod 15, a sliding sleeve 16, a u-shaped frame 17, a vertical plate 18, a guide rod 20, a massage wheel 21 and a first spring 22, wherein the left side of the top of the bottom plate 1 is provided with the supporting legs 2, the top of the supporting legs 2 is provided with the seat plate 3, the left side of the top of the seat plate 3 is provided with the backup plate 4, the first bearing seat 5 is arranged on the left side of the bottom of the seat plate 3 and the lower part of the left side surface of the supporting legs 2, the screw rod 6 is connected, the supporting rod 15 is located on the right side of the supporting leg 2, a sliding sleeve 16 is arranged on the supporting rod 15, a cross rod 9 is arranged between the middle of the front side face of the sliding sleeve 16 and the middle of the front side face of the nut 8, a u-shaped frame 17 is arranged at the right end of the cross rod 9, a vertical plate 18 is arranged between the right side of the top and the right side of the bottom in the u-shaped frame 17, guide holes 19 are formed in the vertical plate 18 at uniform intervals, guide rods 20 are arranged in the guide holes 19, a first spring 22 is connected between the right portion of each guide rod 20 and the right side face of the corresponding vertical plate 18, the first spring 22 is sleeved on the corresponding guide rod 20, a massage wheel 21 is arranged at the right end of each guide rod 20, a second bearing seat 10 is arranged on the right side of the bottom of the seat plate 3, the second bearing 10 is located between the supporting rod 15 and the supporting leg 2.
Also comprises an exercising device 23, the exercising device 23 comprises an arc slide rail 231, an arc slide block 232, a placing plate 233 and a pulley 234, second spring 235, act as go-between 236, third spring 237 and footboard 238, arc slide rail 231 is installed on 1 top right side of bottom plate, be equipped with on the arc slide rail 231 rather than complex arc slider 232, arc slider 232 and arc slide rail 231 sliding fit, arc slider 232 installs the left side and places board 233, be connected with second spring 235 between arc slider 232 bottom right side and the 1 top right side of bottom plate, pulley 234 is all installed on arc slide rail 231 right side lower part and left side upper portion, top pulley 234 is located arc slider 232 top, bottom plate 1 top is equipped with footboard 238, all be connected with third spring 237 between footboard 238 bottom left and right sides and the 1 top right side of bottom plate, footboard 238 right side lower part is connected with acts as go-between 236, act as go-between two pulleys 234 and arc slider 232 top intermediate junction are walked around to the tail end.
Example 3
A postpartum shank massage device for pregnant women in obstetrics and gynecology department is shown in figure 1 and comprises a bottom plate 1, supporting legs 2, a seat plate 3, a backup plate 4, a first bearing seat 5, a screw rod 6, a first bevel gear 7, a nut 8, a cross rod 9, a second bearing seat 10, a rotating rod 11, a rotating disc 12, a rocker 13, a second bevel gear 14, a support rod 15, a sliding sleeve 16, a u-shaped frame 17, a vertical plate 18, a guide rod 20, a massage wheel 21 and a first spring 22, wherein the left side of the top of the bottom plate 1 is provided with the supporting legs 2, the top of the supporting legs 2 is provided with the seat plate 3, the left side of the top of the seat plate 3 is provided with the backup plate 4, the first bearing seat 5 is arranged on the left side of the bottom of the seat plate 3 and the lower part of the left side surface of the supporting legs 2, the screw rod 6 is connected, the supporting rod 15 is located on the right side of the supporting leg 2, a sliding sleeve 16 is arranged on the supporting rod 15, a cross rod 9 is arranged between the middle of the front side face of the sliding sleeve 16 and the middle of the front side face of the nut 8, a u-shaped frame 17 is arranged at the right end of the cross rod 9, a vertical plate 18 is arranged between the right side of the top and the right side of the bottom in the u-shaped frame 17, guide holes 19 are formed in the vertical plate 18 at uniform intervals, guide rods 20 are arranged in the guide holes 19, a first spring 22 is connected between the right portion of each guide rod 20 and the right side face of the corresponding vertical plate 18, the first spring 22 is sleeved on the corresponding guide rod 20, a massage wheel 21 is arranged at the right end of each guide rod 20, a second bearing seat 10 is arranged on the right side of the bottom of the seat plate 3, the second bearing 10 is located between the supporting rod 15 and the supporting leg 2.
Also comprises an exercising device 23, the exercising device 23 comprises an arc slide rail 231, an arc slide block 232, a placing plate 233 and a pulley 234, second spring 235, act as go-between 236, third spring 237 and footboard 238, arc slide rail 231 is installed on 1 top right side of bottom plate, be equipped with on the arc slide rail 231 rather than complex arc slider 232, arc slider 232 and arc slide rail 231 sliding fit, arc slider 232 installs the left side and places board 233, be connected with second spring 235 between arc slider 232 bottom right side and the 1 top right side of bottom plate, pulley 234 is all installed on arc slide rail 231 right side lower part and left side upper portion, top pulley 234 is located arc slider 232 top, bottom plate 1 top is equipped with footboard 238, all be connected with third spring 237 between footboard 238 bottom left and right sides and the 1 top right side of bottom plate, footboard 238 right side lower part is connected with acts as go-between 236, act as go-between two pulleys 234 and arc slider 232 top intermediate junction are walked around to the tail end.
The back massage device 24 further comprises a back massage device 24, the back massage device 24 comprises a vertical rod 241, a rack 242, an L-shaped rod 243, a rotating shaft 244, a bump 245, a roller 247 and a first gear 248, a through hole 246 is formed in the middle of the backup plate 4, the L-shaped rod 243 is installed on the lower portion of the left side face of the seat plate 3, the rotating shaft 244 is installed in a rotary mode on the top end of the L-shaped rod 243, the first gear 248 is installed at the front end of the rotating shaft 244, the roller 247 is installed at the rear end of the rotating shaft 244, the right portion of the roller 247 is located in the through hole 246, the bumps 245 are installed on the outer side face of the roller 247 at even intervals in the circumferential direction, the vertical rod 241 is.
Example 4
A postpartum shank massage device for pregnant women in obstetrics and gynecology department is shown in figure 1 and comprises a bottom plate 1, supporting legs 2, a seat plate 3, a backup plate 4, a first bearing seat 5, a screw rod 6, a first bevel gear 7, a nut 8, a cross rod 9, a second bearing seat 10, a rotating rod 11, a rotating disc 12, a rocker 13, a second bevel gear 14, a support rod 15, a sliding sleeve 16, a u-shaped frame 17, a vertical plate 18, a guide rod 20, a massage wheel 21 and a first spring 22, wherein the left side of the top of the bottom plate 1 is provided with the supporting legs 2, the top of the supporting legs 2 is provided with the seat plate 3, the left side of the top of the seat plate 3 is provided with the backup plate 4, the first bearing seat 5 is arranged on the left side of the bottom of the seat plate 3 and the lower part of the left side surface of the supporting legs 2, the screw rod 6 is connected, the supporting rod 15 is located on the right side of the supporting leg 2, a sliding sleeve 16 is arranged on the supporting rod 15, a cross rod 9 is arranged between the middle of the front side face of the sliding sleeve 16 and the middle of the front side face of the nut 8, a u-shaped frame 17 is arranged at the right end of the cross rod 9, a vertical plate 18 is arranged between the right side of the top and the right side of the bottom in the u-shaped frame 17, guide holes 19 are formed in the vertical plate 18 at uniform intervals, guide rods 20 are arranged in the guide holes 19, a first spring 22 is connected between the right portion of each guide rod 20 and the right side face of the corresponding vertical plate 18, the first spring 22 is sleeved on the corresponding guide rod 20, a massage wheel 21 is arranged at the right end of each guide rod 20, a second bearing seat 10 is arranged on the right side of the bottom of the seat plate 3, the second bearing 10 is located between the supporting rod 15 and the supporting leg 2.
Also comprises an exercising device 23, the exercising device 23 comprises an arc slide rail 231, an arc slide block 232, a placing plate 233 and a pulley 234, second spring 235, act as go-between 236, third spring 237 and footboard 238, arc slide rail 231 is installed on 1 top right side of bottom plate, be equipped with on the arc slide rail 231 rather than complex arc slider 232, arc slider 232 and arc slide rail 231 sliding fit, arc slider 232 installs the left side and places board 233, be connected with second spring 235 between arc slider 232 bottom right side and the 1 top right side of bottom plate, pulley 234 is all installed on arc slide rail 231 right side lower part and left side upper portion, top pulley 234 is located arc slider 232 top, bottom plate 1 top is equipped with footboard 238, all be connected with third spring 237 between footboard 238 bottom left and right sides and the 1 top right side of bottom plate, footboard 238 right side lower part is connected with acts as go-between 236, act as go-between two pulleys 234 and arc slider 232 top intermediate junction are walked around to the tail end.
The back massage device 24 further comprises a back massage device 24, the back massage device 24 comprises a vertical rod 241, a rack 242, an L-shaped rod 243, a rotating shaft 244, a bump 245, a roller 247 and a first gear 248, a through hole 246 is formed in the middle of the backup plate 4, the L-shaped rod 243 is installed on the lower portion of the left side face of the seat plate 3, the rotating shaft 244 is installed in a rotary mode on the top end of the L-shaped rod 243, the first gear 248 is installed at the front end of the rotating shaft 244, the roller 247 is installed at the rear end of the rotating shaft 244, the right portion of the roller 247 is located in the through hole 246, the bumps 245 are installed on the outer side face of the roller 247 at even intervals in the circumferential direction, the vertical rod 241 is.
The seat plate is characterized by further comprising a sleeve 25, a sliding rod 26, a fourth spring 27 and a handrail 28, wherein the sleeve 25 is symmetrically arranged on the front side and the rear side of the right side of the top of the seat plate 3, the sliding rod 26 is arranged in the sleeve 25, the handrail 28 is rotatably arranged on the front side and the rear side of the lower portion of the right side surface of the backup plate 4, the right side of the bottom of the handrail 28 is connected with the top end of the sliding rod 26, the fourth spring 27 is connected between the bottom of the handrail 28 and the top of the sleeve.
Firstly, a pregnant woman sits on the seat plate 3 and leans against the backup plate 4, and then the shanks of the pregnant woman are contacted with the massage wheels 21, the pregnant woman can shake the rocking rod 13 to rotate forward and backward alternately, the rocking rod 13 rotates forward and backward alternately to drive the rotary table 12 to rotate forward and backward alternately, the rotary table 12 rotates forward and backward alternately to drive the rotary rod 11 to rotate forward and backward alternately, the rotary rod 11 rotates forward and backward alternately to drive the second bevel gear 14 to rotate forward and backward alternately, the second bevel gear 14 rotates forward and backward alternately to drive the first bevel gear 7 to rotate forward and backward alternately, the first bevel gear 7 rotates forward and backward alternately to drive the screw rod 6 to rotate forward and backward alternately to drive the nut 8 to move up and down, the nut 8 moves up and down to drive the cross rod 9 to move up and down, the cross rod 9 moves up and down to drive the u-, the massage wheel 21 moves up and down to massage the lower leg of the pregnant woman, and the massage wheel 21 is always in contact with the lower leg of the pregnant woman to massage the lower leg of the pregnant woman due to the action of the first spring 22. When the lower legs of the pregnant woman are massaged for a proper time, the rocking bar 13 can be stopped to rock, and the pregnant woman can get up from the seat plate 3.
Initially, the second spring 235 is in a stretching state, after the massage of the lower leg of the pregnant woman is completed, the pregnant woman can place one foot on the placing plate 233, and then step the other foot on the pedal 238, the pregnant woman can step the pedal 238 to move downwards, the third spring 237 is compressed, the pedal 238 moves downwards to enable the stay wire 236 to be loosened, and further due to the effect of the second spring 235, the arc-shaped slider 232 moves downwards to drive the placing plate 233 to move downwards, the placing plate 233 moves downwards to drive the foot of the pregnant woman to move downwards, the pregnant woman loosens the pedal 238, due to the effect of the third spring 237, the pedal 238 moves upwards to drive the arc-shaped slider 232 to move upwards through the stay wire 236, the arc-shaped slider 232 moves upwards to drive the placing plate 233 to move upwards, and further drive the foot of the pregnant woman to move upwards, and the above-and-mentioned steps are repeated, so that the foot can be. When the exercise is performed for a proper time, the feet can be put down from the footrests 238 and the resting plate 233. Thus, the shank can be prevented from thickening without exercising for a long time.
When the pregnant woman leans on the backup plate 4, the bump 245 is in contact with the back of the pregnant woman, and then when the pregnant woman shakes the positive and negative alternate rotation of the rocker 13, the cross rod 9 moves up and down and drives the vertical rod 241 to move up and down, the vertical rod 241 moves up and down and drives the rack 242 to move up and down and drive the first gear 248 to rotate in a positive and negative alternate manner, the first gear 248 rotates in a positive and negative alternate manner and drives the rotating shaft 244 to rotate in a positive and negative alternate manner, the rotating shaft 244 rotates in a positive and negative alternate manner and drives the roller 247 to rotate in a positive and negative alternate manner and drives the bump 245 to. After the pregnant woman massages for a suitable time, the pregnant woman stops shaking the rocking bar 13, and then the bumps 245 stop rotating. Thus, the pregnant woman can more comfortably sit on the seat plate 3 for leg massage.
When a pregnant woman sits on the seat plate 3 and exercises the legs, the hand of the pregnant woman can be placed on the handrail 28, and the pregnant woman can better place the hand on the handrail 28 under the action of the fourth spring 27. When the massage of the pregnant woman is completed, the hands of the pregnant woman can be put down from the armrests 28. In this way, the armrests 28 enable a pregnant woman to better sit on the seat plate 3.
The above-mentioned embodiments are merely preferred embodiments of the present invention, which are not intended to limit the scope of the present invention, and therefore, all equivalent changes made by the contents of the claims of the present invention should be included in the claims of the present invention.
Claims (3)
1. A postpartum shank massage device for pregnant women in obstetrics and gynecology department is characterized by comprising a base plate, supporting legs, a seat plate, a backup plate, a first bearing seat, a lead screw, a first bevel gear, a nut, a cross rod, a second bearing seat, a rotating rod, a rotating disk, a rocker, a second bevel gear, a support rod, a sliding sleeve, a u-shaped frame, a vertical plate, a guide rod, a massage wheel and a first spring, wherein the supporting legs are arranged on the left side of the top of the base plate, the seat plate is arranged on the top of the supporting legs, the backup plate is arranged on the left side of the top of the seat plate, the first bearing seat is arranged on the left side of the bottom of the seat plate and the lower part of the left side surface of the supporting legs, the lead screw is connected between the first bearing seats on the upper side and the lower side, the nut, a u-shaped frame is installed at the right end of the cross rod, a vertical plate is installed between the right side of the top and the right side of the bottom in the u-shaped frame, guide holes are evenly formed in the vertical plate at intervals, guide rods are arranged in the guide holes, a first spring is connected between the right portion of each guide rod and the right side of the corresponding vertical plate, the first spring is sleeved on each guide rod, a massage wheel is installed at the right end of each guide rod, a second bearing seat is installed at the right side of the bottom of the seat plate and located between the supporting rods and the supporting legs, a rotating rod is installed in each second bearing seat, a rotating disc is installed at the right end of each rotating rod, a rocker; still including taking exercise device, take exercise device is including the arc slide rail, the arc slider, place the board, the pulley, the second spring, the acting as go-between, third spring and footboard, the arc slide rail is installed on bottom plate top right side, be equipped with rather than complex arc slider on the arc slide rail, arc slider and arc slide rail sliding fit, the board is placed in the installation of arc slider left surface, be connected with the second spring between arc slider bottom right side and the bottom plate top right side, the pulley is all installed on arc slide rail right flank lower part and left surface upper portion, the top pulley is located the arc slider top, the bottom plate top is equipped with the footboard, all be connected with the third spring between footboard bottom left and right sides and the bottom plate top right side, footboard right flank sub-unit connection has the acting as go-between, the tail end of acting.
2. The device for massaging postpartum calf of the pregnant woman in obstetrics and gynecology department as claimed in claim 1, further comprising a back massaging device, wherein the back massaging device comprises a vertical rod, a rack, an L-shaped rod, a rotating shaft, a convex block, a roller and a first gear, a through hole is formed in the middle of the backup plate, the L-shaped rod is installed on the lower portion of the left side face of the seat plate, the rotating shaft is rotatably installed at the top end of the L-shaped rod, the first gear is installed at the front end of the rotating shaft, the roller is installed at the rear end of the rotating shaft, the right portion of the roller is located in the through hole, the convex block is installed on the outer side face of the roller at even circumferential intervals, the vertical.
3. The device for massaging the postpartum calf of the pregnant woman in obstetrics and gynecology department as claimed in claim 2, further comprising a sleeve, a slide bar, a fourth spring and a handle, wherein the sleeve is symmetrically arranged on the front side and the rear side of the right side of the top of the seat plate, the slide bar is arranged in the sleeve, the handle is rotatably arranged on the front side and the rear side of the lower part of the right side surface of the backup plate, the right side of the bottom of the handle is connected with the top end of the slide bar, the fourth spring is connected between the bottom of the handle and the top of.
