CN109000462B - A rotary automatic drying machine for medicinal materials - Google Patents

Abstract

The invention relates to the field of medical equipment, in particular to a rotary automatic drying machine for medicinal materials, comprising a box body, a supporting component, a drying component and a controller. The components include several material frames and driving motors. The drying components include a hot air mechanism, a temperature collecting hood and an airflow guide mechanism. All the material boxes are connected with the output shaft of the drive motor through a horizontal rotating shaft. The airflow guide component includes a conical cover and several The louvers are used to disperse the hot air. All louvers are rotatably arranged at the bottom opening of the conical hood. The top tip of the conical hood is rotatably connected to the inner top of the temperature collecting hood. It is fixed on the inner wall of the drying chamber. Equipped with a temperature sensor and a humidity sensor, the rotary type automatic drying machine for medicinal materials of the present invention can make the drying process of medicinal materials more uniform and effectively improve the drying quality of medicinal materials.

Description

A rotary automatic drying machine for medicinal materials

technical field

The invention relates to the field of medical equipment, in particular to a rotary automatic dryer for medicinal materials.

Background technique

Drying of Chinese medicinal materials is a processing procedure for dehydrating Chinese medicinal materials, maintaining their original ingredients and maintaining their medicinal properties. Drying is to allow them to be stored for a long time. At present, drying of medicinal materials is mostly operated by dryers. , The main principle of the medicinal material dryer used in the drying process is to use the heat pump evaporator to absorb the heat in the outside air, or to recover the waste heat of the exhaust gas during the drying process, and to work through the compressor to transport (transfer) the energy to the drying box. , the hot air in the drying box is heated through repeated cycles, absorbs the moisture in the material, cools and humidifies itself, and through the process of hot air dehumidification or condensation and water removal, the water in the material is discharged and taken away, and finally the material is dehumidified. Continuous drying, when many current dryers are drying the medicinal materials, due to the relatively single air outlet, the medicinal materials close to the heat source will be over-dried, and the medicinal materials far away from the heat source will be difficult to be fully dried, which will lead to the material frame. The medicinal materials inside are not uniformly heated, so that the quality of the medicinal materials dried each time is uneven, and the medicinal properties may even be lost in severe cases. Therefore, it is necessary to design a medicinal material dryer that can make the drying process more uniform and sufficient.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a rotary automatic drying machine for medicinal materials in view of the deficiencies of the prior art.

In order to solve the above problems, the present invention provides the following technical solutions: a rotary automatic drying machine for medicinal materials, including a box body, a supporting component, a drying component and a controller, and the inside of the box body is divided into two parts by a vertically arranged partition. Drying room and control room. The supporting component is horizontally arranged in the lower half of the drying room. The supporting component includes several material frames capable of circular motion and a driving motor. The drying component includes a hot air mechanism, a temperature collecting hood and an airflow guide. The mechanism, the controller, the drive motor and the hot air mechanism are all set in the control room, all the material frames are connected with the output shaft of the drive motor through a horizontal shaft, the temperature gathering hood and all the material boxes are located in the drying room, and the temperature gathering hood Located just above all the material boxes, the hot air mechanism communicates with the inner side of the temperature collecting hood, and the airflow guide mechanism is arranged on the inner top of the temperature collecting hood. The louvers are rotatably arranged at the bottom opening of the cone-shaped cover, the top tip of the cone-shaped cover is rotatably connected to the top of the inner side of the temperature collecting cover, and a temperature sensor and a humidity sensor are fixed on the inner wall of the drying chamber. The sensor, humidity sensor, driving motor and hot air mechanism are all electrically connected with the controller;

The hot air mechanism includes a centrifugal fan and a heater, the centrifugal fan is fixed on the inner wall of the control room, the heater is fixed on the partition, and the heater communicates with the drying room and the control room, and the air outlet of the centrifugal fan is connected with the heating through the cold air pipe. The inlet end of the heater is connected, and the outlet end of the heater is communicated with the top of the temperature-gathering cover through the hot air pipe. The temperature-gathering cover is an inverted square funnel structure and a layer of heat-insulating aluminum foil is arranged on its inner wall. The inner wall is provided with a support bar for the temperature collecting cover to be erected.

Preferably, the inner top of the temperature collecting cover is fixedly provided with a bushing that communicates with the hot air pipe, the bushing is arranged vertically and a ball bearing is fixedly clamped inside the bottom of the bushing, and the top of the conical cover extends through a The tube is fixedly connected with the inner ring of the ball bearing, a horizontal propeller is fixed in the extension tube, and all the louvers are arranged at the bottom opening of the conical cover through a connecting shaft, and the end of the connecting shaft can be rotatably inserted in the shaft. on the bottom inner wall of the cone-shaped cover.

Preferably, the heater includes a heat insulation shell and an electric heating wire, the electric heating wire is arranged inside the heat insulation shell, and both ends of the heat insulation shell are provided with metal grids.

Beneficial effects: The rotary automatic drying machine for medicinal materials of the present invention can make the drying process of medicinal materials more uniform, and effectively improve the drying quality of medicinal materials.

Description of drawings

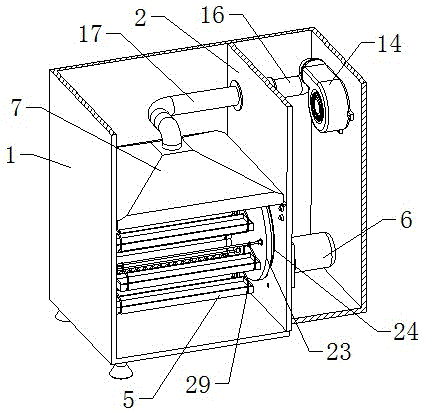

Fig. 1 shows the three-dimensional structure schematic diagram of the present invention;

Fig. 2 shows the plane sectional view one of the present invention;

Fig. 3 shows the plane sectional view two of the present invention;

Fig. 4 shows the three-dimensional cross-sectional view one of the present invention;

Fig. 5 shows the three-dimensional cross-sectional view two of the present invention;

Figure 6 shows a schematic diagram of a partial three-dimensional structure of the present invention;

Figure 7 is a schematic diagram of the three-dimensional structure of the heater;

Figure 8 shows a plan cross-sectional view of the airflow guide mechanism;

Fig. 9 is the partial three-dimensional structure schematic diagram of the support assembly;

Figure 10 shows a schematic exploded view of the partial three-dimensional structure of the supporting assembly;

Description of reference numerals: box 1, partition 2, drying chamber 3, control chamber 4, material frame 5, drive motor 6, temperature collecting cover 7, airflow guiding mechanism 8, horizontal rotating shaft 9, cone-shaped cover 10, louver 11. Temperature sensor 12, humidity sensor 13, centrifugal fan 14, heater 15, cold air duct 16, hot air duct 17, bushing 18, ball bearing 19, extension tube 20, propeller 21, connecting shaft 22, circular turntable 23 , annular slide 24, roller 25, large bushing 26, hanging rod 27, small bushing 28, hanger 29, U-shaped plate 30, first gear 31, second gear 32, third gear 33, fourth gear 34, the limit card slot 35, the heat insulation shell 36, the metal grille mesh 37, the ventilation grille 38, the door panel 39, the display screen 40, the control button 41, the support bar 42.

Detailed ways

Below in conjunction with the accompanying drawings and embodiments of the description, the specific embodiments of the present invention are described in further detail:

Referring to Figures 1 to 10, the rotary type automatic drying device for medicinal materials includes a box body 1, a supporting component, a drying component and a controller. The interior of the box body 1 is divided into a drying chamber 3 by a vertically arranged partition 2. and the control room 4, the supporting assembly is horizontally arranged in the lower half of the drying chamber 3, the supporting assembly includes a plurality of material frames 5 capable of circular motion and a driving motor 6, and the drying assembly includes a hot air mechanism, a temperature gathering cover 7 And the airflow guide mechanism 8, the controller, the drive motor 6 and the hot air mechanism are all arranged in the control room 4, all the material frames 5 are connected with the output shaft of the drive motor 6 through a horizontal rotating shaft 9, and the temperature collecting cover 7 and all the The material frames 5 are all located in the drying chamber 3, and the temperature collecting cover 7 is located directly above all the material frames 5. The hot air mechanism is communicated with the inner side of the temperature collecting cover 7, and the airflow guiding mechanism is arranged on the inner top of the temperature collecting cover 7. The mechanism includes a conical cover 10 and a number of louvers 11 for dispersing the hot air flow. All the louvers 11 are rotatably arranged at the bottom opening of the conical cover 10. The top tip of the conical cover 10 is connected to the temperature collecting cover 7. A temperature sensor 12 and a humidity sensor 13 are fixed on the inner wall of the drying chamber 3. The temperature sensor 12, the humidity sensor 13, the drive motor 6 and the hot air mechanism are all electrically connected to the controller.

The hot air mechanism includes a centrifugal fan 14 and a heater 15. The centrifugal fan 14 is fixedly arranged on the inner wall of the control chamber 4. The air outlet of the fan 14 communicates with the inlet end of the heater 15 through the cold air duct 16, and the outlet end of the heater 15 communicates with the top of the temperature collecting cover 7 through the hot air duct 17. The temperature collecting cover 7 is an inverted square funnel structure and its A layer of heat-insulating aluminum foil is arranged on the inner wall, and two opposite inner walls of the drying chamber 3 are provided with support bars 42 for the temperature gathering cover 7 to be erected. The controller starts the centrifugal fan 14 and the heater 15 to work, and the centrifugal fan 14 works. The cold air is sent to the heater 15. After the heater 15 heats the passing cold air, the hot air enters the temperature gathering cover 7 and dries the medicinal materials in the material frame 5 below. The inner side of the temperature collecting cover 7 to enhance the drying effect.

The inner top of the temperature collecting cover 7 is fixedly provided with a bushing 18 which communicates with the hot air pipe 17. The bushing 18 is vertically arranged and a ball bearing 19 is fixedly clamped inside the bottom of the bushing. The top of the conical cover 10 An extension tube 20 is fixedly connected with the inner ring of the ball bearing 19, a horizontal propeller 21 is fixedly arranged in the extension tube 20, and all the louvers 11 are arranged at the bottom opening of the conical cover 10 through a connecting shaft 22, The end of the connecting shaft 22 is rotatably inserted into the bottom inner wall of the cone-shaped cover 10, and all the louvers 11 are adjusted to diverge to both sides. After the divergent louvers 11, when the hot air flows out from the bottom of the conical cover 10, it will spread to both sides. At the same time, the propeller 21 in the extension pipe 20 will generate a rotational force in the circumferential direction under the push of the hot air, thereby Cooperating with the ball bearing 19, the entire cone-shaped cover 10 is driven to rotate, so that the hot air flow out from the bottom of the cone-shaped cover 10 can cover the medicinal materials below in all directions for drying.

The support assembly also includes two symmetrically arranged circular turntables 23, all the material frames 5 are arranged in a horizontal state between the two circular turntables 23, and the two circular turntables 23 are coaxially fixed with the horizontal shaft 9. Connection, the two circular turntables 23 are vertically arranged and the sides of the two away from each other are connected to the inner wall of the drying chamber 3 through an annular slide rail 24. The annular slide rail 24 is fixedly arranged on the inner wall of the drying chamber 3. , the sides of the two circular turntables 23 away from each other are provided with three pairs of roller groups, each pair of roller groups includes two spaced rollers 25 and the two rollers 25 are located on the inner and outer sides of the annular slide rail 24, and all the rollers 25 Both are in sliding contact with the annular slide rail 24, and the inner wall of the drying chamber 3 is also provided with a large shaft sleeve 26 for connecting the horizontal rotating shaft 9, and the two large shaft sleeves 26 are rotatably sleeved on the horizontal rotating shaft 9. The drive motor 6 drives the horizontal rotating shaft 9 to rotate, and the horizontal rotating shaft 9 drives the two circular turntables 23 to rotate, so that all the material frames 5 between the two circular turntables 23 make circular motions, ensuring that the medicinal materials in all the material frames 5 are homogeneous. Drying can be performed by passing right under the cone hood 10 .

Several horizontal hanging rods 27 are arranged between the two circular turntables 23. The hanging rods 27 are equal in number to the material frame 5. The circular turntable 23 is connected, and all the hanging rods 27 are evenly distributed along the circumferential direction of the circular turntable 23. Both ends of each material frame 5 are sleeved with a hanging frame 29, and the top of the hanging frame 29 is hung on the corresponding hanging rod 27. After each material frame 5 is filled with medicinal materials, it is hung under the corresponding hanging rod 27 through the hanger 29. When the circular turntable 23 drives all the material frames 5 to perform circular motion, it is ensured that each material frame 5 is under its own gravity. The lower part is always located directly below the corresponding hanging rod 27 to prevent the material frame 5 from turning over and the medicinal materials from being spilled.

The drive motor 6 is horizontally installed on the partition plate 2 through a U-shaped plate 30, and a deceleration mechanism is provided between the drive motor 6 and the horizontal shaft 9, and the deceleration mechanism includes a first gear 31, a second gear 32, and a third gear. 33 and the fourth gear 34, the axes of the first gear 31, the second gear 32, the third gear 33 and the fourth gear 34 are parallel to each other, one end of the horizontal shaft 9 is fixedly connected to the first gear 31 through the partition plate 2, The second gear 32 is located directly below the first gear 31 and meshes with the two. The third gear 33 and the second gear 32 are coaxially arranged on the partition plate 2 , and the third gear 33 is located on a side of the second gear 32 away from the partition plate 2 . On the side, the fourth gear 34 is located directly below the third gear 33 and the two are meshed. The output shaft of the drive motor 6 is fixedly connected to the fourth gear 34 through the U-shaped plate 30, and the speed of the drive motor 6 is reduced by the speed reduction mechanism. , so that all the material frames 5 can move slowly and uniformly in a circular motion, so that the medicinal materials in each material frame 5 have enough time to pass under the temperature gathering cover 7 for drying.

Both ends of the bottom of each of the material frames 5 are provided with limit slots 35 for the hangers 29 to set. 29 came off.

The heater 15 includes a heat insulating shell 36 and an electric heating wire. The electric heating wire is arranged inside the heat insulating shell 36, and both ends of the heat insulating shell 36 are provided with metal grids 37. The cold air is heated, so that the hot air is sent to the rear temperature collecting hood 7 for drying.

The bottom of the back side of the box body 1 is provided with a ventilation grille 38 which communicates with the inside and outside of the drying chamber 3, and the supply air is exchanged between inside and outside.

One side of the box body 1 is provided with a door panel 39 that can be opened and closed. The door panel 39 is closed and arranged at the opening of the drying chamber 3. The outer wall of the control chamber 4 is provided with a display screen 40 and a control button 41, a temperature sensor 12 and a humidity sensor. The sensor 13 will send the real-time data to the controller, and then the temperature and humidity data will be displayed on the display screen 40 through the controller. The control button 41 is electrically connected to the controller, and pressing the control button 41 enables the controller to start the corresponding components to work. .

Working principle: in use, after each material frame 5 is filled with medicinal materials, hang it under the corresponding hanging rod 27 through the hanger 29, and then adjust all the louvers 11 to diverge to both sides, and the hot air flows through the extension pipe 20 enters the cone-shaped cover 10, and finally passes through the divergent louvers 11. When the hot air flows out from the bottom of the cone-shaped cover 10, it will spread to both sides, and the propeller 21 in the extension pipe 20 will be pushed by the hot air flow. A rotational force in the circumferential direction is generated, so as to cooperate with the ball bearing 19 to drive the entire cone-shaped cover 10 to rotate, so that the hot air flow from the bottom of the cone-shaped cover 10 can cover the medicinal materials below in all directions for drying, and the controller starts the centrifugal The fan 14 and the heater 15 work, and the centrifugal fan 14 works to send the cold air into the heater 15. After the heater 15 heats the passing cold air, the hot air enters the temperature gathering cover 7 and dries the medicinal materials in the material frame 5 below. , the heat-insulating aluminum foil can effectively gather heat on the inner side of the temperature collecting cover 7 to enhance the drying effect. When the circular turntable 23 drives all the material frames 5 to perform circular motion, it ensures that each material frame 5 is under its own gravity. The lower part is always located directly under the corresponding hanging rod 27 to prevent the material frame 5 from turning over and the medicinal materials from falling. The horizontal shaft 9 is driven to rotate by the driving motor 6, and the horizontal shaft 9 drives the two circular turntables 23 to rotate, so that the two circular All the material frames 5 between the turntables 23 make a circular motion to ensure that the medicinal materials in all the material frames 5 can be dried directly under the conical cover 10, and the speed of the driving motor 6 is reduced by the deceleration mechanism, thereby reducing the speed of the driving motor 6. All the material frames 5 can move slowly and uniformly in a circular motion, so that the medicinal materials in each material frame 5 have enough time to pass under the temperature gathering cover 7 for drying.

The above are only preferred embodiments of the present invention, and do not limit the technical scope of the present invention. Therefore, any minor modifications, equivalent changes and modifications made to the above embodiments according to the technical essence of the present invention are still It belongs to the scope of the technical solution of the present invention.

Claims (3)

1. A rotary automatic dryer for medicinal materials, comprising a box body (1), a supporting component, a drying component and a controller, and the interior of the box body (1) is divided into drying parts by a vertically arranged partition (2). The chamber (3) and the control chamber (4), the supporting assembly is horizontally arranged in the lower half of the drying chamber (3), and the supporting assembly includes a horizontal rotating shaft (9), two symmetrically arranged circular turntables (23), A number of material frames (5) capable of circular motion and a drive motor (6), all the material frames (5) are arranged in a horizontal state between two circular turntables (23), and the two circular turntables ( 23) It is coaxially and fixedly connected to the horizontal rotating shaft (9), and the horizontal rotating shaft (9) is driven to rotate by the driving motor (6), and the horizontal rotating shaft (9) drives the two circular turntables (23) to rotate, thereby making the two circular turntables rotate. All material frames (5) between (23) move in a circular motion; the drying assembly includes a hot air mechanism, a temperature collecting hood (7) and an airflow guide mechanism (8). The controller, the drive motor (6) and the hot air mechanism are all arranged in In the control room (4), the temperature collecting hood (7) and all the material frames (5) are located in the drying chamber (3), and the temperature collecting hood (7) is located directly above all the material frames (5), and the hot air mechanism It is communicated with the inner side of the temperature gathering hood (7), the airflow guiding mechanism is arranged on the inner top of the temperature gathering hood (7), and a temperature sensor (12) and a humidity sensor (13) are fixedly arranged on the inner wall of the drying chamber (3). The sensor (12), the humidity sensor (13), the driving motor (6) and the hot air mechanism are all electrically connected to the controller; The hot air mechanism comprises a centrifugal fan (14) and a heater (15), the centrifugal fan (14) is fixedly arranged on the inner wall of the control chamber (4), and the heater (15) is fixedly arranged on the partition plate (2) and heats The heater (15) communicates with the drying chamber (3) and the control chamber (4), the air outlet of the centrifugal fan (14) communicates with the inlet end of the heater (15) through the cold air pipe (16), and the outlet end of the heater (15) The hot air pipe (17) communicates with the top of the temperature collecting cover (7). The temperature collecting cover (7) has an inverted square funnel structure and is provided with a layer of heat-insulating aluminum foil on its inner wall. The two opposite sides of the drying chamber (3) The inner wall of the hood is provided with a support bar (42) for the temperature gathering cover (7) to erect; It is characterized in that: the airflow guiding mechanism comprises a conical cover (10) and a plurality of louvers (11) for dispersing the hot air flow, and all the louvers (11) are rotatably arranged on the side of the conical cover (10). bottom opening; The top tip of the conical cover (10) is rotatably connected to the top of the inner side of the temperature collecting cover (7). The bushing (18) is vertically arranged and a ball bearing (19) is fixed inside the bottom of the bushing. The top of the conical cover (10) is connected to the ball bearing (19) through an extension tube (20). 19) The inner ring is fixedly connected; A horizontal propeller (21) is fixedly arranged in the extension pipe (20), and the propeller (21) in the extension pipe (20) will generate a rotational force in a circumferential direction under the pushing of the hot air flow, so as to cooperate with the ball bearing (19 ) drives the entire cone-shaped cover (10) to rotate. 2. The rotary type automatic drying machine for medicinal materials according to claim 1, characterized in that: each louver (11) is respectively arranged at the bottom opening of the conical cover (10) through a connecting shaft (22) and the end of the connecting shaft (22) is rotatably inserted on the bottom inner wall of the conical cover (10). 3. The rotary type automatic drying machine for medicinal materials according to claim 1, characterized in that: the heater (15) comprises a heat-insulating shell (36) and an electric heating wire, and the electric heating wire is arranged on the heat-insulating shell (36) The inner side of the casing (36) and both ends of the heat-insulating casing (36) are provided with metal grids (37).
