Abstract

The invention discloses a cooking machine with washing and cutting functions, which comprises a machine body, a cooking plate, a cooking opening, a first motor, a second motor, a third motor, a fourth motor, a flexible roller, a small driving gear, a large driving gear, a rotary frame, a combination sleeve, a combination gear, a residue crushing disc, a separation plate, a horizontal conveying belt, double racks, a half gear, a fifth motor, a rotary rod, a drain pipe, a rotary handle, a vegetable cutting cylinder, a cleaning spray head, a connecting rod, a pull brush, an inclined conveying belt, a receiving and conveying plate, a blade, a screw rod, a rotary rod, an electromagnet, a clamping and connecting rod, an arc-shaped hole, a supporting seat, a slideway, a supporting frame, a sliding block, a driving disc, a driving rocker, a cooking pot, a pot cover, a rotary slice, a micro motor, a receiving and conveying opening and a discharging opening, wherein the cooking machine has comprehensive automatic functions of washing, cutting and cooking, greatly improves cooking efficiency, saves time and releases people, improves the environment for cooking dishes and improves the quality of life.

Description

Cooking machine with washing and cutting functions
Technical Field
The invention relates to the technical field of dish cooking machines, in particular to a dish cooking machine with a washing and cutting function.
Background
The dish frying machine is a product of the prior art, is a new generation of microcomputer-controlled intelligent cooking equipment, and is mainly convenient and simple to operate and free of oil smoke. The cooking machine can not only have the functions of automatically frying, cooking, frying, exploding, stewing, steaming, boiling, baking, stewing, cooking and the like, but also easily realize the automation and the interest of the cooking process.
With the economic development and the gradual popularization of automation technology, a dish cooking machine is an important embodiment, most people also cook dishes manually, and for some restaurants, the manual operation is not only low in efficiency, but also the long-time oil smoke environment is extremely harmful to the body; the functions of the existing dish cooking machine are greatly limited, manual dish washing and cutting are needed, integration is not completely achieved, and therefore the dish cooking machine with the dish washing and cutting functions is provided.
Disclosure of Invention
The invention aims to provide a cooking machine with washing and cutting functions, so as to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: a vegetable cooking machine with washing and cutting functions comprises a machine body, a vegetable cooking plate, a vegetable placing opening, a first motor, a second motor, a third motor, a fourth motor, a flexible roller, a small driving gear, a large driving gear, a rotary frame, a combination sleeve, a combination gear, a residue crushing disc, a partition board, a horizontal conveying belt, double racks, a half gear, a fifth motor, a rotary rod, a drain pipe, a rotary handle, a vegetable cutting cylinder, a cleaning nozzle, a connecting rod, a pull brush, an inclined conveying belt, a receiving and conveying plate, a blade, a screw rod, a rotary rod, an electromagnet, a clamping and connecting rod, an arc-shaped hole, a supporting seat, a slide way, a supporting frame, a sliding block, a driving disc, a driving rocker, a cooking pot, a pot cover, a rotary pot shovel, a micro motor, a receiving and conveying opening and a discharging opening, wherein the vegetable placing opening is formed in one side of the top of the machine body, the rotary frame is arranged below the, the utility model discloses a garbage crusher, including organism outside, rotating shaft, revolving rack, connecting rod, baffle plate, connecting rod, the top end and the bottom end of the drain pipe are arranged in the machine body, and the top end of the drain pipe is arranged below a leakage opening at the end part of the slag crushing disc;
the kitchen knife is characterized in that a horizontal conveyor belt is installed below a residue chopping disc inside the kitchen knife body, a first motor is installed on the side wall of the kitchen knife body, the output shaft of the first motor is fixedly connected with the rotating shaft of the horizontal conveyor belt, a chopping cylinder is installed at the end part of the horizontal conveyor belt inside the kitchen knife body in a rotating mode, an one-way bearing is installed at one end of the chopping cylinder, a third motor is installed on the outer side of the kitchen knife body, the output end of the third motor is fixedly connected with the rotating shaft of the chopping cylinder, a screw rod is installed inside the chopping cylinder in a rotating mode, the end part of the screw rod is connected inside rotating shafts at two ends of the chopping cylinder in a rotating mode through the bearing, rotary rods are symmetrically installed at two sides of the screw rod, the blades are connected with the screw rod in a meshing mode through thread sleeves, and are in sliding sleeved with the rotary rods, a delivery, the vegetable cutting machine is characterized in that a cleaning nozzle is arranged above the vegetable cutting cylinder, arc-shaped holes are symmetrically formed in two side walls of the machine body, two ends of the cleaning nozzle penetrate through the arc-shaped holes, a material outlet is formed in one side of the top of the machine body, an inclined conveying belt is arranged on the side edge of the vegetable cutting cylinder in the machine body, the bottom end of the inclined conveying belt is arranged below the vegetable cutting cylinder, the top end of the inclined conveying belt is arranged in the material outlet, a second motor is arranged on the outer side of the machine body, an output shaft of the second motor is fixedly connected with a rotating shaft of the inclined conveying belt, a connecting rod is arranged at the top of the machine body through a supporting seat, a pulling brush is fixed at one end, close to the material outlet, of the connecting rod, a fourth motor is arranged on the side face of the connecting rod, clamping rods are symmetrically and rotatably, dish cooking plate top is equipped with the support frame, and the support frame bottom passes through slider and slide sliding connection, dish cooking plate surface mounting has the drive disc, and the drive disc passes through the drive rocker and is connected with the support frame transmission, the saucepan has been placed to the support frame top, and the port of the saucepan rotates and installs the pot lid, the surface rotation installs rotatory slice under the pot lid, micro motor is installed at the pot lid top, and micro motor output and rotatory pot lid fixed connection.
Preferably, the diameter of the large driving gear is larger than that of the small driving gear.
Preferably, an arc-shaped plate is fixed on the inner wall of the machine body above the cleaning spray head.
Preferably, the bottom surface of the slag crushing disc is an inclined plane, and the lowest point of the slag crushing disc at the port of the drain pipe is located.
Preferably, the slide way and the slide block are convex.
Compared with the prior art, the invention has the beneficial effects that:
1. according to the automatic vegetable cooking machine, vegetables are automatically cleaned through the flexible roller, then are conveyed into the vegetable cutting cylinder through the horizontal conveying belt to be cut, then the cut vegetables are put into the cooking pot through the inclined conveying belt, and are stir-fried through the rotary pan shovel, automatic vegetable cooking is realized through the automatic vegetable cooking machine, both hands of a person are liberated, the environment for cooking is improved, and the life quality is improved.
2. The invention has the comprehensive automatic functions of washing, cutting and cooking, greatly improves the cooking efficiency, saves time and is suitable for efficient restaurants.
Drawings

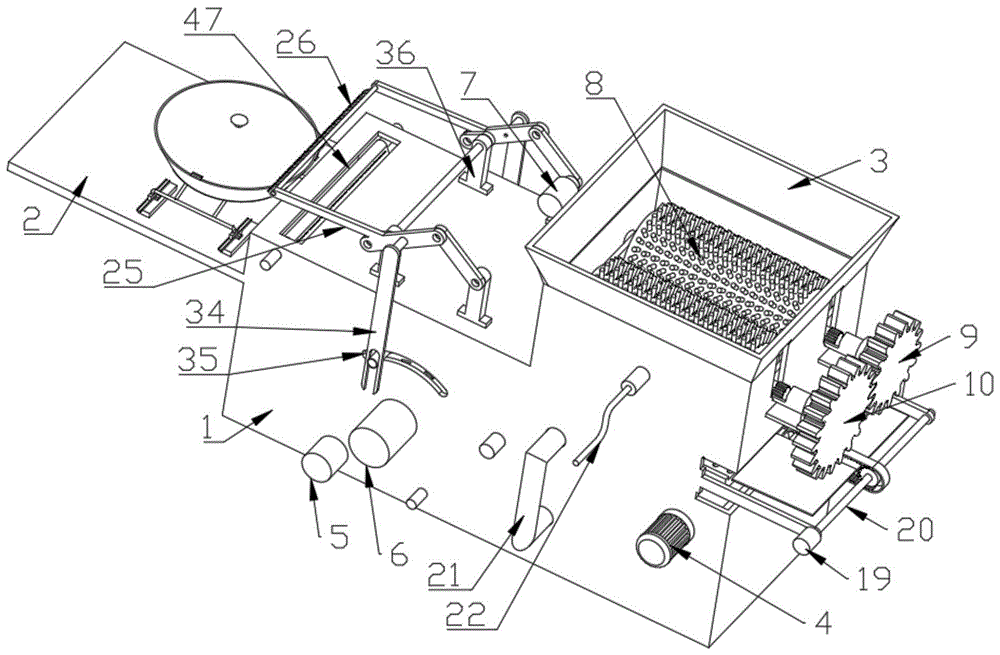

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic cross-sectional view of the present invention;
FIG. 3 is a schematic view of the structure of the vegetable cutting cylinder of the present invention;
FIG. 4 is a schematic view of the position structure of the arc-shaped plate according to the present invention;
FIG. 5 is a schematic view of the connection structure of the coupling sleeve and the coupling gear of the present invention;
FIG. 6 is a schematic view of a dual rack configuration of the present invention;
FIG. 7 is a schematic view of the position of the drain pipe according to the present invention;
FIG. 8 is a schematic view of a supporting frame according to the present invention;
FIG. 9 is a schematic view of a rotary slice configuration of the present invention;
FIG. 10 is a schematic view of the structure of the cooking pot of the present invention.
In the figure: 1. a body; 2. cooking a chopping board; 3. a vegetable placing port; 4. a first motor; 5. a second motor; 6. A third motor; 7. a fourth motor; 8. a flexible drum; 9. a small drive gear; 10. a large drive gear; 11. rotating the frame; 12. a coupling sleeve; 13. a coupling gear; 14. a slag crushing disc; 15. a separator plate; 16. a horizontal conveyor belt; 17. a double rack; 18. a half gear; 19. a fifth motor; 20. a rotating rod; 21. a drain pipe; 22. rotating the handle; 23. a vegetable cutting cylinder; 24. cleaning the spray head; 25. a connecting rod; 26. pulling out the brush; 27. An inclined conveyor belt; 28. a receiving and sending plate; 29. a blade; 30. a screw; 31. rotating the rod; 32. an electromagnet; 33. an arc-shaped plate; 34. a clamping and connecting rod; 35. an arc-shaped hole; 36. a supporting seat; 37. a slideway; 38. a support frame; 39. a slider; 40. a drive disk; 41. driving a rocker; 42. cooking; 43. a pot cover; 44. Rotating the turner; 45. a micro motor; 46. a receiving and sending port; 47. a discharge outlet.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-10, the present invention provides a technical solution: a cooking machine with washing and cutting functions comprises a machine body 1, a cooking plate 2, a cooking opening 3, a first motor 4, a second motor 5, a third motor 6, a fourth motor 7, a flexible roller 8, a small driving gear 9, a large driving gear 10, a rotating frame 11, a combination sleeve 12, a combination gear 13, a residue crushing disc 14, a separation plate 15, a horizontal conveying belt 16, a double rack 17, a half gear 18, a fifth motor 19, a rotating rod 20, a water discharging pipe 21, a rotating handle 22, a vegetable cutting cylinder 23, a cleaning nozzle 24, a connecting rod 25, a pull brush 26, an inclined conveying belt 27, a receiving and conveying plate 28, a blade 29, a screw rod 30, a rotating rod 31, an electromagnet 32, a clamping and connecting rod 34, an arc-shaped hole 35, a supporting seat 36, a slideway 37, a supporting frame 38, a sliding block 39, a driving disc 40, a driving rocker 41, a cooking pot 42, a pot cover 43, a rotating pot shovel 44, a micro motor 45, a receiving and conveying opening 46 and a discharging opening 47, wherein the cooking opening 3 is formed in one, the inside revolving rack 11 that is located of organism 1 is equipped with below putting dish mouth 3, and the both ends of revolving rack 11 rotate with organism 1 lateral wall and be connected, organism 1 outside is rotated and is installed rotation handle 22, and rotates the pivot fixed connection of handle 22 with revolving rack 11, flexible drum 8 is installed in 11 inboard symmetry rotation of revolving rack, organism 1 side rotates installs little drive gear 9 and big drive gear 10, little drive gear 9 and big drive gear 10 pivot end fixing have combination cover 12, flexible drum 8 pivot end fixing has combination gear 13, and combination gear 13 is connected with combination cover 12 meshing, organism 1 inside is located flexible drum 8 below and is equipped with disintegrating disc 14, and disintegrating disc 14 both sides and organism 1 inner wall sliding connection, disintegrating disc 14 end fixing has double rack 17, the bull stick 20 outside is fixed with half gear 18, and half gear 18 and double rack 17 meshing connection, the two ends of the rotating rod 20 are rotatably connected with the machine body 1, a fifth motor 19 is installed at one end of the rotating rod 20, the partition plate 15 is inserted in the slag pan 14 in a sliding mode, a drain pipe 21 is fixed in the side wall of the machine body 1, the top end and the bottom end of the drain pipe 21 are arranged in the machine body 1, and the top end of the drain pipe 21 is arranged below a leakage opening in the end portion of the slag pan 14;
the inside horizontal conveyor 16 that is located 14 below of disintegrating slag dish of organism 1, first motor 4 is installed to 1 lateral wall of organism, and first motor 4 output shaft and 16 pivot fixed connection of horizontal conveyor, 1 inside horizontal conveyor 16 tip that is located of organism rotates and installs the drum 23 of cutting the dish, one-way bearing is installed to drum 23 one end of cutting the dish, third motor 6 is installed in 1 outside of organism, and the output of third motor 6 and drum 23 pivot fixed connection of cutting the dish, drum 23 internal rotation of cutting the dish installs screw rod 30, screw rod 30 tip passes through the bearing rotation and connects inside drum 23 both ends pivot of cutting the dish, the rotary rod 31 is installed to screw rod 30 both sides symmetry, blade 29 passes through the thread bush and is connected with the meshing of screw rod 30, and blade 29 and rotary rod 31 slip cup joint, drum 23 outer wall of cutting the dish has been seted up and has been connect and send mouthful 46, and the side wall of the receiving and feeding port 46 is rotatably installed with the receiving and feeding plate 28, the side wall of the receiving and feeding plate 28 and the side wall of the receiving and feeding port 46 are correspondingly provided with the electromagnet 32, the vegetable cutting cylinder 23 is provided with the cleaning nozzle 24 above, the two side walls of the machine body 1 are symmetrically provided with the arc-shaped holes 35, the two ends of the cleaning nozzle 24 penetrate through the arc-shaped holes 35, the discharge port 47 is arranged on one side of the top of the machine body 1, the inside of the machine body 1 is positioned at the side edge of the vegetable cutting cylinder 23 and is provided with the inclined conveyor belt 27, the bottom end of the inclined conveyor belt 27 is positioned below the vegetable cutting cylinder 23, the top end of the inclined conveyor belt 27 is positioned inside the discharge port 47, the outside of the machine body 1 is provided with the second motor 5, the output shaft of the second motor 5 is fixedly connected with the rotating shaft of the inclined conveyor belt 27, connecting rod 25 bilateral symmetry rotates installs joint pole 34, and the pivot joint at joint pole 34 bottom and clean shower nozzle 24 both ends, organism 1 is close to 47 a side of bin outlet and is fixed with dish cooking plate 2, dish cooking plate 2 upper surface symmetry installs slide 37, dish cooking plate 2 top is equipped with support frame 38, and support frame 38 bottom passes through slider 39 and slide 37 sliding connection, dish cooking plate 2 surface mounting has drive disc 40, and drive disc 40 is connected with support frame 38 transmission through drive rocker 41, pot 42 has been placed to support frame 38 top, and pot 42 port rotates and installs pot cover 43, pot cover 43 lower surface rotates and installs rotatory slice 44, micro motor 45 is installed at pot cover 43 top, and micro motor 45 output and rotatory pot cover 43 fixed connection.
The diameter of the large driving gear 10 is larger than that of the small driving gear 9, so that the rotating speed of the flexible roller 8 is different, and the cleanliness of the dish can be improved.
An arc-shaped plate 33 is fixed on the inner wall of the machine body 1 above the cleaning spray head 24, so that the position deviation of the cleaning spray head 24 is avoided.
The bottom surface of the slag breaking disc 14 is an inclined surface, and the lowest point of the slag breaking disc 14 at the port of the drain pipe 21 enables water on the surface of the slag breaking disc 14 to flow out of the drain pipe 21 in a centralized manner.
The slide way 37 and the slide block 39 are convex, so that the connection between the slide way 37 and the slide block 39 is more stable.
The working principle is as follows: the vegetable taking machine puts the lettuce into the vegetable placing opening 3, simultaneously flushes the water pipe to the vegetable placing opening 3, the lettuce is firstly scrubbed by the flexible roller 8, the flexible roller 8 is driven by two gears with different sizes, so that the rotating speed of the flexible roller 8 is different, the cleanliness of the vegetable can be improved, after scrubbing is finished, the rotating frame 11 can drive the flexible roller 8 to rotate for a certain angle, the combination gear 13 is meshed with the combination sleeve 12, one end of the combination sleeve 12 is half-opened and internally provided with a spline groove which is just fixedly connected with a spline of a left driving shaft of the flexible roller 8, at the moment of separation and combination, the opening of the combination sleeve just faces upwards to complete the separation and combination action, so that the vegetable slides to the horizontal conveying belt 16, the first motor 4 is started to convey the lettuce to the receiving and conveying plate 28, then the electromagnet 32 is electrified to close the receiving and conveying plate 28, the vegetable enters the 23 cutting cylinder, the slag breaking disc 14 comprises the left and right chutes, the double-rack 17 is fixedly connected with the tail of the disc and meshed with the half gear 18, the double-rack 17 can move back and forth under the rotation of the half gear 18, the slag breaking disc 14 is used for containing broken slag falling during scrubbing, when the flexible roller 8 rubs, the broken slag disc translates rightwards, when the flexible roller 8 rotates under the action of the rotary frame 11, the slag breaking disc 14 moves leftwards, the middle part of the disc is provided with two symmetrical holes, a partition plate 15 can be inserted in the two symmetrical holes, when the partition plate 15 is inserted, water flowing downwards from the upper surface cannot flow downwards from a drain hole but only flows downwards to a drain groove along an inclined surface, finally flows into a drain pipe 21, the partition plate 15 is inserted during normal use, when the cleaning is finished, the partition plate 15 is pulled out, so that the water can flow downwards to facilitate the cleaning of a machine, the third motor 6 is started to drive the rotary rod 31 to drive the blade 29 to rotate, and simultaneously the blade 29 moves on the screw rod 30, and the arrangement of the one-way, when cutting, the cleaning spray head 24 sprays water to the cutting cylinder 23, water can flow in along the holes of the cylinder wall to perform secondary cleaning, the receiving and sending plate 28 is opened after cutting is completed, dishes are placed on the inclined conveying belt 27, the second motor 5 is started, the dishes are sent into the cooking pot 42, the fourth motor 7 is started to drive the connecting rod 25 to work, the dishes are pushed into the cooking pot 42 in an auxiliary mode through the pull brush 26, the pot cover 43 is closed, the miniature motor 45 is started, and the rotary turner 44 is rotated to cook the dishes.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (5)

1. A dish cooking machine with washing and cutting functions comprises a machine body (1), a dish cooking plate (2), a dish placing opening (3), a first motor (4), a second motor (5), a third motor (6), a fourth motor (7), a flexible roller (8), a small driving gear (9), a large driving gear (10), a rotary frame (11), a combination sleeve (12), a combination gear (13), a residue crushing disc (14), a partition plate (15), a horizontal conveying belt (16), double racks (17), a half gear (18), a fifth motor (19), a rotary rod (20), a drain pipe (21), a rotary handle (22), a vegetable cutting cylinder (23), a cleaning nozzle (24), a connecting rod (25), a pulling brush (26), an inclined conveying belt (27), a receiving and conveying plate (28), a cutter blade (29), a screw rod (30), a rotary rod (31), an electromagnet (32), a clamping rod (34), Arc hole (35), supporting seat (36), slide (37), support frame (38), slider (39), drive disc (40), drive rocker (41), saucepan (42), pot cover (43), rotatory slice (44), micro motor (45), meet and send mouth (46) and bin outlet (47), its characterized in that: organism (1) top one side has been seted up and has been put dish mouth (3), organism (1) inside is located to put dish mouth (3) below and is equipped with revolving rack (11), and revolving rack (11) both ends and organism (1) lateral wall and rotates and be connected, organism (1) outside is rotated and is installed rotation handle (22), and rotates handle (22) and the pivot fixed connection of revolving rack (11), flexible cylinder (8) are installed in the inboard symmetry rotation of revolving rack (11), organism (1) side is rotated and is installed little drive gear (9) and big drive gear (10), little drive gear (9) and big drive gear (10) pivot end fixing have combination cover (12), flexible cylinder (8) pivot end fixing has combination gear (13), and combines gear (13) and be connected with combination cover (12) meshing, organism (1) inside is located flexible cylinder (8) below and is equipped with bits of broken slag dish (14), the two sides of the slag crushing disc (14) are connected with the inner wall of the machine body (1) in a sliding mode, double racks (17) are fixed to the end portion of the slag crushing disc (14), a half gear (18) is fixed to the outer side of the rotating rod (20), the half gear (18) is meshed with the double racks (17) and connected with the machine body (1), the two ends of the rotating rod (20) are connected with the machine body (1) in a rotating mode, a fifth motor (19) is installed at one end of the rotating rod (20), a partition plate (15) penetrates through the inner portion of the slag crushing disc (14) in a sliding mode, a drain pipe (21) is fixed to the inner side wall of the machine body (1), the top end and the bottom end of the drain pipe (21) are arranged inside the machine body (1), and the top end of the;
organism (1) inside is located disintegrating slag dish (14) below and installs horizontal conveyor (16), first motor (4) are installed to organism (1) lateral wall, and first motor (4) output shaft and horizontal conveyor (16) pivot fixed connection, organism (1) inside is located horizontal conveyor (16) tip and rotates and installs cutting dish drum (23), the one-way bearing is installed to cutting dish drum (23) one end, third motor (6) are installed in organism (1) outside, and third motor (6) output and cutting dish drum (23) pivot fixed connection, cutting dish drum (23) internal rotation installs screw rod (30), screw rod (30) tip is rotated through the bearing and is connected inside cutting dish drum (23) both ends pivot, rotary rod (31) are installed to screw rod (30) bilateral symmetry, blade (29) are connected with screw rod (30) meshing through the thread bush, and blade (29) and rotary rod (31) slip cup joint, cut dish drum (23) outer wall seted up connect send mouthful (46), and connect send mouthful (46) lateral wall to rotate and install and connect and send board (28), connect and send board (28) lateral wall and connect to send mouthful (46) lateral wall to correspond and install electro-magnet (32), cut dish drum (23) top is equipped with clean shower nozzle (24), organism (1) both sides wall symmetry has seted up arc hole (35), and clean shower nozzle (24) both ends pass arc hole (35), discharge gate (47) have been seted up to organism (1) top one side, organism (1) inside is located cut dish drum (23) side and installs inclined conveyor belt (27), inclined conveyor belt (27) bottom is located cut dish drum (23) below, and inclined conveyor belt (27) top is located inside discharge gate (47), second motor (5) are installed in the organism (1) outside, and second motor (5) output shaft and slope conveyer belt (27) pivot fixed connection, connecting rod (25) are installed through supporting seat (36) at organism (1) top, connecting rod (25) are close to bin outlet (47) one end and are fixed with and pull out brush (26), connecting rod (25) side-mounting has fourth motor (7), connecting rod (25) bilateral symmetry rotates installs joint pole (34), and the pivot joint at joint pole (34) bottom and clean shower nozzle (24) both ends, organism (1) are close to bin outlet (47) one side and are fixed with dish burning board (2), slide (37) are installed to dish burning board (2) upper surface symmetry, dish burning board (2) top is equipped with support frame (38), and support frame (38) bottom passes through slider (39) and slide (37) sliding connection, dish burning board (2) surface mounting has drive disc (40), and drive disc (40) are connected with support frame (38) transmission through drive rocker (41), saucepan (42) have been placed to support frame (38) top, and saucepan (42) port rotates and installs pot cover (43), rotatory slice (44) are installed in pot cover (43) lower surface rotation, micro motor (45) are installed at pot cover (43) top, and micro motor (45) output and rotatory pot cover (43) fixed connection.
2. A cooking machine with washing and cutting functions as claimed in claim 1, characterized in that: the diameter of the large driving gear (10) is larger than that of the small driving gear (9).
3. A cooking machine with washing and cutting functions as claimed in claim 1, characterized in that: an arc-shaped plate (33) is fixed on the inner wall of the machine body (1) above the cleaning spray head (24).
4. A cooking machine with washing and cutting functions as claimed in claim 1, characterized in that: the bottom surface of the slag crushing disc (14) is an inclined plane, and the lowest point is positioned at the port of the drain pipe (21) of the slag crushing disc (14).
5. A cooking machine with washing and cutting functions as claimed in claim 1, characterized in that: the slide way (37) and the slide block (39) are convex.
