Abstract

The invention belongs to the technical field of assembly construction, and relates to an assembled small workshop building. The technical problem to be solved by the present invention is to provide a small prefabricated factory building that can be built quickly. In order to solve the above technical problems, the present invention provides such a small prefabricated factory building, including a base module, a left base sleeve, a right base sleeve, a left vertical support, a right vertical support, a scissor fence, The left large beam, the right large cross beam, the roof tile module device, the drilling screw, the left hole plate and the right hole plate, and at least two sets of left base sleeves and right base sleeves are fixedly connected to the base module. The prefabricated factory building of the present invention can be quickly constructed by assembling each module, and the transportation before assembly is convenient. Not easy to leak.

Description

A prefabricated small factory building

technical field

The invention belongs to the technical field of assembly construction, and relates to an assembled small workshop building.

Background technique

Prefabricated buildings refer to buildings assembled on site with prefabricated components. The advantages of this kind of building are that the construction speed is fast, and it is less restricted by climatic conditions, saving labor and improving the construction quality.

In small workshops or other occasions, a factory building is often needed. Nowadays, small factory buildings are built with bricks or welded steel frame structures, which take a long time to build and cannot be built quickly. Therefore, an assembly that can be built quickly is urgently needed. small factory building.

SUMMARY OF THE INVENTION

(1) Technical problems to be solved

In order to overcome the shortcomings of the current small factory buildings that are built with bricks or welded steel frame structures, the work time is long, and the rapid construction cannot be achieved. The technical problem to be solved by the present invention is to provide an assembly that can be quickly constructed. small factory building.

(2) Technical solution

In order to solve the above technical problems, the present invention provides such a small prefabricated factory building, including a base module, a left base sleeve, a right base sleeve, a left vertical support, a right vertical support, a scissor fence, The left large beam, the right large beam, the roof tile module device, the drilling screws, the left hole plate and the right hole plate, and at least two sets of left base bushings and right The base bushing and the right base bushing are arranged in the front and rear, the two sets of left base bushings and the right base bushing are symmetrical, the left vertical bracket is inserted into the left base bushing, the right vertical bracket is inserted into the right base bushing, the left The upper end of the vertical bracket is hinged with one end of the left large beam, the other end of the left large beam is hinged with one end of the right large beam, the other end of the right large beam is hinged with the upper end of the right vertical bracket, and the roof tile module device is fixed on the two sides by drilling screws. On the left large beam and the right large beam on the side, a left hole plate is fixedly connected to the upper and lower sides of the left vertical bracket on the right side, and a right hole plate is fixedly connected to the left side of the right vertical bracket. Hinged with the corresponding left orifice plate and right orifice plate respectively.

Preferably, the roof tile module device includes a long double-ended screw, a nut, an assembly sleeve, a connecting plate, a mounting plate, a tile plate and a flat screw; the assembly sleeve is matched with the long double-ended screw, and a connecting plate is fixedly connected to the outside of the assembly sleeve There are three mounting holes on the connecting plate, a mounting plate above the tile plate, three screw holes on the mounting plate, the three mounting holes correspond to the three screw holes, and the tile plate passes through the three screw holes on the mounting plate It is connected with the connecting plate by flat screws, and two nuts are matched at both ends of the long double-ended screw rod. The assembly sleeve on the long double-ended screw rod can be tightened by twisting the nuts on both sides.

Preferably, it also includes a fastening seat, a cylindrical hole seat and an arcuate support frame, a fastening seat is installed on the front and rear left vertical brackets, a cylindrical hole seat is welded on both fastening seats, and the fastening seats on the front and rear sides are The fixed seat is relatively symmetrical, and the lower ends of the bow-shaped support frame are respectively inserted into the corresponding cylindrical hole seats.

Preferably, it also includes a connecting sleeve, a tightening sleeve, a small beam tube and a tightening screw, a connecting sleeve is installed on the front and rear left large beams, and a tightening sleeve is fixed on the inner side of the connecting sleeve on both sides, and the two sides are tightened. A small beam tube is inserted in the fixing sleeve, a fastening screw is arranged on the fastening sleeve, and the small beam tube in the fastening sleeve is fixed by the fastening screw.

Working principle: When assembling, use a crane to place the base module in the assembly position where the foundation has been laid in advance for assembly, insert the left vertical bracket into the left base sleeve, the right vertical bracket into the right base sleeve, and the upper end of the left vertical bracket. It is hinged with one end of the left large beam, the other end of the left large beam is hinged with one end of the right large beam, and the other end of the right large beam is hinged with the upper end of the right vertical bracket. On the large beam and the right large beam, a left orifice plate is fixedly connected to the upper and lower sides of the left vertical bracket on the right side, and a right hole plate is fixedly connected to the upper and lower sides of the left vertical bracket. The left and right ends of the scissor bar correspond to The left and right orifice plates are hinged.

As shown in Figure 3, multiple assembled tiles can be used for assembly.

The bow-shaped support frame can tighten and fix the front and rear left vertical brackets, making the assembly more secure and safe.

The small beam tube not only plays the function of stabilizing the whole assembly, but also supports the tile.

(3) Beneficial effects

The prefabricated factory building of the present invention can be quickly constructed by assembling each module, and the transportation before assembly is convenient. Not easy to leak.

Description of drawings

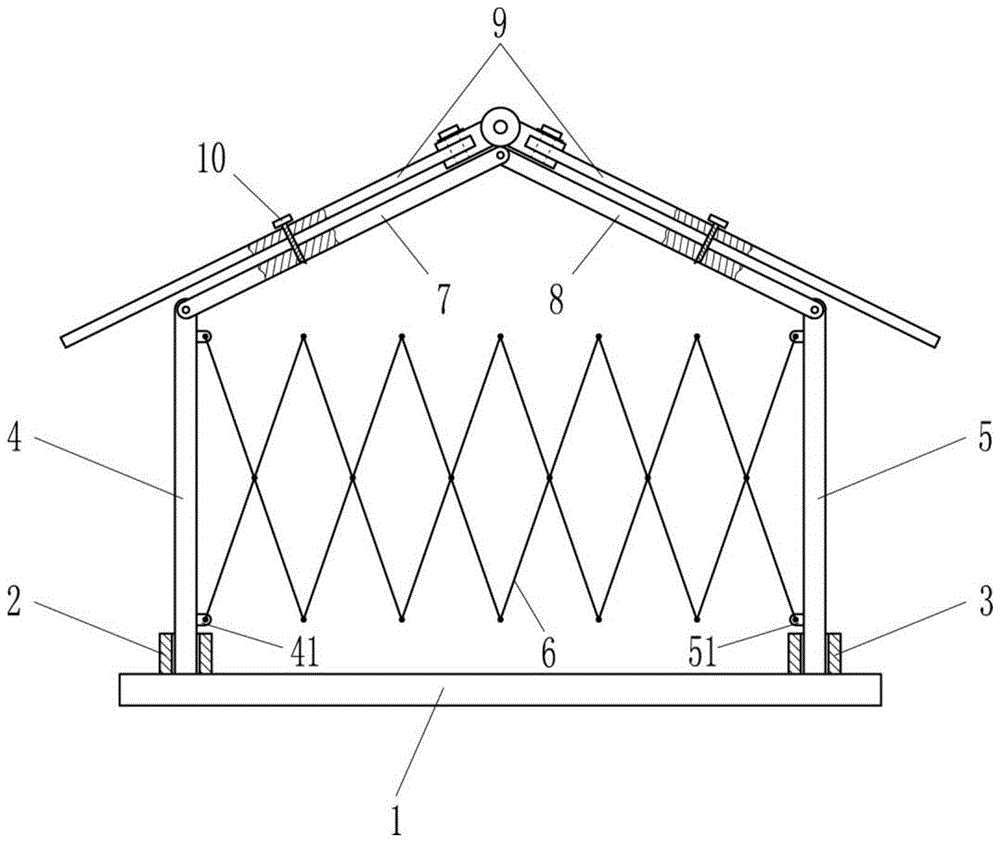

FIG. 1 is a schematic view of the front structure of the present invention.

FIG. 2 is a schematic top view of the structure of the roof tile module device of the present invention.

FIG. 3 is a schematic top view of the structure of the roof tile module device of the present invention.

FIG. 4 is a left view structural schematic diagram of the present invention.

FIG. 5 is a left-view structural schematic diagram of the present invention.

The signs in the drawings are: 1-base module, 2-left base sleeve, 3-right base sleeve, 4-left vertical support, 5-right vertical support, 6-scissor bar, 7- Left large beam, 8-right large beam, 9-top tile module device, 10-drilled screw, 41-left hole plate, 51-right hole plate, 91-long double-ended screw, 92-nut, 93-assembly sleeve Tube, 94-connecting plate, 95-installation hole, 96-installation plate, 97-screw hole, 98-tile plate, 99-flat screw, 11-fastening seat, 12-cylindrical hole seat, 13-bow support bracket, 14-connecting sleeve, 15-fastening sleeve, 16-small beam tube, 17-fastening screw.

Detailed ways

The present invention will be further described below with reference to the accompanying drawings and embodiments.

Example 1

A small prefabricated factory building, as shown in Figures 1-5, includes a base module 1, a left base sleeve 2, a right base sleeve 3, a left vertical support 4, a right vertical support 5, a scissor type Column 6, left large beam 7, right large beam 8, roof tile module device 9, drilling screws 10, left hole plate 41 and right hole plate 51, the base module 1 is fixedly connected with at least two sets of left base bushings 2 and right base sleeve 3, two sets of left base sleeve 2 and right base sleeve 3 are arranged in front and back, two sets of left base sleeve 2 and right base sleeve 3 are symmetrical, and the left vertical support 4 is inserted In the left base sleeve 2, the right vertical support 5 is inserted into the right base sleeve 3, the upper end of the left vertical support 4 is hinged with one end of the left large cross beam 7, and the other end of the left large cross beam 7 is hinged with one end of the right large cross beam 8. , the other end of the right large beam 8 is hinged with the upper end of the right vertical support 5, the roof tile module device 9 is fixed on the left large cross beam 7 and the right large cross beam 8 on both sides by drilling screws 10, and the right side of the left vertical support 4 is up and down. Each is fixedly connected with a left orifice plate 41 , and the left side of the right vertical bracket 5 is fixedly connected with a right orifice plate 51 at the upper and lower sides. Hinged.

The top tile module device 9 includes a long double-ended screw 91, a nut 92, an assembly sleeve 93, a connecting plate 94, a mounting plate 96, a tile plate 98 and a flat screw 99; the assembly sleeve 93 cooperates with the long double-ended screw 91, and the assembly sleeve The outer side of the pipe 93 is fixedly connected with a connecting plate 94, the connecting plate 94 is provided with three mounting holes 95, the tile plate 98 is provided with a mounting plate 96, the mounting plate 96 is provided with three screw holes 97, the three mounting holes 95 and the three Corresponding to the screw holes 97, the tile plate 98 is connected to the connecting plate 94 through the three screw holes 97 on the mounting plate 96 through the flat screws 99, and two nuts 92 are matched with two ends of the long double-ended screw 91. The nut 92 can tighten the assembly sleeve 93 on the long stud 91 .

It also includes a fastening seat 11, a cylindrical hole seat 12 and an arcuate support frame 13. A fastening seat 11 is installed on the front and rear left vertical brackets 4, and a cylindrical hole seat 12 is welded on the two fastening seats 11. The fastening seats 11 on both sides are symmetrical, and the lower ends of the arcuate support frame 13 are respectively inserted into the corresponding cylindrical hole seats 12 .

It also includes a connecting sleeve 14, a tightening sleeve 15, a small beam tube 16 and a tightening screw 17. A connecting sleeve 14 is installed on the front and rear left large beams 7, and a tightening sleeve is fixed on the inner side of the connecting sleeves 14 on both sides. 15. Small beam tubes 16 are inserted into the fastening sleeves 15 on both sides. The fastening sleeves 15 are provided with fastening screws 17, and the small beam tubes 16 in the fastening sleeve 15 are fixed by the fastening screws 17.

Working principle: a small prefabricated factory building, as shown in Figure 1-5, when assembling, use a crane to place the base module 1 in the assembly position where the foundation has been laid in advance for assembly, and insert the left base module through the left vertical bracket 4 In the seat sleeve 2, the right vertical support 5 is inserted into the right base sleeve 3, the upper end of the left vertical support 4 is hinged with one end of the left large cross beam 7, the other end of the left large cross beam 7 is hinged with one end of the right large cross beam 8, and the right The other end of the large beam 8 is hinged with the upper end of the right vertical support 5, the roof tile module device 9 is fixed on the left large cross beam 7 and the right large cross beam 8 on both sides by drilling screws 10, and the upper and lower right sides of the left vertical support 4 are respectively fixed. A left orifice plate 41 is connected, and a right orifice plate 51 is fixedly connected to the upper and lower left sides of the right vertical support 5 respectively.

As shown in FIG. 3, a plurality of assembled tiles 98 can be used for assembly.

The bow-shaped support frame 13 can tighten and fix the front and rear left vertical supports 4, so that the whole assembly is more secure and secure.

The small beam tube 16 not only plays the function of stably assembling the whole, but also supports the tile plate 98 .

The above-mentioned embodiments only represent the preferred embodiments of the present invention, and the descriptions thereof are specific and detailed, but should not be construed as limiting the scope of the present invention. It should be pointed out that for those of ordinary skill in the art, without departing from the concept of the present invention, several modifications, improvements and substitutions can be made, which all belong to the protection scope of the present invention. Therefore, the protection scope of the patent of the present invention should be subject to the appended claims.

Claims (1)

1. A small prefabricated factory building, characterized in that it comprises a base module (1), a left base sleeve (2), a right base sleeve (3), a left vertical support (4), a right vertical Bracket (5), scissor bar (6), left large beam (7), right large beam (8), roof tile module device (9), drilling screws (10), left hole plate (41) and right The orifice plate (51), at least two sets of left base sleeves (2) and right base sleeves (3), and two sets of left base sleeves (2) and a right base sleeve are fixedly connected to the base module (1). The seat bushing (3) is arranged front and rear, the two sets of left base bushings (2) and the right base bushing (3) are symmetrical, the left vertical bracket (4) is inserted into the left base bushing (2), and the right vertical support (4) is inserted into the left base bushing (2). The bracket (5) is inserted into the right base sleeve (3), the upper end of the left vertical bracket (4) is hinged with one end of the left large beam (7), and the other end of the left large beam (7) is connected with the right large beam (8). One end is hinged, and the other end of the right large beam (8) is hinged with the upper end of the right vertical bracket (5). On the large beam (8), the roof tile module device (9) includes a long double-ended screw (91), a nut (92), an assembly sleeve (93), a connecting plate (94), a mounting plate (96), a tile plate (98) Flat screw (99); the assembly sleeve (93) is matched with the long double-ended screw (91), the outer side of the assembly sleeve (93) is fixedly connected with a connecting plate (94), and the connecting plate (94) is provided with three The mounting hole (95), a mounting plate (96) is provided above the tile plate (98), the mounting plate (96) is provided with three screw holes (97), three mounting holes (95) and three screw holes (97) Correspondingly, the tile plate (98) is connected with the connecting plate (94) through the three screw holes (97) on the mounting plate (96) by the flat screws (99), and two ends of the long double-ended screw (91) are matched with two There are two nuts (92), the assembly sleeve (93) on the long double-ended screw (91) can be tightened by screwing the nuts (92) on both sides, and a left orifice plate is fixedly connected to the upper and lower sides of the left vertical bracket (4) on the right side. (41), a right hole plate (51) is fixedly connected to the upper and lower left sides of the right vertical bracket (5), and the left and right ends of the scissor bar (6) are respectively connected with the corresponding left hole plate (41) and the right hole. The plate (51) is hinged; It also includes a fastening seat (11), a cylindrical hole seat (12) and an arcuate support frame (13), one fastening seat (11) is installed on the front and rear left vertical brackets (4), and two fastening seats (11) ) are welded with a cylindrical hole seat (12), the fastening seats (11) on the front and rear sides are symmetrical, and the lower ends of the bow-shaped support frame (13) are respectively inserted into the corresponding cylindrical hole seat (12); It also includes a connecting sleeve (14), a tightening sleeve (15), a small beam tube (16) and a tightening screw (17). A connecting sleeve (14) is installed on the front and rear left large beams (7). A fastening sleeve (15) is fixed on the inner side of the connecting sleeve (14), small beam pipes (16) are inserted in the fastening sleeves (15) on both sides, and fastening screws (17) are arranged on the fastening sleeves (15). ), and fix the small beam tube (16) in the fastening sleeve (15) by the fastening screw (17).
