Abstract
本发明公开了一种办公室办公用笔记本电脑固定装置，本发明包括吸盘，第一滚动丝杆上安装有第一滚动螺母，第一滚动丝杆的内部通过第二滚动螺母安装有第二滚动丝杆，支撑板两侧的一端皆安装有第一转轴，支撑板的顶部通过第二铰接轴安装有固定板，滑槽内部的底端皆设置有卡槽，第一转轴与第二转轴之间通过连接杆连接，且第二转轴的一侧皆安装有限位条，存放槽两侧的固定板顶部皆通过第一铰接轴安装有限位块。本发明通过设置吸盘、第一防滑垫、第二防滑垫、第一滚动丝杆、第二滚动丝杆、第一滚动螺母、第二滚动螺母、限位块、滑槽、卡槽、第二转轴和限位条结构，解决了功能单一和固定不牢固的问题。
The invention discloses an office notebook computer fixing device. The invention comprises a suction cup, a first rolling nut is installed on a first rolling screw, and a second rolling screw is installed inside the first rolling screw through the second rolling nut. The rod, one end of both sides of the support plate is installed with a first rotating shaft, the top of the support plate is installed with a fixed plate through a second hinge shaft, and the bottom end of the inside of the chute is provided with a clamping groove, between the first rotating shaft and the second rotating shaft Connected by connecting rods, limit bars are installed on one side of the second rotating shaft, and limit blocks are installed on the tops of the fixing plates on both sides of the storage slot through the first hinge shaft. In the present invention, a suction cup, a first anti-skid pad, a second anti-skid pad, a first rolling screw, a second rolling screw, a first rolling nut, a second rolling nut, a limit block, a chute, a clamping groove, a second rolling screw, a The structure of the rotating shaft and the limit bar solves the problems of single function and unstable fixation.
Description
Technical Field
The invention relates to the technical field of office equipment, in particular to a notebook computer fixing device for office work.
Background
The notebook computer is also called as a portable computer, a laptop computer, a palm computer or a laptop computer, and has the biggest characteristic of small and exquisite body, is more portable than a PC, is a small and portable personal computer, has smaller and lighter volume and more powerful functions in the current development trend, and is easy to collide with the notebook computer due to the walking of personnel during office work, so that the notebook computer falls off the ground and is damaged.
However, the prior art has the following defects:
1. the existing notebook computer fixing device for office work has single function;
2. the existing notebook computer fixing device for office work is not firm in fixation.
Disclosure of Invention
Aiming at the defects of the prior art, the invention provides a notebook computer fixing device for office, which solves the problems of single function and infirm fixing.
In order to achieve the purpose, the invention provides the following technical scheme:
a notebook computer fixing device for office work comprises a sucker, wherein a first rolling screw rod is installed at the top of the sucker, a first rolling nut is installed on the first rolling screw rod, mounting frames are installed on two sides of the first rolling nut, a second rolling screw rod is installed inside the first rolling screw rod through a second rolling nut, a mounting block is installed at the top of the second rolling screw rod, a rotary button is arranged at the bottom of the mounting block, a first gear and a second gear are installed inside the mounting block and are meshed and connected with each other, the bottom of the second gear is connected with the second rolling screw rod, the bottom of the first gear is connected with the rotary button, a supporting plate is installed at the top of the mounting block, a first rotating shaft is installed at one end of two sides of the supporting plate, and a fixing plate is installed at the top of the supporting plate through a second hinged shaft, the fixed plate directly over the first pivot all is provided with the spout, the inside bottom of spout all is provided with the draw-in groove, the inside of spout all is provided with the second pivot, be connected through the connecting rod between first pivot and the second pivot, and one side of second pivot all installs spacing, the top of fixed plate is provided with the storage tank, the stopper is all installed through first articulated shaft in the fixed plate top of storage tank both sides.
Preferably, a second anti-skid pad is arranged inside the storage groove.
Preferably, the top of the fixing plate is provided with four limiting blocks through a first hinge shaft.
Preferably, the bottom of the mounting rack is provided with a first anti-skid pad.
The invention provides a notebook computer fixing device for office work, which has the following beneficial effects:
(1) the notebook computer fixing device is provided with the sucking disc, the first rolling nut, the first rolling screw rod, the first anti-slip pad, the second anti-slip pad, the first hinging shaft and the limiting block, so that a user can conveniently place a notebook computer in a storage groove arranged on the surface of the fixing plate, the notebook computer is subjected to anti-slip treatment through the second anti-slip pad, the notebook computer is prevented from sliding and is fixed, the limiting block is rotated through the first hinging shaft to abut against the surface of the notebook computer through rotation, the movement of the notebook computer is further limited, the fastening treatment is enhanced, the sucking disc is adsorbed on the surface of an office desk through pressing of the sucking disc, the device is kept fixed, the first rolling nut descends on the first rolling screw rod through rotation of the first rolling nut, and the first rolling nut drives the mounting frame to descend, and then make the mounting bracket drive first slipmat and carry out anti-skidding and handle, and then further strengthen the fixed of this device to realize the fixed of computer, make fixed more firm.
(2) The device realizes height adjustment by arranging a second rolling screw rod, a second rolling nut, a first gear, a second gear, a rotating button, a second articulated shaft, a sliding chute, a first rotating shaft, a second rotating shaft, a clamping groove, a limiting strip and a connecting rod, so that the rotating button can be conveniently rotated to drive the first gear to rotate through rotation, the first gear drives the second gear to rotate through meshing, the second gear drives the second rolling screw rod to rotate, the second rolling screw rod rotates and goes up and down through the second rolling nut, the second rotating shaft is pushed to slide through the sliding chute, the first rotating shaft abuts against the second rotating shaft through the connecting rod, the second rotating shaft abuts against a fixed plate, the fixed plate is lifted through the second articulated shaft, and the second rotating shaft is rotated, make the second pivot drive spacing strip through rotating and rotate to make spacing strip card in the draw-in groove, and then realize the altitude mixture control and handle, and then be convenient for adjust the angle of raising of fixed plate, thereby realize the angle modulation of notebook.
Drawings

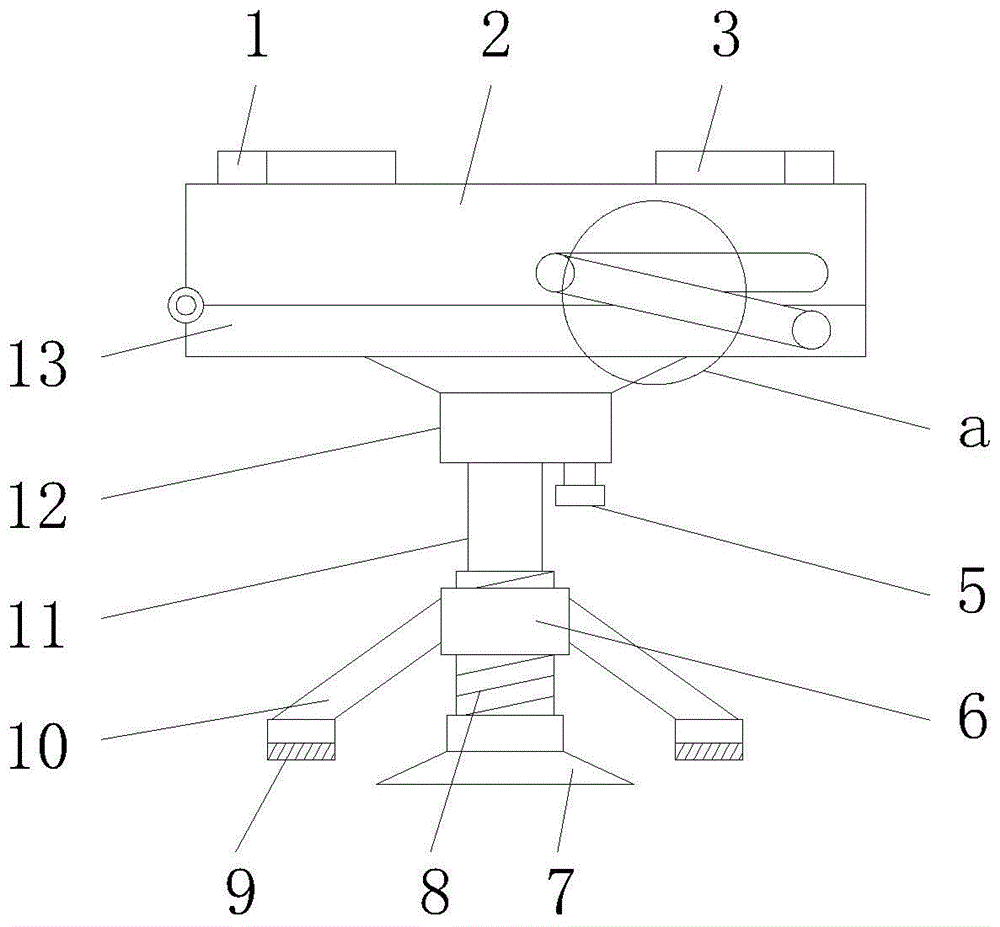

FIG. 1 is a front view of the present invention;
FIG. 2 is a schematic view of the internal structure of the present invention;
FIG. 3 is a schematic view of FIG. 1 at a according to the present invention;
fig. 4 is a schematic view of the fixing plate of fig. 1 according to the present invention.
In the figure: 1. a first hinge shaft; 2. a fixing plate; 3. a limiting block; 4. a storage tank; 5. a rotation knob; 6. a first rolling nut; 7. a suction cup; 8. a first ball screw; 9. a first non-slip mat; 10. a mounting frame; 11. a second ball screw; 12. mounting blocks; 13. a support plate; 14. a second hinge shaft; 15. a second gear; 16. a first gear; 17. a second non-slip mat; 18. a chute; 19. a card slot; 20. a second rotating shaft; 21. a limiting strip; 22. a connecting rod; 23. a first rotating shaft; 24. a second roll nut.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1 to 4, the present invention provides a technical solution: a notebook computer fixing device for office work comprises a sucker 7, a first rolling screw rod 8 is installed at the top of the sucker 7, a first rolling nut 6 is installed on the first rolling screw rod 8, mounting frames 10 are installed on two sides of the first rolling nut 6, first anti-skid pads 9 are arranged at the bottoms of the mounting frames 10, the sucker 7 can be conveniently adsorbed on the surface of an office table by pressing the sucker 7, the device is kept fixed, the first rolling nut 6 descends on the first rolling screw rod 8 through rotation by rotating the first rolling nut 6, the first rolling nut 6 drives the mounting frames 10 to descend, the mounting frames 10 drive the first anti-skid pads 9 to perform anti-skid treatment, the fixing of the device is further enhanced, the fixing of a computer is realized, the fixing is firmer, a second rolling screw rod 11 is installed inside the first rolling screw rod 8 through a second rolling nut 24, the top of the second rolling screw rod 11 is provided with an installation block 12, the bottom of the installation block 12 is provided with a rotary button 5, the installation block 12 is internally provided with a first gear 16 and a second gear 15, the first gear 16 is meshed with the second gear 15, the bottom of the second gear 15 is connected with the second rolling screw rod 11, and the bottom of the first gear 16 is connected with the rotary button 5, so that the rotary button 5 can be rotated to drive the first gear 16 to rotate, the first gear 16 is meshed with the second gear 15 to drive the second rolling screw rod 11 to rotate, the second rolling screw rod 11 is rotated and lifted through a second rolling nut 24, the height of the device is adjusted, the top of the installation block 12 is provided with a support plate 13, one end of two sides of the support plate 13 is provided with a first rotary shaft 23, the top of the support plate 13 is provided with a fixed plate 2 through a second articulated shaft 14, the surface of the fixing plate 2 right above the first rotating shaft 23 is provided with a sliding groove 18, the bottom end inside the sliding groove 18 is provided with a clamping groove 19, the inside of the sliding groove 18 is provided with a second rotating shaft 20, the first rotating shaft 23 is connected with the second rotating shaft 20 through a connecting rod 22, one side of the second rotating shaft 20 is provided with a limiting strip 21, the second rotating shaft 20 can slide through the sliding groove 18 by pushing the second rotating shaft 20, so that the first rotating shaft 23 is abutted against the second rotating shaft 20 through the connecting rod 22, the second rotating shaft 20 is abutted against the fixing plate 2, the fixing plate 2 is lifted through the second articulated shaft 14, the second rotating shaft 20 is rotated to drive the limiting strip 21 to rotate, the limiting strip 21 is clamped in the clamping groove 19, the height adjustment treatment is realized, the lifting angle of the fixing plate 2 is convenient to adjust, and the angle of the notebook is adjusted, the top of fixed plate 2 is provided with storage tank 4, the inside of storage tank 4 is provided with second slipmat 17, stopper 3 is all installed through first articulated shaft 1 at 2 tops of fixed plate of storage tank 4 both sides, the top of fixed plate 2 is provided with four stopper 3 through first articulated shaft 1, but convenient to use person places the notebook in storage tank 4 of fixed plate 2 surface settings, carry out anti-skidding through second slipmat 17 to the notebook and handle, and then avoid the slip of notebook, and then realize fixedly, and rotate stopper 3 through first articulated shaft 1, make stopper 3 support the surface at the notebook through rotating, and then further restrict the removal of notebook, thereby strengthen the fastening and handle.
When in use, a user places the device on an office table, presses the sucker 7 to enable the sucker 7 to be adsorbed on the surface of the office table, rotates the first rolling nut 6 to enable the first rolling nut 6 to descend on the first rolling screw 8 through rotation, further enables the first rolling nut 6 to drive the mounting frame 10 to descend, further enables the mounting frame 10 to drive the first anti-skid pad 9 to carry out anti-skid treatment, rotates the rotary knob 5 according to actual conditions, enables the rotary knob 5 to drive the first gear 16 to rotate through rotation, further enables the first gear 16 to drive the second gear 15 to rotate through meshing, further enables the second gear 15 to drive the second rolling screw 11 to rotate, further enables the second rolling screw 11 to rotate and ascend through the second rolling nut 24, thereby enabling the device to realize height adjustment, further places a notebook in the storage groove 4 formed in the surface of the fixing plate 2, the notebook is processed by the second anti-slip pad 17 to prevent the notebook from slipping, the limiting block 3 is rotated through the first articulated shaft 1, so that the limiting block 3 is pressed against the surface of the notebook through rotation, and further the movement of the notebook is limited, according to individual needs, the user pushes the second rotating shaft 20, so that the second rotating shaft 20 slides through the sliding slot 18, so that the first rotating shaft 23 is pressed against the second rotating shaft 20 through the connecting rod 22, and the second rotating shaft 20 is pressed against the fixed plate 2, so that the fixed plate 2 is lifted through the second hinge shaft 14, and the second rotating shaft 20 is rotated to drive the limiting strip 21 to rotate by the rotation of the second rotating shaft 20, and the limiting strip 21 is clamped in the clamping groove 19, and then realize the altitude mixture control and handle, and then be convenient for adjust the angle of raising of fixed plate 2 to realize the angle modulation of notebook.
In conclusion, the invention solves the problems of single function and weak fixation by arranging the structure of the sucker 7, the first anti-skid pad 9, the second anti-skid pad 17, the first rolling screw 8, the second rolling screw 11, the first rolling nut 6, the second rolling nut 24, the limiting block 3, the sliding groove 18, the clamping groove 19, the second rotating shaft 20 and the limiting strip 21.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (4)
1. The utility model provides a notebook computer fixing device is used in office's official working, includes sucking disc (7), its characterized in that:
a first rolling screw rod (8) is installed at the top of the sucking disc (7), a first rolling nut (6) is installed on the first rolling screw rod (8), installation frames (10) are installed on two sides of the first rolling nut (6), a second rolling screw rod (11) is installed inside the first rolling screw rod (8) through a second rolling nut (24), an installation block (12) is installed at the top of the second rolling screw rod (11), and a rotating button (5) is arranged at the bottom of the installation block (12);
the mounting block (12) is internally provided with a first gear (16) and a second gear (15), the first gear (16) is meshed with the second gear (15) and connected, the bottom of the second gear (15) is connected with a second rolling screw rod (11), the bottom of the first gear (16) is connected with a rotating button (5), the top of the mounting block (12) is provided with a support plate (13), one ends of two sides of the support plate (13) are provided with first rotating shafts (23), and the top of the support plate (13) is provided with a fixing plate (2) through a second hinge shaft (14);
the surface of the fixing plate (2) right above the first rotating shaft (23) is provided with sliding grooves (18), the bottom ends of the insides of the sliding grooves (18) are provided with clamping grooves (19), the insides of the sliding grooves (18) are provided with second rotating shafts (20), the first rotating shaft (23) and the second rotating shafts (20) are connected through connecting rods (22), and one side of each second rotating shaft (20) is provided with a limiting strip (21);
wherein, the top of fixed plate (2) is provided with storage tank (4), stopper (3) are all installed through first articulated shaft (1) in fixed plate (2) top of storage tank (4) both sides.
2. An office notebook computer holding apparatus according to claim 1, wherein: and a second anti-skid pad (17) is arranged in the storage groove (4).
3. An office notebook computer holding apparatus according to claim 1, wherein: the top of fixed plate (2) is provided with four stopper (3) through first articulated shaft (1).
4. An office notebook computer holding apparatus according to claim 1, wherein: the bottom of the mounting rack (10) is provided with a first anti-skid pad (9).
