CN108745448B - A continuous de-bran processing equipment for agricultural grains - Google Patents

Abstract

The invention discloses a continuous bran-removing processing equipment for agricultural grains. The bran screening blade and the rotating shaft installed inside the rotating drum, the upper end of the peeling drum is provided with a feeding port, the rotating drum is rotated and erected on the upper and lower end plates in the peeling drum, and the inner wall of the upper part of the rotating drum is There are several peeling teeth on the upper part, and several peeling rollers are arranged inside the upper part of the rotating drum; when the peeling roller and the rotating drum rotate in the opposite direction, the grain bran is removed, and the grain falls into the grain collection cavity and is discharged from the grain discharge pipe, and the spiral blade slows down the grain. and the falling speed of the bran, and form convection with the wind blowing from the bottom to the top in the rotating drum, so that the bran can enter the bran collection cavity along the gap between the bran screening blades and be discharged by the bran discharge pipe, so as to improve the grain quality. Efficiency and effectiveness of bran removal and separation.

Description

A continuous de-bran processing equipment for agricultural grains

technical field

The present invention relates to the technical field of crop processing, more particularly, to a continuous bran-removing processing equipment for agricultural grains.

Background technique

Dietary fiber is a nutrient that maintains human health and cannot be replaced by other substances. It is a general term for a complex mixture. People refer to it as the six major nutrients following carbohydrates, fats, proteins, vitamins, water and minerals. Other than the "seventh nutrient" of the human body. The surface of wheat bran, bean dregs, and corn husks all contain lipids and lignin. If they are directly crushed, they will not only have poor eating quality, but also fail to achieve the effect of dietary fiber.

For example, winter wheat is a variety of wheat grown in warmer places. It is generally sown from mid to late September to early October, and matures from the end of May to mid to late June of the following year. my country is dominated by winter wheat. When wheat is processed into wheat kernels after harvesting, it is necessary to remove the wheat bran from the outer layer of the wheat granules, leaving only the high-gluten flour part of the wheat granules, which is used for people to cook porridge, etc., and the taste is better. However, at present, the operation of removing the surface layer of wheat bran from grain particles is usually carried out by manual hammering, which is inefficient and difficult to separate the wheat bran and the wheat kernel. Therefore, there is a need for a continuous grain bran removal processing equipment for agricultural use to improve the efficiency of grain wheat bran removal. removal and separation efficiency.

SUMMARY OF THE INVENTION

Aiming at the deficiencies of the prior art, the purpose of the present invention is to provide a continuous bran removal processing equipment for agricultural grains, so as to solve the problems raised in the above-mentioned background art.

To achieve the above object, the present invention provides the following technical solutions:

A continuous dehulling processing equipment for agricultural grains, comprising a dehulling barrel, a guiding hopper installed inside the dehulling barrel, a rotating drum connected with the bottom end of the guiding hopper, and a bran screening device arranged on the side wall of the rotating drum The blade and the rotating shaft installed inside the rotating drum, the peeling drum is erected on the frame, the middle of the upper end of the peeling drum is provided with a feeding port, and a feeding hopper is installed on the peeling drum above the feeding port, and the rotating drum rotates It is erected on the upper end plate and the lower end plate in the peeling machine barrel. There are several peeling teeth on the inner wall of the upper part of the rotating drum. There are several peeling rollers inside the upper part of the rotating drum. The inside of the barrel is set as a grain collection cavity, the rotating shaft in the grain collection cavity is welded with a feeding plate, and the dehulling cylinder on the outside of the rotary drum between the upper end plate and the lower end plate is set as a bran collection cavity, and the bran collection cavity A dedusting net is installed, the peeling barrel outside the dedusting net is connected with a suction hood, the suction hood is connected with a circulating air duct, a fan is installed on the circulating air duct, and the bottom end of the circulating air duct is connected with the grain collection cavity.

Further, a plurality of guide ribs are arranged on the upper surface of the guide hopper below the feeding port, and the guide hopper is fixed on the upper end of the rotating drum and is connected with the rotating drum.

Further, the upper end plate and the lower end plate are provided with cylinder sleeves for the rotating cylinder to rotate.

Further, a ring gear is welded on the outer wall of the rotating cylinder between the upper end plate and the guide hopper, and the ring gear is meshed and connected with the transmission gear arranged on the side wall of the peeling cylinder, and the transmission gear is meshed with the driving gear on the outside of the peeling cylinder. The driving gear is fixed on the motor shaft of the first motor, and the first motor is installed on the outer wall of the peeling barrel.

Further, a guide cone is fixed on the upper part of the topmost peeling roller, and the bottom end of the rotating shaft is connected to the second motor through the bottom wall of the peeling barrel.

Further, the rotation direction of the peeling roller is opposite to the rotation direction of the rotating drum, and the gap ratio between the peeling roller and the peeling teeth is equal to the average particle size of the grain.

Further, several bran screening blades are installed on the side wall of the lower part of the rotary drum, the gap between adjacent bran screening blades is smaller than the grain diameter of the grain, and a spiral blade is installed on the rotating shaft inside the lower part of the rotary drum.

Further, the feeding plate is arranged parallel to the bottom wall of the peeling barrel, and is connected with a grain discharge pipe on the bottom side of the peeling barrel. The grain discharge pipe communicates with the bottom side of the grain collection cavity and is provided with a discharge valve.

Further, a baffle net is installed where the circulating air duct communicates with the grain collection cavity, and a bran discharge pipe is connected in the middle of the peeling barrel, and the bran discharge pipe passes through the dust removal net and communicates with the bottom side of the bran collection cavity.

To sum up, the present invention has the following beneficial effects compared with the prior art:

The invention has stable structure, convenient operation, and is convenient for the continuous addition of grains. When the peeling roller and the rotating drum rotate in the opposite direction, the grain bran is removed, the grain falls into the grain collection cavity and is discharged from the grain discharge pipe, and the spiral blade slows down the grain and bran. The speed of falling, and forming convection with the wind blowing from bottom to top in the rotating drum, it is convenient for the bran to enter the bran collection cavity along the gap between the bran screening blades and be discharged by the bran discharge pipe, so as to improve the removal of grain bran. and separation efficiency and effectiveness.

In order to illustrate the structural features and effects of the present invention more clearly, the present invention will be described in detail below with reference to the accompanying drawings and specific embodiments.

Description of drawings

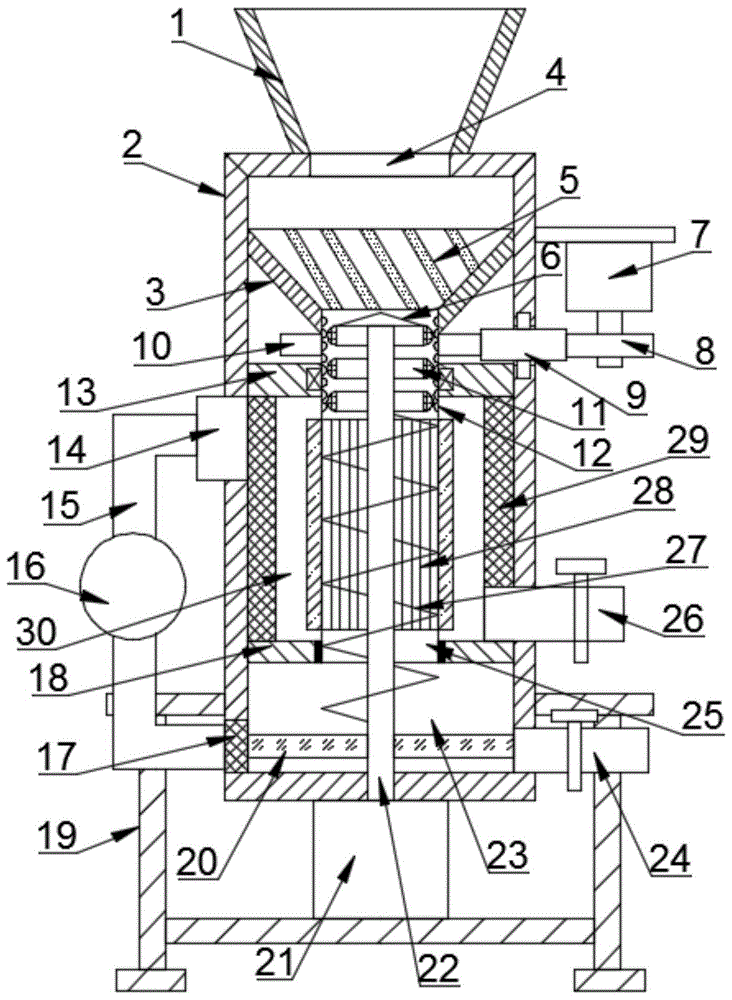

FIG. 1 is a schematic structural diagram of the present invention.

Figure 2 is a schematic cross-sectional view of a bran screening blade on a rotating drum in the present invention.

FIG. 3 is a schematic structural diagram of a rotating drum in the present invention.

Reference numerals: 1-feeding hopper, 2-peeling barrel, 3-guiding hopper, 4-feeding port, 5-guiding rib, 6-guiding cone, 7-first motor, 8-driving gear, 9 - Transmission gear, 10- ring gear, 11- peeling roller, 12- peeling tooth, 13- upper end plate, 14- suction hood, 15- circulating air duct, 16- fan, 17- material retaining net, 18- lower end plate , 19-rack, 20-feeding plate, 21-second motor, 22-rotating shaft, 23-grain collection cavity, 24-grain discharge pipe, 25-rotating drum, 26-bran discharge pipe, 27-spiral Leaf, 28- bran screening leaf, 29- dust net, 30- bran collecting cavity.

Detailed ways

The technical solutions of the present invention will be further described below with reference to the accompanying drawings and specific embodiments.

1-3, a continuous dehulling processing equipment for agricultural grains includes a dehulling barrel 2, a guide hopper 3 installed inside the dehulling barrel 2, and a rotating drum 25 connected to the bottom end of the guide hopper 3, The bran screening blade 28 arranged on the side wall of the rotating drum 25 and the rotating shaft 22 installed inside the rotating drum 25, the dehulling drum 2 is erected on the frame 19, and a feed is provided in the middle of the upper end of the dehulling drum 2 Port 4, a feeding hopper 1 is installed on the peeling barrel 2 above the feeding port 4, and a number of guiding ribs 5 are arranged on the upper surface of the guiding hopper 3 below the feeding port 4, and the guiding ribs 5 are used to guide the falling grains. The hopper 3 is fixed on the upper end of the rotating drum 25 and is connected with the rotating drum 25. The rotating drum 25 is rotated and erected on the upper end plate 13 and the lower end plate 18 in the peeling barrel 2. The upper end plate 13 and the lower end plate 18 are provided with supply The cylinder sleeve of the rotating cylinder 25 is welded with a gear ring 10 on the outer wall of the rotating cylinder 25 between the upper end plate 13 and the hopper 3, and the gear ring 10 is meshed with the transmission gear 9 arranged on the side wall of the peeling cylinder 2. The transmission gear 9 is meshed with the drive gear 8 on the outside of the peeling barrel 2, the driving gear 8 is fixed on the motor shaft of the first motor 7, and the first motor 7 is installed on the outer wall of the peeling barrel 2. When the first motor 7 starts , the motor shaft drives the drive gear 8 , the transmission gear 9 , the ring gear 10 and the rotating drum 25 to rotate.

A number of peeling teeth 12 are arranged on the inner wall of the upper part of the rotating drum 25 , and a number of peeling rollers 11 are arranged inside the upper part of the rotating drum 25 . , used to disperse the grains in the gap between the peeling roller 11 and the peeling teeth 12; the bottom end of the rotating shaft 22 is connected to the second motor 21 through the bottom wall of the peeling barrel 2, and the second motor 21 drives the rotating shaft 22 and the peeling on it. The rotation of the roller 11 facilitates the dehulling treatment of the grain between the dehulling roller 11 and the dehulling teeth 12 .

The rotation direction of the peeling roller 11 is opposite to the rotation direction of the rotating drum 25, and the gap ratio between the peeling roller 11 and the peeling teeth 12 is equal to the average grain size of the grain, which facilitates the peeling of the bran wrapped outside the grain.

A number of bran screening blades 28 are installed on the lower side wall of the rotating drum 25, the gap between adjacent bran screening blades 28 is smaller than the grain diameter of the grain, and a screw is installed on the rotating shaft 22 inside the lower part of the rotating drum 25 When the blade 27 and the helical blade 27 rotate with the rotating shaft 22, the grain is pushed upward and the falling speed is slowed down.

A grain collecting cavity 23 is set in the peeling barrel 2 below the lower end plate 18 , and a feeding plate 20 is welded on the rotating shaft 22 in the grain collecting chamber 23 , and the feeding plate 20 is arranged parallel to the bottom wall of the peeling barrel 2 A grain discharge pipe 24 is connected to the bottom side of the dehulling barrel 2. The grain discharge pipe 24 communicates with the bottom side of the grain collection cavity 23 and is provided with a discharge valve, which is convenient for discharging the grains in the grain collection cavity 23 with their bran removed.

The dehulling cylinder 2 on the outer side of the rotating cylinder 25 between the upper end plate 13 and the lower end plate 18 is set as a bran collection cavity 30, a dust removal net 29 is installed in the bran collection cavity 30, and the dehulling cylinder outside the dust removal net 29 is installed 2 is connected to the suction hood 14, the suction hood 14 is connected to the circulating air duct 15, a fan 16 is installed on the circulating air duct 15, the bottom end of the circulating air duct 15 is communicated with the grain collection cavity 23, and the circulating air duct 15 is connected with the grain collection cavity 23 A material blocking net 17 is installed at the communication place to prevent grain particles from entering the circulating air duct 15 .

A bran discharge pipe 26 is connected to the middle of the dehulling cylinder 2, and the bran discharge pipe 26 is connected to the bottom side of the bran collecting cavity 30 through the dust removal net 29, so as to facilitate the entry of the bran collecting cavity along the gap between the bran screening blades 28 into the bran collecting cavity 30 of the bran drained.

The technical principles of the present invention are described above with reference to specific embodiments, which are only preferred embodiments of the present invention. The protection scope of the present invention is not limited to the above-mentioned embodiments, and all technical solutions that belong to the idea of the present invention belong to the protection scope of the present invention. Those skilled in the art can think of other specific embodiments of the present invention without creative efforts, and these methods will all fall within the protection scope of the present invention.

Claims (9)

1. A continuous bran removing processing device for agricultural grain comprises a peeling machine barrel (2), a guide hopper (3) arranged inside the peeling machine barrel (2), a rotary barrel (25) connected with the bottom end of the guide hopper (3), bran screening blades (28) arranged on the side wall of the rotary barrel (25) and a rotating shaft (22) arranged inside the rotary barrel (25), and is characterized in that the peeling machine barrel (2) is erected on a rack (19), a feed inlet (4) is formed in the middle of the upper end of the peeling machine barrel (2), a feeding hopper (1) is arranged on the peeling machine barrel (2) above the feed inlet (4), the rotary barrel (25) is rotatably erected on an upper end plate (13) and a lower end plate (18) in the peeling machine barrel (2), a plurality of peeling teeth (12) are arranged on the inner wall of the upper portion of the rotary barrel (25), a plurality of peeling rollers (11) are arranged inside the upper portion of the rotary barrel (25), peeling roller (11) are fixed on rotation axis (22), be equipped with in peeling barrel (2) of lower end plate (18) below and collect chamber (23) for cereal, welding has switch plate (20) on rotation axis (22) in cereal collection chamber (23), it collects chamber (30) to establish for the bran in peeling barrel (2) in rotary drum (25) outside between upper end plate (13) and lower end plate (18), install dust removal net (29) in bran collection chamber (30), connect on peeling barrel (2) in dust removal net (29) outside and inhale cover (14), it connects circulation tuber pipe (15) to inhale cover (14), install fan (16) on circulation tuber pipe (15), circulation tuber pipe (15) bottom and cereal collection chamber (23) intercommunication.

2. The continuous agricultural grain bran-removing processing equipment according to claim 1, wherein a plurality of guide ribs (5) are arranged on the upper surface of the guide hopper (3) below the feed inlet (4), and the guide hopper (3) is fixed on the upper end of the rotary drum (25) and connected with the rotary drum (25).

3. An agricultural grain continuous bran removal processing apparatus as claimed in claim 1 wherein the upper end plate (13) and lower end plate (18) are provided with sleeves for rotation of the rotary drum (25).

4. The continuous bran removing processing device for the agricultural grain according to claim 3, characterized in that a gear ring (10) is welded on the outer wall of the rotary cylinder (25) between the upper end plate (13) and the material guide hopper (3), the gear ring (10) is meshed with a transmission gear (9) arranged on the side wall of the peeling machine cylinder (2), the transmission gear (9) is meshed with a driving gear (8) outside the peeling machine cylinder (2), the driving gear (8) is fixed on a motor shaft of the first motor (7), and the first motor (7) is arranged on the outer wall of the peeling machine cylinder (2).

5. An agricultural grain continuous bran removal processing apparatus as claimed in claim 4, wherein a deflector cone (6) is fixed to the top of the topmost peeling roller (11), and the bottom end of the rotating shaft (22) is connected to the second motor (21) through the bottom wall of the peeling barrel (2).

6. An agricultural grain continuous bran removal processing apparatus as claimed in claim 5, wherein the direction of rotation of the peeling roller (11) is opposite to the direction of rotation of the rotating drum (25), and the gap ratio between the peeling roller (11) and the peeling teeth (12) is equal to the average grain size.

7. An agricultural grain continuous bran removal processing apparatus as claimed in claim 1, wherein a plurality of bran removing blades (28) are installed on a lower side wall of the rotary drum (25), gaps between adjacent bran removing blades (28) are smaller than a grain diameter of the grain, and a spiral blade (27) is installed on the rotary shaft (22) inside a lower portion of the rotary drum (25).

8. An agricultural grain continuous bran removal processing apparatus as claimed in claim 1, wherein the kick-out plate (20) is disposed parallel to the bottom wall of the huller cylinder (2), and a grain discharge pipe (24) is connected to the bottom side of the huller cylinder (2), the grain discharge pipe (24) communicating with the bottom side of the grain collection chamber (23) and having a discharge valve mounted thereon.

9. The continuous bran removing processing device for the agricultural grain according to claim 1, wherein a material blocking net (17) is installed at the communication part of the circulating air pipe (15) and the grain collecting cavity (23), a bran discharge pipe (26) is connected to the middle part of the huller cylinder (2), and the bran discharge pipe (26) passes through the dust removing net (29) and is communicated with the bottom side of the bran collecting cavity (30).
