CN108635105B

CN108635105B - Portable eye drop device

Info

Publication number: CN108635105B
Application number: CN201810450171.2A
Authority: CN
Inventors: 曾绮桥; 马丽辉; 高亚莉
Original assignee: Shenzhen Peoples Hospital
Current assignee: Shenzhen Peoples Hospital
Priority date: 2018-05-11
Filing date: 2018-05-11
Publication date: 2020-05-26
Anticipated expiration: 2038-05-11
Also published as: CN108635105A

Abstract

The present invention provides a portable eyedropping device, comprising a frame composed of an upper frame and a lower frame, and two movable frames for placing eyedrop bottles slid along the upper frame and the lower frame; each movable frame It includes a movable frame body and a placement hole arranged on the movable frame body for placing the eyedrops bottle. The top of the movable frame body is bent to form a hook for hanging on the upper frame; the lower frame includes a lower beam and a lower frame. The temples are formed by extending the two sides of the lower beam respectively, the upper mirror frame includes an upper beam, a chute for the eyedrop bottle to slide is formed between the upper beam and the lower beam, and the two sides of the upper beam are respectively extended to form hinged with the temples for controlling The width of the chute is the control arm that squeezes the eye drop bottle for eye drops. Compared with the prior art, in the device, the user wears the glasses frame on the bridge of the nose, slides the movable frame to make the eye drop bottle align with the eyeball of the user, and then lifts the control arm to automatically squeeze the bottle body of the eye drop bottle to complete the drip. Eye drops action.

Description

Portable eye drop device

Technical Field

The invention relates to the field of medical treatment, in particular to a portable eye drop dripping device.

Background

With the aging of the global population, the lacrimal gland secretion of the old is reduced, and the self-care ability of the old is reduced, so that the problem of effectively using eye drops is always troubled for the old.

The eye drops are the most commonly used treatment means for ophthalmic diseases, and can directly and quickly treat a plurality of ophthalmic diseases. At present, the use steps of the eye drops are generally as follows: 1. before the eye drop is dripped, hands are cleaned, the mouth of the eye drop cannot contact with the skin, and the mouth and the eye drop are prevented from being polluted; 2. the head is bent backwards or laid down as far as possible; 3. pulling the lower eyelid open with one hand, exposing the conjunctival sac; 4. holding the eye drop bottle body with the other hand, and aligning the eye drop bottle mouth with the conjunctival sac; 5. extruding the eye drop bottle body to enable the eye drop bottle mouth to drop into the conjunctival sac; 6. the eyes are closed to absorb the eyedrops and the redundant eyedrops around the canthus are wiped off.

However, the steps are difficult to independently complete for most of people using less eyedrops, and particularly for middle-aged and elderly people, the self-care ability of life is reduced; and because the old people have poor manual control capability, the eyedrops are difficult to aim at and drip into eyeballs, so that the eyedrops are wasted, the mouth of the eyedrops is easily polluted by surrounding skin, the eyedrops are polluted, and the treatment is meaningless and the treatment effect is influenced.

Disclosure of Invention

In view of the above problems, the present invention provides a portable eye drop dripping device, in which a user aligns a positioning eye drop bottle with an eyeball through a frame structure to independently complete an eye drop dripping operation.

The technical scheme adopted by the invention is as follows:

a portable eyedrop dripping device comprises a spectacle frame formed by matching an upper spectacle frame and a lower spectacle frame and two movable frames which slide along the upper spectacle frame and the lower spectacle frame and are used for placing eyedrop bottles; each movable frame comprises a movable frame body and a placing hole which is arranged on the movable frame body and used for placing the eyedrop bottle, and the top of the movable frame body is bent to form a hook which is used for being hung on the upper spectacle frame; the lower spectacle frame comprises a lower cross beam and spectacle legs which are formed by extending from two side faces of the lower cross beam respectively, the upper spectacle frame comprises an upper cross beam, a sliding chute for the eyedrop bottle to slide is formed between the upper cross beam and the lower cross beam, and two side faces of the upper cross beam are respectively extended to form control arms which are hinged with the spectacle legs and used for controlling the width of the sliding chute to squeeze the eyedrop bottle to drip eyedrop.

Preferably, the top surface of entablature is equipped with the constant head tank, the top of activity support body is equipped with the locating hole, the adjustable shelf still includes and is used for the positioning bolt of activity support body location at the entablature with locating hole and constant head tank cooperation.

Preferably, the lower beam is connected with a connecting rod, the connecting rod is hinged with a fixed seat, and the fixed seat is provided with a position correcting mirror for correcting the positions of the two movable frames.

Preferably, the bottom of the lower cross beam is provided with a nose support.

Preferably, a spring is connected between the temple and the control arm, and the temple is further provided with a movable groove for sliding one end of the spring when the control arm is lifted.

Compared with the prior art, the invention has the beneficial effects that: the invention provides a portable eyedrop dropping device, wherein a user wears a lens frame consisting of an upper lens frame and a lower lens frame on eyes, slides a movable frame along an upper cross beam and a lower cross beam, looks up the position of the movable frame from a position correcting lens, enables an eyedrop bottle on the movable frame to be aligned with eyeballs of the user, lifts up a control arm of the lens frame, reduces the width of a chute between the upper cross beam and the lower cross beam, automatically extrudes the bottle body of the eyedrop bottle, and completes the action of dropping eyedrop.

Drawings

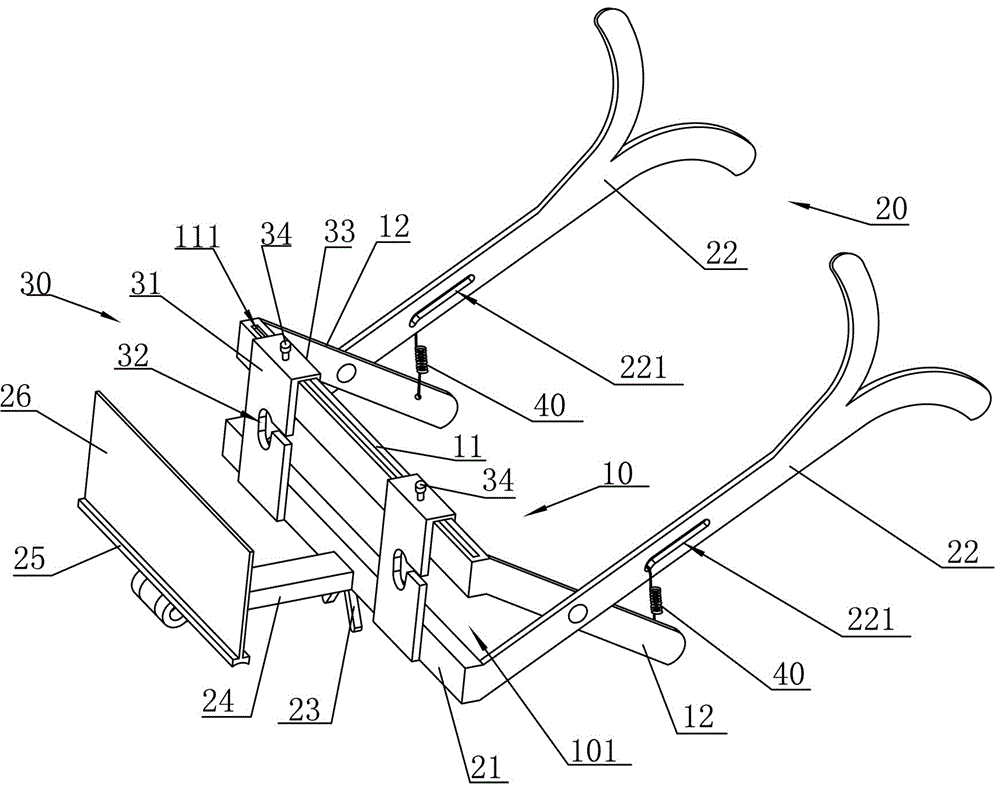

Fig. 1 is a schematic view of a portable eye drop dripping device according to the present invention;

fig. 2 is an exploded view of a portable eye drop dripping device according to the present invention.

Detailed Description

Preferred embodiments of the present invention will be described in detail with reference to the accompanying drawings.

Fig. 1 to 2 show a preferred embodiment of a portable eye drop dripping device according to the present invention. As shown in fig. 1 to 2, the portable eyedrop dropping device includes a frame formed by an upper frame 10 and the upper frame 10 being coupled together, and two movable frames 30 sliding along the upper frame 10 and the lower frame 20 for placing eyedrop bottles, so that the frame is worn on the bridge of the nose, and the movable frames 30 are moved along the upper frame 10 and the lower frame 20 according to the positions of eyes, so that the eyedrop bottles on the movable frames 30 are aligned with the eyeballs of a user.

Lower mirror holder 20 includes bottom end rail 21 and extends the mirror leg 22 that forms respectively from bottom end rail 21 both sides face, upper mirror holder 10 includes entablature 11, form between entablature 11 and the bottom end rail 21 and supply the gliding spout 101 of eye drop bottle, entablature 11 both sides face extends respectively and forms and is used for controlling the control arm 12 of spout 101 width in order to extrude the eye drop bottle to carry out eye drop with mirror leg 22 articulated, the user is after wearing the mirror holder like this, the position of adjustment adjustable shelf 30, the eye drop bottle on the adjustable shelf 30 is aimed at user's eyeball, lift control arm 12 on, spout 101 width between entablature 11 and the bottom end rail 21 reduces, extrude the eye drop bottle body, the eye drop drips into user's eyeball. The bottom of the lower cross beam 21 is also provided with a nose support 23, so that a user can wear the glasses frame comfortably and conveniently. The rear part of the glasses legs 22 is provided with a supporting part, so that the whole device can be erected when the glasses are not used, and the glasses are simple and convenient.

The spring 40 is connected between the temple 22 and the control arm 12, the temple 22 is further provided with a movable groove 221 for allowing one end of the spring 40 to slide when the control arm 12 is lifted, the spring 40 prevents the width of the slide groove 101 between the upper beam 11 and the lower beam 21 from being too large, and when the control arm 12 is lifted, one end of the spring 40 slides along the movable groove 221 without affecting the movement of the control arm 12.

Each adjustable shelf 30 includes the adjustable shelf body 31 and sets up the hole 32 of placing that is used for placing the eye drop bottle on the adjustable shelf body 31, and the top bending type of adjustable shelf body 31 is equipped with and is used for hanging the couple 33 on last mirror holder 10, and adjustable shelf 30 hangs on the entablature 11 through couple 33 like this, can adjust two adjustable shelves 30 positions on the entablature 11 according to the interpupillary distance between two eyes of user for the eye drop bottle on the adjustable shelf 30 aims at user's eyeball. It should be noted that the placement hole 32 is provided with an opening for inserting the eyedrop bottle into the placement hole 32, and the entire movable frame 30 is made of elastic plastic and has a certain elasticity.

The top surface of entablature 11 is equipped with constant head tank 111, the top of activity support body 31 is equipped with locating hole 311, adjustable shelf 30 still includes and is used for fixing a position the positioning bolt 34 of entablature 11 with movable support body 31 with locating hole 311 and constant head tank 111 cooperation, has confirmed the position back of adjustable shelf 30 at entablature 11 at the user like this, through positioning bolt 34 and locating hole 311 and the cooperation of constant head tank 111, and adjustable shelf 30 is fixed a position on entablature 11, and the distance between the eyedrop bottle on two adjustable shelves 30 is the interpupillary distance of user's eyes.

The lower cross beam 21 is connected with a connecting rod 24, the connecting rod 24 is hinged with a fixed seat 25, a position correcting mirror 26 for correcting the positions of the two movable frames 30 is arranged on the fixed seat 25, and therefore a user can directly observe whether the positions of the eyedrop bottles on the movable frames 30 are accurately aligned with eyeballs or not from the position correcting mirror 26.

The use method of the whole portable eye drop dripping device comprises the following steps: 1) firstly, placing the eyedrop bottle in a placing hole 32 on a movable frame body 31, and hanging the movable frame 30 on an upper beam 11 through a hook 33; 2) fitting the frame to the bridge of the nose of the user; 3) adjusting the positions of the two movable frames 30 on the upper cross beam 11; 4) the user directly observes whether the position of the eye drop bottle on the movable frame 30 is accurately aligned with the eyeball from the position correcting mirror 26; 5) after alignment, the movable frame 30 is positioned on the upper beam 11 by the positioning bolt 34 cooperating with the positioning hole 311 and the positioning slot 111; 6) the control arm 12 is lifted, one end of the spring 40 slides along the movable groove 221, the width of the sliding groove 101 between the upper cross beam 11 and the lower cross beam 21 is reduced, the bottle body of the eyedrop bottle is squeezed, eyedrops are dripped into eyeballs of a user, and the eyedrop dripping action is completed.

In summary, the technical solutions of the present invention can fully and effectively achieve the above objects, and the structural and functional principles of the present invention have been fully verified in the embodiments, so as to achieve the expected efficacy and objects, and various changes or modifications can be made to the embodiments of the present invention without departing from the principles and spirit of the present invention. Accordingly, this invention includes all modifications encompassed within the scope of the claims appended hereto, and any equivalents thereof which fall within the scope of the claims appended hereto.

Claims

1. a portable eyedropping device, is characterized in that, comprise the frame that is formed by the upper frame and the lower frame and two movable frames that slide along the upper frame and the lower frame for placing the eyedrops bottle; each The movable frame includes a movable frame body and a placement hole arranged on the movable frame body for placing the eyedrops bottle. The top of the movable frame body is bent to form a hook for hanging on the upper frame; the lower frame includes a lower beam And the temples formed by extending from the two sides of the lower beam respectively, the upper mirror frame includes an upper beam, a chute for the eyedrop bottle to slide is formed between the upper beam and the lower beam, and the two sides of the upper beam are respectively extended to form hinges with the temples. The control arm is used to control the width of the chute to squeeze the eye drop bottle for eye drops; the lower beam is connected with a connecting rod, the connecting rod is hinged with a fixed seat, and the fixed seat is provided with a calibration device for calibrating the positions of the two movable frames. bit mirror.

2. The portable eye drop device according to claim 1, wherein a positioning groove is provided on the top surface of the upper beam, a positioning hole is provided on the top of the movable frame, and the movable frame further comprises a The positioning holes and the positioning grooves are matched with the positioning bolts used for positioning the movable frame body on the upper beam.

3 . The portable eye drop device according to claim 1 , wherein the bottom of the lower beam is provided with a nose pad. 4 .

4. The portable eye-dropping device according to claim 1, characterized in that: a spring is connected between the temple and the control arm, and the temple is also provided with a movement for sliding one end of the spring when the control arm is lifted up. groove.
