CN108625213B - Papermaking beating machine - Google Patents

Abstract

The invention relates to the technical field of papermaking, in particular to a papermaking beating machine, comprising a motor, a feeding mechanism, a water inlet pipe, a filtering mechanism, a supporting mechanism, a storage mechanism, a discharging mechanism, a crushing mechanism, a slag discharging mechanism, a hanging ring and a The filter mechanism is installed inside the closed mechanism and the storage mechanism. The material enters the inside of the filter mechanism through the feeding mechanism. The interior of the filter mechanism is rotated and connected to the crushing mechanism. The meat is fully integrated into the water inside the storage mechanism; and when the material is crushed by the crushing mechanism, some impurities in the material remain inside the filter mechanism, and when the pulp is discharged, the impurities are blocked by the filter mechanism to prevent the impurities from entering the pulp interior; filter mechanism It is threadedly connected with the storage mechanism, and the impurities remain inside the filter mechanism, which is convenient for taking the filter mechanism out of the storage mechanism, and opening the storage mechanism, which is convenient for cleaning the filter mechanism and the impurities inside the storage mechanism.

Description

A paper pulping machine

technical field

The invention relates to the technical field of papermaking, in particular to a papermaking beater.

Background technique

After the paper beater makes the material enter the screen cylinder, the material moves along the cylinder to the outlet end due to the rotating action of the stick and the existence of the lead angle. The trajectory is a spiral line, and the material moves between the scraper and the screen cylinder. In the process, it was scraped by centrifugal force. The juice and meat have been slurried and sent to the next process from the sieve hole through the collector, and the skin and seeds are discharged from the other open end of the cylinder to achieve separation.

When the materials are pulverized inside the pulping machine, the pulverization of the materials is uneven, and the juice and meat in some materials are discharged without fully integrating into the pulp, resulting in waste, and impurities in some materials are mixed with the beaten pulp. Internally, it will affect the quality of the paper in the later stage; and the impurities in the material remain inside the beater, which is inconvenient to clean. In view of this, the present invention provides a papermaking beater, which has the following characteristics:

(1) In a paper pulping machine of the present invention, a filter mechanism is installed inside the storage mechanism, the material enters the inside of the filter mechanism through the feeding mechanism, the interior of the filter mechanism is rotated and connected to the pulverizing mechanism, and the material remains inside the filter mechanism and the pulverizing mechanism. Full contact, so that the juice and meat in the material are fully integrated into the water inside the storage mechanism.

(2) In a paper pulping machine of the present invention, when the material is pulverized by the pulverizing mechanism, some impurities in the material remain in the interior of the filtering mechanism, and when the pulp is discharged, the impurities are blocked by the filtering mechanism to prevent the impurities from entering the interior of the pulp, Improve paper quality.

(3) In a paper-making beating machine of the present invention, the filter mechanism is connected with the storage mechanism by thread, and the impurities remain in the interior of the filter mechanism, which is convenient for taking out the filter mechanism from the interior of the storage mechanism, and opening the storage mechanism to facilitate cleaning of the filter mechanism and storage. Impurities within the institution.

SUMMARY OF THE INVENTION

In view of the problems in the prior art, in a paper pulping machine of the present invention, a filter mechanism is installed inside the storage mechanism, the material enters the inside of the filter mechanism through the feeding mechanism, the interior of the filter mechanism is rotated and connected to the crushing mechanism, and the material remains in the filter mechanism. The inside of the crusher is in full contact with the crushing mechanism, so that the juice and meat in the material are fully integrated into the water inside the storage mechanism. When the material is crushed by the crushing mechanism, some impurities in the material remain inside the filter mechanism. When the pulp is discharged, the impurities are blocked by the filter mechanism to prevent the impurities from entering the pulp and improve the quality of the paper. The filter mechanism is screwed with the storage mechanism, and the impurities remain inside the filter mechanism, which is convenient for taking the filter mechanism out of the storage mechanism, and opening the storage mechanism to facilitate cleaning of the filter mechanism and impurities inside the storage mechanism.

The technical scheme adopted by the present invention to solve its technical problems is: a papermaking beating machine, comprising a motor, a feeding mechanism, a water inlet pipe, a filtering mechanism, a supporting mechanism, a storage mechanism, a discharging mechanism, a crushing mechanism, a slag discharging mechanism, a hanging mechanism a ring and a closing mechanism; the storage mechanism is installed on the top surface of the support mechanism, and the feeding mechanism is installed on the top surface of the storage mechanism; the side wall of the feeding mechanism is engaged with the closing mechanism, and the feeding mechanism is The bottom end of the feeding mechanism is threadedly connected with the filtering mechanism; the bottom surface of the storage mechanism is threadedly connected with the bottom surface of the filtering mechanism, and the crushing mechanism is installed inside the filtering mechanism; The motor is connected to the filter mechanism in rotation; the slag discharge mechanism is installed on the bottom surface of the filter mechanism, the hanging ring is installed symmetrically on the side wall of the filter mechanism; the storage mechanism is installed on the side wall of the storage mechanism. A water inlet pipe, and the discharge mechanism is installed at the bottom end of the storage mechanism.

Specifically, the storage mechanism includes a first fixed box and a second fixed box, the motor is mounted on the top surface of the first fixed box, and the second fixed box is mounted on the side wall of the first fixed box. It is convenient for liquid to flow inside the first fixed box and the second fixed box.

Specifically, the support mechanism includes four support columns and a support plate, the first fixed box and the second fixed box are mounted on the top surface of the support plate, and the bottom surface of the support plate is fixedly connected to the support column , for the convenience of fixing the first fixing box and the second fixing box on the top surface of the support plate.

Specifically, the feeding mechanism includes a fixed sleeve and a feeding funnel, the feeding funnel is installed on the top surface of the first fixed box, the bottom end of the feeding funnel is connected to the fixed sleeve, and the fixed sleeve It is fixed inside the first fixing box, in order to facilitate the material to enter the inside of the fixing sleeve through the feeding funnel.

Specifically, the filtering mechanism includes two connecting sleeves, two fixing plates and a filter screen, the inside of the first fixing box is slidably connected to the filter screen, and the two ends of the filter screen are respectively installed with the connecting sleeves, And the two connecting sleeves are connected by the fixing plate. In order to make the fixing plate fix the filter screen and increase the stability of the filter screen, the two connecting sleeves are respectively connected with the fixing sleeve. It is threadedly connected with the bottom surface of the first fixing box. In order to facilitate the fixing of the filter screen inside the first fixing box, the hanging ring is symmetrically installed on the side wall of the connecting sleeve on the bottom surface of the filter screen. In order to facilitate the use of the hanging ring to rotate the connecting sleeve.

Specifically, the pulverizing mechanism includes a rotating shaft, a plurality of connecting rods and a plurality of blades, the top end of the rotating shaft is rotatably connected to the motor on the top surface of the first fixed box, and one end of the rotating shaft extends into the fixed sleeve and Inside the hollow cylindrical filter screen, the connecting rod is installed on the side wall of the rotating shaft at an equal distance, and the spiral blade is installed on the side wall of the connecting rod. In order to facilitate the rotating shaft to drive the The connecting rod and the blade rotate, and the length of the connecting rod is smaller than the inner diameter of the filter screen. In order to facilitate the rotation of the connecting rod inside the filter screen, the material inside the filter screen is crushed.

Specifically, the slag discharge mechanism includes a second valve and a discharge port, the discharge port is installed on the side wall of the connecting sleeve on the bottom surface of the filter screen, and the second valve is installed at the cost of the discharge port. , in order to conveniently open the discharge port, discharge the residue inside the filter screen.

Specifically, the discharge mechanism includes a discharge pipe and a first valve, the discharge pipe is installed on the side wall of the second fixed box, and the first valve is installed on the side wall of the discharge pipe for convenience. Open the discharge pipe to discharge the pulp inside the second fixed box.

Specifically, the closing mechanism includes a baffle, a first limit rod, a spring and a second limit rod, the inside of the feeding funnel is engaged with the baffle, and the top surface of the baffle is engaged with the baffle The first limit rod, the first limit rod is connected to the second limit rod through the spring, and the second limit rod is fixed to the side wall of the feeding funnel. For the convenience of the first limit rod The limit rod slides inside the second limit rod, so that the first limit rod is engaged with the baffle, and the baffle is fixed inside the feeding funnel to control the feeding The feed rate of the funnel.

Beneficial effects of the present invention:

(1) In a paper pulping machine of the present invention, a filter mechanism is installed inside the storage mechanism, the material enters the inside of the filter mechanism through the feeding mechanism, the interior of the filter mechanism is rotated and connected to the pulverizing mechanism, and the material remains inside the filter mechanism and the pulverizing mechanism. Full contact, so that the juice and meat in the material are fully integrated into the water inside the storage mechanism.

(2) In a paper pulping machine of the present invention, when the material is pulverized by the pulverizing mechanism, some impurities in the material remain in the interior of the filtering mechanism, and when the pulp is discharged, the impurities are blocked by the filtering mechanism to prevent the impurities from entering the interior of the pulp, Improve paper quality.

(3) In a paper-making beating machine of the present invention, the filter mechanism is connected with the storage mechanism by thread, and the impurities remain in the interior of the filter mechanism, which is convenient for taking out the filter mechanism from the interior of the storage mechanism, and opening the storage mechanism to facilitate cleaning of the filter mechanism and storage. Impurities within the institution.

Description of drawings

The present invention will be further described below with reference to the accompanying drawings and embodiments.

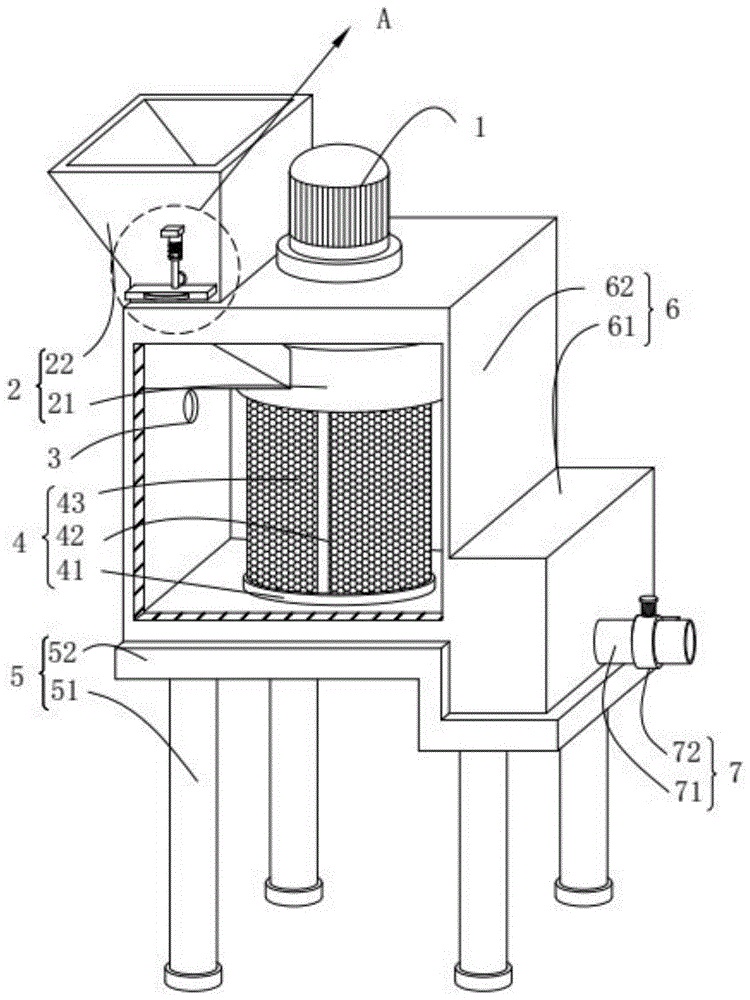

1 is a schematic structural diagram of a preferred embodiment of a paper pulping machine provided by the present invention;

Fig. 2 is a schematic diagram of the internal structure of the filtering mechanism shown in Fig. 1;

FIG. 3 is a schematic diagram of the bottom surface structure of the support plate shown in FIG. 1;

FIG. 4 is a schematic view of the enlarged structure of the position A shown in FIG. 1 .

In the picture: 1. Motor, 2. Feeding mechanism, 21. Fixed sleeve, 22. Feeding funnel, 3. Water inlet pipe, 4. Filtering mechanism, 41. Connecting sleeve, 42. Fixed plate, 43. Filter screen, 5 , support mechanism, 51, support column, 52, support plate, 6, storage mechanism, 61, first fixed box, 62, second fixed box, 7, discharge mechanism, 71, discharge pipe, 72, first valve , 8, crushing mechanism, 81, shaft, 82, connecting rod, 83, blade, 9, slag discharge mechanism, 91, second valve, 92, discharge port, 10, hanging ring, 11, closing mechanism, 111, block Plate, 112, first limit rod, 113, spring, 114, second limit rod.

Detailed ways

In order to make it easy to understand the technical means, creation features, achieved goals and effects of the present invention, the present invention will be further described below with reference to the specific embodiments.

As shown in FIG. 1 , a paper pulping machine according to the present invention includes a motor 1 , a feeding mechanism 2 , a water inlet pipe 3 , a filtering mechanism 4 , a supporting mechanism 5 , a storage mechanism 6 , a discharging mechanism 7 , and a crushing mechanism 8 , slag discharge mechanism 9, hanging ring 10 and closing mechanism 11; the storage mechanism 6 is installed on the top surface of the support mechanism 5, and the feeding mechanism 2 is installed on the top surface of the storage mechanism 6; the feeding mechanism The side wall of 2 is engaged with the closing mechanism 11, the bottom end of the feeding mechanism 2 is threadedly connected with the filtering mechanism 4; the bottom surface of the storage mechanism 6 is threadedly connected with the bottom surface of the filtering mechanism 4, and the The crushing mechanism 8 is installed inside the filter mechanism 4 ; the motor 1 is installed on the top surface of the storage mechanism 6 , and the motor 1 is rotatably connected to the filter mechanism 4 ; the bottom surface of the filter mechanism 4 is installed with the slag discharge Mechanism 9, the hanging ring 10 is symmetrically installed on the side wall of the filtering mechanism 4;

Specifically, as shown in FIG. 1 , in a paper pulping machine according to the present invention, the storage mechanism 6 includes a first fixed box 61 and a second fixed box 62 , and the top surface of the first fixed box 61 is installed with the In the motor 1 , the second fixing box 62 is mounted on the side wall of the first fixing box 61 , in order to facilitate the flow of liquid inside the first fixing box 61 and the second fixing box 62 .

Specifically, as shown in FIG. 1 , in a paper pulping machine according to the present invention, the support mechanism 5 includes four support columns 51 and a support plate 52 , and the top surface of the support plate 52 is installed with the first fixed Box 61 and the second fixing box 62, the bottom surface of the supporting plate 52 is fixedly connected to the supporting column 51, and the first fixing box 61 and the first fixing box 61 and the first fixing box 61 and the Two fixed boxes 62 .

Specifically, as shown in FIG. 1 , in a paper pulping machine according to the present invention, the feeding mechanism 2 includes a fixed sleeve 21 and a feeding funnel 22 , and the top surface of the first fixed box 61 is installed with the feeding The bottom end of the feeding funnel 22 is connected to the fixing sleeve 21, and the fixing sleeve 21 is fixed inside the first fixing box 61. In order to facilitate the material to enter the The inside of the fixed sleeve 21 .

Specifically, as shown in FIG. 1 and FIG. 2 , in a paper pulping machine according to the present invention, the filtering mechanism 4 includes two connecting sleeves 41 , two fixing plates 42 and a filter screen 43 . The inside of the box 61 is slidably connected to the filter screen 43 , the connecting sleeves 41 are respectively installed at both ends of the filter screen 43 , and the two connecting sleeves 41 are connected by the fixing plate 42 . The fixing plate 42 fixes the filter screen 43 and increases the stability of the filter screen 43. The two connecting sleeves 41 are respectively screwed to the bottom surface of the fixing sleeve 21 and the first fixing box 61 for convenience. The filter screen 43 is fixed inside the first fixing box 61 , and the hanging ring 10 is symmetrically installed on the side wall of the connecting sleeve 41 on the bottom surface of the filter screen 43 . In order to facilitate the use of the hanging ring 10 to rotate the connecting sleeve 41 .

Specifically, as shown in FIG. 2 , in a paper pulping machine according to the present invention, the pulverizing mechanism 8 includes a rotating shaft 81 , a plurality of connecting rods 82 and a plurality of blades 83 , and the top of the rotating shaft 81 is rotatably connected to the For the motor 1 on the top surface of the first fixing box 61 , one end of the rotating shaft 81 extends into the interior of the fixing sleeve 21 and the hollow cylindrical filter screen 43 , and the side walls of the rotating shaft 81 are equidistantly installed. The connecting rod 82, the helical blade 83 is installed on the side wall of the connecting rod 82, in order to facilitate the rotating shaft 81 to drive the connecting rod 82 and the blade 83 to rotate, and the length of the connecting rod 82 Smaller than the inner diameter of the filter screen 43 , in order to facilitate the rotation of the connecting rod 82 inside the filter screen 43 , the material inside the filter screen 43 is crushed.

Specifically, as shown in FIG. 3 , in a paper pulping machine according to the present invention, the slag discharge mechanism 9 includes a second valve 91 and a discharge port 92 , and the connection sleeve 41 on the bottom surface of the filter screen 43 has a The discharge port 92 is installed on the side wall, and the second valve 91 is installed at the cost of the discharge port 92. In order to facilitate the opening of the discharge port 92, the residue inside the filter screen 43 is discharged.

Specifically, as shown in FIG. 1 and FIG. 3 , in a paper pulping machine according to the present invention, the discharge mechanism 7 includes a discharge pipe 71 and a first valve 72 , and the side wall of the second fixed box 62 The discharge pipe 71 is installed, and the first valve 72 is installed on the side wall of the discharge pipe 71. In order to facilitate the opening of the discharge pipe 71, the pulp inside the second fixed box 62 is discharged.

Specifically, as shown in FIG. 1 and FIG. 4 , in a paper pulping machine according to the present invention, the closing mechanism 11 includes a baffle 111 , a first limit rod 112 , a spring 113 and a second limit rod 114 , The baffle plate 111 is engaged with the inside of the feed funnel 22 , and the first limit rod 112 is engaged with the top surface of the baffle plate 111 . The second limit rod 114 is fixed to the side wall of the feeding funnel 22 , in order to facilitate the sliding of the first limit rod 112 inside the second limit rod 114 , the first limit rod 112 is engaged with the baffle 111 , the baffle 111 is fixed inside the feeding funnel 22 , and the feeding speed of the feeding funnel 22 is controlled.

Connect the device to the power supply, add an appropriate amount of water to the first fixed box 61 and the second fixed box 62 through the water inlet pipe 3, turn on the motor 1, and make the motor 1 drive the shaft 81 to rotate inside the filter screen 43.

(1) Hold the first limit rod 112 tightly, make the first limit rod 112 slide into the inside of the second limit rod 114, compress the spring inside the second limit rod 114, and make the first limit rod 112 and the stopper The plate 111 is separated, and the baffle plate 111 with an appropriate length is drawn out from the inside of the feeding funnel 22, the appropriate width is leaked from the inside of the feeding funnel 22, and an appropriate amount of material is added to the feeding funnel 22, so that the material enters the fixed feed through the feeding funnel 22 at a constant speed. Inside of set 21.

(2) The material entering the inside of the fixed sleeve 21 enters the hollow cylindrical filter screen 43 at the bottom of the fixed sleeve 21, the rotating shaft 81 drives the connecting rod 82 and the spiral blade 83 to rotate inside the filter screen 43, the blade 83 and the filter screen The material inside 43 contacts, crushes the material inside the filter screen 43, and at the same time agitates the water inside the first fixed box 61 and the second fixed box 62, so that the juice and meat in the material melt into the water, and the impurities in the material stay in the filter screen 43 inside.

(3) When the material is crushed, turn off the motor 1, rotate the first valve 72, and open the discharge pipe 71, so that the pulp inside the first fixed box 61 and the second fixed box 62 is discharged through the discharge pipe 71; when the pulp is discharged After that, close the first valve 72, open the second valve 91, and open the outlet 92 on the bottom surface of the connecting sleeve 41, so that the residue inside the filter screen 43 is discharged from the outlet 92.

(4) When there is too much residue in the filter screen 43, hold the rotating hanging ring 10 tightly, and rotate the connecting sleeve 41 located on the bottom surface of the support plate 52, so that the two connecting sleeves 41 are located between the first fixing box 61 and the fixing sleeve 21 respectively. Rotate inside to separate the connecting sleeve 41 from the first fixing box 61 and the fixing sleeve 21, take out the filter screen 43 between the connecting sleeve 41 from the inside of the first fixing box 61, clean the residue inside the filter screen 43, and open the The first fixing box 61 cleans the residue on the blade 83 . When the residue is cleaned, put the filter screen 43 into the first fixing box 61 so that the rotating shaft 81 is located inside the filter screen 43, and rotate the hanging ring 10 so that the connecting sleeves 41 at both ends of the filter screen 43 are screwed to the first fixing box 43 respectively. The box 61 and the fixing sleeve 21 fix the filter screen 43 inside the first fixing box 61 .

The filter mechanism 4 is installed inside the storage mechanism 6 of the present invention, the material enters the filter mechanism 4 through the feeding mechanism 2, and the filter mechanism 4 is rotated and connected to the crushing mechanism 8 inside. Contact, so that the juice and meat in the material are fully integrated into the water inside the storage mechanism 6 . When the material is pulverized by the pulverizing mechanism 8, some impurities in the material remain inside the filter mechanism 4. When the pulp is discharged, the impurities are blocked by the filter mechanism 4, preventing the impurities from entering the pulp and improving the quality of the paper. The filter mechanism 4 is threadedly connected with the storage mechanism 6, and the impurities remain inside the filter mechanism 4, which is convenient for taking the filter mechanism 4 out of the storage mechanism 6, and opening the storage mechanism 6, which is convenient for cleaning the filter mechanism 4 and the impurities inside the storage mechanism 6. .

The foregoing has shown and described the basic principles, main features and advantages of the present invention. Those skilled in the art should understand that the present invention is not limited by the above-mentioned embodiments, and the descriptions in the above-mentioned embodiments and the description are only to illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention will also There are various changes and improvements which fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (1)

1. A papermaking beater characterized by: comprises a motor (1), a feeding mechanism (2), a water inlet pipe (3), a filtering mechanism (4), a supporting mechanism (5), a storage mechanism (6), a discharging mechanism (7), a crushing mechanism (8), a slag discharging mechanism (9), a hanging ring (10) and a sealing mechanism (11); the top surface of the supporting mechanism (5) is provided with the storage mechanism (6), and the top surface of the storage mechanism (6) is provided with the feeding mechanism (2); the side wall of the feeding mechanism (2) is clamped with the closing mechanism (11), and the bottom end of the feeding mechanism (2) is in threaded connection with the filtering mechanism (4); the bottom surface of the storage mechanism (6) is in threaded connection with the bottom surface of the filtering mechanism (4), and the crushing mechanism (8) is installed inside the filtering mechanism (4); the motor (1) is installed on the top surface of the storage mechanism (6), and the motor (1) is rotatably connected with the filtering mechanism (4); the slag discharging mechanism (9) is arranged on the bottom surface of the filtering mechanism (4), and the hanging rings (10) are symmetrically arranged on the side wall of the filtering mechanism (4); the water inlet pipe (3) is installed on the side wall of the storage mechanism (6), and the discharging mechanism (7) is installed at the bottom end of the storage mechanism (6);

the storage mechanism (6) comprises a first fixed box (61) and a second fixed box (62), the motor (1) is installed on the top surface of the first fixed box (61), and the second fixed box (62) is installed on the side wall of the first fixed box (61);

the supporting mechanism (5) comprises four supporting columns (51) and a supporting plate (52), the top surface of the supporting plate (52) is provided with the first fixing box (61) and the second fixing box (62), and the bottom surface of the supporting plate (52) is fixedly connected with the supporting columns (51);

the feeding mechanism (2) comprises a fixed sleeve (21) and a feeding funnel (22), the feeding funnel (22) is installed on the top surface of the first fixed box (61), the bottom end of the feeding funnel (22) is communicated with the fixed sleeve (21), and the fixed sleeve (21) is fixed inside the first fixed box (61);

the filtering mechanism (4) comprises two connecting sleeves (41), two fixing plates (42) and a filter screen (43), the filter screen (43) is connected to the inside of the first fixing box (61) in a sliding mode, the connecting sleeves (41) are installed at two ends of the filter screen (43) respectively, the two connecting sleeves (41) are connected through the fixing plates (42), the two connecting sleeves (41) are connected with the bottom surfaces of the fixing sleeve (21) and the first fixing box (61) in a threaded mode respectively, and the hanging rings (10) are symmetrically installed on the side walls of the connecting sleeves (41) on the bottom surface of the filter screen (43);

the crushing mechanism (8) comprises a rotating shaft (81), a plurality of connecting rods (82) and a plurality of blades (83), the top end of the rotating shaft (81) is rotatably connected with the motor (1) on the top surface of the first fixed box (61), one end of the rotating shaft (81) extends into the fixed sleeve (21) and the hollow cylindrical filter screen (43), the connecting rods (82) are installed on the side wall of the rotating shaft (81) at equal intervals, the spiral blades (83) are installed on the side wall of the connecting rods (82), and the length of the connecting rods (82) is smaller than the inner diameter of the filter screen (43);

the slag discharging mechanism (9) comprises a second valve (91) and a discharge hole (92), the discharge hole (92) is arranged on the side wall of the connecting sleeve (41) on the bottom surface of the filter screen (43), and the second valve (91) is arranged on the side wall of the discharge hole (92);

the discharging mechanism (7) comprises a discharging pipe (71) and a first valve (72), the discharging pipe (71) is mounted on the side wall of the second fixed box (62), and the first valve (72) is mounted on the side wall of the discharging pipe (71);

the sealing mechanism (11) comprises a baffle (111), a first limiting rod (112), a spring (113) and a second limiting rod (114), the baffle (111) is clamped in the feeding funnel (22), the top surface of the baffle (111) is clamped with the first limiting rod (112), the first limiting rod (112) is connected with the second limiting rod (114) through the spring (113), and the second limiting rod (114) is fixed on the side wall of the feeding funnel (22);

during the use, the device is connected with a power supply, a proper amount of water is added into the first fixed box (61) and the second fixed box (62) through the water inlet pipe (3), the motor (1) is started, the motor (1) drives the rotating shaft (81) to rotate in the filter screen (43), the first limiting rod (112) is tightly held, the first limiting rod (112) slides into the second limiting rod (114), the spring in the second limiting rod (114) is compressed, the first limiting rod (112) is separated from the baffle (111), the baffle (111) with a proper length is drawn out from the feeding funnel (22), the proper width is opened, a proper amount of materials are added into the feeding funnel (22), and the materials enter the fixed sleeve (21) through the feeding funnel (22) at a constant speed;

the materials entering the interior of the fixed sleeve (21) enter the hollow cylindrical filter screen (43) at the bottom end of the fixed sleeve (21), the rotating shaft (81) drives the connecting rod (82) and the spiral blade (83) to rotate in the interior of the filter screen (43), the blade (83) is in contact with the materials in the interior of the filter screen (43) to crush the materials in the interior of the filter screen (43), and simultaneously stir the water in the interior of the first fixed box (61) and the second fixed box (62), so that the juice and the meat quality in the materials are blended into the water, and impurities in the materials are left in the interior of the filter screen (43);

after the materials are crushed, the motor (1) is closed, the first valve (72) is rotated, the discharge pipe (71) is opened, and paper pulp in the first fixed box (61) and the second fixed box (62) is discharged through the discharge pipe (71);

after the paper pulp is discharged; closing the first valve (72), opening the second valve (91), and opening a discharge hole (92) in the bottom surface of the connecting sleeve (41) to discharge residues in the filter screen (43) from the discharge hole (92); when the residues in the filter screen (43) are accumulated too much, the rotary hanging ring (10) is held tightly, the connecting sleeves (41) positioned on the bottom surface of the supporting plate (52) are rotated, the two connecting sleeves (41) are distributed in the first fixing box (61) and the fixing sleeve (21) to rotate, the connecting sleeves (41) are separated from the first fixing box (61) and the fixing sleeve (21), the filter screen (43) between the connecting sleeves (41) is taken out from the first fixing box (61), the residues in the filter screen (43) are cleaned, the first fixing box (61) is opened, the residues on the blades (83) are cleaned, after the residues are cleaned, the filter screen (43) is placed in the first fixing box (61), the rotating shaft (81) is positioned in the filter screen (43), the hanging ring (10) is rotated, the connecting sleeves (41) at the two ends of the filter screen (43) are respectively in threaded connection with the first fixing box (61) and the fixing sleeve (21), a strainer (43) is fixed inside the first fixing case (61).
