CN108581483B - Drilling and milling special machine for automobile parts - Google Patents
Drilling and milling special machine for automobile parts Download PDFInfo
- Publication number
- CN108581483B CN108581483B CN201810411082.7A CN201810411082A CN108581483B CN 108581483 B CN108581483 B CN 108581483B CN 201810411082 A CN201810411082 A CN 201810411082A CN 108581483 B CN108581483 B CN 108581483B
- Authority
- CN
- China
- Prior art keywords
- turnover
- supporting rod
- drilling
- material supporting
- compressing
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B23—MACHINE TOOLS; METAL-WORKING NOT OTHERWISE PROVIDED FOR
- B23P—METAL-WORKING NOT OTHERWISE PROVIDED FOR; COMBINED OPERATIONS; UNIVERSAL MACHINE TOOLS
- B23P23/00—Machines or arrangements of machines for performing specified combinations of different metal-working operations not covered by a single other subclass
- B23P23/02—Machine tools for performing different machining operations
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B23—MACHINE TOOLS; METAL-WORKING NOT OTHERWISE PROVIDED FOR
- B23Q—DETAILS, COMPONENTS, OR ACCESSORIES FOR MACHINE TOOLS, e.g. ARRANGEMENTS FOR COPYING OR CONTROLLING; MACHINE TOOLS IN GENERAL CHARACTERISED BY THE CONSTRUCTION OF PARTICULAR DETAILS OR COMPONENTS; COMBINATIONS OR ASSOCIATIONS OF METAL-WORKING MACHINES, NOT DIRECTED TO A PARTICULAR RESULT
- B23Q11/00—Accessories fitted to machine tools for keeping tools or parts of the machine in good working condition or for cooling work; Safety devices specially combined with or arranged in, or specially adapted for use in connection with, machine tools
- B23Q11/0042—Devices for removing chips
- B23Q11/0067—Devices for removing chips chip containers located under a machine or under a chip conveyor
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B23—MACHINE TOOLS; METAL-WORKING NOT OTHERWISE PROVIDED FOR
- B23Q—DETAILS, COMPONENTS, OR ACCESSORIES FOR MACHINE TOOLS, e.g. ARRANGEMENTS FOR COPYING OR CONTROLLING; MACHINE TOOLS IN GENERAL CHARACTERISED BY THE CONSTRUCTION OF PARTICULAR DETAILS OR COMPONENTS; COMBINATIONS OR ASSOCIATIONS OF METAL-WORKING MACHINES, NOT DIRECTED TO A PARTICULAR RESULT
- B23Q3/00—Devices holding, supporting, or positioning work or tools, of a kind normally removable from the machine
- B23Q3/02—Devices holding, supporting, or positioning work or tools, of a kind normally removable from the machine for mounting on a work-table, tool-slide, or analogous part
- B23Q3/06—Work-clamping means
- B23Q3/08—Work-clamping means other than mechanically-actuated
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B23—MACHINE TOOLS; METAL-WORKING NOT OTHERWISE PROVIDED FOR
- B23Q—DETAILS, COMPONENTS, OR ACCESSORIES FOR MACHINE TOOLS, e.g. ARRANGEMENTS FOR COPYING OR CONTROLLING; MACHINE TOOLS IN GENERAL CHARACTERISED BY THE CONSTRUCTION OF PARTICULAR DETAILS OR COMPONENTS; COMBINATIONS OR ASSOCIATIONS OF METAL-WORKING MACHINES, NOT DIRECTED TO A PARTICULAR RESULT
- B23Q7/00—Arrangements for handling work specially combined with or arranged in, or specially adapted for use in connection with, machine tools, e.g. for conveying, loading, positioning, discharging, sorting
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B23—MACHINE TOOLS; METAL-WORKING NOT OTHERWISE PROVIDED FOR
- B23Q—DETAILS, COMPONENTS, OR ACCESSORIES FOR MACHINE TOOLS, e.g. ARRANGEMENTS FOR COPYING OR CONTROLLING; MACHINE TOOLS IN GENERAL CHARACTERISED BY THE CONSTRUCTION OF PARTICULAR DETAILS OR COMPONENTS; COMBINATIONS OR ASSOCIATIONS OF METAL-WORKING MACHINES, NOT DIRECTED TO A PARTICULAR RESULT
- B23Q7/00—Arrangements for handling work specially combined with or arranged in, or specially adapted for use in connection with, machine tools, e.g. for conveying, loading, positioning, discharging, sorting
- B23Q7/06—Arrangements for handling work specially combined with or arranged in, or specially adapted for use in connection with, machine tools, e.g. for conveying, loading, positioning, discharging, sorting by means of pushers
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B23—MACHINE TOOLS; METAL-WORKING NOT OTHERWISE PROVIDED FOR
- B23Q—DETAILS, COMPONENTS, OR ACCESSORIES FOR MACHINE TOOLS, e.g. ARRANGEMENTS FOR COPYING OR CONTROLLING; MACHINE TOOLS IN GENERAL CHARACTERISED BY THE CONSTRUCTION OF PARTICULAR DETAILS OR COMPONENTS; COMBINATIONS OR ASSOCIATIONS OF METAL-WORKING MACHINES, NOT DIRECTED TO A PARTICULAR RESULT
- B23Q7/00—Arrangements for handling work specially combined with or arranged in, or specially adapted for use in connection with, machine tools, e.g. for conveying, loading, positioning, discharging, sorting
- B23Q7/10—Arrangements for handling work specially combined with or arranged in, or specially adapted for use in connection with, machine tools, e.g. for conveying, loading, positioning, discharging, sorting by means of magazines
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B23—MACHINE TOOLS; METAL-WORKING NOT OTHERWISE PROVIDED FOR
- B23Q—DETAILS, COMPONENTS, OR ACCESSORIES FOR MACHINE TOOLS, e.g. ARRANGEMENTS FOR COPYING OR CONTROLLING; MACHINE TOOLS IN GENERAL CHARACTERISED BY THE CONSTRUCTION OF PARTICULAR DETAILS OR COMPONENTS; COMBINATIONS OR ASSOCIATIONS OF METAL-WORKING MACHINES, NOT DIRECTED TO A PARTICULAR RESULT
- B23Q2703/00—Work clamping
- B23Q2703/02—Work clamping means
- B23Q2703/04—Work clamping means using fluid means or a vacuum
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02P—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
- Y02P70/00—Climate change mitigation technologies in the production process for final industrial or consumer products
- Y02P70/10—Greenhouse gas [GHG] capture, material saving, heat recovery or other energy efficient measures, e.g. motor control, characterised by manufacturing processes, e.g. for rolling metal or metal working
Landscapes
- Engineering & Computer Science (AREA)
- Mechanical Engineering (AREA)
- Physics & Mathematics (AREA)
- Optics & Photonics (AREA)
- Disintegrating Or Milling (AREA)
- Perforating, Stamping-Out Or Severing By Means Other Than Cutting (AREA)
Abstract
The invention belongs to the technical field of automobile part tools and provides an automobile part drilling and milling special machine which comprises a main frame and an upper frame, wherein a drilling and milling platform is arranged on the main frame, a power drilling and milling device is arranged on the upper frame, a clamp is arranged on the drilling and milling platform, a pressing mechanism for fixing a product to be processed is arranged on the clamp, a plurality of overturning material-pushing mechanisms are arranged on the drilling and milling platform at intervals, a transverse pushing mechanism is arranged beside each overturning material-pushing mechanism, and hoppers are arranged at two ends of the drilling and milling platform. Compared with the prior art, the invention has the advantages that the vertical material ejection mechanism is optimized into the overturning material ejection mechanism, the overturning material supporting rod is not required to be disassembled, the overturning material supporting rod is directly rotated by a certain angle around the hinge pin, the die changing can be realized by avoiding the clamp, the time of operators is saved, the operation difficulty is reduced, the manual material taking operation of the operators is thoroughly realized, and more importantly, the mass production capacity of products is improved.
Description
Technical Field
The invention belongs to the technical field of automobile part tools, and relates to a special drilling and milling machine for automobile parts.
Background
In the field of automobiles, as a door frame of a main part of the automobile, milling equipment and a special clamp are generally needed when holes are milled on the door frame, and the clamp has the problems that the productivity of products is firstly faced in the use process, and the convenience of taking the parts can influence the productivity of the products after the products are processed; when the clamp is replaced, the convenience of replacing the clamp influences the processing of the product in the next working procedure and also influences the productivity of the product. Firstly, current tradition drilling mills special plane, and its pick-off unit's structure is vertical liftout mechanism: the material supporting rod is directly arranged on the air cylinder through the mounting block and moves up and down along with the piston rod of the air cylinder, and the structure has the defect that the material supporting rod cannot be overturned, so that when a clamp on equipment needs to be replaced, the clamp can be replaced only after the clamp is removed in advance, the time of operators is wasted, the operation difficulty is improved, and the mass production capacity of products is influenced; secondly, the existing traditional drilling and milling special machine only has the advantages that a workpiece taking mode is that a cylinder vertically upwards supports a product, and then the product slides downwards along the material supporting rod through the inclination of the blanking rod. However, in the actual operation process, due to the complexity of the structure of the product, the product cannot slide down along the material dragging rod every time, so that the material taking mechanism loses meaning, the time for manually taking the material again by an operator is wasted, and more importantly, the mass production capacity of the product is influenced.
Disclosure of Invention
Aiming at the current state of the art, the technical problem to be solved by the invention is to provide the special drilling and milling machine for the automobile parts, which has a simple structure and can realize quick die change and automatically take out parts.
The technical scheme adopted for solving the technical problems is as follows: the utility model provides an automobile parts drilling mills special plane, includes main frame and upper frame, the main frame on have drilling and milling platform, the upper frame on install power drilling and milling device, power drilling and milling device aims at drilling and milling platform, its characterized in that, drilling and milling bench on be provided with anchor clamps, be provided with the hold-down mechanism that is used for waiting to process the product fixed on the anchor clamps, be provided with a plurality of upset liftout mechanisms at the bench interval of drilling and milling, every upset liftout mechanism is other to be provided with horizontal ejecting mechanism, the both ends of drilling and milling platform are provided with the hopper, the in-process horizontal ejecting mechanism that upset liftout mechanism upwards held up the product when getting the piece transversely pushes out the product and makes its hopper in turn to thoroughly realize getting the piece.
In the special drilling and milling machine for automobile parts, the overturning jacking mechanism comprises an overturning supporting rod, an ejection cylinder, a first overturning mounting plate, a second overturning mounting plate and a hinge pin, wherein the first overturning mounting plate is fixed at the output end of the ejection cylinder, the second overturning mounting plate is fixed on the first overturning mounting plate, an overturning space is formed in the second overturning mounting plate, the overturning supporting rod is connected to the second overturning mounting plate through the hinge pin, and the overturning supporting rod can overturn upwards in the overturning space to avoid a clamp.
In the special drilling and milling machine for automobile parts, a hinged connection block is arranged between the overturning supporting rod and the hinged end of the second overturning mounting plate, the hinged connection block comprises a hinged fixing part and an upper overturning limiting part, an upper limiting block is arranged on the upper side of the second overturning mounting plate, and the overturning supporting rod abuts against the upper limiting block after overturning and enables the overturning supporting rod to be in an open state.
In the special drilling and milling machine for the automobile parts, the lower limiting block is arranged on the lower side of the second overturning mounting plate, and the overturning supporting rod abuts against the lower limiting block when in a supporting state.
In the special drilling and milling machine for automobile parts, the transverse pushing mechanism comprises the transverse air cylinder and the transverse material supporting rod, the transverse material supporting rod is connected with the transverse air cylinder, the overturning air cylinder ejects a product upwards, the inclination of the overturning blanking rod enables the product to slide downwards along the overturning material supporting rod and the transverse material supporting rod, and meanwhile the transverse air cylinder drives the transverse material supporting rod to push the product out transversely, so that the product falls into the hopper along the direction of the material supporting rod, and a workpiece taking effect is thoroughly achieved.
In the special drilling and milling machine for automobile parts, the compressing mechanism comprises a compressing cylinder, a compressing fixed block and a compressing piece, wherein a hinged linkage piece is arranged between the compressing fixed block and the compressing piece, the compressing piece is connected onto the compressing fixed block through the hinged linkage piece, a limiting backer for limiting the compressing piece to move further is arranged on the compressing fixed block, the left end part of the compressing piece is provided with a compressing cover opening with a downward opening, and the right end part of the compressing piece is fixedly connected with an output rod of the compressing cylinder.
In the special drilling and milling machine for the automobile parts, the waste guide box is arranged below the drilling and milling table, and the waste box is arranged at the lower end of the waste guide box.
In the special drilling and milling machine for the automobile parts, safety gratings are arranged at a plurality of positions of the drilling and milling table.
Compared with the prior art, the invention has the advantages that
1. The vertical material ejection mechanism is optimized to be a turnover material ejection mechanism, so that when the clamp is replaced, the turnover material supporting rod is not required to be disassembled, the turnover material supporting rod is directly rotated to rotate a certain angle around the hinge pin, the clamp is avoided, the die replacement can be realized, the time of an operator is saved, and the operation difficulty is reduced;
2. through increasing four pairs of horizontal ejecting mechanisms for at equipment in getting a in-process, in the in-process that upset liftout mechanism held up the product, transversely release the product, make it fall to the hopper along holding in the palm the material pole direction in, and then thoroughly realize getting a, thoroughly cancel the manual operation of getting of operator, more importantly promotes the mass production productivity of product.
Drawings

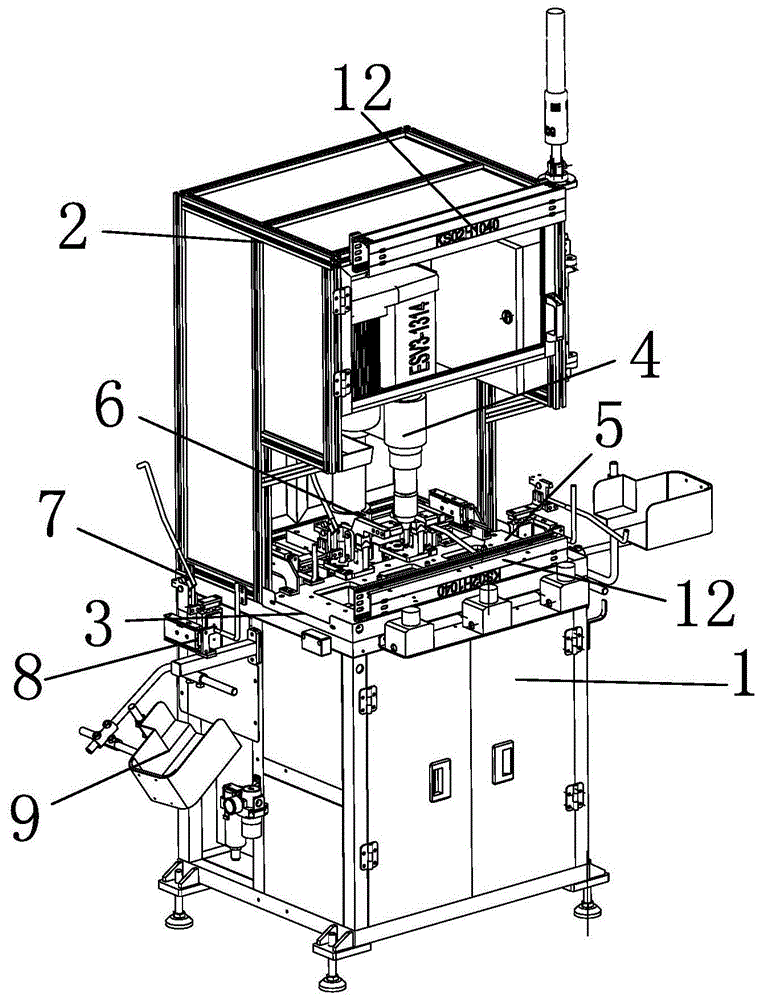

FIG. 1 is a schematic diagram of the whole structure of a drilling and milling special machine for automobile parts;
FIG. 2 is a schematic diagram of the internal structure of the drilling and milling special machine for automobile parts;
FIG. 3 is a schematic structural view of the hold-down mechanism;
FIG. 4 is a schematic structural view of the hold-down mechanism on a drilling and milling machine;
FIG. 5 is a schematic structural view of a flip-top mechanism;
fig. 6 is a schematic structural view of the lateral pushing-out mechanism.
Detailed Description
The following are specific embodiments of the present invention and the technical solutions of the present invention will be further described with reference to the accompanying drawings, but the present invention is not limited to these embodiments.
In the figure, a main frame 1; an upper frame 2; a drilling and milling table 3; a power drilling and milling device 4; a clamp 5; a pressing mechanism 6; a turnover material ejection mechanism 7; a lateral push-out mechanism 8; a hopper 9; a waste guide box 10; a waste bin 11; a security grating 12; a pressing cylinder 13; compressing the fixed block 14; a pressing member 15; a pressing cap port 151; a limit rest 16; the material supporting rod 17 is turned over; an ejector cylinder 18; a first flip mounting plate 19; a second flip mounting plate 20; a hinge pin 21; a lower stopper 22; a hinged connection block 23; a hinge fixing part 231; an upper turn limit part 232; an upper stopper 24; a lateral cylinder 25; a transverse stock bar 26.
As shown in fig. 1 and 2, the special drilling and milling machine for automobile parts comprises a main frame 1 and an upper frame 2, wherein a drilling and milling table 3 is arranged on the main frame 1, a power drilling and milling device 4 is arranged on the upper frame 2, the power drilling and milling device 4 is aligned to the drilling and milling table 3, a clamp 5 is arranged on the drilling and milling table 3, a pressing mechanism 6 for fixing a product to be processed is arranged on the clamp 5, a plurality of overturning ejection mechanisms 7 are arranged on the drilling and milling table 3 at intervals, a transverse pushing mechanism 8 is arranged beside each overturning ejection mechanism 7, hoppers 9 are arranged at two ends of the drilling and milling table 3, the overturning ejection mechanisms 7 transversely push out the product from the hoppers 9 in the process of lifting the product upwards during taking a piece, so that the taking of the piece is thoroughly realized, a waste guide box 10 is arranged below the drilling and milling table 3, a waste box 11 is arranged at the lower end of the waste guide box 10, the dust can be collected through the waste box 11, the work environment is protected, a plurality of positions of the drilling and milling table 3 are provided with a plurality of safety grating 12, and the whole drilling and milling process can be safely carried out through the grating 12.
As shown in fig. 3 and fig. 4, in order to make the door frame product put on the fixture 5 to compress tightly, the compressing mechanism 6 includes a compressing cylinder 13, a compressing fixed block 14 and a compressing piece 15, a hinge linkage is provided between the compressing fixed block 14 and the compressing piece 15, the compressing piece 15 is connected on the compressing fixed block 14 through the hinge linkage, a limiting backer 16 for limiting the compressing piece 15 to move further is provided on the compressing fixed block 14, the left end of the compressing piece 15 is provided with a compressing cover opening 151 with a downward opening, the right end of the compressing piece 15 is fixedly connected with an output rod of the compressing cylinder 13, and when the compressing cylinder 13 drives the right end of the compressing piece 15 to move, the compressing cover opening 151 at the left end of the compressing piece 15 compresses tightly the product, thereby facilitating the subsequent accurate drilling and milling process.
This patent is mainly used for carrying out drilling milling process to car door frame product, in order to fix the door frame product, need mill 3 mounting fixtures 5 at the drilling, current mode here is that the material supporting rod of upset liftout mechanism 7 is located fixture 5, when other products are produced, just need wholly dismantle the material supporting rod of upset liftout mechanism 7 after just can change fixture 5, the retooling process is loaded down with trivial details, fix after pressing down through hold-down mechanism 6 on fixture 5 when the door frame product, rethread power drilling milling device 4 just can carry out drilling milling process, still need automatic the getting after drilling milling, utilize the in-process horizontal ejecting mechanism 8 of upset liftout mechanism 7 upwards with the product support to transversely push out the product and make in its hopper 9 and then thoroughly realize getting the piece when getting the piece.
Specifically, the two main functions of the overturning and ejecting mechanism 7 are that the overturning and ejecting mechanism is used for ejecting upwards, the supporting rod is inclined in the process of supporting a product, the other function is that the quick clamp replacement process is convenient to realize, and the following steps are described, as shown in fig. 2 and 5, the overturning and ejecting mechanism 7 comprises an overturning supporting rod 17, an ejection cylinder 18, a first overturning mounting plate 19, a second overturning mounting plate 20 and a hinge pin 21, the first overturning mounting plate 19 is fixed at the output end of the ejection cylinder 18, the second overturning mounting plate 20 is fixed on the first overturning mounting plate 19, an overturning space is formed in the second overturning mounting plate 20, the overturning supporting rod 17 is hinged to the second overturning mounting plate 20 through the hinge pin 21, the overturning supporting rod 17 can overturn upwards in the overturning space to avoid the clamp 5, and when the ejecting process is realized, the ejection cylinder 18 drives the first turnover mounting plate 19 to move upwards, and the second turnover mounting plate 20 is fixedly connected with the first turnover mounting plate 19, so that the second turnover mounting plate 20 is driven to move upwards, and the turnover material supporting rod 17 is connected with the second turnover mounting plate 20, so that the turnover material supporting rod 17 can be driven to move upwards, the upward product supporting process is realized, the lower side of the second turnover mounting plate 20 is provided with a lower limiting block 22, the turnover material supporting rod 17 is propped against the lower limiting block 22 when the turnover material supporting rod 17 is in a material supporting state, the turnover material supporting rod 17 can be kept in a supporting state through the lower limiting block 22, the whole product is supported to push upwards, when the clamp 5 needs to be replaced, the turnover material supporting rod 17 and the hinged end of the second turnover mounting plate 20 are mainly completed through the following structure, the hinge connection block 23 comprises a hinge fixing part 231 and an upper overturning limiting part 232, the upper limiting part 24 is arranged on the upper side of the second overturning mounting plate 20, the overturning supporting rod 17 is abutted against the upper limiting part 24 after overturning, the overturning supporting rod 17 is in an open state, and due to the hinge connection, the overturning supporting rod 17 can rotate, when the overturning supporting rod 17 is upwards overturned and leans against the upper limiting part 24, the clamp 5 can be in the open state, the overturning supporting rod 17 can not interfere with the clamp 5, so that the clamp 5 can be conveniently and quickly replaced, the die change can be realized, the time of operators can be saved, and the operation difficulty can be reduced.
In order to achieve automatic picking, as shown in fig. 6, the transverse pushing mechanism 8 includes a transverse cylinder 25 and a transverse supporting rod 26, the transverse supporting rod 26 is connected with the transverse cylinder 25, the overturning cylinder ejects the product upwards, the inclination of the overturning blanking rod enables the product to slide downwards along the overturning supporting rod 17 and the transverse supporting rod 26, meanwhile, the transverse cylinder 25 drives the transverse supporting rod 26 to push the product out transversely, the product is enabled to fall into the hopper 9 along the direction of the supporting rod, and further picking is achieved thoroughly, four pairs of transverse pushing mechanisms 8 are added, so that in the picking process of the equipment, the transverse supporting rod 26 is driven to push the product out transversely through the transverse cylinder 25, the product is enabled to fall into the hopper 9 along the direction of the supporting rod, further picking is achieved thoroughly, manual picking operation of operators is thoroughly canceled, and more importantly, the mass production of the product is improved.
The specific embodiments described herein are offered by way of example only to illustrate the spirit of the invention. Those skilled in the art may make various modifications or additions to the described embodiments or substitutions thereof without departing from the scope of the invention as defined in the accompanying claims.
Claims (2)
1. The special drilling and milling machine for the automobile parts comprises a main frame and an upper frame, wherein a drilling and milling table is arranged on the main frame, a power drilling and milling device is arranged on the upper frame, and the power drilling and milling device is aligned to the drilling and milling table; the turnover material supporting mechanism comprises a turnover material supporting rod, an ejection cylinder, a first turnover mounting plate, a second turnover mounting plate and a hinge pin, wherein the first turnover mounting plate is fixed at the output end of the ejection cylinder, the second turnover mounting plate is fixed on the first turnover mounting plate, a turnover space is formed in the second turnover mounting plate, the turnover material supporting rod is hinged to the second turnover mounting plate through the hinge pin, and the turnover material supporting rod can be turned upwards in the turnover space to avoid a clamp; the turnover material supporting rod is provided with a hinged connection block between the hinged ends of the turnover material supporting rod and the second turnover mounting plate, the hinged connection block comprises a hinged fixing part and an upper turnover limiting part, an upper limiting block is arranged on the upper side of the second turnover mounting plate, and the upper turnover limiting part of the turnover material supporting rod abuts against the upper limiting block after turnover and enables the turnover material supporting rod to be in an open state; a lower limiting block is arranged on the lower side of the second overturning mounting plate, and the overturning material supporting rod is abutted against the lower limiting block when the overturning material supporting rod is in a material supporting state; the transverse pushing mechanism comprises a transverse air cylinder and a transverse material supporting rod, the transverse material supporting rod is connected with the transverse air cylinder, the overturning air cylinder ejects a product upwards, the inclination of the overturning blanking rod enables the product to slide downwards along the overturning material supporting rod and the transverse material supporting rod, and meanwhile the transverse air cylinder drives the transverse material supporting rod to push the product out transversely, so that the product falls into the hopper along the material supporting rod direction, and the picking of the product is thoroughly realized; the compressing mechanism comprises a compressing cylinder, a compressing fixed block and a compressing piece, wherein a hinged linkage piece is arranged between the compressing fixed block and the compressing piece, the compressing piece is connected to the compressing fixed block through the hinged linkage piece, a limiting backer for limiting the compressing piece to move further is arranged on the compressing fixed block, the left end part of the compressing piece is provided with a compressing cover opening with a downward opening, and the right end part of the compressing piece is fixedly connected with an output rod of the compressing cylinder; the drilling and milling platform is provided with safety gratings at a plurality of positions, the upper frame is provided with the safety gratings, and the transverse pushing mechanism is provided with four pairs.
2. The special drilling and milling machine for automobile parts according to claim 1, wherein a waste guide box is arranged below the drilling and milling table, and a waste box is arranged at the lower end of the waste guide box.
