CN108580469B - A bottle rinsing device for food processing - Google Patents

Abstract

The invention provides a bottle rinsing device for food processing, comprising a main casing, a support ring and a main turntable; a motor casing is fixed inside the bottom of the main casing; the bottom of the support ring is also connected with the bottle A total of twelve supporting blocks are arranged in one-to-one correspondence on the placement seat; a transmission turntable is also fixedly installed at the bottom of the inner brush rod. The setting of the outer brush rod and the outer bristles is beneficial to improve the cleaning efficiency. After placing the bottle on the top of the support ring, control the multi-section electric push rod to push the support ring to move down until the outer side of the drive turntable and the outer side of the main turntable are in contact. Then turn on the motor. When the motor rotates, it will drive the main turntable to rotate. At this time, the main turntable will drive the outer brush bar and the outer bristles on the top to rotate continuously. The outer bristles will contact the outside of the bottle during the rotation process. The water can clean the outside of the bottle and the mouth of the bottle, and the inside and outside of the bottle can be cleaned in one cleaning, which improves the cleaning efficiency.

Description

A bottle rinsing device for food processing

technical field

The invention belongs to the technical field of bottle cleaning and food processing supporting equipment, and more particularly, particularly relates to a bottle washing device for food processing.

Background technique

Various bottles are often used in daily life, such as: wine bottles, beverage bottles, medicine bottles, etc. These bottles are used in a large amount. Therefore, it is extremely difficult to manually clean these bottles one by one in the production process. Slow, so now there are some bottle washers for auxiliary cleaning.

For example, the patent with the application number of 201620443791.X discloses a bottle washing machine dedicated to food processing plants, including a base, a controller, a speed control knob, and a power plug. The base is provided with the controller, and the controller A switch is set on one side of the controller, the speed control knob is set on one side of the controller, the power plug is set on one side of the speed control knob, a support frame is set on the base, a beam is set on the support frame, and the A tray is set on the beam, a bushing is set below the tray, a connecting rod is set inside the bushing, a brush is set on the top of the connecting rod, a coupling is set on the bottom of the connecting rod, and the lower part of the coupling Set up the motor. The beneficial effects are as follows: the device is simple and compact, easy to move, and the speed regulation knob can be set to flexibly control the rotational speed of the brush, which is more humane.

Another example is the patent with the application number of 201621466268.5, which discloses a bottle upside-down cleaning device, which is used for cleaning bottles with a larger upper diameter and a smaller lower diameter when inverted, including: a tank body, which is in the shape of a cuboid, and the tank body is A water outlet is provided; a first support plate is arranged above the tank body, and two ends of the first support plate are respectively fixedly connected with the tops of the two side walls along the length direction of the tank body; The driving roller is arranged in the vertical direction, and the bottom of the driving roller is rotatably connected with one end of the first support plate; the first driven roller is arranged in the vertical direction, and the bottom of the first driven roller is rotatably connected It is rotatably connected with the other end of the first support plate; the first belt is arranged on the driving roller and the first driven roller. The invention has the advantages of high efficiency in cleaning the bottle and less manpower required, and when cleaning the bottle, the method of hanging upside down is adopted, so that the stains are discharged together with the cleaning liquid without residue and cleaner.

Based on the above search findings, its two patents are combined with most of the bottle washing devices in the prior art, which have the following problems in use: the existing bottle washing devices only clean the inside of the bottle when washing the bottle, and The outside of the bottle has not been cleaned near the mouth of the bottle, which requires secondary cleaning after taking it out. The cleaning efficiency is low, and some upside-down cleaning devices directly place the bottle upside down on the top of the cleaning plate when the bottle is placed upside down. During cleaning, the bottle may rotate due to the friction of the brush, affecting normal cleaning.

Therefore, in view of this, the existing structure and defects are studied and improved, and a bottle washing device for food processing is provided, in order to achieve a more practical purpose.

SUMMARY OF THE INVENTION

In order to solve the above-mentioned technical problems, the present invention provides a bottle washing device for food processing, so as to solve the problem that the existing bottle washing device only cleans the inside of the bottle when washing the bottle, and the outer side of the bottle is near the mouth of the bottle. It has not been cleaned yet, which requires secondary cleaning after taking it out. The cleaning efficiency is low, and some devices for upside-down cleaning directly place the bottle upside down on the top of the cleaning plate when the bottle is placed upside down. The friction of the brush produces rotation, which affects the normal cleaning.

The purpose and effect of the bottle rinsing device for food processing of the present invention are achieved by the following specific technical means:

A bottle rinsing device for food processing, comprising a main housing, an inner brush bar, an inner brush, a support ring, a support block, an outer brush bar, an outer brush, a main turntable, a motor, a motor housing, a transmission turntable, and a bottle placement seat, pressure cap, multi-section electric push rod, water inlet pipe, outer cleaning nozzle and inner cleaning nozzle; a motor shell is fixed inside the bottom of the main shell; a motor is fixed inside the motor shell The rotating shaft of the motor passes through the motor casing and protrudes upwards from the top of the motor casing, and a main turntable is fixedly installed on the top of the rotating shaft of the motor; the top outer side of the main turntable is fixed and symmetrically installed with a total of four outer brush bars; one side of the four outer brush bars is provided with a set of outer bristles; a total of four multi-section electric push rods are fixed and symmetrically installed on the inner side of the top of the main casing; the four multi-section electric push rods The bottom of the rod is fixedly connected with a support ring; the top of the support ring is arranged in a circle and fixedly installed with a total of twelve bottle placement seats; a bottle is placed on the top of each bottle placement seat, and the top of the bottle is Both are provided with a pressure cap; the top of the bottle placement seat is also fixedly and symmetrically provided with two inner cleaning nozzles; the outer side of each bottle placement seat is symmetrically provided with two outer surfaces that are fixedly connected to the top of the support ring. cleaning nozzle; the outer side of the support ring is also connected with a water inlet pipe, and the other side of the water inlet pipe passes through one side of the main shell and extends outward; the bottom of the support ring is also connected to the bottle placing seat one by one A total of twelve supporting blocks are correspondingly arranged; each group of the supporting blocks and the inner side of the bottle placing seat are movably embedded with an inner brush rod, and two sets of inner brush bristles are symmetrically arranged on the outer side of the top of the inner brush rod; A transmission turntable is also fixedly installed at the bottom of the inner brush rod.

Further, the support ring is a structure that can move up and down, four groups of vertical rollers are fixed and symmetrically installed on the outside of the support ring, and four corresponding grooves are also arranged on the inside of the main casing.

Further, a plurality of transverse rollers are fixedly installed in a ring shape at the junction between the outer side of the inner brush rod and the support block, and the inner side of the support block is also provided with a corresponding annular groove.

Further, the outer side of the transmission turntable is an inclined structure that gradually shrinks inward from top to bottom, and a layer of rubber is fixed on the outer side of the inclined surface.

Further, the outer side of the main turntable is an inclined structure gradually shrinking inward from bottom to top, the inclination angle is consistent with the inclination angle of the outer side of the transmission turntable, and a layer of rubber is also fixed on the outside of the inclined surface of the main turntable.

Further, the top of the bottle placing seat is also provided with a total of four grooves in a cross-shaped fixed and symmetrical manner.

Further, a layer of anti-skid rubber is fixed on the inner side of the pressure cap.

Further, the support ring is a hollow structure, and the water inlet pipe, the outer cleaning nozzle and the inner cleaning nozzle are all communicated with the cavity inside the support ring.

Compared with the prior art, the present invention has the following beneficial effects:

The setting of the outer brush bar and the outer bristles is beneficial to improve the cleaning efficiency. After placing the bottle on the top of the support ring, control the multi-section electric push rod to push the support ring to move down until the outer side of the drive turntable and the outer side of the main turntable fit together. Then turn on the motor. When the motor rotates, it will drive the main turntable to rotate. At this time, the main turntable will drive the outer brush bar and the outer bristles on the top to rotate continuously. The outer bristles will contact the outside of the bottle during the rotation process. The water can clean the outside of the bottle and the mouth of the bottle, and the inside and outside of the bottle can be cleaned in one cleaning, which improves the cleaning efficiency.

The setting of the pressure cap is conducive to improving the cleaning effect. The inner side of the pressure cap is fixed with a layer of non-slip rubber. After the pressure cap is fixed on the top of the bottle, the anti-slip glue on the inner side will closely fit the top of the bottle to avoid pressing the cap. Shaking at the top of the bottle causes the bottle to be sideways, and the pressure cap can increase the downward pressure of the bottle, so that the bottle mouth and the top of the bottle seat are closely fitted, so that the inner brush rod and inner bristles rotate during the process It will not cause the bottle to rotate and ensure a good cleaning effect.

Description of drawings

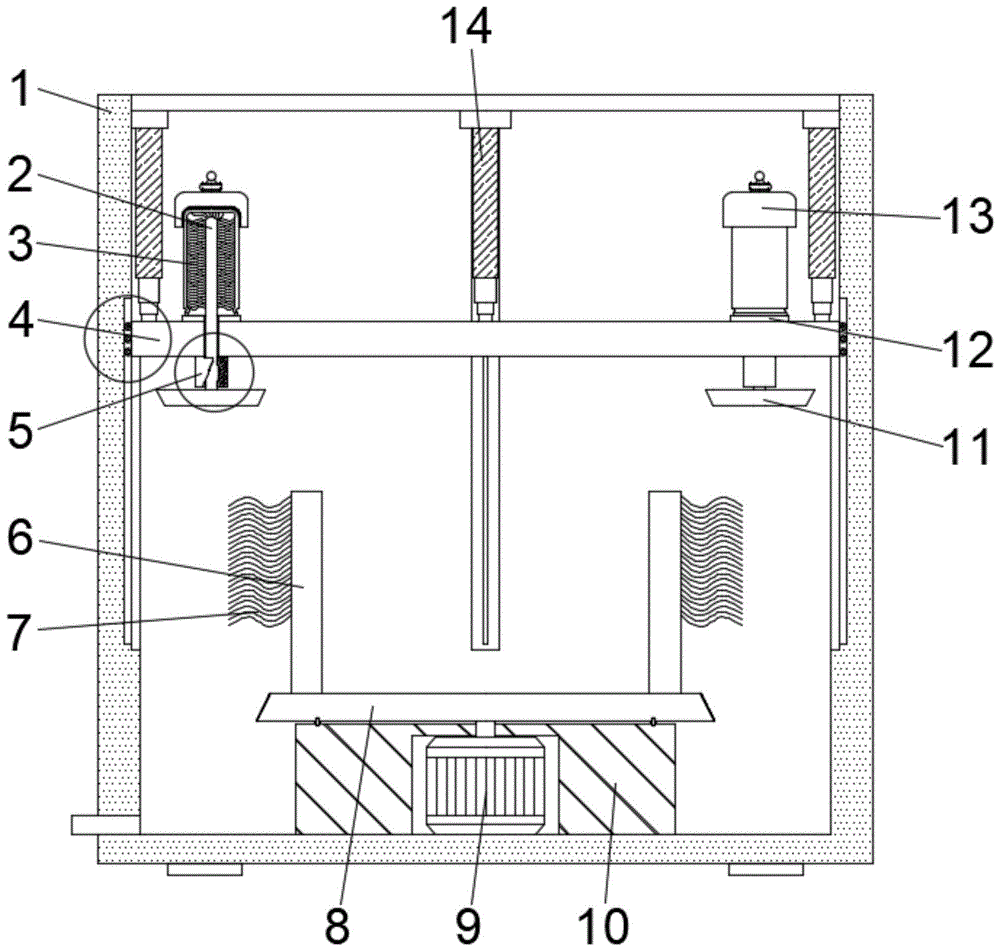

FIG. 1 is a schematic view of the main cross-sectional structure of the present invention.

FIG. 2 is a schematic top view of the structure of the present invention.

FIG. 3 is a schematic diagram of the lowering structure of the support ring of the present invention.

FIG. 4 is a schematic view of the partially enlarged structure of FIG. 2 of the present invention.

FIG. 5 is a partial enlarged structural schematic diagram of FIG. 1 of the present invention.

FIG. 6 is also a partial enlarged structural schematic diagram of FIG. 1 of the present invention.

FIG. 7 is a schematic view of the partially enlarged structure of FIG. 3 of the present invention.

8 is a schematic view of the main cross-sectional structure of the pressure cap of the present invention.

In the figure, the corresponding relationship between component names and drawing numbers is:

Main housing-1; Inner brush bar-2; Inner bristles-3; Support ring-4; Support block-5; Outer brush bar-6; Outer bristles-7; Main turntable-8; Motor-9; Motor housing -10; drive turntable-11; bottle holder-12; pressure cap-13; multi-section electric push rod-14; water inlet pipe-15; outer cleaning nozzle-16; inner cleaning nozzle-17.

Detailed ways

The embodiments of the present invention will be described in further detail below with reference to the accompanying drawings and examples. The following examples are intended to illustrate the present invention, but not to limit the scope of the present invention.

In the description of the present invention, unless otherwise stated, "plurality" means two or more; the terms "upper", "lower", "left", "right", "inner", "outer" The orientation or positional relationship indicated by , "front end", "rear end", "head", "tail", etc. are based on the orientation or positional relationship shown in the accompanying drawings, and are only for the convenience of describing the present invention and simplifying the description, not An indication or implication that the referred device or element must have a particular orientation, be constructed and operate in a particular orientation, is not to be construed as a limitation of the invention. Furthermore, the terms "first," "second," "third," etc. are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral connection. Ground connection; it can be a mechanical connection or an electrical connection; it can be directly connected or indirectly connected through an intermediate medium. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Example:

As shown in accompanying drawings 1 to 8:

The present invention provides a bottle rinsing device for food processing, comprising a main casing 1, an inner brush bar 2, an inner brush 3, a support ring 4, a support block 5, an outer brush bar 6, an outer brush 7, a main turntable 8, Motor 9, motor shell 10, transmission turntable 11, bottle placement seat 12, pressure cap 13, multi-section electric push rod 14, water inlet pipe 15, outer cleaning nozzle 16 and inner cleaning nozzle 17;

A motor housing 10 is fixedly arranged inside the bottom of the main housing 1; a motor 9 is fixedly installed inside the motor housing 10; , and a main turntable 8 is fixedly installed on the top of the rotating shaft of the motor 9; a total of four outer brush bars 6 are fixed and symmetrically installed on the outside of the top of the main turntable 8; one side of the four outer brush bars 6 is provided with a group of outer bristles 7 ; A total of four multi-section electric push rods 14 are fixed and symmetrically installed on the inner side of the top of the main casing 1;

The bottom of the four multi-section electric push rods 14 is fixedly connected with a support ring 4; the top of the support ring 4 is arranged in a circle and fixedly installed with a total of twelve bottle placing seats 12; the top of each bottle placing seat 12 is placed with A bottle, and the top of the bottle is provided with a pressure cap 13; the top of the bottle placing seat 12 is also fixed and symmetrically provided with two inner cleaning nozzles 17; the outer side of each bottle placing seat 12 is symmetrically provided with two and supporting The outer cleaning nozzle 16 fixedly connected to the top of the ring 4;

The outer side of the support ring 4 is also connected with a water inlet pipe 15, and the other side of the water inlet pipe 15 passes through one side of the main casing 1 and protrudes outward; the bottom of the support ring 4 is also in one-to-one correspondence with the bottle placement seat 12 A total of twelve support blocks 5 are provided; each group of support blocks 5 and the inner side of the bottle placement seat 12 are movably embedded and installed with an inner brush bar 2, and the top outer sides of the inner brush bar 2 are symmetrically provided with two groups of inner bristles 3 ; The bottom of the inner brush rod 2 is also fixedly installed with a transmission turntable 11.

The support ring 4 is a structure that can move up and down. A total of four groups of vertical rollers are fixed and symmetrically installed on the outside of the support ring 4, and four corresponding grooves are also provided on the inside of the main housing 1. When using By controlling the support ring 4 to move up and down, it is convenient to pick up and place the bottles to be cleaned. The rollers on the outside of the support ring 4 can roll up and down in the grooves on the inside of the main casing 1, which can reduce the friction caused by the support ring 4 moving up and down.

Wherein, a number of horizontal rollers are fixedly installed in a ring shape at the junction between the outer side of the inner brush bar 2 and the support block 5, and the inner side of the support block 5 is also provided with a corresponding annular groove, so that the inner brush bar 2 rotates These rollers will roll in the grooves on the inner side of the support block 5, and the fitting of the rollers with the grooves on the inner side of the support block 5 can play a certain supporting role.

The outer side of the transmission turntable 11 is an inclined structure that gradually shrinks inward from top to bottom, and a layer of rubber is fixed on the outer side of the inclined surface. When in use, the multi-section electric push rod 14 is controlled to push the support ring 4 to move downward to make the transmission The outer side of the turntable 11 is in contact with the outer side of the main turntable 8, and then the motor 9 is turned on. When the motor 9 rotates, it will drive the main turntable 8 to rotate. At this time, the main turntable 8 can drive the transmission turntable 11 and the inner brush bar 2 to rotate continuously. The inner bristles 3 on the inner brush rod 2 will rotate on the inside of the bottle, and the water sprayed by the inner cleaning nozzle 17 can clean the inner wall of the bottle, and the rubber on the outside can play a non-slip effect.

Wherein, the outer side of the main turntable 8 is an inclined structure that gradually shrinks inward from bottom to top, the inclination angle is consistent with the inclination angle of the outer side of the transmission turntable 11, and the outer side of the inclined surface of the main turntable 8 is also fixedly provided with a layer Rubber, when in use, control the multi-section electric push rod 14 to push the support ring 4 to move down so that the outer side of the transmission turntable 11 and the outer side of the main turntable 8 fit together, and then turn on the motor 9. When the motor 9 rotates, it will drive the main turntable 8 At this time, the main turntable 8 can drive the transmission turntable 11 and the inner brush bar 2 to rotate continuously, and the inner bristles 3 on the inner brush bar 2 will rotate on the inner side of the bottle. The inner wall is cleaned, and the rubber on the outside can play a non-slip effect.

Wherein, the top of the bottle placing seat 12 is also provided with a total of four grooves in a cross-shaped fixed and symmetrical shape. When cleaning the inside of the bottle, the cleaned water will flow to the top of the bottle placing seat 12 and flow downward through these grooves, and then It is discharged to the outside through the drain port on the bottom side of the main casing 1, which is convenient for cleaning up the sewage.

Wherein, the inner side of the pressure cap 13 is fixedly provided with a layer of anti-skid rubber. After the pressure cap 13 is fixed on the top of the bottle, the anti-slip rubber on the inner side will closely adhere to the top of the bottle to prevent the pressure cap 13 from being on the top of the bottle. The bottle is swayed sideways due to shaking, and the pressure cap 13 can increase the downward pressure of the bottle, so that the bottle mouth of the bottle and the top of the bottle placing seat 12 closely fit, so that the inner brush rod 2 and the inner brush 3 The process of rotating It will not cause the bottle to rotate and ensure a good cleaning effect.

The support ring 4 is a hollow structure, and the water inlet pipe 15, the outer cleaning nozzle 16 and the inner cleaning nozzle 17 are all communicated with the cavity inside the support ring 4. When cleaning the bottle, water is directly passed through the inlet. The water pipe 15 is transported into the cavity inside the support ring 4, and then the bottle can be directly sprayed out through the outer cleaning nozzle 16 and the inner cleaning nozzle 17 to clean the bottle, which is more convenient for cleaning.

The specific usage mode and function of this embodiment:

In the present invention, when using the device, first connect the external power supply, connect the outer end of the water inlet pipe 15 with the external water pipe and the water pump, and then use the external controller to control the multi-section electric push rods 14 to shrink. The electric push rod 14 will drive the support ring 4 to move upward, and when it moves to the top, the multi-section electric push rod 14 will be stopped from shrinking, and then the bottles to be cleaned are placed upside down on the top of each bottle placing seat 12, and the cap is pressed. 13 is placed above each cup that needs to be cleaned, and then use the external controller to control the multi-section electric push rod 14 to push the support ring 4 to move down. At this time, the support ring 4 will drive the bottle at the top and the drive turntable 11 at the bottom. Move down until the outer side of the transmission turntable 11 and the outer side of the main turntable 8 are in contact, then the operation of the multi-section electric push rod 14 can be stopped, and then the motor 9 is turned on. When the motor 9 rotates, it will drive the main turntable 8 to rotate. At this time, the main turntable 8 can drive the transmission turntable 11 and the inner brush bar 2 to rotate continuously, the inner bristles 3 on the inner brush bar 2 will rotate inside the bottle, and the water sprayed by the inner cleaning nozzle 17 can clean the inner wall of the bottle. During cleaning, the main turntable 8 will drive the outer brush bar 6 and the outer bristles 7 on the top to rotate continuously, and the outer bristles 7 will contact the outside of the bottle during the rotation. And the bottle mouth is cleaned, and the inside and outside of the bottle can be cleaned in one cleaning, which improves the cleaning efficiency.

The embodiments of the present invention are presented for purposes of illustration and description, and are not intended to be exhaustive or to limit the invention to the form disclosed. Many modifications and variations will be apparent to those of ordinary skill in the art. The embodiment was chosen and described in order to better explain the principles of the invention and the practical application, and to enable others of ordinary skill in the art to understand the invention for various embodiments with various modifications as are suited to the particular use.

Claims (3)

1. A bottle washing unit for food processing which characterized in that: the bottle washing device for food processing comprises a main shell, an inner brush rod, inner bristles, a support ring, a support block, an outer brush rod, outer bristles, a main rotary table, a motor shell, a transmission rotary table, a bottle placing seat, a pressing cap, a multi-section electric push rod, a water inlet pipe, an outer cleaning spray head and an inner cleaning spray head; a motor shell is fixedly arranged on the inner side of the bottom of the main shell; a motor is fixedly arranged in the motor shell; a rotating shaft of the motor penetrates through the motor shell and extends upwards from the top of the motor shell, and a main rotating disc is fixedly mounted at the top of the rotating shaft of the motor; the outer side of the top of the main turntable is fixedly and symmetrically provided with four outer brush rods; one side of each of the four outer brush rods is provided with a group of outer bristles; the inner side of the top of the main shell is also fixedly and symmetrically provided with four multi-section electric push rods; the bottoms of the four multi-section electric push rods are fixedly connected with a support ring; twelve bottle placing seats are fixedly arranged on the top of the support ring in a circular arrangement; a bottle is placed at the top of each bottle placing seat, and a pressing cap is arranged at the top of each bottle; the top of the bottle placing seat is also fixedly and symmetrically provided with two inner cleaning spray heads; two outer cleaning spray heads fixedly connected with the top of the support ring are symmetrically arranged on the outer side of each bottle placing seat; the outer side of the support ring is also connected with a water inlet pipe, and the other side of the water inlet pipe penetrates through one side of the main shell and extends outwards; twelve supporting blocks are arranged at the bottom of the supporting ring and correspond to the bottle placing seat one by one; an inner brush rod is movably embedded into the inner sides of each group of supporting blocks and the bottle placing seat, and two groups of inner bristles are symmetrically arranged on the outer sides of the tops of the inner brush rods; the bottom of the inner brush rod is also fixedly provided with a transmission turntable; a plurality of transverse rollers are fixedly mounted at the scarfing position of the outer side of the inner brush rod and the supporting block in an annular manner, and the inner side of the supporting block is also provided with a corresponding annular groove; the support ring is of a vertically movable structure, four groups of vertical rollers are fixedly and symmetrically arranged on the outer side of the support ring, and four corresponding grooves are also formed in the inner side of the main shell; the outer side of the main turntable is of an inclined structure which gradually shrinks inwards from bottom to top, the inclination angle is matched with that of the outer side of the transmission turntable, and a layer of rubber is fixedly arranged on the outer side of the inclined surface of the main turntable; the outer side of the transmission turntable is of an inclined structure which gradually shrinks inwards from top to bottom, and a layer of rubber is fixedly arranged on the outer side of the inclined surface; and the inner sides of the pressure caps are fixedly provided with a layer of anti-skid rubber.

2. The bottle washing apparatus for food processing as set forth in claim 1, wherein: the top of the bottle placing seat is also provided with four grooves in a cross shape in a fixed and symmetrical mode.

3. The bottle washing apparatus for food processing as set forth in claim 1, wherein: the inside hollow structure that is used for rivers circulation of support ring, and the inlet tube is linked together with the hollow structure of the inside outer washing shower nozzle and interior washing shower nozzle that are used for going out water and support ring.
