Abstract

The application belongs to the technical field of food processing equipment, in particular to an automatic dumpling wrapper making machine. The existing dumpling wrapper making equipment has low raw material utilization rate and poor continuous production capacity, and cannot effectively meet people's demand for dumpling wrappers. The application provides an automatic dumpling wrapper making machine, which includes a dumpling wrapper forming unit, a dough mixing unit and a control unit, the dumpling wrapper forming unit is connected to the control unit, and the dough mixing unit is connected to the control unit; the dumpling wrapper forming unit includes a lifting and rotating Mechanism and noodle cutting mechanism, the lifting and rotating mechanism is provided with a dumpling skin forming mechanism and a flour spreading mechanism, the noodle cutting mechanism is connected with the control unit, and a workbench is arranged between the lifting and rotating mechanism and the noodle cutting mechanism; the noodle mixing unit includes a kneading bucket, and The noodle barrel is arranged above the noodle cutting mechanism, and the noodle kneading mechanism and noodle pressing mechanism are arranged on the noodle barrel. The application can realize fast and fully automatic production of dumpling wrappers, and the prepared dumpling wrappers are equal in size, uniform in thickness and better in taste.

Description

An automatic dumpling skin making machine

technical field

The application belongs to the technical field of food processing equipment, in particular to an automatic dumpling wrapper making machine.

Background technique

Dumplings originated from the ancient Jiaozi. The original name of the dumpling is "Jiao Er". According to legend, it was first applied by Zhang Zhongjing, a Chinese medical sage. It has a history of more than 1,800 years. Dumplings are a traditional specialty food that is deeply loved by the Chinese people, also known as dumplings. It is a staple food and local snack among the people in northern China, and it is also a food for the New Year. There is a folk song called "Nice Cold and Little Cold, eat dumplings for the New Year." Dumplings are mostly boiled with dough stuffing.

Dumpling wrappers are an important material for making dumplings. Nowadays, people generally make dumpling wrappers by hand, and some rely on equipment to make dumpling wrappers. However, the existing equipment for making dumplings has low raw material utilization and poor continuous production capacity. Satisfy people's demand for dumpling wrappers.

Contents of the invention

1. Technical problems to be solved

Because dumpling wrappers are an important material for making dumplings, people generally make dumpling wrappers by hand, and some rely on equipment to make dumpling wrappers. However, the raw material utilization rate of existing dumpling-making equipment is not high, and the continuous production capacity is poor. To effectively meet people's needs for dumpling wrappers, the application provides an automatic dumpling wrapper making machine.

2. Technical solution

In order to achieve the above object, the application provides an automatic dumpling wrapper making machine, including a dumpling wrapper forming unit, a dough mixing unit and a control unit, the dumpling wrapper forming unit is connected with the control unit, and the dough mixing unit connected to the control unit;

The dumpling skin forming unit includes a lifting and rotating mechanism and a noodle-cutting mechanism. Workbenches are set up between institutions;

The dough kneading unit includes a kneading bucket, which is arranged above the noodle cutting mechanism, and a kneading mechanism and a noodle pressing mechanism are arranged on the kneading bucket.

Optionally, the dough mixing mechanism and the dough pressing mechanism are arranged opposite to each other.

Optionally, the dumpling skin forming mechanism includes a cross-pressing wheel, and the cross-pressing wheel is connected with the transmission box through a coupling.

Optionally, the lifting and rotating mechanism includes a slide rail, a sliding seat is arranged on the sliding rail, a motor is arranged under the sliding rail, the sliding seat is connected to a long rod, and the long rod is connected to a short rod. The rods are connected, the short rod is connected to the second motor, and the second motor is connected to the slide rail through a connecting plate.

Optionally, the flour spreading mechanism includes a flour spreading group, and the flour spreading group is connected with the transmission box 2 through the coupling 2.

Optionally, the kneading mechanism includes a support frame, and an axial positioning plate is arranged on the support frame, and the axial positioning plate includes a through hole, and a screw is arranged in the through hole, and the screw passes through The coupling three is connected with the electric motor in three phases, the screw and the axial positioning plate are respectively arranged on both sides of the support frame, and the electric motor three is provided with a motor positioning cover.

Optionally, the surface pressing mechanism includes a pressure plate, the pressure plate is connected to the support frame 2 through a worm, the support frame 2 is provided with an axial positioning plate 2, and the axial positioning plate 2 includes a through hole , the worm is arranged in the through hole, the worm is connected with the motor four through the coupling four, and the motor four is provided with a motor guide cover.

Optionally, the kneading bucket includes a bucket body, one side of the bucket body is provided with a first ear hole arm, the other side of the bucket body is provided with a second ear hole arm, and the surface of the bucket body is provided with a guide surface A baffle is provided under the second ear hole arm, and the baffle is movably connected with the bucket body.

Optionally, the noodle cutting mechanism includes two slide rails, on which two sliding seats are arranged, a first knife rest and a second knife rest are arranged on both sides of the two slide rails, and the first knife A first cutter and a second cutter are arranged between the frame and the second knife rest, the slide rail two is connected with the long rod two, the long rod two is connected with the short rod two, and the short rod Two are connected with the motor five-phase.

Optionally, the workbench mechanism includes a workbench, and a dumpling wrapper disc is arranged inside the workbench, and the workbench is connected to the motor in six phases.

3. Beneficial effect

Compared with the prior art, the beneficial effect of a kind of automatic dumpling wrapper making machine provided by the application is:

The automatic dumpling wrapper production machine provided by the present application realizes rapid and fully automatic production of dumpling wrappers by setting a dumpling wrapper forming unit, a dough mixing unit and a control unit, and the dumpling wrappers are equal in size, uniform in thickness and better in taste.

Description of drawings

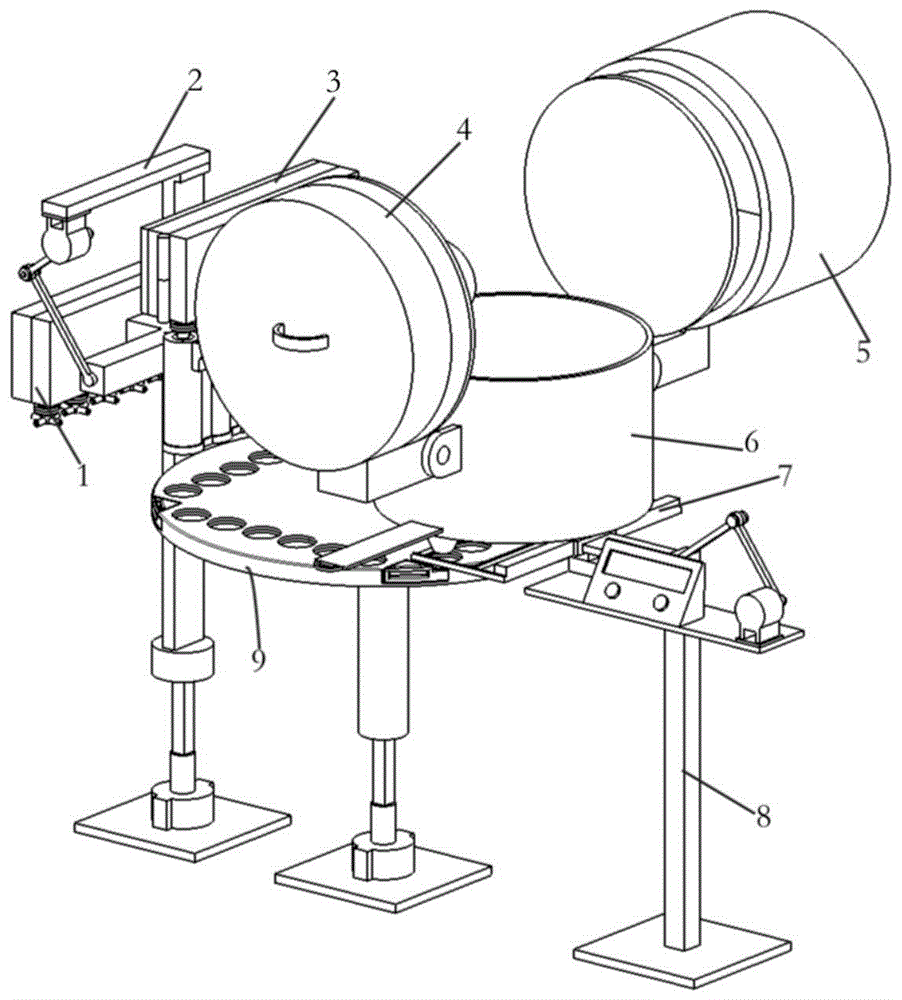

Fig. 1 is the structural representation of a kind of automatic dumpling skin making machine of the present application;

Fig. 2 is a kind of automatic dumpling wrapper making machine top view structural representation of the present application;

Fig. 3 is a kind of automatic dumpling skin making machine of the present application front view structural representation;

Fig. 4 is the structural representation of the dumpling wrapper forming mechanism of a kind of automatic dumpling wrapper making machine of the present application;

Fig. 5 is a schematic diagram of the structure of the cross pressing wheel of a kind of automatic dumpling wrapper making machine of the present application;

Fig. 6 is the structural representation of the transmission case of a kind of automatic dumpling wrapper making machine of the present application;

Fig. 7 is an exploded view of the transmission components of the transmission box of a kind of automatic dumpling wrapper making machine of the present application;

Fig. 8 is a partial enlarged view of the transmission group of the transmission box of a kind of automatic dumpling wrapper making machine of the present application;

Fig. 9 is a structural schematic diagram of the lifting and rotating mechanism of an automatic dumpling wrapper making machine of the present application;

Fig. 10 is a structural schematic diagram of a sliding seat of an automatic dumpling wrapper making machine of the present application;

Fig. 11 is a structural schematic diagram of a flour spreading mechanism of an automatic dumpling wrapper making machine of the present application;

Fig. 12 is an exploded view of the powdering components of an automatic dumpling wrapper making machine of the present application;

Fig. 13 is a partially enlarged view of the powder spreading group of an automatic dumpling wrapper making machine of the present application;

Fig. 14 is an exploded view of a kneading mechanism of an automatic dumpling wrapper making machine of the present application;

Fig. 15 is an exploded view of a noodle pressing mechanism of an automatic dumpling wrapper making machine of the present application;

Fig. 16 is a schematic structural view of a motor four of an automatic dumpling wrapper making machine of the present application;

Fig. 17 is a structural schematic diagram of a kneading bucket of an automatic dumpling wrapper making machine of the present application;

Fig. 18 is a structural schematic diagram of a cutter mechanism of an automatic dumpling wrapper making machine of the present application;

Fig. 19 is a partial exploded view of the cutter mechanism of an automatic dumpling wrapper making machine of the present application;

Fig. 20 is an exploded view of the workbench mechanism of an automatic dumpling wrapper making machine of the present application;

Fig. 21 is a partial enlarged view of the workbench mechanism of an automatic dumpling wrapper making machine of the present application;

Fig. 22 is a partially enlarged view of the dumpling wrapper plate of the workbench mechanism of an automatic dumpling wrapper making machine of the present application;

Fig. 23 is a structural schematic diagram of a control unit of an automatic dumpling wrapper making machine of the present application;

In the figure: 1-dumpling wrapper forming mechanism, 2-lifting and rotating mechanism, 3-flour spreading mechanism, 4-dough mixing mechanism, 5-noodle pressing mechanism, 6-noodle mixing bucket, 7-noodle cutting mechanism, 8-control unit, 9-workbench, 11-transmission box, 12-coupling, 13-cross pressing wheel, 110-nut, 111-case cover 1, 112-motor 7, 113-case cover 2, 114-transmission group, 1140 -Drive wheel, 1141-driven wheel, 1142-transmission shaft one, 1143-transmission shaft two, 1144-transmission shaft three, 1145-transmission shaft four, 1146-transmission shaft five, 1147-transmission shaft six, 1148-pin two, 1149-Drive belt 1, 1150-Drive belt 2, 1151-Drive belt 3, 131-roller, 132-pin, 133-cross frame, 21-long rod, 22-short rod, 23-motor 2, 24-connecting plate, 25- Sliding seat, 26-sliding rail, 27-motor, 31-transmission box two, 32-coupling two, 33-powder spreading group, 331-powder cage, 332-powder cage cover, 333-powder spreader one, 334-sprinkler 2, 335-screw, 41-screw, 42-support frame, 43-axial positioning plate, 44-motor positioning cover, 45-motor 3, 46-coupling 3, 51-pressure plate , 52-worm, 53-support frame 2, 54-axial positioning plate 2, 55-coupling 4, 56-motor 4, 57-motor guide cover, 61-surface guide, 62-first ear hole arm, 63-second ear hole arm, 64-baffle plate, 65-barrel body, 71-sliding seat two, 72-first cutter, 73-first knife holder, 74-second cutter, 75-second knife Frame, 76-slide rail 2, 77-long rod 2, 78-short rod 2, 79-motor 5, 81-controller, 82-support plate, 83-bracket, 91-dumpling skin plate, 92-workbench , 93-motor six.

Detailed ways

Hereinafter, specific embodiments of the present application will be described in detail with reference to the accompanying drawings. According to these detailed descriptions, those skilled in the art can clearly understand the present application and can implement the present application. Without departing from the principle of the present application, the features in different embodiments can be combined to obtain new implementations, or some features in certain embodiments can be replaced to obtain other preferred implementations.

Dumplings are a unique traditional delicacy of the Chinese nation. Because of their delicious taste and symbolic meaning of reunion, they are generally favored by the public. Because of the accelerated pace of life and high requirements for the taste of dumplings, people like to go to restaurants to eat after work. fresh dumplings.

Making dumplings is a slow and meticulous job, with a lot of preparation work, especially the supply of dumpling skins. In today's marketization, the speed of traditional manual making dumplings cannot keep up with the speed of customers' ordering. The key lies in the slow speed of rolling dumpling skins. It is time-consuming and laborious for the staff to urge the order, and the hands are easily injured. The quality of the dumpling wrappers can not be guaranteed. The increase in personnel and the production cost also greatly increase. The existing dumpling wrapper molds can only process the whole dough into dumpling wrappers, which takes a long time to prepare; moreover, there are residues of the dough after pouring the mold, and the utilization rate of the dough is not high; repeated operations are required by the staff, and the labor load is large. The existing small and medium-sized dumpling skin making machines do not have the function of kneading dough, and the dough cannot be kneaded in time if the dough is not enough. The degree of automation is not high, the continuous production capacity is poor, and the flexibility is poor. The operation is inconvenient; one or two dumpling wrappers are produced at a time, and the output per unit time is low; after the dumpling wrappers are produced, the dough remains, and the utilization rate of the dough is not high. The existing large-scale dumpling wrapper making machine has complicated mechanism, expensive equipment, and takes up a lot of space, so it can only be used in dumpling wrapper production plants and has a small scope of application.

To sum up, the existing dumpling wrapper making equipment and manual production methods have slow speed of making dumpling wrappers, low degree of automation, low utilization rate of raw materials, poor continuous production capacity, and small scope of application.

Referring to Figures 1-23, the present application provides an automatic dumpling wrapper making machine, including a dumpling wrapper forming unit, a dough mixing unit and a control unit 8, the dumpling wrapper forming unit is connected to the control unit 8, and the dough mixing unit The unit is connected with the control unit 8;

The dumpling wrapper forming unit includes a lifting and rotating mechanism 2 and a noodle cutting mechanism 7, the lifting and rotating mechanism 2 is provided with a dumpling wrapper forming mechanism 1 and a flour spreading mechanism 3, the noodle cutting mechanism 7 is connected with the control unit 8, A workbench 9 is arranged between the lifting and rotating mechanism 2 and the cutting mechanism 7;

The dough kneading unit includes a dough kneading bucket 6, which is arranged above the noodle cutting mechanism 7, and a dough kneading mechanism 4 and a noodle pressing mechanism 5 are arranged on the dough kneading bucket 6.

Optionally, the dough mixing mechanism 4 and the dough pressing mechanism 5 are arranged opposite to each other.

Referring to FIG. 4 , optionally, the dumpling skin forming mechanism 1 includes a cross-pressing wheel 13 , and the cross-pressing wheel 13 is connected to the transmission box 11 through a coupling 12 . The shaft of the transmission box 11, the joint of the coupling 12 and the cross pressing wheel 13 are all magnetic materials, and the magnetic force between them can ensure their normal operation.

Referring to Fig. 5, described cross pressing wheel 13 comprises four rollers 131, four safety pins 132, cross skeleton 133, and four described rollers 131 are sleeved on four thin shafts of described cross skeleton 133 respectively, then four The pins 132 are respectively inserted into the through holes on the thin shafts of the four cross frames 133 .

Referring to Fig. 6, described transmission case 11 comprises nut 110, case cover one 111, motor seven 112, case cover two 113, and transmission group 114; Described No. one motor 112 is installed on described case cover one 111 and described case In the motor positioning groove of cover two 113, the transmission group 114 is installed in the positioning groove of the transmission group of the first cover 111 and the second cover 113, and the thin shaft of the cover one 111 is inserted into the second cover two 113 in the circular through hole on the cylinder, the nut 110 is installed at the end of the thin shaft, the first cover 112 can be opened and closed by rotating around the thin shaft, the first cover 111 and the second cover 113 are engaged The surface is equipped with magnetic material, which can be attracted by opposite sexes.

7-8, the transmission group 114 includes a driving wheel 1140, a driven wheel 1141, a transmission shaft 1142, a transmission shaft 2 1143, a transmission shaft 3 1144, a transmission shaft 4 1145, a transmission shaft 5 1146, a transmission shaft 6 1147, Two pins 1148, two transmission belts one 1149, two transmission belts two 1150, three transmission belts 1151; the driving wheel 1140 and the five driven wheels 1141 are installed on the corresponding shafts respectively, and the six pins two 1148 are installed respectively In the circular through holes on the corresponding shafts, two transmission belts one 1149, two transmission belts two 1150 and three transmission belts 1151 are respectively installed in corresponding wheel grooves.

9-10, optionally, the lifting and rotating mechanism 2 includes a slide rail 26, a sliding seat 25 is arranged on the slide rail 26, a motor 27 is arranged under the slide rail 26, and the sliding seat 25 is connected with the long rod 21 , the long rod 21 is connected with the short rod 22 , the short rod 22 is connected with the second motor 23 , and the second motor 23 is connected with the slide rail 26 through the connecting plate 24 . The shaft of the motor 27 is installed in the square groove below the cylindrical platform of the slide rail 26, and the connection mode is an interference fit, and the motor 27 can carry the slide rail 26 to do circular motion; 26 is provided with the sliding seat 25, and the sliding seat 25 can move up and down along the slide rail 26; the connecting plate 24 connects the motor two 23 and the slide rail 26 in a point Welding; the short rod 22 is installed on the shaft of the motor two 23; the long rod 21 is connected with the short rod 22 through a bolt group; the long shaft on the connecting rod head of the long rod 21 is inserted into the sliding In the circular hole of seat 25.

Referring to FIG. 11 , optionally, the flour spreading mechanism 3 includes a flour spreading group 33 , and the flour spreading group 33 is connected to the transmission box 2 31 through a coupling 2 32 .

Referring to FIGS. 12-13 , the powder spreading group 33 includes a powder cage 331 , a powder cage cover 332 , six powder spreading sheets one 333 , six powder spreading sheets two 334 , and six screw rods 335 . There is a powder hopper on the powder cage 331. The first spreading sheet 333 and the second spreading sheet 334 are sequentially installed on the stepped thin shaft of the screw rod 335 , and the six screw rods 335 are installed inside the powder cage 331 . The powder cage cover 332 is installed at one end of the powder cage 331 close to the spreading sheet 333 .

Referring to Fig. 14, optionally, the dough mixing mechanism 4 includes a support frame 42, and an axial positioning plate 43 is arranged on the support frame 42, and the axial positioning plate 43 includes a through hole, and the through hole is set There is a screw 41, the screw 41 is connected with the motor three 45 through the coupling three 46, the screw 41 and the axial positioning plate 43 are respectively arranged on both sides of the support frame 42, the three motors 45 is provided with a motor positioning cover 44. The axial positioning plate 43 is installed on the step surface of the support frame 42, and the step surface of the axial positioning plate 43 is in the same direction as the step surface of the support frame 42; the screw 41 is installed on the shaft In the through hole with a stepped surface formed by the positioning plate 43, the rectangular shaft end surface of the screw 41 is in the same direction as the stepped surface of the axial positioning plate 43, and the shoulder surface of the screw 41 away from the rectangular shaft end surface is in the same direction as The stepped surfaces of the axial positioning plate 43 are in opposite directions. The third motor 45 and the screw 41 are connected through the third coupling 46; the motor positioning cover 44 is covered on the support frame 42, and the connection method is screw engagement.

Referring to Figures 15-16, optionally, the surface pressing mechanism 5 includes a pressure plate 51, the pressure plate 51 is connected to the support frame 2 53 through a worm 52, and the support frame 2 53 is provided with an axial positioning plate 2 54, the axial positioning plate 2 54 includes a through hole, the worm 52 is arranged in the through hole, the worm 52 is connected with the motor 4 56 through the coupling 4 55, and the motor 4 56 is connected A motor guide cover 57 is provided.

The pressure plate 51 is fixed together with the worm 52 by spot welding, and the installation method of the two axial positioning plates 54 and the support frame 2 53 is the same as the axial positioning in the kneading mechanism 4 The plate 43 is installed in the same way as the support frame 42; the worm 52 is installed in the through hole formed by the two axial positioning plates 54. The square shaft end of the worm 52 is connected with the motor 4 56 through the coupling 4 55 . The motor 4 56 includes a small wheel 561 and a body 562 , and the motor 4 56 can move up and down along the guide groove on the motor guide cover 57 . The motor guide cover 57 is covered on the support frame 2 53, and the connection method is screw engagement.

Referring to Fig. 17, optionally, the dough kneading bucket 6 includes a bucket body 65, a first ear hole arm 62 is provided on one side of the bucket body 65, and a second ear hole arm 63 is provided on the other side of the bucket body 65, A surface guide 61 is provided on the surface of the barrel body 65 , and a baffle plate 64 is arranged below the second ear hole arm 63 , and the baffle plate 64 is movably connected with the barrel body 65 .

The kneading bucket 6 includes a face guide 61, a first ear hole arm 62, a second ear hole arm 63, a baffle 64 and a barrel body 65; the six face guides 61 are sequentially installed on the barrel body by spot welding On the six circular through holes of 65, the large inner diameter of the surface guide 61 is equal to the diameter of the circular through holes; there is a surface measurement scale on the barrel body 65, and there is a rectangular through hole on the right side, and the baffle plate 64 is inserted into Inside the rectangular through hole, it can be pushed and pulled back and forth; the two first ear hole arms 62 and the two second ear hole arms 63 are respectively installed on the left and right outer walls of the barrel body 65 by spot welding.

Referring to Figures 18-19, optionally, the surface cutting mechanism 7 includes a second slide rail 76, on which a second slide seat 71 is arranged, and first tool rests are arranged on both sides of the second slide rail 76 73 and the second knife rest 75, the first cutter 72 and the second cutter 74 are arranged between the first knife rest 73 and the second knife rest 75, the slide rail two 76 and the long rod two 77 The second long rod 77 is connected with the second short rod 78, and the second short rod 78 is connected with the fifth motor 79.

The second cutter 74 is installed in the positioning grooves of the first knife rest 73 and the second knife rest 75; the first knife rest 73 and the second knife rest 75 are respectively installed on the sliding In the positioning grooves on the front and rear sides of the seat two 71; the two slide rails 76 are inserted into the rectangular through holes of the two slide seats 71; the first cutter 72 is installed on the left side of the two slide rails 76 by spot welding On the surface; the blades of the first cutter 72 and the second cutter 74 are in the same plane; there is a long shaft on the left connecting rod head of the long rod two 77, and the long shaft is inserted into the circular shape of the two slide rails 76 In the through hole, a nut is installed at the end of the long shaft; the left connecting rod head of the short rod two 78 is connected with the right connecting rod head of the long rod two 77 through a bolt group; the shaft of the motor five 79 is inserted into the short rod two In the 78 right connecting rod head, the axle end installs nut.

Referring to FIGS. 20-22 , optionally, the workbench mechanism 9 includes a workbench frame 92 , and a dumpling wrapper tray 91 is arranged inside the workbench frame 92 , and the workbench frame 92 is connected to a motor six 93 .

Described workbench frame 92 has four rectangular grooves, and the rectangular groove size is equal to the size of described dumpling wrapper dish 91, and four described dumpling wrapper disks 91 are respectively inserted in four rectangular grooves of described workbench frame 92; The bottom surface of the cylinder of the workbench 92 is provided with a rectangular groove, and the shaft of the motor six 93 is inserted into the rectangular groove on the bottom surface of the cylinder. circular motion.

Referring to Fig. 23, the control unit 8 includes a controller 81, a support plate 82, and a bracket 83; the controller 81 is arranged on the support plate 82; the support plate 82 is installed on the bracket 83 by spot welding; Described controller 81 carries out orderly control to the electric motor of dumpling skin forming mechanism 1, lifting and rotating mechanism 2, flour spreading mechanism 3, dough mixing mechanism 4, noodle pressing mechanism 5, noodle cutting mechanism 7 and workbench mechanism 9, to carry out normal Dumpling skin production.

The working process of this application:

1) Push the baffle 64 to block all the through holes of the barrel body 65, pour the water surface mixture into the barrel body 65, and the dough mixing mechanism 4 stirs the water surface mixture to form a dough. After completion, lift the dough mixing mechanism 4 and place Noodle pressing mechanism 5 pulls baffle plate 64, and the through holes of ladle body 65 are all exposed.

2) The motor two 23 of the lifting and rotating mechanism 2 rotates 180 degrees clockwise, and the flour spreading mechanism 3 is transferred to the top of the workbench mechanism 9, and the openings on the powder cage 331 of the flour spreading mechanism 3 are aligned with the upper group of the workbench 92 in turn. Six circular holes, the flour spreading mechanism 3 descends to the powder cage cover 332 apart from the workbench 5 millimeters under the drive of the motor two 23, and starts the flour spreading process.

3) After the circular grooves of one group of dumpling wrappers 91 are connected to the flour, the workbench 92 is driven by the motor 93 to rotate clockwise 90 degrees, and the circular grooves of the next group of dumpling wrappers 91 are connected to the flour, reciprocating successively .

4) When a group of dumpling skin trays 91 placed with flour are turned to directly below the mouth of the noodle guide 61, the noodle pressing mechanism 5 quantitatively squeezes the dough, and the first cut of the noodle cutting mechanism 7 arranged at the mouth of the noodle guide 61 The knife 72 moves forward under the drive of the motor five 79 to cut the noodle column, and the cut dough cake falls into the circular groove of the dumpling wrapper plate 91. After completion, the workbench 92 continues to rotate clockwise under the drive of the motor six 93 90 degrees, change a group of dumpling skin dish 91 circular grooves to connect the dough cake, and reciprocate successively; Place a group of dumpling skin disk 91 of dough cake and prepare to be sprinkled with flour for the second time.

5) When a group of dumpling wrapper trays 91 on which the noodles are placed are sprinkled with flour for the second time, the motor 2 23 of the lifting and rotating mechanism 2 rotates clockwise 180 degrees quickly, and the dumpling wrapper forming mechanism 1 is transferred to the place where the noodles are placed. A group of dumpling skin discs 91 are directly above, and the cross pressing wheel 13 rotates under the drive of the motor, while the dumpling skin forming mechanism 1 continues downwards under the drive of the motor 2 23, and the dough cake is spun into a dumpling skin with a thickness of 2 mm. Finally, the dumpling wrapper forming mechanism 1 rises to the 5 millimeter place of the bottom surface of the cross pressing wheel 13 apart from the workbench 92 under the drive of the motor two 23, and the motor of the lifting and rotating mechanism 2 rotates 180 degrees clockwise rapidly, and the flour spreading mechanism 3 again Be positioned at 5 millimeters directly above apart from workbench frame 92, simultaneously workbench frame 92 continues to rotate clockwise 90 degrees under the drive of motor 6 93, and the dumpling wrapper dish 91 of next group of dough cake is sprinkled with flour and is spun dough cake Make dumpling skins, and reciprocate in turn.

6) Pull out the dumpling wrapper tray 91 containing the dumpling wrappers from the square groove of the workbench 92 and pour it into the dumpling wrapper box, then insert the dumpling wrapper tray 91 into the square groove of the workbench 92, and the dumpling wrapper making process is completed .

The above process is repeated, and qualified dumpling skins are produced in large quantities quickly.

The advantage of the dumpling skin making machine that this application relates to:

1. The speed of making dumpling wrappers is fast and the qualified rate is high. This application forms multiple dumpling wrappers at one time, which is several times that of the existing dumpling wrapper making machine. The entire dumpling wrapper making process is performed manually, and the dumpling wrappers produced are equal in size, uniform in thickness and better in taste.

2. Higher degree of automation. Compared with the existing dumpling skin making machine, the present application adds a lifting mechanism, a dough mixing mechanism, a dough kneading device, a dough pressing mechanism, a flour spreading mechanism, a control device, an optimized cutter mechanism, a dumpling skin forming mechanism, a workbench mechanism, They replace the operations of kneading, kneading, cutting, spreading, pressing, and rolling manually, which makes making dumpling skins more convenient and accurate, saves labor costs, and saves time and effort.

3. High utilization rate of raw materials. Compared with the existing dumpling wrapper mechanism, the present application will not produce residual dough during the dumpling wrapper process, and through the control of the motors of each mechanism, the quantitative supply of flour and reconciled noodles can be realized, the noodle pillars can be cut on time and quickly, and the noodle cake can be accurately and quickly spun For dumpling wrappers.

4. High continuous production capacity. Compared with the existing dumpling skin making machine, this application has an added dough mixing mechanism, a large capacity and a noodle bucket that can provide the required amount of dough for making dumpling skins on time according to the number of customers, making dumpling skins more flexible and avoiding the need for dough. Problems of not enough and too much.

5. Wide application range. The utility model has the advantages of reasonable design, simple structure, small occupied space, good cost performance and low noise, and can be widely used in various restaurants.

When setting the components in each mechanism, it can be based on the amount of dumpling wrappers to be produced at one time, specifically, one or more dumpling wrappers can be produced at a time, and the corresponding components can be set in corresponding quantities.

Although the present application has been described above with reference to specific embodiments, those skilled in the art should understand that many modifications can be made to the configurations and details disclosed in the present application within the principles and scope disclosed in the present application. The protection scope of the present application is determined by the appended claims, and the claims are intended to cover all modifications included in the equivalent literal meaning or scope of the technical features in the claims.

Claims (9)

1. An automatic change dumpling wrapper processor which characterized in that: the dumpling wrapper forming device comprises a dumpling wrapper forming unit, a dough kneading unit and a control unit (8), wherein the dumpling wrapper forming unit is connected with the control unit (8), and the dough kneading unit is connected with the control unit (8);

the dumpling wrapper forming unit comprises a lifting rotating mechanism (2) and a dough cutting mechanism (7), wherein the lifting rotating mechanism (2) is provided with a dumpling wrapper forming mechanism (1) and a flour scattering mechanism (3), the dough cutting mechanism (7) is connected with the control unit (8), and a workbench (9) is arranged between the lifting rotating mechanism (2) and the dough cutting mechanism (7);

the dough kneading unit comprises a dough kneading barrel (6), the dough kneading barrel (6) is arranged above the dough cutting mechanism (7), and the dough kneading barrel (6) is provided with a dough kneading mechanism (4) and a dough pressing mechanism (5); the dumpling wrapper forming mechanism (1) comprises a cross dough pressing wheel (13), and the cross dough pressing wheel (13) is connected with a transmission case (11) through a coupler (12); the shaft of the transmission case (11), the joints of the coupler (12) and the cross-shaped surface pressing wheel (13) are made of magnetic materials.

2. An automated dumpling wrapper making machine according to claim 1, wherein: the dough kneading mechanism (4) and the dough pressing mechanism (5) are arranged in opposite directions.

3. An automated dumpling wrapper making machine according to claim 1, wherein: lifting rotation mechanism (2) are including slide rail (26), be provided with on slide rail (26) and slide seat (25), slide rail (26) below is provided with motor (27), slide seat (25) are connected with stock (21), stock (21) are connected with quarter butt (22), quarter butt (22) are connected with motor two (23), motor two (23) through connecting plate (24) with slide rail (26) are connected.

4. An automated dumpling wrapper making machine according to claim 1, wherein: the flour sprinkling mechanism (3) comprises a powder sprinkling group (33), and the powder sprinkling group (33) is connected with a transmission case II (31) through a coupling II (32).

5. An automated dumpling wrapper making machine according to claim 1, wherein: the dough kneading mechanism (4) comprises a supporting frame (42), an axial positioning plate (43) is arranged on the supporting frame (42), the axial positioning plate (43) comprises a through hole, a screw (41) is arranged in the through hole, the screw (41) is connected with a motor III (45) through a coupling III (46), the screw (41) and the axial positioning plate (43) are respectively arranged on two sides of the supporting frame (42), and a motor positioning cover (44) is arranged on the motor III (45).

6. An automated dumpling wrapper making machine according to claim 1, wherein: the noodle pressing mechanism (5) comprises a pressing plate (51), the pressing plate (51) is connected with a second supporting frame (53) through a worm (52), an axial locating plate (54) is arranged on the second supporting frame (53), the axial locating plate (54) comprises a through hole, the worm (52) is arranged in the through hole, the worm (52) is connected with a fourth motor (56) through a fourth coupling (55), and a fourth motor guiding cover (57) is arranged on the fourth motor (56).

7. An automated dumpling wrapper making machine according to claim 1, wherein: the dough kneading barrel (6) comprises a barrel body (65), a first earhole arm (62) is arranged on one side of the barrel body (65), a second earhole arm (63) is arranged on the other side of the barrel body (65), a guide surface device (61) is arranged on the surface of the barrel body (65), a baffle (64) is arranged below the second earhole arm (63), and the baffle (64) is movably connected with the barrel body (65).

8. An automated dumpling wrapper making machine according to claim 1, wherein: the cutting mechanism (7) comprises a second sliding rail (76), a second sliding seat (71) is arranged on the second sliding rail (76), a first cutter rest (73) and a second cutter rest (75) are arranged on two sides of the second sliding rail (76), a first cutter (72) and a second cutter (74) are arranged between the first cutter rest (73) and the second cutter rest (75), the second sliding rail (76) is connected with a second long rod (77), the second long rod (77) is connected with a second short rod (78), and the second short rod (78) is connected with a fifth motor (79).

9. An automated dumpling wrapper making machine according to any one of claims 1 to 8, wherein: the workbench mechanism (9) comprises a workbench frame (92), a dumpling wrapper disc (91) is arranged in the workbench frame (92), and the workbench frame (92) is connected with a motor six (93).
