Abstract
本发明公开了一种室内装修设计用装饰墙板及装饰墙，包括背板，背板上端设置有横梁，背板下端设置有支撑板，背板两侧分别设置有支撑柱一和支撑柱二，支撑柱一和支撑柱二之间且位于背板一侧依次均匀设置有若干装饰面板，其中，装饰面板与背板之间设置有驱动机构，支撑柱一和支撑柱二之间穿插设置有与驱动机构相配合的蜗杆，蜗杆与支撑柱一结合处设置有轴承一，蜗杆与支撑柱二结合处设置有轴承二，蜗杆上且位于支撑柱二内部套设有齿轮盘，齿轮盘一侧设置有齿轮，齿轮一端设置有转轴一，支撑柱二上且位于转轴位置处设置有开孔。有益效果：具有设计合理、安装拆卸方便、隔音效果好的优点。
The invention discloses a decorative wall panel and a decorative wall for interior decoration design, comprising a back panel, the upper end of the back panel is provided with a beam, the lower end of the back panel is provided with a support plate, and two sides of the back panel are respectively provided with a first support column and a second support column A number of decorative panels are arranged evenly between the first and second supporting columns and on one side of the back plate, wherein a driving mechanism is arranged between the decorative panel and the back plate, and a plurality of decorative panels are interspersed between the first and second supporting columns. The worm is matched with the driving mechanism. The first bearing is arranged at the joint of the worm and the supporting column, and the second bearing is arranged at the joint of the worm and the second supporting column. A gear plate is sleeved on the worm and located inside the second supporting column. One side of the gear plate A gear is provided, one end of the gear is provided with the first rotating shaft, and the second supporting column is provided with an opening at the position of the rotating shaft. Beneficial effects: the utility model has the advantages of reasonable design, convenient installation and disassembly, and good sound insulation effect.
Description
Technical Field
The invention relates to the technical field of decorative wallboards, in particular to a decorative wallboard and a decorative wall for interior decoration design.
Background
Along with the progress of society and the development of economy, people pursue the beauty of the indoor environment more while meeting the basic living environment, the indoor wall surface decoration material is an important component of building decoration, is a development hotspot and an important development field of the current novel building materials, the existing decoration wall boards in the market are more in variety, mainly comprise gypsum boards and composite wall boards, along with the enhancement of the environmental awareness of people, the fiber boards are more popular, most of the existing decoration wall surface decoration materials adopt wood fibers or other plant cellulose fibers as raw materials, urea-formaldehyde resin or other applicable adhesives are applied, the artificial boards are manufactured by paving and hot pressing, but the existing wood boards and solid wood decoration of the wall surface are mostly fixed by integral gluing or screws, the disassembly and assembly are very troublesome, the decoration effect is poor, and because a large amount of glue is adopted for fixation, the environment is not environment-friendly enough, the harm to human bodies is very easy to cause, along, the stability becomes low, and the condition that the wallboard drops easily appears.
An effective solution to the problems in the related art has not been proposed yet.
Disclosure of Invention
The present invention provides a decorative wall panel and a decorative wall for interior decoration to overcome the above technical problems of the prior art.
The technical scheme of the invention is realized as follows:
according to one aspect of the present invention, a decorative wallboard for interior decoration design is provided.
The decorative wallboard for indoor design comprises a back plate, wherein the upper end of the back plate is provided with a cross beam, the lower end of the back plate is provided with a supporting plate, a first support column and a second support column are respectively arranged at two sides of the back plate, a plurality of decoration panels are sequentially and uniformly arranged between the first support column and the second support column and at one side of the back plate, wherein a driving mechanism is arranged between the decorative panel and the back plate, a worm matched with the driving mechanism is inserted between the first supporting column and the second supporting column, a first bearing is arranged at the joint of the worm and the first support column, a second bearing is arranged at the joint of the worm and the second support column, a gear disc is sleeved on the worm and positioned in the second support column, a gear is arranged on one side of the gear disc, one end of the gear is provided with a first rotating shaft, and the second supporting column is provided with a hole at the position of the first rotating shaft.
Wherein, the driving mechanism comprises a fixed plate arranged at one side of the back plate, one side of the fixed plate far away from the back plate is provided with a first bearing seat, one side of the first bearing seat far away from the fixed plate is provided with a screw rod, the screw rod is sleeved with a turbine matched with the worm, one end of the screw rod far away from the first bearing seat is sleeved with a shaft sleeve, one end of the shaft sleeve far away from the screw rod is provided with a second bearing seat, one side of the second bearing seat is provided with a fixing mechanism matched with the decorative panel, one side of the shaft sleeve is provided with a fixing frame, the fixing frame is of an L-shaped structure, one end of the fixing frame far away from the shaft sleeve is connected with the fixed plate, the inner side of the fixing frame is provided with a limiting rod matched with the fixed, one end, far away from the limiting rod, of the limiting frame is connected with one side of the shaft sleeve, a fixing rod is arranged at the middle position of one side, close to the back plate, of the decorative panel, the fixing rod is of an arc structure, and a plurality of tooth sockets are uniformly arranged on the outer side of an arc of the fixing rod.
Wherein, the fixing mechanism comprises a shell arranged at one end of the bearing seat II, a channel is sleeved in the shell and is of an arc structure, a first limit strip is arranged at the arc outer side of the channel, a rotating shaft II matched with the shell is arranged at one end of the first limit strip close to the bearing seat II, a fixture block matched with the tooth socket is arranged at one end of the first limit strip close to the rotating shaft II, a first limit block and a second limit block are respectively arranged at one side of the first limit strip close to the rotating shaft II and one side of the first limit block close to the fixture block, a third rotating shaft is arranged at one side of the first limit block, a first pushing block matched with the first limit block is sleeved on the third rotating shaft, a movable block is arranged at one side of the first limit strip close to the channel, a first limit groove matched with the first limit block is arranged at one end of the movable block close to the first push block, the movable block is close to one side of first spacing is provided with a plurality of spacing groove two, first spacing with be provided with the opening orientation between the movable block promote the spring leaf of piece one, the spring leaf is close to the one end of movable block be provided with spacing groove two complex spacing of second, the casing is close to the one end of pivot two is provided with spacing hole, spacing downthehole portion is provided with spring one, spring one is close to the one end of movable block be provided with spacing hole matched with promote piece two, and, the casing is close to promote one side of piece one and be provided with the through-hole.
Furthermore, one end of the first rotating shaft, which is close to the opening, is provided with a first inner hexagonal screw hole.
Furthermore, one end of the first pushing block, which is close to the through hole, is provided with a second inner hexagonal screw hole.
Furthermore, a second spring is sleeved on the limiting rod and positioned between the fixed plate and the limiting frame.
Furthermore, the first spring and the second spring are both compression springs.
Furthermore, a sound insulation board is arranged inside the decoration panel.
Further, the acoustic celotex board includes the skeleton, the skeleton both sides all are provided with puigging one respectively, puigging one is kept away from one side of skeleton is provided with puigging two, and, the acoustic celotex board inside with the even interlude of skeleton vertical direction is provided with a plurality of sound-proof strips.
Furthermore, a plurality of sound insulation cavities are uniformly and crossly arranged inside the first sound insulation layer.
Further, two inside and being located of puigging are provided with the arc and give sound insulation between two liang of puigging, two inside and being located of puigging arc concave surface department of arc sound insulation has soundproof cotton.
According to another aspect of the present invention, there is provided a decorative wall for interior decoration design.
This interior design is with decorating wall includes decorating the wallboard, decorate the wallboard including foretell decoration wallboard.
The invention has the beneficial effects that: the driving mechanism is arranged between the decorative panel and the back plate, so that an operator can use the inner hexagon wrench to match with the inner hexagon screw hole I on the rotating shaft I through the opening formed in the supporting column II, the rotating shaft I driving gear is meshed with the gear disc, the gear disc drives the worm to move, the worm drives the turbine to rotate, the turbine drives the screw rod to move, the screw rod drives the shaft sleeve to move, the shaft sleeve drives the fixing mechanism to move outwards, the decorative panel moves outwards under the action of the driving mechanism, and therefore the decorative panel is convenient to replace by the user; when the decorative panel moves to the outermost side, a user is matched with the inner hexagonal screw hole through the inner hexagonal wrench, so that the first pushing block drives the first limiting block to move, the second limiting block drives the movable block to move through the first limiting groove, the clamping block on the first limiting strip is separated from the tooth socket on the fixed rod, the purpose of separating the decorative panel from the fixing mechanism is further achieved, and the user can replace the decorative panel conveniently; the sound insulation board is arranged in the decoration panel, so that the decoration panel has a sound insulation function, the sound insulation effect of the decoration wallboard is further ensured, and the comfort level of daily life of people is further improved; the invention has the advantages of reasonable design, convenient assembly and disassembly and good sound insulation effect.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without creative efforts.

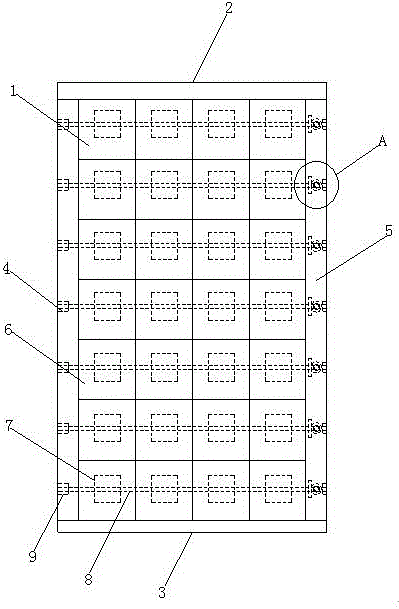

Fig. 1 is a schematic structural view of a decorative wall panel for interior decoration design according to an embodiment of the present invention;
FIG. 2 is an enlarged view of a portion of FIG. 1 at A;
fig. 3 is a schematic structural diagram of a driving mechanism of a decorative wall panel for interior decoration design according to an embodiment of the present invention;
fig. 4 is a schematic structural view of a decorative panel of a decorative wall panel for interior decoration design according to an embodiment of the present invention;
fig. 5 is a schematic structural view of a fixing mechanism of a decorative wall panel for interior decoration design according to an embodiment of the present invention;
fig. 6 is a schematic structural view of a sound insulation board of a decorative wall panel for interior decoration design according to an embodiment of the present invention.
In the figure: 1. a back plate; 2. a cross beam; 3. a support plate; 4. a first supporting column; 5. a second supporting column; 6. a decorative panel; 7. a drive mechanism; 8. a worm; 9. a first bearing; 10. a second bearing; 11. a gear plate; 12. a gear; 13. a first rotating shaft; 14. opening a hole; 15. a fixing plate; 16. a first bearing seat; 17. a screw rod; 18. a turbine; 19. a shaft sleeve; 20. a second bearing seat; 21. a fixing mechanism; 22. a fixed mount; 23. a limiting rod; 24. a limiting frame; 25. fixing the rod; 26. a tooth socket; 27. a housing; 28. a channel; 29. a first limit strip; 30. a second rotating shaft; 31. a clamping block; 32. a first limiting block; 33. a second limiting block; 34. a rotating shaft III; 35. a first pushing block; 36. a movable block; 37. a first limiting groove; 38. a second limiting groove; 39. a spring plate; 40. a second limit strip; 41. a limiting hole; 42. a first spring; 43. a second pushing block; 44. a second spring; 45. a sound insulating board; 46. a framework; 47. a first sound insulation layer; 48. a sound insulation layer II; 49. a sound insulating strip; 50. a sound-insulating cavity; 51. an arc-shaped sound insulation strip; 52. soundproof cotton.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments that can be derived by one of ordinary skill in the art from the embodiments given herein are intended to be within the scope of the present invention.
According to an embodiment of the present invention, there is provided a decorative wallboard for interior decoration design.
As shown in fig. 1 to 6, the decorative wall panel for interior design according to the embodiment of the present invention includes a back panel 1, a cross beam 2 is disposed at an upper end of the back panel 1, a support plate 3 is disposed at a lower end of the back panel 1, a first support column 4 and a second support column 5 are respectively disposed at two sides of the back panel 1, a plurality of decorative panels 6 are uniformly disposed between the first support column 4 and the second support column 5 and at one side of the back panel 1 in sequence, wherein a driving mechanism 7 is disposed between the decorative panels 6 and the back panel 1, a worm 8 matched with the driving mechanism 7 is inserted between the first support column 4 and the second support column 5, a first bearing 9 is disposed at a joint of the worm 8 and the first support column 4, a second bearing 10 is disposed at a joint of the worm 8 and the second support column 5, a gear plate 11 is sleeved on the worm 8 and, gear 12 is provided with on 11 one sides of gear dish, gear 12 one end is provided with pivot one 13, on the support column two 5 and be located pivot one 13 position department is provided with trompil 14.
Wherein, the driving mechanism 7 comprises a fixing plate 15 arranged on one side of the back plate 1, one side of the fixing plate 15 far away from the back plate 1 is provided with a first bearing seat 16, one side of the first bearing seat 16 far away from the fixing plate 15 is provided with a screw rod 17, the screw rod 17 is sleeved with a turbine 18 matched with the worm 8, one end of the screw rod 17 far away from the first bearing seat 16 is sleeved with a shaft sleeve 19, one end of the shaft sleeve 19 far away from the screw rod 17 is provided with a second bearing seat 20, one side of the second bearing seat 20 is provided with a fixing mechanism 21 matched with the decorative panel 6, one side of the shaft sleeve 19 is provided with a fixing frame 22, the fixing frame 22 is in an L-shaped structure, one end of the fixing frame 22 far away from the shaft sleeve 19 is connected with the fixing plate 15, and the, the limiting rod 23 is sleeved with a limiting frame 24, the limiting frame 24 is of an L-shaped structure, one end, far away from the limiting rod 23, of the limiting frame 24 is connected with one side of the shaft sleeve 19, a fixing rod 25 is arranged at the middle position, close to the back plate 1, of one side of the decorative panel 6, the fixing rod 25 is of an arc structure, and a plurality of tooth sockets 26 are uniformly arranged on the outer side of an arc of the fixing rod 25.
Wherein, the fixing mechanism 21 comprises a housing 27 arranged at one end of the bearing seat II 20, a channel 28 is sleeved inside the housing 27, the channel 28 is of an arc structure, a first limit strip 29 is arranged at the outer side of the arc of the channel 28, a second rotating shaft 30 matched with the housing 27 is arranged at one end of the first limit strip 29 close to the bearing seat II 20, a fixture block 31 matched with the tooth socket 26 is arranged at one end of the first limit strip 29 close to the rotating shaft II 30, a first limit block 32 and a second limit block 33 are respectively arranged at one side of the first limit strip 29 close to one end of the rotating shaft II 30 and far from the fixture block 31, a third rotating shaft 34 is arranged at one side of the first limit block 32, a first pushing block 35 matched with the second limit block 33 is sleeved on the third rotating shaft 34, and a movable block 36 is arranged at one side of the first limit strip 29 far from the channel 28, the movable block 36 is close to the one end that promotes piece one 35 be provided with two 33 matched with spacing grooves 37 of stopper, the movable block 36 is close to one side of first spacing strip 29 is provided with a plurality of spacing groove two 38, first spacing strip 29 with be provided with the opening orientation between the movable block 36 promote the spring leaf 39 of piece one 35, the spring leaf 39 is close to the one end of movable block 36 be provided with spacing groove two 38 matched with second spacing strip 40, casing 27 is close to the one end of pivot two 30 is provided with spacing hole 41, the inside spring 42 that is provided with of spacing hole 41, spring 42 is close to the one end of movable block 36 be provided with spacing hole 41 matched with promotes piece two 43, and, casing 27 is close to the one side that promotes piece one 35 is provided with the through-hole.
In one embodiment, for the first rotating shaft 13, a first hexagon socket screw hole is formed in one end, close to the opening 14, of the first rotating shaft 13, so that a user can conveniently use a conventional tool to install and detach the decoration panel 6, convenience in installation and detachment of the decoration panel 6 is improved, and working efficiency of the decoration panel 6 in installation and detachment is improved.
In one embodiment, for the first pushing block 35, a second hexagon socket screw hole is formed in one end, close to the through hole, of the first pushing block 35, so that a user can conveniently use a conventional tool to install and detach the decoration panel 6, convenience in installation and detachment of the decoration panel 6 is improved, and work efficiency of the decoration panel 6 in installation and detachment is improved.
In an embodiment, for the limiting rod 23, a second spring 44 is sleeved on the limiting rod 23 and between the fixing plate 15 and the limiting frame 24, so that the shaft sleeve 19 in the driving mechanism 7 is smoother when being reset, and the stability of the driving mechanism 7 in the using process is further improved.
In one embodiment, for the first spring 42, the first spring 42 and the second spring 44 are compression springs, so as to improve the stability of the driving mechanism 7 during use and improve the stability of the fixing mechanism 21 during use.
In one embodiment, as for the decoration panel 6, a sound insulation board 45 is disposed inside the decoration panel 6, so that the decoration panel 6 has a sound insulation function, and the comfort of people in daily life is improved.
In an embodiment, for the sound insulation board 45, the sound insulation board 45 includes a framework 46, two sides of the framework 46 are respectively provided with a first sound insulation layer 47, one side of the first sound insulation layer 47, which is far away from the framework 46, is provided with a second sound insulation layer 48, and a plurality of sound insulation strips 49 are uniformly inserted into the sound insulation board 45 in a direction perpendicular to the framework 46, so that the sound insulation effect of the decoration panel 6 is improved, and the comfort level of daily life of people is further improved.
In one embodiment, for the first sound insulation layer 47, a plurality of sound insulation cavities 50 are uniformly and crosswise arranged inside the first sound insulation layer 47, so that the sound insulation effect of the decoration panel 6 is improved, and the comfort level of daily life of people is further improved.
In one embodiment, for the second soundproof layer 48, the arc soundproof strips 51 are arranged inside the second soundproof layer 48 and between every two soundproof strips 49, and soundproof cotton 52 is filled in the arc concave surfaces of the arc soundproof strips 51 inside the second soundproof layer 48, so that the soundproof effect of the decoration panel 6 is improved, and the comfort of daily life of people is further improved.
According to an embodiment of the invention, a decorative wall for interior decoration design is provided, which comprises a decorative wall board.
In summary, by means of the above technical scheme of the present invention, the driving mechanism 7 is arranged between the decorative panel 6 and the back plate 1, so that an operator uses an allen key to match with a hexagon socket screw hole i on the first rotating shaft 13 through the opening 14 arranged on the second supporting column 5, so that the first rotating shaft 13 drives the gear 12 to be meshed with the gear disc 11, the gear disc 11 drives the worm 8 to move, the worm 8 drives the turbine 18 to rotate, the turbine 18 drives the screw rod 17 to move, the screw rod 17 drives the shaft sleeve 19 to move, the shaft sleeve 19 drives the fixing mechanism 21 to move outwards, and the decorative panel 6 moves outwards under the action of the driving mechanism 7, thereby facilitating the user to replace the decorative panel 6; when the decorative panel 6 moves to the outermost side, a user is matched with the inner hexagonal screw hole through the inner hexagonal wrench, so that the first pushing block 35 drives the first limiting block 32 to move, the second limiting block 33 drives the movable block 36 to move through the first limiting groove 37, the clamping block 31 on the first limiting strip 29 is separated from the tooth groove 26 on the fixed rod 25, the purpose of separating the decorative panel 6 from the fixing mechanism 21 is achieved, and the user can replace the decorative panel 6 conveniently; the sound insulation board 45 is arranged in the decoration panel 6, so that the decoration panel 6 has a sound insulation function, the sound insulation effect of the decoration wall board is further ensured, and the comfort level of daily life of people is further improved; the invention has the advantages of reasonable design, convenient assembly and disassembly and good sound insulation effect.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the invention, and any modifications, equivalents, improvements and the like that fall within the spirit and principle of the present invention are intended to be included therein.
Claims (10)
1. The decorative wallboard for the interior decoration design is characterized by comprising a back plate (1), a cross beam (2) is arranged at the upper end of the back plate (1), a supporting plate (3) is arranged at the lower end of the back plate (1), a first supporting column (4) and a second supporting column (5) are respectively arranged on two sides of the back plate (1), a plurality of decorative panels (6) are sequentially and uniformly arranged between the first supporting column (4) and the second supporting column (5) and positioned on one side of the back plate (1), a driving mechanism (7) is arranged between the decorative panels (6) and the back plate (1), a worm (8) matched with the driving mechanism (7) is arranged between the first supporting column (4) and the second supporting column (5) in an inserting manner, a first bearing (9) is arranged at the joint of the worm (8) and the first supporting column (4), a second bearing (10) is arranged at the joint of the worm (8) and the second supporting, a gear disc (11) is sleeved on the worm (8) and positioned inside the second support column (5), a gear (12) is arranged on one side of the gear disc (11), a first rotating shaft (13) is arranged at one end of the gear (12), and a hole (14) is formed in the position, positioned on the first rotating shaft (13), of the second support column (5);
wherein the driving mechanism (7) comprises a fixing plate (15) arranged on one side of the back plate (1), a first bearing seat (16) is arranged on one side of the fixing plate (15) far away from the back plate (1), a lead screw (17) is arranged on one side of the first bearing seat (16) far away from the fixing plate (15), a turbine (18) matched with the worm (8) is sleeved on the lead screw (17), a shaft sleeve (19) is sleeved on one end of the lead screw (17) far away from the first bearing seat (16), a second bearing seat (20) is arranged on one end of the shaft sleeve (19) far away from the lead screw (17), a fixing mechanism (21) matched with the decorative panel (6) is arranged on one side of the second bearing seat (20), a fixing frame (22) is arranged on one side of the shaft sleeve (19), and the fixing frame (22) is of, one end, far away from the shaft sleeve (19), of the fixing frame (22) is connected with the fixing plate (15), a limiting rod (23) matched with the fixing plate (15) is arranged on the inner side of the fixing frame (22), a limiting frame (24) is sleeved on the limiting rod (23), the limiting frame (24) is of an L-shaped structure, one end, far away from the limiting rod (23), of the limiting frame (24) is connected with one side of the shaft sleeve (19), a fixing rod (25) is arranged in the middle of one side, close to the back plate (1), of the decorative panel (6), the fixing rod (25) is of an arc structure, and a plurality of tooth sockets (26) are uniformly arranged on the outer side of an arc of the fixing rod (25);
wherein, the fixing mechanism (21) comprises a shell (27) arranged at one end of the second bearing seat (20), a channel (28) is sleeved in the shell (27), the channel (28) is of an arc structure, a first limiting strip (29) is arranged at the outer side of an arc of the channel (28), one end, close to the second bearing seat (20), of the first limiting strip (29) is provided with a second rotating shaft (30) matched with the shell (27), one end, close to the second rotating shaft (30), of the first limiting strip (29) is provided with a clamping block (31) matched with the toothed groove (26), one side, close to one end, far away from the second rotating shaft (30), of the first limiting strip (29) is provided with a first limiting block (32) and a second limiting block (33) respectively, one side of the first limiting block (32) is provided with a third rotating shaft (34), the third rotating shaft (34) is sleeved with a first pushing block (35) matched with a second limiting block (33), one side, far away from the channel (28), of the first limiting strip (29) is provided with a movable block (36), one end, close to the first pushing block (35), of the movable block (36) is provided with a first limiting groove (37) matched with the second limiting block (33), one side, close to the first limiting strip (29), of the movable block (36) is provided with a plurality of second limiting grooves (38), a spring leaf (39) with an opening facing the first pushing block (35) is arranged between the first limiting strip (29) and the movable block (36), one end, close to the movable block (36), of the spring leaf (39) is provided with a second limiting strip (40) matched with the second limiting groove (38), one end, close to the second rotating shaft (30), of the shell (27) is provided with a limiting hole (41), the limiting hole (41) is internally provided with a first spring (42), one end, close to the movable block (36), of the first spring (42) is provided with a second pushing block (43) matched with the limiting hole (41), and one side, close to the first pushing block (35), of the shell (27) is provided with a through hole.
2. The interior decoration design decorative wall board according to claim 1, wherein one end of the first rotating shaft (13) near the opening (14) is provided with a first hexagon socket screw.
3. The interior decoration design decorative wallboard of claim 1, wherein one end of the pushing block (35) close to the through hole is provided with a hexagon socket screw hole II.
4. The interior decoration design decorative wall board according to claim 1, wherein a second spring (44) is sleeved on the limiting rod (23) and between the fixing plate (15) and the limiting frame (24).
5. The decorative wallboard of claim 4, wherein the first spring (42) and the second spring (44) are compression springs.
6. Decorative wall panel for interior decoration design according to claim 1, characterized in that an acoustic insulation panel (45) is provided inside the decorative panel (6).
7. The interior decoration design is with decorating wallboard of claim 6, characterized in that, acoustic celotex board (45) includes skeleton (46), skeleton (46) both sides all are provided with puigging one (47) respectively, the side that framework (46) was kept away from to puigging one (47) is provided with puigging two (48), and, inside with the even interlude of skeleton (46) vertical direction of acoustic celotex board (45) is provided with a plurality of puigging (49).
8. The decorative wallboard of claim 7, wherein the sound insulation layer one (47) is provided with a plurality of sound insulation cavities (50) uniformly crossed inside.
9. The interior decoration design decorative wallboard according to claim 7, wherein an arc-shaped sound insulation strip (51) is arranged inside the second sound insulation layer (48) and between every two sound insulation strips (49), and sound insulation cotton (52) is filled inside the second sound insulation layer (48) and at the arc-shaped concave surface of the arc-shaped sound insulation strip (51).
10. A decorative wall for interior decoration design comprising a decorative wall panel, characterized in that the decorative wall panel is a decorative wall panel according to any one of claims 1 to 9.
