Abstract
The invention discloses a respiratory medicine oxygen mask convenient for atomization administration, which comprises a mask, wherein a PLC (programmable logic controller) is installed on the left side surface of the mask, an oxygen spraying cover and an expiration cover are arranged in the middle of the mask, an oxygen sensor is installed on the right side surface of the mask, and a connecting pipe is fixed at the inlet of the left end of the oxygen spraying cover. Convenient to use, improved therapeutic effect, and accelerated patient's recovery.
Description
Technical Field
The invention relates to the technical field of medical equipment, in particular to an oxygen mask for respiratory medicine, which is convenient for atomization administration.
Background
The medical oxygen mask is mainly used for oxygen therapy of patients in an anoxic state, mainly comprises a mask, an oxygen therapy pipeline and the like as the medical oxygen mask in the prior art, the oral cavity and the nasal cavity of a user are isolated from the outside by the medical oxygen mask, oxygen is provided for the user through the oxygen therapy pipeline connected with the medical oxygen mask, but administration is very inconvenient when the medical oxygen mask is used, the existing administration device has a complex structure, and meanwhile, the drug effect is not fully utilized.
Disclosure of Invention
The technical problem to be solved by the invention is to overcome the existing defects, and provide an oxygen mask convenient for atomization administration for respiratory medicine, which has a simple structure, can administer medicine under the condition of using the mask to supply oxygen, and simultaneously, controls medicine supply and oxygen supply according to the breathing rhythm, improves the utilization rate of oxygen and medicine, and can effectively solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: an oxygen mask for respiratory medicine convenient for atomization and drug delivery comprises a mask, wherein a PLC controller is arranged on the left side surface of the mask, the middle part of the face mask is provided with an oxygen spraying cover and an exhalation cover, the right side surface of the face mask is provided with an oxygen sensor, a connecting pipe is fixed at the inlet of the left end of the oxygen spraying cover, an end pipe is fixed at the left end of the connecting pipe, the middle part of the end pipe is provided with an electromagnetic valve, the upper end of the left side surface of the face mask is fixed with a medicine box, the right side surface of the face mask is fixed with a medicine conveying pipe, the upper end of the medicine conveying pipe is communicated with the medicine box, the middle part of the medicine conveying pipe is provided with a booster pump, the lower end of the medicine conveying pipe is provided with a spray pipe, the side surface of the spray pipe is uniformly distributed with spray holes, the input end of the PLC controller is respectively and electrically connected with an external power supply and the output end of the oxygen sensor, the output end of the PLC is respectively and electrically connected with the input ends of the electromagnetic valve and the booster pump.
As a preferred technical scheme, the right end opening of the oxygen spraying cover is sealed through a spraying net, a closed cover is fixed on the right side face of the spraying net, a movable rod is arranged in the middle of the closed cover, and the right end of the movable rod is fixedly connected with the left end of the spraying pipe.
As a preferred technical scheme of the invention, a support rod is fixed in the middle of an inner cavity of the connecting pipe, a sliding rod is arranged in a shaft hole in the middle of the support rod, a baffle is fixed at the right end of the sliding rod, and the baffle is fixedly connected with the left end of the movable rod.
As a preferred technical scheme of the invention, an end plate is fixed on the left end face of the sliding rod, and a compression spring is sleeved on the sliding rod between the end plate and the supporting rod.
As a preferable technical scheme of the invention, a medicine inlet pipe is arranged on the left side surface of the medicine box, and a medicine inlet valve is arranged in the middle of the medicine inlet pipe.
Compared with the prior art, the invention has the beneficial effects that: this breathe internal medicine oxygen mask convenient to atomizing is dosed, moreover, the steam generator is simple in structure, give oxygen through spouting the oxygen cover, dose through the spray tube, can carry out the treatment of medicine in the oxygen suppliment, avoid the face guard to break away from and cause the medical accident, calculate through oxygen sensor oxygen content in to the face guard, carry out the oxygen suppliment and supply the medicine according to patient's breathing rhythm, guarantee that the medicine inhales internally in patient's oxygen uptake, guarantee treatment, directly enter into the nasal cavity through the spray tube, avoid along with patient's expiration discharge face guard, avoid the waste of medicine, high durability and convenient use, the treatment is realized, and the patient's recovery is accelerated.
Drawings

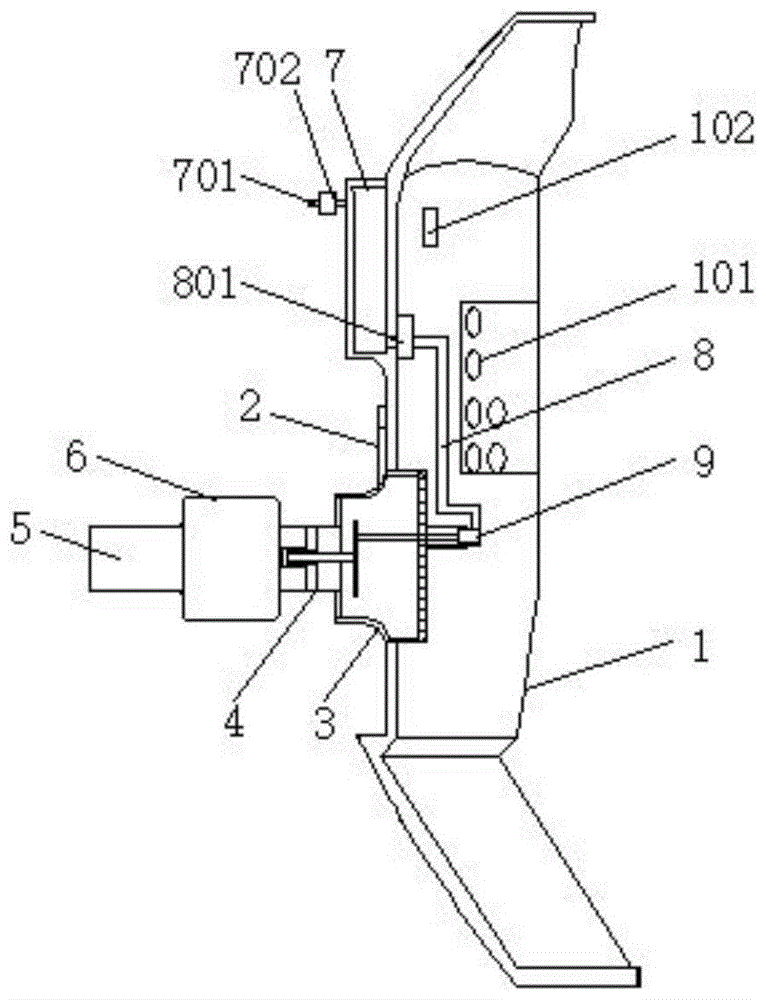

FIG. 1 is a schematic view of the overall cross-sectional structure of the present invention;
FIG. 2 is a schematic view of the structure of the oxygen spraying hood of the present invention.
In the figure: the device comprises a mask 1, an exhalation mask 101, an oxygen sensor 102, a PLC (programmable logic controller) 2, an oxygen spraying mask 3, a 301 spraying net, a 302 movable rod, a 303 closing mask, a 4 connecting pipe, a 401 supporting rod, a 402 sliding rod, a 403 baffle plate, a 404 end plate, a 405 compression spring, a 5 end pipe, a 6 electromagnetic valve, a 7 medicine box, a 701 medicine inlet pipe, a 702 medicine inlet valve, an 8 medicine inlet pipe, a 801 booster pump and a 9 spraying pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution: an oxygen mask for department of respiratory medicine convenient for atomization and drug delivery comprises a mask 1, a PLC (programmable logic controller) 2 is installed on the left side surface of the mask 1, an oxygen spraying hood 3 and an exhalation hood 101 are arranged in the middle of the mask 1, an oxygen sensor 102 is installed on the right side surface of the mask 1, a connecting pipe 4 is fixed at the left end inlet of the oxygen spraying hood 3, an end pipe 5 is fixed at the left end of the connecting pipe 4, an electromagnetic valve 6 is installed in the middle of the end pipe 5, a medicine box 7 is fixed at the upper end of the left side surface of the mask 1, a medicine inlet pipe 701 is installed on the left side surface of the medicine box 7, a medicine inlet valve 702 is installed in the middle of the medicine inlet pipe 701, a medicine delivery pipe 8 with the upper end communicated with the medicine box 7 is fixed on the right side surface of the mask 1, a booster pump 801 is installed in the middle of the medicine delivery pipe 8, a 9 is installed at the lower end of the medicine delivery pipe 8, an opening at the right, the right end of the movable rod 302 is fixedly connected with the left end of the spray pipe 9, a support rod 401 is fixed in the middle of an inner cavity of the connecting pipe 4, a slide rod 402 is arranged in a shaft hole in the middle of the support rod 401, a baffle 403 is fixed at the right end of the slide rod 402, the baffle 403 is fixedly connected with the left end of the movable rod 302, an end plate 404 is fixed at the left end face of the slide rod 402, a compression spring 405 is sleeved on the slide rod 402 between the end plate 404 and the support rod 401, spray holes are uniformly distributed on the side face of the spray pipe 9, the input end of the PLC 2 is respectively and electrically connected with an external power supply and the output end of the oxygen sensor 102, the output end of the PLC 2 is respectively and electrically connected with the electromagnetic valve 6 and the input end of the booster pump 801, electronic elements adopted by the oxygen mask for department of department for conveniently atomized medicine are the prior art and are not innovated here, this breathe internal medicine oxygen mask convenient to atomizing is dosed, moreover, the steam generator is simple in structure, give oxygen through spouting oxygen cover 3, dose through spray tube 9, can carry out the treatment of medicine in the oxygen suppliment, avoid face guard 1 to break away from and cause medical accident, calculate the oxygen content in face guard 1 through oxygen sensor 102, carry out the oxygen suppliment and supply the medicine according to patient's breathing rhythm, guarantee that the medicine inhales internally when patient's oxygen uptake, guarantee treatment, directly enter into the nasal cavity through spray tube 9, avoid along with patient's expiration discharge face guard 1, avoid the waste of medicine, high durability and convenient use, the treatment effect is improved, patient's recovery has been accelerated.
When in use: end pipe links to each other with external oxygen supply line, when solenoid valve 6 opened, oxygen air current pushed baffle 403 right, get into through connecting pipe 4 and oxygen spray cover 3, the liquid medicine in the medical kit 7 is introduced into spray tube 9 through booster pump 801, inhale patient's nasal cavity immediately, oxygen sensor 102 conveys the data of oxygen concentration to PLC controller 2, begin to exhale when oxygen concentration reaches a definite value, solenoid valve 6 closes this moment, slide bar 402 removes to the left under compression spring 405's effect and resets, movable rod 302 pulling spray tube 9 gets into in closed cover 303, cut off and supply the medicine, make spray tube 9 pressure boost simultaneously.
The invention has simple structure, can carry out administration under the condition of using the mask 1 to supply oxygen, can carry out medicine supply and oxygen supply control according to the breathing rhythm, improves the utilization rate of oxygen and medicine, and is more convenient to use.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (2)
1. The utility model provides a breathe internal medicine oxygen mask convenient to atomizing is dosed, includes face guard (1), its characterized in that: the left side of the face mask (1) is provided with a PLC (programmable logic controller) (2), the middle of the face mask (1) is provided with an oxygen spraying cover (3) and an exhalation cover (101), the right side of the face mask (1) is provided with an oxygen sensor (102), the left end of the oxygen spraying cover (3) is fixed with a connecting pipe (4), the left end of the connecting pipe (4) is fixed with an end pipe (5), the middle of the end pipe (5) is provided with a solenoid valve (6), the upper end of the left side of the face mask (1) is fixed with a medicine box (7), the right side of the face mask (1) is fixed with a medicine conveying pipe (8) the upper end of which is communicated with the medicine box (7), the middle of the medicine conveying pipe (8) is provided with a booster pump (801), the lower end of the medicine conveying pipe (8) is provided with a spray pipe (9), the side of the spray pipe (9) is uniformly distributed with spray holes, the input end of the PLC (2) is respectively, the output end of the PLC (2) is respectively and electrically connected with the input ends of the electromagnetic valve (6) and the booster pump (801), the right end opening of the oxygen spraying cover (3) is sealed by a spraying net (301), a closed cover (303) is fixed on the right side surface of the spraying net (301), a movable rod (302) is arranged in the middle of the closed cover (303), the right end of the movable rod (302) is fixedly connected with the left end of the spray pipe (9), a supporting rod (401) is fixed in the middle of the inner cavity of the connecting pipe (4), a sliding rod (402) is arranged in a shaft hole in the middle of the supporting rod (401), a baffle plate (403) is fixed at the right end of the sliding rod (402), the baffle (403) is fixedly connected with the left end of the movable rod (302), the left end surface of the sliding rod (402) is fixedly provided with an end plate (404), and a compression spring (405) is sleeved on the sliding rod (402) between the end plate (404) and the supporting rod (401).
2. A respiratory medical oxygen mask to facilitate aerosolized drug delivery according to claim 1, wherein: the left side of medical kit (7) is installed into pencil (701), the mid-mounting that advances pencil (701) has into medicine valve (702).
