A kind of intelligent charcoal quick frying and automatic dosing medicine pot

technical field

The invention relates to a traditional Chinese medicine pot, in particular to a novel fast traditional Chinese medicine pot with a short cooking time for household use.

Background technique

Traditional Chinese medicine treatment is based on Chinese herbal formulas, which are dominated by decoction herbs. Decoction of decoction herbs needs to master the heat, and it takes a long time to brew. Some herbs even need to be put in batches, such as mint, huoxiang, etc. Precious medicinal materials such as American ginseng and American ginseng contain volatile components, and their active ingredients are easily dispersed into the air during the decoction process. The so-called decoction should pay attention to decoction first and decoction later: on the decoction method of the ancients (2) Decoction first In modern times, decoction first is mainly used in minerals and shellfish whose active ingredients are insoluble in water, and some drugs with strong toxic and side effects. It takes a long time to decoct to remove the toxicity. In Zhang Zhongjing's "Treatise on Febrile Diseases and Miscellaneous Diseases" in the Han Dynasty, there was a requirement to fry first, such as ephedra, pueraria, tuckahoe, gardenia, ginger, Shu lacquer, rhubarb, melon, fat jujube, Yinchen, peony, reed stem, Magnolia , Citrus aurantium, etc. all have "cook first" prescriptions.

Traditional decoction of traditional Chinese medicine generally uses a special traditional Chinese medicine pot for decoction. The traditional Chinese medicine pot is generally a clay pot, that is, the pot is made of ceramics or purple sand, so as not to affect the medicinal properties. During the torment process of traditional Chinese medicine, it is necessary to master the heat to ensure the amount of liquid medicine to be taken, and it is also necessary to avoid excessive torment time or the phenomenon of paste medicine due to the defects of the medicine pot itself. However, it needs to be watched over by people, which is not very convenient. In the prior art, a split-type electric heating ceramic traditional Chinese medicine pot is also used for decoction. This split-type ceramic traditional Chinese medicine pot includes a base for heating and a pot for holding traditional Chinese medicine. The heating device is respectively arranged on the base and the pot body, and is coupled and connected, and the pot body can be heated by placing the pot body on the heating plate. Because the traditional Chinese medicine pot is in direct contact with the heating body, it is easy to appear paste phenomenon. Another example is the automatic traditional Chinese medicine pot with the patent number of "ZL 93245407.0". During the action, there may be a paste phenomenon, especially for drugs with high viscosity, the paste phenomenon is more prominent. Moreover, the existing traditional Chinese medicine pots have relatively few additional functions. For example, office workers need to go home before they can start potting medicine, but the potting time is relatively long, and they often cannot be taken half an hour after meals in time. Therefore, some methods are urgently needed. The active substances in the medicinal materials are quickly precipitated into the medicinal soup, which shortens the cooking time. Moreover, due to the different firepower required in different time periods when cooking medicine, the so-called slow fire and strong fire, if you need to use a strong fire to boil at the beginning, after boiling, use a slow fire to cook the taste, and the active ingredients in the medicinal materials are separated into the medicinal soup. middle. In addition, due to the water pollution of medicinal water, iron pots and stainless steel pots with electromagnetic heating devices are used as medicine pots that come into contact with food; some current problems cannot be solved, and there are harmful toxins in medicinal materials, which are also difficult to solve.

In addition, decoction also pays attention to the heating source used. For example, in the early Qing Dynasty, Youcheng supplemented the firewood for decoction in the "Compendium of Materia Medica". He proposed to be careful about the heat, according to the prescription. Specifically used are mulberry firewood, oak charcoal fire, golden millet fire, charcoal fire, reed fire, bamboo fire and so on. Mulberry firewood: Mulberry can benefit joints, nourish body fluids, and fire is good. "Bao Puzi" says: "All elixir, one must not refuse to take it. Sang is the essence of Jixing, which can help the medicinal power and eliminate wind-cold arthralgia. Jiufu does not suffer from wind diseases. It can be seen that for some special requirements of medicinal materials, it is difficult to meet the requirements by using the commonly used electric heating method.

SUMMARY OF THE INVENTION

In order to solve the above-mentioned problems existing in the existing traditional Chinese medicine pots, the present invention provides an intelligent charcoal quick-frying and automatic drug-adding pots with novel structure, short potting time and unattended.

For achieving the above object, the scheme that the present invention takes is:

An intelligent charcoal quick-frying automatic medicine-filling medicine pot, comprising a round base, a transparent medicine pot, an ultrasonic acceleration rod, a controllable charcoal heating device and an intelligent controller; the intelligent controller includes a mobile monitoring bracket that can be placed at will, and an intelligent control Circuit; The intelligent control circuit includes the MCU as the central processing unit, and the wireless network circuit module, touch screen, button, infrared temperature detector, mobile camera, and the drive for controlling the work of the controllable charcoal heating device, which are all connected to the MCU and controlled by the MCU. Circuit; the mobile monitoring bracket includes a random bending rod with a base, and the infrared temperature detector and the mobile camera are all set on the random bending rod. Remote real-time monitoring of terminal communication equipment; it is characterized in that: the circular base has a detachable base, a charcoal fire burning frame is arranged in the round base, a round pit heating tank is arranged in the middle of the charcoal fire burning frame, and the charcoal fire burning frame is in the round pit heating groove There is an ash-screening grate at the bottom, an electric heating ignition device is embedded on the ash-screening grate, an ash tray is arranged on the round base under the ash-screening grate, and air ducts are located on both sides of the ash tray; the outer jacket of the round pit heating tank is provided with an insulating basin , the upper edge of the heat insulation basin is provided with an inverted waterproof flange, the middle of the heat insulation basin is raised to form a circular boss, the bottom of the heat insulation basin forms an anti-overflow ring groove around the circular boss, and the center of the circular boss is set There is a round hole, and the controllable charcoal heating device is arranged under the round hole; the round base is provided with an air inlet chamber, and the air inlet chamber is arranged on one side of the bottom of the round base; the air inlet chamber is provided with an air inlet, an air outlet, and a loose-leaf partition. The air plate and the turbo ventilation fan, the air inlet is set at the bottom of the air inlet chamber, the turbo ventilation fan is set above the air inlet, the air outlet is set above the turbo ventilation fan, and the loose-leaf air baffle is set at the upper part of the air outlet and controls the air outlet and the wind. When the turbine ventilation fan is working, the wind will automatically blow open the loose-leaf air baffle; the transparent medicine can includes the can mouth, the can cover and the can handle; the can handle is set on the side of the transparent medicine can, and the upper end of the can handle is connected with an extension The delayed dosing device that automatically adds the post-dosing medicine into the transparent medicine tank; the bottom of the transparent medicine tank has a round bottom heating part with narrowed inner and outer diameters, and the round bottom heating part of the transparent medicine tank is placed in the partition. In the hot basin; a through hole is arranged in the middle of the tank cover, and the ultrasonic acceleration rod is arranged on the tank cover; the ultrasonic acceleration rod includes a shell, an ultrasonic generator, a horn, and a titanium alloy output rod; the ultrasonic generator and the horn are arranged on the shell Inside; the top of the ultrasonic generator protrudes from the upper part of the shell to generate ultrasonic waves; the horn is located at the lower part of the ultrasonic generator to amplify the vibration amplitude of the ultrasonic generator; the titanium alloy output rod is located at the lower part of the horn for transmission Ultrasonic energy into the liquid medicine; the titanium alloy output rod extends from the through hole of the tank cover to the inside of the transparent medicine tank, which is used to drive the liquid medicine to generate ultrasonic vibration, and quickly precipitate the active ingredients in the medicine; the top of the shell is connected with a flat ring, a flat ring There is a miniature cooling fan inside; the delay dosing device includes a conical drug store, a floating ball cover, a floating ball stopper, a drug adding hole and a drug store cover; the drug store cover is fastened on the conical drug store, and the drug add It is arranged on the neck of the transparent medicine tank; the conical medicine warehouse is connected to the upper end of the tank handle obliquely, and is connected with the tank handle as a whole. It is used as the connection between the upper part of the handle of the can and the transparent medicine can; the bottom of the conical medicine store has an inclined medicine store neck, and the neck of the medicine store is connected with the medicine filling hole; the left or right side of the floating ball cover is provided with a floating ball cross arm , the floating ball cross arm can be rotatably hinged on the inner wall of the neck of the transparent medicine tank, the floating ball cover is covered on the dosing hole under the action of the buoyancy of the water, and a floating ball stopper is provided above the floating ball cross arm to limit the excessive floating of the floating ball cover. When the water level drops, the floating ball cover rotates downward around the hinge point through the floating ball cross arm under the action of gravity, and leaves the dosing hole, and the rear dosing in the dosing hole immediately It falls into the transparent medicine tank from the conical medicine bin; the electric heating ignition device, the turbo ventilation fan, the micro cooling fan and the ultrasonic generator are all driven by the driving circuit. The main technical effect produced by the main technical features here is that the anti-overflow ring groove prevents liquids such as water overflowing from the transparent medicine tank from overflowing on the elastic silicone round table ring and the hidden danger of water entering the round base. Since the water inside is continuously evaporated during the decoction, the water level inside is gradually lowered. When the medicine is decoction, the water level is lower than the water level at the beginning of the decoction. Make full use of this principle to achieve the water level control of the post-dosing, and then add The technical effect of the medicine is highly creative.

Further, the inner wall of the aforementioned round bottom heating portion is provided with a detoxification silver ring, and the wall portion of the detoxification silver ring is provided with a number of communication holes; Slag separator orifice. The function of the slag separator orifice is to prevent the medicinal materials, especially starchy medicinal materials such as yam, from directly contacting the detoxification silver ring, so as to prevent the medicinal materials from burning when the local heating is uneven.

Further, the aforementioned charcoal burning frame is provided with a temperature sensor; the inside of the circular base is provided with a curved PCB for man-machine communication, and the curved PCB is arranged on the side of the charcoal burning frame, on the inner side of the top of the round base, and the buttons and The touch screen is set on the curved PCB, the touch screen is set in the middle of the PCB, and the buttons are evenly distributed on the PCB on both sides of the touch screen. The main technical effect produced by the main technical features here is that when the transparent medicine tank is placed in the heating tank of the round pit, the bottom of the transparent medicine tank is under the action of gravity of the transparent medicine tank, and the temperature sensor is close to the bottom of the transparent medicine tank, so that the temperature sensor is more Quickly reflect the temperature of the transparent medicine tank, which is conducive to control. The user can set the firepower curve of the potion through the buttons and touch screen, that is, the so-called slow fire and strong fire and the corresponding time period, so as to realize the timed potion on demand, automatic start and automatic shutdown.

Further, an eccentric ash screening device that drives the ash screening grate to perform a horizontal ash screening action is arranged above the aforementioned ash screening grate; the eccentric ash screening device includes a fixed seat, an eccentric wheel, and an ash screening motor; the ash screening motor is arranged on the fixed seat. , the eccentric wheel is driven to rotate by the ash screening motor; the upper edge of the ash screening grate is evenly distributed with several ash sieve seats, and the eccentric wheel is provided with an eccentric short shaft that deviates from the axis of the eccentric wheel. ; The ash screening motor is driven by the drive circuit. When the ash sieving motor rotates, it drives the ash sieve grate to shake, and shakes the accumulated ash into the ash tray, so as to prevent the ash discharge hole of the ash sieve grate from being blocked and affecting the combustion of charcoal fire.

Further, the aforementioned ash tray is provided with a spiral ash discharge device for discharging the furnace ash in the ash hopper out of the round base, and the spiral ash discharge device includes a conveying pipe, a screw conveying shaft arranged in the middle of the conveying pipe, and an ash discharge motor; The outer periphery of the conveying shaft is provided with a spiral blade for conveying ash and slag, and the ash discharging motor is arranged at the end of the screw conveying shaft; When the ash in the ash tray reaches a certain amount, the screw ash discharge device can be activated to discharge the ash out of the round base.

As the main technical effect of the main technical features of the above scheme, the water in the transparent medicine tank is heated, and convection occurs, and the rising water flow scours through the mesh of the slag separator orifice to remove the components in the medicinal materials above the slag separator orifice. . Here, the detoxification silver ring is placed on the inner wall of the transparent medicine jar and is in direct contact with the medicinal soup; the detoxification silver ring has the effect of removing toxic components in the medicinal materials, and the detoxification silver ring can be taken out from the inside without the need for the detoxification silver ring. The communication hole can increase the contact area between the liquid and the detoxification silver ring, which is beneficial to fully eliminate the toxins in the medicinal materials. When the medicine is boiled, the titanium alloy output rod is submerged in the water, and the ultrasonic vibration generated causes the water in the transparent medicine tank to vibrate, forming cavitation to impact the surface of the medicinal material and the inner wall of the capillary, so that the nutrients in the medicinal material are quickly and fully released. It is added into the medicinal soup, thereby greatly shortening the soup-making time, and it is not easy to destroy the active ingredients of the medicinal materials, so that the medicinal soup is more effective.

It can be seen from the above that the invention has the following advantages: the structure is scientific, compact and novel, and the design is ingenious; the potting time is short, the speed is fast, the power and time are saved, and the effective components of the medicinal materials can be charged and analyzed; The medicinal materials are added in batches with automatic delay, so that the first decoction and the later decoction can be put in separately, so as to achieve the purpose of being unattended. It can automatically shake the ashes and remove the ashes automatically. Using the detox silver ring will remove the toxins in the medicinal materials; it is widely used to cook medicines regularly to save people's time on duty.

Description of drawings

FIG. 1 is a perspective view of a preferred embodiment of the present invention.

FIG. 2 is an exploded view of FIG. 1 .

FIG. 3 is a perspective half-section view of FIG. 1 .

FIG. 4 is an exploded view of the transparent medicine can in FIG. 2 .

Figure 5 is a perspective view of the detoxification silver ring.

FIG. 6 is a perspective view of a curved PCB.

Figure 7 is a schematic structural diagram of an eccentric ash screening device.

Figure 8 is a top view of the ash screening grate.

Fig. 9 is a top view of the spiral ash discharging device.

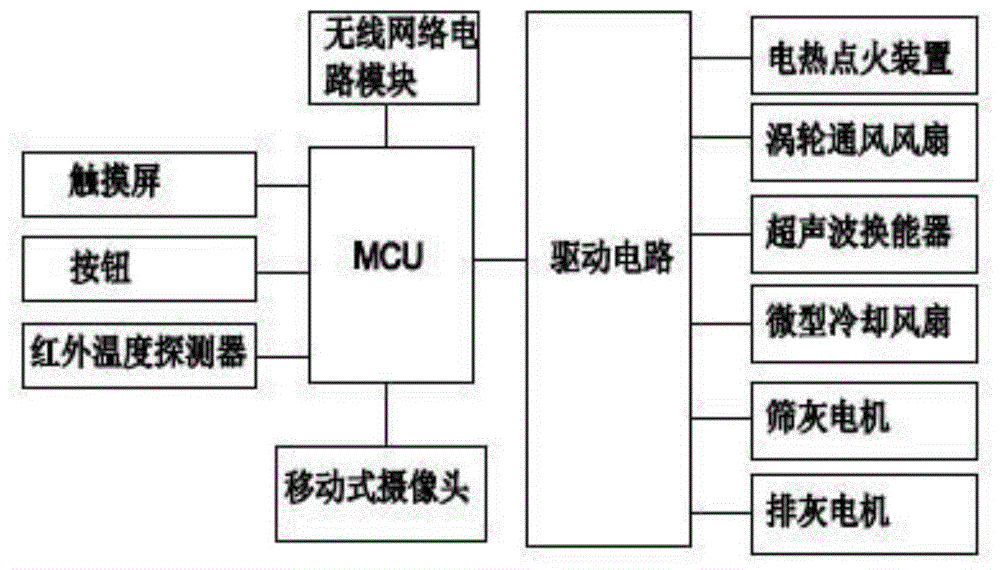

Fig. 10 is the principle block diagram of the intelligent controller.

Description of reference numerals: 1-round base, 2-transparent medicine can, 3-controllable charcoal heating device, 4-intelligent controller, 5-silver ring for detoxification, 6-communication hole, 7-charcoal burning rack, 8- Round pit heating tank, 9-Mobile monitoring bracket, 10-Round hole, 11-Random bending rod, 12-Infrared temperature detector, 13-Temperature sensor, 14-Water overflow prevention ring groove, 15-Grate for sieve, 16 -Electric Ignition Device, 17- Spiral Ash Discharge Device, 18- Mobile Camera, 19- Curved PCB, 20- Button, 21- Touch Screen, 22- Eccentric Ash Screening Device, 23- Turbo Ventilation Fan; 24- Heat Insulation Basin, 25-waterproof flange, 26-can spout, 27-can lid, 28-can handle, 29-round bottom heating part, 30-delay doser, 31-conical medicine bin, 32-medicine bin neck part, 33-floating ball cover, 34-floating ball stopper, 35-dosing hole, 36-floating ball cross arm, 37-medicine compartment cover, 38-ash tray, 39-removable base, 40-air inlet Chamber, 41-air inlet, 42-air outlet, 43-leaf baffle, 44-fixed seat, 45-eccentric wheel, 46-screen dust motor, 47-eccentric short shaft, 48-screen dust seat, 49-transport Tube, 50-screw conveying shaft, 51-ash discharge motor; 52-slag separator orifice; 61-through hole, 62-shell, 63-mini cooling fan, 64-flat ring, 65-ultrasonic acceleration rod, 66-ultrasonic Generator, 67-horn, 68-titanium output rod.

Detailed ways

The present invention and its beneficial technical effects will be described in further detail below with reference to the accompanying drawings and preferred embodiments.

Referring to Fig. 1 to Fig. 10, a kind of intelligent charcoal fire-frying automatic dosing medicine pot comprises a round base 1, a transparent medicine tank 2, an ultrasonic acceleration rod 65, a controllable charcoal fire heating device 3 and an intelligent controller 4; see Fig. 1, 6 and 10, the intelligent controller 4 includes a mobile monitoring stand 9 that can be placed at will, and an intelligent control circuit; the intelligent control circuit includes an MCU as a central processing unit, and a wireless network circuit that is both connected to the MCU and controlled by the MCU Module, touch screen 21, button 20, infrared temperature detector 12, mobile camera 18 and drive circuit for controlling the operation of controllable charcoal heating device 3; mobile monitoring bracket 9 includes a random bending rod with a base, infrared temperature detector 12 Both the mobile camera and the mobile camera 18 are arranged on the free bending rod. When in use, the mobile monitoring bracket 9 is placed on the side of the circular base 1 to remotely monitor in real time through a wireless network and terminal communication equipment; it is characterized in that: the circular base 1 There is a detachable base 39, referring to FIG. 3, the circular base 1 is provided with a charcoal fire burning frame 7, the charcoal fire burning frame 7 is provided with a circular pit heating groove 8, and the charcoal fire burning frame 7 is provided with a screen below the circular pit heating groove 8 The ash grate 15, the ash sieving grate 15 is embedded with an electric heating ignition device 16, the circular base 1 is provided with an ash tray 38 under the ash sieve grate 15, and the two sides of the ash tray 38 are air ducts; There is a thermal insulation basin 24, the upper edge of the thermal insulation basin 24 is provided with an inverted waterproof flange 25, the middle of the thermal insulation basin 24 protrudes to form a circular boss, and the bottom of the thermal insulation basin 24 forms an overflow prevention ring around the circular boss Slot 14, a circular hole 10 is provided at the center of the circular boss, and the controllable charcoal heating device 3 is arranged below the circular hole 10; Bottom side; the air inlet chamber 40 is provided with an air inlet 41, an air outlet 42, a loose-leaf baffle 43 and a turbo ventilation fan 23, the air inlet 41 is arranged at the bottom of the air inlet chamber 40, and the turbo ventilation fan 23 is arranged at the air inlet 41 Above, the air outlet 42 is arranged above the turbine ventilation fan 23, and the loose-leaf air baffle 43 is arranged on the upper part of the air outlet 42 and controls the air outlet 42 to communicate with or cut off the air duct. 43 blow open; refer to Figures 2 to 4, the transparent medicine can 2 includes a can mouth 26, a can lid 27 and a can handle 28; the can handle 28 is arranged on the side of the transparent medicine can 2, and the upper end of the can handle 28 is connected with a time delay The time-delayed doser 30 for adding medicine into the transparent medicine tank automatically; the bottom of the transparent medicine tank 2 has a round bottom heating part 29 with both inner and outer diameters narrowed, and the round bottom heating part 29 of the transparent medicine tank 2 is placed when in use 2 and 4, a through hole 61 is provided in the middle of the tank cover 27, and an ultrasonic acceleration rod 65 is provided on the tank cover 27; the ultrasonic acceleration rod 65 includes a casing 62, an ultrasonic generator 66, a variable amplitude Rod 67, titanium alloy output rod 68; ultrasonic generator 66 and horn 67 are arranged in the casing 62; the top of the ultrasonic generator 66 extends from the upper part of the casing 62 for generating ultrasonic waves; the horn 67 is arranged in the ultrasonic generator 66 hits It is used to amplify the vibration amplitude of the ultrasonic generator 66; the titanium alloy output rod 68 is provided at the lower part of the horn 67 for transmitting ultrasonic energy to the liquid medicine; the titanium alloy output rod 68 extends from the through hole 61 of the tank cover 27 to the Inside the transparent medicine tank 2, it is used to drive the liquid medicine to generate ultrasonic vibration, and the active ingredients in the medicine material are rapidly separated; the top of the outer shell 62 is connected with a flat ring 64, and a micro cooling fan 63 is arranged in the flat ring 64; refer to Figures 3 to 4, The delayed dosing device 30 includes a conical drug storage 31, a floating ball cover 33, a floating ball stopper 34, a drug charging hole 35 and a drug storage cover 37; The hole 35 is arranged on the neck of the transparent medicine tank 2; the conical medicine chamber 31 is connected obliquely to the upper end of the tank handle 28, and is connected with the tank handle 28 as a whole, and also serves as the connection between the upper part of the tank handle 28 and the transparent medicine tank 2; The bottom of the medicine warehouse 31 has an inclined medicine warehouse neck 32, and the medicine warehouse neck 32 is communicated with the medicine feeding hole 35; the left or right side of the floating ball cover 33 is provided with a floating ball cross arm 36, and the floating ball cross arm 36 can be rotated It is hinged on the inner wall of the neck of the transparent medicine tank 2, the floating ball cover 33 is covered on the medicine filling hole 35 under the action of water buoyancy, and the floating ball stopper 34 is arranged above the floating ball cross arm 36 to limit the excessive floating of the floating ball cover; The floating ball cover 33 is controlled to open by the water level drop. When the water level drops, the floating ball cover 33 rotates downward around the hinge point through the floating ball cross arm 36 under the action of gravity, and is separated from the dosing hole 35. The dosing medicine immediately falls into the transparent medicine tank 2 from the conical medicine bin 31; the electrothermal ignition device 16, the turbo ventilation fan 23, the micro cooling fan 63 and the ultrasonic generator 66 are all driven by the driving circuit.

Referring to Fig. 3～Fig. 5, preferably, the inner wall of the aforementioned round bottom heating portion 29 is provided with a silver ring 5 for removing poison, and the wall portion of the silver ring 5 for removing poison is provided with a number of communication holes 6; The slag separator orifice 52 in contact with the round-bottomed heating part 29 and the detoxification silver ring 5 .

Referring to Figure 2 and Figure 6, preferably, a temperature sensor 13 is provided on the aforementioned charcoal combustion frame 7; a curved PCB 19 for man-machine communication is provided inside the circular base 1, and the curved PCB 19 is arranged on the side of the charcoal combustion frame 7 , located on the inner side of the top of the round base 1, the buttons 20 and the touch screen 21 are arranged on the curved PCB 19, the touch screen 21 is arranged in the middle of the PCB, and the buttons 20 are evenly distributed on the PCB on both sides of the touch screen 21.

Referring to Figure 3, Figure 7, Figure 8, above the aforementioned ash screening grate 15 is provided with an eccentric ash screening device 22 that drives the ash screening grate 15 to perform a horizontal screening action; the eccentric ash screening device 22 includes a fixed seat 44 and an eccentric wheel 45 , the ash screening motor 46; the ash screening motor 46 is arranged on the fixed seat 44, and the eccentric wheel 45 is driven to rotate by the ash screening motor 46; the upper edge of the ash screening grate 15 is evenly distributed with several ash screening seats 48 on the eccentric wheel 45. There is an eccentric short shaft 47 deviated from the axis of the eccentric wheel 45, and the eccentric short shaft 47 is connected with the ash screening seat 48 through a bearing; the ash screening motor 46 is driven by the driving circuit.

3 and 9, the aforementioned ash tray 38 is provided with a spiral ash discharge device 17 for discharging the furnace ash in the ash hopper out of the circular base 1. The spiral ash discharge device 17 includes a conveying pipe 49, and the The screw conveying shaft 50 and the ash discharge motor 51; the outer periphery of the screw conveying shaft 50 is provided with a spiral blade for conveying ash and slag, and the ash discharge motor 51 is arranged at the end of the screw conveying shaft 50; the ash discharge motor 51 is driven by the drive circuit.

When in use, place an appropriate amount of charcoal on the sieve ash grate 15 in the round base 1, put the prepared main medicinal material in the transparent medicine tank 2, add water until the floating ball stopper 34 covers the medicine filling hole 35, and the lid is closed. The upper tank cover 27; the dosing hole 35 is closed with the floating ball cover 33, the later added medicinal materials are placed in the conical medicine chamber 31 of the delayed dosing device 30, the medicine chamber cover 37 is covered, and then the transparent medicine tank 2 It is placed on the round base 1; the firepower curve, automatic start time and automatic shutdown time of the potion can be set by remote setting or through the button 20 on the curved PCB 19, so as to realize the unattended timing automatic quick cooking medicine. The intelligent controller 4 controls the wind power by controlling the rotational speed of the turbine ventilation fan 23, and the loose-leaf air baffle 43 is blown away by the generated wind. , the charcoal fire will be more prosperous; the turbine ventilation fan 23 stops, the loose-leaf air baffle 43 is closed, and the outside air cannot enter, because the round hole 10 is covered by the round bottom heating part 29 of the transparent medicine can Charcoal is slowly extinguished due to lack of oxygen. Therefore, by controlling the turbo ventilation fan 23, the fire power of the charcoal fire can be adjusted, which is also called the adjustment of the slow fire or the fire.

The above description and specific examples do not constitute any limitation to the present invention, and the present invention is not limited to the specific embodiments disclosed and described above. Some modifications and deformations of the present invention should also fall within the protection scope of the claims of the present invention. Inside.

Claims (5)

1. An intelligent charcoal fire quick-decocting automatic-dosing medicine pot comprises a round base, a transparent medicine pot, an ultrasonic accelerating rod, a controllable charcoal fire heating device and an intelligent controller; the intelligent controller comprises a movable monitoring bracket which can be placed at will and an intelligent control circuit; the intelligent control circuit comprises an MCU serving as a central processing unit, a wireless network circuit module, a touch screen, a button, an infrared temperature detector, a movable camera and a driving circuit, wherein the wireless network circuit module, the touch screen, the button, the infrared temperature detector, the movable camera and the driving circuit are all connected with the MCU and controlled by the MCU; the movable monitoring support comprises a random bent rod with a base, the infrared temperature detector and the movable camera are both arranged on the random bent rod, and when the movable monitoring support is used, the movable monitoring support is placed beside the round-bottom base, so that remote real-time monitoring can be realized through a wireless network and terminal communication equipment; the method is characterized in that: the round base is provided with a detachable base bottom, a charcoal fire burning frame is arranged in the round base, a round pit heating groove is arranged in the middle of the charcoal fire burning frame, an ash screening grate is arranged below the round pit heating groove of the charcoal fire burning frame, an electric heating ignition device is embedded on the ash screening grate, an ash tray is arranged below the ash screening grate on the round base, and air channels are arranged on two sides of the ash tray; the round pit heating groove is externally sleeved with a heat insulation basin, the edge of the upper part of the heat insulation basin is provided with a reversed waterproof flanging, the middle of the heat insulation basin is protruded to form a round boss, the bottom of the heat insulation basin forms an anti-overflow ring groove around the round boss, the center of the round boss is provided with a round hole, and the controllable charcoal fire heating device is arranged below the round hole; an air inlet chamber is arranged in the round base and is arranged on one side of the bottom of the round base; the air inlet chamber is provided with an air inlet, an air outlet, a hinge air partition plate and a turbine ventilation fan, the air inlet is arranged at the bottom of the air inlet chamber, the turbine ventilation fan is arranged above the air inlet, the air outlet is arranged above the turbine ventilation fan, the hinge air partition plate is arranged at the upper part of the air outlet and controls the air outlet to be communicated with or separated from an air channel, and when the turbine ventilation fan works, the hinge air partition plate is automatically blown away by wind power; the transparent medicine pot comprises a pot mouth, a pot cover and a pot handle; the tank handle is arranged on the side surface of the transparent medicine tank, and the upper end of the tank handle is connected with a time-delay medicine feeder which can automatically feed the later medicine into the transparent medicine tank; the bottom of the transparent medicine tank is provided with a round bottom heated part with both narrowed inner diameter and outer diameter, and the round bottom heated part of the transparent medicine tank is placed in the heat insulation basin when in use; the middle of the tank cover is provided with a through hole, and the ultrasonic accelerating rod is arranged on the tank cover; the ultrasonic accelerator comprises a shell, an ultrasonic generator, an amplitude transformer and a titanium alloy output rod; the ultrasonic generator and the amplitude transformer are arranged in the shell; the top of the ultrasonic generator extends out of the upper part of the shell and is used for generating ultrasonic waves; the amplitude transformer is arranged at the lower part of the ultrasonic generator and is used for amplifying the vibration amplitude of the ultrasonic generator; the titanium alloy output rod is arranged at the lower part of the amplitude transformer and is used for transmitting ultrasonic energy to the liquid medicine; the titanium alloy output rod extends into the transparent medicine tank from the through hole of the tank cover and is used for driving the liquid medicine to generate ultrasonic vibration so as to quickly separate out effective components in the medicinal materials; the top of the shell is connected with a flat ring, and a miniature cooling fan is arranged in the flat ring; the time-delay doser comprises a conical medicine bin, a floating ball cover, a floating ball stop block, a dosing hole and a medicine bin cover; the medicine bin cover is buckled on the conical medicine bin, and the medicine adding hole is formed in the neck of the transparent medicine tank; the conical medicine bin is obliquely connected to the upper end of the tank handle, is connected with the tank handle into a whole and is also used as a connecting part between the upper part of the tank handle and the transparent medicine tank; the bottom of the conical medicine bin is provided with an inclined medicine bin neck which is communicated with the medicine feeding hole; a floating ball transverse arm is arranged on the left side or the right side of the floating ball cover, the floating ball transverse arm can be rotatably hinged on the inner wall of the neck part of the transparent medicine tank, the floating ball cover covers the medicine adding hole under the buoyancy action of water, and a floating ball stop block for limiting the floating ball cover to float excessively is arranged above the floating ball transverse arm; the opening of the floating ball cover is controlled by the falling of the water level, when the water level falls, the floating ball cover rotates downwards around a hinge point through a floating ball cross arm under the action of gravity to be separated from a dosing hole, and the post-dosing in the dosing hole immediately falls into a transparent medicine tank from a conical medicine bin; the electric heating ignition device, the turbine ventilation fan, the miniature cooling fan and the ultrasonic generator are driven by the driving circuit to work.

2. The intelligent charcoal fire quick-frying automatic dosing medicine pot as claimed in claim 1, which is characterized in that: the inner wall of the round bottom heating part is provided with a poison dispelling silver ring, and the wall part of the poison dispelling silver ring is provided with a plurality of alternating current holes; a residue isolating pore plate for preventing the contact of the residue with the round bottom heating part and the poison dispelling silver ring is arranged above the poison dispelling silver ring.

3. The intelligent charcoal fire quick-frying automatic dosing medicine pot as claimed in claim 1 or 2, characterized in that: a temperature sensor is arranged on the charcoal fire burning frame; inside being equipped with of circle base is used for man-machine to exchange curved shape PCB, and curved shape PCB sets up at charcoal fire burning frame side, is located the inboard that the round base pushed up, and button and touch-sensitive screen setting are on curved shape PCB, and the touch-sensitive screen setting is at PCB's intermediate position, and button evenly distributed is on the PCB of touch-sensitive screen both sides.

4. The intelligent charcoal fire quick-frying automatic dosing medicine pot as claimed in claim 3, wherein: an eccentric ash screening device for driving the ash screening grate to perform horizontal ash screening action is arranged above the ash screening grate; the eccentric ash screening device comprises a fixed seat, an eccentric wheel and an ash screening motor; the ash screening motor is arranged on the fixed seat, and the eccentric wheel is driven to rotate by the ash screening motor; a plurality of ash screening seats are uniformly distributed on the upper edge of the ash screening fire grate in the circumferential direction, an eccentric short shaft deviating from the axis of the eccentric wheel is arranged on the eccentric wheel, and the eccentric short shaft is connected with the ash screening seats through a bearing; the ash screening motor is driven by a driving circuit to work.

5. The intelligent charcoal fire quick-frying automatic dosing medicine pot as claimed in claim 4, wherein: the ash tray is provided with a spiral ash discharging device which discharges furnace ash in the ash receiving hopper out of the round base, and the spiral ash discharging device comprises a conveying pipe, a spiral conveying shaft arranged in the middle of the conveying pipe and an ash discharging motor; the periphery of the spiral conveying shaft is provided with a spiral blade for conveying ash, and the ash discharging motor is arranged at the end part of the spiral conveying shaft; the ash discharging motor is driven by the driving circuit to work.
