Abstract

The invention relates to a single-storey building, in particular to a rotatable single-storey building. The invention aims to provide a rotatable single-layer building which is flexible in structure, adjustable, rotatable, capable of better receiving sunlight irradiation and wide in application range. In order to solve the technical problem, the invention provides a rotatable single-layer building, which comprises a base, an annular slide rail, a first slide block, a second slide block, a bottom plate, a gear ring, a pinion, a long connecting shaft, a first bearing, a second bearing, a first bevel gear and the like; the top of the base is provided with a big groove, the left part of the base is provided with a long groove, the long groove is positioned on the left side of the big groove, and the long groove is communicated with the big groove. The rotatable single-layer building provided by the invention is flexible in structure, can be conveniently adjusted, can be easily rotated, can better receive the irradiation of sunlight, is beneficial to the health of people, and is beneficial to the improvement of the life quality of people.

Description

A rotatable single-storey building

technical field

The invention relates to a single-storey building, in particular to a rotatable single-storey building.

Background technique

In a broad sense, architecture is the study of buildings and their environment. Architecture is a discipline that spans engineering technology and humanities. The architectural art and technology involved in architecture, as well as the aesthetic and practical aspects included in the architectural art as a practical art, are clearly different but closely related, and their weight varies with the specific situation and the building's Different and very different. The buildings are dominated by wooden structures, while the traditional western buildings are dominated by masonry structures. Modern buildings are dominated by reinforced concrete. The ancients were able to use design techniques such as balance, harmony, symmetry, and light and dark axes to achieve beautiful effects. The ancient architecture emphasized artistic decoration, but it was not complicated. It only made key decorations in the main parts, such as window eaves, door lintels, roof ridges, etc. The layout was mostly developed in a balanced direction, and did not emphasize high-rise buildings. , high buildings can flourish. All artistic processing of architecture is also the processing of structural system and components, such as the combination of color, decoration and components, which constitutes a rich and brilliant artistic achievement. Ancient buildings are prosperous, including palaces, cemeteries, temples, palaces, gardens, bridges, pagodas, etc.

Existing single-storey buildings usually use traditional fixed structures, which cannot be adjusted, difficult to rotate, and cannot better receive sunlight, resulting in a narrow application range, which is not conducive to people's production and life. Therefore, it is urgent to develop a structure. A rotatable single-storey building that is flexible, can be adjusted, can be rotated, can better receive sunlight, and can be used in a wide range of applications.

SUMMARY OF THE INVENTION

(1) Technical problems to be solved

In order to overcome the shortcomings that the existing single-storey buildings usually adopt a traditional fixed structure, the present invention cannot be adjusted, difficult to rotate, and cannot better receive sunlight, resulting in a narrow application range. The technical problem to be solved by the present invention is to provide A rotatable single-storey building with flexible structure, adjustable, rotatable, better receiving sunlight and wide application range.

(2) Technical solutions

In order to solve the above technical problems, the present invention provides such a rotatable single-storey building, which includes a base, an annular slide rail, a first sliding block, a second sliding block, a bottom plate, a ring gear, a pinion, a long connecting shaft, The first bearing, the second bearing, the first bevel gear, the second bevel gear, the small connecting shaft, the third bearing, the rotating plate, the left wall, the top plate, the right wall, the front wall, the rear wall , The first support column and the second support column, the top of the base is provided with a large groove, the left part of the base is provided with a long groove, the long groove is located on the left side of the large groove, and the long groove is connected with the large groove , There is a small groove on the left of the base, the small groove is located on the left side of the large groove, the small groove is located above the long groove, the small groove is connected with the long groove, and the annular slide rail is located in the large groove , the annular sliding rail is connected with the base, the first sliding block and the second sliding block are both slidably arranged on the annular sliding rail, the second sliding block is located on the left side of the first sliding block, and the bottom plate is located on the first sliding block and the second sliding block. Above the slider, the first slider and the second slider are connected with the bottom plate, the bottom plate is located in the large groove, the ring gear is located on the outside of the annular slide rail, the top of the ring gear is connected with the bottom of the bottom plate, and the pinion is located in the bottom of the bottom plate. On the left side of the annular slide rail, the pinion gear is located below the ring gear, the pinion gear meshes with the ring gear, the pinion gear is connected with the right end of the long connecting shaft, the middle and left parts of the long connecting shaft are located in the long groove, and the long connecting shaft Set the interference connection with the first bearing, the first bearing is located in the long groove, the first bearing is connected with the base, the first bearing is located on the left side of the pinion, and the second bearing and the left end of the long connecting shaft are set as interference The second bearing is located in the long groove, the second bearing is connected with the base, the first bevel gear is arranged on the long connecting shaft, the first bevel gear is located on the left side of the first bearing, and the first bevel gear is arranged on the upper left There is a second bevel gear, the first bevel gear meshes with the second bevel gear, the second bevel gear is located on the right side of the second bearing, the second bevel gear is connected with the lower end of the small connecting shaft, and the small connecting shaft is connected with the third bearing Set as interference connection, the third bearing is located in the small groove, the third bearing is connected with the base, the rotating disk is located above the base, the rotating disk is set on the small connecting shaft, the left wall plate is located above the bottom plate, and the left side wall plate is located above the bottom plate. The wall panel is connected to the bottom panel, the top panel is located above the left panel, the left panel is connected to the top panel, the right panel is located to the right of the left panel, and the top panel of the right panel is connected to the bottom of the top panel , the bottom of the right side wall panel is connected with the top of the bottom panel, the front side wall panel is located between the left side wall panel and the right side wall panel, both the left side wall panel and the right side wall panel are connected with the front side wall panel, the front side wall panel is located between the left side wall panel and the right side wall panel. The side wall panel is located between the bottom panel and the top panel, both the bottom panel and the top panel are connected with the front side panel, the rear side panel is located directly behind the front side panel, and the rear side panel is located between the left side panel and the right side panel. In the rear, the left and right side wall panels are connected with the rear side wall panel, the rear side wall panel is located between the bottom panel and the top panel, both the bottom panel and the top panel are connected with the rear side wall panel, the first support column and the second The support columns are all located in front of the front side wall panel, the first support column is located on the right side of the second support column, the top of the first support column is connected with the bottom of the top plate, the bottom of the first support column is connected with the top of the bottom plate, and the second support column is connected to the bottom of the top plate. The top of the support column is in line with the bottom of the top plate connected, the bottom of the second support column is connected with the top of the bottom plate.

Preferably, it also includes a water tank, a water inlet pipe, a first valve, a connecting pipe, a second valve, a high-pressure pump, a wave-shaped heat exchange pipe, a solar heat exchange plate, a water outlet pipe and a third valve, and the water tank is located on the left side wall panel. On the left side, the bottom of the water tank is connected with the top of the bottom plate, the top of the water tank is connected with a water inlet pipe, the water tank is connected with the water inlet pipe, a first valve is arranged on the water inlet pipe, and one end of the connecting pipe is connected with the right side wall of the water tank, The connecting pipe is communicated with the water tank. The connecting pipe is provided with a second valve and a high-pressure pump. The high-pressure pump is located above the second valve. The upper end of the heat exchange tube is connected, the wave-shaped heat exchange tube is located in front of the solar heat exchange plate, the wave-shaped heat exchange tube is connected with the solar heat exchange plate, the bottom of the solar heat exchange plate is connected with the top of the top plate, and the wave-shaped heat exchange tube The lower end is embedded in the top plate, the water outlet pipe is located under the top plate, the upper end of the water outlet pipe is connected with the lower end of the wave-shaped heat exchange pipe, a third valve is arranged on the water outlet pipe, and the left side wall of the lower end of the water outlet pipe is connected to the left side wall plate. connected to the right side wall.

Preferably, it also includes a worm gear, a worm, a long rotating shaft, a rotating motor, a small fixed plate, a connecting plate and a fifth bearing, the worm gear is located above the rotating disk, the worm gear is connected to the upper end of the small connecting shaft, and the worm is located in front of the worm gear , the worm is meshed with the worm wheel, the worm is arranged on the long rotating shaft, the left end of the long rotating shaft is connected with the right end of the output shaft of the rotating motor, the bottom of the rotating motor is connected with the top of the small fixed plate, and the bottom of the small fixed plate is connected with the bottom of the base. The tops are connected, the right end of the long rotating shaft and the fifth bearing are set in an interference connection, the fifth bearing is embedded in the upper part of the connecting plate, and the bottom of the connecting plate is connected with the top of the base.

Preferably, it also includes a large fixed plate, a solar panel and a cylinder, the large fixed plate is located above the top plate, the large fixed plate is connected with the top plate, the solar battery panel is located above the large fixed plate, and the solar battery panel and the large fixed plate are hinged. The cylinder is located behind the solar panel, the upper end of the telescopic rod of the cylinder is hingedly connected to the solar panel, the cylinder is located above the large fixing plate, and the cylinder and the large fixing panel are hingedly connected.

Preferably, it also includes a large sleeve, a large lifting rod, a large spring, a large positioning screw and a long seat. The bottom of the rod is connected with a large spring, the large spring is located in the large sleeve, the lower end of the large spring is connected with the top of the bottom plate, the left side wall of the large sleeve is provided with a large positioning screw, and the large sleeve and the large positioning screw are set in a threaded connection, The large positioning screw is in contact with the large lifting rod, the upper end of the large lifting rod is connected with a long seat, and the long seat is located on the left side of the first support column.

Working principle: Because the present invention includes a base, an annular slide rail, a first slider, a second slider, a bottom plate, a ring gear, a pinion, a long connecting shaft, a first bearing, a second bearing, a first bevel gear, a first Two bevel gears, small connecting shaft, third bearing, rotating disc, left side wall panel, top panel, right side wall panel, front side wall panel, rear side wall panel, first support column and second support column, and the sun daily The existing single-storey buildings cannot receive light well, so when it is necessary to better receive sunlight, the rotating disc can be rotated first, and the rotating disc drives the second bevel gear through the small connecting shaft. Rotation, the second bevel gear drives the long connecting shaft to rotate through the first bevel gear, the long connecting shaft drives the ring gear to rotate through the pinion, the ring gear drives the bottom plate to rotate, the first slider, the second slider and the annular slide rail Provide sliding assistance for the rotation of the bottom plate, so that the bottom plate drives the left side wall panel, the top panel, the right side wall panel, the front side wall panel, the rear side wall panel, the first support column and the second support column to rotate together, so that the present invention can be further improved. It is good to receive sunlight, has a wide range of applications, simple structure and convenient operation.

Because it also includes a water tank, a water inlet pipe, a first valve, a connecting pipe, a second valve, a high-pressure pump, a wave-shaped heat exchange pipe, a solar heat exchange plate, a water outlet pipe and a third valve, when the rotating disc is rotated, the When the invention is adjusted to better receive sunlight, the first valve can be opened to add water into the water tank through the water inlet pipe, then the second valve can be opened, and the high-pressure pump can be started to transport the water into the wave-shaped heat exchange pipe through the connecting pipe. At this time, the present invention can better receive sunlight, and the solar heat exchange plate can greatly absorb the heat of sunlight, so as to heat the water in the wave-shaped heat exchange tube. The hot water in the wave-shaped heat exchange tube is discharged and used, and the application range is wide.

Because it also includes a worm gear, a worm, a long rotating shaft, a rotating motor, a small fixed plate, a connecting plate and a fifth bearing, the worm gear is located above the rotating disc, the worm gear is connected to the upper end of the small connecting shaft, the worm is located in front of the worm gear, and the worm Engaged with the worm gear, the worm is arranged on the long rotating shaft, the left end of the long rotating shaft is connected with the right end of the output shaft of the rotating motor, the bottom of the rotating motor is connected with the top of the small fixed plate, and the bottom of the small fixed plate is connected with the top of the base. Connection, the right end of the long rotating shaft and the fifth bearing are set as interference connection, the fifth bearing is embedded in the upper part of the connecting plate, and the bottom of the connecting plate is connected with the top of the base, so the rotating motor can be started to run, and the rotating motor can pass through the long shaft. The rotating shaft drives the worm to rotate, and the worm drives the small connecting shaft and the rotating disc to rotate through the worm wheel, so that the manual rotation is replaced by the rotating motor, which is more convenient to operate. At the same time, the self-locking function of the worm and the worm wheel can be used for more convenient positioning , the operation saves time and effort.

Because it also includes a large fixed plate, a solar panel and a cylinder, the large fixed plate is located above the top plate, the large fixed plate is connected to the top plate, the solar panel is located above the large fixed plate, and the solar panel and the large fixed plate are hinged. The air cylinder is located behind the solar panel, the upper end of the telescopic rod of the air cylinder is hingedly connected to the solar panel, the air cylinder is located above the large fixed plate, and the air cylinder and the large fixed plate are hingedly connected, so when the rotating disc and the small connecting shaft are rotated , when the present invention is adjusted to be able to better receive sunlight, the cylinder can be activated to act, and the cylinder drives the solar panel to adjust the angle, so as to adjust the inclination angle of the solar panel to a suitable position. At this time, the solar panel can be better Absorbing solar energy, it can generate better electricity and has a wider range of applications.

Because it also includes a large casing, a large lifting rod, a large spring, a large positioning screw and a long seat, the bottom of the large casing is connected with the top of the bottom plate, and a large lifting rod is slidably arranged in the large casing. The bottom is connected with a large spring, the large spring is located in the large sleeve, the lower end of the large spring is connected with the top of the bottom plate, the left side wall of the large sleeve is provided with a large positioning screw, the large sleeve and the large positioning screw are set to be threadedly connected, and the large positioning The screw is in contact with the large lifting rod, the upper end of the large lifting rod is connected with a long seat, and the long seat is located on the left side of the first support column, so the height of the long seat can be adjusted by the large lifting rod moving up and down in the large casing. After the height of the bench seat is adjusted, the large positioning screw is tightened, and then people can sit on the bench seat to bask in the sun, thereby enhancing physical fitness, and has a wide range of applications.

(3) Beneficial effects

The rotatable single-storey building provided by the invention has flexible structure, can be easily adjusted, can be easily rotated, can better receive sunlight, is beneficial to people's health, and is beneficial to improving people's life. High quality, beneficial to people's production and life, wide application range, simple structure, convenient operation, easy maintenance and repair, low maintenance and repair cost.

Description of drawings

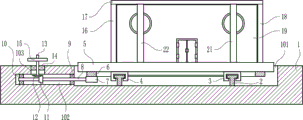

FIG. 1 is a schematic structural diagram of a front view of the present invention.

FIG. 2 is a schematic structural diagram of a rear view of a rear side wall panel of the present invention.

FIG. 3 is a schematic structural diagram of the front view of the water tank of the present invention.

FIG. 4 is a schematic structural view of the front view of the rotating electrical machine of the present invention.

FIG. 5 is a schematic structural diagram of the front view of the large fixing plate of the present invention.

FIG. 6 is a schematic structural diagram of a right side view of the cylinder of the present invention.

FIG. 7 is a schematic structural diagram of a front view of a large lift rod of the present invention.

The markings in the drawings are: 1-base, 2-ring sliding rail, 3-first sliding block, 4-second sliding block, 5-base plate, 6-ring gear, 7-pinion gear, 8-long connecting shaft , 9-first bearing, 10-second bearing, 11-first bevel gear, 12-second bevel gear, 13-small connecting shaft, 14-third bearing, 15-rotating disc, 16-left side wall plate , 17-top panel, 18-right side wall panel, 19-front side wall panel, 20-rear side wall panel, 21-first support column, 22-second support column, 31-water tank, 32-water inlet pipe, 33 -First valve, 34-connecting pipe, 35-second valve, 36-high pressure pump, 37-wave-shaped heat exchange pipe, 38-solar heat exchange plate, 39-water outlet pipe, 40-third valve, 41-worm gear , 42-worm, 43-long rotating shaft, 44-rotating motor, 45-small fixing plate, 46-connecting plate, 47-fifth bearing, 51-large fixing plate, 52-solar panel, 53-cylinder, 61 -Large casing, 62-Large lift rod, 63-Large spring, 64-Large positioning screw, 65-Long seat, 101-Large groove, 102-Long groove, 103-Small groove.

Detailed ways

The present invention will be further described below with reference to the accompanying drawings and embodiments.

Example 1

A rotatable single-storey building, as shown in Figures 1-7, includes a base 1, an annular slide rail 2, a first slider 3, a second slider 4, a bottom plate 5, a ring gear 6, a pinion 7, Long connecting shaft 8, first bearing 9, second bearing 10, first bevel gear 11, second bevel gear 12, small connecting shaft 13, third bearing 14, rotating disk 15, left side wall 16, top plate 17, The right side wall panel 18, the front side wall panel 19, the rear side wall panel 20, the first support column 21 and the second support column 22, the top of the base 1 is provided with a large groove 101, and the left part of the base 1 is provided with a long concave The groove 102, the long groove 102 is located on the left side of the large groove 101, the long groove 102 is communicated with the large groove 101, the left part of the base 1 is provided with a small groove 103, and the small groove 103 is located on the large groove 101. On the left side, the small groove 103 is located above the long groove 102, the small groove 103 is communicated with the long groove 102, the annular slide rail 2 is located in the large groove 101, the annular slide rail 2 is connected with the base 1, the first The sliding block 3 and the second sliding block 4 are both slidably arranged on the annular slide rail 2 , the second sliding block 4 is located on the left side of the first sliding block 3 , and the bottom plate 5 is located between the first sliding block 3 and the second sliding block 4 . Above, the first slider 3 and the second slider 4 are connected to the bottom plate 5, the bottom plate 5 is located in the large groove 101, the ring gear 6 is located outside the annular slide rail 2, the top of the ring gear 6 and the bottom of the bottom plate 5 Connected, the pinion 7 is located on the left side of the annular slide rail 2, the pinion 7 is located below the ring gear 6, the pinion 7 meshes with the ring gear 6, the pinion 7 is connected with the right end of the long connecting shaft 8, and the long connection The middle and left parts of the shaft 8 are located in the long groove 102, the long connecting shaft 8 and the first bearing 9 are arranged in an interference connection, the first bearing 9 is located in the long groove 102, the first bearing 9 is connected with the base 1, and the first bearing 9 is connected to the base 1. A bearing 9 is located on the left side of the pinion 7, the second bearing 10 is arranged in an interference connection with the left end of the long connecting shaft 8, the second bearing 10 is located in the long groove 102, the second bearing 10 is connected with the base 1, and the second bearing 10 is connected to the base 1. A bevel gear 11 is arranged on the long connecting shaft 8 , the first bevel gear 11 is located on the left side of the first bearing 9 , a second bevel gear 12 is arranged on the upper left of the first bevel gear 11 , and the first bevel gear 11 is connected to the second bevel gear 11 . The bevel gear 12 meshes with each other, the second bevel gear 12 is located on the right side of the second bearing 10, the second bevel gear 12 is connected with the lower end of the small connecting shaft 13, and the small connecting shaft 13 and the third bearing 14 are arranged in an interference connection, The third bearing 14 is located in the small groove 103 , the third bearing 14 is connected to the base 1 , the rotating plate 15 is located above the base 1 , the rotating plate 15 is arranged on the small connecting shaft 13 , and the left wall plate 16 is located on the bottom plate 5 . Above, the left side wall panel 16 is connected with the bottom panel 5, the top panel 17 is located above the left side wall panel 16, the left side wall panel 16 is connected with the top panel 17, the right side panel 18 is located on the right side of the left side wall panel 16, The top of the right side wall panel 18 is connected to the bottom of the top panel 17, the bottom of the right side wall panel 18 is connected to the top of the bottom panel 5, and the front side wall panel 19 is located between the left side wall panel 16 and the right side wall panel 18, The left side wall panel 16 and the right side wall panel 18 are both connected with the front side wall panel 19 Connected, the front side wall panel 19 is located between the bottom panel 5 and the top panel 17, the bottom panel 5 and the top panel 17 are both connected with the front side panel 19, the rear side panel 20 is located directly behind the front side panel 19, and the rear side wall The panel 20 is located behind the left side wall panel 16 and the right side panel 18. Both the left side panel 16 and the right side panel 18 are connected to the rear side panel 20. The rear side panel 20 is located between the bottom panel 5 and the top panel 17. During the time, the bottom plate 5 and the top plate 17 are connected with the rear side wall plate 20, the first support column 21 and the second support column 22 are both located in front of the front side wall plate 19, and the first support column 21 is located on the right side of the second support column 22. side, the top of the first support column 21 is connected with the bottom of the top plate 17, the bottom of the first support column 21 is connected with the top of the bottom plate 5, the top of the second support column 22 is connected with the bottom of the top plate 17, and the second support column The bottom of 22 is connected to the top of bottom plate 5 .

Example 2

A rotatable single-storey building, as shown in Figures 1-7, includes a base 1, an annular slide rail 2, a first slider 3, a second slider 4, a bottom plate 5, a ring gear 6, a pinion 7, Long connecting shaft 8, first bearing 9, second bearing 10, first bevel gear 11, second bevel gear 12, small connecting shaft 13, third bearing 14, rotating disk 15, left side wall 16, top plate 17, The right side wall panel 18, the front side wall panel 19, the rear side wall panel 20, the first support column 21 and the second support column 22, the top of the base 1 is provided with a large groove 101, and the left part of the base 1 is provided with a long concave The groove 102, the long groove 102 is located on the left side of the large groove 101, the long groove 102 is communicated with the large groove 101, the left part of the base 1 is provided with a small groove 103, and the small groove 103 is located on the large groove 101. On the left side, the small groove 103 is located above the long groove 102, the small groove 103 is communicated with the long groove 102, the annular slide rail 2 is located in the large groove 101, the annular slide rail 2 is connected with the base 1, the first The sliding block 3 and the second sliding block 4 are both slidably arranged on the annular slide rail 2 , the second sliding block 4 is located on the left side of the first sliding block 3 , and the bottom plate 5 is located between the first sliding block 3 and the second sliding block 4 . Above, the first slider 3 and the second slider 4 are connected to the bottom plate 5, the bottom plate 5 is located in the large groove 101, the ring gear 6 is located outside the annular slide rail 2, the top of the ring gear 6 and the bottom of the bottom plate 5 Connected, the pinion 7 is located on the left side of the annular slide rail 2, the pinion 7 is located below the ring gear 6, the pinion 7 meshes with the ring gear 6, the pinion 7 is connected with the right end of the long connecting shaft 8, and the long connection The middle and left parts of the shaft 8 are located in the long groove 102, the long connecting shaft 8 and the first bearing 9 are arranged in an interference connection, the first bearing 9 is located in the long groove 102, the first bearing 9 is connected with the base 1, and the first bearing 9 is connected to the base 1. A bearing 9 is located on the left side of the pinion 7, the second bearing 10 is arranged in an interference connection with the left end of the long connecting shaft 8, the second bearing 10 is located in the long groove 102, the second bearing 10 is connected with the base 1, and the second bearing 10 is connected to the base 1. A bevel gear 11 is arranged on the long connecting shaft 8 , the first bevel gear 11 is located on the left side of the first bearing 9 , a second bevel gear 12 is arranged on the upper left of the first bevel gear 11 , and the first bevel gear 11 is connected to the second bevel gear 11 . The bevel gear 12 meshes with each other, the second bevel gear 12 is located on the right side of the second bearing 10, the second bevel gear 12 is connected with the lower end of the small connecting shaft 13, and the small connecting shaft 13 and the third bearing 14 are arranged in an interference connection, The third bearing 14 is located in the small groove 103 , the third bearing 14 is connected to the base 1 , the rotating plate 15 is located above the base 1 , the rotating plate 15 is arranged on the small connecting shaft 13 , and the left wall plate 16 is located on the bottom plate 5 . Above, the left side wall panel 16 is connected with the bottom panel 5, the top panel 17 is located above the left side wall panel 16, the left side wall panel 16 is connected with the top panel 17, the right side panel 18 is located on the right side of the left side wall panel 16, The top of the right side wall panel 18 is connected to the bottom of the top panel 17, the bottom of the right side wall panel 18 is connected to the top of the bottom panel 5, and the front side wall panel 19 is located between the left side wall panel 16 and the right side wall panel 18, The left side wall panel 16 and the right side wall panel 18 are both connected with the front side wall panel 19 Connected, the front side wall panel 19 is located between the bottom panel 5 and the top panel 17, the bottom panel 5 and the top panel 17 are both connected with the front side panel 19, the rear side panel 20 is located directly behind the front side panel 19, and the rear side wall The panel 20 is located behind the left side wall panel 16 and the right side panel 18. Both the left side panel 16 and the right side panel 18 are connected to the rear side panel 20. The rear side panel 20 is located between the bottom panel 5 and the top panel 17. During the time, the bottom plate 5 and the top plate 17 are connected with the rear side wall plate 20, the first support column 21 and the second support column 22 are both located in front of the front side wall plate 19, and the first support column 21 is located on the right side of the second support column 22. side, the top of the first support column 21 is connected with the bottom of the top plate 17, the bottom of the first support column 21 is connected with the top of the bottom plate 5, the top of the second support column 22 is connected with the bottom of the top plate 17, and the second support column The bottom of 22 is connected to the top of bottom plate 5 .

It also includes a water tank 31, a water inlet pipe 32, a first valve 33, a connecting pipe 34, a second valve 35, a high-pressure pump 36, a wave-shaped heat exchange pipe 37, a solar heat exchange plate 38, a water outlet pipe 39 and a third valve 40, The water tank 31 is located on the left side of the left side wall panel 16, the bottom of the water tank 31 is connected with the top of the bottom plate 5, the top of the water tank 31 is connected with a water inlet pipe 32, the water tank 31 is communicated with the water inlet pipe 32, and the water inlet pipe 32 is provided with a water inlet pipe 32. A valve 33, one end of the connecting pipe 34 is connected to the right side wall of the water tank 31, the connecting pipe 34 is communicated with the water tank 31, the connecting pipe 34 is provided with a second valve 35 and a high-pressure pump 36, and the high-pressure pump 36 is located in the second valve Above 35, the high-pressure pump 36 is connected to the left side wall of the left wall panel 16, and the other end of the connecting pipe 34 is connected to the upper end of the wave-shaped heat exchange tube 37, which is located in front of the solar heat exchange plate 38. , the wave-shaped heat exchange tube 37 is connected with the solar heat exchange plate 38, the bottom of the solar heat exchange plate 38 is connected with the top of the top plate 17, the lower end of the wave-shaped heat exchange tube 37 is embedded in the top plate 17, and the water outlet pipe 39 is located in the top plate. 17, the upper end of the water outlet pipe 39 is connected with the lower end of the wave-shaped heat exchange pipe 37, the water outlet pipe 39 is provided with a third valve 40, the left side wall of the lower end of the water outlet pipe 39 and the right side wall of the left side wall panel 16. connected.

Example 3

A rotatable single-storey building, as shown in Figures 1-7, includes a base 1, an annular slide rail 2, a first slider 3, a second slider 4, a bottom plate 5, a ring gear 6, a pinion 7, Long connecting shaft 8, first bearing 9, second bearing 10, first bevel gear 11, second bevel gear 12, small connecting shaft 13, third bearing 14, rotating disk 15, left side wall 16, top plate 17, The right side wall panel 18, the front side wall panel 19, the rear side wall panel 20, the first support column 21 and the second support column 22, the top of the base 1 is provided with a large groove 101, and the left part of the base 1 is provided with a long concave The groove 102, the long groove 102 is located on the left side of the large groove 101, the long groove 102 is communicated with the large groove 101, the left part of the base 1 is provided with a small groove 103, and the small groove 103 is located on the large groove 101. On the left side, the small groove 103 is located above the long groove 102, the small groove 103 is communicated with the long groove 102, the annular slide rail 2 is located in the large groove 101, the annular slide rail 2 is connected with the base 1, the first The sliding block 3 and the second sliding block 4 are both slidably arranged on the annular slide rail 2 , the second sliding block 4 is located on the left side of the first sliding block 3 , and the bottom plate 5 is located between the first sliding block 3 and the second sliding block 4 . Above, the first slider 3 and the second slider 4 are connected to the bottom plate 5, the bottom plate 5 is located in the large groove 101, the ring gear 6 is located outside the annular slide rail 2, the top of the ring gear 6 and the bottom of the bottom plate 5 Connected, the pinion 7 is located on the left side of the annular slide rail 2, the pinion 7 is located below the ring gear 6, the pinion 7 meshes with the ring gear 6, the pinion 7 is connected with the right end of the long connecting shaft 8, and the long connection The middle and left parts of the shaft 8 are located in the long groove 102, the long connecting shaft 8 and the first bearing 9 are arranged in an interference connection, the first bearing 9 is located in the long groove 102, the first bearing 9 is connected with the base 1, and the first bearing 9 is connected to the base 1. A bearing 9 is located on the left side of the pinion 7, the second bearing 10 is arranged in an interference connection with the left end of the long connecting shaft 8, the second bearing 10 is located in the long groove 102, the second bearing 10 is connected with the base 1, and the second bearing 10 is connected to the base 1. A bevel gear 11 is arranged on the long connecting shaft 8 , the first bevel gear 11 is located on the left side of the first bearing 9 , a second bevel gear 12 is arranged on the upper left of the first bevel gear 11 , and the first bevel gear 11 is connected to the second bevel gear 11 . The bevel gear 12 meshes with each other, the second bevel gear 12 is located on the right side of the second bearing 10, the second bevel gear 12 is connected with the lower end of the small connecting shaft 13, and the small connecting shaft 13 and the third bearing 14 are arranged in an interference connection, The third bearing 14 is located in the small groove 103 , the third bearing 14 is connected to the base 1 , the rotating plate 15 is located above the base 1 , the rotating plate 15 is arranged on the small connecting shaft 13 , and the left wall plate 16 is located on the bottom plate 5 . Above, the left side wall panel 16 is connected with the bottom panel 5, the top panel 17 is located above the left side wall panel 16, the left side wall panel 16 is connected with the top panel 17, the right side panel 18 is located on the right side of the left side wall panel 16, The top of the right side wall panel 18 is connected to the bottom of the top panel 17, the bottom of the right side wall panel 18 is connected to the top of the bottom panel 5, and the front side wall panel 19 is located between the left side wall panel 16 and the right side wall panel 18, The left side wall panel 16 and the right side wall panel 18 are both connected with the front side wall panel 19 Connected, the front side wall panel 19 is located between the bottom panel 5 and the top panel 17, the bottom panel 5 and the top panel 17 are both connected with the front side panel 19, the rear side panel 20 is located directly behind the front side panel 19, and the rear side wall The panel 20 is located behind the left side wall panel 16 and the right side panel 18. Both the left side panel 16 and the right side panel 18 are connected to the rear side panel 20. The rear side panel 20 is located between the bottom panel 5 and the top panel 17. During the time, the bottom plate 5 and the top plate 17 are connected with the rear side wall plate 20, the first support column 21 and the second support column 22 are both located in front of the front side wall plate 19, and the first support column 21 is located on the right side of the second support column 22. side, the top of the first support column 21 is connected with the bottom of the top plate 17, the bottom of the first support column 21 is connected with the top of the bottom plate 5, the top of the second support column 22 is connected with the bottom of the top plate 17, and the second support column The bottom of 22 is connected to the top of bottom plate 5 .

It also includes a water tank 31, a water inlet pipe 32, a first valve 33, a connecting pipe 34, a second valve 35, a high-pressure pump 36, a wave-shaped heat exchange pipe 37, a solar heat exchange plate 38, a water outlet pipe 39 and a third valve 40, The water tank 31 is located on the left side of the left side wall panel 16, the bottom of the water tank 31 is connected with the top of the bottom plate 5, the top of the water tank 31 is connected with a water inlet pipe 32, the water tank 31 is communicated with the water inlet pipe 32, and the water inlet pipe 32 is provided with a water inlet pipe 32. A valve 33, one end of the connecting pipe 34 is connected to the right side wall of the water tank 31, the connecting pipe 34 is communicated with the water tank 31, the connecting pipe 34 is provided with a second valve 35 and a high-pressure pump 36, and the high-pressure pump 36 is located in the second valve Above 35, the high-pressure pump 36 is connected to the left side wall of the left wall panel 16, and the other end of the connecting pipe 34 is connected to the upper end of the wave-shaped heat exchange tube 37, which is located in front of the solar heat exchange plate 38. , the wave-shaped heat exchange tube 37 is connected with the solar heat exchange plate 38, the bottom of the solar heat exchange plate 38 is connected with the top of the top plate 17, the lower end of the wave-shaped heat exchange tube 37 is embedded in the top plate 17, and the water outlet pipe 39 is located in the top plate. 17, the upper end of the water outlet pipe 39 is connected with the lower end of the wave-shaped heat exchange pipe 37, the water outlet pipe 39 is provided with a third valve 40, the left side wall of the lower end of the water outlet pipe 39 and the right side wall of the left side wall panel 16. connected.

It also includes a worm wheel 41, a worm 42, a long rotating shaft 43, a rotating motor 44, a small fixed plate 45, a connecting plate 46 and a fifth bearing 47. The worm wheel 41 is located above the rotating disk 15. The upper end of the worm wheel 41 and the small connecting shaft 13 Connected, the worm 42 is located in front of the worm wheel 41, the worm 42 is engaged with the worm wheel 41, the worm 42 is arranged on the long rotating shaft 43, the left end of the long rotating shaft 43 is connected with the right end of the output shaft of the rotary motor 44, and the bottom of the rotary motor 44 is connected. It is connected with the top of the small fixed plate 45, the bottom of the small fixed plate 45 is connected with the top of the base 1, and the right end of the long rotating shaft 43 is set as an interference connection with the fifth bearing 47, and the fifth bearing 47 is embedded in the connecting plate. 46, the bottom of the connecting plate 46 is connected with the top of the base 1.

Example 4

A rotatable single-storey building, as shown in Figures 1-7, includes a base 1, an annular slide rail 2, a first slider 3, a second slider 4, a bottom plate 5, a ring gear 6, a pinion 7, Long connecting shaft 8, first bearing 9, second bearing 10, first bevel gear 11, second bevel gear 12, small connecting shaft 13, third bearing 14, rotating disk 15, left side wall 16, top plate 17, The right side wall panel 18, the front side wall panel 19, the rear side wall panel 20, the first support column 21 and the second support column 22, the top of the base 1 is provided with a large groove 101, and the left part of the base 1 is provided with a long concave The groove 102, the long groove 102 is located on the left side of the large groove 101, the long groove 102 is communicated with the large groove 101, the left part of the base 1 is provided with a small groove 103, and the small groove 103 is located on the large groove 101. On the left side, the small groove 103 is located above the long groove 102, the small groove 103 is communicated with the long groove 102, the annular slide rail 2 is located in the large groove 101, the annular slide rail 2 is connected with the base 1, the first The sliding block 3 and the second sliding block 4 are both slidably arranged on the annular slide rail 2 , the second sliding block 4 is located on the left side of the first sliding block 3 , and the bottom plate 5 is located between the first sliding block 3 and the second sliding block 4 . Above, the first slider 3 and the second slider 4 are connected to the bottom plate 5, the bottom plate 5 is located in the large groove 101, the ring gear 6 is located outside the annular slide rail 2, the top of the ring gear 6 and the bottom of the bottom plate 5 Connected, the pinion 7 is located on the left side of the annular slide rail 2, the pinion 7 is located below the ring gear 6, the pinion 7 meshes with the ring gear 6, the pinion 7 is connected with the right end of the long connecting shaft 8, and the long connection The middle and left parts of the shaft 8 are located in the long groove 102, the long connecting shaft 8 and the first bearing 9 are arranged in an interference connection, the first bearing 9 is located in the long groove 102, the first bearing 9 is connected with the base 1, and the first bearing 9 is connected to the base 1. A bearing 9 is located on the left side of the pinion 7, the second bearing 10 is arranged in an interference connection with the left end of the long connecting shaft 8, the second bearing 10 is located in the long groove 102, the second bearing 10 is connected with the base 1, and the second bearing 10 is connected to the base 1. A bevel gear 11 is arranged on the long connecting shaft 8 , the first bevel gear 11 is located on the left side of the first bearing 9 , a second bevel gear 12 is arranged on the upper left of the first bevel gear 11 , and the first bevel gear 11 is connected to the second bevel gear 11 . The bevel gear 12 meshes with each other, the second bevel gear 12 is located on the right side of the second bearing 10, the second bevel gear 12 is connected with the lower end of the small connecting shaft 13, and the small connecting shaft 13 and the third bearing 14 are arranged in an interference connection, The third bearing 14 is located in the small groove 103 , the third bearing 14 is connected to the base 1 , the rotating plate 15 is located above the base 1 , the rotating plate 15 is arranged on the small connecting shaft 13 , and the left wall plate 16 is located on the bottom plate 5 . Above, the left side wall panel 16 is connected with the bottom panel 5, the top panel 17 is located above the left side wall panel 16, the left side wall panel 16 is connected with the top panel 17, the right side panel 18 is located on the right side of the left side wall panel 16, The top of the right side wall panel 18 is connected to the bottom of the top panel 17, the bottom of the right side wall panel 18 is connected to the top of the bottom panel 5, and the front side wall panel 19 is located between the left side wall panel 16 and the right side wall panel 18, The left side wall panel 16 and the right side wall panel 18 are both connected with the front side wall panel 19 Connected, the front side wall panel 19 is located between the bottom panel 5 and the top panel 17, the bottom panel 5 and the top panel 17 are both connected with the front side panel 19, the rear side panel 20 is located directly behind the front side panel 19, and the rear side wall The panel 20 is located behind the left side wall panel 16 and the right side panel 18. Both the left side panel 16 and the right side panel 18 are connected to the rear side panel 20. The rear side panel 20 is located between the bottom panel 5 and the top panel 17. During the time, the bottom plate 5 and the top plate 17 are connected with the rear side wall plate 20, the first support column 21 and the second support column 22 are both located in front of the front side wall plate 19, and the first support column 21 is located on the right side of the second support column 22. side, the top of the first support column 21 is connected with the bottom of the top plate 17, the bottom of the first support column 21 is connected with the top of the bottom plate 5, the top of the second support column 22 is connected with the bottom of the top plate 17, and the second support column The bottom of 22 is connected to the top of bottom plate 5 .

It also includes a water tank 31, a water inlet pipe 32, a first valve 33, a connecting pipe 34, a second valve 35, a high-pressure pump 36, a wave-shaped heat exchange pipe 37, a solar heat exchange plate 38, a water outlet pipe 39 and a third valve 40, The water tank 31 is located on the left side of the left side wall panel 16, the bottom of the water tank 31 is connected with the top of the bottom plate 5, the top of the water tank 31 is connected with a water inlet pipe 32, the water tank 31 is communicated with the water inlet pipe 32, and the water inlet pipe 32 is provided with a water inlet pipe 32. A valve 33, one end of the connecting pipe 34 is connected to the right side wall of the water tank 31, the connecting pipe 34 is communicated with the water tank 31, the connecting pipe 34 is provided with a second valve 35 and a high-pressure pump 36, and the high-pressure pump 36 is located in the second valve Above 35, the high-pressure pump 36 is connected to the left side wall of the left wall panel 16, and the other end of the connecting pipe 34 is connected to the upper end of the wave-shaped heat exchange tube 37, which is located in front of the solar heat exchange plate 38. , the wave-shaped heat exchange tube 37 is connected with the solar heat exchange plate 38, the bottom of the solar heat exchange plate 38 is connected with the top of the top plate 17, the lower end of the wave-shaped heat exchange tube 37 is embedded in the top plate 17, and the water outlet pipe 39 is located in the top plate. 17, the upper end of the water outlet pipe 39 is connected with the lower end of the wave-shaped heat exchange pipe 37, the water outlet pipe 39 is provided with a third valve 40, the left side wall of the lower end of the water outlet pipe 39 and the right side wall of the left side wall panel 16. connected.

It also includes a worm wheel 41, a worm 42, a long rotating shaft 43, a rotating motor 44, a small fixed plate 45, a connecting plate 46 and a fifth bearing 47. The worm wheel 41 is located above the rotating disk 15. The upper end of the worm wheel 41 and the small connecting shaft 13 Connected, the worm 42 is located in front of the worm wheel 41, the worm 42 is engaged with the worm wheel 41, the worm 42 is arranged on the long rotating shaft 43, the left end of the long rotating shaft 43 is connected with the right end of the output shaft of the rotary motor 44, and the bottom of the rotary motor 44 is connected. It is connected with the top of the small fixed plate 45, the bottom of the small fixed plate 45 is connected with the top of the base 1, and the right end of the long rotating shaft 43 is set as an interference connection with the fifth bearing 47, and the fifth bearing 47 is embedded in the connecting plate. 46, the bottom of the connecting plate 46 is connected with the top of the base 1.

It also includes a large fixed plate 51, a solar cell board 52 and a cylinder 53. The large fixed plate 51 is located above the top plate 17, the large fixed plate 51 is connected to the top plate 17, the solar cell plate 52 is located above the large fixed plate 51, and the solar cell plate 52 The large fixed plate 51 is hingedly connected, the cylinder 53 is located behind the solar panel 52, the upper end of the telescopic rod of the cylinder 53 is hingedly connected to the solar panel 52, the cylinder 53 is located above the large fixed plate 51, and the cylinder 53 is connected to the large fixed plate 52. The plate 51 is provided in a hinged connection.

It also includes a large sleeve 61, a large lifting rod 62, a large spring 63, a large positioning screw 64 and a long seat 65. The bottom of the large sleeve 61 is connected with the top of the bottom plate 5. The large sleeve 61 is slidably provided with The large lifting rod 62, the bottom of the large lifting rod 62 is connected with a large spring 63, the large spring 63 is located in the large sleeve 61, the lower end of the large spring 63 is connected with the top of the bottom plate 5, and the left side wall of the large sleeve 61 is provided with a large The positioning screw 64, the large sleeve 61 and the large positioning screw 64 are set to be threadedly connected, the large positioning screw 64 is in contact with the large lifting rod 62, and the upper end of the large lifting rod 62 is connected with a long seat 65, and the long seat 65 is located in the first The left side of the support column 21 .

Working principle: Because the present invention includes a base 1, an annular slide rail 2, a first slider 3, a second slider 4, a bottom plate 5, a ring gear 6, a pinion 7, a long connecting shaft 8, a first bearing 9, a first Two bearings 10 , first bevel gear 11 , second bevel gear 12 , small connecting shaft 13 , third bearing 14 , rotating disk 15 , left side wall 16 , top plate 17 , right side wall 18 , front side wall 19 , the rear side wall panel 20, the first support column 21 and the second support column 22, and the sun rises in the east and sets in the west every day, the existing single-storey buildings cannot receive light well, so when it is necessary to better receive sunlight At the time, the rotating disk 15 can be rotated first, the rotating disk 15 drives the second bevel gear 12 to rotate through the small connecting shaft 13, the second bevel gear 12 drives the long connecting shaft 8 to rotate through the first bevel gear 11, and the long connecting shaft 8 rotates. 8. The ring gear 6 is driven by the pinion 7 to rotate, and the ring gear 6 drives the bottom plate 5 to rotate. The first slider 3, the second slider 4 and the annular slide rail 2 provide sliding assistance for the rotation of the bottom plate 5, and the bottom plate 5 drives the left side. The side wall panel 16, the top panel 17, the right side wall panel 18, the front side wall panel 19, the rear side wall panel 20, the first support column 21 and the second support column 22 rotate together, so that the present invention can better receive sunlight Irradiation, wide application range, simple structure and convenient operation.

Because it also includes a water tank 31, a water inlet pipe 32, a first valve 33, a connecting pipe 34, a second valve 35, a high-pressure pump 36, a wave-shaped heat exchange pipe 37, a solar heat exchange plate 38, a water outlet pipe 39 and a third valve 40 , so when the present invention is adjusted to better receive sunlight by rotating the rotary disk 15, the first valve 33 can be opened to add water into the water tank 31 through the water inlet pipe 32, then the second valve 35 can be opened, and the high-pressure pump can be started. 36. The water is transported into the wave-shaped heat exchange tube 37 through the connecting pipe 34. At this time, the present invention can better receive sunlight. The water in 37 is heated, and when people need hot water, open the third valve 40, and discharge the hot water in the wave-shaped heat exchange tube 37 through the water outlet pipe 39 for use, and the application range is wide.

Because it also includes a worm wheel 41, a worm screw 42, a long rotating shaft 43, a rotating motor 44, a small fixed plate 45, a connecting plate 46 and a fifth bearing 47, the worm wheel 41 is located above the rotating disk 15, and the worm wheel 41 is connected to the small connecting shaft 13. The upper end is connected, the worm 42 is located in front of the worm wheel 41, the worm 42 is engaged with the worm wheel 41, the worm 42 is arranged on the long rotating shaft 43, the left end of the long rotating shaft 43 is connected with the right end of the output shaft of the rotating motor 44, and the The bottom is connected with the top of the small fixed plate 45, the bottom of the small fixed plate 45 is connected with the top of the base 1, the right end of the long rotating shaft 43 and the fifth bearing 47 are set as interference connection, and the fifth bearing 47 is embedded in the connection. On the upper part of the plate 46, the bottom of the connecting plate 46 is connected with the top of the base 1, so the rotating motor 44 can be started to operate, the rotating motor 44 drives the worm 42 to rotate through the long rotating shaft 43, and the worm 42 drives the small connecting shaft 13 through the worm wheel 41. It rotates with the rotating disk 15, so that the manual rotation is replaced by the rotating motor 44, and the operation is more convenient.

Because it also includes a large fixed plate 51, a solar cell panel 52 and a cylinder 53, the large fixed plate 51 is located above the top plate 17, the large fixed plate 51 is connected to the top plate 17, the solar cell panel 52 is located above the large fixed plate 51, and the solar cell panel 52 and the large fixing plate 51 are hingedly connected, the cylinder 53 is located behind the solar panel 52, the upper end of the telescopic rod of the cylinder 53 is hingedly connected with the solar panel 52, the cylinder 53 is located above the large fixing plate 51, The fixed plate 51 is set to be hinged, so when the present invention is adjusted to be better able to receive sunlight through the rotation of the rotary disk 15 and the small connecting shaft 13, the cylinder 53 can be activated to act, and the cylinder 53 drives the solar panel 52 to perform the operation. The angle is adjusted to adjust the inclination angle of the solar cell panel 52 to an appropriate position. At this time, the solar cell panel 52 can better absorb solar energy, generate better power, and have a wider application range.

Because it also includes a large sleeve 61, a large lifting rod 62, a large spring 63, a large positioning screw 64 and a long seat 65, the bottom of the large sleeve 61 is connected with the top of the bottom plate 5, and the large sleeve 61 is slidable. There is a large lifting rod 62, the bottom of the large lifting rod 62 is connected with a large spring 63, the large spring 63 is located in the large sleeve 61, the lower end of the large spring 63 is connected with the top of the bottom plate 5, and the left side wall of the large sleeve 61 is provided with The large positioning screw 64, the large sleeve 61 and the large positioning screw 64 are set to be threadedly connected, the large positioning screw 64 is in contact with the large lifting rod 62, and the upper end of the large lifting rod 62 is connected with a long seat 65. The left side of a support column 21, so the height of the bench seat 65 can be adjusted by moving up and down the large lifting rod 62 in the large sleeve 61. After the height of the bench seat 65 is adjusted, the large positioning screw 64 is tightened, and then people It is possible to sit on the bench seat 65 to bask in the sun, thereby enhancing physical fitness, and has a wide range of applications.

The above-mentioned embodiments only represent the preferred embodiments of the present invention, and the descriptions thereof are specific and detailed, but should not be construed as limiting the scope of the present invention. It should be pointed out that for those of ordinary skill in the art, without departing from the concept of the present invention, several modifications, improvements and substitutions can be made, which all belong to the protection scope of the present invention. Therefore, the protection scope of the patent of the present invention should be subject to the appended claims.

Claims (5)

1. A rotatable single-layer building is characterized by comprising a base (1), an annular slide rail (2), a first slide block (3), a second slide block (4), a bottom plate (5), a gear ring (6), a pinion (7), a long connecting shaft (8), a first bearing (9), a second bearing (10), a first bevel gear (11), a second bevel gear (12), a small connecting shaft (13), a third bearing (14), a rotating disk (15), a left side wall plate (16), a top plate (17), a right side wall plate (18), a front side wall plate (19), a rear side wall plate (20), a first supporting column (21) and a second supporting column (22), wherein a large groove (101) is formed in the top of the base (1), a long groove (102) is formed in the left portion of the base (1), the long groove (102) is located on the left side of the large groove (101), and the long groove (102) is communicated with the large groove (101), the left part of the base (1) is provided with a small groove (103), the small groove (103) is positioned on the left side of the large groove (101), the small groove (103) is positioned above the long groove (102), the small groove (103) is communicated with the long groove (102), the annular slide rail (2) is positioned in the large groove (101), the annular slide rail (2) is connected with the base (1), the first slide block (3) and the second slide block (4) are both arranged on the annular slide rail (2) in a sliding manner, the second slide block (4) is positioned on the left side of the first slide block (3), the bottom plate (5) is positioned above the first slide block (3) and the second slide block (4), the first slide block (3) and the second slide block (4) are both connected with the bottom plate (5), the bottom plate (5) is positioned in the large groove (101), the gear ring (6) is positioned on the outer side of the annular slide rail (2), and the top of the gear ring (6) is connected with the bottom plate (5), the pinion (7) is positioned on the left side of the annular sliding rail (2), the pinion (7) is positioned below the gear ring (6), the pinion (7) is meshed with the gear ring (6), the pinion (7) is connected with the right end of the long connecting shaft (8), the middle part and the left part of the long connecting shaft (8) are positioned in the long groove (102), the long connecting shaft (8) is in interference connection with the first bearing (9), the first bearing (9) is positioned in the long groove (102), the first bearing (9) is connected with the base (1), the first bearing (9) is positioned on the left side of the pinion (7), the second bearing (10) is in interference connection with the left end of the long connecting shaft (8), the second bearing (10) is positioned in the long groove (102), the second bearing (10) is connected with the base (1), the first bevel gear (11) is arranged on the long connecting shaft (8), the first bevel gear (11) is positioned on the left side of the first bearing (9), a second bevel gear (12) is arranged on the upper left of the first bevel gear (11), the first bevel gear (11) is meshed with the second bevel gear (12), the second bevel gear (12) is positioned on the right side of the second bearing (10), the second bevel gear (12) is connected with the lower end of a small connecting shaft (13), the small connecting shaft (13) is in interference connection with a third bearing (14), the third bearing (14) is positioned in a small groove (103), the third bearing (14) is connected with the base (1), a rotating disk (15) is positioned above the base (1), the rotating disk (15) is arranged on the small connecting shaft (13), a left side wall plate (16) is positioned above the bottom plate (5), the left side wall plate (16) is connected with the bottom plate (5), a top plate (17) is positioned above the left side wall plate (16), the left side wall plate (16) is connected with the top plate (17), a right side wall plate (18) is positioned on the right side of the left side, the top of a right side wall plate (18) is connected with the bottom of a top plate (17), the bottom of the right side wall plate (18) is connected with the top of a bottom plate (5), a front side wall plate (19) is positioned between the left side wall plate (16) and the right side wall plate (18), the left side wall plate (16) and the right side wall plate (18) are both connected with the front side wall plate (19), the front side wall plate (19) is positioned between the bottom plate (5) and the top plate (17), the bottom plate (5) and the top plate (17) are both connected with the front side wall plate (19), a rear side wall plate (20) is positioned right behind the front side wall plate (19), the rear side wall plate (20) is positioned behind the left side wall plate (16) and the right side wall plate (18), the left side wall plate (16) and the right side wall plate (18) are both connected with the rear side wall plate (20), the rear side wall plate (20) is positioned between the bottom plate (5) and the top plate (17), the bottom plate (5) and, first support column (21) and second support column (22) all are located the place ahead of front side wallboard (19), first support column (21) are located second support column (22) right side, the top of first support column (21) is connected with roof (17) bottom, the bottom of first support column (21) is connected with the top of bottom plate (5), the top of second support column (22) is connected with the bottom of roof (17), the bottom of second support column (22) is connected with the top of bottom plate (5).

2. The rotatable single-storey building according to claim 1, further comprising a water tank (31), a water inlet pipe (32), a first valve (33), a connecting pipe (34), a second valve (35), a high-pressure pump (36), a wave-shaped heat exchange pipe (37), a solar heat exchange plate (38), a water outlet pipe (39) and a third valve (40), wherein the water tank (31) is located on the left side of the left side wall plate (16), the bottom of the water tank (31) is connected with the top of the bottom plate (5), the top of the water tank (31) is connected with the water inlet pipe (32), the water tank (31) is communicated with the water inlet pipe (32), the first valve (33) is arranged on the water inlet pipe (32), one end of the connecting pipe (34) is connected with the right side wall of the water tank (31), the connecting pipe (34) is communicated with the water tank (31), the second valve (35) and the high-pressure pump (36, the high-pressure pump (36) is located above the second valve (35), the high-pressure pump (36) is connected with the left side wall of the left side wall board (16), the other end of the connecting pipe (34) is connected with the upper end of the wave-shaped heat exchange pipe (37), the wave-shaped heat exchange pipe (37) is located in front of the solar heat exchange plate (38), the wave-shaped heat exchange pipe (37) is connected with the solar heat exchange plate (38), the bottom of the solar heat exchange plate (38) is connected with the top of the top board (17), the lower end of the wave-shaped heat exchange pipe (37) is embedded in the top board (17), the water outlet pipe (39) is located below the top board (17), the upper end of the water outlet pipe (39) is connected with the lower end of the wave-shaped heat exchange pipe (37), the water outlet pipe (39) is provided with the third valve (40), and.

3. The rotatable single-storey building according to claim 2, further comprising a worm wheel (41), a worm (42), a long rotating shaft (43), a rotating motor (44), a small fixing plate (45), a connecting plate (46) and a fifth bearing (47), wherein the worm wheel (41) is positioned above the rotating disc (15), the worm wheel (41) is connected with the upper end of the small connecting shaft (13), the worm (42) is positioned in front of the worm wheel (41), the worm (42) is meshed with the worm wheel (41), the worm (42) is arranged on the long rotating shaft (43), the left end of the long rotating shaft (43) is connected with the right end of the output shaft of the rotating motor (44), the bottom of the rotating motor (44) is connected with the top of the small fixing plate (45), the bottom of the small fixing plate (45) is connected with the top of the base (1), and the right end of the long rotating shaft (43) is in interference connection with the fifth bearing (47), the fifth bearing (47) is embedded at the upper part of the connecting plate (46), and the bottom of the connecting plate (46) is connected with the top of the base (1).

4. The rotatable single-storey building according to claim 3, further comprising a large fixing plate (51), a solar panel (52) and an air cylinder (53), wherein the large fixing plate (51) is located above the top plate (17), the large fixing plate (51) is connected with the top plate (17), the solar panel (52) is located above the large fixing plate (51), the solar panel (52) and the large fixing plate (51) are hinged, the air cylinder (53) is located behind the solar panel (52), the upper end of the telescopic rod of the air cylinder (53) is hinged with the solar panel (52), the air cylinder (53) is located above the large fixing plate (51), and the air cylinder (53) and the large fixing plate (51) are hinged.

5. Rotatable single-storey building according to claim 4, further comprising a large sleeve (61), a large lifting rod (62), big spring (63), big positioning screw (64) and bench seat (65), the bottom of big sleeve pipe (61) is connected with the top of bottom plate (5), big telescopic (61) internal sliding type is provided with big lifter (62), the bottom of big lifter (62) is connected with big spring (63), big spring (63) are located big telescopic (61), big spring (63) lower extreme is connected with the top of bottom plate (5), the left side wall of big sleeve pipe (61) is provided with big positioning screw (64), big sleeve pipe (61) and big positioning screw (64) set up to threaded connection, big positioning screw (64) contact with big lifter (62), the upper end of big lifter (62) is connected with bench seat (65), bench seat (65) are located the left side of first support column (21).
