Abstract

The invention provides a fixing fixture for photovoltaic panel production, which relates to the field of photovoltaic panel production. A motor is connected, a first pulley is fixedly connected to the outer surface of the output shaft of the motor, and a first gear is rotatably connected to the bottom of the inner wall of the installation groove and located on one side of the motor through a support rod. Through the rotation of the first gear, the present invention can well drive the spur plate to move, and indirectly drive the movable plate to move, so that the position of the fixture can be changed well, so as to meet the use of photovoltaic panels of different sizes, Then, through the rotation of the screw rod, the clamping block can be well driven to move, so that the photovoltaic panel can be better clamped and fixed, and it is simple and convenient, which greatly improves the practicability of the photovoltaic panel fixing fixture.

Description

A fixture for photovoltaic panel production

technical field

The invention relates to the field of photovoltaic panel production equipment, in particular to a fixing fixture for photovoltaic panel production.

Background technique

Photovoltaic panel, also known as solar panel, is an assembly composed of several solar cell components assembled on a board in a certain way. It is usually used as a unit of a photovoltaic square, and a single solar cell cannot be used directly as a power source. As a power supply, several single cells must be connected in series, connected in parallel and tightly packaged into components. The solar cell module is the core part of the solar power generation system and the most important part of the solar power generation system. Its function is to convert solar energy into electrical energy, or send it to the battery for storage, or drive the load to work. The quality and cost of solar panels will directly determine the quality and cost of the entire system.

In real life, photovoltaic panels are widely used. Photovoltaic panels are very environmentally friendly and energy-saving. However, the existing photovoltaic panel production has a lot of shortcomings. For example, during the production process of the existing photovoltaic panels, The photovoltaic panels cannot be fixed and clamped well, and the photovoltaic panels of different sizes cannot be fixed, which greatly reduces the practicability of the photovoltaic panel fixing fixture.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a fixing fixture for photovoltaic panel production to solve the above-mentioned technical problems.

In order to solve the above-mentioned technical problems, the present invention adopts the following technical solutions: a fixing fixture for photovoltaic panel production, comprising a bottom plate, a workbench is fixedly connected to the top of the bottom plate, and a mounting groove is opened inside the workbench, and the A motor is fixedly connected to the bottom of the inner wall of the installation groove, a first pulley is fixedly connected to the outer surface of the motor output shaft, and a first gear is connected to the bottom of the inner wall of the installation groove and is located on one side of the motor through a support rod, and the first gear is rotated. A second pulley is fixedly connected to the front of a gear, the outer surface of the second pulley is connected with the outer surface of the first pulley through a belt drive, and the bottom of the inner wall of the installation groove and the other side of the motor are rotatably connected by a support rod There is a second gear, the top of the inner wall of the installation slot is slidably connected with a spur-tooth plate through a sliding rod, and the bottom of the spur-tooth plate is meshed with the outer surface of the first gear and the outer surface of the second gear. The top of one side is fixedly connected with a movable plate, the top of the movable plate penetrates the workbench and extends to the top of the workbench, and the side of the movable plate extending to the top of the workbench is fixedly connected with a fixed plate, and the fixed plate is The top is fixedly connected with a threaded block, and the interior of the threaded block is threaded with a lead screw, the bottom end of the lead screw penetrates the fixed plate and extends to the bottom of the fixed plate, and the end of the lead screw extending to the bottom of the fixed plate is rotated through a bearing A clamping plate is connected, and a buffer block is fixedly connected to the bottom of one side of the movable plate.

Further, a buffer groove is provided inside the buffer block, a buffer plate is slidably connected between two sides of the inner wall of the buffer groove, and a buffer is slidably connected between the two sides of the inner wall of the buffer groove and at the bottom of the buffer plate. rods, and sliding blocks are slidably connected to the outer surfaces of both ends of the buffer rod.

Further, a buffer spring is fixedly connected to one side of the sliding block and is located on the outer surface of the buffer rod, the top of the sliding block is movably connected to a connecting rod through a pin, and the other end of the connecting rod is connected to the bottom of the buffer plate through a pin. Active connection.

Further, a pressing block is fixedly connected to the top of the buffer plate, and the top of the pressing block penetrates the buffer block and extends to the top of the buffer block.

Further, a baffle is fixedly connected to one side of the top of the workbench, a squeeze groove is fixedly connected to the bottom of one side of the baffle, and a squeeze spring is fixedly connected to the bottom of the inner wall of the squeeze groove, and the squeeze spring is A shock-absorbing block is fixedly connected to the top of the shock-absorbing block, and the top of the shock-absorbing block penetrates the extrusion groove and extends to the top of the extrusion groove.

Further, a top plate is fixedly connected to the top of one side of the baffle plate, a motion block is slidably connected to both sides of the bottom of the top plate, and a shock-absorbing spring is fixedly connected between the two motion blocks, and the other side of the motion block is connected. One side is movably connected with a shock-absorbing rod through a pin, and the other end of the shock-absorbing rod is movably connected with a shock-absorbing plate through a pin.

The beneficial effects of the present invention are:

In the present invention, the motor, the first pulley, the first gear, the second pulley, the second gear, the spur-tooth plate and the movable plate are arranged in cooperation, and by starting the motor, the motor can well drive the first pulley to rotate, and the first pulley can be rotated. When a pulley rotates, it can drive the first gear to rotate through the second pulley, and indirectly through the rotation of the first gear, it can drive the spur plate to move, so as to drive the movable plate to move. , and then the position of the clamp can be changed very well to meet the use of photovoltaic panels of different sizes, and then through the cooperation of the fixed plate, the screw block, the screw, the clamping plate and the buffer block, by rotating the screw, the screw When rotating, the clamping block can be well driven to move, so that the photovoltaic panel can be clamped and fixed better, and it is simple and convenient, which greatly improves the practicability of the photovoltaic panel fixing fixture.

Description of drawings

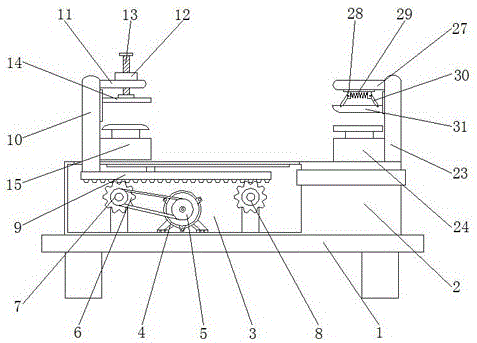

Fig. 1 is the structural representation of the present invention;

Fig. 2 is the sectional view of the buffer block structure of the present invention;

FIG. 3 is a cross-sectional view of the extrusion groove structure of the present invention.

Reference signs: 1-base plate, 2-table, 3-installation slot, 4-motor, 5-first pulley, 6-first gear, 7-second pulley, 8-second gear, 9-spur Plate, 10-movable plate, 11-fixed plate, 12-threaded block, 13-screw, 14-clamping plate, 15-buffer block, 16-buffer groove, 17-buffer plate, 18-buffer rod, 19- Slide block, 20-buffer spring, 21-connecting rod, 22-extrusion block, 23-baffle plate, 24-extrusion groove, 25-extrusion spring, 26-shock-absorbing block, 27-top plate, 28-movement block , 29- damping spring, 30- damping rod, 31- damping plate.

Detailed ways

In order to make the technical means, creative features, goals and effects realized by the present invention easy to understand, the present invention will be further described below with reference to specific embodiments and accompanying drawings, but the following embodiments are only preferred embodiments of the present invention, not all of them. . Based on the examples in the implementation manner, other examples obtained by those skilled in the art without creative work shall fall within the protection scope of the present invention.

Specific embodiments of the present invention will be described below with reference to the accompanying drawings.

As shown in Figures 1-3, a fixing fixture for photovoltaic panel production includes a bottom plate 1, a workbench 2 is fixedly connected to the top of the bottom plate 1, a baffle plate 23 is fixedly connected to one side of the top of the workbench 2, and the baffle plate 23 is a The top of the side is fixedly connected with a top plate 27, and both sides of the bottom of the top plate 27 are slidably connected with a motion block 28, and a shock-absorbing spring 29 is fixedly connected between the two motion blocks 28, and the other side of the motion block 28 is movably connected by a pin. There is a shock-absorbing rod 30, and the other end of the shock-absorbing rod 30 is movably connected with a shock-absorbing plate 31 through a pin, the bottom of one side of the baffle 23 is fixedly connected with a squeeze groove 24, and the bottom of the inner wall of the squeeze groove 24 is fixedly connected with a The compression spring 25 is compressed, and the top end of the compression spring 25 is fixedly connected with a shock-absorbing block 26 , the top of the shock-absorbing block 26 penetrates the compression groove 24 and extends to the top of the compression groove 24 , and the inside of the table 2 is provided with a mounting Slot 3, the bottom of the inner wall of the installation slot 3 is fixedly connected with the motor 4, the outer surface of the output shaft of the motor 4 is fixedly connected with the first pulley 5, the bottom of the inner wall of the installation slot 3 and located on the side of the motor 4 is connected with the first pulley through the rotation of the support rod. A gear 6, and the front of the first gear 6 is fixedly connected with a second pulley 7, the outer surface of the second pulley 7 is connected with the outer surface of the first pulley 5 through a belt drive, and the bottom of the inner wall of the installation groove 3 is located at the motor 4. The other side is rotatably connected with the second gear 8 through the support rod, the top of the inner wall of the installation groove 3 is slidably connected with the spur-tooth plate 9 through the sliding rod, and the bottom of the spur-tooth plate 9 is connected with the outer surface of the first gear 6 and the second gear. The outer surface of the gear 8 is meshed, and the second gear 8 is rotatably connected here. The main function of the second gear 8 is to play a supporting role on the spur-toothed plate 9 to ensure the smooth movement of the spur-toothed plate 9. A movable plate 10 is fixedly connected to the top of one side of the plate 9. The top of the movable plate 10 penetrates through the workbench 2 and extends to the top of the workbench 2. The side of the movable plate 10 that extends to the top of the workbench 2 is fixedly connected to a fixed plate 11. The top of the workbench 2 is provided with a groove for cooperating with the movable plate 10, mainly to ensure the trajectory of the movement of the movable plate 10, the top of the fixed plate 11 is fixedly connected with a threaded block 12, and the inner of the threaded block 12 is threadedly connected with a screw rod 13. The bottom end of the screw rod 13 penetrates the fixing plate 11 and extends to the bottom of the fixing plate 11. The end of the screw rod 13 extending to the bottom of the fixing plate 11 is connected to the clamping plate 14 through the bearing rotation. The sliding connection of one side of the movable plate 10 is mainly to ensure the stability of the movement of the clamping plate 14. A buffer block 15 is fixedly connected to the bottom of one side of the movable plate 10, and a buffer groove 16 is opened inside the buffer block 15. The inner wall of the buffer groove 16 A buffer plate 17 is slidably connected between the two sides of the buffer plate 17. The top of the buffer plate 17 is fixedly connected with a pressing block 22. The top of the pressing block 22 penetrates the buffer block 15 and extends to the top of the buffer block 15. A buffer rod 18 is slidably connected between the sides and located at the bottom of the buffer plate 17, and the outer surfaces of the two ends of the buffer rod 18 are slidably connected with a sliding block 19. One side of the sliding block 19 and the outer surface of the buffer rod 18 are fixedly connected with a buffer. For the spring 20, the top of the sliding block 19 is movably connected with a connecting rod 21 through a pin, and the other end of the connecting rod 21 is movably connected with the bottom of the buffer plate 17 through a pin.

When working, adjust the position of the fixture according to the size of the photovoltaic panel, and start the motor 4. When the motor 4 starts, the first gear 6 is driven to rotate by the first pulley 5 and the second pulley 7, and when the first gear 6 rotates, the meshing Drive the straight tooth plate 9 to move. When the straight tooth plate 9 moves, it can drive the movable plate 10 to move well, so that the position of the clamp can be well adjusted. At this time, the shock-absorbing spring 29 will squeeze the moving block 28, thereby driving the shock-absorbing plate 31 to move through the shock-absorbing rod 30, so that one side of the photovoltaic panel can be well clamped, and then the photovoltaic The top of the extrusion block 22 is placed on the other side of the board, and then the screw rod 13 is rotated. When the screw rod 13 rotates, it can well drive the clamping plate 14 to move, so that the other side of the photovoltaic panel can be well moved. clamped.

In the present invention, unless otherwise expressly specified and limited, a first feature "on" or "under" a second feature may include the first and second features in direct contact, or may include the first and second features Not directly but through additional features between them. Also, the first feature being "above", "over" and "above" the second feature includes the first feature being directly above and obliquely above the second feature, or simply means that the first feature is level higher than the second feature. The first feature is "below", "below" and "below" the second feature includes the first feature being directly below and diagonally below the second feature, or simply means that the first feature has a lower level than the second feature.

The foregoing has shown and described the basic principles, main features and advantages of the present invention. Those skilled in the art should understand that the present invention is not limited by the above-mentioned embodiments, and the above-mentioned embodiments and descriptions are only preferred examples of the present invention, and are not intended to limit the present invention, without departing from the spirit and scope of the present invention. Under the premise, the present invention will also have various changes and improvements, and these changes and improvements all fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (4)

1. The utility model provides a mounting fixture is used in photovoltaic board production which characterized in that: comprises a bottom plate (1), a workbench (2) is fixedly connected to the top of the bottom plate (1), a mounting groove (3) is formed in the workbench (2), a motor (4) is fixedly connected to the bottom of the inner wall of the mounting groove (3), a first belt pulley (5) is fixedly connected to the outer surface of an output shaft of the motor (4), a first gear (6) is rotatably connected to the bottom of the inner wall of the mounting groove (3) and one side of the motor (4) through a supporting rod, a second belt pulley (7) is fixedly connected to the front side of the first gear (6), the outer surface of the second belt pulley (7) is connected to the outer surface of the first belt pulley (5) through a belt transmission, a second gear (8) is rotatably connected to the bottom of the inner wall of the mounting groove (3) and the other side of the motor (4) through a supporting rod, a straight-tooth plate (9) is slidably connected to the, and the bottom of the straight tooth plate (9) is meshed with the outer surface of the first gear (6) and the outer surface of the second gear (8), a movable plate (10) is fixedly connected to the top of one side of the straight-tooth plate (9), the top of the movable plate (10) penetrates through the workbench (2) and extends to the top of the workbench (2), one side of the movable plate (10) extending to the top of the workbench (2) is fixedly connected with a fixed plate (11), the top of the fixed plate (11) is fixedly connected with a thread block (12), and the inner thread of the thread block (12) is connected with a screw rod (13), the bottom end of the screw rod (13) penetrates through the fixing plate (11) and extends to the bottom of the fixing plate (11), one end of the screw rod (13) extending to the bottom of the fixing plate (11) is rotatably connected with a clamping plate (14) through a bearing, the bottom of one side of the movable plate (10) is fixedly connected with a buffer block (15);

a baffle plate (23) is fixedly connected to one side of the top of the workbench (2), an extrusion groove (24) is fixedly connected to the bottom of one side of the baffle plate (23), an extrusion spring (25) is fixedly connected to the bottom of the inner wall of the extrusion groove (24), a damping block (26) is fixedly connected to the top end of the extrusion spring (25), and the top of the damping block (26) penetrates through the extrusion groove (24) and extends to the top of the extrusion groove (24);

the top fixedly connected with roof (27) of baffle (23) one side, the equal sliding connection in both sides of roof (27) bottom has motion piece (28) to fixedly connected with damping spring (29) between two motion pieces (28), the opposite side of motion piece (28) has shock attenuation pole (30) through pin swing joint to the other end of shock attenuation pole (30) has shock attenuation board (31) through pin swing joint.

2. The fixing jig for photovoltaic panel production according to claim 1, characterized in that: buffer slot (16) have been seted up to the inside of buffer block (15), sliding connection has buffer board (17) between the both sides of buffer slot (16) inner wall, the bottom sliding connection that just is located buffer board (17) between the both sides of buffer slot (16) inner wall has buffer beam (18) to the surface sliding connection at buffer beam (18) both ends has sliding block (19).

3. The fixing jig for photovoltaic panel production according to claim 2, characterized in that: one side of sliding block (19) and the surface fixedly connected with buffer spring (20) that is located buffer beam (18), there is connecting rod (21) at the top of sliding block (19) through pin swing joint to the bottom swing joint of pin and buffer board (17) is passed through to the other end of connecting rod (21).

4. The fixing jig for photovoltaic panel production according to claim 2, characterized in that: the top fixedly connected with of buffer board (17) extrudees piece (22), the top of extruding piece (22) runs through buffer block (15) and extends to the top of buffer block (15).
