Abstract

The invention discloses a baby carrier, which comprises a back bag, a safety buckle set fixed on the back bag, and a vest detachably connected to the back bag, wherein the lower end of the back bag protrudes The two leg supports, the two leg supports can be connected to form a load-bearing part for the baby to sit on. The load-bearing part can strengthen the support of the baby when sitting, and further limit the movement space of the baby's legs to both sides, so as to ensure the comfort and safety of the baby's riding, and make the baby's sitting posture more scientific and reasonable, and ensure the stability of the baby's bones. Healthy growth; at the same time, in addition to being used alone, the baby belt can also be used in conjunction with the waist stool or directly snapped onto the stroller for use, which is more convenient to use.

Description

baby carrier

technical field

The invention relates to the technical field of infant products, in particular to a baby carrier that is more convenient to use and has higher comfort.

Background technique

The use of baby belts allows more and more parents to save their hands from holding their children. Generally, according to the way of holding the baby, there are horizontal, front-facing, face-to-face, and back-style baby carrier belts. At the same time, there are special, dual-purpose, three-purpose and other multi-functional baby carrier belts due to different baby-carrying methods. belt, a wide variety.

The baby belt should not only conform to ergonomics to reduce the burden on the user, but at the same time, because the baby's muscles and bones are still very weak, it is more important for the baby belt to be able to support the baby's hips, waist and head to avoid bending And unnecessary pressure, to ensure the baby's comfort and safety. But the existing baby belt only fixes the baby by a crotch belt, because the support of the crotch belt is limited, it is not comfortable enough for the baby to ride, and the riding posture is also unfavorable for the healthy growth of the baby's bones.

Therefore, it is necessary to provide a baby carrier with better safety and higher comfort to solve the above-mentioned problems in the prior art.

Contents of the invention

The purpose of the present invention is to provide a baby carrier with better safety and higher comfort.

In order to achieve the above object, the technical solution of the present invention is to provide a baby carrier, which includes a back bag, a safety buckle set fixed on the back bag, and a vest detachably connected to the back bag, wherein , the lower end of the back bag protrudes from two leg support parts, and the two leg support parts can be connected to form a load-bearing part for the baby to sit on.

Preferably, the two leg supports are detachably connected by a first connecting member, and the section between the two leg supports can be adjusted.

Preferably, the first connecting member is Velcro or a buckle.

Preferably, the leg support includes a first connecting portion and a second connecting portion arranged at an angle, the first connecting portion is fixed to the back bag, and the second connecting portion is used to form the carrying part.

Preferably, a crotch fixing piece is fixed at the lower end of the back bag, and the crotch fixing piece is arranged between the two leg supports and detachably connected with the leg supports.

Preferably, the end of the crotch fixing piece is fixed with a buckle for mating connection with the safety buckle set.

Preferably, the back bag also has an accommodating space, and a back support is installed in the accommodating space.

Preferably, the side of the back bag is also provided with a baby carriage fixing buckle for connecting with the baby carriage.

Preferably, the baby carrier further includes a waist stool, and the waist stool is detachably connected to the back bag through a second connecting piece.

Preferably, the second connecting piece is one of a buckle, a zipper, and a buckle.

Preferably, one end of the buckle belt is fixed to the back bag, and the other end of the buckle belt is provided with a plurality of buckle holes at intervals, and the waist stool is protruded with the buckle hole Compatible snap posts.

Preferably, the waist stool is further provided with a buckle, and the buckle is detachably threaded through the buckle.

Preferably, the buckle includes a matching male buckle and a female buckle, the male buckle is fixed to one of the back bag and the waist stool, and the female buckle is fixed to the back bag, the waist stool The other one of the waist stools described above.

Preferably, the waist stool includes a waist belt, a stool core installed in the waist belt, and a stool pad provided on the stool core, and the stool core and the stool pad are both provided with ventilation holes.

Preferably, the baby carrier further includes a shoulder strap that is detachably connected to the upper end of the back bag, and the shoulder strap includes a first connecting segment and adjustable straps connected to both ends of the first connecting segment. Two second connecting sections, the two second connecting sections are respectively rotatably connected to both sides of the backpack.

Preferably, a connecting hole is opened at the end of the second connecting section, and a connecting column that rotatably fits with the connecting hole protrudes from the back bag.

Preferably, one of the first connecting section and the second connecting section is fixed with a connecting buckle, and the other of the first connecting section and the second connecting section is fixed with an adjustable wearing The connecting strap arranged on the connecting buckle.

Compared with the prior art, due to the baby belt of the present invention, the lower end of the back bag is protruded with two leg support parts, and the two leg support parts can be connected to form a bearing part for the baby to sit on. It can strengthen the support of the baby when riding, and at the same time, the two side walls of the bearing part further limit the space for the baby's legs to move to both sides, ensuring the comfort and safety of the baby's riding, and making the baby's sitting posture more scientific and reasonable. To ensure the healthy growth of its bones; at the same time, besides being used alone, the baby belt can also be used in conjunction with the waist stool or directly snapped onto the stroller, which is more convenient to use.

Description of drawings

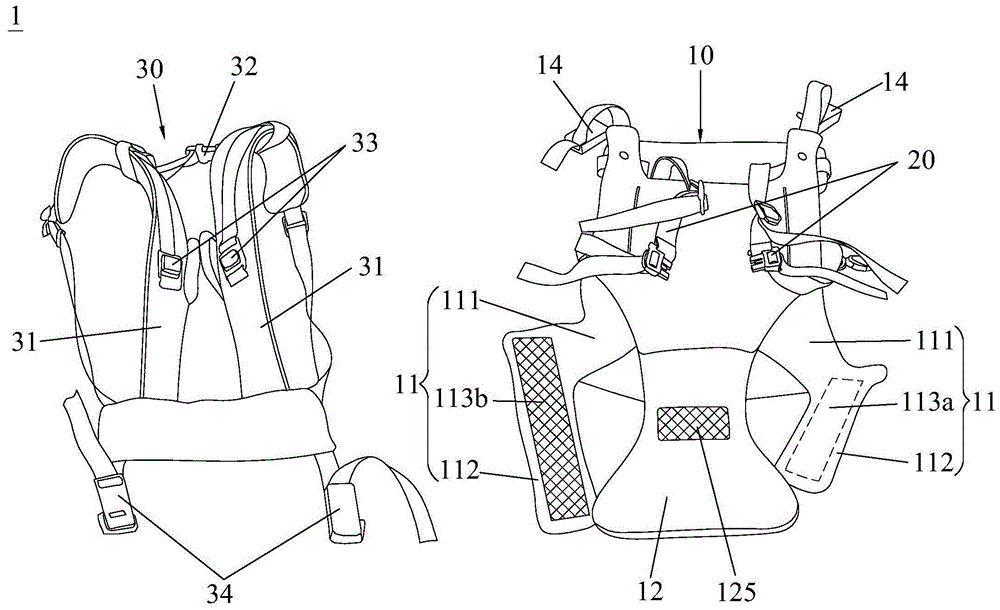

Fig. 1 is a structural schematic diagram of an embodiment of the baby carrier of the present invention.

Fig. 2 is a schematic view of the front structure of the backpack in Fig. 1 .

FIG. 3 is a schematic diagram of another angle of FIG. 2 .

FIG. 4 is a schematic diagram of a state of the backpack in FIG. 2 .

Fig. 5 is a schematic diagram of another state of the backpack in Fig. 2 .

Fig. 6 is a schematic diagram of another state of the backpack in Fig. 2 .

Fig. 7 is a partially enlarged schematic view of the crotch fixing piece of the back bag in Fig. 2 .

FIG. 8 is a schematic diagram of another state of FIG. 7 .

FIG. 9 is a schematic diagram of another state of FIG. 8 .

Fig. 10 is a schematic diagram of the back structure of the back bag in Fig. 2 .

Fig. 11 is a schematic structural view of the back support in the present invention.

Fig. 12 is a structural schematic diagram of another embodiment of the baby carrier of the present invention.

Fig. 13 is a partially enlarged schematic view of the shoulder strap in Fig. 12 .

FIG. 14 is a schematic diagram of another angle of FIG. 13 .

Fig. 15 is a structural schematic diagram of another embodiment of the baby carrier of the present invention.

Fig. 16 is an exploded view of the stool core and the stool pad of the waist stool in Fig. 15 .

Fig. 17 is a structural schematic diagram of another embodiment of the baby belt and waist stool in Fig. 15 .

Fig. 18 is a structural schematic view of another embodiment of the baby belt and waist stool in Fig. 15 .

detailed description

Embodiments of the present invention will now be described with reference to the drawings, in which like reference numerals represent like elements.

As shown in Figures 1-4, in an embodiment of the baby carrier 1 provided by the present invention, it includes a back bag 10, a safety buckle set 20 fixed on the back bag 10 and detachably connected to the back bag 10. Vest 30. Wherein, the safety buckle set 20 is a three-way buckle or a five-way buckle, which is used to fix the baby. The structure of the safety buckle set 20 is well known in the art, and will not be repeated here. The vest 30 has two straps 31 with adjustable length, and a first buckle 32 that is matched and connected is provided between the two straps 31. The first buckle 32 is used to prevent the two straps 31 from being strung together; A second buckle 33 is also provided for detachably connecting to the back bag 10, and a third buckle 34 is provided at the lower end of the vest 30 for detachably connecting to the back bag 10 or the waist stool. Wherein, the structures of the first buckle 32 , the second buckle 33 , and the third buckle 34 are all known in the art, and will not be repeated here.

Shown below in conjunction with Fig. 2-6, the lower end of back bag 10 is convexly provided with two symmetrically arranged leg supports 11 and the crotch fixing piece 12 that is fixed between two leg supports 11, two leg supports 11 They can be stacked and connected to form a load-bearing portion 13 (see FIG. 4 ) for the baby to sit on. The crotch fixing piece 12 can be turned upside down and connected to the leg support 11 in a detachable manner.

Specifically, the leg support 11 includes a first connecting portion 111 and a second connecting portion 112 arranged at an angle, the first connecting portion 111 is fixed on the lower end of the backpack 10, and the second connecting portion 112 is respectively provided with matching The first connecting part, the second connecting part 112 of the two leg supports 11 can be stacked and connected by the first connecting part to form the bearing part 13, and the section between the two leg supports 11 can be adjusted, and at the same time, The first connecting portion 111 of the two leg supports 11 forms a side wall that restricts the movement of the baby's legs to the side, making the baby more comfortable when sitting.

In the present invention, the first connecting piece is preferably Velcro, but it is not limited thereto, and other connecting pieces such as buckles can be used for connection. Specifically, a Velcro male piece 113a is fixed on the back of the second connecting portion 112 of one leg support 11, and a Velcro female piece 113b is fixed on the front of the second connecting portion 112 of the other leg support 11, The two leg supports 11 can be connected to form the load-bearing part 13 by cooperating and bonding the Velcro male piece 113a and the Velcro female piece 113b, and the segment between the two leg supports 11 can be easily adjusted to suit different needs. baby. Of course, the fixing positions of the male Velcro piece 113 a and the female Velcro piece 113 b can be interchanged, which does not affect the connection between the two leg supports 11 .

In addition in conjunction with Fig. 3, 5-7, shown in 10, the front is connected with the second connecting portion 112 of Velcro master piece 113b, and a Velcro male piece 114 is also fixed on its back side, is used for being connected with crotch fixed piece 12 ( See below for details).

Shown below in conjunction with Fig. 3, 5-9, described crotch fixed piece 12 comprises the first fixed piece 121 and the second fixed piece 122 that one end is fixed, and the first lap that cooperates is arranged between the other end of both. Buckle 123, so that the two are detachably connected, and between the first fixing piece 121 and the second fixing piece 122, a female button 124 for matching connection with the safety buckle group 20 is fixed, the first fixing piece 121, the second fixing piece 122 After the fixed piece 122 is connected, the female buckle 124 can be covered; meanwhile, the first fixed piece 121 is also provided with a second hasp 121a (see Figure 8), and the female buckle 124 can be fixed on the second hasp 121a (see Figure 8). 9).

Referring again to FIGS. 3 , 5-6 , and 10 , there is also a Velcro female piece 125 on the front of the first fixing piece 121 for connecting with the Velcro male piece 114 on the leg support 11 . Of course, the fixed positions of the Velcro male piece 114 and the Velcro female piece 125 are interchangeable, and the connection between the crotch fixing piece 12 and the leg support member 11 is not limited to the Velcro, but can also be connected by a zipper or other connections. pieces are connected.

As shown in Figures 4-6, when the back bag 10 is in use, the two leg supports 11 are stacked and connected to form a bearing portion 13, and the crotch fixing piece 12 is turned upside down and bonded to the leg supports 11 At the same time, the safety buckle group 20 is connected to the female buckle 124 and covered between the first fixing piece 121 and the second fixing piece 122. When the first fixing piece 121 and the second fixing piece 122 are fixed by the buckle 123, they can The safety buckle group 20 is hidden.

Referring to Fig. 10-11 below, the back bag 10 has an accommodating space, and a zipper (not labeled) is arranged at the opening position of the accommodating space. There is a back support 40 for supporting the baby, the back support 40 is preferably a strip structure, and its width is narrower than the width of the back support of the existing baby belt, so it can be convenient for the baby to sit forward. its arm movement.

In the present invention, the back support member 40 can be made of thermoplastic elastomer (Hytrel), polypropylene (polypropylene, PP), expanded polypropylene (Expanded polypropylene, EPP), ABS resin (Acrylonitrile ButadieneStyrene, acrylonitrile-butadiene-benzene Ethylene copolymer), fiberboard and other materials, but not limited thereto.

As shown in FIG. 10 , the upper end of the back bag 10 is also provided with a vest connecting buckle 14 for detachably connecting with the vest 30 . Simultaneously, the side portion of the back bag 10 is also provided with two baby carriage fixing buckles 15, the baby carriage fixing buckles 15 can be hook buckles, plug buckles, etc. Buckle 15 is used for being fixed with baby carriage, to guarantee the safety of use.

As shown below in conjunction with FIGS. 12-14, in another embodiment of the baby carrier 1 of the present invention, it also includes a shoulder strap 50 detachably connected to the back bag 10, and the shoulder strap 50 is used to hang on the user's around the neck to lighten its load. Specifically, the shoulder strap 50 includes a first connecting section 51 and two second connecting sections 52 that are adjustably connected to both ends of the first connecting section 51, wherein the first connecting section 51 is a ribbon, and the second connecting section 52 has a certain Hardness and its exterior is covered with woven cloth, one end of the second connecting section 52 is provided with a connecting hole 521, and the backbag 10 is provided with a connecting column 16 that matches the connecting hole 521, and the second connecting section 52 passes through the connecting hole 521 Rotatably connected to the connecting column 16, therefore, the shoulder belt 50 can be rotated and adjusted around the connecting column 16 by 360°, and when the baby carrier belt 1 is snapped onto the stroller for use, the shoulder belt 50 can be adjusted by rotation to prevent it from being entangled It is safer to use on the baby's neck.

More specifically, a connecting belt 522 is fixed on the end of the second connecting section 52 away from the connecting hole 521, and a connecting buckle 511 is fixed on the first connecting section 51, and the connecting belt 522 is adjustable to pass through the connecting buckle 511. Therefore, The length of the shoulder strap 50 can be adjusted to suit different users.

Preferably, the second connecting section 52 is made of thermoplastic elastomer (Hytrel), polypropylene (PP), expanded polypropylene (EPP), ABS resin (Acrylonitrile ButadieneStyrene, acrylonitrile-butadiene-styrene copolymer) etc., but not limited thereto.

In addition, the back bag 10 of the present invention can be used by being connected to the waist stool 60 in addition to being used alone. As shown below in conjunction with FIGS. 15-18 , in yet another embodiment of the baby carrier 1 of the present invention, the back bag 10 is detachably connected to the waist stool 60 , and the second buckle 33 of the vest 30 is detachably connected to the back bag 10 , and the third buckle 34 of the vest 30 is detachably connected to the waist stool 60 .

Specifically as shown in FIGS. 15-16 , the waist stool 60 includes a waist belt 61 , a stool core 62 and a stool pad 63 . Among them, the stool core 62 is L-shaped and has a seating portion 621, and the seating portion 621 is provided with a ventilation hole 622. The shape of the stool pad 63 corresponds to the shape of the seating portion 621, and the stool pad 63 is also provided with a ventilation hole 631. . When assembling, the stool pad 63 is arranged on the stool core 62 and both are installed in the waist belt 61 .

Preferably, both the stool core 62 and the stool cushion 63 can be made of thermoplastic elastomer (Hytrel), polypropylene (polypropylene, PP), expanded polypropylene (Expanded polypropylene, EPP), ABS resin (Acrylonitrile Butadiene Styrene, acrylonitrile-butadiene diene-styrene copolymer), fiberboard, etc., so that it has better elasticity and air permeability.

As shown below in conjunction with Figures 10, 15-16, the back bag 10 and the waist stool 60 are detachably connected through a second connecting piece. In this embodiment, the second connecting piece is a zipper. The chain belt 17 is arranged on the back, and the matching chain belt 611 is arranged on the waist belt 61 at the same time, and the back bag 10 and the waist stool 60 are conveniently connected through the chain belts 17 and 611 .

Of course, the connection between the back bag 10 and the waist stool 60 is not limited to a zipper, and the two can also be connected in other ways.

In the way shown in Figure 17, the second connecting piece is a snap-fit belt 18, one end of the snap-fit strap 18 is fixed on the backpack 10, and the other end of the snap-fit strap 18 is provided with a plurality of snap holes at intervals 181. Correspondingly, the stool core 62 is also integrally formed with an engaging column 623 that matches the engaging hole 181, and buckles 624 are respectively formed on both sides of the engaging column 623, and the engaging column 623 and the buckle 624 are exposed Outside the fabric of the belt 61. When the back bag 10 is connected to the waist stool 60 , the fastening belt 18 is passed through the buckle 624 , and the fastening column 623 is fastened in any fastening hole 181 .

In another way as shown in Figure 18, the second connector is a buckle, a male buckle 64 is set on the waist stool 60, a female buckle 19 is set at the bottom of the backpack 10, through the male buckle 64 and the female buckle 19 cooperate to make the two connect conveniently. Of course, the fixed positions of the male buckle 64 and the female buckle 19 can be interchanged, and the structures of the male buckle 64 and the female buckle 19 are known structures in the art, and will not be repeated.

In summary, due to the baby carrier 1 of the present invention, the lower end of the back bag 10 is protruded with two leg support members 11, and the two leg support members 11 can be connected to form a bearing portion 13 for the baby to sit on. Part 13 can strengthen the support when the baby is sitting, and the two side walls of the carrying part 13 further limit the activity space of the baby's legs to both sides, so as to ensure the comfort and safety of the baby's ride, and make the baby's sitting posture more comfortable. It is scientific and reasonable to ensure the healthy growth of its bones; at the same time, in addition to being used alone, the baby carrier 1 can also be used in conjunction with the waist stool 60 or directly snapped onto the stroller for use, which is more convenient to use.

What is disclosed above is only a preferred embodiment of the present invention, and of course it cannot limit the scope of rights of the present invention. Therefore, equivalent changes made according to the patent scope of the present invention still fall within the scope of the present invention.

Claims (13)

1. An infant embracing belt is characterized in that: the baby carrier comprises a backpack, a safety buckle group fixed on the backpack and a vest detachably connected to the backpack, wherein two leg supporting pieces are convexly arranged at the lower end of the backpack, each leg supporting piece comprises a first connecting part and a second connecting part which are arranged at an angle, the first connecting part is fixed on the backpack, the second connecting part is bent towards the backpack relative to the first connecting part, the two second connecting parts can be superposed and connected through a first connecting piece to form a bearing part for a baby to sit, and the section position between the two leg supporting pieces is adjusted by changing the connecting positions of the two second connecting parts; the two first connecting parts are folded relative to the bearing part to form side walls for limiting the legs of the baby to move towards the side parts;

a crotch fixing piece is fixed at the lower end of the back bag, is arranged between the two leg supporting pieces and can be detachably connected with the bearing part;

the backpack comprises a backpack body, and is characterized by further comprising a shoulder strap detachably connected to the upper end of the backpack body, wherein the shoulder strap comprises a first connecting section and two second connecting sections adjustably connected to two ends of the first connecting section, the second connecting sections have certain hardness, woven fabrics are wrapped outside the second connecting sections, and the two second connecting sections are respectively and rotatably connected to two sides of the backpack body.

2. The baby carrier of claim 1, wherein: the first connecting piece is a magic tape or a buckle.

3. The baby carrier tape according to claim 1, wherein: the crotch fixing piece comprises a first fixing piece and a second fixing piece, one end of the first fixing piece and one end of the second fixing piece are fixed, a first buckle matched with the other end of the first fixing piece and the other end of the second fixing piece are arranged between the two ends of the crotch fixing piece and the two ends of the second fixing piece, a buckle matched and connected with the safety buckle group is fixed between the first fixing piece and the second fixing piece, and the buckle can be covered after the first fixing piece and the second fixing piece are connected.

4. The baby carrier of claim 1, wherein: the back bag is also provided with an accommodating space, and a back support piece is arranged in the accommodating space.

5. The baby carrier tape according to claim 1, wherein: the side part of the back bag is also provided with a baby carriage fixing buckle for connecting with a baby carriage.

6. The baby carrier of claim 1, wherein: the waist stool is detachably connected with the back bag through a second connecting piece.

7. The baby carrier tape according to claim 6, wherein: the second connecting piece is one of a buckle, a zipper and a clamping belt.

8. The baby carrier of claim 7, wherein: one end of the clamping belt is fixed on the back bag, a plurality of clamping holes are formed in the other end of the clamping belt at intervals, and clamping columns matched with the clamping holes are arranged on the waist stool in a protruding mode.

9. The baby carrier tape according to claim 8, wherein: still be equipped with the buckle on the waist bench, the buckle area detachably wears to locate in the buckle.

10. The baby carrier of claim 7, wherein: the buckle comprises a male buckle and a female buckle which are matched with each other, the male buckle is fixed on one of the backpack and the waist stool, and the female buckle is fixed on the other of the backpack and the waist stool.

11. The baby carrier of claim 6, wherein: the waist stool comprises a waistband, a stool core arranged in the waistband and a stool pad arranged on the stool core, and the stool core and the stool pad are both provided with air holes.

12. The baby carrier tape according to claim 1, wherein: the end part of the second connecting section is provided with a connecting hole, and the back bag is convexly provided with a connecting column which is rotationally matched with the connecting hole.

13. The baby carrier tape according to claim 1, wherein: one of the first connecting section and the second connecting section is fixed with a connecting buckle, and the other of the first connecting section and the second connecting section is fixed with a connecting band which can be adjustably arranged on the connecting buckle in a penetrating way.
