Abstract

The invention relates to a multi-dimensional traction device for lumbar vertebrae. The arm and leg plate, the angled unit arranged at the bottom of the arcuate support arm for driving the arcuate support arm to rotate around the hinge, the stretching unit arranged at the lower part of the head and thoracic plate to realize the stretching of the lumbar spine, and the arm and leg plate and the arcuate support. A swing angle unit between the arms for driving the arm leg plate to achieve horizontal swing, and a rotation unit arranged between the arm leg plate and the arcuate support arm for driving the arm leg plate to realize rotation. Compared with the prior art, the present invention realizes the horizontal traction of the traction system through three hydraulic cylinders and a linear motor, and can complete the functions of rotation, swing angle and angle formation.

Description

A lumbar multidimensional traction device

technical field

The invention relates to the field of treatment of lumbar intervertebral disc herniation, in particular to a lumbar multidimensional traction device.

Background technique

Lumbar intervertebral disc herniation, cervical spondylosis, thoracolumbar posterior joint disorders and spinal related diseases and other spinal intervertebral soft tissue injuries (referred to as intervertebral disease) are some common stubborn diseases. Relevant surveys show that 97% of the middle-aged and elderly people in my country suffer from spinal diseases. In recent years, there has been a trend of younger people. Among people under the age of 45, more than 40% suffer from various types of spinal diseases. Children The incidence of scoliosis is as high as 25%. With the continuous development of our society, office white-collar workers, students, teachers and other people have been sedentary for a long time due to the long-term lack of effective activities and exercise, and long-term accumulation will cause spinal injuries. In addition, waist injuries will also affect the lives of motor vehicle drivers for a long time. The application of the lumbar traction system has expanded from traditional manual workers to a wider range of people with lumbar injuries.

There are many different types of traction beds on the market, including electric traction beds, self-weight electric traction beds, hand-wheeled mechanical traction beds, and multi-functional traction beds that can massage and fumigate. Comparing the traction bed at home and abroad, it is found that there are the following shortcomings or deficiencies: First, the degree of intelligence of the existing products is relatively low, and many traction beds are still in the mode of mechanical manual control. Secondly, the function of most traction beds is relatively simple, and can only perform traction in one dimension, and the traction parameters cannot be quantified, the treatment parameters are fixed or only a small number of choices, and the parameters cannot be adjusted arbitrarily, the treatment effect is unstable, and the safety cannot be guaranteed. . In addition, foreign traction beds are expensive, complicated to operate, have high requirements for users, and have high maintenance costs and difficulties.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a lumbar multi-dimensional traction device for rehabilitation treatment of patients with lumbar intervertebral disc herniation in order to overcome the above-mentioned defects in the prior art.

The purpose of the present invention can be achieved by the following technical solutions: a multi-dimensional traction device for lumbar vertebrae, the traction device includes a bed body steel frame, a cephalothorax plate arranged on the top of the bed body steel frame, and is hingedly fixed on one side of the bed body steel frame through hinges The bow-shaped support arm, the arm and leg plate fixedly installed on the bow-shaped support arm, the angled unit arranged at the bottom of the bow-shaped support arm for driving the arc-shaped support arm to rotate around the hinge, and the lower part of the head-thoracic plate for realizing lumbar vertebrae stretching. A stretching unit, a swing angle unit arranged between the arm leg plate and the arcuate support arm for driving the arm leg plate to realize horizontal swing, and a rotation unit disposed between the arm leg plate and the arcuate support arm for driving the arm leg plate to realize rotation unit. There are two left and right sections between the arm leg plate and the bow-shaped support arm. The left space is fixed to the swing angle unit used to drive the arm leg plate to realize the horizontal swing angle, and the right space is fixed to the rotation unit used to drive the arm leg plate to realize rotation. Utilize the space to complete the swing angle and rotation functions of the system respectively, and can cooperate with the horizontal traction unit and the angled unit to convert the posture.

The invention realizes the bending, stretching, horizontal swinging and twisting of the lumbar vertebra of the patient by the device through the angling unit, the stretching unit, the swing angle unit and the rotating unit, so as to realize the multi-dimensional traction of the lumbar vertebra, and the functions are more comprehensive.

The stretching unit includes a horizontal traction hydraulic cylinder fixed on the steel frame of the bed body, the bottom of the head and chest plate is provided with a movable rail, and the top of the steel frame of the bed body is provided with a track groove matching the movable rail, During treatment, the arm and leg plates are kept stationary, and the horizontal traction hydraulic cylinder drives the cephalothorax to move away from the arm and leg plates, so as to stretch the patient's lumbar spine.

The piston rod of the horizontal traction hydraulic cylinder is embedded with a tension pressure sensor for real-time monitoring of the tensile force on the lumbar vertebrae. Appropriate stretching force can prevent the patient from suffering from too much pulling force, and also avoid the poor recovery effect when the pulling force is too small.

The rotating unit includes a rotating traction hydraulic cylinder arranged on the arcuate support arm, a plurality of rotating brackets arranged on the arcuate support arm, a rotating fork that is rotatably connected to the rotating support and can be rotated around the rotating support, and a rotating fork connected to the rotating support. The lower plate of the arm leg plate fixedly connected to the top of the shift fork, the moving direction of the rotary traction hydraulic cylinder is perpendicular to the length direction of the arm leg plate, and the cylinder surface of the hydraulic cylinder body of the rotary traction hydraulic cylinder is provided with a cylindrical rotating shaft. A sliding block is hinged on the outside of the shaft, wherein the lower end of the rotating fork is provided with a vertical shifting fork chute, and the sliding block is slidably connected in the shifting fork chute. When the rotating shaft moves in the horizontal direction with the rotating traction hydraulic cylinder, due to the existence of the vertical fork chute at the lower end of the rotating fork, the rotating shaft will give the rotating fork a force in the horizontal direction, so that the rotating fork will go around The rotating bracket rotates, thereby driving the lower plate of the arm and leg plate to rotate, and finally realizes the rotation of the arm and leg plate.

The lower end of the rotating bracket is fixed on the arcuate support arm, and the rotating fork is rotatably connected to the top of the rotating bracket.

The swing angle unit includes a swing angle hydraulic cylinder, a swing angle bracket vertically arranged on the arcuate support arm, a swing angle fork rotatably connected to the swing angle bracket and rotatable around the swing angle bracket, and a swing angle fork. A vertically arranged swing angle connector with one end fixedly connected, the top of the swing angle connector is fixedly connected with the bottom end of the arm and leg plate close to the head and chest plate, and the telescopic direction of the swing angle hydraulic cylinder is perpendicular to the length direction of the arm and leg plate, A cylindrical rotating shaft is fixed on the surface of the cylinder body of the swing angle hydraulic cylinder, the outer side of the rotating shaft is hinged with a slider, the other end of the swing angle fork is provided with a fork chute, and the slider slides Connected to the fork chute of the swing angle fork. The swing angle unit also converts the horizontal telescopic motion of the swing angle hydraulic cylinder into the rotation of the swing angle fork through the swing angle fork. Connection, the swing angle connector is fixedly connected with the arm and leg plate, and the swing angle hydraulic cylinder moves, which drives the swing angle fork to rotate around the swing angle bracket, and then drives the arm leg plate to rotate around the center of the swing angle bracket to realize the arm and leg plate. Swing horizontally.

A circular arc chute is provided on the upper surface of the lower upper surface of the arm and leg board away from the head and chest board, and a pulley matching the circular arc chute is provided at the bottom of the arm and leg board. Set the chute and pulley to make the swing of the arm and leg board smoother.

The angle forming unit includes a motor support arranged on the steel frame of the bed body and a linear motor connected with the motor support through a hinge, and the top of the linear motor is hinged with the bottom of the arcuate support arm. When the linear motor is extended, the arcuate support arm rotates around the rotation center of the angled part to complete the angled function.

The upper surfaces of the cephalothorax board and the arm and leg boards are sponge pads with wave patterns, and both sides of the cephalothorax board and the arm and leg boards are provided with fixing belts for fixing the patient.

The traction device includes a PLC controller for controlling the opening and closing of the angled unit, the stretching unit, the swing angle unit and the rotating unit, and the bending angle, the stretching force, the rotation angle and the swinging angle are controlled by the PLC controller. The angle is more automatic, and different parameters can be personalized according to the different conditions of the patient, and the treatment effect is better.

Compared with the prior art, the beneficial effects of the present invention are embodied in the following aspects:

(1) The horizontal traction of the traction system is realized through three hydraulic cylinders and a linear motor, and the functions of rotation, swing angle and angle formation can be completed;

(2) The design between the arm leg plate and the bow-shaped support arm is a left and right two-section structure, the left space is for fixing the swing angle hydraulic cylinder and its accessories, and the right space is for fixing the rotating part of the hydraulic cylinder and its accessories, making full use of the space;

(3) With the help of the feedback information of the sensor, a closed-loop system is formed, which can better control the traction force, the traction speed and the traction angle.

Description of drawings

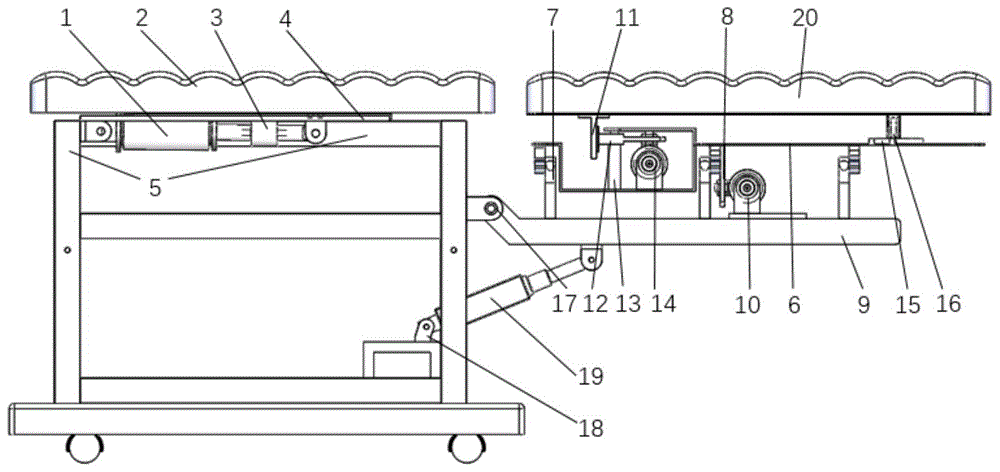

1 is a schematic diagram of the overall structure of the present invention;

Fig. 2 is the structural representation of the stretching unit of the present invention;

Fig. 3 is the structural representation of the rotating unit of the present invention;

Fig. 4 is the principle schematic diagram of the rotary fork;

5 is a schematic structural diagram of a swing angle unit of the present invention;

FIG. 6 is a schematic structural diagram of the angle forming unit of the present invention.

Among them, 1 is the horizontal traction hydraulic cylinder, 2 is the head and chest plate, 3 is the tension pressure sensor, 4 is the track groove, 5 is the bed steel frame, 6 is the lower plate of the arm and leg plate, 7 is the rotating bracket, and 8 is the rotating fork , 9 is the bow arm, 10 is the rotary traction hydraulic cylinder, 11 is the swing angle connection, 12 is the swing angle fork, 13 is the swing angle bracket, 14 is the swing angle hydraulic cylinder, 15 is the chute, 16 is the pulley, 17 is a hinge, 18 is a motor bracket, 19 is a linear motor, 20 is an arm and leg plate, 21 is a rotating shaft, 22 is a slider, and 23 is a fork chute.

Detailed ways

The embodiments of the present invention are described in detail below. This embodiment is implemented on the premise of the technical solution of the present invention, and provides a detailed implementation manner and a specific operation process, but the protection scope of the present invention is not limited to the following implementation. example.

Example 1

A lumbar multi-dimensional traction device, the overall structure of which is shown in Figure 1, the traction device includes a bed body steel frame 5, a head and chest plate 2 arranged on the top of the bed body steel frame 5, and hingedly fixed to the bed body steel frame 5 through hinges 17. The upper arcuate arm 9, the arm leg plate 20 fixedly installed on the arcuate arm 9, the angled unit arranged at the bottom of the arcuate arm 9 for driving the arcuate arm 9 to rotate around the hinge, and the lower part of the head plate 2 A stretching unit for realizing lumbar spine stretching, a swing angle unit disposed between the arm leg plate 20 and the arcuate support arm 9 for driving the arm leg plate 20 to achieve horizontal swing, and a swing angle unit disposed between the arm leg plate 20 and the arcuate support arm 9 A rotating unit for driving the arm leg plate 20 to rotate therebetween.

The structure of the stretching unit is shown in Figure 2, including the horizontal traction hydraulic cylinder 1 fixed on the bed steel frame 5, the bottom of the head and chest plate 2 is provided with a movable rail, and the top of the bed steel frame 5 is provided with a movable rail. The track matches the track slot 4, and the movable rail slides in the track slot 4. Keeping the arm and leg board 20 still, the head and thoracic board 2 is moved in the opposite direction by the stretching unit to achieve the stretching of the patient's lumbar spine.

There is a tension pressure sensor 3 on the piston rod of the horizontal traction hydraulic cylinder 1. By setting the tension pressure sensor 3, the tension force on the lumbar spine can be monitored in real time, so as to give an appropriate tension force according to the needs of the patient's condition and avoid excessive tension. The patient suffers, and it also avoids the poor recovery effect if the tension is too small.

The structure of the rotating unit is shown in Figure 3, including a rotating part hydraulic cylinder 10 arranged on the arcuate support arm 9, a plurality of rotating brackets 7 arranged on the arcuate support arm 9, rotatably connected to the rotating bracket 7 and can be wound around A rotating fork 8 rotated by the rotating support 7 and the lower plate 6 of the arm leg plate fixedly connected with the top of the rotating fork 8, the cylinder body of the rotating part of the hydraulic cylinder 10 is provided with a rotating shaft 21, wherein the lower end of the rotating fork 8 is provided with a rotating shaft 21. There is a fork chute 23 , the rotating shaft 21 is hinged with the slider 22 , and the slider 22 is slidably connected in the fork chute 23 . When the rotating shaft 21 moves in the horizontal direction with the rotating traction hydraulic cylinder 10, due to the existence of the fork chute 23 at the lower end of the rotating fork 8, the rotating shaft 21 will give a horizontal force to the rotating fork 8, so that the rotation The fork 8 rotates around the rotating bracket 7. The principle is shown in Figure 4. When the rotating fork 8 connected with the hydraulic cylinder 10 of the rotating part rotates, the lower plate 6 of the arm leg plate is driven to rotate, and finally the rotation of the arm leg plate 20 is realized. .

The structure of the swing angle unit is shown in Figure 5, including a swing angle hydraulic cylinder 14, a swing angle bracket 13 vertically arranged on the arcuate support arm 9, a swing angle bracket 13 rotatably connected to the swing angle bracket 13 and rotatable around the swing angle bracket 13 The swing angle fork 12, the vertically arranged swing angle connector 11 fixedly connected to one end of the swing angle fork 12, the top of the swing angle connector 11 is fixedly connected to the bottom end of the arm leg plate 20 close to the head and chest plate 2, the swing angle hydraulic pressure The telescopic direction of the cylinder 14 is perpendicular to the length direction of the arm leg plate 20. A cylindrical rotating shaft 21 is fixed on the surface of the hydraulic cylinder body of the swing angle hydraulic cylinder 14. The outer side of the rotating shaft 21 is hinged with the slider 22. The other end of the shift fork 12 is provided with a shift fork chute 23, and the slider 22 is slidably connected in the shift fork chute 23 of the swing angle shift fork 12. The swing angle shift fork 12 is connected to the arm through the swing angle connection piece 11. The leg plate 20 is fixedly connected. The swing angle unit also converts the horizontal telescopic motion of the swing angle hydraulic cylinder 14 into the rotation of the swing angle fork 12 through the swing angle fork 12. The principle of this is the same as that of the rotary fork 8. One side of the swing angle fork 12 passes through The swing angle connector 11 is connected with one end of the arm leg plate 20, the left side of the swing angle shift fork 12 is fixedly connected with the swing angle connector 11, the swing angle connector 11 is fixedly connected with the arm leg plate 20, and the swing angle hydraulic cylinder 14 moves, The swing angle fork 12 is driven to rotate around the swing angle bracket 13 , and thus the arm and leg plates 20 are driven to rotate around the center of the swing angle bracket 13 , thereby realizing the horizontal swing of the arm and leg plates 20 .

A circular arc chute 15 is provided on the upper surface of the upper surface of the lower plate 6 of the arm and leg board 2 away from the head and chest board 2 , and a pulley 16 matching the circular arc chute 15 is provided at the bottom of the arm and leg board 20 . The chute 15 and the pulley 16 are provided to make the swing angle function of the arm and leg plate 20 smoother.

The structure of the angle-forming unit is shown in FIG. When the linear motor 19 is extended, the arcuate support arm 9 is rotated around the rotation center 17 of the angled portion to complete the angled function.

The upper surfaces of the head-chest plate 2 and the arm and leg plates 20 are sponge pads with wavy patterns, and both sides of the head-chest plate 2 and the arm and leg plates 20 are provided with straps for fixing the patient.

The traction device includes a PLC controller for controlling the opening and closing of the angled unit, the stretching unit, the swing angle unit and the rotation unit, and the angled angle, the stretching force, the rotation angle and the swing angle are controlled by the PLC controller. , more automatic, and different parameters can be personalized according to the different conditions of the patient, and the treatment effect is better.

Claims (7)

1. A multi-dimensional traction device for lumbar vertebrae is characterized by comprising a bed body steel frame, a head and chest plate arranged at the top of the bed body steel frame, an arched support arm fixed on one side of the bed body steel frame in a hinged mode through a hinge, an arm leg plate fixedly installed on the arched support arm, an angled unit arranged at the bottom of the arched support arm and used for driving the arched support arm to rotate around the hinge, a stretching unit arranged at the lower portion of the head and chest plate and used for stretching lumbar vertebrae, a swing angle unit arranged between the arm leg plate and the arched support arm and used for driving the arm leg plate to horizontally swing, and a rotating unit arranged between the arm leg plate and the arched support arm and used for driving the arm leg plate to rotate;

the rotary unit comprises a rotary traction hydraulic cylinder arranged on the arched support arm, a plurality of rotary supports arranged on the arched support arm, a rotary shifting fork rotationally connected to the rotary supports and capable of rotating around the rotary supports, and an arm leg plate lower plate fixedly connected with the top of the rotary shifting fork, wherein the moving direction of the rotary traction hydraulic cylinder is perpendicular to the length direction of the arm leg plate, a cylindrical rotating shaft is arranged on the surface of a hydraulic cylinder body of the rotary traction hydraulic cylinder, a sliding block is hinged to the outer side of the rotating shaft, a vertical shifting fork sliding groove is formed in the lower end of the rotary shifting fork, and the sliding block is slidably connected in the shifting fork sliding groove;

the swing angle unit comprises a swing angle hydraulic cylinder, a swing angle support vertically arranged on the arch-shaped support arm, a swing angle shifting fork rotationally connected to the swing angle support and capable of rotating around the swing angle support, and a vertically arranged swing angle connecting piece fixedly connected with one end of the swing angle shifting fork, wherein the top of the swing angle connecting piece is fixedly connected with one end, close to the cephalothorax plate, of the bottom of the arm leg plate, the telescopic direction of the swing angle hydraulic cylinder is perpendicular to the length direction of the arm leg plate, a cylindrical rotating shaft is fixedly arranged on the surface of a hydraulic cylinder body of the swing angle hydraulic cylinder, a sliding block is hinged to the outer side of the rotating shaft, a shifting fork sliding groove is formed in the other end of the swing angle shifting fork, the sliding block is slidably connected into the shifting fork sliding groove of the swing angle shifting fork, and the swing;

one end of the upper surface of the lower plate of the arm leg plate, which is far away from the head and chest plate, is provided with a circular arc chute, and the bottom of the arm leg plate is provided with a pulley matched with the circular arc chute;

the swing angle unit is mounted on an upper surface of the arm leg plate lower plate.

2. The multi-dimensional traction device for lumbar vertebrae as claimed in claim 1, wherein said stretching unit comprises a horizontal traction hydraulic cylinder fixed on a bed steel frame, said head and breast plate has a movable rail at the bottom, said bed steel frame has a rail groove at the top for matching with said movable rail, said arm and leg plates are kept stationary during treatment, said horizontal traction hydraulic cylinder drives the head and breast plate to move in a direction away from the arm and leg plates, so as to stretch the lumbar vertebrae of the patient.

3. The multi-dimensional traction device for lumbar vertebrae as claimed in claim 2, wherein said horizontal traction hydraulic cylinder piston rod is embedded with a tension pressure sensor for real-time monitoring of the tensile force applied to the lumbar vertebrae.

4. The multi-dimensional traction device for lumbar vertebrae as claimed in claim 1, wherein the lower end of said rotary bracket is fixed to the arcuate arm, and said rotary fork is rotatably connected to the top of said rotary bracket.

5. The multi-dimensional traction device for lumbar vertebrae as claimed in claim 1, wherein said angulation unit comprises a motor bracket disposed on the bed steel frame and a linear motor connected to the motor bracket via a hinge, the top end of said linear motor is hinged to the bottom of said arcuate arm.

6. The multidimensional lumbar traction device as claimed in claim 1, wherein the upper surfaces of the head, chest plate and the arm and leg plates are spongy cushions with wavy lines, and fixing belts for fixing the patient are arranged on two sides of the head, chest plate and the arm and leg plates.

7. The multi-dimensional traction device for lumbar vertebrae as claimed in claim 1, wherein said traction device comprises a PLC controller for controlling the opening and closing of the angulation unit, the stretching unit, the swing angle unit and the rotation unit.
