An automatic tape winding and bundling device matched with a screw compressor

technical field

The invention relates to an adhesive tape fixing mechanism, specifically, an automatic adhesive tape winding and bundling device matched with a screw compressor, belonging to the technical field of adhesive tape packaging.

Background technique

The spiral compression molding machine has the characteristics of fast and uninterrupted compression molding of materials, and can compress a large amount of loose materials into a compact and regular shape, which is convenient for storage and transportation. In the field of agricultural production, materials such as crop straw and silage feed have a large amount and small specific gravity, and can be compressed and bundled to make a compact cylindrical entity, and the screw compression molding machine can complete this work. However, for such agricultural materials, after compression molding, if the materials such as ropes and tapes are not fixed in time, the materials will disperse after leaving the molding machine. Therefore, it is necessary to use adhesive tape and its installation structure.

During the working process of the screw compressor, it is necessary to wrap the tape on the outside of the molding material to effectively prevent the material from spreading. Therefore, it is necessary to arrange a tape conveying mechanism in different directions of the cylindrical entity, and to wrap the tape on the surface of the cylindrical entity. Simultaneously apply a compressive force, so that the intersecting tapes stick together to form a network. In addition, during the working process of the tape conveying mechanism, a new tape needs to be replaced after a roll of tape is used up. In order to improve work efficiency, it is necessary to design a mechanism that can easily replace the tape.

Contents of the invention

Designing a two-stage split shaft, a convenient and reliable fixing device, and assembling a set of automatic tape winding and bundling devices matched with the screw compressor are the key technologies for the reliable operation of the screw compressor for agricultural materials.

The purpose of the present invention is to provide an automatic tape winding and bundling device matched with a screw compressor, which can easily install the tape on the tape fixing seat, remove the tape from the tape fixing seat, and install the entire tape fixing seat on the On the belt conveying mechanism, as well as the pressing work on the belt, to ensure the convenience and reliability of the installation and use of the belt and the longitudinal arrangement; at the same time, it can take advantage of the state that the compressed material is automatically pushed forward, through the automatic winding of the longitudinal and horizontal belts, to achieve The tape is automatically wound and bundled.

The present invention takes the following technical solutions:

An automatic tape winding and bundling device matched with a screw compressor, comprising a transverse tape arrangement mechanism and a longitudinal tape arrangement mechanism; the transverse tape arrangement mechanism includes a tape fixing device, a tape support, and a bracket device; the tape support is Cylindrical; the support device includes a support arm, a disc-shaped angle adjustment plate 9 on the tooth surface, and a connecting arm; the support arm is L-shaped, one end is connected with the top of the screw compressor, and the other end is adjusted with the angle adjustment plate 9, The angle adjustment disc 9 is fixedly connected with the tape support member through the connecting arm, and the tape fixing device is installed on the tape support member; the longitudinal tape arrangement mechanism includes a tape fixing device, a pressing device, and a support 6; The support 6 includes two symmetrical side vertical plates 603. The upper part of the side vertical plates 603 extends to the outside of the support to form a small plate for installing the two-stage split shaft 4. A U-shaped groove is opened on the small plate, and the U-shaped The lower part of the groove is further provided with a groove 602 near the inner side of the support, and the part where the groove 602 meets the U-shaped groove has a smooth transition; the groove 602 is clamped and matched with the cross pin 401; the pressing device includes a pressing Wheel 7, rocker arm 5, rocker arm fixed crossbar 8; the outer side of the side vertical plate 603 is fixedly connected to the rocker arm connecting shaft 601, one end of the rocker arm 5 is sleeved on the rocker arm connecting shaft 601, and the other end is connected to the The pinch wheel shaft 701 of the pinch wheel 7 is fixedly connected, and a spring for compressing the pinch wheel 7 and the cylindrical surface of the molding material is provided between the rocker arm 5 and the side vertical plate 603; the adhesive tape fixing device includes: two-stage Split shaft 4; it includes a first section of bar and a second section of bar that can be detached/installed from each other; each section of bar has a first pin hole, and a horizontal pin 401 is installed on the first pin hole; adhesive tape Fixing seat 2; the tape fixing seat 2 is in the shape of a circular platform, and a pair of tape fixing seats 2 are respectively sleeved and fixed on the first section of the rod and the second section of the bar, and the small end of the circular table is inward; the tape 1; the tape 1 is annular, and the inner diameter of the tape is between the outer diameters of the large end and the small end of the tape holder 2.

Further, a retaining ring groove and a second pin hole are respectively provided on the first segment rod and the second segment rod, the retaining ring 3 is clamped in the retaining ring groove, and the second pin shaft is arranged in the second pin hole , the retaining ring 3 and the second pin make the adhesive tape fixing seat 2 axially positioned.

Further, the two-section rods of the two-stage split shaft 4 have connection ends and outer ends respectively, the connection ends of the first-section rods have thin shafts, and lock pins 402 are arranged on the thin shafts, and the second-section rods The connection end has a blind hole, and the hole wall of the blind hole has an L-shaped groove. The lock pin 402 slides in along the L-shaped groove. A magnet is fixedly arranged to form a pair of magnets with opposite magnetic poles; the end of the L-shaped slot has a small slot along the axial direction. When the lock pin slides into the small slot along the L-shaped slot, the pair of magnets are sucked tightly, and the The small groove prevents relative rotation between the first and second segment rods.

Further, the support device is driven by the power mechanism and can rotate around the circumferential direction of the outer wall of the screw compressor as a whole.

Further, the tape support is connected to the bracket device through a pair of toothed disc-shaped angle adjustment discs 9; one of the toothed disc-shaped angle adjustment discs 9 is fixed on the tape support, and the other is fixed on the bracket device. Above: the surface of the angle adjustment disc 9 is processed with teeth radiating outward along the radial direction, the tooth shape is shallow near the center and gradually deepens outward; the surfaces of the two dish-shaped discs can just mesh.

Further, the other end of the rocker arm 5 has a U-shaped groove for mounting and fixing the pinch wheel shaft 701; the pinch wheel is made of nylon material, and is slipped on the pinch wheel shaft and can rotate freely.

Further, the rocking arm 5 is fixedly connected with a spring fixing pin, and the side vertical plate 603 of the support is also fixedly connected with a spring fixing pin, and tension springs are installed on the two fixing pins, so that the rocking arm and the pressing wheel 7 Press it tightly on the cylindrical surface of the molding material.

Further, the groove 602 is in the shape of a superior arc; the side vertical plate 603 has a shaft hole for installing the rocker connecting shaft 601, and the entire fixing device that can be automatically locked and is convenient for quick tape replacement can be wound around the The rocker arm connecting shaft 601 rotates; the two side vertical plates 603 are fixed on the side walls of the screw compressor.

The beneficial effects of the present invention are:

1) A two-stage split shaft is provided. The shaft can be separated and integrated. When the tape needs to be installed or removed, the shaft can be split for easy installation;

2) It is convenient to install the tape on the tape fixing seat, remove the tape from the tape fixing seat, and install the entire tape fixing seat on the tape conveying mechanism;

3) The structure design of the tape fixing seat is ingenious, which can achieve a good fixing function for the tape;

4) The tape fixing seat cooperates with the two-stage split shaft, which is easy to disassemble and operate;

5) The bracket device has an L-shaped support arm, one end of which is connected to the rotating mechanism on the outer wall of the screw compressor, driven by the rotating power mechanism, it can rotate around the screw compressor, driving the tape support and the tape fixing device on it together Rotate, as the compressed material is pushed out from the discharge port of the screw compressor, the adhesive tape is spirally wound outside the material, and the material packaging effect is good;

6) The disc-shaped angle adjustment plate on the tooth surface is cleverly designed to adjust the angle position of the tape fixing device when it is working, so as to adapt to different materials;

7) The structural design of the support of the longitudinal tape arrangement mechanism is ingenious, and it cooperates well with the two-stage split shaft. The installation and positioning are convenient and firm, and the whole device can also be rotated around the shaft;

8) The internal diameter of the middle part of the pressure wheel is large, which reduces the direct contact area between the shaft and the pressure wheel, reduces the rotation resistance of the pressure wheel around the axis, and slides flexibly.

9) A spring fixing pin is fixedly connected to the rocker arm, and a spring fixing pin is also fixedly connected to the side vertical plate of the support. Tension springs are installed on the two fixing pins to press the rocker arm and the pressing wheel tightly on the molding material. on the cylindrical surface.

10) The shape of the compression wheel is made into a waist shape with a thin center and slightly thicker ends. Its function is: the compression wheel presses the tape on the surface of the cylinder formed by compression of the material, and the arc of the waist-shaped compression wheel fits the cylindrical surface , the tape is evenly pressed on the surface of the cylinder, and the fit is more uniform.

Description of drawings

Fig. 1 is a schematic diagram of a quick-detachable adhesive tape fixing mechanism.

Figure 2 is a front view of a two-piece split shaft.

FIG. 3 is a sectional view of FIG. 2 .

Fig. 4 is a cross-sectional view of a fixing device that can be automatically locked and is convenient for quick tape replacement.

Fig. 5 is a schematic diagram of the horizontal tape winding conveying mechanism matched with the screw compressor of the present invention.

Fig. 6 is a schematic diagram of the welding structure of the stent.

Fig. 7 is a view from direction B in Fig. 6 .

Fig. 8 is a sectional view along line A-A in Fig. 6 .

Fig. 9 is a schematic diagram of the welding structure of the adhesive tape support.

Fig. 10 is a view from direction A in Fig. 9 .

Fig. 11 is a front view of the bracket.

Fig. 12 is a side view of the support, showing that the support is installed on the circular side wall.

Figure 13 is a top view of the support.

Fig. 14 is a front view of the longitudinal tape arrangement mechanism.

Figure 15 is a top view of the longitudinal tape placement mechanism.

Fig. 16 is a sectional view of a pinch wheel.

Figure 17 is a front view of the rocker.

Figure 18 is a top view of the rocker arm.

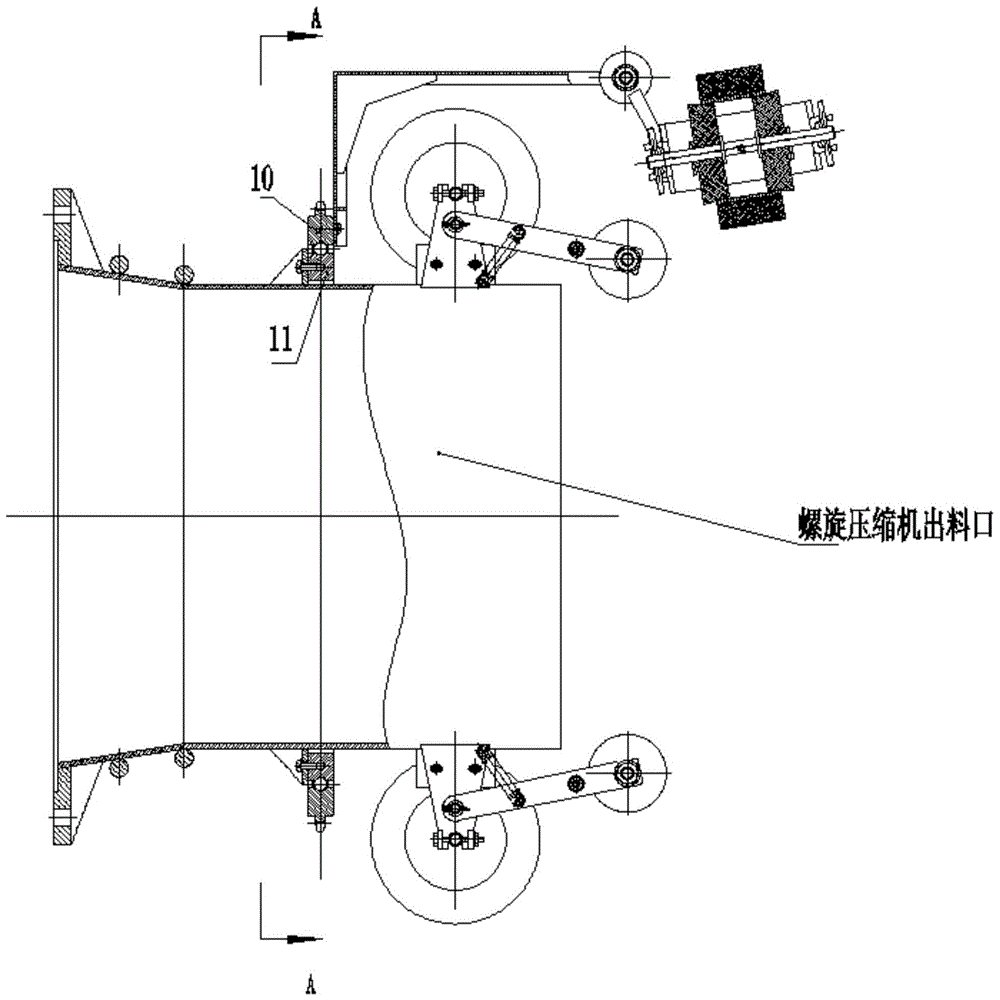

Fig. 19 is a schematic diagram of the automatic tape winding and bundling device matched with the screw compressor of the present invention installed on the side wall of the screw compressor.

In the figure, 1. Adhesive tape, 2. Tape fixing seat, 3. Retaining ring, 4. Two-stage split shaft, 401. Horizontal pin, 402. Lock pin, 403. Magnet, 6. Support, 601. Rocker arm Connecting shaft, 602. groove, 603. side vertical plate, 7. pressure wheel, 8. rocker arm fixed cross bar, 701. pressure wheel shaft; 9. angle adjustment disc, 10. outer ring gear, 11. inner bearing lock up.

Detailed ways

The present invention will be further described below in conjunction with the accompanying drawings and specific embodiments.

Referring to Fig. 1-19, an automatic tape winding and bundling device matched with a screw compressor includes a horizontal tape arrangement mechanism and a longitudinal tape arrangement mechanism; the transverse tape arrangement mechanism includes a tape fixing device, a tape support member, and a bracket device; The adhesive tape support is cylindrical; the support device includes a support arm, a dish-shaped angle adjustment plate 9 on the tooth surface, and a connecting arm; the support arm is L-shaped, one end is connected to the top of the screw compressor, and the other end is connected to the top of the screw compressor. Angle adjustment disc 9 is regulated, and described angle adjustment disc 9 is fixedly connected with adhesive tape supporting member by connecting arm, and described adhesive tape fixing device is installed on described adhesive tape supporting member; Described longitudinal adhesive tape arrangement mechanism comprises adhesive tape fixing device, pressing device, Support 6; the support 6 includes two symmetrical side vertical plates 603, and the upper part of the side vertical plates 603 extends to the outside of the support to form a small plate for installing the two-stage split shaft 4, and a U-shaped plate is set on the small plate. Groove, the lower part of the U-shaped groove is further provided with a groove 602 near the inner side of the support, and the part where the groove 602 meets the U-shaped groove has a smooth transition; the groove 602 is tightly fitted with the cross pin 401; The pressing device includes a pressing wheel 7, a rocker arm 5, and a rocker arm fixing cross bar 8; the outer side of the side vertical plate 603 is fixedly connected to the rocker arm connecting shaft 601, and one end of the rocking arm 5 is sleeved on the rocker arm connecting shaft 601, The other end is fixedly connected with the pressing wheel shaft 701 on which the pressing wheel 7 is installed, and a spring for pressing the pressing wheel 7 and the cylindrical surface of the molding material is arranged between the rocking arm 5 and the side vertical plate 603; The device includes: a two-stage split shaft 4; it includes a first section of rod and a second section of rod that can be disassembled/installed mutually; each section of the rod is provided with a first pin hole, and the first pin hole is installed There are horizontal pins 401; tape fixing seats 2; the tape fixing seats 2 are in the shape of a circular platform, and a pair of tape fixing seats 2 are sleeved and fixed on the first and second sections of rods respectively, with the small ends of the round tables facing inward; Tape 1; the tape 1 is ring-shaped, and the inner diameter of the tape is between the outer diameters of the large end and the small end of the tape holder 2.

Referring to Fig. 2-4, there is a retaining ring groove and a second pin hole on the first section of the rod and the second section of the rod respectively, the retaining ring 3 is clamped in the retaining ring groove, and the second pin hole is set in the second pin hole. Two pin shafts, the retaining ring 3 and the second pin shaft make the adhesive tape fixing seat 2 axially positioned.

Continuing to refer to Fig. 2-3, the two sections of the two-section split shaft 4 have connecting ends and outer ends respectively. The connecting end of the second section of the rod has a blind hole, and the hole wall of the blind hole has an L-shaped groove, and the lock pin 402 slides in along the L-shaped groove. A magnet is fixed at the inner end to form a pair of magnets with opposite magnetic poles; the end of the L-shaped slot has a small slot along the axial direction. , and at the same time, the small groove prevents relative rotation between the first and second section rods.

Referring to Fig. 5-10, the tape support and the bracket device are connected through a pair of dish-shaped angle adjustment discs 9; one of the dish-shaped angle adjustment discs 9 is fixed on the tape support, and the other is fixed on the tape support. On the bracket device; the surface of the angle adjustment disc 9 is processed with teeth radiating outwards along the radial direction, and the tooth profile is shallow near the center and gradually deepens outward; the surfaces of the two dish-shaped discs can just mesh.

Referring to Figures 15 and 17, the other end of the rocking arm 5 has a U-shaped groove for mounting and fixing the pinch wheel shaft 701; the pinch wheel is made of nylon material, and is slipped on the pinch wheel shaft to rotate freely.

Referring to Fig. 12-15, a spring fixing pin is fixedly connected to the rocker arm 5, and a spring fixing pin is also fixedly connected to the side vertical plate 603 of the support. Tension springs are installed on the two fixing pins to move the rocker arm and the pressure The pinch wheel 7 is compressed on the cylindrical surface of the molding material.

Referring to Fig. 12, the groove 602 is in the shape of a superior arc; the side vertical plate 603 has a shaft hole for installing the rocker connecting shaft 601, and the entire fixing device that can be automatically locked and is convenient for quick tape replacement can be wound around The rocker arm connecting shaft 601 rotates; the two side vertical plates 603 are fixed on the side walls of the screw compressor.

During the specific installation, the operation is divided into four parts:

The first part: A nylon round table with a hole in the middle is inserted into the shaft, and the round table is fixed in the axial direction by a split pin and a retaining ring. The diameter of the middle hole of the round table is slightly larger than the shaft diameter, and the round table can rotate around the shaft flexibly. When the two sections of the shaft are combined, the two round tables form the shape shown in Figure 1, which is thinner in the middle and slightly larger in diameter at both ends. , firmly fixed. When in use, put the tape ring between the two round tables, push the two shaft sections to a certain position in the middle, and then rotate the two shaft sections relatively. Locked, the two shaft sections are not easy to separate automatically. After the adhesive tape is used up, the operator grabs the outer ends of the two shaft sections and pulls them outward, then turns them at a certain angle, and then pulls them outward to separate the two sections, replace the adhesive tapes and put them back together. Utilize this mechanism to realize quick tape replacement.

The second part: When pushing the horizontal pin 401 to the bottom position of the U-shaped groove, continue to press down, because the two-stage split shaft 4 has a cohesive force towards the middle under the action of the magnet, so the horizontal pin 401 will automatically be drawn into the groove The groove 602 and the groove 602 in the shape of a superior arc form a good fit with the cross pin 401, so that the mechanism can be stably fixed when the mechanism is working, and the cross pin 401 is not easy to escape from the "U" shaped groove when there is no external force. When the adhesive tape needs to be removed and replaced, the two horizontal pins 401 are pulled outward and upward at the same time, and the whole fixing device can be taken out from the U-shaped groove.

The third part: the installation of the horizontal tape layout structure: fix the tape fixing device on the tape supporting welding structure shown in Figure 9, and connect it to the bracket in Figure 8 by welding through two matching tooth surface dish-shaped angle adjustment discs. Structural features of the connecting part: the adhesive tape support welding structure and the bracket welding structure are connected through a pair of dish-shaped angle adjustment discs 9 on the tooth surface. One of the tooth surface disc-shaped angle adjustment discs 9 is affixed to the adhesive tape support welding structure, and the other is affixed to the support welding structure. The characteristics of the dish-shaped angle adjusting disc 9 on the tooth surface are shown in Figures 6-7 and 10. The surface of the dish-shaped disc is processed with teeth radiating outward along the radial direction. The tooth profile is shallow near the center and gradually deepens outward. The faces of the two discs just engage. Its function is: during work, the faces of the two discs are engaged and assembled together, and clamped and fixed with bolts, so as to connect the two parts of the tape support welding and the bracket welding. After loosening the clamping bolts of the two dish-shaped disks, the angle between the surfaces of the two disk-shaped disks can be adjusted conveniently, so as to adjust the angle at which the tape is conveyed by the transverse tape winding conveying mechanism.

Part 4: Installation of the vertical tape arrangement mechanism: see Figure 11-18, two rocker arms are slidingly sleeved on the rocker arm coupling shaft, and the other end of the rocker arm has a "U"-shaped groove for installing the compression wheel shaft. The pressing wheel is made of nylon material, and the sliding sleeve is on the pressing wheel shaft, which can rotate freely. The diameter of the inner middle part of the pinch wheel becomes larger, which reduces the direct contact area between the shaft and the pinch wheel space, reduces the rotational resistance of the pinch wheel around the shaft, and enables flexible sliding. The shape of the compression wheel is made into a waist shape with a thin center and slightly thicker ends. Its function is: the pressure wheel presses the tape on the surface of the cylinder formed by compression of the material, the arc of the waist-shaped pressure wheel fits the cylindrical surface, and the tape It is evenly pressed on the surface of the cylinder, and the fit is more uniform. A spring fixing pin is fixedly connected to the rocker arm, and a spring fixing pin is also fixedly connected to the vertical plate on the side of the support. Tension springs are installed on the two fixing pins to press the rocker arm and the pressing wheel tightly against the cylindrical shape of the molding material. face.

When the tape automatic winding and bundling device matched with the screw compressor is working, see Figure 19, as the molding material is pushed out from the outlet of the screw compressor, the horizontal tape arrangement mechanism rotates around the inner ring 11 of the bearing along with the outer gear ring 10 , the horizontal tape is spirally wound outside the material, at the same time, the pressing wheel of the longitudinal tape arrangement mechanism compresses the material, and the tape is stretched longitudinally to package the formed material. Material packaging effect is good.

The above are the preferred embodiments of the present invention. Those skilled in the art can also make various transformations or improvements on this basis. Under the premise of not departing from the general concept of the present invention, these transformations or improvements should all belong to the claims of the present invention. within the range.

Claims (6)

1. An automatic tape winding and bundling device matched with a screw compressor, characterized in that: Including the horizontal tape arrangement mechanism and the longitudinal tape arrangement mechanism; The transverse tape arrangement mechanism includes a tape fixing device, a tape support, and a bracket device; The adhesive tape support is cylindrical; the support device includes a support arm, a dish-shaped angle adjustment plate (9) on the tooth surface, and a connecting arm; the support arm is L-shaped, one end is connected to the top of the screw compressor, and the other One end is connected with the angle adjustment disc (9), and the angle adjustment disc (9) is fixedly connected with the tape support through the connecting arm, and the tape fixing device is installed on the tape support; The longitudinal tape arrangement mechanism includes a tape fixing device, a pressing device, and a support (6); The support (6) includes two symmetrical side vertical plates (603), and the upper part of the side vertical plates (603) extends out to the outside of the support for a small plate for installing the two-stage split shaft (4). A U-shaped groove is opened on the top, and the lower part of the U-shaped groove is further provided with a groove (602) near the inner side of the support, and the groove (602) is smoothly transitioned to the part where the U-shaped groove is connected; the groove (602) Fasten and fit with the cross pin (401); the pressing device includes a pressing wheel (7), a rocker arm (5), and a rocker arm fixing cross bar (8); the outer side of the side vertical plate (603) is fixed The rocking arm connecting shaft (601), one end of the rocking arm (5) is sleeved on the rocking arm connecting shaft (601), and the other end is fixedly connected with the pressing wheel shaft (701) on which the pressing wheel (7) is installed, and the rocking arm ( 5) A spring for pressing the pressing wheel (7) and the cylindrical surface of the molding material is arranged between the side vertical plate (603); The tape fixing device includes: a two-stage split shaft (4); it includes a first section of rod and a second section of rod that can be detached/installed from each other; each section of the rod is provided with a first pin hole, A horizontal pin (401) is installed on the first pin hole; the tape fixing seat (2); the tape fixing seat (2) is in the shape of a circular platform, and a pair of tape fixing seats (2) are respectively sleeved and fixed on the first section of the rod And on the second section rod, the small end of the round platform is inward; the adhesive tape (1); the adhesive tape (1) is annular, and the inner diameter of the adhesive tape is between the outer diameters of the large end and the small end of the adhesive tape holder (2); A retaining ring groove and a second pin hole are respectively provided on the first section rod and the second section rod, a retaining ring (3) is clamped in the retaining ring groove, and a second pin shaft is arranged in the second pin hole. The retaining ring (3) and the second pin make the adhesive tape holder (2) axially positioned; The two-section rods of the two-stage split shaft (4) have connection ends and outer ends respectively, the connection ends of the first section rods have thin shafts, and lock pins (402) are arranged on the thin shafts, and the second section rods There is a blind hole at the connecting end of the blind hole, and there is an L-shaped groove on the wall of the blind hole. The lock pin (402) slides in along the L-shaped groove, and the end of the connecting end of the first section of the rod and the blind hole of the second section of the rod A magnet is fixed at each end to form a pair of magnets with opposite magnetic poles; the end of the L-shaped slot has a small slot along the axial direction, and when the lock pin slides into the small slot along the L-shaped slot, the pair of magnets are sucked tightly. At the same time, the small groove prevents relative rotation between the first and second section rods. 2. The adhesive tape automatic winding and bundling device for the screw compressor according to claim 1, characterized in that: the support device is driven by the power mechanism and can rotate around the circumferential direction of the outer wall of the screw compressor as a whole. 3. The adhesive tape automatic winding and bundling device for screw compressors as claimed in claim 1, characterized in that: the adhesive tape supporting member and the support device are connected through a pair of dish-shaped angle adjustment discs (9) on the tooth surface; one of them The dish-shaped angle adjustment disk (9) on the tooth surface is fixed on the tape support, and the other is fixed on the bracket device; the surface of the angle adjustment disk (9) is processed with teeth that radiate outward along the radial direction, and the teeth at the center position The shape is shallow and gradually deepens outward; the faces of the two discs can just mesh. 4. The adhesive tape automatic winding and bundling device supporting the screw compressor as claimed in claim 1, characterized in that: the other end of the rocker arm (5) has a U-shaped groove for mounting and fixing the pressing wheel shaft (701); The pressing wheel is made of nylon material, and the sliding sleeve is on the pressing wheel shaft, which can rotate freely. 5. The adhesive tape automatic winding and bundling device for the screw compressor as claimed in claim 1, characterized in that: the rocker arm (5) is fixed with a spring fixing pin, and the side vertical plate (603) of the support is also fixed Connect with spring fixed pin, tension spring is installed on two fixed pins, rocking arm and pressure wheel (7) can be compressed on the cylindrical surface of forming material. 6. The adhesive tape automatic winding and bundling device for screw compressors as claimed in claim 1, characterized in that: the groove (602) is in the shape of a superior arc; the side vertical plate (603) has The shaft hole of the rocker arm connecting shaft (601) is installed, and the entire fixing device that can be automatically locked and is convenient for quick tape replacement can rotate around the rocker arm connecting shaft (601); the two side vertical plates (603) are fixed on On the side wall of the screw compressor.
