CN107671580B - Golf head clamping jig - Google Patents

Abstract

A golf head clamping jig, comprising a ball head to be processed, a jig main body and a fixed base, the to-be-processed ball head is placed on the jig main body, the jig main body is arranged on the fixed base, and the fixed base is further provided with a rough Positioning mechanism and pushing cylinder; wherein, the rough positioning mechanism is placed on the side of the fixture body and cooperates with the fixture body to realize the rough positioning of the ball head to be processed, and the pushing cylinder is placed directly under the fixture body , and is drivingly connected with the main body of the fixture to realize the clamping and positioning of the ball head to be processed. Through the improvement of the above structure, the present invention firstly uses the robot to place the ball head to be processed on the main body of the jig, and then uses the rough positioning mechanism to realize the rough positioning of the ball head to be processed, and then adopts the tightening cylinder, the spring chuck and the slider. They drive and cooperate with each other, and at the same time imitate the clamping principle of the tool holder of the machine tool to realize the clamping and positioning of the ball head to be processed, which is highly practical.

Description

A golf head holding fixture

technical field

The invention relates to a golf head clamping fixture.

Background technique

When manufacturing golf heads in industry, one step is to turn the inner hole of the shank. At present, the traditional processing technology relies on manual feeding. However, this method is manually carried out due to the whole process of feeding, and it is stable when manually feeding. The quality of the finished products is poor and inconsistent, and the processing efficiency is slow, the production cost is high, and the processing environment of the workers is harsh, there are certain safety hazards, and the production and processing needs cannot be met. Therefore, further improvement is necessary.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a golf head clamping jig with simple and reasonable structure, excellent performance, convenient operation, low manufacturing cost, easy production, easy realization, full automation, intelligence, high production efficiency, safety and reliability, to overcome the deficiencies in the prior art.

A golf head clamping fixture designed according to this purpose includes a ball head to be processed, a fixture body and a fixed base. The to-be-processed ball head is placed on the fixture body, and the fixture body is set on the fixed base. It is: the fixed base is also provided with a coarse positioning mechanism and a pushing cylinder; wherein, the coarse positioning mechanism is placed on the side of the fixture body, and cooperates with the fixture body to realize the rough positioning of the ball head to be processed, and push and tighten it. The cylinder is placed directly below the fixture body and is drivingly connected with the fixture body to realize the clamping and positioning of the ball head to be processed.

The fixture main body is provided with a spring collet and a sliding block, wherein one end of the sliding block is drivingly connected with the pushing cylinder, and the other end is provided with an inclined clamping portion. The tight fitting portion is fitted and connected with the inclined clamping portion.

A support block is arranged in the connecting hole, and the ball head to be processed is inserted in the connecting hole and supported on the support block; At the same time, through the cooperation of the inclined clamping part and the inclined clamping matching part, the spring collet is driven to clamp the support block, so as to realize the clamping and positioning of the ball head to be processed.

The positioning part of the spring clip is provided with a positioning matching part on the main body of the jig, and the spring clip is positioned and arranged on the positioning matching part of the main body of the jig through the positioning part.

The rough positioning mechanism includes a positioning bracket and a positioning rod; wherein, one end of the positioning bracket is fixedly arranged on the fixed base and placed on the side of the fixture main body, and the other end is matched and connected with the positioning rod.

The height of the rough positioning mechanism is higher than the height of the jig main body.

The fixture main body and the rough positioning mechanism are fixedly arranged on the upper part of the fixed base, and the pushing cylinder is fixedly arranged on the lower part of the fixed base.

Through the improvement of the above structure, the present invention firstly uses the robot to place the ball head to be processed on the main body of the fixture, and then uses the rough positioning mechanism to realize the rough positioning of the ball head to be processed. They drive and cooperate with each other, and at the same time imitate the clamping principle of the tool holder of the machine tool to realize the clamping and positioning of the ball head to be processed. Compared with the prior art, it has the following beneficial effects:

(1) The whole process of feeding and positioning is automated and intelligent, which effectively replaces the traditional manual feeding and positioning operation, which greatly improves the efficiency and accuracy of feeding and positioning, reduces labor costs and error rates, and avoids workers from welding feeding and positioning. dangerous problems that occur.

(2) The support block is used to support the ball head to be processed, and its size can be replaced at will, so as to realize the feeding and positioning requirements of the ball head to be processed of different sizes, thereby improving the use range of the equipment.

(3) The spring collet and the slider are matched by an inclined drive, and at the same time, the two provide power by pushing the cylinder, and their power output is constant and stable, thereby improving the accuracy of the positioning accuracy of the ball head to be processed.

In general, it has the characteristics of simple and reasonable structure, excellent performance, convenient operation, low manufacturing cost, easy production, easy realization, full automation, intelligence, high production efficiency, safety and reliability, and strong practicability.

Description of drawings

FIG. 1 is a schematic diagram of the assembly structure of the first embodiment of the present invention.

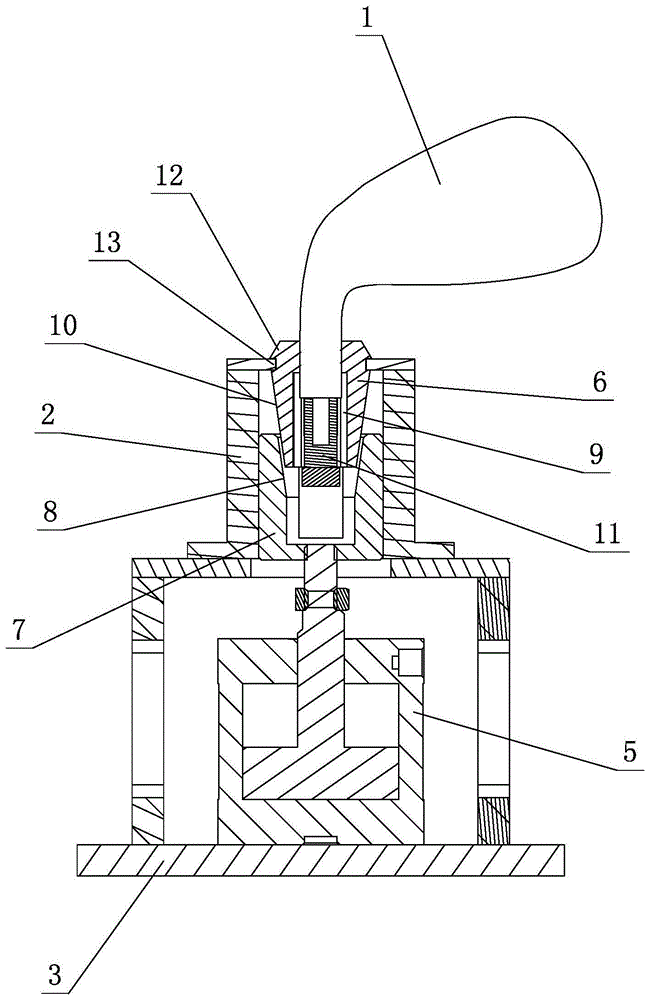

FIG. 2 is a schematic diagram (sectional view) of the assembly structure of the first embodiment of the present invention.

Detailed ways

The present invention will be further described below with reference to the accompanying drawings and embodiments.

Referring to Figures 1 and 2, the golf head clamping fixture includes a ball head to be processed 1, a fixture body 2 and a fixed base 3. The ball head 1 to be processed is placed on the fixture body 2, and the fixture body 2 is provided with On the fixed base 3, the fixed base 3 is also provided with a coarse positioning mechanism and a pushing cylinder 5; wherein, the coarse positioning mechanism is placed on the side of the jig main body 2 and cooperates with the jig main body 2 to realize the processing to be processed. For the rough positioning of the ball head 1, the push-tightening cylinder 5 is placed directly below the fixture body 2, and is drivingly connected with the fixture body 2, so as to realize the clamping and positioning of the ball head 1 to be processed.

Further, the jig main body 2 is provided with a spring collet 6 and a slider 7, wherein one end of the slider 7 is drivingly connected with the pushing cylinder 5, and the other end is provided with an inclined clamping part 8, and the spring collet 6 is provided inside. There is a connecting hole 9 , and an inclined clamping fitting portion 10 is provided on the outside to cooperate with the inclined clamping portion 8 .

Further, a support block 11 is arranged in the connecting hole 9 , and the ball head 1 to be processed is inserted into the connecting hole 9 and supported on the support block 11 ; Inside the fixture main body 2, and through the cooperation of the inclined clamping part 8 and the inclined clamping matching part 10, the spring collet 6 clamps the support block 11 to realize the clamping and positioning of the ball head 1 to be processed.

Further, the positioning part 12 on the spring collet 6 and the positioning matching part 13 are provided on the fixture body 2 , and the spring collet 6 is positioned on the positioning matching part 13 of the fixture body 2 through the positioning part 12 .

Further, the coarse positioning mechanism includes a positioning bracket 14 and a positioning rod 15 ; one end of the positioning bracket 14 is fixedly arranged on the fixed base 3 and placed on the side of the fixture body 2 , and the other end is matched and connected with the positioning rod 15 .

Further, the height of the rough positioning mechanism is higher than the height of the jig main body 2 .

Further, the jig main body 2 and the rough positioning mechanism are fixedly arranged on the upper part of the fixed base 3 , and the pushing cylinder 5 is fixedly arranged on the lower part of the fixed base 3 .

The foregoing has shown and described the basic principles, main features and advantages of the present invention. Those skilled in the art should understand that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention will have various Variations and improvements are intended to fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (4)

1. A golf ball head clamping jig comprises a ball head (1) to be machined, a jig main body (2) and a fixed base (3), wherein the ball head (1) to be machined is placed on the jig main body (2), the jig main body (2) is arranged on the fixed base (3), and a coarse positioning mechanism and a pushing cylinder (5) are further arranged on the fixed base (3); the rough positioning mechanism is arranged on the side part of the jig main body (2) and is matched with the jig main body (2) to realize rough positioning of the ball head (1) to be machined, and the pushing cylinder (5) is arranged right below the jig main body (2) and is in driving connection with the jig main body (2) to realize clamping and positioning of the ball head (1) to be machined;

the method is characterized in that: a spring chuck (6) and a sliding block (7) are arranged in the jig main body (2), wherein one end of the sliding block (7) is in driving connection with the pushing cylinder (5), the other end of the sliding block is provided with an inclined clamping part (8), a connecting hole (9) is arranged in the spring chuck (6), and an inclined clamping matching part (10) is arranged on the outer side of the spring chuck and is in matching connection with the inclined clamping part (8);

a supporting block (11) is arranged in the connecting hole (9), and the ball head (1) to be processed is inserted into the connecting hole (9) and supported on the supporting block (11); the sliding block (7) longitudinally slides in the jig main body (2) through the driving of the pushing cylinder (5), and drives the collet chuck (6) to clamp the supporting block (11) through the matching of the inclined clamping part (8) and the inclined clamping matching part (10) during sliding so as to realize the clamping and positioning of the ball head (1) to be processed;

the jig is characterized in that a positioning part (12) is arranged on the collet chuck (6), a positioning matching part (13) is arranged on the jig main body (2), and the collet chuck (6) is positioned on the positioning matching part (13) of the jig main body (2) through the positioning part (12).

2. The golf club head clamping jig according to claim 1, characterized in that: the coarse positioning mechanism comprises a positioning bracket (14) and a positioning rod (15); wherein, one end of the positioning bracket (14) is fixedly arranged on the fixed base (3) and arranged at the side part of the jig main body (2), and the other end is connected with the positioning rod (15) in a matching way.

3. The golf club head clamping jig according to claim 1, characterized in that: the height of the coarse positioning mechanism is higher than that of the jig main body (2).

4. A golf club head holding jig according to any one of claims 1 to 3, wherein: the jig main body (2) and the coarse positioning mechanism are fixedly arranged on the upper portion of the fixed base (3), and the pushing cylinder (5) is fixedly arranged on the lower portion of the fixed base (3).
