The invention discloses an automatic mixing and feeding device for poultry breeding, which comprises a fixed supporting table, wherein one side of the bottom end of the fixed supporting table is fixedly connected with a wall body, one side, close to the wall body, of the top end of the fixed supporting table is fixedly connected with a supporting sliding rod, one side, far away from the wall body, of the supporting sliding rod is provided with a sliding groove, the sliding groove is connected with a rotating fixer in a sliding mode through a sliding wheel, one end, far away from the sliding groove, of the rotating fixer is fixedly connected with a box body protecting and supporting frame, a feed mixing lifting box is fixedly connected inside the box body protecting and supporting frame, and the top end of the feed mixing lifting box is provided with a feeding port. The invention relates to the technical field of live poultry breeding mechanical equipment. This automatic mixing of poultry breeding throws edible device can mix the comminution to multiple fodder automatically, and this device can carry out the fodder automatically simultaneously and add the process, has improved the degree of automation in feedlot, has reduced the waste of manpower resources.
Description
Technical Field
The invention relates to the technical field of live poultry breeding mechanical equipment, in particular to an automatic mixing and feeding device for poultry breeding.
Background
The poultry feed comprises more than ten feed raw materials of soybean, soybean meal, corn, fish meal, amino acid, miscellaneous meal, additives, whey powder, grease, grains, sweet sorghum and the like, wherein the grains are mainly used as main components of the feed for poultry, and meanwhile, the feeding party can supplement and mix the feed according to different poultry, so that the feed can reach the optimal composition, and the physical quality and the resistance of the poultry are enhanced. At present, poultry farms mostly adopt an artificial mode to mix feed, and feed is added to a feed trough one by one at regular time, so that the working pressure of workers is increased, and the waste of human resources is caused to a certain extent.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention provides an automatic mixing and feeding device for poultry breeding, which can automatically mix and crush various feeds, and can automatically perform a feed adding process, thereby improving the automation degree of a feedlot and reducing the waste of human resources.
(II) technical scheme
In order to achieve the purpose, the invention is realized by the following technical scheme: an automatic mixing and feeding device for poultry breeding comprises a fixed supporting table, wherein one side of the bottom end of the fixed supporting table is fixedly connected with a wall body, one side of the top end of the fixed supporting table, which is close to the wall body, is fixedly connected with a supporting sliding rod, one side of the supporting sliding rod, which is far away from the wall body, is provided with a sliding groove, the sliding groove is connected with a rotating fixer in a sliding way through a sliding wheel, one end of the rotating fixer, which is far away from the sliding groove, is fixedly connected with a box body protecting and supporting frame, a feed mixing lifting box is fixedly connected inside the box body protecting and supporting frame, the top end of the feed mixing lifting box is provided with a feeding port, the top end of the feeding port penetrates through the box body protecting and supporting frame and extends to the outside, the upper end and the lower end of the inner wall of the two sides of the feed mixing lifting, the one end of first mixing stirring device and second mixing stirring device all run through the inner wall of feed mixing lift case and extend to the inside of box protection braced frame, the equal fixedly connected with of one end that first mixing stirring device and second mixing stirring device lie in the inside of box protection braced frame rotates the wheel, the bottom fixedly connected with of box protection braced frame slip backup pad, the slip backup pad be close to one side top fixedly connected with motor of rotation wheel, the output shaft of motor rotate with box protection braced frame through bayonet rotating ware and be connected, and bayonet rotating ware pass through the belt rotation with the rotation wheel and be connected, the inside bottom fixedly connected with of feed mixing lift case rake, the bottom of feed mixing lift case seted up the discharge gate, and the bottom of discharge gate run through the slip backup pad and extend to the outside, the utility model discloses a poultry feeding device, including slip backup pad, pneumatic telescoping rod, fixed supporting bench, fixer fixedly connected with electric telescopic handle, the intermediate position of slip backup pad bottom pass through connector fixedly connected with pneumatic telescoping rod, pneumatic telescoping rod's bottom fixedly connected with cylinder, the bottom of cylinder and fixed supporting bench's top fixed connection, fixed supporting bench keep away from one side top of supporting the slide bar and pass through fixer fixedly connected with electric telescopic handle, electric telescopic handle's top fixedly connected with throw edible device automatically, just automatic throw edible device keep away from the one end of supporting the slide bar and rotate and be connected with the dead lever, dead lever and electric telescopic handle between be provided with the poultry cage.
The automatic feeding device comprises a fixed inclined groove, one end, away from an electric telescopic rod, of the fixed inclined groove is connected with a fixed rod in a rotating mode through a rotating connector, a sliding filter net layer is arranged at the bottom end of the fixed inclined groove, a discharging pipe is fixedly connected to the bottom end of the sliding filter net layer through a material pouring funnel, first baffle plates are fixedly connected to two sides of the fixed inclined groove, and a sealing smooth plate is fixedly connected to the bottom end of the fixed inclined groove, which is located right below a feed mixing lifting box.
Optimized, first mixing stirring device including rotate the bracing piece, rotate bracing piece surface fixedly connected with rotatory mixing stirring and stirring fan piece.
Preferably, the bottom ends of the two sides of the poultry cage are respectively provided with a drinking trough and a feed trough, the top end of the feed trough is aligned with the discharge pipe, and the feed trough is fixedly connected with a second baffle at one end far away from the drinking trough.
Preferably, the transverse diameter length of the discharge pipe is smaller than that of the feed trough.
Optimized, the specification and size of the first mixing and stirring device and the second mixing and stirring device are consistent, and the sum of the widths of the first mixing and stirring device and the second mixing and stirring device is larger than the width of the feed mixing lifting box.
Preferably, the sliding filter screen layer is made of smooth compression-resistant metal materials in a weaving mode.
Preferably, the mesh opening length of the sliding filter screen layer is about 3 times of the average diameter length of the feed particles.
Preferably, a small vibrator is arranged at the joint of the electric telescopic rod and the automatic feeding device.
Preferably, the upper surface of the tripper is fixedly connected with a smooth metal layer.
(III) advantageous effects
The invention provides an automatic mixing and feeding device for poultry breeding. The method has the following beneficial effects:
(1) the automatic mixing and feeding device for poultry breeding is characterized in that a supporting sliding rod is fixedly connected to one side, close to a wall body, of the top end of a fixed supporting platform, a sliding groove is formed in one side, far away from the wall body, of the supporting sliding rod, the sliding groove is connected with a rotating fixer in a sliding mode through a sliding wheel, one end, far away from the sliding groove, of the rotating fixer is fixedly connected with a box body protecting and supporting frame, a feed mixing lifting box is fixedly connected to the interior of the box body protecting and supporting frame, a feeding hole is formed in the top end of the feed mixing lifting box, the upper end and the lower end of the inner wall of the two sides of the feed mixing lifting box are respectively and rotatably connected with a first mixing and crushing device and a second mixing and crushing device, the first mixing and crushing device and the second mixing and crushing device are uniform in specification and size, and the sum of the widths of the first mixing and the second mixing and crushing device, the bottom fixedly connected with slip backup pad of box protection braced frame, the intermediate position of slip backup pad bottom pass through connector fixedly connected with air telescopic link, air telescopic link's bottom fixedly connected with cylinder, reached and to have carried out comprehensive mixing and stirring garrulous purpose to multiple fodder, through the effective lift of fodder mixing cage, reached the purpose that has made things convenient for the staff in time to add various fodder.
(2) The top end of one side of the poultry breeding automatic mixing and feeding device, which is far away from the supporting sliding rod through the fixed supporting platform, is fixedly connected with an electric telescopic rod through a fixer, the top end of the electric telescopic rod is fixedly connected with an automatic feeding device, and one end of the automatic feeding device far away from the supporting sliding rod is rotatably connected with a fixed rod, a poultry cage is arranged between the fixed rod and the electric telescopic rod, the automatic feeding device comprises a fixed inclined groove, one end of the fixed inclined groove far away from the electric telescopic rod is rotationally connected with a fixed rod through a rotating connector, the bottom end of the fixed inclined groove is provided with a sliding filter net layer, the bottom end of the sliding filter net layer is fixedly connected with a discharge pipe through a material pouring funnel, the two sides of the fixed inclined groove are fixedly connected with first baffle plates, and the bottom end of the fixed inclined groove, which is positioned right below the feed mixing lifting box, is fixedly connected with a sealing smooth plate; the poultry cage is characterized in that the bottom ends of two sides of the poultry cage are respectively provided with a drinking trough and a trough, the top end of the trough is aligned with the discharge pipe, the trough is far away from a second baffle plate fixedly connected with one end of the drinking trough, the net mouth diameter of the sliding filter net layer is about 3 times of the average diameter of feed particles, the purpose of effectively filtering the spilled feed is achieved, and meanwhile, the purpose of effectively filtering the spilled feed in a long distance is achieved through the installation of the sliding filter net layer.
Drawings
FIG. 1 is a schematic front view of the present invention;

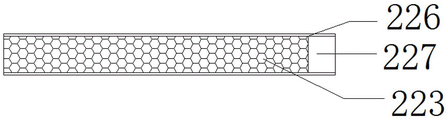

FIG. 2 is an enlarged cross-sectional view of a portion of the structure of the present invention;
FIG. 3 is a schematic view of the feed mixing cage of the present invention;
FIG. 4 is a schematic side view of the automatic food delivery apparatus of the present invention;
fig. 5 is a schematic top view of the automatic feeding device of the present invention.
In the figure: 1 fixed supporting platform, 2 supporting sliding rods, 3 sliding grooves, 4 sliding wheels, 5 box body protecting and supporting frame cages, 6 feed mixing lifting boxes, 7 rotating holders, 8 feeding ports, 9 first blending and stirring devices, 91 rotating supporting rods, 92 rotating blending and stirring fan blades, 10 second blending and stirring devices, 11 sliding supporting plates, 12 rotating wheels, 13 motors, 14 insertion type rotating devices, 15 trippers, 16 discharging ports, 17 connectors, 18 air pressure telescopic rods, 19 cylinders, 20 holders, 21 electric telescopic rods, 22 automatic feeding devices, 221 fixed inclined grooves, 222 rotating connectors, 223 sliding filter net layers, 224 material pouring hoppers, 225 discharging pipes, 226 first baffle plates, 227 sealing plates, 23 fixing rods, 24 poultry cages, 25 water grooves, 26 feed grooves, 27 second baffle plates and 28 small-sized vibrators.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: an automatic mixing and feeding device for poultry breeding comprises a fixed supporting table 1, one side of the bottom end of the fixed supporting table 1 is fixedly connected with a wall body, one side, close to the wall body, of the top end of the fixed supporting table 1 is fixedly connected with a supporting sliding rod 2, one side, far away from the wall body, of the supporting sliding rod 2 is provided with a sliding groove 3, the sliding groove 3 is slidably connected with a rotating fixer 7 through a sliding wheel 4, one end, far away from the sliding groove 3, of the rotating fixer 7 is fixedly connected with a box body protecting and supporting frame 5, a feed mixing lifting box 6 is fixedly connected inside the box body protecting and supporting frame 5, the installation of the box body protecting and supporting frame 5 achieves the purpose of protecting the feed mixing lifting box 6, meanwhile, the feed mixing lifting box 6 is driven to move up; the top end of the feed mixing lifting box 6 is provided with a feeding port 8, the top end of the feeding port 8 penetrates through the box body protection supporting frame 5 and extends to the outside, the upper end and the lower end of the inner wall of the two sides of the feed mixing lifting box 6 are respectively and rotatably connected with a first mixing and smashing device 9 and a second mixing and smashing device 10, and through the installation of the double mixing and smashing devices, the mixing and smashing efficiency of the device is improved, and meanwhile, the uniformity of the feed is ensured; one end of each of the first blending and stirring device 9 and the second blending and stirring device 10 penetrates through the inner wall of the feed mixing and lifting box 6 and extends into the box body protection and support frame 5, one end of each of the first blending and stirring device 9 and the second blending and stirring device 10, which is positioned inside the box body protection and support frame 5, is fixedly connected with a rotating wheel 12, the bottom end of the box body protection and support frame 5 is fixedly connected with a sliding support plate 11, the top end of one side, close to the rotating wheel 12, of the sliding support plate 11 is fixedly connected with a motor 13, an output shaft of the motor 13 is rotatably connected with the box body protection and support frame 5 through an inserted rotator 14, and the inserted rotator 14 is rotatably connected with the rotating wheel 12 through a belt to drive the first blending and stirring device 9 and the second blending and stirring device 10 to rotate; the bottom end in the feed mixing lifting box 6 is fixedly connected with a tripper 15, so that the feed is completely dumped, the feed is prevented from remaining in the feed mixing lifting box 6, and the waste of resources is reduced; a discharge port 16 is formed in the bottom end of the feed mixing lifting box 6, the bottom end of the discharge port 16 penetrates through the sliding support plate 11 and extends to the outside, an air pressure telescopic rod 18 is fixedly connected to the middle position of the bottom end of the sliding support plate 11 through a connector 17, an air cylinder 19 is fixedly connected to the bottom end of the air pressure telescopic rod 18, and the bottom end of the air cylinder 19 is fixedly connected with the top end of the fixed support table 1, so that the lifting function of the feed mixing lifting box 6 is realized; the top end of one side, far away from the supporting sliding rod 2, of the fixed supporting table 1 is fixedly connected with an electric telescopic rod 21 through a fixer 20, the top end of the electric telescopic rod 21 is fixedly connected with an automatic feeding device 22, one end, far away from the supporting sliding rod 2, of the automatic feeding device 22 is rotatably connected with a fixed rod 23, and a certain inclination is achieved through the rising of one end of the automatic feeding device 22, so that the purpose of conveying the feed in a long distance is achieved; a poultry cage 24 is arranged between the fixing rod 23 and the electric telescopic rod 21.
The automatic feeding device 22 comprises a fixed inclined groove 221, one end of the fixed inclined groove 221, which is far away from the electric telescopic rod 21, is rotatably connected with the fixed rod 23 through a rotating connector 222, and the bottom end of the fixed inclined groove 221 is provided with a sliding filter screen layer 223, so that the aim of conveying the feed in a long distance is fulfilled in order to control the speed of the feed scattering; the bottom end of the sliding filter net layer 223 is fixedly connected with a discharge pipe 225 through a material pouring funnel 224, so that the scattering range of the feed is reduced; the first baffle 226 is fixedly connected to two sides of the fixed inclined groove 221, and the bottom end position of the fixed inclined groove 221, which is located right below the feed mixing lifting box 6, is fixedly connected with the sealing smooth plate 227, so that the pressure resistance of the contact position of the automatic feeding device 22 and the discharge hole 16 is improved.
First mixing stirring device 9 is including rotating support rod 91, and rotating support rod 91 outer fixed surface is connected with rotatory mixing stirring fan piece 92, reaches to carry out abundant mixing stirring garrulous purpose to the fodder.
The bottom ends of the two sides of the poultry cage 24 are respectively provided with a drinking trough 25 and a feeding trough 26, and the top end of the feeding trough 26 is aligned with the discharge pipe 225, so that the feed can accurately fall into the feeding trough 26; and the one end fixedly connected with second baffle 27 of trough 26 is kept away from trough 25, prevents that the fodder from spilling outside at trough 26, reduces the waste of resource.
The transverse diameter length of the discharge pipe 225 is smaller than that of the feed trough 26, so that feed can accurately fall into the feed trough 26, and the waste of resources is reduced; the specification size of first mixing crutcher 9 and second mixing crutcher 10 is all unanimous, and the width sum of first mixing crutcher 9 and second mixing crutcher 10 is greater than the width of fodder mixing cage 6, makes the device can carry out the mixing crutcher to the fodder by comprehensive efficient.
The sliding filter screen layer 223 is made of a smooth pressure-resistant metal material by weaving. The mesh opening length of the sliding filter mesh layer 223 is about 3 times of the average diameter length of the feed particles, so that the feed sprinkling speed is effectively controlled, and the purpose of long-distance feed conveying is achieved; a small vibrator 28 is arranged at the joint of the electric telescopic rod 21 and the automatic feeding device 22, and when the discharge hole 16 stops discharging, the residual feed on the upper surface of the sliding filter screen layer 223 is sprinkled into the feed trough 26 through vibration; the upper surface of the tripper 15 is fixedly connected with a smooth metal layer.
During the use, the staff puts into fodder mixing cage 6 with the multiple fodder that needs, open motor 13, stir garrulous with various fodder mixing, the mixing stirs garrulous process back that finishes, raise fodder mixing cage 6 to the optimum height through pneumatic telescoping rod 18, adjustment electric telescopic handle 21 simultaneously, the inclination that makes automatic feeding device 22 is the best, and make sealed smooth plate 227 accurate be located under discharge gate 16, open discharge gate 16, carry out the unrestrained process of long distance transportation of fodder, after the unrestrained process of fodder finishes, small-size vibrator 28 slightly shakes, spill the remaining fodder of filter screen layer 223 upper surface that will slide in the manger 26.
