Abstract
本发明公开了一种便于散热的空调器，其包括机壳，并列设置在所述机壳内的电器盒和冷凝器，以及位于所述机壳上并与所述冷凝器相对设置的冷凝风机；其中，所述电器盒内设置有散热器，所述散热器的顶部设置有控制器，所述电器盒上设置有若干个第一进风口，所述机壳上设置有与所述若干个第一进风口一一对应的若干个第二进风口，所述第一进风口位于所述散热器背离所述冷凝器一侧；所述电器盒上还设置有若干个出风口，所述出风口与所述冷凝器相对。在所述电器盒上设置所述第一进风口和所述出风口形成风道，然后利用所述冷凝风机高效的抽风能力，将所述散热器吸收的所述控制器散发的热量散发出去，不需要设置散热风扇，节省了空间，降低了成本。
The invention discloses an air conditioner that facilitates heat dissipation, comprising a casing, an electrical box and a condenser arranged in parallel in the casing, and a condensing fan located on the casing and opposite to the condenser ; wherein, a radiator is arranged in the electrical box, a controller is arranged on the top of the radiator, a number of first air inlets are arranged on the electrical box, and a number of air inlets are arranged on the casing The first air inlets correspond to a number of second air inlets, the first air inlets are located on the side of the radiator away from the condenser; the electrical box is also provided with a number of air outlets, the outlet The tuyere is opposite to the condenser. The first air inlet and the air outlet are arranged on the electrical box to form an air duct, and then the heat absorbed by the radiator and emitted by the controller is dissipated by using the efficient air extraction capability of the condensing fan. There is no need to set a cooling fan, which saves space and reduces costs.
Description
Technical Field
The invention relates to the technical field of air conditioners, in particular to an air conditioner convenient for heat dissipation.
Background
The controller is arranged in the existing air conditioner electrical box, one or more special cooling fans are arranged in the electrical box for cooling the controller, the cost is high, the cooling fans occupy the space in the air conditioner shell, and meanwhile, due to the fact that large gaps exist among fan blades of the cooling fans, the dustproof and waterproof effects of the controller cannot be achieved.
Accordingly, the prior art is yet to be improved and developed.
Disclosure of Invention
The present invention provides an air conditioner with convenient heat dissipation, which aims to solve the problems of high cost and space occupation caused by installing a plurality of heat dissipation fans in the air conditioner to dissipate heat for a controller in the prior art.
The technical scheme adopted by the invention for solving the technical problem is as follows:
an air conditioner convenient for heat dissipation comprises a machine shell, an electrical box and a condenser which are arranged in the machine shell in parallel, and a condensing fan which is positioned on the machine shell and is arranged opposite to the condenser, wherein a heat radiator is arranged in the electrical box, the top of the heat radiator is provided with a controller, the electrical box is provided with a plurality of first air inlets, the machine shell is provided with a plurality of second air inlets which are in one-to-one correspondence with the plurality of first air inlets, and the first air inlets are positioned on one side of the heat radiator, which is far away from the condenser; still be provided with a plurality of air outlet on the electrical apparatus box, the air outlet with the condenser is relative.
The air conditioner convenient for heat dissipation is characterized in that the radiator is in contact with the bottom of the electrical box, and the first air inlet is located in the bottom of the electrical box.
The air conditioner convenient for heat dissipation further comprises an isolation component, wherein one end of the isolation component is in contact with the bottom of the electrical box, and the other end of the isolation component is suspended in the air; the isolation assembly is located on one side, far away from the radiator, of the first air inlet.
The air conditioner convenient for heat dissipation further comprises a first isolation plate, wherein the suspended end of the isolation assembly is connected with the top of the radiator.
The air conditioner convenient for heat dissipation further comprises a second isolation plate, and the second isolation plate and the first isolation plate are respectively positioned on two sides of the radiator; the second isolation plate connects the top of the radiator with the side wall of the electrical box, and the second isolation plate is located above the air outlet.
The air conditioner convenient for heat dissipation is characterized in that a closed cavity is arranged in the shell and is positioned between the electric appliance box and the condenser.
The air conditioner convenient for heat dissipation is characterized in that an opening and a plurality of ventilation holes are formed in the closed cavity, the opening corresponds to the plurality of air outlets, and the plurality of ventilation holes are opposite to the condenser.
The air conditioner convenient for heat dissipation is characterized in that a sealing sponge is arranged between the sealing chamber and the electrical box; the sealing sponges are respectively positioned on two sides of the opening.
The air conditioner convenient for heat dissipation comprises a radiator, a controller and a heat dissipation device, wherein the radiator comprises a top plate and a plurality of heat dissipation fins, the top plate is used for being in contact with the controller, and the heat dissipation fins are arranged below the top plate in parallel; the radiating fins are in contact with the bottom of the electrical box.
The air conditioner convenient for heat dissipation is characterized in that gaps are formed between every two adjacent heat dissipation fins, and the fins are parallel to a connecting line between the electric appliance box and the condenser.
Has the advantages that: according to the invention, after the heat emitted by the controller is absorbed by the radiator, the first air inlet and the air outlet are arranged on the electrical box, so that an air duct is formed, then the heat of the radiator is emitted by utilizing the efficient air drafting capability of the condensing fan, a special radiating fan is not required to be arranged, the space in the shell is saved, and the cost is reduced.
Drawings

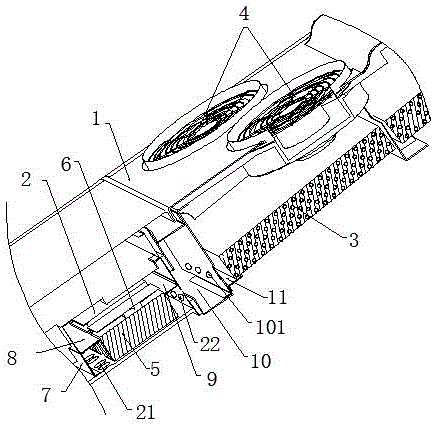

Fig. 1 is a schematic view illustrating a structure of an air conditioner for facilitating heat dissipation according to the present invention.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention clearer and clearer, the present invention is further described in detail below with reference to the accompanying drawings and examples. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
The invention provides an air conditioner convenient for heat dissipation, which comprises a machine shell 1, an electric appliance box 2 and a condenser 3 which are arranged in the machine shell 1 in parallel, and a condensing fan 4 which is positioned on the machine shell 1 and is opposite to the condenser 3, wherein the electric appliance box 2 is arranged in the machine shell 1; the electric appliance box 2 is internally provided with a radiator 5, the top of the radiator 5 is provided with a controller 6, the electric appliance box 2 is provided with a plurality of first air inlets 21, the machine shell 1 is provided with a plurality of second air inlets corresponding to the plurality of first air inlets 21 one by one, and the first air inlets 21 are positioned on one side, away from the condenser 3, of the radiator 5; still be provided with a plurality of air outlet 22 on the electrical apparatus box 2, air outlet 22 with condenser 3 is relative.
In the corresponding first air inlet 21 and the second air inlet, the central axis of the first air inlet 21 coincides with the central axis of the second air inlet. The air outlet 22 enables the electrical box 2 to be communicated with the inside of the machine case 1, and when the air conditioner convenient for heat dissipation operates, the heat radiator 5 is in contact with the controller 6, so that the heat radiator 5 can absorb heat dissipated when the controller 6 works; the powerful convulsions ability of condensation fan 4, with outside air by the second air intake with first air intake 21 inhales in the electrical apparatus box 2, then the air passes through in proper order radiator 5 air outlet 22 will heat on the radiator 5 by condensation fan 4 discharges outside the casing 1, it is right to realize in the electrical apparatus box 2 the effective heat dissipation of controller 6.
According to the invention, after the heat emitted by the controller 6 is absorbed by the radiator 5, the first air inlet 21 and the first air outlet 22 are arranged on the electrical box 2, so that an air duct is formed, and then the heat of the radiator 5 is emitted by utilizing the high-efficiency air drafting capability of the condensing fan 4, so that a special radiating fan is not required to be arranged, the space in the casing 1 is saved, and the cost is reduced.
The heat sink 5 is in contact with the bottom of the electrical box 2, and the first air inlet 21 is located at the bottom of the electrical box 2, so that when external air is sucked into the electrical box 2 and flows towards the air outlet 22, the external air can be completely in contact with the heat sink 5, and heat on the heat sink 5 is taken away to the maximum extent.
The air conditioner convenient for heat dissipation further comprises an isolation component 7, wherein one end of the isolation component 7 is in contact with the bottom of the electrical box 2, and the other end of the isolation component 7 is suspended; the isolation component 7 is located at a side of the first air inlet 21 away from the heat sink 5. The air conditioner convenient for heat dissipation further comprises a first isolation plate 8, wherein the suspended end of the isolation assembly 7 is connected with the top of the heat sink 5.
Preferably, the isolation component 7 is U-shaped, and the isolation component 7 includes a first side wall and a second side wall which are horizontally arranged, and a bottom plate which connects the first side wall and the second side wall; the bottom plate is perpendicular to the bottom of the electrical box 2, and the first side wall is in contact with the bottom of the electrical box 2; one end of the second side wall is connected with the bottom plate, and the other end of the second side wall faces the radiator 5 and is suspended in the air; one end of the first isolation plate 8 is connected with the second side wall, and the other end is connected with the top of the radiator 5. The isolation assembly 7 and the first isolation plate 8 enclose an accommodating space between the bottom plate and the heat sink 5, when the condensing fan 4 operates, external air can only enter the electrical box 2 from the first air inlet 21 and the second air inlet and can be blown towards the heat sink 5, and the controller 6 is isolated, so that dust brought in by the external air is prevented from attaching to the controller 6, and the effect of preventing moisture from attaching to the controller 6 is also achieved.
The air conditioner convenient for heat dissipation further comprises a second isolation plate 9, wherein the second isolation plate 9 and the first isolation plate 8 are respectively positioned at two sides of the radiator 5; the second isolation plate 9 connects the top of the heat sink 5 with the side wall of the electrical box 2, and the second isolation plate 9 is located above the air outlet 22.
The isolation component 7, the first isolation plate 8 and the second isolation plate 9 form an air duct on two sides of the radiator 5 and the radiator 5 in the electrical box 2, and after external air enters the air duct from the first air inlet 21 and the second air inlet, the external air is discharged from the air outlet 22 along the air duct, so that the dustproof and waterproof effects of the controller 6 are improved.
A closed chamber 10 is arranged in the machine shell 1, and the closed chamber 10 is positioned between the electric appliance box 2 and the condenser 3. Have an inclosed space in the airtight chamber 10, it is further, be provided with opening and a plurality of ventilation hole 101 on the airtight chamber 10, the opening with a plurality of air outlet 22 is corresponding, a plurality of ventilation hole 101 with condenser 3 is relative.
One side of the closed chamber 10 is connected with the electrical box 2, the other side of the closed chamber is communicated with the inside of the machine shell 1 through the vent hole 101, air discharged from the air outlet 22 enters the closed chamber 10 through the opening, and then is discharged from the closed chamber 10 through the vent hole 101. Because the other positions of the closed chamber 10 except the opening and the ventilation hole 101 are closed, when the condensing fan 4 is started and air is sucked from the interior of the machine shell 1, the closed chamber 10 plays a role in directional flow guiding, air is ensured to enter and exit through the closed chamber 10 in a directional mode, contact between external air entering the interior of the machine shell 1 and other parts in the machine shell 1 is reduced, the air only takes away heat of the radiator 5 as far as possible, and therefore the heat dissipation effect of the radiator 5 is improved.
A sealing sponge is arranged between the sealing chamber and the electrical box 2; the sealing sponges are respectively positioned on the upper side and the lower side of the opening, so that the connection tightness between the closed cavity 10 and the electrical box 2 is improved, and the air drainage effect is improved.
Further, the air outlet 22 is opposite to the ventilation hole 101, because the heat sink 5 has a certain height, the condenser 3 also has a certain height, and the air outlet is opposite to the heat sink 5, therefore, the height of the condenser 3 hinders the ventilation of the ventilation hole 101, and in order to facilitate the air flowing from the closed chamber 10 to the condensation fan 4, a certain gap is provided between the closed chamber 10 and the condenser 3.
The heat radiator 5 comprises a top plate which is used for being in contact with the controller 6, and a plurality of heat radiating fins which are arranged below the top plate in parallel; the radiating fins are in contact with the bottom of the electrical box 2. The first isolation plate 8 and the second isolation plate 9 are both in contact with the top plate, and the heat radiating fins are located below the first isolation plate 8 and the second isolation plate 9, so that the controller 6 and the heat radiating fins are completely isolated by the first isolation plate 8 and the second isolation plate 9, and air entering the electric appliance box 2 from the first air inlet 21 can only pass through the heat radiating fins and cannot reach the top plate, so that the dustproof and waterproof effects of the controller 6 are improved.
Every two adjacent radiating fins are provided with gaps, and the fins are parallel to a connecting line between the electric appliance box 2 and the condenser 3. When the air conditioner convenient for heat dissipation operates, the controller 6 generates heat, the bottom plate absorbs the heat and transmits the heat to the heat dissipation fins, and the contact end of the heat dissipation fins and the bottom plate absorbs the heat and then transmits the heat to the contact end of the heat dissipation fins and the bottom of the electrical box 2, so that the heat of the controller 6 is transmitted to the cold ends of the heat dissipation fins; the distances between every two adjacent radiating fins are equal; the heat dissipation fins are parallel to the flow direction of wind in the electrical box 2, and when external air is sucked into the electrical box 2, airflow passes through the gaps to take away heat on the heat dissipation fins.
Further, a third isolation plate 11 is further arranged in the enclosure 1, one end of the third isolation plate 11 is connected with the bottom of the condenser 3, and the bottom of the closed chamber 10 facing the condenser 3 is connected with the other end of the third isolation plate 11; the condensing fan 4 is positioned on one side of the condenser 3, which is far away from the third partition plate 11; the third isolation plate 11 forms an air passing channel between the condenser 3 and the casing 1 where the condensing fan 4 is in contact with the condenser, so that drainage is formed, air flow diffusion is avoided, the heat dissipation efficiency of the heat radiator 5 is improved, and the heat dissipation efficiency of the controller 6 is improved.
In summary, the present invention provides an air conditioner convenient for heat dissipation, which includes a casing, an electrical box and a condenser arranged in the casing in parallel, and a condensing fan located on the casing and opposite to the condenser; the electric appliance box is internally provided with a radiator, the top of the radiator is provided with a controller, the electric appliance box is provided with a plurality of first air inlets, the shell is provided with a plurality of second air inlets which are in one-to-one correspondence with the plurality of first air inlets, and the first air inlets are positioned on one side of the radiator, which is far away from the condenser; still be provided with a plurality of air outlet on the electrical apparatus box, the air outlet with the condenser is relative. According to the invention, after the heat emitted by the controller is absorbed by the radiator, the first air inlet and the air outlet are arranged on the electrical box, so that an air duct is formed, then the heat of the radiator is emitted by utilizing the efficient air drafting capability of the condensing fan, a special radiating fan is not required to be arranged, the space in the shell is saved, and the cost is reduced.
It is to be understood that the invention is not limited to the examples described above, but that modifications and variations may be effected thereto by those of ordinary skill in the art in light of the foregoing description, and that all such modifications and variations are intended to be within the scope of the invention as defined by the appended claims.
Claims (5)
1. An air conditioner convenient for heat dissipation comprises a machine shell, an electrical box and a condenser which are arranged in the machine shell in parallel, and a condensing fan which is positioned on the machine shell and is arranged opposite to the condenser, and is characterized in that a heat radiator is arranged in the electrical box, a controller is arranged at the top of the heat radiator, a plurality of first air inlets are arranged on the electrical box, a plurality of second air inlets which are in one-to-one correspondence with the plurality of first air inlets are arranged on the machine shell, and the first air inlets are positioned at one side of the heat radiator, which is far away from the condenser; the electric appliance box is also provided with a plurality of air outlets, and the air outlets are opposite to the condenser;
the electric appliance box also comprises an isolation component, wherein one end of the isolation component is contacted with the bottom of the electric appliance box, and the other end of the isolation component is suspended in the air; the isolation assembly is positioned at one side of the first air inlet, which is far away from the radiator;
the first isolation plate is used for connecting the suspended end of the isolation component with the top of the radiator;
the radiator also comprises a second isolation plate, and the second isolation plate and the first isolation plate are respectively positioned at two sides of the radiator; the second isolation plate connects the top of the radiator with the side wall of the electrical box, and is positioned above the air outlet;
a closed cavity is arranged in the shell and is positioned between the electric appliance box and the condenser;
an opening and a plurality of ventilation holes are formed in the closed chamber, the opening corresponds to the plurality of air outlets, and the plurality of ventilation holes are opposite to the condenser;
one side of the closed chamber is connected with the electrical box, the other side of the closed chamber is communicated with the interior of the machine shell through the vent hole, and air exhausted from the air outlet enters the closed chamber through the opening and is exhausted from the vent hole to the closed chamber.
2. The air conditioner convenient for heat dissipation of claim 1, wherein the heat sink is in contact with the bottom of the electrical box, and the first air inlet is located at the bottom of the electrical box.
3. The air conditioner convenient for heat dissipation according to claim 1, wherein a sealing sponge is arranged between the closed chamber and the electrical box; the sealing sponges are respectively positioned on two sides of the opening.
4. The air conditioner for facilitating heat dissipation according to claim 3, wherein the heat sink includes a top plate for contacting the controller, and a plurality of heat dissipation fins juxtaposed below the top plate; the radiating fins are in contact with the bottom of the electrical box.
5. The air conditioner for facilitating heat dissipation according to claim 4, wherein a gap is provided between each adjacent two of the heat dissipation fins, and the fins are parallel to a connecting line between the electrical box and the condenser.
