Abstract

The invention discloses a cushioning pad and a pendant cushioning packaging mechanism. The buffer pad includes a first bottom plate, a first connecting plate, a first upper plate and a first side plate connected in sequence, a second side plate is arranged on one side of the first upper plate, the first bottom plate, the first connecting plate, the first An upper plate, first side plate and second side plate form a box body, a first chute is opened on the second side plate, and the second side plate is clamped with the first bottom plate through a clamping structure. The buffer liner of the present invention adopts a one-piece paper material to be folded into a box-packed structure, and its structure is flat, which supports, fixes and buffers the pendant, is recyclable, reduces production costs and transportation costs, and improves packaging efficiency .

Description

A cushion pad and a pendant packaging box

technical field

The invention relates to the technical field of packaging, in particular to a cushioning pad and a pendant packaging box.

Background technique

At present, the installation of some products needs to be equipped with corresponding metal hangers. Because the shape of the metal hangers is irregular and the weight is relatively large, in order to avoid the products being collided by the metal hangers during transportation, separate packaging is generally used for protection. Now Some packaging methods on the market use the combination of carton + inner cushioning liner. The inner cushioning liner is generally made of EPS and other materials. EPS is a non-environmentally friendly material and cannot be recycled. It is easy to pollute the environment, and the EPS material is relatively brittle. , It is easy to break and drop chips after being collided by external force. If the buffer packaging space is large, the packaging efficiency will be low and the transportation cost will be relatively high.

Therefore, it is an urgent problem to be solved in the field of packaging technology to provide a liner without using plastic materials and its cushioning packaging box.

Contents of the invention

In view of this, the first object of the present invention is to provide a cushioning liner, which is folded into a box structure with a piece of paper material, has a flat structure, supports, fixes and cushions the pendant, and can be recycled. Moreover, the production cost and transportation cost are reduced, and the packaging efficiency is improved.

The second object of the present invention is to provide a buffer packaging structure for pendants, which adopts a one-piece paper material to be folded into a box structure with a flat structure, supports, fixes and buffers pendants, is recyclable, and reduces the Production cost and transportation cost, improve packaging efficiency.

For reaching first purpose, the present invention adopts following technical scheme:

A kind of cushioning liner, cushioning liner comprises the first bottom board, the first connection board, the first upper board and the first side board connected in sequence, one side of the first upper board is provided with the second side board, the first bottom board, The first connecting plate, the first upper plate, the first side plate and the second side plate form a box body, the second side plate is provided with a first chute, and the second side plate is clamped with the first bottom plate through a clamping structure .

Wherein, the first base plate is provided with a first socket, and both sides of the first base plate are provided with a third side plate and a fourth side plate in sequence from the inside to the outside, and the third side plate and the fourth side plate are provided with One chute corresponds to the second chute, and the side of the fourth side plate away from the third side plate is provided with a first inserting plate matched with the first insertion hole.

Wherein, both sides of the first connection board are provided with second plug-in boards, and the second plug-in boards can be inserted between the third side board and the fourth side board.

Wherein, the other side of the first upper board is sequentially provided with a fifth side board and a second connecting board, the second connecting board is provided with a third plug-in board, and the third plug-in board is inserted into the socket of the first bottom board, The first upper board, the fifth side board, the second connecting board and the third side board form a first accommodation cavity.

Wherein, the side of the fifth side plate is provided with a sixth side plate, and the sixth side plate is attached to the inner side of the fifth side plate.

Wherein, the buffer pad also includes a paper card, which is inserted into the second chute, and the outer side of the paper card is covered with a PE bag.

Wherein, the paper card includes a first cardboard, a second cardboard, a second upper board and a first folding board connected in sequence, the first cardboard, the second cardboard and the second upper board form a first slot, and the first upper board and the second upper board form a first slot. The upper ends of the three side panels are fitted together.

Wherein, the second cardboard is provided with a boss, and the boss abuts against the outside of the first chute.

Wherein, the locking structure includes a hook provided on the outer side of the second side plate and a slot provided on the first bottom plate to cooperate with the hook.

For reaching second purpose, the present invention adopts following technical scheme:

A pendant buffer packaging structure includes an outer box and two mirror-symmetrical buffer pads, and the two buffer pads are respectively arranged on both sides of the inner cavity of the outer box.

Beneficial effects of the present invention: the buffer liner is folded into a box structure with a one-piece all-paper packaging material, and the packaging material can be recycled, which is green and environmentally friendly. The metal pendant is directly inserted into the first chute for fixing, which solves the problem of EPS material Pollution of the environment and poor buffering caused by the problem. The buffer liner of the present invention adopts a one-piece paper material to be folded into a box-packed structure, and its structure is flat, which supports, fixes and buffers the pendant, is recyclable, reduces production costs and transportation costs, and improves packaging efficiency .

Description of drawings

Figure 1 is a schematic plan view of the cushioning pad of the present invention.

Fig. 2 is a schematic plan view of the paper card of the present invention.

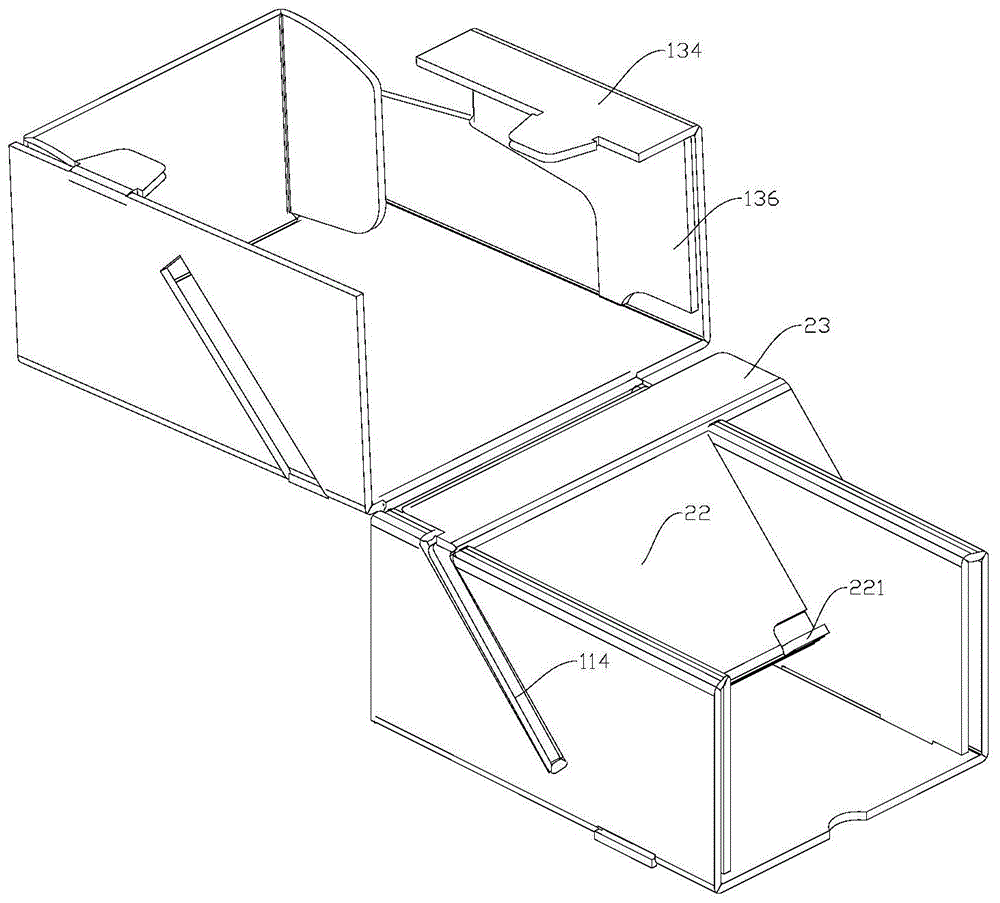

Fig. 3 is a schematic diagram of the folded three-dimensional structure of the buffer pad of the present invention.

Fig. 4 is a schematic perspective view of the three-dimensional structure of the cushion pad of the present invention after assembly.

Fig. 5 is a schematic structural view of the outer box of the present invention.

Fig. 6 is a structural schematic view of the cushion pad of the present invention when packing the pendant.

Fig. 7 is a structural schematic view of the pendant buffer packaging structure of the present invention when packing the pendant.

Fig. 8 is a structural schematic view of the pendant buffer packaging structure of the present invention when it is closed.

The reference signs are as follows:

11-First bottom plate, 111-First socket, 112-Third side plate, 113-Fourth side plate, 114-Second chute, 115-First plug-in plate, 12-First connecting plate, 121- The second board, 122-the third chute, 13-the first upper board, 131-the second side board, 132-the first chute, 133-the fifth side board, 134-the second connecting board, 135-the first Three inserting boards, 136-the sixth side board, 14-the first side board, 21-the first cardboard, 22-the second cardboard, 221-boss, 23-the second upper board, 24-the first folding board.

Detailed ways

The technical solution of the present invention will be further described below with reference to FIG. 1 to FIG. 8 and through specific embodiments.

With reference to Fig. 1, the buffer pad provided by the present embodiment, the buffer pad includes a first bottom plate 11, a first connecting plate 12, a first upper plate 13 and a first side plate 14 connected in sequence, one of the first upper plates 13 The second side plate 131 is arranged on the side, the first bottom plate 11, the first connecting plate 12, the first upper plate 13, the first side plate 14 and the second side plate 131 form a box body, and the second side plate 131 is provided with The first chute 132 and the second side plate 131 are engaged with the first bottom plate 11 through an engaging structure. The buffer liner in this embodiment is folded into a box structure with a one-piece all-paper packaging material. The packaging material is recyclable and environmentally friendly. The metal pendant is directly inserted into the first chute 132 for fixing, which solves the problem of EPS materials. Pollution of the environment and poor buffering caused by the problem. The buffer liner of the present invention adopts a one-piece paper material to be folded into a box-packed structure, and its structure is flat, which supports, fixes and buffers the pendant, is recyclable, reduces production costs and transportation costs, and improves packaging efficiency .

The first bottom plate 11 is provided with a first insertion hole 111, and both sides of the first bottom plate 11 are provided with a third side plate 112 and a fourth side plate 113 in sequence from the inside to the outside, and the third side plate 112 and the fourth side plate 113 Each is provided with a second chute 114 corresponding to the first chute 132 , and a side of the fourth side plate 113 away from the third side plate 112 is provided with a first inserting plate 115 matched with the first insertion hole 111 . The two third side panels 112 constitute the two sides of the first bottom panel 11, the fourth side panel 113 is folded into the first bottom panel 11 and bonded to the third side panel 112, the fourth side panel 113 is provided with a second An inserting plate 115 is inserted into the first socket 111 to complete the fixing of the fourth side plate 113 and the first bottom plate 11, the first upper plate 13 is folded downward, and the first side plate 14 is in contact with the outside of the third side plate 112. In this case, the first chute 132 overlaps with the second chute 114 . The first chute 132 and the four second chute 114 jointly support and fix the metal pendant, which improves the bearing capacity.

Both sides of the first connection plate 12 are provided with a second board 121, the second board 121 can be inserted between the third side board 112 and the fourth side board 113, when the second board 121 is longer, it can A third chute 122 corresponding to the first chute 132 is provided on the second board 121 , and the two second boards 121 of the first connecting board 12 are inserted between the third side board 112 and the fourth side board 113 In time, the first connecting plate constitutes the other side of the first bottom plate 11, forming a structurally stable box.

The other side of the first upper board 13 is provided with a fifth side board 133 and a second connecting board 134 in sequence, and a third plug board 135 is arranged on the second connecting board 134, and the third plug board 135 is inserted in the first bottom board 11 In the socket, the first upper plate 13, the fifth side plate 133, the second connecting plate 134 and the third side plate 112 form a first receiving cavity, and the side of the fifth side plate 133 is provided with a sixth side plate 136, The sixth side panel 136 is attached to the inner side of the fifth side panel 133 . The third inserting board 135 is inserted into the insertion hole of the first bottom board 11, so that the first upper board 13, the fifth side board 133, the second connecting board 134 and the third side board 112 form a stable first accommodating cavity, Accessories, such as screw bags, are placed in the first accommodation cavity. The sixth side panel 136 is folded inwardly of the fifth side panel 133 and attached to the fifth side panel 133 to form a double-layer cardboard, which improves the cushioning performance of the fifth side panel 133 .

Referring to Fig. 2-4, the buffer pad also includes a paper card, which is inserted between the left and right second chute 114, and the outside of the paper card is covered with a PE bag, and the paper card includes the first connected in sequence. Cardboard 21, the second cardboard 22, the second upper plate 23 and the first folding plate 24, the first cardboard 21, the second cardboard 22 and the second upper plate 23 form the first slot, the first upper plate 13 and the third side The upper ends of the boards 112 are attached, and the second cardboard 22 is provided with a boss 221 , and the boss 221 abuts against the outside of the first chute 132 . The paper card is inserted between the left and right two second chute 114, the first cardboard 21, the second cardboard 22 and the second upper board 23 form the first slot, and the metal pendant is inserted in the first slot to increase the metal The contact area between the pendant and the buffer pad, the paper card will be evenly stressed, and it is conducive to the fixing of the metal pendant. The surface of the paper card is covered with a PE bag, which isolates the direct contact between the metal pendant and the paper card, reduces mutual friction, and prevents For abrasive products, the boss 221 acts as a limiter for the paper card, preventing the paper card from being moved when the metal pendant is inserted into the first slot.

Referring to Figures 5-8, a pendant buffer packaging structure includes an outer box and two mirror-symmetrical buffer pads, and the two buffer pads are respectively arranged on both sides of the inner cavity of the outer box.

The above content is only a preferred embodiment of the present invention. For those of ordinary skill in the art, according to the idea of the present invention, there will be changes in the specific implementation and application scope. limits.

Claims (8)

1. The buffer gasket is characterized by comprising a first bottom plate (11), a first connecting plate (12), a first upper plate (13) and a first side plate (14) which are sequentially connected, wherein a second side plate (131) is arranged on one side of the first upper plate (13), the first bottom plate (11), the first connecting plate (12), the first upper plate (13), the first side plate (14) and the second side plate (131) form a box body, a first chute (132) is formed in the second side plate (131), and the second side plate (131) is clamped with the first bottom plate (11) through a clamping structure;

the first bottom plate (11) is provided with a first jack (111), both sides of the first bottom plate (11) are sequentially provided with a third side plate (112) and a fourth side plate (113) from inside to outside, the third side plate (112) and the fourth side plate (113) are respectively provided with a second chute (114) corresponding to the first chute (132), and one side of the fourth side plate (113) away from the third side plate (112) is provided with a first plugboard (115) matched with the first jack (111);

the opposite side of first upper plate (13) has set gradually fifth curb plate (133) and second connecting plate (134), be provided with third picture peg (135) on second connecting plate (134), third picture peg (135) are inserted and are established in the jack of first bottom plate (11), first upper plate (13), fifth curb plate (133), second connecting plate (134) and third curb plate (112) form first accommodation chamber.

2. The cushion according to claim 1, wherein the first connecting plate (12) is provided with second insert plates (121) on both sides, the second insert plates (121) being insertable between the third side plate (112) and the fourth side plate (113).

3. The cushion according to claim 1, wherein a sixth side plate (136) is provided at a side edge of the fifth side plate (133), and the sixth side plate (136) is attached to an inner side of the fifth side plate (133).

4. The cushion pad according to claim 1, further comprising a paper card inserted in the second chute (114), the paper card being covered on the outside with a PE bag.

5. The cushion pad according to claim 4, wherein the paper card comprises a first paper board (21), a second paper board (22), a second upper board (23) and a first folding board (24) which are sequentially connected, the first paper board (21), the second paper board (22) and the second upper board (23) form a first slot, and the first upper board (13) is attached to the upper end of the third side board (112).

6. The cushion pad according to claim 5, wherein the second cardboard (22) is provided with a boss (221), the boss (221) being in abutment with the outside of the first chute (132).

7. The cushion pad according to claim 1, wherein the clamping structure comprises a clamping hook arranged on the outer side of the second side plate (131) and a clamping groove arranged on the first bottom plate (11) and connected with the clamping hook in a matching manner.

8. A pendant buffer packaging box, characterized by comprising an outer box and two buffer gaskets which are mirror symmetry and are set on two sides of the inner cavity of the outer box.
