Abstract
本发明提供了一种人工降水装置，包括：保温储气罐、保温连通管道、烟气混掺室和气体定向输出单元；保温储气罐内安装有加热单元；加热单元，用于将保温储气罐内的空气至少加热至预设温度；烟气混掺室与保温储气罐之间通过保温连通管道连通，在烟气混掺室内设置有催化剂微粒，气体定向输出单元竖直设置在烟气混掺室的上部，并与烟气混掺室连通，气体定向输出单元的上部设置有开口。本发明利用达到预设温度和预设压力的空气携带烟气混掺室中的催化剂微粒进入可进行人工降水的目标高度云层，进行人工降水。这种装置不受地域的限制，可设置在任何地方，将传统地形风的主导作用弱化为指向和辅助作用，拓宽了人工降水装置的地形适用范围。
The invention provides an artificial precipitation device, comprising: a thermal insulation gas storage tank, a thermal insulation communication pipe, a flue gas mixing chamber and a gas directional output unit; a heating unit is installed in the thermal insulation gas storage tank; The air in the gas tank is heated to at least a preset temperature; the flue gas mixing chamber and the thermal insulation gas storage tank are connected through a thermal insulation communication pipe, catalyst particles are arranged in the flue gas mixing chamber, and the gas directional output unit is vertically arranged in the smoke chamber. The upper part of the gas mixing chamber is communicated with the flue gas mixing chamber, and the upper part of the gas directional output unit is provided with an opening. The invention utilizes the air reaching the preset temperature and the preset pressure to carry the catalyst particles in the flue gas mixing chamber into the cloud layer of the target height where artificial precipitation can be carried out, so as to carry out artificial precipitation. This kind of device is not limited by the region and can be installed anywhere, weakening the leading role of the traditional terrain wind to pointing and assisting, and broadening the terrain application range of the artificial precipitation device.
Description
Technical Field
The invention relates to the technical field of artificial precipitation, in particular to an artificial precipitation device, a control method and a control device.
Background
At present, the principle of artificial precipitation is to influence the micro-physical process of cloud layers by scattering catalysts (such as silver iodide, dry ice and the like), so that the cloud layers which cannot naturally precipitate are excited to precipitate under a certain condition, or the cloud layers which can naturally precipitate are enabled to improve the precipitation efficiency. At present, the artificial precipitation catalysis operation mode mainly comprises the following steps: the method comprises the steps of spreading a catalyst by a ground launching antiaircraft gun or a rocket, spreading the catalyst by an airplane, carrying the catalyst by a balloon, arranging a silver iodide combustion furnace on the ground, operating a smoke furnace by artificially influencing weather and the like.
The catalyst spreading mode using ground launching antiaircraft gun or rocket as carrier is: exploding the cannonball in the cloud, and burning the carried silver iodide into a smoke agent to be scattered in the cloud; the rocket burns the silver iodide agent after reaching the cloud height, and the silver iodide agent is spread along with the smoke drawing along the flight process. The mode requires the equipping of vehicle-mounted shell or rocket launching equipment, belongs to the field of initiating explosive devices, is limited by the security level when in use, and is difficult to use in the artificial precipitation task or scientific research experiment of the general level; and equipment and material cost are higher, and the operation process is noisy, and if the rocket falls, the life and property safety on the ground can be influenced if the parachute cannot be opened in time. The rainfall area is limited by the air route, the operation points can not be established according to the needs, only few operation sites can be arranged, and the effect and timeliness of increasing rain and snow are difficult to ensure. When manual precipitation operation is carried out, time and space are limited, the range is not far, and remote precipitation operation cannot be carried out; with the prosperous development of air traffic, the airspace is increasingly tense and increasingly difficult to repeat, the airspace repeated in each rain-increasing operation is only 5min, sometimes only 2-3 min, and even many times, no operation airspace exists. The conflict between the operation time and the busy airspace causes difficulty in airspace repetition and often misses the optimal operation time; rocket and ammunition transportation and ordinary storage require more manpower and material resources.
The airplane carrying the spreading equipment is used for directly spreading the catalyst to a preset position in the cloud. The mode has large investment of fixed assets and high operation cost, the cost of one flight usually needs hundreds of thousands of units to millions of units, and the mode is restricted by factors such as flight conditions, airplane performance, airspace and the like, and cannot be applied in the weather of strong convection in order to ensure the flight safety.
The balloon carries a catalyst, silver iodide smoke bars are fixed on the buoyancy balloon, and smoke agents are continuously burnt and scattered in the ascending process of the balloon, but the ascending path of the balloon is influenced by airflow, so that the uncertainty is high, the proper part of the cloud body cannot be ensured, and the selection of a throwing point is difficult; the balloon is not monitored at all after being put in, and operators cannot check whether the putting is effective or not.
The operation mode of arranging the combustion furnace on the ground is to ignite a catalyst smoke bar or solution to generate a large amount of smoke agent which is conveyed into a target high cloud layer by virtue of ascending air flow. The operation mode requires the naturally formed continuous ascending airflow, is mainly suitable for mountainous areas which are easy to form terrain clouds and provide ascending airflow on windward sides, and has obvious regional limitation.
Rainfall is accomplished by means of a weather modification device, which generally comprises an ignition control system and a smoke furnace chamber, wherein a smoke pipe frame and a smoke pipe are arranged in the smoke furnace chamber, and the smoke pipe is provided with a rainfall enhancement catalyst grain. The working principle is as follows: in a specific region with specific meteorological conditions of updraft, a smoke tube in a smoke furnace chamber is ignited through an ignition control system, so that the rain-increasing catalyst explosive column in the smoke tube is combusted to generate a catalyst smoke agent, and finally the catalyst smoke agent in the smoke furnace chamber is diffused into the air through the suction force of a chimney and is lifted to a target-height cloud layer through the updraft. The catalyst smoke agent enters the air, so that the moisture absorption crystal nucleus in the air cloud can be increased, the water content is increased, and the moisture absorption crystal nucleus is changed into raindrops through collision, so that the effect of artificial precipitation is achieved. The ground silver iodide smoke furnace ignites silver iodide smoke strips installed in the smoke furnace through remote control, and the ascending air flow is used as a carrier to enter a target high cloud layer for catalysis, so that the ground silver iodide smoke furnace is mainly suitable for mountainous areas which are easy to form topographic clouds and provided with ascending air flow on windward sides, and has obvious geographical limitation.
Disclosure of Invention
To overcome the above problems or at least partially solve the above problems, embodiments of the present invention provide an artificial precipitation apparatus, a control method, and a control apparatus.
In one aspect, the present invention provides an artificial precipitation apparatus comprising: the device comprises a heat preservation gas storage tank, a heat preservation communicating pipeline, a flue gas mixing chamber and a gas directional output unit.
Wherein a heating unit is arranged in the heat-preservation air storage tank; the heating unit is used for heating the air in the heat-preservation air storage tank to at least a preset temperature.
The flue gas mixing chamber is communicated with the heat-preservation gas storage tank through the heat-preservation communicating pipeline, and catalyst particles are arranged in the flue gas mixing chamber; the gas directional output unit is vertically arranged at the upper part of the flue gas mixing chamber and is communicated with the flue gas mixing chamber, and an opening is arranged at the upper part of the gas directional output unit and is used for guiding out gas.
In another aspect, the present invention provides a method for controlling artificial precipitation, comprising: acquiring first temperature information detected by a first temperature sensor arranged in a heat-preservation air storage tank and air pressure information detected by a pressure sensor; controlling a pneumatic air booster pump to compress air to preset air pressure according to the acquired air pressure information, and conveying the air to the heat-preservation air storage tank; and controlling a heating unit in the heat-preservation air storage tank to heat the air in the heat-preservation air storage tank to at least a preset temperature according to the acquired first temperature information.
In a further aspect, the present invention provides a control device for artificial precipitation, comprising: the device comprises an information acquisition module and a control module.
The information acquisition module is used for acquiring first temperature information detected by a first temperature sensor installed in the heat-preservation air storage tank and air pressure information detected by a pressure sensor.
The control module is used for controlling the pneumatic air booster pump to compress air to preset air pressure according to the acquired air pressure information and conveying the air to the heat-preservation air storage tank; and controlling a heating unit in the heat-preservation air storage tank to heat the air in the heat-preservation air storage tank to at least a preset temperature according to the acquired first temperature information.
According to the artificial precipitation device, the control method and the control device provided by the embodiment of the invention, the catalyst particles arranged in the flue gas mixing chamber carried by the air reaching the preset temperature enter a target-height cloud layer capable of carrying out artificial precipitation through the gas directional output unit to excite precipitation. The device is not limited by regions, can be arranged at any place, weakens the leading action of the traditional topographic wind into the pointing action and the auxiliary action, widens the topographic application range of the artificial precipitation device, and improves the utilization rate of clean energy.
Drawings
Fig. 1 is a structural diagram of an artificial precipitation device provided in embodiment 1 of the present invention;
FIG. 2 is a front view of a chimney of a smoke furnace in the artificial precipitation apparatus provided in embodiment 2 of the present invention;
FIG. 3 is a cross-sectional view of the stovepipe of FIG. 2 taken along the line A-A;
fig. 4 is a control relationship diagram of the artificial precipitation device provided in embodiment 4 of the present invention;
fig. 5 is a structural diagram of an artificial precipitation device provided in embodiment 5 of the present invention;
fig. 6 is a flowchart of a control method for artificial precipitation according to embodiment 6 of the present invention;
fig. 7 is a flowchart of a control method for artificial precipitation according to embodiment 6 of the present invention;
fig. 8 is a structural diagram of a control device for artificial precipitation according to embodiment 7 of the present invention.
Detailed Description
The following detailed description of embodiments of the present invention is provided in connection with the accompanying drawings and examples. The following examples are intended to illustrate the invention but are not intended to limit the scope of the invention.
In embodiment 1 of the present invention, referring to fig. 1, there is provided an artificial precipitation apparatus including: a heat preservation gas storage tank 11, a heat preservation communicating pipeline 12, a flue gas mixing chamber 13 and a gas directional output unit 14.
Wherein, a heating unit is arranged in the heat preservation air storage tank 11; the heating unit is used for heating the air in the heat-preservation air storage tank to at least a preset temperature.
The flue gas mixing chamber 13 is communicated with the heat-preservation gas storage tank 11 through the heat-preservation communicating pipeline 12, and catalyst particles are arranged in the flue gas mixing chamber 13; the gas directional output unit 14 is vertically arranged at the upper part of the flue gas mixing chamber 13 and is communicated with the flue gas mixing chamber, and the upper part of the gas directional output unit 14 is provided with an opening for leading out gas.
Specifically, a heating unit is installed in the heat-preservation air storage tank 11, and air in the heat-preservation air storage tank 11 is heated at least to a preset temperature through the heating unit. The preset temperature refers to the temperature which is required to be reached when the air in the heat-preservation air storage tank 11 enters the flue gas mixing chamber 13 through the heat-preservation communication pipeline 12 and rises to a cloud layer with a target height for artificial precipitation through the gas directional output unit 14. In the heat preservation gas holder 11, the steam in the air with the preset temperature is to be separated, and the steam generated due to the temperature difference change is prevented from influencing the performance of the catalyst particles in the flue gas blending chamber 13 when the air with the preset temperature is conveyed to the flue gas blending chamber 13 through the heat preservation communicating pipeline.
The catalyst particles disposed in the flue gas blending chamber 13 may be catalyst particles generated by the catalyst in the flue gas blending chamber 13, or may be catalyst particles stored in the flue gas blending chamber 13 in advance. The catalyst particles in the flue gas blending chamber 13 can also be obtained by delivering the generated catalyst particles to the flue gas blending chamber 13 through an external catalyst particle generating device.
The flue gas mixing chamber 13 is communicated with the heat-preservation air storage tank 11 through a heat-preservation communication pipeline 12, so that air reaching a preset temperature in the heat-preservation air storage tank 11 can flow into the flue gas mixing chamber 13. In the air flowing process, the heat preservation communication pipeline 12 can ensure that the temperature of the air with the preset temperature is kept unchanged. In the flue gas mixing chamber 13, due to the high-speed movement of the gas molecules, the catalyst particles are fully mixed with the entering air with the preset temperature, and the air with the preset temperature enters the outside air through the gas directional output unit 14.
In the working state, the flue gas mixing chamber 13 has no other openings through which the air flow can pass except for the pipe orifice connected with the heat-insulating communicating pipe 12, so as to ensure that the flue gas mixing chamber 13 has good air tightness.
Because the temperature of the air with the preset temperature is high and the density of the air is high, the air enters the outside air through the gas directional output unit 14 and then continues to flow upwards and enters a target height cloud layer capable of carrying out artificial precipitation, and the physical characteristics of particles in the target height cloud layer are changed by the carried catalyst particles so as to excite precipitation. In the case of artificial precipitation, the catalyst can be a general silver iodide catalyst, and the silver iodide catalyst is made into particles and arranged in the flue gas mixing chamber 13. In particular, other different catalysts, such as dry ice or liquid nitrogen, can also be used for scientific research or special needs.
In this embodiment, the catalyst particles in the flue gas blending chamber are carried by the air reaching a predetermined temperature and enter a cloud layer of a target height where artificial precipitation can be performed, thereby exciting precipitation. The device is not limited by regions, can be arranged at any place, weakens the leading action of the traditional topographic wind into the pointing action and the auxiliary action, and widens the topographic application range of the artificial precipitation device. The preset temperature air can reach the target height cloud layer and the catalyst particles are scattered on the target height cloud layer, so that the dosage of the catalyst particles entering the target height cloud layer is ensured, the catalytic efficiency is improved, and the cost of artificial precipitation is reduced. Meanwhile, various devices used by the system are not dangerous, so that the safety coefficient of the system is improved.
On the basis of the above embodiment, the apparatus further includes: the air thermal-arrest canopy.
The air heat collection shed is provided with at least one air inlet, an air heat collection shed chimney is arranged on the shed top of the air heat collection shed, heat absorption materials are paved on the shed top of the air heat collection shed, and heat storage materials are paved in the shed and used for heating air.
The air heat collection shed is communicated with the heat preservation air storage tank and conveys heated air to the heat preservation air storage tank.
Specifically, the side wall of the air heat collection shed is circular, the shed roof is a downward inclined transparent inclined plane, and an air heat collection shed chimney communicated with the air heat collection shed is arranged at the upper part of the inclined plane. The air heat collector has at least one air inlet to ensure sufficient air in the air heat collector. The heat absorption material is laid on the ceiling of the air heat collection shed, the heat storage material is laid in the shed, and the heat absorption material is used for absorbing external energy and heating air in the air heat collection shed. Here, the external energy may be solar energy, and the heat absorbing material converts the solar energy into heat energy to heat the air. The heated air stores heat through the heat storage material laid in the shed, so that the air temperature is prevented from being reduced, and the heating time is prolonged. Meanwhile, the heat storage material can store and collect heat energy converted from solar energy absorbed by the heat absorption material under the condition of sufficient sunlight, the aim of heating air in the air heat collection shed can be still achieved under the condition of no sunlight, and the heating time of the air is prolonged.
The air heat collection shed is communicated with the heat preservation air storage tank, the middle of the air heat collection shed can be communicated by adopting a common communicating pipeline, a heat preservation communicating pipeline or other pipelines, and the air heated by the air heat collection shed is conveyed to the heat preservation air storage tank.
In this embodiment, the air is heated by the air heat collecting shed, and the heated air is delivered to the heat preservation air storage tank, so that the continuous operation of the whole artificial precipitation device can be realized. The heat absorption material and the heat storage material in the air heat collection shed are used for heating the air in the air heat collection shed, so that the use efficiency of the air heat collection shed is improved.
On the basis of the above embodiment, the apparatus further includes: a pneumatic air booster pump and an air compressor.
The pneumatic air booster pump is respectively communicated with the air heat collection shed and the heat preservation air storage tank, and is used for compressing the heated air conveyed by the air heat collection shed to preset air pressure and conveying the air to the heat preservation air storage tank; the air compressor provides driving air pressure for the pneumatic air booster pump.
Specifically, the pneumatic air booster pump is respectively communicated with the air heat collecting shed and the heat preservation air storage tank, and the communication mode can adopt a common communication pipeline, a heat preservation communication pipeline or other pipelines for communication. And conveying the air heated by the air heat collection shed to a pneumatic air booster pump, compressing the air to a preset air pressure by the pneumatic air booster pump, and conveying the air to a heat preservation air storage tank. The preset air pressure refers to the air pressure required for quickly and directionally rising the preset temperature air for spreading the catalyst particles to the cloud layer with the target height, which can be subjected to artificial precipitation, to the cloud layer with the target height through the flue gas mixing chamber and the gas directional output unit.
In this embodiment, the pneumatic air booster pump compresses air heated by the air heat collector to provide power for the flow of air at the preset temperature, so as to increase the rising speed of the air at the preset temperature and reduce the disturbance of upper air flow to the air at the preset temperature, thereby reducing the loss of gas energy. Meanwhile, high pressure has a directional effect, so that more air with the preset temperature of the catalyst particles reaches the target-height cloud layer, the dosage of the catalyst particles entering the target-height cloud layer is ensured, the catalytic efficiency is improved, and the cost of artificial precipitation is reduced.
On the basis of the above embodiment, the apparatus further includes: a turbine generator and a battery.
The fan blade of the turbine generator is arranged inside the air heat collection shed and is connected with the turbine generator through a shaft rod; the storage battery is electrically connected with the turbine generator to store electric energy generated by the turbine generator and is electrically connected with the air compressor and the heat-preservation air storage tank to supply power to the air compressor and the heat-preservation air storage tank.
Specifically, the fan blade of the turbine generator is installed in the air heat collecting shed and connected with the turbine generator through a shaft rod. When artificial precipitation is not carried out, because the air temperature in the air heat collection shed is higher than the outside air temperature, the air in the air heat collection shed flows to the outside directionally through the chimney of the air heat collection shed, and the fan blades are driven to rotate, so that the turbine generator is driven to generate electricity.
The second temperature sensor can be arranged in the air heat collection shed and used for detecting the temperature in the air heat collection shed so as to reflect the efficiency of air heat exchange in the air heat collection shed when artificial precipitation and power generation of the turbine generator are not carried out.
The storage battery is electrically connected with the turbine generator, and the storage battery stores the electric energy generated by the turbine generator. The electric energy stored in the storage battery is converted into alternating current through an inverter electrically connected with the storage battery. The inverter is respectively electrically connected with the air compressor and the heat preservation air storage tank, power is supplied to the inverter when artificial precipitation occurs, and electric energy required by the second temperature sensor is also provided by conversion of electric energy stored by the storage battery through the inverter. When artificial precipitation is not carried out, as the turbine generator works normally, the electric energy required by the device can be directly provided by the power generation of the turbine generator through the conversion of the inverter.
It should be noted that, the air heat-collecting shed chimney and the air inlet in the air heat-collecting shed, and the communicating pipe of the air heat-collecting shed and the pneumatic air booster pump are in parallel connection.
In the embodiment of the invention, the turbine generator in the air heat collection shed generates electricity when artificial precipitation is not carried out, the electricity is stored by the storage battery and is converted by the inverter to supply electricity to the air compressor and the heat-preservation air storage tank when the artificial precipitation is carried out, so that sufficient air with preset temperature and preset air pressure is contained in the heat-preservation air storage tank, and the continuous work of the whole artificial precipitation device is ensured.
The embodiment 2 of the invention is different from the embodiment 1 in that the flue gas mixing chamber is specifically a flue furnace body, the gas directional output unit is specifically a flue furnace chimney, and the flue gas mixing chamber and the gas directional output unit form a flue furnace together. The smoke furnace chimney is provided with smoke furnace chimney outlet pipes with preset quantity and corresponding smoke furnace chimney outlets, the smoke furnace chimney outlets with the preset quantity are vertically arranged and are uniformly arranged in a ring shape on a plane vertical to the smoke furnace chimney. The chimney outlets of the smoke furnaces with the preset number are fixed by vertical circular rings with preset number openings, two opposite conical caps are respectively arranged above and below the vertical circular rings, and wind vanes are arranged on the upper conical caps.
Specifically, referring to fig. 2 and 3, taking an example that the smoke furnace chimney has 8 smoke furnace chimney outlet pipes and 8 corresponding smoke furnace chimney outlets, as seen from a top view, the directions of the smoke furnace chimney outlets are respectively 8 directions, namely, a true east direction, a northeast direction, a true north direction, a northwest direction, a true west direction, a southwest direction, a true south direction and a southeast direction, and the included angle between the directions of the adjacent smoke furnace chimneys is 45 °.
In the chimney of the smoke furnace, the outlet pipe of each chimney of the smoke furnace forms 60 degrees with the horizontal plane, 8 chimney outlets of the smoke furnace are vertically arranged and are uniformly arranged into a ring shape on the plane vertical to the chimney of the smoke furnace. 8 smoke stove chimney exits are fixed by opening 8 open-ended vertical torus, install two relative awl caps respectively in the top and the below of vertical torus, are provided with the wind vane on the awl cap in the top.
In this embodiment, through the cigarette stove chimney export of presetting quantity for the cigarette stove chimney setting, the air that makes the temperature of presetting that carries the catalyst particle through cigarette stove chimney transport and predetermine atmospheric pressure can follow different wind directions and rise to the high cloud layer of target that can carry out artifical precipitation, has improved the utilization efficiency of catalyst particle, has practiced thrift the cost for artifical precipitation operation. Meanwhile, two opposite conical caps are respectively arranged above and below the vertical ring surface for fixing the chimney outlet of the smoke furnace, so that rainwater or snow during precipitation falls on the conical caps, and the rainwater or the snow is prevented from entering the smoke furnace body through the chimney outlet of the smoke furnace to influence the performance of catalyst particles.
Embodiment 3 of the present invention is different from embodiment 2 in that the artificial precipitation apparatus further includes: a first temperature sensor, a pressure sensor and a control unit.
The first temperature sensor and the pressure sensor are arranged in the heat-preservation air storage tank and are used for detecting the temperature and the air pressure in the heat-preservation air storage tank; the control unit is used for controlling the heating action of the heating unit according to the temperature information detected by the first temperature sensor and controlling the compression action of the pneumatic air booster pump according to the air pressure information detected by the pressure sensor.
Specifically, the heat-preservation gas storage tank comprises a gas tank main body, a first temperature sensor and a pressure sensor which are arranged inside the heat-preservation gas storage tank, and a heating unit. After the gas enters the gas tank main body, the pressure sensor detects the air pressure in the gas tank main body, and the first temperature sensor detects the temperature of the air in the gas tank main body.
The control unit controls the compression action of the pneumatic air booster pump according to air pressure information detected by the pressure sensor, and when the air pressure detected by the pressure sensor is smaller than preset air pressure, the pneumatic air booster pump is controlled to compress air heated by the air heat collection shed until the air pressure in the air tank main body entering the heat preservation air storage tank reaches the preset air pressure. The control unit controls the heating unit in the heat-preservation air storage tank to heat air in the heat-preservation air storage tank according to the temperature information detected by the first temperature sensor, and when the temperature detected by the first temperature sensor is lower than a preset temperature, the control unit controls the heating unit to heat air in the heat-preservation air storage tank, and at least heats the air in the heat-preservation air storage tank to the preset temperature.
When artificial precipitation is carried out, the electric energy required by the control unit, the first temperature sensor and the pressure sensor is provided by converting the electric energy stored in the storage battery when artificial precipitation is not carried out through the inverter. When artificial precipitation is not carried out, the required electric energy can also be directly provided by the power generation of the turbine generator through the conversion of the inverter because the turbine generator normally works.
Catalyst particles in the smoke furnace body are compressed to preset temperature air of preset air pressure by the pneumatic air booster pump and carried into a target height cloud layer capable of carrying out artificial precipitation, and precipitation is stimulated. In this embodiment, the control unit controls the heating operation of the heating unit and the compressing operation of the pneumatic air booster pump, so as to automatically control the process of the artificial precipitation device.
Embodiment 4 of the present invention is different from embodiment 3 in that the artificial precipitation apparatus further includes: the device comprises an air compression input valve, a pneumatic power generation outlet valve, a preset number of smoke furnace chimney outlet valves, a wind direction information transmitter, a heat preservation gas storage tank output valve and a mixed gas output valve.
The air compression input valve is positioned on the side wall of the chimney of the air heat collection shed and used for adjusting the air flow transmitted to the pneumatic air booster pump by the air heat collection shed; the pneumatic power generation outlet valve is positioned at the top of the chimney of the air heat collection shed and used for adjusting the flow of air discharged upwards by the air heat collection shed; a preset number of smoke furnace chimney outlet valves are correspondingly arranged on the smoke furnace chimney outlet; the wind direction information transmitter is arranged on a wind vane and used for transmitting wind direction information to the control unit; the output valve of the heat preservation gas storage tank is positioned between the heat preservation gas storage tank and the furnace body of the smoke furnace; the mixed gas output valve is positioned between the smoke furnace body and the smoke furnace chimney.
The control unit is also used for controlling the on-off state switching of the air compression input valve, the pneumatic power generation outlet valve, the heat preservation air storage tank output valve and the mixed gas output valve; and the opening and closing state control device is used for controlling the opening and closing state of the chimney outlet valves of the smoke stoves in a preset number according to the wind direction information sent by the wind direction information transmitter.
Specifically, the on-off state referred to herein is an open or closed state of the valve. When the air pressure detected by the pressure sensor in the heat-preservation air storage tank is lower than the preset air pressure, the pneumatic air booster pump is started to compress air, so that the air pressure value entering the heat-preservation air storage tank reaches the preset air pressure. At the moment, the control unit controls the air compression input valve to be in a fully opened state, and the pneumatic power generation outlet valve is in a closed state, so that air heated in the air heat collection shed can enter the pneumatic air booster pump through the air compression input valve and the communication pipeline.
In general, in rainy weather, the solar energy absorbed by the heat absorbing material of the air thermal collector and the electric energy converted therefrom are significantly reduced, and thus the power generation efficiency is low. Therefore, when artificial precipitation is carried out, the pneumatic power generation outlet valve is closed for ensuring continuous input of conventional air pressure air, and at the moment, because air which flows up and down does not exist in the air heat collection shed, the fan blade of the turbine generator cannot drive the turbine generator to generate power, and the electric energy stored in the storage battery when artificial precipitation is not carried out is required to be used for supplying power. The alternating current is converted into alternating current through an inverter to supply power for the air compressor and the heat preservation air storage tank.
The wind vane is arranged at the top of the upper cone cap and used for detecting wind direction information close to the ground, and a wind direction information emitter is arranged on the wind vane and used for sending the wind direction information to the control unit. The control unit controls the smoke furnace chimney outlet valves of preset quantity to switch on-off states according to the wind direction information sent by the wind direction information transmitter, opens the smoke furnace chimney outlet valves consistent with the wind direction or the smoke furnace chimney outlet valves in two directions close to the wind direction, and closes other smoke furnace chimney outlet valves, so that the air with the preset air pressure and the preset temperature of the catalyst particles enters the outside through the outlet corresponding to the opened smoke furnace chimney outlet valves. For example, if the position wind direction information of the chimney outlet of the smoke furnace is the southeast wind, the control unit controls to open the smoke furnace chimney outlet valve positioned in the northwest direction.
The wind direction information transmitter can also be an electric signal transmitter, different wind direction information detected by the wind vane can enable the electric signal transmitter to generate different electric signals, the generated electric signals are sent to the control unit, and the control unit analyzes the wind direction information corresponding to the electric signals according to the obtained electric signals.
When artificial precipitation is carried out, the control unit controls to open the output valve of the heat-preservation gas storage tank and the output valve of the mixed gas, and when artificial precipitation is not carried out, the control unit controls to close the output valve of the heat-preservation gas storage tank and the output valve of the mixed gas. Meanwhile, when artificial precipitation is not carried out and the air pressure in the heat-preservation air storage tank reaches the preset air pressure, in order to ensure that the electric energy stored in the storage battery is enough to support the electric energy requirement of each component during the artificial precipitation, the control unit is required to control the air compression input valve to be in a closed state, and the pneumatic power generation outlet valve is in a fully opened state, so that the air heated in the air heat collection shed can flow into the outside from the chimney of the air heat collection shed through the pneumatic power generation outlet valve, and the generated air flow drives the fan blades to rotate to enable the turbine generator to generate power.
In this embodiment, through set up the valve between each component at artifical precipitation device, control whole artifical precipitation device air current size through the control unit, make the whole process of artifical precipitation controllable, can control the duration of artifical precipitation simultaneously. The catalyst particles are carried by the air at the preset temperature of the preset air pressure, and the opening or closing state of the corresponding outlet is controlled by the smoke furnace chimney outlet valve arranged at the smoke furnace chimney outlet, so that the influence of wind direction on artificial precipitation can be greatly reduced.
On the basis of the above embodiment, the artificial precipitation device further comprises a personnel operation unit for obtaining a decision instruction of whether the worker carries out artificial precipitation. The control unit controls the whole artificial precipitation device by acquiring the decision instructions acquired by the personnel operation unit, so that the automatic artificial precipitation is realized, and the safety coefficient is higher. Furthermore, the control over the whole artificial precipitation device can be controlled on site through the control unit, and remote instruction control and human resource liberation can be realized through the wireless transmission module.
Referring to fig. 4, in the above embodiment, the control unit 47 in the artificial precipitation device controls the heating operation of the heating unit 48 in the heat-preserving gas tank according to the temperature information detected by the first temperature sensor 41. The control unit 47 controls the open and close states of the pneumatic power generation outlet valve 49 and the air compression input valve 410, and controls the compression action of the pneumatic air booster pump 412, through air pressure information detected by the pressure sensor 43. The control unit 47 controls the whole artificial precipitation device through the decision instruction received by the personnel operation unit 44. The control unit 47 controls the chimney outlet valve 414 of the smoke furnace to switch the on-off state through the wind direction information sent by the wind direction signal transmitter 46. The control unit 47 is also used for controlling the on-off state of the output valve 411 of the heat preservation gas storage tank and the output valve 413 of the mixed gas. The control unit 47 obtains the temperature in the air heat collecting chamber detected by the second temperature sensor 42 to know the efficiency of heat exchange of air in the air heat collecting chamber when artificial precipitation and power generation of the turbine generator are not performed. Furthermore, the control of the whole artificial precipitation device can be controlled on site through the control unit 47, and can also be controlled by a remote instruction through the wireless transmission module 45, so that human resources are liberated.

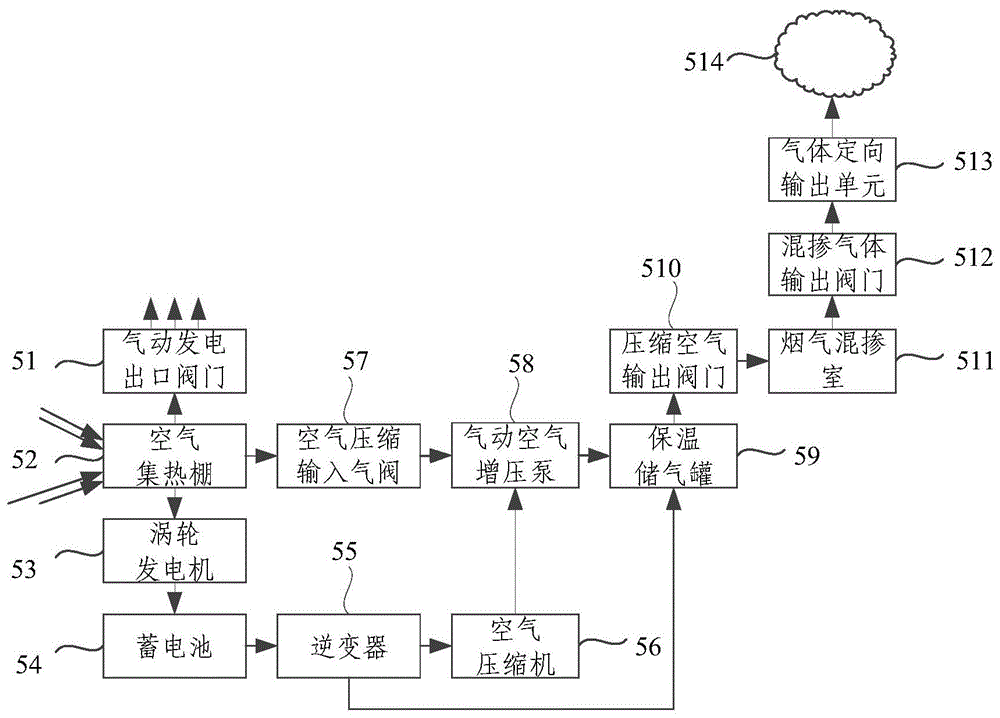

Embodiment 5 of the present invention, referring to fig. 5, provides an artificial precipitation apparatus. Before the artificial precipitation, the external air enters the air heat collecting compartment 52 through the air inlet of the air heat collecting compartment 52, and the heat absorbing material and the heat accumulating material in the air heat collecting compartment 52 absorb the solar energy, so that the temperature of the air in the air heat collecting compartment 52 is increased. The control unit controls to open the pneumatic power generation outlet valve 51, close the air compression input air valve 57, enable air in the air heat collection shed 52 to generate directional flow, drive fan blades of the turbine generator 53 to rotate, provide power for the turbine generator 53, enable the turbine generator 53 to generate power, enable the storage battery 54 to store electric energy generated by the turbine generator 53, convert direct current stored by the storage battery 54 into alternating current through the inverter 55, and electrically connect the air compressor 56, the heat preservation air storage tank 59 and the control unit to supply power for the air compressor 56, the heat preservation air storage tank 59 and the control unit. During artificial precipitation, the control unit controls to close the pneumatic power generation outlet valve 51, open the air compression input air valve 57, and input the air in the air heat collection shed 52 into the pneumatic air booster pump 58 through the air compression input air valve 57, i.e. the conventional air pressure input, and the air compressor 56 provides the driving air pressure for the pneumatic air booster pump 58, i.e. the driving air pressure input. The pneumatic air booster pump 58 compresses the air flowing into the pneumatic air booster pump, so that the compressed air reaches the preset air pressure when entering the heat preservation air storage tank 59. The heat-preserving air storage tank 59 heats the air with preset air pressure to reach the preset temperature, the control unit controls to open the output valve 510 of the heat-preserving air storage tank and the output valve 512 of the mixed gas, so that the air with the preset temperature flows into the flue gas mixing chamber 511 through the heat-preserving communicating pipeline under the pressure of the preset air pressure, and the air with the preset temperature is mixed with the catalyst particles in the flue gas mixing chamber 511. The air with the preset temperature of the catalyst particles flows out from the gas directional output unit 513 and rises to a cloud layer 514 with a target height for artificial precipitation, so that the artificial precipitation is realized.
In the embodiment of the invention, other various devices used in the device are not dangerous, so that the safety factor of the whole artificial precipitation device is improved.
Embodiment 6 of the present invention, with reference to fig. 6, provides a control method for artificial precipitation, including:
s61, acquiring first temperature information detected by a first temperature sensor arranged in the heat-preservation air storage tank and air pressure information detected by a pressure sensor;
s62, controlling a pneumatic air booster pump to compress air to preset air pressure according to the acquired air pressure information, and conveying the air to the heat preservation air storage tank; and controlling a heating unit in the heat-preservation air storage tank to heat the air in the heat-preservation air storage tank to at least a preset temperature according to the acquired first temperature information.
Specifically, the control unit acquires first temperature information detected by a first temperature sensor installed in the heat-insulating air storage tank and air pressure information detected by a pressure sensor. The control unit controls the pneumatic air booster pump to compress air to preset air pressure according to the acquired air pressure information and conveys the air to the heat preservation air storage tank. The control unit controls the heating unit in the heat-preservation air storage tank to heat the air in the heat-preservation air storage tank to at least a preset temperature according to the acquired first temperature information.
The heat-preservation air storage tank is communicated with the flue gas mixing chamber through a heat-preservation communicating pipeline, so that the temperature of air with preset air pressure and preset temperature in the heat-preservation air storage tank can be kept unchanged when the air enters the flue gas mixing chamber through the heat-preservation communicating pipeline. After entering the flue gas mixing chamber, air with preset air pressure and preset temperature is mixed with catalyst particles in the flue gas mixing chamber and carries the catalyst particles to rise to a cloud layer with target height for artificial precipitation through the gas directional output unit.
The preset temperature refers to the temperature which is required to be reached when the air in the heat-preservation air storage tank enters the flue gas mixing chamber through the heat-preservation communicating pipeline and rises to a target-height cloud layer capable of carrying out artificial precipitation through the gas directional output unit, and the preset air pressure refers to the air pressure which is required to quickly directionally rise to the target-height cloud layer through the flue gas mixing chamber and the gas directional output unit and spread the preset temperature air of the catalyst particles to the target-height cloud layer capable of carrying out artificial precipitation.
In the control method for artificial precipitation provided in this embodiment, air with a preset pressure and a preset temperature is generated and used to carry catalyst particles in the flue gas blending chamber into a cloud layer with a target height for artificial precipitation, so as to excite precipitation. The control method is not limited by regions and can be applied to any places. Because the air carrying the catalyst particles has the preset temperature and the preset air pressure, more air carrying the catalyst particles with the preset temperature reaches the cloud layer with the target height, the dosage of the catalyst particles entering the cloud layer with the target height is ensured, the catalytic efficiency is improved, and the cost of artificial precipitation is reduced.
The flue gas mixing chamber is specifically a flue gas furnace body, the gas directional output unit is specifically a flue gas furnace chimney, and the flue gas mixing chamber and the gas directional output unit form a flue gas furnace together. The top of the smoke furnace chimney is provided with a smoke furnace chimney cone cap.
On the basis of the above embodiment, the method further includes:
acquiring wind direction information sent by a wind direction information transmitter arranged on a wind vane; the wind vane is arranged on a conical cap of the chimney of the smoke furnace; controlling the opening and closing states of the chimney outlet valves of the smoke stoves in a preset number according to the acquired wind direction information; the smoke furnace chimney outlet valves with the preset number are correspondingly arranged on the smoke furnace chimney outlet.
When the air pressure information detected by the pressure sensor is lower than the preset air pressure, controlling to close the pneumatic power generation outlet valve and open the air compression input valve; after the air in the heat-preservation air storage tank reaches a preset temperature and a preset air pressure, controlling to open an output valve of the heat-preservation air storage tank and an output valve of the mixed gas; the pneumatic power generation outlet valve is positioned at the top of the air heat collection shed chimney, the air compression input valve is positioned on the side wall of the air heat collection shed chimney, the heat preservation air storage tank output valve is positioned between the heat preservation air storage tank and the smoke furnace body, and the mixed gas output valve is positioned between the smoke furnace body and the smoke furnace chimney.
Specifically, the control unit acquires wind direction information sent by a wind direction information transmitter on a wind vane installed on a chimney cone cap of the smoke furnace, controls the smoke furnace chimney outlet valves of preset quantity to switch an on-off state according to the acquired wind direction information, opens the smoke furnace chimney outlet valves consistent with the wind direction or close to the wind direction, and closes the smoke furnace chimney outlet valves in two directions, so that the smoke furnace chimney outlet corresponding to the opened smoke furnace chimney outlet valves carrying catalyst smoke enters the outside through preset air pressure and preset temperature air carried with the catalyst smoke. The wind direction information transmitter can also be an electric signal transmitter, different wind direction information detected by the wind vane can enable the electric signal transmitter to generate different electric signals, the generated electric signals are sent to the control unit, and the control unit analyzes the wind direction information corresponding to the electric signals according to the obtained electric signals.
When the air pressure detected by the pressure sensor is lower than the preset air pressure, the pneumatic air booster pump is controlled to compress the air conveyed into the pneumatic air booster pump, the control unit controls the air compression input valve to be in a fully-opened state at the moment, and the pneumatic power generation outlet valve is in a closed state, so that the air heated in the air heat collection shed can enter the pneumatic air booster pump through the air compression input valve and the communication pipeline. The control unit may also regulate the flow of air delivered by the air thermal collector to the pneumatic air booster pump by controlling the degree to which the air compression input valve is open.
When artificial precipitation is carried out, after the air in the heat-preservation air storage tank reaches a preset temperature and a preset air pressure, the control unit also controls to open an output valve of the heat-preservation air storage tank and an output valve of the mixed gas; when artificial precipitation is not carried out, the control unit controls to close the output valve of the heat preservation gas storage tank and the output valve of the mixed gas. Meanwhile, when artificial precipitation is not carried out and the air pressure in the heat-preservation air storage tank reaches the preset air pressure, the pneumatic power generation outlet valve is in a fully-opened state, and the air compression input valve is in a closed state, so that air heated in the air heat collection shed can flow into the outside from the chimney of the air heat collection shed through the pneumatic power generation outlet valve, and the fan blades are driven to rotate to enable the turbine generator to generate power. The control unit can adjust the flow of the air discharged upwards by the air heat collecting shed by controlling the opening degree of the valve at the pneumatic power generation outlet.
When artificial precipitation is not carried out, the control unit also acquires second temperature information detected by a second temperature sensor arranged in the air heat collection shed, and monitors the efficiency of air heat exchange in the air heat collection shed when the turbine generator generates electricity according to the acquired second temperature information.
The on-off state referred to herein is an open and closed state of the valve.
In this embodiment, the control unit controls the flow rate of air in the artificial precipitation device and controls the speed of artificial precipitation by controlling the valves between the components of the artificial precipitation device. The air carries catalyst particles through the preset temperature of the preset air pressure, and the opening or closing state of the chimney outlet valve of the smoke furnace is controlled, so that the influence of wind direction on artificial precipitation can be greatly reduced.
In embodiment 7 of the present invention, referring to fig. 7, there is provided a control method for artificial precipitation, comprising the steps of:
s71, closing the pneumatic power generation outlet valve and opening the air compression input valve;
s72, starting the turbine generator to generate electricity;
s73, storing electricity by a storage battery;
s74, starting the air compressor;
s75, starting the pneumatic air booster pump;
s76, filling the heat preservation air storage tank with air with preset temperature and preset air pressure;
s77, judging whether artificial precipitation is needed; if yes, executing S78-S12, otherwise executing S713-S19;
s78, opening an output valve of the heat preservation gas storage tank and an output valve of the mixed gas;
s79, judging the wind direction indicated by the wind vane; if the wind direction is between the outlet directions of the two smoke furnace chimneys, S710 is executed, and if the wind direction is consistent with the outlet direction of the smoke furnace chimneys, S711 is executed;
s710, opening two chimney outlet valves of the smoke stoves adjacent to the wind direction, and closing the outlet valves of other smoke stoves;
s711, opening corresponding chimney outlet valves of the smoke stoves, and closing other chimney outlet valves of the smoke stoves;
s712, spreading catalyst particles to the cloud layer with the target height to realize artificial precipitation, ending the process and restarting the operation again;
s713, opening a pneumatic power generation outlet valve and closing an air compression input valve;
s714, closing the air compressor;
s715, generating power by using a turbine generator;
s716, storing electricity by a storage battery;
s717, judging whether the heat-preservation air storage tank reaches the preset temperature, if so, ending the process and restarting the operation again, and if not, executing S718;
s718, starting a heating unit in the heat-preservation air storage tank, and heating the air to a preset temperature;
and S719, closing the heating unit in the heat preservation air storage tank, ending the process and restarting the operation again.
In embodiment 8 of the present invention, referring to fig. 8, there is provided a control device for artificial precipitation, comprising: an information acquisition module 81 and a control module 82. The information acquisition module 81 is used for acquiring first temperature information detected by a first temperature sensor installed in the heat-preservation air storage tank and air pressure information detected by a pressure sensor; the control module 82 is configured to control the pneumatic air booster pump to compress air to a preset air pressure according to the acquired air pressure information, deliver the compressed air to the heat-preservation air storage tank, and control the heating unit in the heat-preservation air storage tank to heat the air in the heat-preservation air storage tank to at least a preset temperature according to the acquired first temperature information.
On the basis of the above embodiment, the information obtaining module is further configured to: and acquiring second temperature information detected by a second temperature sensor arranged in the air heat collection shed and wind direction information sent by a wind direction signal emitter arranged on a wind vane on a chimney cone cap of the smoke furnace.
Accordingly, the control module is further configured to: controlling the opening and closing states of the chimney outlet valves of the smoke stoves in a preset number according to the acquired wind direction information; when the air pressure information detected by the pressure sensor is lower than the preset air pressure, controlling to close the pneumatic power generation outlet valve and open the air compression input valve; and after the air in the heat-preservation air storage tank reaches the preset temperature and the preset air pressure, controlling to open an output valve of the heat-preservation air storage tank and an output valve of the mixed gas. Wherein, the smoke furnace chimney outlet valves with the preset number are correspondingly arranged on the smoke furnace chimney outlet; the pneumatic power generation outlet valve is positioned at the top of the chimney of the air heat collection shed; the air compression input valve is positioned on the side wall of the chimney of the air heat collection shed; the heat preservation gas storage tank output valve is positioned between the heat preservation gas storage tank and the smoke furnace body, and the mixed gas output valve is positioned between the smoke furnace body and the smoke furnace chimney.
Finally, the method of the present invention is only a preferred embodiment and is not intended to limit the scope of the present invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (10)
1. An artificial precipitation device, comprising: the device comprises a heat-preservation gas storage tank, a heat-preservation communicating pipeline, a flue gas mixing chamber and a gas directional output unit;
a heating unit is arranged in the heat-preservation air storage tank; the heating unit is used for heating the air in the heat-preservation air storage tank to at least a preset temperature;
the flue gas mixing chamber is communicated with the heat-preservation gas storage tank through the heat-preservation communicating pipeline, and catalyst particles are arranged in the flue gas mixing chamber; the gas directional output unit is vertically arranged at the upper part of the flue gas mixing chamber and is communicated with the flue gas mixing chamber, and the upper part of the gas directional output unit is provided with an opening for leading out gas;
the device further comprises: an air heat collecting shed;
the air heat collection shed is provided with at least one air inlet, an air heat collection shed chimney is arranged on the shed top of the air heat collection shed, a heat absorption material is paved on the shed top of the air heat collection shed, and a heat storage material is paved in the shed and used for heating air;
the air heat collection shed is communicated with the heat preservation air storage tank and conveys heated air to the heat preservation air storage tank;
the preset temperature refers to the temperature which is required to be reached by the air in the heat-insulation air storage tank when the air enters the flue gas mixing chamber through the heat-insulation communicating pipeline and rises to a cloud layer with a target height for artificial precipitation through the gas directional output unit.
2. The apparatus of claim 1, further comprising: a pneumatic air booster pump and an air compressor;
the pneumatic air booster pump is respectively communicated with the air heat collection shed and the heat preservation air storage tank, and is used for compressing the heated air conveyed by the air heat collection shed to a preset air pressure and conveying the compressed air to the heat preservation air storage tank; the air compressor provides driving air pressure for the pneumatic air booster pump;
the preset air pressure refers to the air pressure required for the air with the preset temperature for transmitting the catalyst particles to the target altitude cloud layer through the flue gas mixing chamber and the gas directional output unit to rapidly and directionally rise to the target altitude cloud layer.
3. The apparatus of claim 2, further comprising: turbine generators and batteries;
the fan blade of the turbine generator is arranged inside the air heat collection shed and is connected with the turbine generator through a shaft rod; the storage battery is electrically connected with the turbine generator to store electric energy generated by the turbine generator and is electrically connected with the air compressor and the heat-preservation air storage tank to supply power to the air compressor and the heat-preservation air storage tank.
4. The apparatus of any of claims 2-3, further comprising: a first temperature sensor, a pressure sensor and a control unit;
the first temperature sensor and the pressure sensor are arranged in the heat-preservation air storage tank and are used for detecting the temperature and the air pressure in the heat-preservation air storage tank; the control unit is used for controlling the heating action of the heating unit according to the temperature information detected by the first temperature sensor and controlling the compression action of the pneumatic air booster pump according to the air pressure information detected by the pressure sensor.
5. The apparatus of claim 4, further comprising: the system comprises an air compression input valve, a pneumatic power generation outlet valve, a heat preservation air storage tank output valve and a mixed gas output valve;
the air compression input valve is positioned on the side wall of the chimney of the air heat collection shed; the pneumatic power generation outlet valve is positioned at the top of the chimney of the air heat collection shed; the output valve of the heat-preservation gas storage tank is positioned between the heat-preservation gas storage tank and the flue gas mixing chamber; the gas mixing output valve is positioned between the flue gas mixing chamber and the gas directional output unit;
the control unit is also used for controlling the air compression input valve, the pneumatic power generation outlet valve, the heat preservation air storage tank output valve and the mixed gas output valve to switch the on-off state.
6. The apparatus of claim 5, further comprising: a second temperature sensor;
the second temperature sensor is arranged in the air heat collection shed and used for detecting the temperature in the air heat collection shed.
7. A method for controlling artificial precipitation, comprising:
acquiring first temperature information detected by a first temperature sensor arranged in a heat-preservation air storage tank and air pressure information detected by a pressure sensor;
controlling a pneumatic air booster pump to compress air to preset air pressure according to the acquired air pressure information, and conveying the air to the heat-preservation air storage tank; controlling a heating unit in the heat-preservation air storage tank to heat the air in the heat-preservation air storage tank to at least a preset temperature according to the acquired first temperature information;
the preset temperature refers to the temperature which is required to be reached by the air in the heat-insulation air storage tank to enter the flue gas mixing chamber through the heat-insulation communicating pipeline and rise to a cloud layer with a target height for artificial precipitation through the gas directional output unit;
the preset air pressure is required for quickly and directionally rising the preset temperature air for spreading the catalyst particles to the cloud layer with the target height, which can be subjected to artificial precipitation, to the cloud layer with the target height through the flue gas mixing chamber and the gas directional output unit.
8. The control method according to claim 7, characterized in that the method further comprises:
when the air pressure information detected by the pressure sensor is lower than the preset air pressure, controlling to close the pneumatic power generation outlet valve and open the air compression input valve; after the air in the heat-preservation air storage tank reaches the preset temperature and the preset air pressure, controlling to open an output valve of the heat-preservation air storage tank and an output valve of the mixed gas; the pneumatic power generation outlet valve is positioned at the top of the air heat collection shed chimney, the air compression input valve is positioned on the side wall of the air heat collection shed chimney, the heat preservation air storage tank output valve is positioned between the heat preservation air storage tank and the flue gas mixing chamber, and the mixed gas output valve is positioned between the flue gas mixing chamber and the gas directional output unit.
9. A control device for artificial precipitation, comprising: the system comprises an information acquisition module and a control module;
the information acquisition module is used for acquiring first temperature information detected by a first temperature sensor arranged in the heat-preservation air storage tank and air pressure information detected by a pressure sensor;
the control module is used for controlling the pneumatic air booster pump to compress air to preset air pressure according to the acquired air pressure information and conveying the air to the heat-preservation air storage tank; controlling a heating unit in the heat-preservation air storage tank to heat the air in the heat-preservation air storage tank to at least a preset temperature according to the acquired first temperature information;
the preset temperature refers to the temperature which is required to be reached by the air in the heat-insulation air storage tank to enter the flue gas mixing chamber through the heat-insulation communicating pipeline and rise to a cloud layer with a target height for artificial precipitation through the gas directional output unit;
the preset air pressure is required for quickly and directionally rising the preset temperature air for spreading the catalyst particles to the cloud layer with the target height, which can be subjected to artificial precipitation, to the cloud layer with the target height through the flue gas mixing chamber and the gas directional output unit.
10. The control device of claim 9, wherein the control module is further configured to:
when the air pressure information detected by the pressure sensor is lower than the preset air pressure, controlling to close the pneumatic power generation outlet valve and open the air compression input valve; after the air in the heat-preservation air storage tank reaches the preset temperature and the preset air pressure, controlling to open an output valve of the heat-preservation air storage tank and an output valve of the mixed gas; the pneumatic power generation outlet valve is positioned at the top of the air heat collection shed chimney, the air compression input valve is positioned on the side wall of the air heat collection shed chimney, the heat preservation air storage tank output valve is positioned between the heat preservation air storage tank and the flue gas mixing chamber, and the mixed gas output valve is positioned between the flue gas mixing chamber and the gas directional output unit.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201710332174.1A CN107278736B (en) | 2017-05-12 | 2017-05-12 | A kind of artificial precipitation device, control method and control device |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201710332174.1A CN107278736B (en) | 2017-05-12 | 2017-05-12 | A kind of artificial precipitation device, control method and control device |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN107278736A CN107278736A (en) | 2017-10-24 |
| CN107278736B true CN107278736B (en) | 2020-04-21 |
Family
ID=60095275
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201710332174.1A Active CN107278736B (en) | 2017-05-12 | 2017-05-12 | A kind of artificial precipitation device, control method and control device |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN107278736B (en) |
Families Citing this family (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN109315196A (en) * | 2018-10-12 | 2019-02-12 | 王以琳 | A kind of ground cigarette furnace snow enhancement operational method |
| CN116171780B (en) * | 2023-03-03 | 2023-09-12 | 中国气象局人工影响天气中心 | Control method and device for multi-smoke-oven combined sowing catalyst, storage medium and server |
Family Cites Families (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN1064781A (en) * | 1991-03-09 | 1992-09-30 | 苏士法 | A kind of multifunction air conditioner |
| JP2007104904A (en) * | 2005-10-11 | 2007-04-26 | Takahashi Michiko | Cumulonimbus generation system |
| CN101480157B (en) * | 2009-02-24 | 2013-06-19 | 金德镇 | Hypersonic speed air current refrigeration coring device for weather modification |
| CN102027869A (en) * | 2009-10-06 | 2011-04-27 | 胡永生 | Method and equipment for carrying out air conditioning on natural environment by applying chimney type air guide tower |
| CN102160508A (en) * | 2010-02-24 | 2011-08-24 | 王培良 | Weather rainfall planting catalyst device |
| CN204426189U (en) * | 2014-12-18 | 2015-07-01 | 郑斌 | A kind of fume extractor being applicable to ground silver iodide combustion furnace |
| CN104879284A (en) * | 2015-06-10 | 2015-09-02 | 河海大学常州校区 | Sun-tracking solar chimney hot air system |
| CN104944488B (en) * | 2015-06-10 | 2018-05-11 | 河海大学常州校区 | A kind of solar tracking solar chimney salt, water, cogeneration system and its operation method |
| CN106613577A (en) * | 2017-01-11 | 2017-05-10 | 青海中水数易信息科技有限责任公司 | Air-cannon artificial rainfall device based on liquid silver iodide |
-
2017
- 2017-05-12 CN CN201710332174.1A patent/CN107278736B/en active Active
Also Published As
| Publication number | Publication date |
|---|---|
| CN107278736A (en) | 2017-10-24 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| AU2001267224B2 (en) | Solar chimney wind turbine | |
| US20060016182A1 (en) | Power plant and process for the production of electric power from wind | |
| EP1778975B1 (en) | Air power generator tower | |
| CN102168882B (en) | Method and apparatus for cooling ventilation air for building | |
| US20080131830A1 (en) | Use of renewable energy like solar, wind, geothermal, biomass, and hydropower for manufacturing combustion air for a fossil fuel burner and firebox | |
| CN107278736B (en) | A kind of artificial precipitation device, control method and control device | |
| US4004427A (en) | Energy conversion system | |
| CN206175135U (en) | Solar heating wind power generation circulation system | |
| CN106321361A (en) | Solar heating wind power generation circulating system and control method thereof | |
| WO2006047934A1 (en) | Artifical cyclone generating apparatus and its generating method | |
| CN103511204A (en) | Heat-absorption-type solar hot air power station | |
| RU2444645C2 (en) | Mountain air-draft thermal power plant | |
| CN103104306A (en) | Hot-wind gravity heat machine | |
| KR20110129249A (en) | Wind power generator using high rise building | |
| RU92484U1 (en) | WIND POWER PLANT | |
| RU2692887C2 (en) | Autonomous mining aerial traction installation | |
| CN202900555U (en) | Solar airflow power generation assembly | |
| CN207505596U (en) | Artificial snowfall operation device | |
| CN107517793A (en) | Artificial snowfall operation device | |
| CN220493775U (en) | Gas detonation type shock wave gun | |
| CN205783085U (en) | Duct heat radiation coal-fired gasification furnace | |
| RU14613U1 (en) | DEVICE FOR PRODUCING ELECTRICITY FROM HEAT OF THE AIR OF THE ENVIRONMENT | |
| KR102675190B1 (en) | Wind Blow Type Ground-based Generator for Weather Modification | |
| AU2017101410A4 (en) | Recuperation of waste heat to co-generate electricity in solar-wind farms | |
| CN205152046U (en) | Rock wool processing is with high temperature melting system |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
