Abstract
本发明提供了一种壁挂式空调室内机，其包括：罩壳，其顶部形成有进风口；驱动机构，设置在罩壳上；净化组件，连接于驱动机构，并配置成由驱动机构驱动在进风口的上部间隔预定距离的位置至覆盖进风口的位置之间升降，并且净化组件在下降至覆盖进风口的位置时，完全遮蔽进风口，以对进入室内机的气流进行净化。利用本方案实现了空调室内机的功能扩展和空调室内机工作环境的空气质量的提升。
The invention provides a wall-mounted air conditioner indoor unit, which comprises: a cover, the top of which is formed with an air inlet; a driving mechanism is arranged on the cover; a purification component is connected to the driving mechanism and configured to be driven by the driving mechanism in The upper part of the air inlet rises and falls between the position at a predetermined distance and the position covering the air inlet, and when the purification assembly descends to the position covering the air inlet, the air inlet is completely covered to purify the airflow entering the indoor unit. The function expansion of the indoor unit of the air conditioner and the improvement of the air quality of the working environment of the indoor unit of the air conditioner are realized by this solution.
Description
Technical Field
The invention relates to the technical field of household appliances, in particular to a wall-mounted air conditioner indoor unit.
Background
Air conditioners (Air conditioners for short) are electrical appliances for supplying treated Air directly to an enclosed space or area, and in the prior art, Air conditioners are generally used to condition the temperature of a work environment. Along with the higher and higher requirement of people on the environmental comfort level, the function of the air conditioner is also richer and richer.
Due to the increasing demand for air cleanliness, some solutions for providing a purifying device in an air conditioner to purify a portion of air entering the air conditioner have appeared, however, these air conditioners with purifying function have the following problems: because only part of air can be purified, the purification effect is poor; in addition, since the purification apparatus operates for a long time, even if the air is in a very clean condition, it remains in operation, so that the service life of the purification apparatus is reduced and secondary pollution is also easily caused.
Disclosure of Invention
In view of the above, it is an object of the present invention to provide a wall-mounted air conditioning indoor unit that overcomes or at least partially solves the above problems.
A further object of the present invention is to expand the functionality of the indoor unit of an air conditioner and to improve the air quality of the working environment of the indoor unit of an air conditioner.
The invention provides a wall-mounted air conditioner indoor unit, which comprises: the top of the housing is provided with an air inlet; the driving mechanism is arranged on the housing; and the purification assembly is connected with the driving mechanism and is configured to be driven by the driving mechanism to lift between a position which is spaced by a preset distance at the upper part of the air inlet and a position which covers the air inlet, and completely shields the air inlet when the purification assembly is lifted to the position which covers the air inlet so as to purify the air flow entering the indoor unit.
Optionally, the number of the driving mechanisms is two, and the two driving mechanisms are oppositely arranged at the transverse side end of the housing.
Optionally, the drive mechanism comprises: the guide rail assembly is arranged at the transverse side end of the housing and extends up and down; the motors are arranged on the corresponding guide rail assemblies or arranged at the transverse side ends of the housing; gears connected to output shafts of the respective motors to be rotated by the motors; the rack is meshed with the corresponding gear so as to slide up and down along the guide rail assembly under the rotation of the gear; and the purification component is connected with the rack and slides up and down along the guide rail component along with the rack.
Optionally, the rail assembly comprises: the base is arranged at the transverse side end of the housing; the side cover is arranged on one surface, far away from the transverse side end of the housing, of the base, and one surface, close to the base, of the side cover is provided with a first guide groove which is matched with the rack and extends up and down and is used for placing the rack and a first placing groove used for placing the gear; an output shaft of the motor penetrates through the base to be connected with the gear so as to drive the rack to slide along the extending direction of the first guide groove; one side of the first guide groove close to the purification assembly is provided with a guide rail extending up and down, and the purification assembly slides up and down along the guide rail along with the movement of the rack.
Optionally, the guide rail is formed with a hollow out region extending up and down to expose the rack, which facilitates connection of the rack with the purification assembly.
Optionally, a second guide groove adapted to the first guide groove and a second placing groove adapted to the first placing groove are formed at a side of the base adjacent to the side cover, so that a passage through which the rack moves up and down is formed by the second guide groove and the first guide groove, and a space for accommodating the gear is formed by the first placing groove and the second placing groove.
Optionally, the purification assembly comprises: the two sides of the bracket are respectively connected with the corresponding racks; and the purification plate is arranged on the bracket.
Optionally, the stent comprises: the supporting frame is used for bearing the purifying plate; the connecting parts are arranged on one surface of the supporting frame corresponding to the corresponding rack; and the two joint parts are in one-to-one correspondence with the two connecting parts, and the joint parts are arranged on one surface, close to the corresponding racks, of the connecting parts corresponding to the joint parts so as to be connected with the corresponding racks.
Optionally, the shape of the support frame is adapted to the outer shape of the purification plate to mount the purification plate in the support frame.
Optionally, a mounting groove is formed on a face of the engagement portion away from the corresponding rack, and the shape of the mounting groove is adapted to the outer shape of the connection portion to mount the connection portion in the mounting groove.
The wall-mounted air conditioner indoor unit is provided with the purification component connected with the driving mechanism, and the purification component is driven by the driving mechanism to move to the air inlet so as to completely shield the air inlet, so that air flow entering the indoor unit is purified, and the air quality of an indoor environment is improved; in addition, when the ambient air quality is good and the air purification component is not needed to be used for purifying air, the purification component can be driven by the driving mechanism to be ejected upwards from the position covering the air inlet to expose the air inlet, so that the expansion of the functions of the indoor unit of the air conditioner and the flexibility of use are realized.
Furthermore, the wall-mounted air conditioner indoor unit adopts the driving mechanism comprising the guide rail assembly, the motor, the gear and the rack, and the guide rail assembly is used for providing a sliding track for the purification assembly to move up and down along with the rack, so that the movement stability of the purification assembly is improved. And the driving mechanism has exquisite overall structure design and compact structure, is conveniently arranged in the indoor unit with narrow space, and provides stable power and a moving track for the lifting of the purification assembly between the position at which the upper part of the air inlet is spaced by a preset distance and the position covering the air inlet.
The above and other objects, advantages and features of the present invention will become more apparent to those skilled in the art from the following detailed description of specific embodiments thereof, taken in conjunction with the accompanying drawings.
Drawings
Some specific embodiments of the invention will be described in detail hereinafter, by way of illustration and not limitation, with reference to the accompanying drawings. The same reference numbers in the drawings identify the same or similar elements or components. Those skilled in the art will appreciate that the drawings are not necessarily drawn to scale. In the drawings:

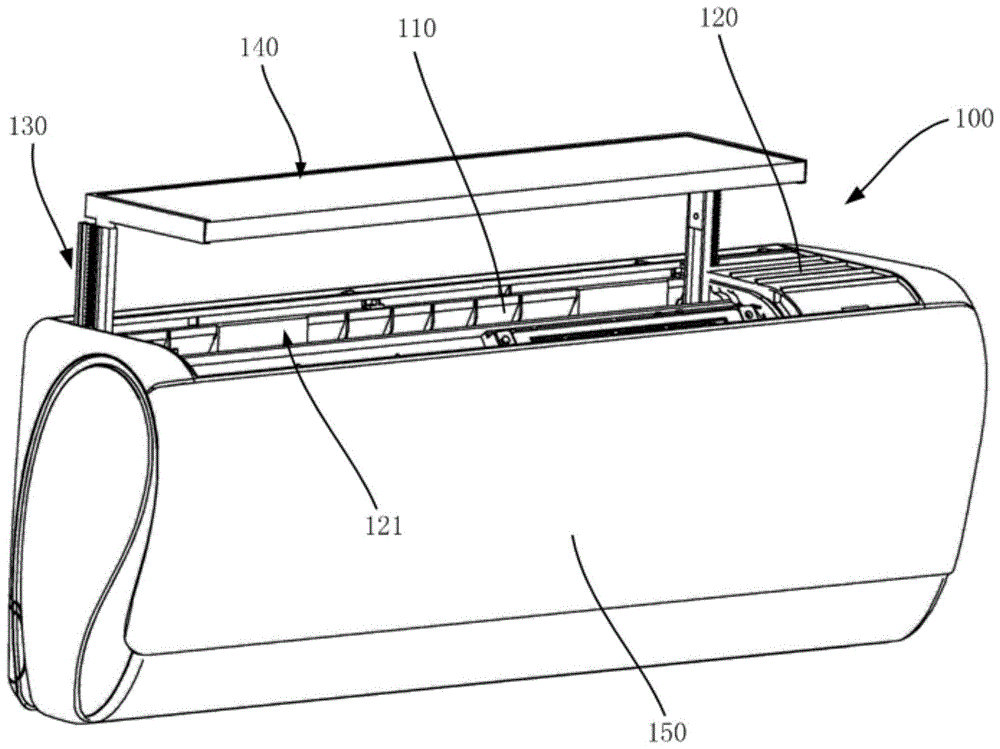

fig. 1 is a schematic view illustrating a purification assembly of a wall-mounted air conditioning indoor unit according to an embodiment of the present invention, which is raised to a position spaced apart from an upper portion of an inlet by a predetermined distance;
fig. 2 is a schematic view illustrating a purification assembly of a wall-mounted air conditioning indoor unit lowered to a position covering an air inlet according to an embodiment of the present invention;
fig. 3 is a schematic view of a cleaning assembly and a driving mechanism in a wall-mounted air conditioning indoor unit according to an embodiment of the present invention;
fig. 4 is a partial structural view of a purification unit in a wall-mounted air conditioning indoor unit according to an embodiment of the present invention;
fig. 5 is an exploded view of a driving mechanism in a wall-mounted air conditioning indoor unit according to an embodiment of the present invention.
Detailed Description
In this embodiment, a wall-mounted indoor unit 100 of an air conditioner is first provided, fig. 1 is a schematic diagram illustrating a purification assembly 140 of the wall-mounted indoor unit 100 of an air conditioner according to an embodiment of the present invention being raised to a position spaced apart from an upper portion of an air inlet 121 by a predetermined distance, and fig. 2 is a schematic diagram illustrating the purification assembly 140 of the wall-mounted indoor unit 100 of an air conditioner according to an embodiment of the present invention being lowered to a position covering the air inlet 121.
The wall-mounted air conditioning indoor unit 100 may generally include a body frame 110, a cover 120, a driving mechanism 130, a cleaning assembly 140, and the like. An indoor heat exchanger and a fan are arranged on the machine body framework 110, the housing 120 covers the machine body framework 110 to seal the indoor heat exchanger and the fan, a front panel 150 is arranged at the front part of the housing 120, the front panel 150 is detachably mounted on the housing 120, and an air inlet 121 is formed at the top of the housing 120.
The housing 120 is provided with a driving mechanism 130, the purifying module 140 is connected to the driving mechanism 130, the purifying module 140 can be driven by the driving mechanism 130 to move up and down between a position spaced by a predetermined distance from the upper portion of the air inlet 121 and a position covering the air inlet 121, and when the purifying module 140 moves down to the position covering the air inlet 121, the air inlet 121 is completely shielded by the purifying module 140, so as to purify the air flow entering the indoor unit 100.
When the air quality is medium or poor, the purification assembly 140 may be driven by the driving mechanism 130 to descend from a position where the upper portion of the air inlet 121 is spaced from the air inlet 121 by a predetermined distance to a position where the air inlet 121 is covered, the whole surface of the purification assembly 140 completely covers the air inlet 121, and the airflow entering the indoor unit 100 needs to be fully purified by the purification assembly 140 and then enters the indoor unit 100, so as to improve the air quality of the indoor environment.
When the air quality is good or excellent, the purification component 140 can be driven by the driving mechanism 130 to be ejected upwards to the upper part of the air inlet 121 from the position covering the air inlet 121, so as to expose the air inlet 121, thereby reducing the wind resistance of the purification component 140 and enabling the air conditioner to be more energy-saving and environment-friendly.
In some alternative embodiments, there may be two driving mechanisms 130, and the two driving mechanisms 130 are oppositely disposed at two lateral ends of the housing 120 in the transverse direction, which is the length direction of the housing 120.
The cleaning assembly 140 is located between the two driving mechanisms 130 and is connected to the two driving mechanisms 130, respectively, and the two driving mechanisms 130 operate synchronously. Thereby facilitating the lifting and lowering of the purification assembly 140 between the position spaced apart from the upper portion of the intake vent 121 by a predetermined distance and the position covering the intake vent 121, and making the movement of the purification assembly 140 more stable.
Fig. 3 is a schematic view of the purge unit 140 and the driving mechanism 130 of the wall-mounted air conditioning indoor unit 100 according to an embodiment of the present invention, fig. 4 is a partial structural view of the purge unit 140 of the wall-mounted air conditioning indoor unit 100 according to an embodiment of the present invention, and fig. 5 is an exploded view of the driving mechanism 130 of the wall-mounted air conditioning indoor unit 100 according to an embodiment of the present invention.
The driving mechanism 130 may include a rail assembly provided at a lateral side end of the housing 120 in an up-and-down extending arrangement, a motor 131 provided at the corresponding rail assembly, or may be provided at a lateral side end of the housing 120, a gear 132 connected to an output shaft of the corresponding motor 131, a rack 133 engaged with the corresponding gear 132, and a purge assembly 140 connected to the rack 133. The motor 131 drives the purification assembly 140 to slide up and down along the guide rail assembly through the gear 132 and the rack 133, the purification assembly 140 moves up and down along the guide rail assembly between a position spaced by a predetermined distance at the upper part of the air inlet 121 and a position covering the air inlet 121, and when the purification assembly 140 slides down along the guide rail assembly to the position covering the air inlet 121, the air inlet 121 is completely shielded, and the air flow entering the indoor unit 100 needs to be fully purified by the purification assembly 140 and then enters the indoor unit 100, so that the air quality of the indoor environment can be improved.
Specifically, the rail assembly may include a base 134 and a side cover 135, the base 134 is disposed at a lateral side end of the housing case 120, for example, the base 134 may be fixed to the lateral side end of the housing case 120 by a screw, the side cover 135 may be fastened to a surface of the base 134 away from the lateral side end of the housing case 120, and a surface of the side cover 135 close to the base 134 has a first guide groove 135-1 extending up and down to be engaged with the rack 133 and a first placement groove 135-2 for placing the gear 132.
A second guide groove 134-1 adapted to the first guide groove 135-1 and a second guide groove 134-2 adapted to the first guide groove 135-2 are formed at a side of the base 134 adjacent to the side cover 135, where the adaptation may mean that when the side cover 135 is fastened to the base 134, a notch of the first guide groove 135-1 is just abutted against a notch of the second guide groove 134-1 to be coupled together or one of the first guide groove 135-1 and the second guide groove 134-1 may receive the other guide groove, a notch of the first guide groove 135-2 is just abutted against a notch of the second guide groove 134-2 to be coupled together or one of the first guide groove 135-2 and the second guide groove 134-2 may receive the other guide groove, so that a passage through which the rack 133 moves up and down may be formed by the second guide groove 134-1 and the first guide groove 135-1, and a space for accommodating the gear 132 is formed by the first and second placing grooves 135-2 and 134-2. Therefore, the reasonable arrangement of the gear 132 and the rack 133 is realized, and the disassembly and the assembly of the guide rail assembly and the maintenance of the gear 132 and the rack 133 are facilitated.
An output shaft of the motor 131 passes through the base 134 and is connected with the gear 132 to drive the rack 133 to move up and down along the extending direction of the first guide groove 135-1, a guide rail 135-3 which is consistent with the extending direction of the first guide groove 135-1 is formed at one side of the first guide groove 135-1 close to the purifying assembly 140, and the purifying assembly 140 slides up and down along the extending direction of the guide rail 135-3 along with the movement of the rack 133.
To facilitate the fastening of the side cover 135 and the base 134, a fastener (not shown) may be disposed on the base 134, and a fastening slot (not shown) may be disposed on the side cover 135 and engaged with the fastener to fasten the side cover 135 to the base 134. Thereby facilitating the disassembly and assembly of the rail assembly, as well as the disassembly and assembly and maintenance of the gear 132, rack 133, and motor 131.
The motor 131 may be installed on the base 134, and in order to facilitate installation of the motor 131, an avoiding hole for passing through an output shaft of the motor 131 is formed on the base 134, and the output shaft of the motor 131 passes through the avoiding hole to be connected with the gear 132. One side of the base 134 close to the motor 131 is provided with a motor mounting stud 134-3, and the motor mounting stud 134-3 is located at the side of the avoiding hole, for example, two motor mounting studs 134-3 are oppositely arranged at two sides of the avoiding hole. The motor 131 is provided with a lug 131-1 having a mounting hole, and the motor 131 is mounted to the base 134 by a threaded fastener that passes through the mounting hole and mates with the motor mounting stud 134-3. Therefore, the motor 131 and the base 134 can be mounted, and the motor 131 can drive the gear 132 to rotate conveniently.
To facilitate the connection of the rack 133 to the purification assembly 140, the lower end of the rack 133 may extend outside the first guide groove 135-1, and the connection of the rack 133 to the purification assembly 140 may be located at the lower end of the rack 133 or near the lower end of the rack 133.
The rack 133 may be provided with a connection post 133-1 on a side thereof adjacent to the purification assembly 140, and the rack 133 is connected to the rack 133 through the connection post 133-1. Thereby enabling connection of the purge assembly 140 to the rack 133.
At least one roller 133-2 may be further provided at a side of the rack 133 adjacent to the base 134, the roller 133-2 being received in the second guide groove 134-1 and slidably coupled to the second guide groove 134-1, the roller 133-2 sliding in the second guide groove 134-1 during the up-and-down movement of the rack 133, thereby guiding the up-and-down movement direction of the rack 133. Therefore, the moving direction of the rack 133 can be stabilized, and the stability of the cleaning component 140 sliding up and down along the guide rail 135-3 along with the rack 133 can be improved.
It should be noted that the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implying any number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature.
A section of hollow area 135-4 extending up and down can be formed on the guide rail 135-3, the part of the rack 133 corresponding to the hollow area is exposed, the connecting column 133-1 penetrates through the hollow area 135-4 to be connected with the purifying component 140, the hollow area 135-4 can extend upwards from the lower end of the guide rail 135-3, in the process that the rack 133 drives the purification assembly 140 to move along the guide rail 135-3, the connection column 133-1 arranged on the rack 133 and connected with the purification assembly 140 moves in the hollow area 135-4, when the rack 133 moves to the top of the hollow area 135-4, the connecting column 133-1 of the rack 133 and the purification assembly 140 is blocked, the rack 133 cannot move upwards continuously, thereby limiting the travel of the rack 133 and the purification assembly 140 and stopping the purification assembly 140 at a position above the intake vent 121 and at a distance from the intake vent 121.
In some optional embodiments, a limit switch may be further disposed on the guide rail 135-3, and the connection post 133-1 of the rack 133 for connecting with the cleaning assembly 140 may be used as a limit piece, when the motor 131 drives the cleaning assembly 140 to move downwards to a position covering the air inlet 121 through the gear 132 and the rack 133, the limit switch contacts the limit piece, and the output shaft of the motor 131 stops rotating, so that excessive noise generated by the rotation of the motor 131 can be avoided, and the wear of the gear 132 and the rack 133 can be reduced.
Alternatively, the guide rail 135-3 may be provided with a limit switch near the upper end thereof and a limit switch near the lower end thereof, and when the motor 131 drives the cleaning assembly 140 to move downward through the gear 132 and the rack 133 to a position covering the air inlet 121, the limit switch near the lower end of the guide rail 135-3 contacts with the limit stopper, and the output shaft of the motor 131 stops rotating. When the motor 131 drives the cleaning assembly 140 to move upward to a position away from the air inlet 121 by the gear 132 and the rack 133, the limit switch near the upper end of the guide rail 135-3 contacts the limit piece, and the output shaft of the motor 131 stops rotating, so that the over-step noise generated when the motor 131 rotates can be avoided, and the abrasion of the gear 132 and the rack 133 can be reduced.
The cleaning assembly 140 can be detachably connected to the driving mechanism 130 to facilitate cleaning and replacement of the cleaning assembly 140.
The purification assembly 140 may include a bracket and a purification plate 141 disposed on the bracket, two sides of the bracket are respectively connected to the corresponding racks 133, the motor 131 drives the bracket and the purification plate 141 on the bracket to move up and down between a position spaced a predetermined distance from the upper portion of the air inlet 121 and a position covering the air inlet 121 through the gear 132 and the racks 133, when the purification assembly 140 descends to the position covering the air inlet 121, the purification plate 141 may completely shield the air inlet 121, and the airflow entering the indoor unit 100 is sufficiently purified by the purification plate 141 and then enters the indoor unit 100.
The shape and size of the purification plate 141 may be determined according to the size and shape of the air inlet 121, for example, the purification plate 141 may be rectangular, and when the purification assembly 140 moves to a position covering the air inlet 121, the whole surface of the purification plate 141 completely covers the air inlet 121, thereby achieving sufficient purification of the air flow entering the indoor unit 100.
The purification plate 141 may include an electrostatic adsorption module, a plasma purification module, an anion generation module, a ceramic activated carbon device, and the like, which are sequentially disposed from the outside to the inside.
The electrostatic absorption module can adsorb electrified PM2.5 particulate matter, PM2.5 particulate matter in the high-efficient filtration environment, plasma purification module can catch the non-plasma of special use, high-efficient bacterium, virus of killing, and decompose into trace H2O, CO2 entering air, anion generation module can release the anion in to the air, form oxygen anion, high-efficient dust removal sterilization, air-purifying, active air molecule simultaneously, improve human lung function, promote metabolism.
The bracket may include a support frame 142, two oppositely disposed connection parts 143, and two engagement parts 144, the purification plate 141 being disposed in the support frame 142, the support frame 142 having a shape adapted to an outer shape of the purification plate 141 to mount the purification plate 141 in the support frame 142. The connection portions 143 are provided on a surface of the support frame 142 corresponding to the respective racks 133, as shown in fig. 4, the connection portions 143 are provided on a lower surface of the end portions of the support frame 142, and the connection portions 143 are provided with engagement portions 144 on a surface adjacent to the respective racks 133, the engagement portions 144 being connected to the respective racks 133.
The connecting column 133-1 penetrates through the hollow area 135-4 to be connected with the joint part 144, one surface, far away from the corresponding rack 133, of the joint part 144 is provided with a mounting groove 144-1, the shape of the mounting groove 144-1 is matched with the shape of the connecting part 143, the connecting part 143 can be mounted in the mounting groove 144-1, a connecting part 144-2 can be arranged in the mounting groove 144-1, the connecting part 143 is provided with a mounting hole 143-1 for mounting the connecting part 144-2, and the connecting part 144-2 is mounted in the mounting hole 143-1, so that the support is convenient to mount and dismount, and meanwhile, the stability of the support is improved. Thereby improving the stability of the purification plate 141 and the bracket sliding up and down along the guide rail 135-3.
The invention also provides a wall-mounted air conditioner, the wall-mounted air conditioner of the embodiment comprises an outdoor unit and the wall-mounted air conditioner indoor unit 100 of any embodiment, and the outdoor unit is communicated with the indoor unit 100.
In the air conditioner of the embodiment, the driving mechanism 130 and the purifying assembly 140 connected to the driving mechanism 130 are arranged in the indoor unit 100, and the purifying assembly 140 is driven by the driving mechanism 130 to move to the air inlet 121 to completely shield the air inlet 121, so that the air flow entering the indoor unit 100 is purified, and the air quality of the indoor environment is improved; in addition, when the quality of the ambient air is good and the air purification assembly 140 is not needed to be used for purifying the air, the purification assembly 140 can be driven by the driving mechanism 130 to be ejected upwards from the position covering the air inlet 121, so that the air inlet 121 is exposed, and the expansion of the functions and the flexibility of the use of the indoor unit 100 of the air conditioner are realized.
The purification assembly 140 is driven by the driving mechanism 130 to ascend and descend between the position of the upper part of the air inlet 121 at a predetermined distance and the position covering the air inlet 121, and when the purification function is not started, the purification assembly 150 is driven by the driving mechanism 130 to eject upwards from the air inlet 121 and is in a non-purification position; after the cleaning function is activated, the cleaning assembly 140 is driven by the driving mechanism 130 to cover the air inlet 121 and is located at a cleaning position to clean the air entering the indoor unit 100.
Because the purification component 140 is in purification position and non-purification position, the windage resistance that indoor set fan produced the air current is obviously different, after opening purification performance, the air current filters, inevitably leads to the heat transfer effect attenuation through the heat exchanger, appears the high load problem easily, can carry out corresponding control according to the operation mode of air conditioner, makes the air conditioner reduce the normal refrigeration or the influence of heating the function to the air conditioner when purifying.
In some alternative embodiments, the air conditioner includes a refrigeration system including a heat exchanger provided in the indoor unit 100 to exchange heat with air entering the indoor unit, a tube temperature sensor, and a controller. The tube temperature sensor is configured to detect a tube temperature of the heat exchanger of the indoor unit 100. The controller is configured to control the driving mechanism 130 to move the purifying assembly 140 to the purifying position after acquiring a trigger signal for the air conditioner to enter the purifying mode, so as to purify the air flow entering the indoor unit 100, and to perform feedback control on the refrigeration system according to the target pipe temperature in the purifying mode set by the pipe temperature of the heat exchanger of the indoor unit 100 when entering the purifying mode.
The refrigerating system also comprises an indoor unit fan, a compressor and a throttling device. The controller can also carry out corresponding control according to the operation mode of the air conditioner, so that the influence on the normal refrigeration or heating function of the air conditioner is reduced when the air conditioner is purified. The controller may be configured to: acquiring a tube temperature sensor to detect the tube temperature of a heat exchanger of the indoor unit in real time, and calculating the difference value between the tube temperature sensor and the target tube temperature; when the difference value is smaller than a preset first temperature difference threshold value, performing feedback control on a fan of the indoor unit according to the difference value; increasing the opening degree of a throttle device of the compression refrigeration cycle when the difference value is greater than or equal to the first temperature difference threshold value and less than the second temperature difference threshold value; and when the difference value is greater than or equal to a second temperature difference threshold value, reducing the frequency of the compressor of the compression refrigeration cycle, wherein the second temperature difference threshold value is greater than the first temperature difference threshold value.
For example, after the purification function is turned on, a target tube temperature of the heat exchanger tube temperature of the indoor unit 100 may be set, the heat exchanger tube temperature of the indoor unit 100 may be detected in real time, and the refrigeration system of the air conditioner may be feedback-controlled according to a temperature difference between the detected tube temperature and the target tube temperature.
The target tube temperature can be set according to the heat exchanger tube temperature of the indoor unit 100 when the indoor unit enters the purification mode, in this embodiment, the default position of the purification assembly 140 is a position where purification is not performed, when purification is started, the air conditioner is stable in a normal refrigeration or heating state, and at the moment, the heat exchanger tube temperature of the indoor unit 100 is the normal state temperature of the air conditioner in the current refrigeration mode or heating mode, so that the target tube temperature is set according to the heat exchanger tube temperature at the moment, and the influence on refrigeration and heating after the air conditioner is started and purified can be ensured to be small.
One specific control method is as follows:
when the air conditioner operates in a cooling mode, if the temperature of the heat exchanger tube after purification is lower than the target tube temperature and does not exceed a first temperature difference threshold (for example, 3 degrees), the fan of the indoor unit 100 can be subjected to feedback control according to the difference, and the lower the temperature of the heat exchanger tube is, the faster the fan rotating speed of the indoor unit 100 is. If the increase of the rotating speed of the fan of the indoor unit 100 cannot ensure that the temperature of the heat exchanger tube is maintained within the first temperature difference threshold value with the target tube temperature, the opening of a throttling device of the compression refrigeration cycle is increased, and if the temperature of the heat exchanger tube cannot be ensured to be maintained within the second temperature difference threshold value with the target tube temperature, the frequency of the compressor is reduced, so that the high load caused by the excessively low temperature of the heat exchanger of the indoor unit 100 is prevented.
When the air conditioner performs heating operation, if the temperature of the heat exchanger tube after purification is higher than the target tube temperature and does not exceed a first temperature difference threshold (for example, 3 degrees), the feedback control can be performed on the fan of the indoor unit 100 according to the difference, and the higher the temperature of the heat exchanger tube is, the faster the fan rotation speed of the indoor unit 100 is. If the increase of the rotating speed of the fan of the indoor unit 100 cannot ensure that the temperature of the heat exchanger tube is maintained within the first temperature difference threshold value from the target tube temperature, the opening of a throttling device of the compression refrigeration cycle is increased, and if the temperature of the heat exchanger tube cannot be ensured within the second temperature difference threshold value from the target tube temperature, the frequency of the compressor is reduced, so that the high load caused by the overhigh temperature of the heat exchanger of the indoor unit 100 is prevented.
The first temperature difference threshold and the second temperature difference threshold may be configured according to the specification and the use requirement of the heat exchanger of the indoor unit 100, for example, the first temperature difference threshold is set to plus or minus 3 degrees celsius, and the second temperature difference threshold is set to plus or minus 5 degrees celsius.
The wall-mounted air conditioning indoor unit 100 of this embodiment is provided with the purifying assembly 140 connected to the driving mechanism 130, and the purifying assembly 140 is driven by the driving mechanism 130 to move to the air inlet 121 to completely shield the air inlet 121, so as to purify the air flow entering the indoor unit 100 and improve the air quality of the indoor environment; in addition, when the quality of the ambient air is good and the air purification assembly 140 is not needed to be used for purifying the air, the purification assembly 140 can be driven by the driving mechanism 130 to be ejected upwards from the position covering the air inlet 121, so that the air inlet 121 is exposed, and the expansion of the functions and the flexibility of the use of the indoor unit 100 of the air conditioner are realized.
Further, in the wall-mounted air conditioning indoor unit 100 of the present embodiment, the driving mechanism 130 including the rail assembly, the motor 131, the gear 132 and the rack 133 is adopted, and the rail assembly is used to provide a sliding track for the purification assembly 140 to move up and down along with the rack 133, so as to improve the stability of the movement of the purification assembly 140. The driving mechanism 130 is compact and exquisite in overall structure design, and can be conveniently arranged in the indoor unit 100 with a narrow space, so as to provide stable power and moving tracks for the lifting of the purification assembly 140 between the position at which the upper part of the air inlet 121 is spaced by a predetermined distance and the position covering the air inlet 121.
Thus, it should be appreciated by those skilled in the art that while a number of exemplary embodiments of the invention have been illustrated and described in detail herein, many other variations or modifications consistent with the principles of the invention may be directly determined or derived from the disclosure of the present invention without departing from the spirit and scope of the invention. Accordingly, the scope of the invention should be understood and interpreted to cover all such other variations or modifications.
Claims (10)
1. A wall-mounted air conditioner includes an indoor unit, a throttle device, a compressor, a pipe temperature sensor, and a controller, wherein the indoor unit includes:
the top of the housing is provided with an air inlet;
a drive mechanism disposed on the housing;
the purification assembly is connected to the driving mechanism and is configured to be driven by the driving mechanism to lift between a position at which a preset distance is arranged at the upper part of the air inlet and a position at which the air inlet is covered, and when the purification assembly is lifted to the position at which the air inlet is covered, the purification assembly completely covers the air inlet so as to purify the air flow entering the indoor unit;
a heat exchanger and a fan;
the tube temperature sensor is configured to detect a tube temperature of the heat exchanger;
the controller is configured to acquire the tube temperature of the heat exchanger detected by the tube temperature sensor in real time after acquiring a trigger signal for the air conditioner to enter the purification mode, calculate a difference value with a target tube temperature, and perform feedback control on the fan according to the difference value when the difference value is smaller than a preset first temperature difference threshold value; when the difference value is greater than or equal to the first temperature difference threshold value and less than a second temperature difference threshold value, increasing the opening degree of the throttling device; and when the difference value is greater than or equal to the second temperature difference threshold value, reducing the frequency of the compressor, wherein the second temperature difference threshold value is greater than the first temperature difference threshold value.
2. The air conditioner according to claim 1, wherein
The number of the driving mechanisms is two, and the two driving mechanisms are oppositely arranged at the transverse side end of the housing.
3. The air conditioner as claimed in claim 2, the driving mechanism comprising:
the guide rail assembly is arranged at the transverse side end of the housing and extends up and down;
the motors are arranged on the corresponding guide rail assemblies or arranged at the transverse side ends of the housing;
gears connected to output shafts of the respective motors to be rotated by the motors;
the rack is meshed with the corresponding gear so as to slide up and down along the guide rail assembly under the rotation of the gear; and is
The purification assembly is connected with the rack and slides up and down along the guide rail assembly along with the rack.
4. The air conditioner of claim 3, the rail assembly comprising:
a base disposed at a lateral side end of the housing;
the side cover is arranged on one surface of the base, which is far away from the lateral side end of the cover shell, and the surface of the side cover, which is close to the base, is provided with a first guide groove which is matched with the rack and extends up and down and is used for placing the rack and a first placing groove which is used for placing the gear; and is
An output shaft of the motor penetrates through the base and is connected with the gear so as to drive the rack to slide along the extending direction of the first guide groove;
one side of the first guide groove, which is close to the purification component, is provided with a guide rail extending up and down, and the purification component slides up and down along the guide rail along with the movement of the rack.
5. The air conditioner according to claim 4,
the guide rail is formed with the fretwork district of extending from top to bottom to show the rack, be convenient for the rack with it is connected to purify the subassembly.
6. The air conditioner according to claim 4,
and a second guide groove matched with the first guide groove and a second placing groove matched with the first placing groove are formed on one side, close to the side cover, of the base, so that a channel for the rack to move up and down is formed by using the second guide groove and the first guide groove, and a space for accommodating the gear is formed by using the first placing groove and the second placing groove.
7. The air conditioner of any one of claims 3 to 6, wherein the purification assembly comprises:
the two sides of the bracket are respectively connected with the corresponding racks;
and the purification plate is arranged on the bracket.
8. The air conditioner of claim 7, wherein the bracket comprises:
the supporting frame is used for bearing the purifying plate;
the two connecting parts are oppositely arranged and are arranged on one surface of the supporting frame corresponding to the corresponding rack;
the two joint parts are in one-to-one correspondence with the two connecting parts, are arranged on one surface, close to the corresponding rack, of the corresponding connecting part and are connected with the corresponding rack.
9. The air conditioner according to claim 8, wherein
The shape of the supporting frame is matched with the appearance of the purifying plate so as to install the purifying plate in the supporting frame.
10. The air conditioner according to claim 8, wherein
And a mounting groove is formed on one surface of the joint part, which is far away from the corresponding rack, and the shape of the mounting groove is matched with the shape of the connecting part so as to mount the connecting part in the mounting groove.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201710393075.4A CN107166523B (en) | 2017-05-27 | 2017-05-27 | Wall-mounted air conditioner indoor unit |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201710393075.4A CN107166523B (en) | 2017-05-27 | 2017-05-27 | Wall-mounted air conditioner indoor unit |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN107166523A CN107166523A (en) | 2017-09-15 |
| CN107166523B true CN107166523B (en) | 2020-03-31 |
Family
ID=59821894
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201710393075.4A Active CN107166523B (en) | 2017-05-27 | 2017-05-27 | Wall-mounted air conditioner indoor unit |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN107166523B (en) |
Families Citing this family (4)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN108644930B (en) * | 2018-03-30 | 2021-04-13 | 厦门呼博仕环境工程产业股份有限公司 | Air purifier |
| CN112747379B (en) * | 2019-10-31 | 2025-05-30 | 广东美的制冷设备有限公司 | Air conditioner indoor unit and air conditioner |
| CN110671751A (en) * | 2019-11-06 | 2020-01-10 | 广东美的制冷设备有限公司 | Wall Mounted Air Conditioning Indoor Units and Air Conditioners |
| CN113432191B (en) * | 2021-07-16 | 2025-03-28 | 海信（广东）空调有限公司 | Air conditioner indoor unit |
Citations (8)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN102607155A (en) * | 2012-03-19 | 2012-07-25 | 海尔集团公司 | Air conditioner filter screen bracket and air conditioner |
| CN102654295A (en) * | 2012-05-15 | 2012-09-05 | 海尔集团公司 | Wall-mounted air conditioner indoor unit adopting air purification device |
| CN102679452A (en) * | 2012-05-17 | 2012-09-19 | 海尔集团公司 | Wall-mounted air conditioner indoor machine adopting air purification device |
| CN103759335A (en) * | 2014-01-20 | 2014-04-30 | 广东美的暖通设备有限公司 | Air purifying assembly, air conditioner and control method of air conditioner |
| CN203928153U (en) * | 2014-06-16 | 2014-11-05 | 美的集团股份有限公司 | Air conditioner room unit and air-conditioner |
| CN104566920A (en) * | 2014-12-31 | 2015-04-29 | 广东欧科空调制冷有限公司 | Mounting bracket of filter, manufacturing method and using method thereof |
| CN204730340U (en) * | 2015-07-07 | 2015-10-28 | 珠海格力电器股份有限公司 | Air conditioner |
| CN106461240A (en) * | 2014-06-10 | 2017-02-22 | 惠而浦公司 | Air conditioners that use selective filtration to purify the air |
Family Cites Families (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP5686290B2 (en) * | 2011-01-19 | 2015-03-18 | 株式会社富士通ゼネラル | Air conditioner |
-
2017
- 2017-05-27 CN CN201710393075.4A patent/CN107166523B/en active Active
Patent Citations (8)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN102607155A (en) * | 2012-03-19 | 2012-07-25 | 海尔集团公司 | Air conditioner filter screen bracket and air conditioner |
| CN102654295A (en) * | 2012-05-15 | 2012-09-05 | 海尔集团公司 | Wall-mounted air conditioner indoor unit adopting air purification device |
| CN102679452A (en) * | 2012-05-17 | 2012-09-19 | 海尔集团公司 | Wall-mounted air conditioner indoor machine adopting air purification device |
| CN103759335A (en) * | 2014-01-20 | 2014-04-30 | 广东美的暖通设备有限公司 | Air purifying assembly, air conditioner and control method of air conditioner |
| CN106461240A (en) * | 2014-06-10 | 2017-02-22 | 惠而浦公司 | Air conditioners that use selective filtration to purify the air |
| CN203928153U (en) * | 2014-06-16 | 2014-11-05 | 美的集团股份有限公司 | Air conditioner room unit and air-conditioner |
| CN104566920A (en) * | 2014-12-31 | 2015-04-29 | 广东欧科空调制冷有限公司 | Mounting bracket of filter, manufacturing method and using method thereof |
| CN204730340U (en) * | 2015-07-07 | 2015-10-28 | 珠海格力电器股份有限公司 | Air conditioner |
Also Published As
| Publication number | Publication date |
|---|---|
| CN107166523A (en) | 2017-09-15 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN107327912B (en) | Air conditioner indoor unit with air purification function and control method thereof | |
| CN107166523B (en) | Wall-mounted air conditioner indoor unit | |
| CN107202396B (en) | Dual cycle formula new trend system and new fan | |
| CN205372780U (en) | Air conditioner with air purification device | |
| CN107192019B (en) | Indoor unit of air conditioner | |
| CN107388352B (en) | Air conditioner indoor unit with air purification function and control method thereof | |
| WO2018218982A1 (en) | Wall-mounted air conditioner indoor unit | |
| CN107062419B (en) | Wall-mounted air conditioner indoor unit | |
| CN107238130B (en) | Wall-mounted air conditioner indoor unit | |
| CN107166527B (en) | Wall-mounted air conditioner indoor unit | |
| CN107166521B (en) | Indoor unit of air conditioner | |
| CN107131560B (en) | The driving device arranged in the indoor unit of the wall-mounted air conditioner | |
| CN107514676B (en) | Wall-mounted air conditioner indoor unit | |
| CN107166525B (en) | Wall-mounted air conditioner indoor unit | |
| CN107178889B (en) | Indoor unit of air conditioner | |
| CN206989325U (en) | It is arranged in the drive device of wall-hanging air conditioner indoor unit | |
| CN107289523B (en) | Indoor unit of air conditioner | |
| CN107514677B (en) | Wall-mounted air conditioner indoor unit | |
| CN107300241A (en) | Air conditioner and its control method with purification function | |
| CN107388357B (en) | Wall-mounted air conditioner indoor unit | |
| CN107560103B (en) | Air conditioner with purification function and control method thereof | |
| CN107143919B (en) | Wall-mounted air conditioner indoor unit | |
| CN215723660U (en) | Indoor machine of air conditioner | |
| CN107152763B (en) | Air conditioner and its control method with purification function | |
| CN204786756U (en) | Cabinet air -conditioner |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant | ||
| TR01 | Transfer of patent right | ||
| TR01 | Transfer of patent right |
Effective date of registration: 20201029 Address after: 266101 Haier Industrial Park, Haier Road, Laoshan District, Shandong, Qingdao, China Patentee after: QINGDAO HAIER AIR CONDITIONER GENERAL Corp.,Ltd. Patentee after: Haier Smart Home Co., Ltd. Address before: 266101 Haier Industrial Park, Haier Road, Laoshan District, Shandong, Qingdao, China Patentee before: QINGDAO HAIER AIR CONDITIONER GENERAL Corp.,Ltd. |
