Abstract
本发明公开了一种多功能拔罐器，包括一端开口向下的罐体，罐体的顶部开设有若干个带内螺纹的开口，所述内螺纹的开口匹配安装有一外螺纹的控制组件；控制组件包括燃烧室、与燃烧室可拆卸连接且位于燃烧室上端的吹风室、与吹风室可拆卸连接且位于吹风室上端的螺旋杆；燃烧室的内底部设置有加热装置，在侧壁的中下部上设置有通孔；吹风室的顶部固定安装设置有电风扇，且电风扇朝向燃烧室；罐体上还安装设置有温度监控系统和烟雾浓度监控系统。本申请具有结构设计巧妙，操作灵活的优点。
The invention discloses a multifunctional cupping device, which comprises a tank body with one end opening downward, a plurality of openings with internal threads are opened on the top of the tank body, and the openings of the internal threads are matched with a control component installed with an external thread; The assembly includes a combustion chamber, a blowing chamber detachably connected to the combustion chamber and located at the upper end of the combustion chamber, and a screw rod detachably connected to the blowing chamber and located at the upper end of the blowing chamber; the inner bottom of the combustion chamber is provided with a heating device, which is located in the middle of the side wall. A through hole is arranged on the lower part; an electric fan is fixedly installed on the top of the blowing chamber, and the electric fan faces the combustion chamber; a temperature monitoring system and a smoke concentration monitoring system are also installed on the tank body. The present application has the advantages of ingenious structural design and flexible operation.
Description
Technical Field
The invention belongs to the technical field of medical instruments, and particularly relates to a multifunctional cupping device.
Background
Cupping (commonly known as cupping) is a therapy which takes a cup as a tool and generates negative pressure by burning fire, pumping air and the like to make the cup adsorbed on the body surface to cause local blood stasis so as to achieve the effects of clearing and activating the channels and collaterals, promoting qi and blood circulation, relieving swelling and pain, dispelling wind and cold and the like. Cupping therapy has a long history in China, and the book of silk book fifty two diseases in Western Han dynasty records the 'angle method', which is similar to the coming cupping therapy. The ancient Greece and the ancient Roman times abroad have also been popular cupping therapy. The therapeutic mechanism of the cupping is relatively complex, the cupping utilizes the negative pressure to act on the skin for a period of time, so that local pores are gradually expanded, nerves, muscles, blood vessels and subcutaneous glands are simultaneously pulled, a series of neuroendocrine reactions can be caused, the blood vessel relaxing and contracting functions and the permeability of the blood vessels are adjusted, and the local blood circulation is improved, thereby achieving the effect of treating the affected part. In addition, the negative pressure of cupping can cause local rapid hyperemia, extravasated blood, even rupture of small capillary vessels, damage of red blood cells and hemolysis. The release of hemoglobin in erythrocytes is a benign stimulation to the body, which can regulate the functions of tissues and organs in two ways through a nervous system, promote the phagocytosis of leukocytes, and improve the sensitivity and tolerance of skin to external changes, thereby enhancing the immunity of the body. Secondly, the strong suction and extraction force of the negative pressure can fully open sweat pores, the functions of sweat glands and sebaceous glands are stimulated to be enhanced, and aged cells on the surface layer of the skin fall off, so that toxins and wastes in the body are discharged at high speed. However, cupping also has major drawbacks: the temperature of the cupping needs a skilled technique for controlling the temperature, otherwise, the skin is burnt by overheating, and the purpose of cupping cannot be achieved if the temperature is insufficient; at present, a medicinal cupping is designed for achieving a certain treatment purpose, and a general operation method is that a bamboo pot is put into a medicinal liquid added with traditional Chinese medicinal materials to be boiled, a pot opening is clamped downwards by tweezers, a cold towel is used for tightly holding the pot opening, and the pot opening is immediately buckled on a part to be pulled out, so that the medicinal cupping can be adsorbed on the skin, and the medicinal cupping has the following defects: the operation is complex, the drawing and sucking force is not enough, the scald is easy, the adding dosage is not enough, the composing prescription is not flexible, etc., and the other one is that the open fire is burnt in the cup body, the cupping is carried out, then the traditional Chinese medicine liquid is smeared, the operation is inconvenient, and the curative effect of the treatment can not be achieved due to the insufficient medicine absorption.
Disclosure of Invention
The invention aims to solve the problems and provides a multifunctional cupping device, negative pressure is generated by adjusting the position of a combustion chamber for heating and burning, smoking is performed by smoke generated by combustion of a traditional Chinese medicine combustion block in the combustion chamber for auxiliary treatment, the number of control components in working states is adjusted according to different requirements of people, and the height and smoking time of the control components are controlled during smoking, so that the cupping effect can be achieved, medicine smoke can be inhaled through pores expanded by skin, the treatment purpose is achieved, technical innovation is performed on the basis of traditional cupping and medicine cupping, and the curative effect of cupping therapy is greatly improved. The design is ingenious, the structure is simple, the operation is easy, and the massage chair can be widely applied to the family health care fields of clinical massage, rehabilitation, physical therapy and the like.
In order to achieve the purpose, the technical scheme adopted by the invention is as follows:

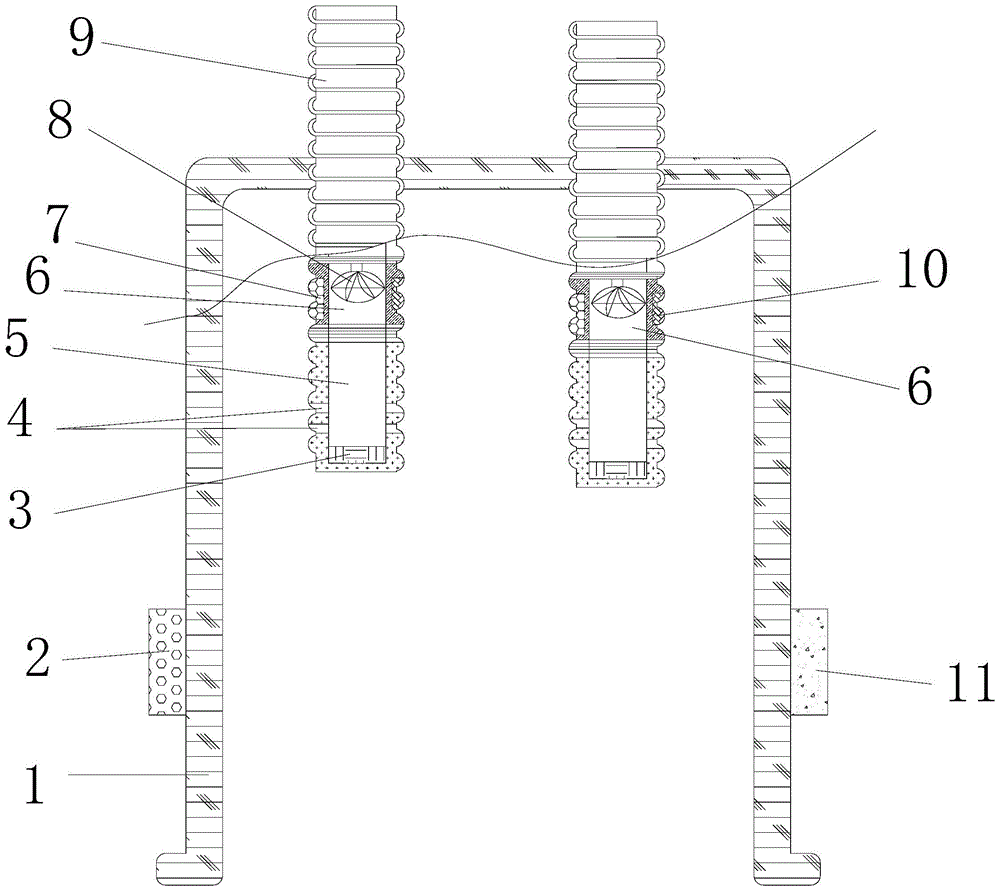

a multifunctional cupping device comprises a cup body with a downward opening at one end, wherein a plurality of openings with internal threads are formed in the top of the cup body, and the openings with the internal threads are matched with a control assembly with an external thread;
the control assembly comprises a combustion chamber, a blowing chamber which is detachably connected with the combustion chamber and is positioned at the upper end of the combustion chamber, and a screw rod which is detachably connected with the blowing chamber and is positioned at the upper end of the blowing chamber;
the inner bottom of the combustion chamber is provided with a heating device, and the middle lower part of the side wall is provided with a through hole;
the top of the air blowing chamber is fixedly provided with an electric fan, the electric fan faces the combustion chamber, and the connecting surface of the air blowing chamber and the combustion chamber is communicated;
the tank body is also provided with a temperature monitoring system and a smoke concentration monitoring system,
the temperature monitoring system comprises a temperature sensor embedded in the side wall of the air blowing chamber, a temperature processor and a temperature display which are arranged on the outer side wall of the tank body; the temperature sensor identifies the temperature in the tank body, processes the temperature through the temperature processor, and then outputs and displays the temperature to the temperature display;
the smoke concentration monitoring system comprises a smoke concentration sensor embedded on the side wall of the air blowing chamber, a smoke concentration processor and a smoke concentration display, wherein the smoke concentration processor and the smoke concentration display are arranged on the outer side wall of the tank body; the smoke concentration sensor identifies the smoke concentration in the tank body, the smoke concentration is processed through the smoke concentration processor, and then the smoke concentration is output and displayed to the smoke concentration display.
The working principle of the invention is as follows: the negative pressure generated by the cup body is regulated and controlled by adjusting the control component to smoke and cup, so that the operation is convenient and quick, the phenomenon that the skin of open fire cup is scalded due to overheating can be avoided, the traditional Chinese medicine burning block is added into the combustion chamber, the heat can be released, a large amount of traditional Chinese medicine smoke can be generated, the smoking treatment is assisted in the cup, the negative pressure generated by the cup body is regulated and controlled by regulating and controlling the position of the combustion chamber in the control component, and the purpose of cupping is achieved; in the control assembly, the upper end of the combustion chamber is also provided with an air blowing chamber, the wind direction of an electric fan in the air blowing chamber blows to the combustion chamber (the combustion chamber is connected with the air blowing chamber, a ventilation hole is arranged on the connection surface of the air blowing chamber and the combustion chamber or the connection surface of the air blowing chamber and the combustion chamber is a ventilation hole), and the wind blows to the combustion chamber from the ventilation hole or the ventilation hole all the time, so that the combustion of a traditional Chinese medicine combustion block in the combustion chamber can be accelerated, the transmission of heat generated by a heating device to the tank body can be accelerated, the time for generating negative pressure is accelerated, and the time; close heating device after reaching required negative pressure, adjust the internal length of control assembly stretch into the jar after that, cup to different crowds' demand to supplementary smoked treatment of carrying on can.
In the invention, the combustion chamber and the blowing chamber are in spiral connection.
In the invention, the through holes are uniformly arranged, and the diameter of each through hole is 0.1-0.5 cm. Compared with the prior art, adopt this technical characteristic, the more even of control temperature transfer that can be further, the jar body is the same with the volume of smog of heat transfer all around, can reach the height that control jar internal temperature and smog concentration are the same.
In the invention, it is further explained that the electric heating device is connected with one end of a lead wire extending to the outside of the tank body, the other end of the lead wire is connected with an electrifying switch, and the electrifying switch is connected with a power supply through the lead wire. Compared with the prior art, the technical characteristics are adopted, the switch of the heating device can be better controlled, and the temperature and the smoke concentration in the tank body can be automatically regulated at any time.
In the present invention, it is further explained that the heating means in the combustion chamber is an electric heating wire.
In the invention, further, the traditional Chinese medicine combustion block is filled in the combustion chamber through the feeding pipe. Compared with the prior art, the technical characteristics are adopted, the traditional Chinese medicine burning block is added from the feeding pipe in a proper amount in time according to the requirements of different crowds.
In the invention, the combustion chamber is made of high-temperature-resistant heat-insulating plates. Compared with the prior art, the technical characteristics are adopted, the service life of the combustion chamber is longer, and the temperature in the tank body can be better regulated and controlled.
In the present invention, it is further explained that the insulation chamber is made of a high temperature resistant insulation board. Compared with the prior art, the technical characteristics can provide better regulation and control of the temperature in the tank body.
In the present invention, it is further explained that the can body is made of a glass material or a wood material.
In the invention, it is further explained that the traditional Chinese medicine burning block is moxa stick or wrinkled gianthyssop herb or rhizoma atractylodis. Compared with the prior art, the technical characteristics are adopted, the traditional Chinese medicine burning blocks with different functions can be provided according to the requirements of different people, the moxa stick can be firstly used for burning to provide smoke in the tank body for the first time during cupping, auxiliary treatment is carried out from expanded pores, then the combustion chamber is closed in the second isolation chamber in a contact and pressing state to restore the original state, after the moxa stick smoke auxiliary treatment is waited, a proper amount of wrinkled giant hyssop is thrown and changed in the combustion chamber to open the ignition switch for burning, then the combustion chamber is enabled to leave the second isolation chamber to enter the tank body by pressing the feeding pipe, and then the auxiliary treatment of wrinkled hyssop smoke is carried out, so as to provide various beneficial traditional Chinese medicine tubers for burning for smoke auxiliary treatment, and during cupping, different traditional Chinese medicine burning blocks can be added for auxiliary treatment, the method and the steps have the advantages of stronger pertinence and more flexibility.
The operation method of the multifunctional cupping device comprises the following specific operation steps:
(1) adding a traditional Chinese medicine combustion block into the combustion chamber, connecting the combustion chamber with the blowing chamber, and installing the screw rod at the upper end of the blowing chamber to form a control assembly;
(2) the control component is provided with external threads, the knob of the combustion chamber is firstly turned into the tank body through the knob control component, the heating device is turned on after the complete knob of the combustion chamber is turned into the tank body, then the electric fan is started, and the air flow in the combustion chamber is increased, and the traditional Chinese medicine combustion block burns for 3-10 minutes at the position;
(3) then continuing to turn a knob towards the bottom of the opening of the tank body until the blowing chamber is completely inserted into the tank body, respectively monitoring and displaying the temperature and the smoke concentration in the tank body through a temperature monitoring system and a smoke concentration monitoring system, and turning off a heating device to heat and burn the Chinese medicine combustion block after the required temperature and smoke concentration are reached aiming at different people, so that the tank body generates negative pressure and is sucked on the surface of skin;
(4) then continue to the opening bottom direction knob of jar body with the control assembly, adjust the hob spiral to different crowds' demand and stretch into jar internal length, stop the rotation control assembly after the combustion chamber reaches the height of smoking, smoke for 10-20 minutes, can.
In summary, due to the adoption of the technical scheme, the invention has the beneficial effects that:
1. the cupping device is ingenious in structural design, achieves negative-pressure cupping through the ingenious integral regulation and control component, performs auxiliary smoking treatment during cupping, achieves double treatment, enables a cupping body to be heated uniformly, enables cupping to be safer, prolongs the service life of the cupping body, saves cost, improves treatment effect, and avoids the problem that time is wasted due to the fact that open fire debugging is required for multiple times when the cupping body is heated non-uniformly; the operation is simple, and the problems of complicated procedures and the like caused by mixing and absorbing the bamboo pot and the boiled traditional Chinese medicine liquid before cupping in the prior art are solved.
2. The operation mode of the device is simple and easy to operate, the temperature and the smoke concentration in the tank body can be monitored through the temperature monitoring system and the smoke concentration monitoring system (the optimized temperature is 50-80 ℃, and the smoke concentration reaches 100 plus one 1000ppm), the temperature and the smoke concentration can be flexibly adjusted to meet the requirements of different people, meanwhile, the temperature and the smoke concentration can be simultaneously controlled by a plurality of control components arranged at the top in the tank body, and the dual optimization arrangement enables the device to be more suitable for the requirements of people in the modern society. Therefore, the device of the application is not only suitable for clinical use, but also suitable for household use, and has great feasibility and popularization.
[ description of the drawings ]
FIG. 1 is a structural half-sectional view of one state of the present invention;
part numbers in the figures:
1 tank body, 2 temperature display, 3 heating device, 4 through holes, 5 combustion chamber, 6 blowing chamber, 7 temperature sensor, 8 electric fan, 9 screw rod, 10 smoke concentration sensor and 11 smoke concentration display.
[ detailed description ] embodiments
The following further describes the embodiments of the present invention with reference to the drawings.
Example 1:
as shown in fig. 1, the multifunctional cupping device comprises a cup body 1 with a downward opening at one end, wherein a plurality of openings with internal threads are formed at the top of the cup body 1, and the openings with the internal threads are matched with a control assembly provided with an external thread;
the control assembly comprises a combustion chamber 5, a blowing chamber 6 which is detachably connected with the combustion chamber 5 and is positioned at the upper end of the combustion chamber 5, and a screw rod 9 which is detachably connected with the blowing chamber 6 and is positioned at the upper end of the blowing chamber 6;
the inner bottom of the combustion chamber 5 is provided with a heating device 3, and the middle lower part of the side wall is provided with a through hole 4;
an electric fan 8 is fixedly arranged at the top of the air blowing chamber 6, and the electric fan 8 faces the combustion chamber 5;
the tank body 1 is also provided with a temperature monitoring system and a smoke concentration monitoring system,
the temperature monitoring system comprises a temperature sensor 7 embedded in the side wall of the air blowing chamber 6, a temperature processor and a temperature display 2 which are arranged on the outer side wall of the tank body 1; the temperature sensor 7 identifies the temperature in the tank body 1, processes the temperature through the temperature processor, and then outputs and displays the temperature to the temperature display 2;
the smoke concentration monitoring system comprises a smoke concentration sensor 10 embedded on the side wall of the air blowing chamber 6, a smoke concentration processor and a smoke concentration display 11 which are arranged on the outer side wall of the tank body 1; the smoke concentration sensor 10 identifies the smoke concentration in the tank body 1, processes the smoke concentration through the smoke concentration processor, and then outputs and displays the smoke concentration on the smoke concentration display 11.
The working principle of the invention is as follows: the negative pressure generated by the cup body 1 is regulated and controlled by the regulation and control assembly to smoke and cup, so that the operation is convenient and quick, the phenomenon that the naked fire cup is often overheated and skin scald can be avoided, the traditional Chinese medicine burning block is added into the combustion chamber 5, not only can heat release but also can generate a large amount of traditional Chinese medicine smoke, the smoking treatment is assisted in the cup, and the negative pressure generated by the cup body 1 is also regulated and controlled by the position of the combustion chamber 5 in the regulation and control assembly to achieve the purpose of cupping; in the control assembly, the upper end of the combustion chamber 5 is also provided with an air blowing chamber 6, the wind direction of an electric fan 8 in the air blowing chamber 6 blows to the combustion chamber 5 (the combustion chamber 5 is connected with the air blowing chamber 6, the connecting surface of the air blowing chamber 6 and the combustion chamber 5 is provided with a vent hole or the connecting surface of the air blowing chamber 6 and the combustion chamber 5 is a vent hole), the wind blows to the combustion chamber 5 from the vent hole or the vent hole all the time, the combustion of the traditional Chinese medicine combustion block in the combustion chamber 5 can be accelerated, the heat generated by the heating device 3 can be accelerated to be transmitted into the tank body 1, the time for generating negative pressure is accelerated, and the time for cupping therapy; close heating device 3 after reaching required negative pressure, adjust the length that the control assembly stretched into jar body 1 after that, cup to different crowds' demand to supplementary smoked treatment of carrying on can.
In the present invention, it is further explained that the combustion chamber 5 is spirally connected with the blowing chamber 6.
In the invention, the through holes 4 are uniformly arranged, and the diameter of each through hole 4 is 0.1-0.5 cm. Compared with the prior art, adopt this technical feature, the more even of control temperature transmission that can be further, the jar body 1 is the same with the volume of smog all around transmission heat, can reach the same height of control jar internal temperature of body 1 and smog concentration.
In the present invention, it is further explained that the electric heating device 3 and the electric fan 8 are both connected to one end of a wire extending to the outside of the tank 1, and the other end of the wire is connected to an energizing switch, and the energizing switch is connected to a power supply through the wire. (the power supply and the conducting wire are not drawn in the figures of the application.) compared with the prior art, the technical characteristics are adopted, the switch of the heating device 3 can be better controlled, and the temperature and the smoke concentration in the tank body 1 can be automatically regulated and controlled at any time.
In the present invention, it is further explained that the heating device 3 in the combustion chamber 5 is an electric heating wire.
In the present invention, the combustion chamber 5 is filled with a Chinese medicine combustion block through a feeding pipe. Compared with the prior art, the technical characteristics are adopted, the traditional Chinese medicine burning block is added from the feeding pipe in a proper amount in time according to the requirements of different crowds.
In the present invention, it is further explained that the combustion chamber 5 is made of a high temperature resistant heat insulation plate. Compared with the prior art, adopt this technical characteristic, 5 service lives of combustion chamber are more of a specified duration, and the temperature height in the better regulation and control jar body 1.
In the present invention, it is further explained that the insulation chamber is made of a high temperature resistant insulation board. Compared with the prior art, adopt this technical feature, can provide the temperature height in the better regulation and control jar body 1.
In the present invention, it is further explained that the can body 1 is made of a glass material or a wood material.
In the invention, it is further explained that the traditional Chinese medicine burning block is moxa stick or wrinkled gianthyssop herb or rhizoma atractylodis. Compared with the prior art, the technical characteristics are adopted, the traditional Chinese medicine burning blocks with different functions can be provided according to the requirements of different people, the moxa stick can be firstly used for burning during cupping to provide smoke in the tank body 1 for the first time, the auxiliary treatment is carried out from expanded pores, then the combustion chamber 5 is closed in the second isolation chamber in a contact and pressing state to restore the original state, after the moxa stick smoke auxiliary treatment is waited, a proper amount of wrinkled giant hyssop is thrown and replaced in the combustion chamber 5 to open the ignition switch for burning, then the combustion chamber 5 leaves the second isolation chamber to enter the tank body 1 by pressing the feeding pipe to carry out the auxiliary treatment of wrinkled hyssop smoke, for example, various beneficial tuber traditional Chinese medicines can be provided for burning for the smoke auxiliary treatment, in the cupping process, different traditional Chinese medicine burning blocks can be added for the auxiliary treatment, the method and the steps have the advantages of stronger pertinence and more flexibility.
The operation method of the multifunctional cupping device comprises the following specific operation steps:
(1) a traditional Chinese medicine combustion block is added into the combustion chamber 5, then the combustion chamber 5 is connected with the blowing chamber 6, and the screw rod 9 is arranged at the upper end of the blowing chamber 6 to form a control assembly;
(2) the control component is provided with external threads, the combustion chamber 5 is turned into the tank body 1 through the knob control component, the heating device 3 is turned on after the combustion chamber 5 is completely turned into the tank body 1, then the electric fan 8 is started, and the air flow in the combustion chamber 5 is increased, and the traditional Chinese medicine combustion block burns for 3-10 minutes at the position;
(3) then continuing to turn a knob towards the bottom of the opening of the tank body 1 by the control assembly until the blowing chamber 6 is completely inserted into the tank body 1, respectively monitoring and displaying the temperature and the smoke concentration in the tank body 1 by a temperature monitoring system and a smoke concentration monitoring system, and turning off the heating device 3 to heat and burn the Chinese medicine combustion block after the required temperature and smoke concentration are reached aiming at different people, so that the tank body 1 generates negative pressure and is sucked on the surface of skin;
(4) then continue to control the subassembly to jar opening bottom direction knob of body 1, adjust the length that the hob 9 spiral stretched into jar body 1 to different crowds' demand, stop the rotation control subassembly after combustion chamber 5 reaches the height of smoking, smoke for 10-20 minutes, can.
Example 2:
basically the same structure and operation as those of embodiment 1 are carried out, except that: 1. the tank body 1 is made of wood.
The above description is for the purpose of illustrating the preferred embodiments of the present invention, but the embodiments are not intended to limit the scope of the present invention, and all equivalent changes or modifications made within the technical spirit of the present invention, such as the shape of the can, the type of the traditional Chinese medicine burning block, the height ratio of the can and the control component, etc., should fall within the scope of the present invention.
Claims (9)
1. A multifunctional cupping device, which comprises a cup body with a downward opening at one end and is characterized in that,
the top of the tank body is provided with a plurality of openings with internal threads, and the openings with the internal threads are matched with a control assembly with external threads;
the control assembly comprises a combustion chamber, a blowing chamber which is detachably connected with the combustion chamber and is positioned at the upper end of the combustion chamber, and a screw rod which is detachably connected with the blowing chamber and is positioned at the upper end of the blowing chamber;
an electric heating device is arranged at the inner bottom of the combustion chamber, and a through hole is formed in the middle-lower part of the side wall;
the top of the air blowing chamber is fixedly provided with an electric fan, the electric fan faces the combustion chamber, and the connecting surface of the air blowing chamber and the combustion chamber is communicated;
the tank body is also provided with a temperature monitoring system and a smoke concentration monitoring system,
the temperature monitoring system comprises a temperature sensor embedded in the side wall of the air blowing chamber, a temperature processor and a temperature display which are arranged on the outer side wall of the tank body; the temperature sensor identifies the temperature in the tank body, processes the temperature through the temperature processor, and then outputs and displays the temperature to the temperature display;
the smoke concentration monitoring system comprises a smoke concentration sensor embedded on the side wall of the air blowing chamber, a smoke concentration processor and a smoke concentration display, wherein the smoke concentration processor and the smoke concentration display are arranged on the outer side wall of the tank body; the smoke concentration sensor identifies the smoke concentration in the tank body, the smoke concentration is processed through the smoke concentration processor and then output and displayed to the smoke concentration display;
the operation method of the multifunctional cupping device comprises the following specific operation steps:
(1) adding a traditional Chinese medicine combustion block into the combustion chamber, connecting the combustion chamber with the blowing chamber, and installing the screw rod at the upper end of the blowing chamber to form a control assembly;
(2) the control component is provided with external threads, the knob of the combustion chamber is firstly turned into the tank body through the knob control component, the electric heating device is turned on after the complete knob of the combustion chamber is turned into the tank body, then the electric fan is started, and the air flow in the combustion chamber is increased, and the traditional Chinese medicine combustion block burns for 3-10 minutes at the position;
(3) then continuing to turn a knob towards the bottom of the opening of the tank body until the blowing chamber is completely inserted into the tank body, respectively monitoring and displaying the temperature and the smoke concentration in the tank body through a temperature monitoring system and a smoke concentration monitoring system, and turning off an electric heating device to heat and burn the Chinese medicine combustion block after the required temperature and smoke concentration are reached aiming at different people, so that the tank body generates negative pressure and is sucked on the surface of skin;
(4) then continue to the opening bottom direction knob of jar body with the control assembly, adjust the hob spiral to different crowds' demand and stretch into jar internal length, stop the rotation control assembly after the combustion chamber reaches the height of smoking, smoke for 10-20 minutes, can.
2. The multifunctional cupping device as recited in claim 1, wherein: the combustion chamber is spirally connected with the blowing chamber.
3. The multifunctional cupping device as recited in claim 1, wherein: the through holes are uniformly arranged, and the diameter of each through hole is 0.1-0.5 cm.
4. The multifunctional cupping device as recited in claim 1, wherein: the electric heating device is connected with one end of a wire extending to the outside of the tank body, the other end of the wire is connected with an electrifying switch, and the electrifying switch is connected with a power supply through the wire.
5. The multifunctional cupping device as claimed in claim 1 or 4, wherein: the electric heating device in the combustion chamber is an electric heating wire.
6. The multifunctional cupping device as recited in claim 1, wherein: the combustion chamber is made of high-temperature-resistant heat-insulating plates.
7. The multifunctional cupping device as recited in claim 1, wherein: the air blowing chamber is made of high-temperature-resistant heat-insulating plates.
8. The multifunctional cupping device as recited in claim 1, wherein: the tank body is made of glass materials or wood.
9. The multifunctional cupping device as recited in claim 1, wherein: the traditional Chinese medicine burning block is added in the burning chamber, and the burning block is moxa stick or wrinkled giant hyssop or rhizoma atractylodis.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201710400451.8A CN107096082B (en) | 2017-05-31 | 2017-05-31 | A multifunctional cupping device |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201710400451.8A CN107096082B (en) | 2017-05-31 | 2017-05-31 | A multifunctional cupping device |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN107096082A CN107096082A (en) | 2017-08-29 |
| CN107096082B true CN107096082B (en) | 2020-05-15 |
Family
ID=59660914
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201710400451.8A Active CN107096082B (en) | 2017-05-31 | 2017-05-31 | A multifunctional cupping device |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN107096082B (en) |
Citations (7)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN101219086A (en) * | 2007-01-12 | 2008-07-16 | 西门子（中国）有限公司 | A moxibustion device and a method for controlling the temperature of moxibustion gas |
| CN203029612U (en) * | 2012-12-19 | 2013-07-03 | 宫绍荣 | Moxibustion apparatus |
| CN204219360U (en) * | 2014-10-30 | 2015-03-25 | 南宁市西真电子科技开发有限公司 | Automatic bird-pecking moxibustion device |
| CN204618837U (en) * | 2015-01-27 | 2015-09-09 | 李点红 | Electronic Chinese medicine bag health preserving equipment |
| CN205459841U (en) * | 2016-02-22 | 2016-08-17 | 宜昌广翔生物科技有限公司 | Moxibustion instrument |
| CN105878008A (en) * | 2016-04-14 | 2016-08-24 | 成都佳美嘉科技有限公司 | Novel physiotherapeutic moxibustion instrument |
| CN106137737A (en) * | 2016-08-02 | 2016-11-23 | 徐世芬 | A kind of intelligence moxibustion instrument and control method thereof |
-
2017
- 2017-05-31 CN CN201710400451.8A patent/CN107096082B/en active Active
Patent Citations (7)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN101219086A (en) * | 2007-01-12 | 2008-07-16 | 西门子（中国）有限公司 | A moxibustion device and a method for controlling the temperature of moxibustion gas |
| CN203029612U (en) * | 2012-12-19 | 2013-07-03 | 宫绍荣 | Moxibustion apparatus |
| CN204219360U (en) * | 2014-10-30 | 2015-03-25 | 南宁市西真电子科技开发有限公司 | Automatic bird-pecking moxibustion device |
| CN204618837U (en) * | 2015-01-27 | 2015-09-09 | 李点红 | Electronic Chinese medicine bag health preserving equipment |
| CN205459841U (en) * | 2016-02-22 | 2016-08-17 | 宜昌广翔生物科技有限公司 | Moxibustion instrument |
| CN105878008A (en) * | 2016-04-14 | 2016-08-24 | 成都佳美嘉科技有限公司 | Novel physiotherapeutic moxibustion instrument |
| CN106137737A (en) * | 2016-08-02 | 2016-11-23 | 徐世芬 | A kind of intelligence moxibustion instrument and control method thereof |
Also Published As
| Publication number | Publication date |
|---|---|
| CN107096082A (en) | 2017-08-29 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN107638279A (en) | A kind of automatic pyromagnetic moxibustion pot and its control method | |
| CN205163617U (en) | Moxibustion box | |
| CN107096082B (en) | A multifunctional cupping device | |
| CN207804687U (en) | A kind of negative pressure medicine cup | |
| CN207755540U (en) | Anti-scald moxibustion tool | |
| CN107029310B (en) | Negative pressure medicinal cupping | |
| CN209301719U (en) | an electrical appliance | |
| CN208355753U (en) | A kind of moxibustion therapeutic equipment with moxibustion and cupping glass function | |
| CN207804688U (en) | A kind of Multifunctional cupping device | |
| CN206334109U (en) | A kind of moxibustion pot and medicine moxibustion equipment | |
| CN206391164U (en) | A kind of sha-syndrome scraping plate | |
| CN204446587U (en) | Far infrared moxibustion instrument | |
| CN215133241U (en) | Warm acupuncture and moxibustion device for Mongolian medicine warm needle | |
| CN209236835U (en) | A kind of Multifunctional moxibustion box | |
| CN108434608A (en) | A kind of graphene far-infrared temperature acupuncture apparatus and its application apparatus | |
| CN108852819A (en) | A kind of moxa-moxibustion cupping device | |
| CN202569011U (en) | Warming moxibustion cupping jar | |
| CN210785400U (en) | A warm acupuncture moxibustion device | |
| CN210096354U (en) | From inhaling type moxibustion instrument | |
| CN209378128U (en) | A kind of multifunctional ceiling cupping glass being adjustable air pressure | |
| CN209108011U (en) | A kind of automatic pyromagnetic moxibustion pot | |
| CN207804689U (en) | A kind of negative-pressure cupping device | |
| CN204352174U (en) | A kind of multifunctional moxibustion chair | |
| CN221636668U (en) | Acupuncture point electrotherapy moxibustion tube | |
| CN207822105U (en) | A kind of smoked stool of ceramics seat |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
