Abstract

The invention discloses an automatic water adding device for a medical leech incubator. , a sealing sphere and a limit tube, the limit tube is arranged at the outer corner of the fan-shaped plate, the sealing ring is sleeved on the sealing sphere, and the sealing flange is arranged on both sides of the sealing ring and is installed with the sealing disc The two sides of the sealing sphere are respectively provided with a water inlet and a water outlet, and the water inlet and the water passage are connected by pipes. Compared with the traditional water adding structure, the present invention has the characteristics of high efficiency, time saving and labor saving, and can be reasonably It can control the amount of water to be added automatically, achieve the purpose of automatic water addition and avoid the massive use of water resources, avoid the waste of resources, and greatly improve the living environment quality of leeches. It has a wide range of market application prospects and is conducive to promotion.

Description

A kind of automatic water adding device for medical leech incubator

technical field

The invention relates to the technical field of breeding, in particular to an automatic watering device for a medical leech incubator.

Background technique

Leeches, commonly known as leeches, have been recorded in "Shen Nong's Materia Medica", and have high medicinal value; they grow and reproduce in inland freshwater waters, and are traditional Chinese special medicinal aquatic animals. Used as medicine, it has the effects of treating stroke, high blood pressure, clearing blood stasis, amenorrhea, and traumatic injuries. In recent years, it has been newly discovered that leech preparations have special effects in the prevention and treatment of cardiovascular and cerebrovascular diseases and cancer. Historically, it was mainly caught by natural fishing. Due to the abuse of pesticides and chemical fertilizers in recent years, and the pollution of the environment by the "three wastes" of industry and agriculture, the wild natural resources have declined sharply. With the in-depth development of the medicinal value of leeches, its market demand potential is huge. , The benefits brought by leech farming are increasing day by day.

The breeding of medical leeches is often carried out in breeding boxes. Due to the need to control the reasonable growth environment of leeches, it is necessary to control the amount of water in the breeding box at all times, and to achieve the purpose of regular replacement. The traditional breeding box is manually taken out of the water pipe. Carry out the replenishment of water quantity, this replenishment mode can not reasonably control water quantity and causes serious waste of resources, and wasted a large amount of manpower and material resources, has influenced the normal growth of leeches.

SUMMARY OF THE INVENTION

The object of the present invention is to provide a kind of automatic water adding device of medical leech incubator, to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the present invention provides the following technical solutions: a medical leech incubator automatic watering device, comprising a support plate, a leech breeding box and a water storage tank, the bottom end surface of the water storage tank is placed on the ground through a triangular bracket, the The lower end of the support plate is placed on the ground by installing a pole, and the leech breeding box is positioned at the upper inner side of the support plate, and the outer upper end of the water storage tank is provided with a water inlet, and the outer lower end of the water storage tank is provided with a water hole, and the outer lower end of the water storage tank is provided with a water hole. Both sides are fixed with a fixed plate, the inner side of the fixed plate is provided with a support rod, the two ends of the support rod are in contact with the inner surface of the fixed plate and connected to each other by the screws set through, the cross section of the support rod is a regular polygon , and an automatic water adding device is set on the support rod, the automatic water adding device includes a transparent bucket, a telescopic air pump, a sealing ring, a sealing flange, a bearing, a fan-shaped plate, a handle, a sealing sphere and a limit tube, and the limit tube is set at At the outer corner of the fan-shaped plate, a through hole is set through the corresponding support rod of the limit tube, and the support rod is inserted in the through hole. The upper surface of the fan-shaped plate is in contact with the upper surface of the fan-shaped plate. The inner bearing seat is installed at the corner of the inner wall. The two sides of the sealing sphere are symmetrically arranged with a sealing disc and an outer bearing seat in sequence. The outer bearing seat is fixed on the sealing ring, and the bearing is far away from the sealing sphere. One end of the bearing is sleeved on the inner bearing seat, and the end of the bearing close to the sealing sphere is inserted into the outer bearing seat, the sealing ring is sleeved on the sealing sphere, and the sealing flange is arranged on both sides of the sealing ring and cooperates with the sealing The disk is installed and fixed, and the two sides of the sealing sphere are respectively provided with a water inlet and a water outlet. groove, the transparent barrel is set at the upper end of the water intake of the sealing ring, and a piston is set in the transparent barrel, a mounting seat is set at the upper end of the transparent barrel, a threaded groove is set in the middle of the upper end of the mounting seat, and a connecting block is set at the lower end of the telescopic air pump, The connecting block is inserted into the threaded groove, the power rod of the telescopic air pump runs through the bottom end of the threaded groove and is fixedly connected with the piston, the two sides of the transparent barrel are connected to the pillars, and the arc-shaped chute is arranged on the fan-shaped plate, and Both ends of the inner side of the arc-shaped chute are provided with a start switch, and a slider is embedded in the arc-shaped chute, and a jack is arranged on the slider, and the corresponding pillar is inserted into the jack, and the bottom of the slider The end is connected to the bottom end of the arc-shaped chute through the return spring, and the upper end and the lower end of the slider are respectively in contact with the start switch, and the start switch is electrically connected to the telescopic air pump.

Preferably, the horizontal height of the water storage tank is greater than that of the support rod, and the height difference between the water storage tank and the support rod is not less than 2m.

Preferably, scales are provided on the outer wall of the transparent barrel, and reinforcing rods connected to the pillars are arranged on the outer wall of the transparent barrel.

Preferably, a safety plate is provided above the mounting base, and the safety plate and the outside of the mounting base are threaded through threaded rods and fixed by nuts.

Preferably, a handle is fixedly provided on the upper end of the safety plate, and an anti-slip groove is provided on the surface of the handle.

Preferably, an elastic sealing layer is provided between the connection block provided at the lower end of the telescopic air pump and the thread groove.

Compared with the prior art, the beneficial effect of the present invention is: compared with the traditional water adding structure, the present invention has the characteristics of high efficiency, time saving and labor saving, can reasonably control the amount of water added, achieves the purpose of automatic water addition and avoids the loss of water resources. A large amount of use avoids the waste of resources, improves the living environment quality of leeches to a large extent, has wide market application prospects, and is beneficial to popularization.

Description of drawings

Fig. 1 is the front view of the present invention;

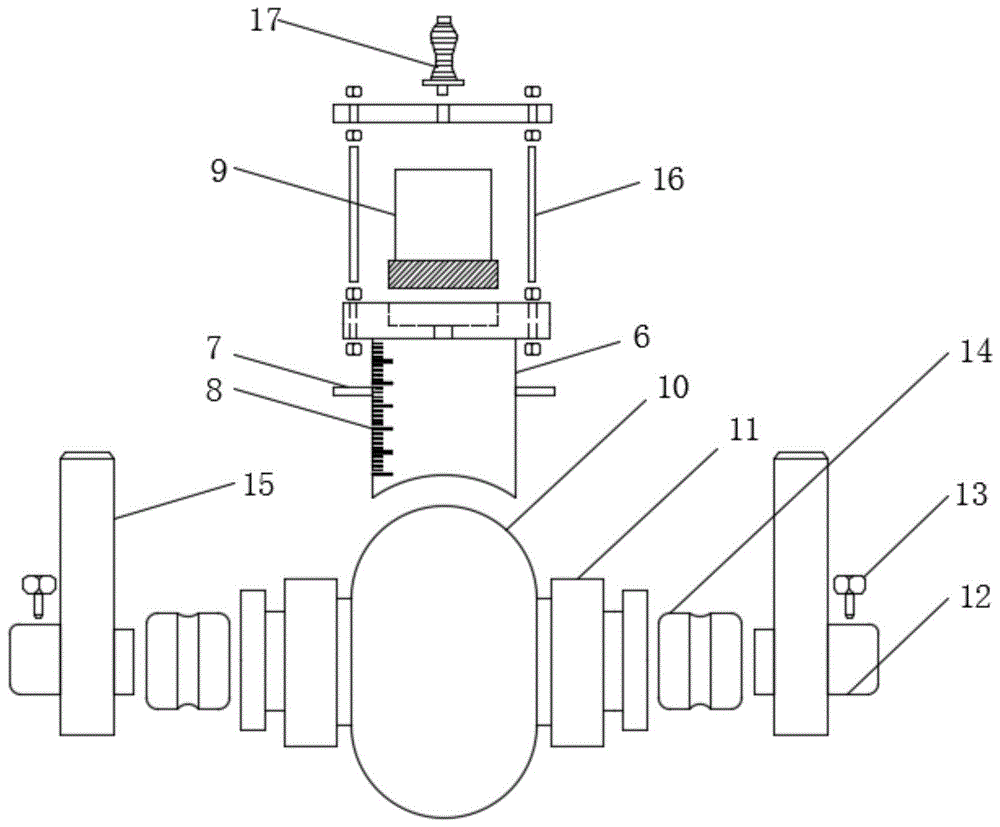

Fig. 2 is a schematic diagram of the transparent barrel, telescopic air pump, sealing ring, bearing, fan-shaped plate, handle and limit explosion structure of the present invention;

Fig. 3 is a cross-sectional view of a sealing ring and a sealing sphere of the present invention;

Fig. 4 is a side view of a sealing ring and a sealing sphere of the present invention;

Fig. 5 is a side view of the sector plate of the present invention.

In the figure: support plate 1, leech breeding box 2, fixed plate 3, support rod 4, water storage tank 5, transparent bucket 6, pillar 7, scale 8, telescopic air pump 9, sealing ring 10, sealing flange 11, limit tube 12. Limit screw 13, bearing 14, fan-shaped plate 15, threaded rod 16, handle 17, sealing ball 18, sealing disc 19, piston 20, water inlet 21, water outlet 22, slider 23, return spring 24, start Switch 25, arc chute 26.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to Fig. 1-5, the present invention provides a kind of technical scheme: a kind of automatic watering device of medical leech incubator, comprises support plate 1, leech breeding box 2 and water storage tank 5, and the bottom end surface of water storage tank 5 is placed on by triangular bracket On the ground, water resources are provided through the water storage tank 5, which avoids the disadvantage of pressurized water supply in the traditional way, and is convenient to use. The lower end of the support plate 1 is placed on the ground through the installation pole, and the support plate 1 corresponds to the fixed plate 3 Cutouts and mounting blocks are set, fixed by corresponding screws to ensure the stable operation of the support rod 4, the leech breeding box 2 is located at the upper end inner side of the support plate 1, and the outer upper end of the water storage tank 5 is provided with a water inlet, and the outer lower end of the water storage tank 5 Water holes are set, and both sides of the support plate 1 are fixed with a fixed plate 3, and the inner side of the fixed plate 3 is provided with a support rod 4. Connected, the horizontal height of the water storage tank 5 is greater than the horizontal height of the support rod 4, and the height difference between the water storage tank 5 and the support rod 4 is not less than 2m.

The cross-section of the support rod 4 is a regular polygon, and an automatic water adding device is set on the support rod 4. The automatic water adding device includes a transparent bucket 6, a telescopic air pump 9, a sealing ring 10, a sealing flange 11, a bearing 14, a sector plate 15, a handle 17, the sealing sphere 18 and the limit tube 12, the limit tube 12 is arranged at the outer corner of the fan-shaped plate 15, and the corresponding support rod 4 of the limit tube 12 penetrates through a through hole, and the support rod 4 is inserted in the through hole, limiting The middle part of the upper end of the position pipe 12 runs through a limit screw 13, the bottom of the limit screw 13 is in contact with the upper surface of the support rod 4, the inner bearing seat is arranged at the corner of the inner side wall of the fan-shaped plate 15, and the two sides of the sealing ball 18 are sequentially symmetrical. The sealing disc 19 and the outer bearing seat, the outer bearing seat is fixed on the sealing ring 10, the end of the bearing 14 away from the sealing ball 18 is sleeved on the inner bearing seat, and the end of the bearing 14 close to the sealing ball 18 is plugged into the outer bearing seat, The sealing ring 10 is sleeved on the sealing ball 18, and under the action of the bearing 14, the reasonable and stable rotation of the sealing ring 10 can be realized, further improving the structural integrity of the overall device.

The sealing flange 11 is arranged on both sides of the sealing ring 10 and fixed with the sealing disc 19. The two sides of the sealing sphere 18 are respectively provided with a water inlet 21 and a water outlet 22. The water inlet 21 is connected to the water hole through a pipe, and the sealing ring 10 Reserve grooves on both sides of the bottom of the water inlet 21 and the water outlet 22, the transparent barrel is set on the upper end of the water intake of the sealing ring, and the piston 20 is set in the transparent barrel 6, and the upper end of the transparent barrel 6 is provided with a mounting seat, and the mounting seat A safety plate is set above the safety plate, and the threaded rod 16 is interspersed with the outside of the mounting seat and fixed by nuts. The upper end of the safety plate is fixed with a handle 17, and the surface of the handle 17 is provided with an anti-skid groove. Using the handle 17 can realize convenient, fast and simple operation.

The middle part of the upper end of the mounting seat is provided with a threaded groove, and the lower end of the telescopic air pump 9 is provided with a connecting block, the connecting block is inserted into the threaded groove, the power rod of the telescopic air pump 9 runs through the bottom end of the threaded groove and is fixedly connected with the piston 20, and the transparent barrel 6 The two sides of the transparent barrel 6 are connected to the pillar 7, the outer wall of the transparent barrel 6 is provided with a scale 8, the outer wall of the transparent barrel 6 is provided with a reinforcing rod connected to the pillar 7, and an elastic sealing layer is arranged between the connection block and the threaded groove arranged at the lower end of the telescopic air pump 9 , through the use of the telescopic air pump 9 in conjunction with the piston 20, automatic water addition and drainage can be realized, avoiding the stagnation and unnecessary storage of water resources, avoiding waste, and realizing saving.

Arc-shaped chute 26 is set on fan-shaped plate 15, and the inboard two ends of arc-shaped chute 26 are all provided with start switch 25, is embedded with slide block 23 in arc-shaped chute 26, and jack is set on slide block 23, corresponding The pillar 7 is plugged in the jack, and the bottom end of the slide block 23 is connected to the bottom end of the arc-shaped chute 26 by the return spring 24, and the upper end and the lower end of the slide block 23 are in contact with the start switch 25 respectively, and the start switch 25 respectively The telescopic air pump 9 is electrically connected, and two start switches 25 are provided. The two start switches are respectively electrically connected to the telescopic air pump 9 and control the operation of the telescopic air pump 9 respectively.

Working principle: carry out reasonable structural installation, when it is necessary to add water, manually pull the handle 17, move the slider 23 down and touch and press the start switch 25 located below, at this moment, the water intake port is connected to the water inlet port 21, and When the air pump works, the piston 20 is moved up to realize water absorption. After the handle 17 is released, under the action of the return spring 24, the slider 23 contacts and presses the start switch 25 located above to realize the drainage work. At this moment, the water flows from the water outlet 22 Flow out and flow in the leech culture box 2, realize adding water operation, can realize the fixing and dismounting of fan-shaped plate 15 by dismantling limit screw 13, realize the change of working position, more convenient to use.

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the invention is defined by the appended claims and their equivalents.

Claims (4)

1. An automatic watering device for a medical leech incubator, comprising a support plate (1), a leech breeding box (2) and a water storage tank (5), the bottom surface of the water storage tank (5) is placed on the ground through a triangular bracket, The lower end of the support plate (1) is placed on the ground through the installation pole, the leech breeding box (2) is located inside the upper end of the support plate (1), and the outer upper end of the water storage tank (5) is provided with a water inlet. The lower end of the outer side of the water tank (5) is provided with a water hole, and it is characterized in that: both sides of the support plate (1) are fixed with a fixed plate (3), and the inner side of the fixed plate (3) is provided with a support rod (4 ), the two ends of the support rod (4) are in contact with the inner surface of the fixed plate (3) and connected to each other through the screws set through. The cross section of the support rod (4) is a regular polygon, and the support rod (4) is An automatic water adding device is provided, and the automatic water adding device includes a transparent bucket (6), a telescopic air pump (9), a sealing ring (10), a sealing flange (11), a bearing (14), a sector plate (15), a handle (17 ), the sealing sphere (18) and the limit tube (12), the limit tube (12) is set at the outer corner of the fan-shaped plate (15), and the limit tube (12) is set through the corresponding support rod (4) The through hole, the support rod (4) is inserted in the through hole, the upper middle part of the limit tube (12) is provided with a limit screw (13), and the bottom end of the limit screw (13) is connected with the support rod (4) The upper surface is in contact, and the inner bearing seat is set at the corner of the inner wall of the fan-shaped plate (15). The two sides of the sealing sphere (18) are symmetrically arranged with a sealing disc (19) and an outer bearing seat in sequence, and the outer bearing seat is fixed on the sealing ring. (10), the end of the bearing (14) away from the sealing ball (18) is sleeved on the inner bearing seat, and the end of the bearing (14) close to the sealing ball (18) is plugged into the outer bearing seat, the sealing The ring (10) is sleeved on the sealing sphere (18), and the sealing flange (11) is arranged on both sides of the sealing ring (10) and fixed with the sealing disc (19). The sealing sphere (18) The water inlet (21) and the water outlet (22) are respectively set on both sides, the water inlet (21) is connected to the water hole through the pipe, and the sealing ring (10) is connected between the water inlet (21) and the water outlet (22). slots are reserved on both sides of the bottom end of ), the transparent barrel (6) is set on the upper end of the water intake of the sealing ring (10), and the piston (20) is set in the transparent barrel (6), and the upper end of the transparent barrel (6) A mounting seat is provided, a threaded groove is provided in the middle of the upper end of the mounting seat, and a connecting block is provided at the lower end of the telescopic air pump (9), the connecting block is inserted into the threaded groove, and the power rod of the telescopic air pump (9) passes through the The bottom end is fixedly connected with the piston (20), the two sides of the transparent barrel (6) are connected with the pillars (7), the fan-shaped plate (15) is provided with an arc-shaped chute (26), and the arc-shaped chute ( Start switches (25) are set at both ends of the inner side of 26), and a slider (23) is embedded in the arc-shaped chute (26), and a jack is set on the slider (23), and the corresponding pillar (7 ) is plugged into the jack, and the slider (2 3) The bottom end of the arc-shaped chute (26) is connected to the bottom end of the arc-shaped chute (26) through the return spring (24), and the start switch (25) is electrically connected to the telescopic air pump (9); A safety plate is arranged on the top of the mounting seat, and the threaded rod (16) is interspersed between the safety plate and the outside of the mounting seat and fixed by nuts; A handle (17) is fixedly arranged on the upper end of the safety plate, and an anti-skid groove is arranged on the surface of the handle (17); Pull the handle (17) manually, move the slider (23) down and touch and press the start switch (25) at the bottom. Move up to achieve water absorption. After releasing the grip (17), under the action of the return spring (24), the slider (23) touches and presses the start switch (25) located above to achieve drainage. The water port (22) flows out and flows into the leech breeding box (2) to realize the water adding operation. 2. An automatic watering device for a medical leech incubator according to claim 1, characterized in that: the horizontal height of the water storage tank (5) is greater than the horizontal height of the support rod (4), and the water storage tank (5) and The height difference of the support rod (4) is not less than 2m. 3. A medical leech incubator automatic watering device according to claim 1, characterized in that: a scale (8) is set on the outer wall of the transparent barrel (6), and the outer wall of the transparent barrel (6) Set the reinforcing rods connected with the struts (7). 4. An automatic water-filling device for a medical leech incubator according to claim 1, characterized in that: an elastic sealing layer is provided between the connecting block provided at the lower end of the telescopic air pump (9) and the thread groove.
