Abstract
The invention relates to an LED light source far-near light integrated car lamp module with an ADB function, which comprises a condenser (1), a far-light LED light source (2), a near-light LED light source (3), an auxiliary reflector (4), a reflector (5) and a lens (6). The middle of the left or right part of the condenser (1) is provided with a block-shaped cavity structure (7), and the number of the high beam LED light sources (2) is at least two. When the LED light source corresponding to the rear end of the block cavity structure on the condenser (1) is in a full-distance light working state, light rays emitted by the LED light source are transmitted through the block cavity structure and then emitted forward to form a part of a high-distance light shape, when the LED light source corresponding to the rear end of the block cavity structure on the condenser (1) is in an ADB working state, the LED light sources are in an extinction state, and when the light rays irradiate on the side face (7-2) of the block cavity structure, the light rays are emitted forward after being totally reflected to form the ADB light shape.
Description
Technical Field
The invention relates to a car lamp, in particular to an LED light source high-low beam integrated car lamp module with an ADB function.
Background
Along with the continuous development of the application of the LED light source on the car lamp, the high beam car lamp module and the low beam car lamp module with various performances are layered, and the LED light source is taken as one development direction, integrates the high beam car lamp module and the low beam car lamp module, has low cost, small volume, simple structure and complete functions, and is very popular in the market.
The automobile safety is increasingly concerned by people, and the automobile lamp module with the ADB function can solve the contradiction between the use of far beam and near beam to a certain extent because the automobile accident caused by improper use of the far beam is not few every year, so that the automobile has good visibility and can prevent dazzling of drivers of other vehicles. ADB (Adaptive Driving Beam) function, that is intelligent control, through the independent control to every LED, just can real-time control illumination zone and illumination brightness, effectively prevent causing dazzling to other vehicles and pedestrian.
The existing car lamp module with ADB function is mainly divided into three types, one type is to shield light by a light shielding plate to form an ADB light shape, and the module in the form needs to be matched with parts such as the light shielding plate, an electromagnetic valve and the like, so that the structure is complex, the size is large, and the cost is high; the other type is to turn off part of LEDs in the high-resolution LED matrix to form an ADB light shape, so that the module in the form needs a large number of LED light sources, has high cost, is limited in volume due to the fact that the module is generally provided with a light shielding plate part, and is still complicated in structure; the third type is a form of a reflecting surface matrix, each reflecting surface corresponds to an LED light source, each reflecting surface corresponds to a part of light shape, and ADB light shapes are formed by superposition and combination of light shapes of different parts.
Therefore, the existing car lamp module with the ADB function has the problems of higher cost, more complex structure, small volume, lower integration degree and insufficient functions.
Disclosure of Invention
In order to overcome the problems, the technical problems to be solved by the invention are as follows: the invention provides an LED light source far and near light integrated car lamp module with an ADB function, and the LED light source far and near light integrated car lamp module with the ADB function has the advantages of less parts and low cost; ADB function has been integrated on the integrative car light module of far and near light for the function of module is more complete, and the degree of integration is higher.
The technical scheme of the LED light source high-low beam integrated car lamp module with the ADB function is as follows:
an LED light source far and near light integrative car light module with ADB function, includes:
a condenser (1) made of transparent material,
a high beam LED light source (2) and a low beam LED light source (3) which are arranged at the rear side of the condenser (1), namely at the near incidence side,
a reflector (5) and a lens (6) respectively arranged at the front upper part of the condenser (1), namely at the front upper part of the emergent light side,
a block-shaped cavity structure (7) with an upper opening is arranged at the left or right part of the condenser (1),
the block-shaped cavity structure is similar to a polygon,
the inner rear end face (7-1) of the block cavity structure and the middle side end face (7-2) of the left or right part are planes, the inner rear end face is near incident light side end face,
the front end face (1-3) of the outer side of the condenser (1) is a plane or an arc face,
the front side end face (7-3) of the inner side of the block-shaped cavity structure, namely, the end face near one side of the lens (6) is a plane or an arc-shaped surface which is the same as the front end face of the outer side of the condenser (1) in shape and is matched with the front end face of the outer side.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the joint of the inner rear side end face (7-1) of the block cavity structure of the condenser (1) and the middle side end face (7-2) of the left or right part is an acute angle so as to form a clear ADB cut-off line.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the number of the high beam LED light sources (2) is 2-5.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the number of the high beam LED light sources (2) is 2-3.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the high beam LED light source (2) is positioned at the rear end of a block-shaped cavity structure (7) with an opening at the upper part and arranged at the left or right part of the condenser (1), and can be independently turned on or off.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the rear end of the condenser (1) is in a lighting state when the high beam LED light source corresponding to a block-shaped cavity structure (7) with an opening at the upper part, which is arranged at the left part or the right part of the condenser (1), is in a full high beam working state, the emitted light is transmitted by the block-shaped cavity structure and then is emitted forward to form a part of the high beam shape,
the high beam LED light source corresponding to the block-shaped cavity structure with the upper opening arranged at the left or right part of the condenser (1) at the rear end of the condenser (1) is in an extinction state when in an ADB working state, other LED light sources are lightened, and light rays are emitted forward after being totally reflected when irradiated on the side surface of the block-shaped cavity structure, so that an ADB light shape is formed.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the condenser (1) is used for a left car lamp, and the block-shaped cavity structure is arranged on the left side of the condenser corresponding to the left car lamp.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the condenser (1) is used for a right car lamp, and the block-shaped cavity structure is arranged on the right side of the condenser corresponding to the right car lamp.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the condenser (1) is used for a left or right car lamp, when the number of the high beam LED light sources (2) is even number of 2 or 4, one side surface of the middle part of the light collector near the inside of the block-shaped cavity structure is at least positioned at the left or right side of the central line of the two high beam LED light sources (2),
therefore, when the block-shaped cavity structure is formed in the right part, light rays emitted from the left high beam LED light source are totally reflected on one side surface of the middle part of the condenser in the right block-shaped cavity structure; or alternatively, the first and second heat exchangers may be,
when the left part is provided with the block-shaped cavity structure, light rays emitted from the right high beam LED light source are totally reflected on one side surface of the middle part of the condenser inside the left part block-shaped cavity structure.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the condenser (1) is used for a left or right car lamp, when the number of the high beam LED light sources (2) is an odd number of 3 or 5, one side surface of the middle part of the block-shaped cavity structure near the condenser is at least positioned at the left or right side of the emergent light axis of the middle high beam LED light source,
therefore, when the block-shaped cavity structure is formed in the right part, the light emitted from the middle high beam LED light source is totally reflected on one side surface of the middle part of the condenser close to the right block-shaped cavity structure; or alternatively, the first and second heat exchangers may be,
when the left part is provided with the block-shaped cavity structure, the emergent light of the middle high beam LED light source is totally reflected on one side surface of the middle part of the near condenser of the left block-shaped cavity structure.
The LED light source high-low beam integrated car lamp module with the ADB function according to the invention 1 is characterized in that,
when the condenser (1) is used for a left or right car lamp, the distance between the front end face (7-3) of the inner part of the left or right block-shaped cavity structure and the front end face (1-3) of the outer side of the condenser is 2-10mm.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the material of the condenser (1) is transparent plastic or silica gel, and preferably, the material of the condenser (1) is PC material.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the block-shaped cavity structure on the condenser (1) is an irregular square-like hole.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the block-shaped cavity structure on the condenser (1) is an irregular rectangular-like hole.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the front end face of the outer side of the condenser (1) is a concave arc face.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the upper part of the condenser (1) is provided with a III region forming structure (1-2).
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the III region forming structure (1-2) comprises a III region widening forming structure (1-2-1) and a 50L dark region forming structure (1-2-3); after being emitted by the low-beam LED light source, the light forming the zone III is reflected by a reflector and enters the zone III to be widened to form a structure (1-2-1).
The 50L dark space forming structures 1-2-3 are arranged in the light propagation direction and are in a convex triangle shape or other shapes, and the brightness of the 50L area in the dipped beam shape is controlled below a certain value by the structures.
The 50L dark space forming structure can prevent the low beam from generating dazzling on the premise of enough illumination so as not to influence the normal driving behavior of the driver of the opposite vehicle.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the end face of the III region is widened to form a structure (1-2-1) and is in a concave arc shape or in a convex arc shape.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the lower edge of one side of the III region widening forming structure (1-2-1) is also provided with a rectangular groove-shaped III region brightness reducing structure (1-2-2), and the structure reduces the local brightness of the III region in the low beam light shape, so that the low beam does not generate dazzling on the premise of enough illumination.
The structure has specific structural characteristics, is about 2.8mm long, about 0.4mm wide and about 0.3mm high, and is used for reducing the local brightness of a III region in the low beam light shape, so that the low beam does not generate dazzling on the premise of enough illumination.
The invention relates to an LED light source high-low beam integrated car lamp module which is characterized in that,
the 50L dark space forming junctions 1-2-3 are in a convex triangle shape or other shape in the light propagation direction, and the structure controls the brightness of the 50L area in the low beam light shape below a certain value.
The 50L dark space forming structure can prevent the low beam from generating dazzling on the premise of enough illumination so as not to influence the normal driving behavior of the driver of the opposite vehicle.
Since the condenser of the present invention is used to illuminate the left or right lamp, the condenser for illuminating the left and right lamps is usually mounted to the lamp at the same time when in use.
The invention has the beneficial effects that:
the light has refraction and total reflection in the transparent material part, the point is fully utilized in the module, a block-shaped cavity structure is formed on the transparent material condenser part, the refraction and total emission of the light in the transmission process of the transparent part are utilized to form an ADB light shape, and a special light shielding plate part is not required to be arranged like other modules to shield the light to form the ADB light shape;
on the basis of the high beam and low beam integrated car lamp module, the structure of the condenser is perfected and optimized, and on the basis of not increasing the volume of the module, the ADB function is integrated, so that the volume is small;
the car lamp module with the ADB function integrated with the far and near LED light sources does not contain parts such as a light shielding plate and an electromagnetic valve, and has the advantage of simple structure;
the number of parts is small, and the cost is low;
ADB function has been integrated on the integrative car light module of far and near light for the function of module is more complete, and the degree of integration is higher.
Drawings
Fig. 1 is a perspective view of an optical part of an integrated lamp module with ADB function for high and low beam LED light sources.
Fig. 2 is an assembly perspective structure diagram of an integrated lamp module with ADB function for high and low beam of an LED light source.
Fig. 3 is a three-dimensional structure diagram of a condenser of the LED light source high-low beam integrated car lamp module with the ADB function for a left lamp.
Fig. 4 is a three-dimensional structure diagram of a condenser of the light source far-near light integrated car lamp module with an ADB function for a right lamp.
Fig. 5 is a schematic diagram of the full distance light in the condenser of the integrated lamp module with ADB function.
Fig. 6 is a schematic diagram of ADB light in a condenser of an integrated high and low beam lamp module with an ADB function.

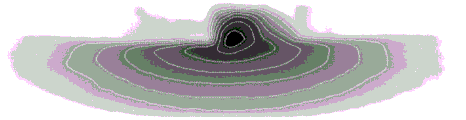

Fig. 7 is a full distance light pattern diagram of an integrated lamp module with an ADB function for high and low beam LED light sources according to the present invention.
Fig. 8 is an ADB light pattern diagram of an LED light source high and low beam integrated lamp module for a left lamp according to the present invention.
Fig. 9 is an ADB light pattern diagram of an LED light source high and low beam integrated lamp module for a right lamp according to the present invention.
Fig. 10 is a schematic view of an ADB light shape of left and right lamps superimposed in an ADB working state of an integrated lamp module with an ADB function.

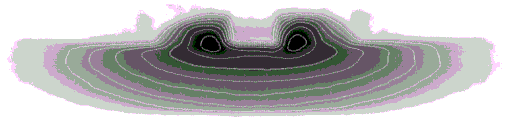

Fig. 11 is a road surface effect diagram of the LED light source high-low beam integrated lamp module with ADB function in the full high beam working state.
Fig. 12 is a road surface effect diagram of the ADB working state of the ADB-functional light source integrated high and low beam lamp module.
Fig. 13 is a schematic diagram of a III-zone forming structure (1-2) used in an ADB-functional LED light source high and low beam integrated lamp module according to the present invention.
In the figure, 1 a condenser, 2 a high beam LED light source, 3 a low beam LED light source, 4 an auxiliary reflector, 5 a reflector, 6 a lens, 7 a groove-shaped or hole-shaped cavity structure which is arranged at the upper part of the left side or the right side of the condenser (1) and is open, 7-1 is the inner rear side end face of the block-shaped cavity structure, 7-2 is the middle side end face of the left side or the right side of the block-shaped cavity structure respectively, 7-3 is the inner rear side end face of the block-shaped cavity structure, namely the near incident light side end face,
the front end face (1-3) of the outer side of the condenser (1) is a plane or an arc face.
2-1, 2-2, 2-3, 1-2.III region forming structure, 1-2-1.III region widening forming structure, 1-2-2.III region brightness reducing structure, 1-2-3.50L dark region forming structure, 1-3 is the front end face of the outer side of the plane or arc surface of the condenser (1) to form a cut-off line forming structure.
Ray1. Light emitted from the high beam light source 1, ray2. Light emitted from the high beam light source 2, ray3. Light emitted from the high beam light source 3.
Detailed Description
The invention will be further described with reference to the drawings and specific examples.
Examples
As shown in fig. 2, the embodiment of the invention provides an integrated high-low beam lamp module with an ADB function for the illumination of high beam and low beam and ADB mode of an automobile, which is arranged in a headlight of the automobile.
As shown in fig. 1, the optical components of the lamp module include a condenser 1 made of a transparent material, three high beam LED light sources 2, 3, and a reflector 5 and a lens 6 respectively disposed above and in front of the condenser 1, which are disposed at the rear side of the condenser 1, i.e., at the near-incident light side. The high beam LED light source at the rear end of the block-shaped cavity structure (7) with the upper part being opened can be independently turned on and off.
The material of the condenser 1 is PC with a refractive index of about 1.586, and the light transmittance of the condenser 1 is about 0.88.
An auxiliary reflector 4 arranged beside the low beam LED light source (3).
A block-shaped cavity structure (7) with an upper opening is arranged at the left or right part of the condenser (1),
the light-collecting device is characterized in that the block cavity structure is of an irregular quadrilateral shape, an inner rear end face (7-1) of the block cavity structure and a middle side end face (7-2) of the left or right part are planes, the inner rear end face is a near-incident light side end face, an outer side front end face (1-3) of the light collector (1) is a plane or an arc face, and an inner side front end face (7-3) of the block cavity structure is a plane or an arc face which is similar in shape and is matched with the outer side front end face of the light collector (1), namely, a side end face of the lens (6).
The joint of the inner rear side end face (7-1) of the block cavity structure of the condenser (1) and the middle side end face (7-2) of the left or right part is an acute angle so as to form a clear ADB cut-off line.
The rear end of the condenser (1) is in a lighting state when the high beam LED light source corresponding to a block-shaped cavity structure (7) with an opening at the upper part, which is arranged at the left part or the right part of the condenser (1), is in a full high beam working state, the emitted light is transmitted by the block-shaped cavity structure and then is emitted forward to form a part of the high beam shape,
the high beam LED light source corresponding to the block-shaped cavity structure with the upper opening arranged at the left or right part of the condenser (1) at the rear end of the condenser (1) is in an extinction state when in an ADB working state, other LED light sources are lightened, and light rays are emitted forward after being totally reflected when irradiated on the side surface of the block-shaped cavity structure, so that an ADB light shape is formed.
As shown in fig. 3,5 and 6, the condenser (1) is used for a left car lamp, and the block-shaped cavity structure is arranged on the left side of the condenser corresponding to the left car lamp. Therefore, when the left part is provided with the block-shaped cavity structure, light rays emitted from the right high beam LED light source are totally reflected on one side surface of the middle part of the condenser inside the left part block-shaped cavity structure.
As shown in fig. 4, the condenser (1) is used for a right car lamp, and the block-shaped cavity structure is arranged on the right side of the condenser corresponding to the right car lamp. Therefore, when the block-shaped cavity structure is formed in the right part, light rays emitted from the left high beam LED light source are totally reflected on one side surface of the middle part of the condenser in the right block-shaped cavity structure.
The invention relates to an LED light source high-low beam integrated car lamp module with ADB function, which is characterized in that,
the condenser (1) is used for a left or right car lamp, when the number of the high beam LED light sources (2) is an odd number of 3 or 5, one side surface of the middle part of the block-shaped cavity structure near the condenser is at least positioned at the left or right side of the emergent light axis of the middle high beam LED light source,
the inner front side end face (7-3) of the left or right block-shaped cavity structure of the condenser (1) is 2-10mm away from the outer front end face (1-3) of the condenser.
The material of the condenser (1) is transparent plastic or silica gel, and preferably, the material of the condenser (1) is PC material.
The front end face of the outer side of the condenser (1) is a concave arc face.
In addition, according to the present embodiment, the upper portion of the condenser (1) is provided with a III-region forming structure (1-2). The III region forming structure (1-2) comprises a III region widening forming structure (1-2-1) and a 50L dark region forming structure (1-2-3); after being emitted by the low-beam LED light source, the light forming the zone III is reflected by a reflector and enters the zone III to be widened to form a structure (1-2-1).
The III on the condenser 1 of the high beam and low beam integrated car lamp module is widened to form a III area brightness reducing structure 1-2-2 with a square groove shape of which the lower edge is provided with 1 square groove shape, and the brightness of a specific area of the III area can be reduced by adjusting the length, the width, the height and the space position of the structure when the structure is used for distributing light, so that the brightness is between 0.1lx and 0.7 lx.
The 50L dark space forming structures 1-2-3 are arranged in the light propagation direction and are in a convex triangle shape or other shapes, and the brightness of the 50L area in the dipped beam shape is controlled below a certain value by the structures.
The end face of the III region is widened to form a structure (1-2-1) and is in a concave arc shape or in a convex arc shape.
In addition, the lower edge of one side of the III region widening forming structure (1-2-1) is also provided with a rectangular groove-shaped III region brightness reducing structure (1-2-2), and the structure reduces the local brightness of the III region in the dipped beam shape, so that the dipped beam does not generate dazzling on the premise of enough illumination.
The structure has specific structural characteristics of about 2.8mm in length, about 0.4mm in width and about 0.3mm in height, and is used for reducing the local brightness of a III region in a low beam light shape.
The invention relates to an LED light source high-low beam integrated car lamp module which is characterized in that,
since the condenser of the present invention is used to illuminate the left or right lamp, the condenser for illuminating the left and right lamps is usually mounted to the lamp at the same time when in use.
As shown in fig. 3, the condenser 1 in the left lamp has a block-shaped cavity structure arranged on the left side of the view angle of the top-view module along the light-emitting direction, wherein the light-emitting direction refers to the direction in which the second high-beam LED light source points to the lens 6,
as shown in fig. 4, the condenser 1 is located in the right lamp, and the block cavity structure is disposed on the right side in the light emitting direction in the view of the top module.
In the full-distance light working state, as shown in fig. 5, the LED light source 2-1 corresponding to the rear end of the block-shaped cavity structure on the condenser 1 is in a lighted state, and the light emitted by the LED light source is transmitted through the block-shaped cavity structure and then emitted forward to form a part of the shape of the full-distance light, and the light emitted by the other two LED light sources 2-2 and 2-3 is combined to form the full-distance light, so that the shape of the full-distance light is shown in fig. 7, the road surface effect is shown in fig. 11, and at the moment, the road surface is totally illuminated, so that the full-distance light has good visibility.
As shown in fig. 6, in the ADB working state, the LED light sources corresponding to the rear ends of the block cavity structures on the condenser 1 are in an off state, and the other two LED light sources are turned on, and light is totally reflected and emitted forward when irradiated onto the side surfaces of the block cavity structures, so as to form an ADB light shape. The ADB light shape of the left lamp is shown in fig. 8, the ADB light shape of the right lamp is shown in fig. 9, the light shape of the left and right lamps after superposition in the ADB working state is shown in fig. 10, the middle groove area is a dark area formed for preventing the front vehicle from dazzling, and the area size of the dark area can be adjusted by left and right rotation of the left and right inner modules of the left and right lamps so as to adapt to adjustment of different illumination ranges. The road surface effect diagram of the ADB is shown in fig. 12, when a vehicle is in a opposite lane, the vehicle has a good lighting effect on the lane, and meanwhile, the driver of the opposite vehicle is prevented from dazzling, so that the driving safety is improved.
Claims (11)
1. An LED light source far and near light integrative car light module with ADB function, includes:
a condenser (1) made of transparent material,
a high beam LED light source (2) and a low beam LED light source (3) which are arranged at the rear side of the condenser (1), namely at the near incidence side,
a reflector (5) arranged at the front upper part of the condenser (1), namely at the front upper part of the emergent light side and a lens (6) arranged at the front side of the condenser (1), which is characterized in that,
a block-shaped cavity structure (7) with an upper opening is arranged at the left or right part of the condenser (1),
the block-shaped cavity structure is similar to a polygon,
the inner rear end face (7-1) of the block cavity structure and the middle side end face (7-2) of the left or right part are planes, the inner rear end face is near incident light side end face,
the front end face (1-3) of the outer side of the condenser (1) is a plane or an arc face,
the front side end face (7-3) of the inner side of the block-shaped cavity structure, namely, the end face near one side of the lens (6) is a plane or an arc face which is the same as the front end face of the outer side of the condenser (1) in shape and is matched with the front end face,
the high beam LED light source (2) positioned at the rear end of a block-shaped cavity structure (7) with an opening at the upper part and arranged at the left or right part of the condenser (1) can be independently turned on and off,
the rear end of the condenser (1) is in a lighting state when the high beam LED light source corresponding to a block-shaped cavity structure (7) with an opening at the upper part, which is arranged at the left part or the right part of the condenser (1), is in a full high beam working state, the emitted light is transmitted by the block-shaped cavity structure and then is emitted forward to form a part of the high beam shape,
the high beam LED light source corresponding to the block-shaped cavity structure with the upper opening arranged at the left or right part of the condenser (1) at the rear end of the condenser (1) is in an extinction state when in an ADB working state, other LED light sources are lightened, and light rays are emitted forward after being totally reflected when irradiated on the side surface of the block-shaped cavity structure, so that an ADB light shape is formed.
2. The LED light source high and low beam integrated car lamp module with the ADB function as claimed in claim 1, wherein,
the joint of the inner rear side end face (7-1) of the block cavity structure of the condenser (1) and the middle side end face (7-2) of the left or right part is an acute angle so as to form a clear ADB cut-off line.
3. The LED light source high and low beam integrated car lamp module with the ADB function as claimed in claim 1, wherein,
the number of the high beam LED light sources (2) is 2-5.
4. The LED light source high and low beam integrated car lamp module with the ADB function as claimed in claim 1, wherein,
the condenser (1) is used for a left car lamp, and the block-shaped cavity structure is arranged on the left side of the condenser corresponding to the left car lamp.
5. The LED light source high and low beam integrated car lamp module with the ADB function as claimed in claim 1, wherein,
the condenser (1) is used for a right car lamp, and the block-shaped cavity structure is arranged on the right side of the condenser corresponding to the right car lamp.
6. The LED light source high and low beam integrated car lamp module with the ADB function as claimed in claim 1, wherein,
the condenser (1) is used for a left or right car lamp, when the number of the high beam LED light sources (2) is even number of 2 or 4, one side surface of the middle part of the light collector near the inside of the block-shaped cavity structure is at least positioned at the left or right side of the central line of the two high beam LED light sources (2),
therefore, when the block-shaped cavity structure is formed in the right part, light rays emitted from the left high beam LED light source are totally reflected on one side surface of the middle part of the condenser in the right block-shaped cavity structure; or alternatively, the first and second heat exchangers may be,
when the left part is provided with the block-shaped cavity structure, light rays emitted from the right high beam LED light source are totally reflected on one side surface of the middle part of the condenser inside the left part block-shaped cavity structure.
7. The LED light source high and low beam integrated car lamp module with the ADB function as claimed in claim 1, wherein,
the condenser (1) is used for a left or right car lamp, when the number of the high beam LED light sources (2) is an odd number of 3 or 5, one side surface of the middle part of the block-shaped cavity structure near the condenser is at least positioned at the left or right side of the emergent light axis of the middle high beam LED light source,
therefore, when the block-shaped cavity structure is formed in the right part, the light emitted from the middle high beam LED light source is totally reflected on one side surface of the middle part of the condenser close to the right block-shaped cavity structure; or alternatively, the first and second heat exchangers may be,
when the left part is provided with the block-shaped cavity structure, the emergent light of the middle high beam LED light source is totally reflected on one side surface of the middle part of the near condenser of the left block-shaped cavity structure.
8. The LED light source high and low beam integrated car lamp module with the ADB function as claimed in claim 1, wherein,
when the condenser (1) is used for a left or right car lamp, the distance between the front end face (7-3) of the inner part of the left or right block-shaped cavity structure and the front end face (1-3) of the outer side of the condenser is 2-10mm.
9. The LED light source high and low beam integrated car lamp module with the ADB function as claimed in claim 1, wherein,
the block-shaped cavity structure on the condenser (1) is an irregular square-like hole.
10. The LED light source high and low beam integrated car lamp module with the ADB function as claimed in claim 1, wherein,
the block-shaped cavity structure on the condenser (1) is an irregular rectangular-like hole.
11. The LED light source high and low beam integrated car lamp module with the ADB function as claimed in claim 1, wherein,
the front end face of the outer side of the condenser (1) is a concave arc face.
Priority Applications (6)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201710043979.4A CN106641964B (en) | 2017-01-19 | 2017-01-19 | LED light source high-low beam integrated car lamp module with ADB function |
| JP2019504881A JP6780089B2 (en) | 2017-01-19 | 2017-05-08 | High beam / low beam integrated headlight module of LED light source with ADB function |
| PCT/CN2017/083410 WO2018133250A1 (en) | 2017-01-19 | 2017-05-08 | Led light source high-beam and low-beam integrated automobile lamp module with adb function |
| EP17892734.9A EP3473917B1 (en) | 2017-01-19 | 2017-05-08 | Led light source high-beam and low-beam integrated automobile lamp module with adb function |
| KR1020197014801A KR102171391B1 (en) | 2017-01-19 | 2017-05-08 | LED light source high-low beam integrated vehicle lamp module with ADB function |
| US16/462,919 US10605426B2 (en) | 2017-01-19 | 2017-05-08 | LED light source high-beam and low-beam integrated automobile lamp module with ADB function |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201710043979.4A CN106641964B (en) | 2017-01-19 | 2017-01-19 | LED light source high-low beam integrated car lamp module with ADB function |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN106641964A CN106641964A (en) | 2017-05-10 |
| CN106641964B true CN106641964B (en) | 2023-05-16 |
Family
ID=58841089
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201710043979.4A Active CN106641964B (en) | 2017-01-19 | 2017-01-19 | LED light source high-low beam integrated car lamp module with ADB function |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN106641964B (en) |
Families Citing this family (16)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| FR3068658B1 (en) * | 2017-07-06 | 2021-04-16 | Valeo Vision | MOTOR VEHICLE LIGHTING DEVICE |
| CN107366870B (en) * | 2017-08-16 | 2023-10-17 | 华域视觉科技(上海)有限公司 | LED light source high beam and low beam integrated car lamp module |
| CN107448867B (en) * | 2017-09-20 | 2023-08-29 | 华域视觉科技(上海)有限公司 | ADB module |
| WO2019100240A1 (en) * | 2017-11-22 | 2019-05-31 | 武汉通畅汽车电子照明有限公司 | Led light source high and low beam integrated car light module |
| JP7025924B2 (en) | 2017-12-28 | 2022-02-25 | スタンレー電気株式会社 | Vehicle lighting |
| CN108534078B (en) * | 2018-01-30 | 2020-04-28 | 长春一汽富维海拉车灯有限公司 | A dual-function module system for LED array far and near light |
| CN210107257U (en) * | 2019-05-21 | 2020-02-21 | 华域视觉科技(上海)有限公司 | Illumination module, car light and vehicle |
| CN109973927B (en) * | 2018-12-28 | 2024-03-22 | 华域视觉科技(上海)有限公司 | Matrix type high beam module and condenser thereof |
| CN109630976A (en) * | 2019-02-25 | 2019-04-16 | 华域视觉科技(上海)有限公司 | A kind of distance-light one car light mould group |
| CN109724044A (en) * | 2019-02-25 | 2019-05-07 | 华域视觉科技(上海)有限公司 | Car light condenser and car light mould group |
| CN109751569A (en) * | 2019-03-01 | 2019-05-14 | 苏州晶清光电科技有限公司 | A LED lighting lamp integrating far and near light |
| CN110131667A (en) * | 2019-04-16 | 2019-08-16 | 上海文歆汽车科技有限公司 | Automobile ADB liquid crystal headlight optical module |
| CN113124375A (en) * | 2020-01-15 | 2021-07-16 | 华域视觉科技(上海)有限公司 | Vehicle lighting device, vehicle lamp and vehicle |
| CN113531474B (en) * | 2020-04-17 | 2022-08-05 | 华域视觉科技(上海)有限公司 | Anti-dazzling high beam and vehicle |
| CN113531476B (en) * | 2020-04-17 | 2025-05-20 | 华域视觉科技(上海)有限公司 | High beam lighting device, lamp and vehicle |
| US12072075B2 (en) | 2020-04-17 | 2024-08-27 | Hasco Vision Technology Co., Ltd. | Primary optical structure, high-beam lighting device, anti-glare high-beam lamp and vehicle |
Family Cites Families (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| FR2979688A1 (en) * | 2011-09-05 | 2013-03-08 | Valeo Vision | OPTICAL MODULE FOR SIGNALING AND / OR LIGHTING DEVICE |
| JP6271181B2 (en) * | 2013-08-06 | 2018-01-31 | 株式会社小糸製作所 | Vehicle lighting |
| JP6321932B2 (en) * | 2013-09-24 | 2018-05-09 | 株式会社小糸製作所 | Vehicle headlamp |
| FR3038696B1 (en) * | 2015-07-10 | 2022-02-18 | Valeo Vision | LIGHT MODULE FOR LIGHTING AND/OR SIGNALING OF A MOTOR VEHICLE |
| CN105570794B (en) * | 2016-02-23 | 2018-02-06 | 上海小糸车灯有限公司 | PES unit of the car light LED distance-lights one with ADB functions |
| CN106122870B (en) * | 2016-08-17 | 2018-10-26 | 上海小糸车灯有限公司 | A kind of LED light source distance-light one car light module |
-
2017
- 2017-01-19 CN CN201710043979.4A patent/CN106641964B/en active Active
Also Published As
| Publication number | Publication date |
|---|---|
| CN106641964A (en) | 2017-05-10 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN106641964B (en) | LED light source high-low beam integrated car lamp module with ADB function | |
| KR102171391B1 (en) | LED light source high-low beam integrated vehicle lamp module with ADB function | |
| US4949226A (en) | Projector-type lighting device of expanded outline appearance for use as a vehicular headlamp or the like | |
| US7441928B2 (en) | Lighting device | |
| CN206592963U (en) | A kind of integral car light module of the LED/light source distance-light with ADB functions | |
| CN108375048B (en) | Vehicle-mounted lamp | |
| CN207080934U (en) | Car lighting | |
| EP4191128B1 (en) | Automotive headlamp system and automotive lamp | |
| EP3567308B1 (en) | Lighting system integrating high and low beams, low beam headlamp, and high beam headlamp | |
| WO2022099969A1 (en) | High-beam illumination device, vehicle lamp, and vehicle | |
| CN201706353U (en) | Automotive Optical Module | |
| CN107795952A (en) | Realize the matrix form collector lens of adaptive road function | |
| JP2012084330A (en) | Vehicular lamp | |
| KR100798143B1 (en) | Adaptive headlight unit with LED lamp unit | |
| CN207316791U (en) | Realize the matrix form collector lens of adaptive road function | |
| CN220707130U (en) | Car light structure of integrated SBL of radium carving ring | |
| CN208107967U (en) | Far and near photosystem and car light based on light guide | |
| CN105240775A (en) | LED automobile lens adopting light supplementing structure | |
| CN206386838U (en) | Headlight, motorcycle and motor vehicle | |
| CN213872565U (en) | Optical structure, car light module, car light and vehicle | |
| CN214094296U (en) | Low-beam optical element, car lamp module, car lighting device and car | |
| CN117028897A (en) | Double-lens double-light LED automobile headlamp | |
| CN108613108B (en) | High beam and low beam integrated lighting system, low beam headlamp and high beam headlamp | |
| CN109973927B (en) | Matrix type high beam module and condenser thereof | |
| CN2477943Y (en) | Head light of motor vehicle |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| CB02 | Change of applicant information |
Address after: 201821 No. 767, Yecheng Road, Shanghai, Jiading District Applicant after: HUAYU VISION TECHNOLOGY (SHANGHAI) Co.,Ltd. Address before: 201821 No. 767, Yecheng Road, Shanghai, Jiading District Applicant before: SHANGHAI KOITO AUTOMOTIVE LAMP Co.,Ltd. |
|
| CB02 | Change of applicant information | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
