Abstract

本发明公开了一种拉布机的卷边整平装置，包括工作平台、拉布机主体、布匹、导布辊、支架、连接座、整平装置、装置固定座、调节件、固定件、活动件、弹簧、连接件、整烫装置、压轮、弹性连接件、整烫壳体、导轮一、整烫机、导轮二和铺平板；本发明具有结构合理简单、生产成本低、安装方便，对平铺过程中的布匹两边卷边进行整平时，首先由压轮压住卷边内侧表面，这里设置了弹簧，而且弹簧的预紧力可以通过调节件的上下移动进行调节，从而保证了压轮能够牢牢的压在布匹两边卷边内侧，进一步的保证了后续烫平时不会影响到布匹平铺后的位置，而后铺平板将卷边进行铺平便于整烫机对卷边进行烫平处理。

Figure 201611112565

The invention discloses a curling and leveling device for a cloth spreading machine, which comprises a working platform, a cloth spreading machine main body, cloth, a cloth guide roller, a bracket, a connecting seat, a leveling device, a device fixing seat, an adjusting piece, a fixing piece, The movable part, the spring, the connecting part, the ironing device, the pressing wheel, the elastic connecting part, the ironing shell, the first guide wheel, the ironing machine, the second guide wheel and the laying plate; the invention has the advantages of reasonable and simple structure, low production cost, It is easy to install. When leveling the edge of the cloth on both sides during the tiling process, the inner surface of the edge is first pressed by the pressure roller. A spring is set here, and the pre-tightening force of the spring can be adjusted by the up and down movement of the adjusting member, so that It ensures that the pressure roller can be firmly pressed on the inside of the curling edge on both sides of the cloth, which further ensures that the subsequent ironing will not affect the position of the cloth after it is flattened. Ironing is carried out.

Figure 201611112565

Description

一种拉布机的卷边整平装置A curling and leveling device for a cloth spreading machine

技术领域：Technical field:

本发明涉及服装加工机械技术领域，特别涉及一种拉布机的卷边整平装置。The invention relates to the technical field of garment processing machinery, in particular to a curling and leveling device of a cloth stretching machine.

背景技术：Background technique:

拉布机也称铺料机、延后机、铺布机或拖布机，其功用是按工艺要求将面料以平铺方式一层层地铺叠在铺料台上。这里所讲的工艺要求如铺料长度、铺料层数、面料两端断口上下层对齐、布边上下对齐、布面平整(无张力)，等等。如业界所知，在服饰生产过程中，拉布及裁布起着至关重要的作用，因为只有规整的裁片才有可能获得符合规格的成品服饰，又因为如果裁片不规整，那么再好的缝制设备及缝纫工人也无法制作出高质量的服饰成品。拉布是裁布的前道工序，其质量的优劣会对整个生产工序产生影响。在拉布过程中不能将面料的边缘部位的卷边剥展平坦以及有效地贴着大展布辊的通弊。因为不少面料特别是具有良好弹性的针织面料，其长度方向的两侧存在绳状化卷曲情形，如果不能在拉布的过程中将其剥展平坦，那么会影响后续工序，例如对缝纫工序极为不利。The spreading machine is also called a spreader, a delay machine, a spreader or a tractor. Its function is to lay the fabrics on the spreading table layer by layer according to the process requirements. The process requirements mentioned here include the length of the material, the number of layers of material, the alignment of the upper and lower layers of the fracture at both ends of the fabric, the upper and lower alignment of the cloth edge, and the flat surface (no tension), and so on. As the industry knows, in the garment production process, fabric pulling and cutting play a crucial role, because only regular pieces can obtain finished garments that meet specifications, and because if the pieces are irregular, then Even good sewing equipment and sewing workers cannot produce high-quality finished garments. Pulling cloth is the first process of cutting cloth, and its quality will have an impact on the entire production process. In the process of spreading, the edge of the fabric cannot be peeled and spread flat and can not be effectively attached to the large spreading roller. Because many fabrics, especially knitted fabrics with good elasticity, have rope-like curls on both sides in the length direction, if they cannot be flattened during the pulling process, it will affect subsequent processes, such as sewing processes. extremely disadvantageous.

发明内容：Invention content:

本发明的目的就在于为了解决上述问题而提供一种拉布机的卷边整平装置，解决了拉布机拉布过程中出现的卷边的问题。The purpose of the present invention is to provide a curling and leveling device for a cloth spreading machine in order to solve the above problems, which solves the problem of curling that occurs during the cloth stretching process of the cloth spreading machine.

为了解决上述问题，本发明提供了一种技术方案：一种拉布机的卷边整平装置，包括工作平台、拉布机主体、布匹、导布辊和支架；所述拉布机主体左右活动连接在工作平台上面，所述导布辊两端分别通过支架固定连接在拉布机主体右侧，所述布匹设在拉布机主体内部，所述布匹右侧通过导布辊平铺在工作平台上面，其创新点在于：还包括连接座和整平装置；所述整平装置为两个，所述整平装置分别位于布匹两边上侧，所述整平装置分别通过连接座固定连接在支架内侧。In order to solve the above problems, the present invention provides a technical solution: a curling and leveling device for a cloth spreading machine, including a working platform, a cloth spreading machine main body, a cloth, a cloth guide roller and a bracket; the left and right sides of the cloth spreading machine body It is movably connected on the working platform, and the two ends of the cloth guide roller are fixedly connected to the right side of the main body of the cloth spreading machine through brackets respectively. On the working platform, the innovation is that it also includes a connecting seat and a leveling device; the leveling devices are two, the leveling devices are located on the upper sides of both sides of the cloth, and the leveling devices are fixedly connected through the connecting seats respectively. inside the bracket.

作为优选，所述整平装置具体包括装置固定座、调节件、固定件、活动件、弹簧、连接件、整烫装置、压轮和弹性连接件；所述装置固定座固定连接在连接座侧面，所述装置固定座右侧内部上侧固定连接有固定件；所述固定件中央活动连接有调节件；所述调节件底部与活动件顶部中央相连接；所述活动件活动连接在装置固定座右侧内部，所述活动件底部与连接件顶部之间设有弹簧；所述连接件活动连接在装置固定座右侧内部下侧，所述连接件底部活动连接有压轮；所述整烫装置位于压轮左侧，所述整烫装置上侧通过弹性连接件固定连接在装置固定座底部左侧。Preferably, the leveling device specifically includes a device fixing base, an adjusting member, a fixing member, a movable member, a spring, a connecting member, an ironing device, a pressing wheel and an elastic connecting member; the device fixing base is fixedly connected to the side surface of the connecting base , a fixing piece is fixedly connected to the inner upper side of the right side of the fixing base of the device; an adjusting piece is movably connected in the center of the fixing piece; the bottom of the adjusting piece is connected with the center of the top of the movable piece; Inside the right side of the seat, a spring is arranged between the bottom of the movable piece and the top of the connecting piece; the connecting piece is movably connected to the inner lower side of the right side of the fixing seat of the device, and the bottom of the connecting piece is movably connected with a pressure wheel; The ironing device is located on the left side of the pressing wheel, and the upper side of the ironing device is fixedly connected to the left side of the bottom of the device fixing seat through an elastic connecting piece.

作为优选，所述整烫装置具体包括整烫壳体、导轮一、整烫机、导轮二和铺平板；所述整烫壳体底部右侧设有数个导轮一，所述整烫壳体底部左侧设有数个导轮二，所述整烫壳体内部底面固定连接有整烫机；所述铺平板固定连接在整烫壳体左侧。Preferably, the ironing device specifically includes an ironing shell, a guide wheel 1, an ironing machine, a second guide wheel and a flat plate; the ironing shell is provided with several guide wheels 1 on the right side at the bottom, and the ironing machine The left side of the bottom of the casing is provided with several guide wheels II, the inner bottom surface of the ironing casing is fixedly connected with an ironing machine; the laying plate is fixedly connected to the left side of the ironing casing.

作为优选，所述整烫机底部分别位于布匹两边正上侧。Preferably, the bottoms of the ironing machines are respectively located on the upper sides of both sides of the cloth.

本发明的有益效果：本发明具有结构合理简单、生产成本低、安装方便，对平铺过程中的布匹两边卷边进行整平时，首先由压轮压住卷边内侧表面，这里设置了弹簧，而且弹簧的预紧力可以通过调节件的上下移动进行调节，从而保证了压轮能够牢牢的压在布匹两边卷边内侧，进一步的保证了后续烫平时不会影响到布匹平铺后的位置，而后铺平板将卷边进行铺平便于整烫机对卷边进行烫平处理。The beneficial effects of the present invention are as follows: the present invention has the advantages of reasonable and simple structure, low production cost and convenient installation. When flattening the edges of the cloth on both sides during the tiling process, the inner surface of the curling is first pressed by the pressing wheel, and a spring is provided here. Moreover, the pre-tightening force of the spring can be adjusted by the up and down movement of the adjusting member, thus ensuring that the pressure roller can be firmly pressed on the inside of the curled edges on both sides of the cloth, which further ensures that the subsequent ironing will not affect the position of the cloth after it is flattened. , and then lay the flat plate to flatten the curling edge, which is convenient for the ironing machine to iron the curling edge.

附图说明：Description of drawings:

为了易于说明，本发明由下述的具体实施及附图作以详细描述。For ease of description, the present invention is described in detail by the following specific implementations and accompanying drawings.

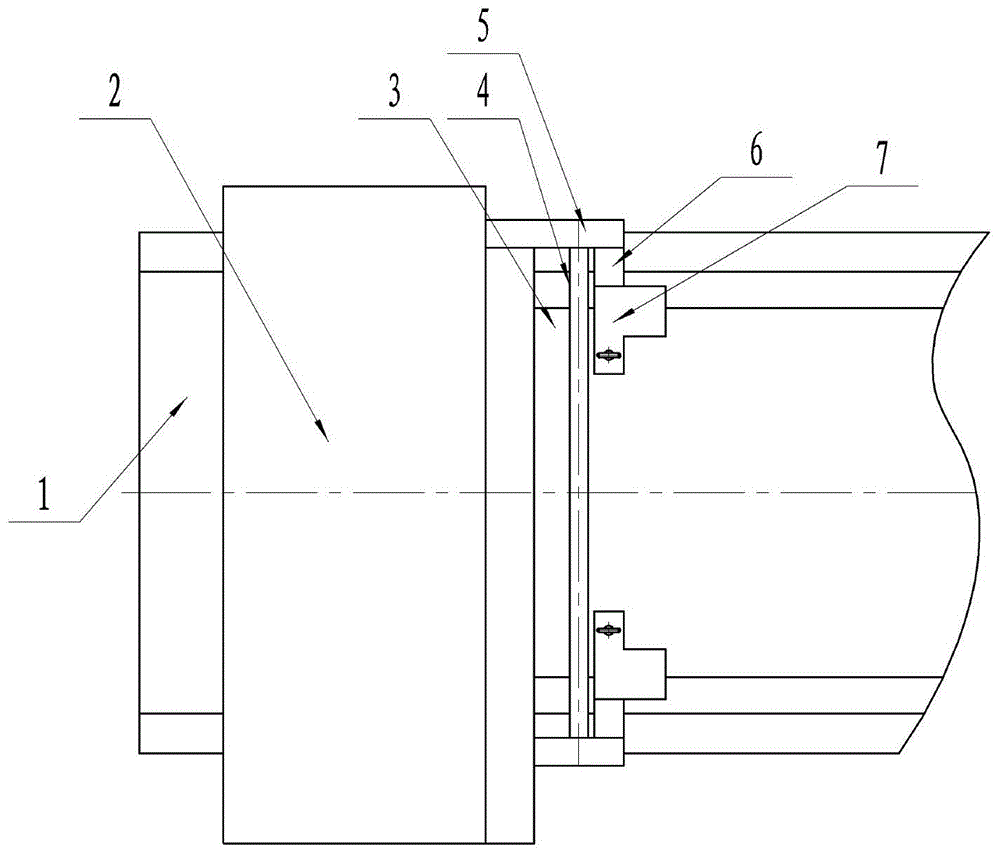

图1为本发明的结构示意图。FIG. 1 is a schematic structural diagram of the present invention.

图2为整平装置的结构示意图。Figure 2 is a schematic diagram of the structure of the leveling device.

图3为整烫装置的结构示意图。FIG. 3 is a schematic structural diagram of the ironing device.

1-工作平台；2-拉布机主体；3-布匹；4-导布辊；5-支架；6-连接座；7-整平装置；71-装置固定座；72-调节件；73-固定件；74-活动件；75-弹簧；76-连接件；77-整烫装置；78-压轮；79-弹性连接件；771-整烫壳体；772-导轮一；773-整烫机；774-导轮二；775-铺平板。1- Working platform; 2- Main body of cloth spreading machine; 3- Cloth; 4- Guide roller; 5- Bracket; 6- Connecting seat; 7- Leveling device; 71- Device fixing seat; Fixed part; 74-moving part; 75-spring; 76-connecting part; 77-ironing device; 78-pressing wheel; 79-elastic connecting part; 771-ironing shell; 772-guide wheel one; Ironing machine; 774-guide wheel two; 775-lay flat.

具体实施方式：Detailed ways:

如图1所示，本具体实施方式采用以下技术方案：一种拉布机的卷边整平装置，包括工作平台1、拉布机主体2、布匹3、导布辊4和支架5；所述拉布机主体2左右活动连接在工作平台1上面，所述导布辊4两端分别通过支架5固定连接在拉布机主体2右侧，所述布匹3设在拉布机主体2内部，所述布匹3右侧通过导布辊4平铺在工作平台1上面，还包括连接座6和整平装置7；所述整平装置7为两个，所述整平装置7分别位于布匹3两边上侧，所述整平装置7分别通过连接座6固定连接在支架5内侧。As shown in Figure 1, this specific embodiment adopts the following technical solutions: a curling and leveling device for a cloth spreading machine, including a working platform 1, a cloth spreading machine main body 2, a cloth 3, a cloth guide roller 4 and a bracket 5; The main body 2 of the cloth spreading machine is movably connected to the working platform 1 on the left and right sides, the two ends of the cloth guide roller 4 are fixedly connected to the right side of the main body 2 of the cloth spreading machine through the bracket 5 respectively, and the cloth 3 is arranged inside the main body 2 of the cloth spreading machine. , the right side of the cloth 3 is laid flat on the working platform 1 through the cloth guide roller 4, and also includes a connecting seat 6 and a leveling device 7; the leveling devices 7 are two, and the leveling devices 7 are respectively located on the cloth 3 On the upper sides of both sides, the leveling device 7 is fixedly connected to the inner side of the bracket 5 through the connecting seat 6 respectively.

如图2所示，所述整平装置7具体包括装置固定座71、调节件72、固定件73、活动件74、弹簧75、连接件76、整烫装置77、压轮78和弹性连接件79；所述装置固定座71固定连接在连接座6侧面，所述装置固定座71右侧内部上侧固定连接有固定件73；所述固定件73中央活动连接有调节件72；所述调节件72底部与活动件74顶部中央相连接；所述活动件74活动连接在装置固定座71右侧内部，所述活动件74底部与连接件76顶部之间设有弹簧75；所述连接件76活动连接在装置固定座71右侧内部下侧，所述连接件76底部活动连接有压轮78；所述整烫装置77位于压轮78左侧，所述整烫装置77上侧通过弹性连接件79固定连接在装置固定座71底部左侧。As shown in FIG. 2 , the leveling device 7 specifically includes a device fixing base 71 , an adjusting member 72 , a fixing member 73 , a movable member 74 , a spring 75 , a connecting member 76 , an ironing device 77 , a pressing wheel 78 and an elastic connecting member 79; the device fixing base 71 is fixedly connected to the side surface of the connecting base 6, and a fixing member 73 is fixedly connected to the inner upper side of the right side of the device fixing base 71; the center of the fixing member 73 is movably connected with an adjusting member 72; the adjustment The bottom of the movable piece 72 is connected to the center of the top of the movable piece 74; the movable piece 74 is movably connected inside the right side of the device fixing seat 71, and a spring 75 is arranged between the bottom of the movable piece 74 and the top of the connecting piece 76; the connecting piece 76 is movably connected to the inner lower side of the right side of the device holder 71, and the bottom of the connecting piece 76 is movably connected with a pressing wheel 78; the ironing device 77 is located on the left side of the pressing wheel 78, and the upper side of the ironing device 77 is elastic The connecting piece 79 is fixedly connected to the left side of the bottom of the device fixing base 71 .

如图3所示，所述整烫装置77具体包括整烫壳体771、导轮一772、整烫机773、导轮二774和铺平板775；所述整烫壳体771底部右侧设有数个导轮一772，所述整烫壳体771底部左侧设有数个导轮二774，所述整烫壳体771内部底面固定连接有整烫机773；所述铺平板775固定连接在整烫壳体771左侧。As shown in FIG. 3 , the ironing device 77 specifically includes an ironing casing 771 , a guide wheel 772 , an ironing machine 773 , a guide wheel 2 774 and a laying plate 775 ; There are several guide rollers 772, and several guide rollers 774 are provided on the left side of the bottom of the ironing casing 771. The inner bottom surface of the ironing casing 771 is fixedly connected with an ironing machine 773; the laying plate 775 is fixedly connected to Iron the left side of the housing 771 .

其中，所述整烫机773底部分别位于布匹3两边正上侧。Wherein, the bottom of the ironing machine 773 is located on the upper side of both sides of the cloth 3 respectively.

本发明的使用状态为：本发明具有结构合理简单、生产成本低、安装方便，对平铺过程中的布匹3两边卷边进行整平时，首先由压轮78压住卷边内侧表面，这里设置了弹簧75，而且弹簧75的预紧力可以通过调节件72的上下移动进行调节，从而保证了压轮78能够牢牢的压在布匹3两边卷边内侧，进一步的保证了后续烫平时不会影响到布匹3平铺后的位置，而后铺平板775将卷边进行铺平便于整烫机773对卷边进行烫平处理。The use state of the present invention is as follows: the present invention has a reasonable and simple structure, low production cost, and convenient installation. When flattening the two sides of the cloth 3 during the tiling process, the inner surface of the hemming is first pressed by the pressing roller 78, and here is set The spring 75 is removed, and the pre-tightening force of the spring 75 can be adjusted by the up and down movement of the adjusting member 72, thereby ensuring that the pressing wheel 78 can be firmly pressed on the inside of the curling edges on both sides of the cloth 3, further ensuring that the subsequent ironing will not be Affects the position of the cloth 3 after being flattened, and then the back-laying plate 775 flattens the curled edge, which is convenient for the ironing machine 773 to iron the curled edge.

以上显示和描述了本发明的基本原理和主要特征和本发明的优点，本行业的技术人员应该了解，本发明不受上述实施例的限制，上述实施例和说明书中描述的只是说明本发明的原理，在不脱离本发明精神和范围的前提下，本发明还会有各种变化和改进，这些变化和改进都落入要求保护的本发明范围内，本发明要求保护范围由所附的权利要求书及其等效物界定。The basic principles, main features and advantages of the present invention are shown and described above. Those skilled in the art should understand that the present invention is not limited by the above-mentioned embodiments, and the descriptions in the above-mentioned embodiments and the description are only to illustrate the present invention. principle, on the premise of not departing from the spirit and scope of the present invention, the present invention will also have various changes and improvements, these changes and improvements all fall within the scope of the claimed invention, and the claimed scope of the present invention is determined by the appended rights Requirements and their equivalents are defined.
