CN106308253B - Clothing show shelf based on cylinder push-and-pull - Google Patents

Abstract

The invention discloses a clothes display rack based on cylinder push-pull, including upper and lower display racks, the upper display rack includes an upper display rod provided with a plurality of limit bosses, and both ends of the upper display rod are provided with upper display racks Support rods, both upper support rods are provided with mounting racks that can be fixed on fixed objects; the lower display rack includes two lower support rods and a lower display rod with a plurality of coat hooks; the two mounting racks are connected There is a double-acting cylinder, wherein one double-acting cylinder is connected to the upper display support rod, and the other double-acting cylinder is connected to the lower display support rod. The display stand includes upper and lower display stands, which can hang a large number of clothes of various lengths. The upper and lower display stands can be mechanically staggered with each other through the double-acting air cylinder. The display effect is good and beautiful, and customers can see it at a glance. Clear all the clothes displayed, and at the same time avoid the phenomenon of customers bumping, greatly improve the customer's desire to buy, improve economic benefits, good practicability, and it is worthy of widespread promotion.

Description

Clothes display rack based on cylinder push and pull

technical field

The invention relates to a display stand, in particular to a clothes display stand based on cylinder push-pull.

Background technique

Clothes display racks are widely used in shopping malls and clothing stores. In order to attract customers, highlight styles and establish brands, merchants pay more and more attention to the design of storefronts, from the overall style, to furniture matching, and even to the placement of goods. Well-designed. The existing common clothing display racks are relatively simple in style, usually including a clothes shaft made of a round rod, two bases, and a support frame. The top of the support frame is fixedly connected to both ends of the clothes shaft, or is made of The bottom end of the support frame is fixedly connected to the base respectively, and the base is generally installed with rollers. Although the clothes display rack of this structure is easy to move and carry, when customers choose clothes, it is easy to make the clothes display rack slide, and the clothes hanging on the clothes shaft also accumulate with the selection, which affects the display and needs to be rearranged by the salesperson. , and the customer's foot easily touches the base when choosing clothes, thereby reducing the customer's desire to buy.

The utility model with the Chinese application number of 2015201315155 discloses a spiral clothes display stand, which includes a base, a column is arranged on the base, and a plurality of horizontal through holes penetrating the column are arranged at intervals along the vertical direction on the column. The holes are distributed along at least one spiral track in the vertical direction, and the height difference between adjacent horizontal through holes on the same spiral track is 60-200mm. The included angle between the axes of the holes is 22 to 90°, and it also includes a number of clothes hanging rods that can be inserted into the horizontal through holes. The limit boss, the front part of the clothes rail can hang clothes. The spiral clothes display rack displays clothes from top to bottom, avoiding the accumulation of clothes when customers choose, and the clothes are hung up and down with a sense of hierarchy, but there are still the following shortcomings: First, the clothes are hung vertically up and down along the column, and the adjacent clothes are hung up and down. There will be a part of the length overlapping between them. If you hang clothes with a longer length, it will block the clothes below or the clothes below, so that the display effect will not be achieved. It is only suitable for displaying clothes with a short length, and the scope of use is limited. The practicability is poor; second, the clothes are hung up and down. If the clothes are hung closely, the adjacent clothes overlap each other, which will affect the display effect, thereby reducing the customer's desire to buy. However, the rents of shopping malls and clothing stores are relatively high, which reduces economic benefits; thirdly, the position of the clothes hanging at the bottom is relatively low, and customers need to bow their heads or bend over to see the clothes, which cannot achieve the display effect, and the base is located at the bottom. Below the clothes, customers' feet or legs are very likely to touch the base when picking clothes, thereby reducing the customer's desire to buy and thus affecting sales.

SUMMARY OF THE INVENTION

In view of the deficiencies in the prior art, the present invention provides a clothes display stand based on cylinder push-pull. The display stand includes an upper and a lower two-layer display stand, which can hang a large number of clothes of various lengths. The upper and lower display racks are mechanically staggered to each other, and the display effect is good and beautiful. Customers can see all the displayed clothes at a glance, and at the same time avoid the phenomenon of customers bumping, which greatly improves the purchase desire of customers and improves economic benefits.

In order to achieve the above purpose, the technical scheme adopted by the present invention:

A clothes display rack based on cylinder push-pull, including upper and lower display racks, the upper display rack includes a horizontally arranged upper display rod, the upper display rod is provided with a plurality of position-limiting protrusions with intervals between adjacent ones The upper display support rods are connected below both ends of the upper display rod, and both upper display support rods are provided with mounting brackets that can be fixed on fixed objects; The bottom ends of the display support rods are connected with two lower display support rods, and a lower display rod is connected between the top ends of the two lower display support rods, and the lower display rod is provided with a plurality of laterally arranged coat hooks along its length direction; A double-acting cylinder is connected to the two mounting brackets, one of which is connected to the upper display support rod, and the other double-acting cylinder is connected to the lower display support rod. The two double-acting cylinders are used to move the upper and lower display racks outward. Push out or pull back in.

As a preferred technical solution, in order to prevent the upper and lower display racks from being pulled out too far apart, causing the upper and lower display racks to separate from each other, and to avoid excessive reset of the upper and lower display racks, resulting in the loosening of the two mounting racks and affecting the entire display rack The front and rear ends of the interconnected upper and lower display support rods are respectively provided with a front-end limit block and a rear-end limit block.

As a preferred technical solution, in order to further ensure the stability of the upper and lower display racks, and at the same time to ensure the ease of installation and disassembly of the upper and lower display support rods and the mounting racks, front-end limit blocks, and rear-end limit blocks, the front-end limit blocks , The rear limit block and the mounting frame are integrally formed.

As a preferred technical solution, in order to completely display the clothes on the lower display rack and prevent the clothes on the lower display rack from slipping when pulled out or reset, thereby affecting the display effect and reducing the purchase desire of customers, the clothes hooks are arranged in a vertical fold. The top of the structure is provided with a groove for placing the hanger.

Compared with the prior art, the present invention has the following beneficial effects:

1. Set up a display rack including upper and lower layers, which can hang a large number of clothes. The number of clothes displayed in a unit area is more, and the utilization rate of rent is improved; the upper and lower display racks are mechanically connected to each other through a double-acting cylinder. Staggered, and the clothes are hung vertically, clothes of various lengths can be hung, and there is no overlap in length between adjacent clothes, so the display effect is good and beautiful, and customers can see all the clothes displayed at a glance, and avoid the need for customers to choose clothes. When the phenomenon of bumping occurs, you can also appreciate the clothes at a close distance, which is conducive to improving the customer's desire to buy, thereby improving economic benefits.

2. Set the front and rear limit blocks to prevent the upper and lower display racks from being pulled out too far apart, causing the upper and lower display racks to separate from each other, and to avoid excessive reset of the upper and lower display racks, resulting in the loosening of the two mounting racks , which affects the stability of the entire display stand.

3. The front and rear limit blocks are integrally formed with the mounting frame, which further ensures the stability of the upper and lower display racks, and at the same time ensures that the entire clothing display rack is easy to install and disassemble, improving practicability.

4. The structure of the coat hook is scientific and reasonable, which can effectively prevent the clothes on it from swinging with the back and forth movement of the lower display rod when the lower display rack is pushed out or pulled back, which will prevent the salesperson from re-arranging it, and at the same time, it will help to improve the quality of customers. purchase desire.

Description of drawings

The present invention will be further described in detail below with reference to the accompanying drawings and specific embodiments.

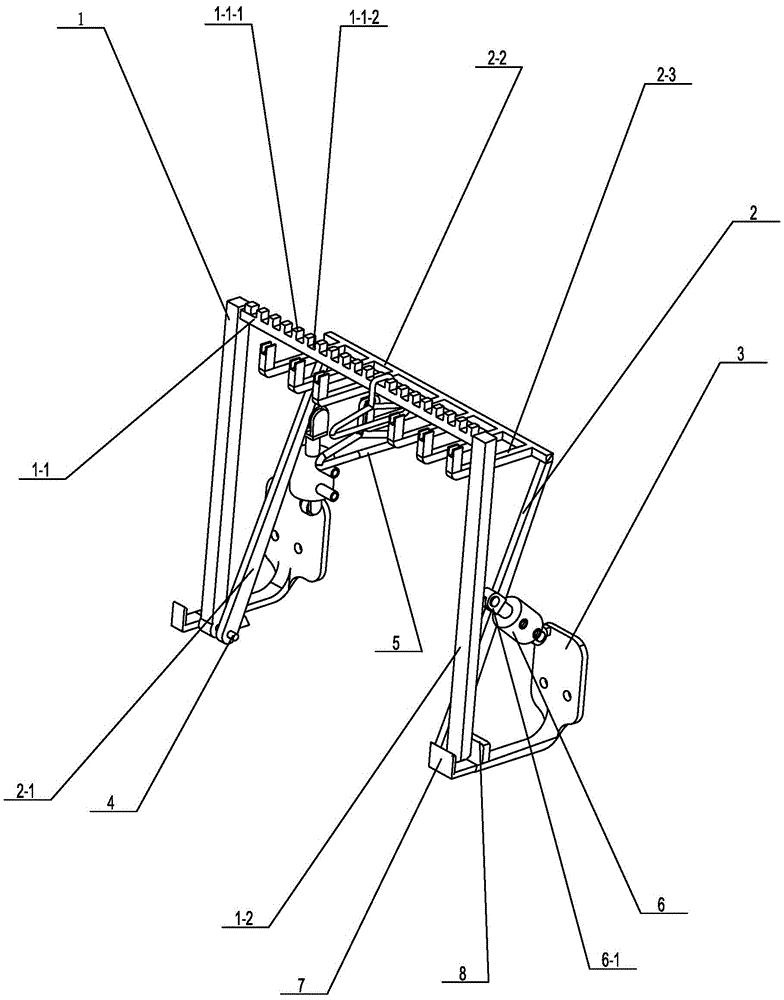

Fig. 1 is the structural representation of the present invention;

Reference number: 1. Upper display stand, 1-1, Upper display rod, 1-1-1, Limiting boss, 1-1-2, Clothes hanging groove, 1-2, Upper display support rod, 2 , Lower display stand, 2-1, Lower display support rod, 2-2, Lower display rod, 2-3, Coat hook, 3, Mounting rack, 4, Pin shaft, 5, Coat hanger, 6, Double acting cylinder, 6-1. Cylinder mounting block, 7. Front-end limit block, 8. Back-end limit block.

Detailed ways

As shown in FIG. 1, a specific embodiment of the present invention is proposed. The clothes display stand based on cylinder push-pull includes an upper display stand 1 and a lower display stand 2. The upper display stand 1 includes a horizontally arranged upper display rod 1-1, The upper display rod 1-1 is provided with a plurality of adjacent limit bosses 1-1-1, and there is an interval between adjacent ones, so that every two limit bosses 1-1-1 form a positionable position. The clothes hanging groove 1-1-2 of the clothes hanger 5 is placed to prevent the clothes hanger 5 from sliding along with the front and rear movement of the upper display rod 1-1. The upper display rods 1-1 are connected with vertically arranged upper display bars below both ends. The support rods 1-2 and the two upper display support rods 1-2 are provided with mounting brackets 3 that can be fixed on fixed objects. The mounting brackets 3 can be installed on walls, columns or large stable objects. In this embodiment, a mounting bracket is provided 3 is a square plate frame, by opening bolt holes on the installation frame 3, the installation frame 3 is installed on the wall through bolts; the lower display frame 2 includes a pin shaft 4 and two upper display support rods 1-2. The bottom ends of the two lower support rods 2-1 are connected and vertically arranged, and a horizontally arranged lower display rod 2-2 is connected between the top ends of the two lower support rods 2-1. A plurality of coat hooks 2-3 arranged laterally along its length direction and capable of hanging the coat hanger 5; -2 The upper and other double-acting cylinders 6 are connected to the lower display support rod 2-1, and the mounting frame 3, the upper display support rod 1-2, and the lower display support rod 2-1 are all provided with circular holes. The cylinder mounting block 6-1, the two ends of the two double-acting cylinders 6 are hinged on the cylinder mounting block 6-1, and the two double-acting cylinders 6 are provided with two push-out or pull-back buttons, which are respectively used to push the upper display rack 1 , the lower display stand 2 is pushed out or pulled back inward.

The front and rear ends of the interconnected upper display support rod 1-2 and lower display support rod 2-1 are respectively provided with a front limit block 7 and a rear limit block 8, which can be displayed in two groups or one of them. The front and rear ends of the rod are provided with a front-end limit block 7 and a rear-end limit block 8. Considering the cost and functional performance, only one set of the front-end limit block 7 and the rear-end limit block 8 will suffice. This implementation For example, choose to set the end of the upper display support rod 1-2 connected with the double-acting cylinder 6, and the front limit block 7 can effectively prevent the upper display frame 1 or the lower display frame 2 from being pulled out of the distance is too large, resulting in the upper display frame 1 and the lower display frame. The lower display racks 2 are separated from each other, and the rear limit block 8 effectively avoids excessive reset of the upper display rack 1 or the lower display rack 2, thereby pulling the two mounting racks 3 to cause them to loosen, thereby affecting the stability of the entire display rack.

The front limit block 7, the rear limit block 8, and the mounting frame 3 are integrally formed, on the one hand, to further ensure the stability of the upper display frame 1 and the lower display frame 2, and on the other hand to ensure the upper display frame 1 and the lower display frame. The mounting and dismounting of the rack 2 is easy.

The clothes hooks 2-3 are arranged in a vertical folding structure, and the top of the clothes hangers 5 is provided with a groove for placing the clothes hangers 5. The clothes hooks 2-3 are arranged in a vertical folding structure, so that the clothes on the lower display rack 2 can be displayed in the air. , improve the display aesthetic effect, and when the lower display rack 2 is pulled out, the clothes on the hanger 5 are correspondingly subjected to a rocking force, and the groove effectively prevents the swing of the clothes rack 5, thereby preventing the clothes from falling, reducing the customer's desire to buy, and at the same time Requires sales staff to rearrange.

When the present invention is used: the upper display frame 1 and the lower display frame 2 are stably installed on the wall through the installation frame 3, and the vertical distance between the installation frame 3 and the ground is preferably greater than 20cm. Then the installation height of the installation rack 3 should be higher, and the clothes to be displayed should be placed on the clothes-hanging groove 1-1-2 and the clothes-hanging hook 2-3 according to certain requirements. Quantity to determine the distance between hanging adjacent garments. If the customer wants to select the clothes on the upper display rack 1, press the push-out button of the double-acting cylinder 6 on the upper display support rod 1-2, and the upper display rack 1 can be mechanically pushed out toward the customer, effectively avoiding the customer's feet Or the phenomenon that the legs hit the base, and the clothes on the upper display stand 1 can be displayed in an orderly manner, and the customer can see the clothes very clearly. The pull-back button of the double-acting air cylinder 6 can mechanically pull the upper display rack 1 back to its original position; if the customer selects the clothes on the lower display rack 2, the same action is performed.

Of course, the above is only a detailed description of the preferred specific embodiments of the present invention in conjunction with the accompanying drawings, and is not intended to limit the scope of implementation of the present invention. within the scope of protection of the invention.

Claims (4)

1. Clothing show shelf based on cylinder push-and-pull, its characterized in that: the display rack comprises an upper display rack (1) and a lower display rack (2), wherein the upper display rack (1) comprises an upper display rod (1-1) which is transversely arranged, a plurality of adjacent spacing bosses (1-1-1) are arranged on the upper display rod (1-1), the spacing bosses are arranged at intervals, the upper display support rods (1-2) are connected below two ends of the upper display rod (1-1), and mounting racks (3) which can be fixed on fixed objects are arranged on the two upper display support rods (1-2); the lower display rack (2) comprises two lower display support rods (2-1) which are connected with the bottom ends of the two upper display support rods (1-2) through pin shafts (4), a lower display rod (2-2) is connected between the top ends of the two lower display support rods (2-1), and a plurality of transversely arranged clothes hooks (2-3) are arranged on the lower display rod (2-2) along the length direction of the lower display rod; the two mounting frames (3) are connected with a double-acting cylinder (6), wherein the double-acting cylinder (6) is connected to an upper display supporting rod (1-2), the other double-acting cylinder (6) is connected to a lower display supporting rod (2-1), and the two double-acting cylinders (6) are respectively used for pushing out or retracting back the upper and lower display frames (1 and 2).

2. The air cylinder push-pull based clothes display stand of claim 1 wherein: the front and rear sides of the upper and lower display support rods (1-2, 2-1) which are connected with each other are respectively provided with a front end limiting block (7) and a rear end limiting block (8).

3. The air cylinder push-pull based clothes display stand of claim 2 wherein: the front end limiting block (7), the rear end limiting block (8) and the mounting rack (3) are integrally manufactured and formed.

4. The air cylinder push-pull based clothes display stand according to any one of claims 1 to 3, wherein: the clothes hooks (2-3) are arranged in a vertical folding structure, and the top ends of the clothes hooks are provided with grooves for placing clothes hangers (5).
