Abstract
本发明提供了一种空调室内机及具有其的空调器。其中，空调室内机包括壳体，具有出风口；导风板，可开闭地设置在出风口处；出风板，出风板上设置有出风孔，出风板可活动地设置于壳体上，出风板具有远离出风口的避让位置和遮挡出风口的遮挡位置，当出风板位于避让位置时，空调室内机处于正常出风模式，当出风板位于遮挡位置时，空调室内机处于无风感出风模式。在出风口处设置出风板，通过控制出风板在出风口处的位置关系使空调器实现正常出风模式或无风感出风模式，使得使用者可以根据需要切换至不同的出风模式，增加了空调器出风的舒适性。
The present invention provides an air conditioner indoor unit and an air conditioner having the same. Wherein, the air conditioner indoor unit includes a casing with an air outlet; an air guide plate, which can be opened and closed at the air outlet; an air outlet plate, which is provided with air outlet holes, and the air outlet plate is movably arranged on the casing On the body, the air outlet plate has an avoidance position away from the air outlet and a shielding position to block the air outlet. When the air outlet plate is in the avoidance position, the air conditioner indoor unit is in the normal air outlet mode. When the air outlet plate is in the shielding position, the air conditioner indoors The machine is in the windless mode. An air outlet plate is set at the air outlet, and the air conditioner can realize the normal air outlet mode or the windless air outlet mode by controlling the positional relationship of the air outlet plate at the air outlet, so that the user can switch to different air outlet modes according to their needs. , which increases the comfort of the air outlet from the air conditioner.
Description
Technical Field
The invention relates to the technical field of air conditioner equipment, in particular to an air conditioner indoor unit and an air conditioner with the same.
Background
In the prior art, a wall-mounted indoor unit generally adopts a cross-flow fan system to realize heat exchange and air supply, and is limited by the structural characteristics of the cross-flow fan system, so that the air outlet mode of the indoor unit is single. The wall-mounted unit is mostly arranged at a higher position of a wall, and an air outlet mode of upper inlet and lower outlet is adopted, so that cold air blown out by the indoor unit directly blows towards a human body under a refrigeration working condition, the comfort of the human body is reduced, and the refrigeration comfort of the air conditioner is poor. Under the heating condition, hot air is not easy to fall to the ground, the heating space is very limited, the temperature in a room cannot be guaranteed to be uniform, a hot air direct-blowing area is warm, the air temperature body far away from the direct-blowing area is cool, and the hot air in the prior art cannot fall to the ground in a far field, so that the upper temperature of the room is high, the ground temperature is low, and the problems that the heating comfort of an air conditioner is not good and the like are caused.
Disclosure of Invention
The invention mainly aims to provide an air conditioner indoor unit and an air conditioner with the same, and aims to solve the problem that the air conditioner in the prior art is poor in air outlet comfort.
In order to achieve the above object, according to one aspect of the present invention, there is provided an air conditioning indoor unit including: a housing having an air outlet; the air deflector is arranged at the air outlet in an openable and closable manner; the air outlet plate is provided with an air outlet hole and is movably arranged on the shell, the air outlet plate is provided with a avoiding position far away from the air outlet and a shielding position shielding the air outlet, when the air outlet plate is located at the avoiding position, the indoor air conditioner is in a normal air outlet mode, and when the air outlet plate is located at the shielding position, the indoor air conditioner is in a non-wind-sensing air outlet mode.
Furthermore, the air deflector is movably arranged on the shell and is positioned on the outer side of the air outlet plate.
Furthermore, the air outlet plate can rotate relative to the air guide plate, when the air outlet plate is located at the avoiding position, the outer surface of the air outlet plate is attached to the inner surface of the air guide plate, and when the air outlet plate is located at the shielding position, the air guide plate can selectively rotate to the closing position or the opening position.
Furthermore, when the air deflector is located at the closing position, the inner surface of the air deflector is attached to the outer surface of the air outlet plate.
Furthermore, the air deflector is arranged on the shell, the air outlet plate is arranged on the air deflector, and the air outlet plate can rotate relative to the air deflector.
Furthermore, the air-conditioning indoor unit further comprises a first driving part and a second driving part, the first driving part drives the air outlet plate to rotate, and the second driving part drives the air guide plate to rotate.
Furthermore, the exhaust vent is a plurality of, and a plurality of exhaust vents are arranged in an array.
Furthermore, the air outlet plate is of a net structure.
Furthermore, the air outlet is a plurality of, and a plurality of air outlets set up along the circumference of casing, and each air outlet department all is provided with the air-out board of one-to-one.
Further, the housing includes: a bottom case; the apron, the apron lid is located on the drain pan, forms the wind channel between apron and the drain pan, sets up the discharge orifice that is linked together with the wind channel on the apron, and the air outlet is seted up on the drain pan and is linked together with the wind channel, and the machine still includes in the air conditioning: and the fan part is arranged in the air duct.
Further, the air conditioning indoor unit further includes: the air inlet panel is connected with the cover plate and is positioned on the outer side of the cover plate, and an air inlet is formed in the air inlet panel and is communicated with the air channel.
Further, the air conditioning indoor unit further includes: and the heat exchanger is arranged between the cover plate and the air inlet panel.
Further, a stop flange for fixing the heat exchanger is arranged on the cover plate.
Furthermore, the number of the fan parts is multiple, and the multiple fan parts are arranged in the air duct in parallel.
Furthermore, a plurality of mutually independent air channels are formed between the cover plate and the bottom shell, and each air channel is internally provided with a fan part.
According to another aspect of the invention, an air conditioner is provided, which comprises an air conditioner indoor unit, and the air conditioner indoor unit is the air conditioner indoor unit.
By applying the technical scheme of the invention, the indoor unit of the air conditioner comprises a shell, an air outlet plate and an air deflector. The shell is provided with an air outlet. The air deflector can be arranged at the air outlet in an openable and closable manner, an air outlet hole is formed in the air outlet plate, and the air outlet plate is movably arranged on the shell. The air outlet plate is provided with an avoiding position far away from the air outlet and a shielding position for shielding the air outlet, when the air outlet plate is positioned at the avoiding position, the indoor air conditioner is in a normal air outlet mode, and when the air outlet plate is positioned at the shielding position, the indoor air conditioner is in a non-wind-sensing air outlet mode. The air outlet plate is arranged at the air outlet, and the air conditioner can realize a normal air outlet mode or a non-wind-sensing air outlet mode by controlling the position relation of the air outlet plate at the air outlet, so that a user can switch to different air outlet modes as required, and the air outlet comfort of the air conditioner is improved.
Drawings
The accompanying drawings, which are incorporated in and constitute a part of this application, illustrate embodiments of the invention and, together with the description, serve to explain the invention and not to limit the invention. In the drawings:

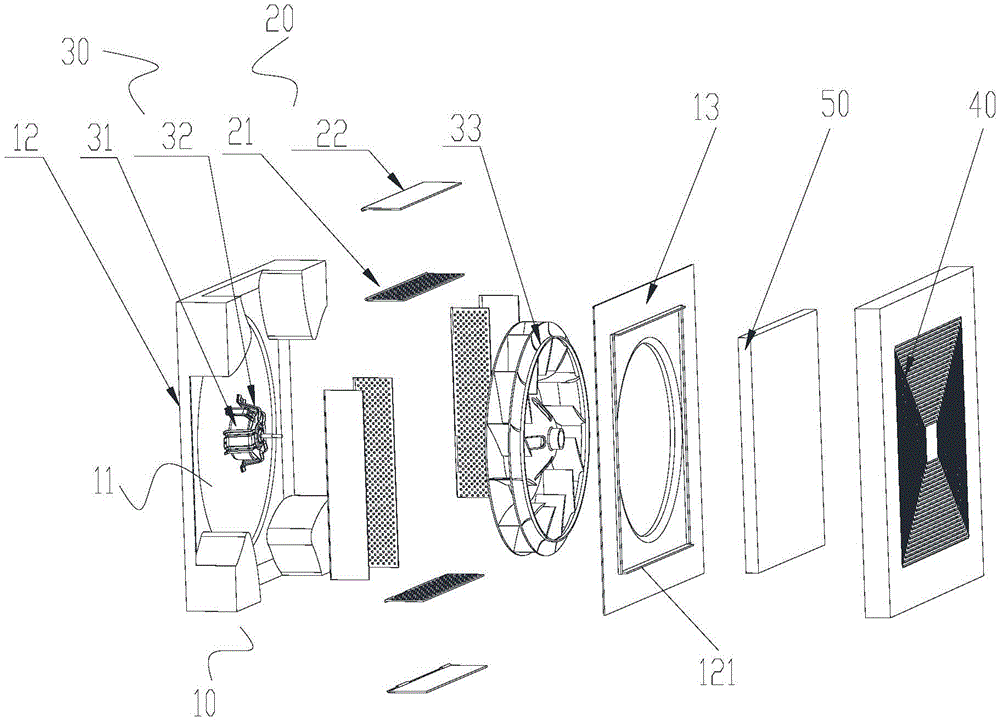

fig. 1 is a schematic view illustrating an exploded structure of an embodiment of an air conditioner according to the present invention;
FIG. 2 shows a cross-sectional view of the air conditioner of FIG. 1;
FIG. 3 is a schematic view of the air deflector of FIG. 1 separated from the air-out plate;
FIG. 4 is a schematic structural view illustrating the air deflector of FIG. 1 attached to the air outlet plate;
FIG. 5 is a schematic view showing a structure of the air conditioner of FIG. 1 when it is turned off;
fig. 6 is a schematic view illustrating a state where the air conditioner of fig. 1 is operated in a no-wind mode;
fig. 7 is a schematic view illustrating a state in which the air conditioner of fig. 1 operates in a normal air-out mode; and
fig. 8 is a schematic structural view illustrating another embodiment of the air conditioner of fig. 1.
Wherein the figures include the following reference numerals:
10. a housing; 11. an air outlet; 12. a bottom case; 121. a stop flange; 13. a cover plate; 20. a wind guide part; 21. an air outlet plate; 211. an air outlet; 22. an air deflector; 30. a fan section; 31. a motor; 32. a motor bracket; 33. a fan blade; 40. an air intake panel; 50. a heat exchanger; 60. a first driving section; 70. a second driving section.
Detailed Description
It should be noted that the embodiments and features of the embodiments in the present application may be combined with each other without conflict. The present invention will be described in detail below with reference to the embodiments with reference to the attached drawings.
It is noted that the terminology used herein is for the purpose of describing particular embodiments only and is not intended to be limiting of example embodiments according to the present application. As used herein, the singular forms "a", "an" and "the" are intended to include the plural forms as well, and it should be understood that when the terms "comprises" and/or "comprising" are used in this specification, they specify the presence of stated features, steps, operations, devices, components, and/or combinations thereof, unless the context clearly indicates otherwise.
It should be noted that the terms "first," "second," and the like in the description and claims of this application and in the drawings described above are used for distinguishing between similar elements and not necessarily for describing a particular sequential or chronological order. It is to be understood that the terms so used are interchangeable under appropriate circumstances such that the embodiments of the application described herein are, for example, capable of operation in sequences other than those illustrated or otherwise described herein. Furthermore, the terms "comprises," "comprising," and "having," and any variations thereof, are intended to cover a non-exclusive inclusion, such that a process, method, system, article, or apparatus that comprises a list of steps or elements is not necessarily limited to those steps or elements expressly listed, but may include other steps or elements not expressly listed or inherent to such process, method, article, or apparatus.
Spatially relative terms, such as "above … …," "above … …," "above … …," "above," and the like, may be used herein for ease of description to describe one device or feature's spatial relationship to another device or feature as illustrated in the figures. It will be understood that the spatially relative terms are intended to encompass different orientations of the device in use or operation in addition to the orientation depicted in the figures. For example, if a device in the figures is turned over, devices described as "above" or "on" other devices or configurations would then be oriented "below" or "under" the other devices or configurations. Thus, the exemplary term "above … …" can include both an orientation of "above … …" and "below … …". The device may be otherwise variously oriented (rotated 90 degrees or at other orientations) and the spatially relative descriptors used herein interpreted accordingly.
Exemplary embodiments according to the present application will now be described in more detail with reference to the accompanying drawings. These exemplary embodiments may, however, be embodied in many different forms and should not be construed as limited to only the embodiments set forth herein. It is to be understood that these embodiments are provided so that this disclosure will be thorough and complete, and will fully convey the concept of the exemplary embodiments to those skilled in the art, in the drawings, it is possible to enlarge the thicknesses of layers and regions for clarity, and the same devices are denoted by the same reference numerals, and thus the description thereof will be omitted.
Referring to fig. 1 to 8, the present invention provides an indoor unit of an air conditioner.
As shown in fig. 1 and 2, the indoor unit of an air conditioner includes a casing 10, an air outlet plate 21, and an air guide plate 22. The housing 10 has an air outlet 11. The air deflector 22 is openably and closably disposed at the air outlet 11, an air outlet hole 211 is disposed on the air outlet plate 21, and the air outlet plate 21 is movably disposed on the housing 10. The air outlet plate 21 is provided with an avoiding position far away from the air outlet 11 and a shielding position shielding the air outlet 11, when the air outlet plate 21 is located at the avoiding position, the indoor air conditioner is in a normal air outlet mode, and when the air outlet plate 21 is located at the shielding position, the indoor air conditioner is in a non-wind-sensing air outlet mode.
In this embodiment, set up out aerofoil 21 in air outlet 11 department, make the air conditioner realize normal air-out mode or no wind sense air-out mode through the positional relation of control play aerofoil 21 in air outlet 11 department for the user can switch to the air-out mode of difference as required, has increased the travelling comfort of air-conditioner air-out. The air outlet plate 21 and the air guide plate 22 form an air guide part 20 of the air conditioner. Different air supply modes are adopted according to different requirements, so that the air supply modes of the indoor unit of the air conditioner are enriched, and the air supply comfort of the indoor unit of the air conditioner is improved.
The air deflector 22 is movably disposed on the casing 10, and the air deflector 22 is located outside the air outlet plate 21. The arrangement can realize the change of the air supply direction of the air conditioner by controlling the position of the air deflector 22 at the air outlet 11, and meanwhile, the air conditioner can be arranged on the air outlet 11 by controlling the cover of the air deflector 22 when being in a closed state, thereby preventing dust or other foreign matters from entering the indoor unit of the air conditioner and influencing the service life of the air conditioner.
As shown in fig. 3 and 4, in order to realize independent control of the air outlet plate 21 and the air guide plate 22, the air outlet plate 21 is arranged to be rotatable relative to the air guide plate 22, when the air outlet plate 21 is located at the avoiding position, the outer surface of the air outlet plate 21 is attached to the inner surface of the air guide plate 22, so that the air conditioner can be in a normal air outlet mode, the air outlet volume of the air conditioner can reach the maximum, and when the air outlet plate 21 is located at the shielding position, the air guide plate 22 can be selectively rotated to the closing position or the opening position. That is, when the air conditioner is in the shutdown state, the air deflector 22 rotates to the closed position, and at this time, the air deflector 22 is located above the air outlet plate 21. When the air conditioner is in the open state, the air deflector 22 is located at the open position and away from the air-out plate 21 to avoid blocking the flow direction of the air blown out from the air outlet 11.
Further, when the air guiding plate 22 is located at the closed position, the inner surface of the air guiding plate 22 is attached to the outer surface of the air outlet plate 21. The arrangement can effectively prevent dust or other foreign matters from entering the air conditioner indoor unit to influence the service life of the air conditioner.
Of course, the air guiding plate 22 is disposed on the casing 10, the air outlet plate 21 may also be disposed on the air guiding plate 22, and the air outlet plate 21 is rotatable relative to the air guiding plate 22. That is, in the present application, the air deflector 22 and the air outlet 21 can be respectively disposed outside different sides of the air outlet (not shown in the figure), and the air deflector 22 and the air outlet 21 can also be disposed on one side of the air outlet 11 at the same time, at this time, the air deflector 22 and the air outlet 21 are hinged to each other, and one of them is disposed on the casing 10 of the air conditioner.
In order to control the air deflector 22 and the air outlet plate 21 separately, the air conditioning indoor unit further includes a first driving unit 60 and a second driving unit 70, wherein the first driving unit 60 drives the air outlet plate 21 to rotate, and the second driving unit 70 drives the air deflector 22 to rotate.
The air outlet holes 211 arranged on the air outlet plate 21 are multiple, and the multiple air outlet holes 211 are arranged in an array. The arrangement enables the air outlet plate 21 to realize non-wind-sensing air outlet.
Of course, the air outlet plate 21 may be a net structure in the case that the air outlet 211 is reasonably arranged.
As shown in fig. 5 to 7, in order to increase the heating or cooling efficiency of the indoor unit of the air conditioner, the air outlets 11 are provided in a plurality, the plurality of air outlets 11 are arranged along the circumferential direction of the casing 10, and each air outlet 11 is provided with an air outlet plate 21 in one-to-one correspondence.
In order to improve the air intake effect of the air conditioner, the indoor unit of the air conditioner further comprises an air intake panel 40. The air inlet panel 40 is connected with the cover plate 13 and is positioned at the outer side of the cover plate 13, and an air inlet is arranged on the air inlet panel 40 and is communicated with the air channel.
Further, the casing 10 includes a bottom case 12 and a cover plate 13, and the air conditioning indoor unit further includes a fan unit 30 and a heat exchanger 50. The cover plate 13 is covered on the bottom shell 12, an air duct is formed between the cover plate 13 and the bottom shell 12, the cover plate 13 is provided with an overflowing hole communicated with the air duct, and the air outlet 11 is opened on the bottom shell 12 and communicated with the air duct. The fan unit 30 is disposed in the air duct. The heat exchanger 50 is disposed between the cover plate 13 and the intake air panel 40. The arrangement can effectively increase the cooling or heating efficiency of the air conditioner and improve the use experience of users.
The cover plate 13 is provided with a stop flange 121 for fixing the heat exchanger 50. The stability of the installation of the heat exchanger can be increased by the arrangement, and the reliability of the air conditioner is improved.
As shown in fig. 8, the number of the fan units 30 is plural, and the plural fan units 30 are provided in parallel in the air passage. The air supply quantity and the air supply distance of the air conditioner can be effectively improved. Wherein the fan section 30 comprises a centrifugal fan system.
Of course, in order to avoid interference between the fans, a plurality of independent air ducts may be formed between the cover plate 13 and the bottom case 12, and each air duct is provided with a fan unit 30.
The air conditioning indoor unit in the above embodiment may be used in an air conditioner, and according to another aspect of the present invention, there is provided an air conditioner including the air conditioning indoor unit in the above embodiment. The air-conditioning indoor unit comprises a shell 10, an air outlet plate 21 and an air guide plate 22. The housing 10 has an air outlet 11. The air deflector 22 is openably and closably disposed at the air outlet 11, an air outlet hole 211 is disposed on the air outlet plate 21, and the air outlet plate 21 is movably disposed on the housing 10. The air outlet plate 21 is provided with an avoiding position far away from the air outlet 11 and a shielding position shielding the air outlet 11, when the air outlet plate 21 is located at the avoiding position, the indoor air conditioner is in a normal air outlet mode, and when the air outlet plate 21 is located at the shielding position, the indoor air conditioner is in a non-wind-sensing air outlet mode. The air outlet 21 is arranged at the air outlet, and the air conditioner can realize a normal air outlet mode or a non-wind-sensing air outlet mode by controlling the position relation of the air outlet 21 at the air outlet, so that a user can switch to different air outlet modes as required, and the air outlet comfort of the air conditioner is improved.
Specifically, in this embodiment, the air conditioner is a wall-mounted indoor unit of an air conditioner capable of achieving four-side air outlet without wind blowing, and the wall-mounted indoor unit mainly includes a base, a motor 31, a motor bracket 32, a fan blade 33, a wind deflector 22 as a wind deflector, a perforated plate 21 as an air outlet plate, a cover plate 13, a heat exchanger 50, and an air inlet panel 40. The base is fixed on the wall to play a role in supporting the whole machine, the fan blade 33 is a centrifugal fan blade, the centrifugal fan blade is matched with the motor 31, and the motor 31 is arranged in the middle of the base. The cover plate 13 and the base are matched to form an air duct of the air conditioner, and the centrifugal fan blades are located between the cover plate and the base to form a fan system with four-side air outlet (4 air outlets, namely an upper air outlet, a lower air outlet, a left air outlet and a right air outlet). The heat exchanger is fixed on the cover plate and positioned at the air inlet of the air duct, and the air inlet panel is fixed on the cover plate. The centrifugal fan moves under the driving of the motor, sucked air enters the air channel from the front air inlet panel to complete heat exchange with the heat exchanger, and then flows out from the radial air outlet channel.
The air-conditioning indoor unit is provided with an upper air outlet, a lower air outlet, a left air outlet and a right air outlet, and each air outlet is provided with an independently controlled double-layer wind shield so as to change the air outlet mode. Under the operating mode of heating, go up the air outlet closure, three air outlets of lower, left and right are opened, and the hot-air that heats through the heat exchanger blows off from lower air outlet department, sets up like this and makes the air conditioner send the region that is close to ground with hot-blast more easily, has increased the effect of heating of air conditioner. Under the refrigeration operating mode, four air outlets are fully opened when the room load is great, realize quick temperature drop, and when the temperature reduces, close down the air outlet, prevent that cold wind from directly blowing people, tend to stably when the room load, the perforated plate is closed and is realized no wind sense air supply mode.
Because the effective open area of orifice plate is far less than former air-out area, the high-speed gas who flows out from the impeller is under the hindrance of perforated plate, the dynamic pressure in the wind channel converts the static pressure into, form certain high pressure in the air-out passageway, each micropore pressure is close, consequently, the gas that each hole is flowed out is more even than conventional air-out mode, the speed of the torrent of flowing out obtains reducing, form the stable air current group of low-speed after making the air current flow out from the perforated plate, thereby eliminate the direct blowing sense of blowing of refrigeration air supply cold wind, the effectual refrigeration travelling comfort that has promoted the air conditioner. The movement form of the wind shield in the air conditioner under the working conditions of refrigeration and heating is an optimal scheme, and different control strategies can be formulated according to different requirements.
The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
