Touch screen test device

【Technical field】

The invention relates to a test device, in particular to a touch screen test device.

【Background technique】

For electronic products such as notebook computers, digitizer (digital conversion) touch screens have appeared. This type of touch screen needs a scribing test, that is, a magnetic pen is used to continuously scribe the line in the limited area of the touch screen, and the signal generated after the scribing is exported. The test computer shows whether the drawn lines are continuous to judge whether the touch screen is qualified. Of course, for the touch screen of the digitizer, the test standard is that the magnetic pen is required to do the above-mentioned scribing test at a distance from the screen, and the test can still pass.

However, at present, for the above tests, the scribing test is usually performed on the assembled electronic products. If the touch screen is found to be defective, it takes a lot of manpower and material resources to disassemble the touch screen, and then perform the action of replacing the screen. The cost is relatively high. high and inefficient.

In view of this, it is necessary to develop a touch screen testing device to solve the above problems.

[Content of the invention]

Therefore, the purpose of the present invention is to provide a touch screen test device, which solves the problem of performing a scribing test on the touch screen after the electronic product is assembled, and finding that the touch screen needs to be disassembled and replaced after it is found to be defective, which is troublesome in operation, high in cost, problem of inefficiency.

In order to achieve the above purpose, the touch screen test device provided by the present invention includes:

a base, the upper surface of which is provided with several positioning shafts, the base is provided with a boss near one end, and the boss is provided with a pivot hole;

a lower base plate, which is arranged on the base, and the bottom surface of the lower base plate is butted with the positioning shaft;

The guide plate is arranged above the lower bottom plate, the touch screen is clamped between the lower bottom plate and the guide plate, one end of the guide plate has a pivot, the pivot is pivoted to the pivot hole, The guide plate has a penetrating guide groove, and the guide groove corresponds to the scribing test area of the touch screen.

Optionally, the device further includes an upper pressing plate disposed between the lower bottom plate and the guide plate, the upper pressing plate is made of transparent material, and the thickness of the upper pressing plate is smaller than the magnetic control distance of the touch screen. Optionally, the upper pressing plate is a transparent acrylic plate.

Optionally, the base also has an elastic thimble, which is pressed against the lower bottom plate.

Optionally, the device further includes a pen holder on which a magnetic control pen is arranged, the magnetic control pen head is exposed at the bottom of the pen holder, and a guide post is provided at the bottom of the pen holder, and the guide post is matched with the guide groove.

Optionally, the base is further provided with a hook, and the hook is engaged with one end of the guide plate away from the pivot.

Optionally, the device further includes a converter, the converter has a connector at one end and a USB interface at the other end, the connector is connected to the power line and the signal line of the touch screen, and the USB interface is connected to a Test the computer connection.

Compared with the prior art, using the touch screen testing device of the mold of the present invention, the lower base plate is mounted on the base, and the touch screen is clamped between the guide plate and the lower base plate, The guide plate is rotated, the touch screen is pressed together, and the magnetic pen is continuously scribing along the guide groove, so as to complete the scribing action. The power line and the signal line of the touch screen are connected to a converter, and then connected to a test computer, and the test computer supplies power to the touch screen and displays the test results. Because the touch screen is tested before being assembled on the electronic product, it avoids the failure of the scribing test after assembly, and the screen needs to be disassembled and replaced, thereby saving manpower and material resources.

【Description of drawings】

FIG. 1 is a schematic structural diagram of a preferred embodiment of a touch screen testing device of the present invention.

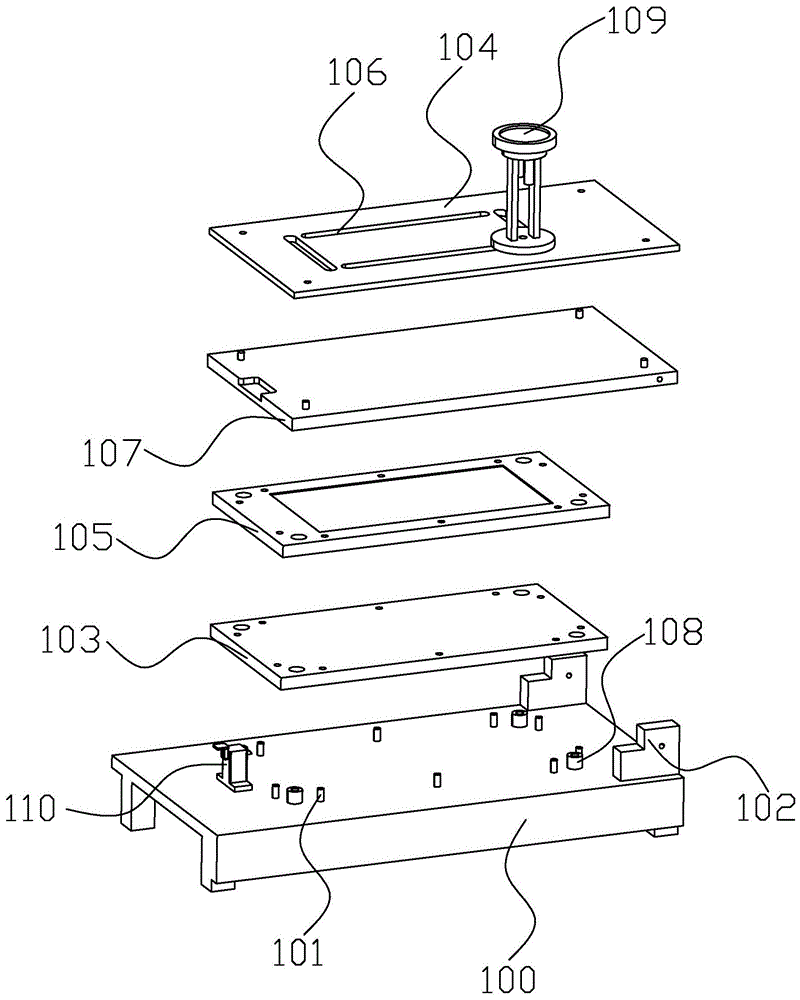

FIG. 2 is a schematic diagram of an exploded structure of a preferred embodiment of the touch screen testing device of the present invention.

FIG. 3 is a schematic diagram of circuit and signal connections during testing of a preferred embodiment of the touch screen testing device of the present invention.

【Detailed ways】

Please refer to FIG. 1 and FIG. 2 in conjunction. FIG. 1 is a schematic structural diagram of a preferred embodiment of a touch screen test device of the present invention, and FIG. 2 is a schematic diagram of a preferred embodiment of the touch screen test device of the present invention. Schematic diagram of the breakdown structure.

In order to achieve the above purpose, the touch screen test device provided by the present invention includes:

The base 100 has several positioning shafts 101 on its upper surface, the base 100 has a boss 102 near one end, and the boss 102 has a pivot hole;

The lower bottom plate 103 is arranged on the base 100, and the bottom surface of the lower bottom plate 103 is butted with the positioning shaft 101;

The guide plate 104 is disposed above the lower bottom plate 103 , and the touch screen 105 (take the touch screen of digitizer as an example) is clamped between the lower bottom plate 103 and the guide plate 104 , one end of the guide plate 104 is There is a pivot, the pivot is pivoted to the pivot hole on the base 100 , the guide plate 104 has a penetrating guide groove 106 , and the guide groove 106 corresponds to the scribing test of the touch screen 105 area.

Using the touch screen testing device of the mold of the present invention, the lower base plate 103 is installed on the base 100, the touch screen 105 is clamped between the guide plate 104 and the lower base plate 103, and the lower base plate 103 is rotated. The guide plate 104 is pressed against the touch screen 105, and the magnetic pen moves along the guide groove 106 to make a continuous scribing motion, thereby completing the scribing action. Of course, in order to ensure that the magnetic control pen and the touch screen 105 can pass the test within an effective distance during operation, the magnetic control pen can maintain an effective distance from the touch screen 105 when drawing a line. Since the touch screen 105 is subjected to a scribing test before being assembled to an electronic product, it is avoided that the scribing test after assembly is unqualified, and the screen needs to be disassembled to replace the screen, thereby saving manpower and material resources.

Wherein, the device may further include an upper pressing plate 107 disposed between the lower bottom plate 103 and the guide plate 104, and the upper pressing plate 107 is made of transparent material, so that the magnetic pen can operate the touch screen 105. The upper pressing plate 107 can be penetrated, and the thickness of the upper pressing plate 107 is smaller than the magnetic control distance of the touch screen 105, so as to ensure the effective operation of the magnetic pen. Preferably, the upper pressing plate 107 may be a transparent acrylic plate. The setting of the upper pressing plate 107 can test whether the magnetic control pen and the touch screen 105 can pass the test within the effective distance.

Wherein, the base 100 may also have elastic ejector pins 108 against the lower bottom plate 103 . In this way, excessive pressing of the touch screen 105 is avoided, and its buffer function can achieve the protection of the touch screen 105 .

Wherein, the device may further include a pen holder 109 on which a magnetic control pen is arranged, the bottom of the pen holder 109 exposes the magnetic control pen head, and the bottom of the pen holder 109 has a guide post, and the guide post cooperates with the guide Slot 106. The setting of the pen holder 109 can ensure the scribing track of the magnetron pen.

Wherein, the base 100 may also be provided with a hook 110, the hook 110 is engaged with one end of the guide plate 104 away from the pivot, so as to prevent the touch screen 105 from being pressed in place and one end tilted up situation.

Please refer to FIG. 3 again. FIG. 3 is a schematic diagram of circuit and signal connections during testing of a preferred embodiment of the touch screen testing device of the present invention.

The device may further include a converter 200, the converter 200 has a connector 201 at one end and a USB interface 202 at the other end, the connector 201 is connected to the power line 111 and the signal line 112 of the touch screen 105, The USB interface 202 is connected to a test computer 300 .

During the test, since the power cord 111 of the touch screen 105 passes through the connector 201 and the USB interface 202 of the converter 200 and further communicates with the test computer 300 , the test computer 300 supplies power to the touch screen 105 . . The signal line 112 of the touch screen 105 is connected to the connector 201 of the converter 200, and then the test signal is transmitted to the test computer 300 through the USB interface 202, and the test computer 300 can have a program to process the test signal and Display the test results.

It should be pointed out that the present invention is not limited to the above-mentioned embodiments, and any simple modifications, equivalent changes and modifications made to the above-mentioned embodiments by any person skilled in the art based on the technical solutions of the present invention all fall within the protection scope of the present invention.

Claims (5)

1. A touch screen testing device, comprising:

the upper surface of the base is provided with a plurality of positioning shafts, a boss is arranged at one end of the base close to one end, and a pivot hole is formed in the boss;

the lower bottom plate is arranged on the base, and the bottom surface of the lower bottom plate is butted with the positioning shaft;

the guide plate is arranged above the lower base plate, the touch screen is clamped between the lower base plate and the guide plate, one end of the guide plate is provided with a pivot which is pivoted with the pivot hole, the guide plate is provided with a penetrating guide groove, and the guide groove corresponds to a scribing test area of the touch screen;

the magnetic control pen is arranged on the pen rack, the bottom of the pen rack is exposed out of the magnetic control pen point, and the bottom of the pen rack is provided with a guide pillar which is matched with the guide groove;

the upper pressing plate is arranged between the lower base plate and the guide plate and is made of transparent materials, and the thickness of the upper pressing plate is smaller than the magnetic control distance of the touch screen.

2. The touch screen testing device of claim 1, wherein the top platen is a transparent acrylic platen.

3. The touch screen testing device of claim 1, wherein the base further comprises an elastic thimble abutting against the bottom plate.

4. The touch screen testing device of claim 1, wherein the base further comprises a hook engaging with an end of the guide plate away from the pivot.

5. The touch screen test device according to any one of claims 1-4, further comprising a converter having a connector at one end and a USB interface at the other end, wherein the connector is connected to a power line and a signal line of the touch screen, and the USB interface is connected to a test computer.
