Abstract

The invention discloses a double-rotor hammer type sand making machine with an adjusting device, which comprises a motor, a frame, a feeding device, a crushing cavity cover, a hydraulic cylinder, a main lining plate, a first auxiliary lining plate, a second auxiliary lining plate, an adjusting screw rod, a rotor, a dust chamber and a discharge hole, wherein the crushing cavity comprises a left crushing cavity and a right crushing cavity, the discharge hole is positioned at the middle position of the bottom of the frame, the feeding device is arranged at the middle position of the top of the frame, the dust chamber is arranged at the central position inside the frame, the left crushing cavity and the right crushing cavity are arranged inside the frame and are symmetrical about the feeding device and the dust chamber, the rotor is arranged inside the left crushing cavity and the right crushing cavity and is driven by the motor, the invention has reasonable design and safe and convenient use, the crushed products have good particle shapes, most of the crushed products are in a structure close to a cube, and the content of needle, and the product grading is reasonable.

Description

Double-rotor hammer type sand making machine with adjusting device
Technical Field
The invention belongs to grinding and crushing equipment for lumpy raw materials such as stones, ores and the like, and particularly relates to a double-rotor hammer type sand making machine with an adjusting device.
Background
At present, in the field of shaping of broken stones and sand making, the main types of sand making machines are a horizontal fine crusher, a counterattack crusher, a vertical shaft type impact sand making machine and the like. The horizontal fine crusher and the impact crusher are stone materials which are impacted and impacted due to the working principle, the particle shape of the product is poor and is mostly 'needle-shaped', the actual using effect is very poor, and the product cannot be applied to mortar or concrete. The vertical shaft type impact sand making machine adopts the principles of impact and grinding to make sand, and a finished product can meet the use requirement, but has a complex structure and high cost, so that the early investment cost of a user is greatly increased, and the use cost of the user is increased.
Disclosure of Invention
The invention aims at the technical task of providing a double-rotor hammer type sand making machine with an adjusting device aiming at the defects of the prior art.
The technical scheme adopted by the invention for solving the technical problems is as follows: the utility model provides a take adjusting device's birotor hammer type system sand machine, includes motor, frame, feed arrangement, broken chamber lid, pneumatic cylinder, main welt, first supplementary welt, second supplementary welt, adjustment lead screw, rotor, clean room and discharge gate, wherein broken chamber includes broken chamber in a left side and the broken chamber in the right side, wherein the discharge gate is located frame bottom intermediate position department, feed arrangement sets up the intermediate position department at the frame top, the clean room sets up the central point in the frame inside and puts, wherein broken chamber in a left side and the broken chamber in the right side set up in the frame inside and about feed arrangement and clean room symmetry, the rotor sets up in broken chamber in a left side and the broken intracavity in the right side and through motor drive.
Furthermore, one end of the main lining plate is movably fixed on the crushing cavity cover through a pin shaft, and the other end of the main lining plate is fixed at the bottom of the crushing cavity cover through an adjusting screw rod.
Further, the fixed top that sets up in the inside of broken chamber lid of first supplementary welt, the fixed both sides that set up at the clean room of second supplementary welt, and wherein set up the second of clean room both sides and assist the welt and be "eight" font.
Furthermore, the bottom of the crushing cavity cover is hinged with the frame, and the top of the crushing cavity cover is movably connected with a hydraulic cylinder arranged at the bottom of the frame.
Further, the rotor is provided with at least two groups of hammers along the radial direction.
Furthermore, a flue gas channel which is inclined downwards is arranged at the bottom of the dust removing chamber.
The beneficial effects of the invention are: building stones shunt to the left and right crushing cavities through the central feed inlet, under the action of high-speed rotating hammer head striking, the building stones are primarily crushed, then impact on the impact device to enable the materials to be secondarily crushed and rebound, high-speed friction between rebound building stones is shaped, and an adjusting device is arranged behind the impact device, the gap between the impact device and the hammer head can be adjusted, the purpose of compensating abrasion of the hammer head or adjusting product gradation is achieved, meanwhile, a building stone lining layer is formed below the crushing cavity, grinding and crushing between the building stones can be formed, and thus, through multiple times of impact continuous circulating crushing and grinding, the building stones are sufficiently crushed, and under the grinding action, the crushed product grains are good, mostly form a structure close to a cube, the content of needle-shaped grains is extremely small, and the product gradation is reasonable, and the requirement of machine-made sand can be met.
Because the whole structure of the equipment is simpler, the raw material and processing cost of the equipment is greatly reduced compared with that of a vertical shaft type impact sand making machine, and the use cost of a user is effectively saved.
The dust removal device can be connected with an external dust remover, so that the phenomenon that dust generated in the operation process of the sand making machine flies is eliminated, and the requirement of green environmental protection is met.
The hydraulic opening device can be opened when the worker inspects and maintains the equipment, the labor intensity of the worker is reduced, and the efficiency is greatly improved.
Drawings
Fig. 1 is a front perspective structural schematic view of the present invention.

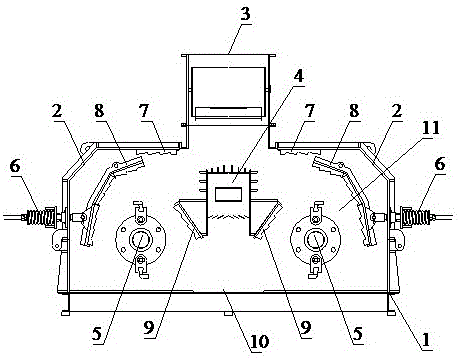

FIG. 2 is a schematic front view of the present invention.
FIG. 3 is a schematic side view of the present invention.
Detailed Description
The invention is described in detail below with reference to the drawings attached hereto:
as shown in fig. 1, 2 and 3, a take adjusting device's birotor hammer system sand machine, including motor 13, frame 1, feed arrangement 3, broken chamber 11, broken chamber lid 2, pneumatic cylinder 12, main welt 8, first supplementary welt 7, second supplementary welt 9, adjustment screw 6, rotor 5, clean room 4 and discharge gate 10, wherein broken chamber 11 includes broken chamber in a left side and the broken chamber in the right side, wherein discharge gate 10 is located frame 1 bottom intermediate position department, feed arrangement 3 sets up the intermediate position department at frame 1 top, clean room 4 sets up the central point in frame 1 inside, wherein broken chamber in a left side and the broken chamber setting in the frame 1 in the right side just are symmetrical about feed arrangement 3 and clean room 4, rotor 5 sets up in broken chamber in a left side and the broken intracavity in the right side and drives through motor 13.
Furthermore, one end of the main lining plate 8 is movably fixed on the crushing cavity cover 2 through a pin shaft, and the other end of the main lining plate is fixed at the bottom of the crushing cavity cover 2 through an adjusting screw rod 6.
Further, the fixed top that sets up in the inside of broken chamber lid 2 of first supplementary welt 7, the fixed both sides that set up at clean room 4 are assisted to the second welt 9, and wherein set up the second of 4 both sides in clean room and assist welt 9 and be "eight" font.
Further, the bottom of the crushing cavity cover 2 is hinged with the frame 1, and the top of the crushing cavity cover is movably connected with a hydraulic cylinder 12 arranged at the bottom of the frame 1.
Further, the rotor 5 is provided with at least two groups of hammers along the radial direction.
Furthermore, a flue gas channel which is inclined downwards is arranged at the bottom of the dust removing chamber.
The specific operation steps are as follows: building stones get into left broken chamber and right broken chamber respectively under feed arrangement 3's reposition of redundant personnel effect, carry out preliminary breakage under the effect of the fast-speed rotor 5 in left broken chamber and the right broken chamber, then strike main welt 8, on first supplementary welt 7 and the second is assisted welt 9, make the material carry out the secondary crushing, at broken in-process, the below in left broken chamber and the right broken chamber can form the building stones lining, can cause the grinding breakage between the building stones, through striking continuous cycle breakage and grinding many times like this, make the building stones obtain abundant breakage, and under the effect that the building stones ground each other, the product grain shape of broken play is good, become nearly cube structure mostly, needle flaky particle content is extremely few, and the product gradation is reasonable, can satisfy the mechanism sand requirement.
Finally, it should be noted that the above embodiments are only used for illustrating the technical solutions of the present invention and not for limiting the technical solutions, and although the present invention has been described in detail by referring to the preferred embodiments, those skilled in the art should understand that modifications or equivalent substitutions to the technical solutions of the present invention can be made without departing from the spirit and scope of the technical solutions, and all the modifications and equivalent substitutions should be covered by the claims of the present invention.

Claims (3)

1. The utility model provides a take adjusting device's birotor hammer type system sand machine, includes that motor (13), frame (1), feed arrangement (3), broken chamber (11), broken chamber lid (2), pneumatic cylinder (12), main welt (8), first supplementary welt (7), second are assisted welt (9), adjustment lead screw (6), rotor (5), clean room (4) and discharge gate (10), wherein broken chamber (11) are including broken chamber in a left side and the broken chamber in the right side, wherein discharge gate (10) are located frame (1) bottom intermediate position department, its characterized in that: the feeding device (3) is arranged at the middle position of the top of the rack (1), stone enters a left crushing cavity and a right crushing cavity under the shunting action of the feeding device (3), the dust removal chamber (4) is arranged at the central position of the inside of the rack (1), the left crushing cavity and the right crushing cavity are arranged inside the rack (1) and are symmetrical about the feeding device (3) and the dust removal chamber (4), the rotor (5) is arranged in the left crushing cavity and the right crushing cavity and is driven by a motor (13), one end of the main lining plate (8) is movably fixed on the crushing cavity cover (2) through a pin shaft, the other end of the main lining plate is fixed at the bottom of the crushing cavity cover (2) through an adjusting screw rod (6), the first auxiliary lining plate (7) is fixedly arranged at the top of the inside of the crushing cavity cover (2), and the second auxiliary lining plate (9) is fixedly arranged at two sides of the dust removal chamber (4), and the second auxiliary lining plates (9) arranged at two sides of the dust chamber (4) are inverted splayed, and the bottom of the dust chamber (4) is provided with a flue gas channel which is inclined downwards.
2. The dual-rotor hammer type sand making machine with the adjusting device according to claim 1, wherein: the bottom of the crushing cavity cover (2) is hinged with the frame (1), and the top of the crushing cavity cover is movably connected with a hydraulic cylinder (12) arranged at the bottom of the frame (1).
3. The dual-rotor hammer type sand making machine with the adjusting device according to claim 1, wherein: the rotor (5) is provided with at least two groups of hammers along the radial direction.
