Abstract
The invention discloses a double-layer parking rack comprising four stand columns in rectangular arrangement. Two parallel sliding rails are hinged between the top ends of the two left stand columns through shafts. The right ends of the sliding rails are movably connected with the two right stand columns. A hydraulic cylinder is mounted in each right stand column. The hydraulic cylinders support up-down movement of the guide rails. Two sliding parking platforms are mounted on the sliding rails respectively. The front sliding parking platform and the rear sliding parking platform are connected through a connecting rod. The connecting rod is connected with a driving device. By the double-layer parking rack, two cars can be parked on one parking space at the same time; the double-layer parking rack is simple in structure and small in occupied area.
Description
Technical field
The present invention relates to a kind of jiffy stand, especially the jiffy stand of two-layer equation.
Background technology
At present, along with growth in the living standard, vehicle is more and more, the difficult problem of stopping is also increasingly serious, parking difficulty is exactly because parking space is few to a great extent, and the parking space on a lot of road surfaces is because of the problem of roading, soil restriction, and its annual recruitment is the recruitment of too late annual automobile far away, so the problem of being badly in need of now facing is exactly how to continue to increase parking stall on limited parking space, thereby alleviates to a certain extent the difficult problem of stopping.
Summary of the invention
The technical issues that need to address of the present invention are, a kind of double-layer parking frame is provided, make can park two cars on a parking space simultaneously, and also simple in structure, floor space is little.
Technical scheme of the present invention is: a kind of double-layer parking frame, it is characterized in that: the column that comprises 4 rectanglar arrangements, wherein between two left column tops by axle hinged two parallel slide rails, slide rail right-hand member is flexibly connected with two right columns, right column inside is provided with hydraulic cylinder, and it is up and down that hydraulic cylinder supports slide rail, on described two slide rails, is separately installed with two slip parking platforms, between former and later two slip parking platforms, connect connecting rod connecting drive device by connecting rod.
Preferably, the lateral surface of described slide rail right-hand member is provided with groove slideway, in groove slideway, contiguous block is installed, described contiguous block rear end embeds groove slideway, and contiguous block middle part slides in the vertical chute of one, right column top, and the leading section of contiguous block is circular platform, be embedded in the cavity of right column, described hydraulic cylinder is located at circular platform supported underneath, and it is up and down, and contiguous block, in being moved up and down by hydraulic cylinder jack-up, also does left and right rectilinear motion with respect to slide rail in groove slideway.
Preferably, on two described slide rail medial surfaces, have connecting rod slideway, described rod slide is in connecting rod slideway, and by the connection of connecting rod, a demand motive connecting rod just can drive two slip parking platforms simultaneously, and synchronism is good.
Preferably, described drive unit comprises chain, chain is connected with connecting rod, described two slide rails are provided with driving shaft between right-hand member medial surface, and driving shaft is connected with motor, be provided with sprocket wheel and carry out chain drive-belt rotation in the middle of driving shaft, chain left end is on described axle, chain transmission is more stable, can the such easy generation skidding of image-tape transmission, and safety is guaranteed like this.
Preferably, described slip parking platform upper surface is distributed with anti-skidding projection, be provided with wheel stopper slot at slip parking platform upper surface left end, when anti-skidding protruding role allows automobile reach slip parking platform exactly, earth-grasping force is better, and the wheel stopper slot of left end is used for limiting the movement of vehicle.
Preferably, described slip parking platform low order end is provided with wedge-shaped part, can become lighter when automobile reaches slip parking platform like this.
Preferably, described slip parking platform right-hand member soffit is provided with support wheel, the effect of support wheel is exactly in the time that automobile reaches slip parking platform, and support wheel can provide certain support force for slip parking platform, and a support force also can be provided simultaneously in the time that slip parking platform declines.
Preferably, described two left columns and two right column top sides are fixed with jack, utilize these jacks can build awning in the above, allow jiffy stand seem more humane.
Adopt after the technical program, slip parking platform can be under the driving of motor, transmission by connecting rod, chain is slided in slide rail, slide rail is to be hinged on left column simultaneously, so can be by Driven by Hydraulic Cylinder to lower swing, the parking platform that simultaneously slides slides into low order end, in the time swinging to least significant end, automobile can reach from slip parking platform right-hand member, then by hydraulic cylinder jack-up slide rail to top, simultaneously do not affect lower floor parking space yet, on a parking space, can stop two cars like this, and simple in structure, floor space is also little.
Accompanying drawing explanation
Accompanying drawing 1 schematic three dimensional views of the present invention;
Accompanying drawing 2 is the local enlarged diagram of slide rail and right column junction;
Schematic diagram when accompanying drawing 3 slides to right-hand member for slip parking platform;

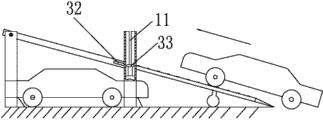

Schematic diagram while sliding parking platform on accompanying drawing 4 running cars.
The specific embodiment
Below in conjunction with accompanying drawing, the specific embodiment of the present invention is described further:
As shown in Figure 1 to Figure 2, this jiffy stand comprises the column of 4 rectanglar arrangements, wherein there are two left columns 2 in left side, before and after between two left column 2 tops by axle 21 hinged two parallel slide rails 3, slide rail 3 is provided with dovetail chute, more commonization of dovetail chute, and be not easy to depart from, two slip parking platforms 4 have been installed in dovetail chute, the lateral surface of described slide rail right-hand member is provided with groove slideway 32, contiguous block 33 is installed in groove slideway, the middle part of described contiguous block 33 is embedded in the vertical chute 11 of one, right column top, the leading section of described contiguous block 33 is circular platform, be embedded in the cavity of right column 1, right column inside is provided with hydraulic cylinder 12, it is up and down that described hydraulic cylinder 12 supports circular platform, contiguous block 33 is in being moved up and down by hydraulic cylinder 12 jack-up like this, also in groove slideway, do left and right rectilinear motion with respect to slide rail, article two, in the middle of slide rail medial surface, establish and have connecting rod slideway 34, connecting rod slideway 34 connects whole slide rail medial surface, in connecting rod slideway, slide and have a connecting rod 41, described connecting rod 41, connecting rod 41 two ends connect respectively two slip parking platforms 4, like this by the connection of connecting rod, demand motive connecting rod 41 just can drive two slip parking platforms simultaneously, and synchronism is good, on connecting rod, connect a chain 5, chain 5 left ends are on axle 21, right-hand member is on a driving shaft 35, driving shaft 35 is located between the right-hand member medial surface of two slide rails 3, on driving shaft, be connected with motor, motor does not indicate in the drawings, driving shaft is provided with sprocket wheel, sprocket wheel can drive chain 5 to rotate, in the time of electric machine rotation, driving shaft is corresponding rotation also, sprocket wheel will drive chain 5 to rotate like this, when chain 5 rotates, connecting rod 41 is and then mobile, and the slip parking platform mobile function that has been exactly first in slide rail, select chain transmission, because chain transmission is more stable, can the such easy generation skidding of image-tape transmission, safety is guaranteed like this, as optimization, described slip parking platform upper surface is distributed with anti-skidding protruding 42, when anti-skidding protruding role allows automobile reach slip parking platform exactly, earth-grasping force is better, be provided with wheel stopper slot 43 at slip parking platform upper surface left end, wheel stopper slot 43 is used for limiting the movement of vehicle, slip parking platform low order end is provided with wedge-shaped part 44, when automobile reaches slip parking platform like this, can become lighter.Described slip parking platform right-hand member soffit is provided with support wheel 45, the effect of support wheel 45 is exactly in the time that automobile reaches slip parking platform 4, support wheel 45 can provide certain support force for slip parking platform 4, a support force in the time that declining, slip parking platform also can be provided simultaneously, consider for hommization simultaneously, described two left columns 2 and two right column 1 top sides are fixed with jack 22, utilize these jacks can build awning in the above, allow jiffy stand seem more humane.
As shown in Figure 3, the schematic diagram sliding to the right for slip parking platform 4, in figure, connecting rod 41 slides to the right under the drive of chain 5, what connecting rod 41 two ends connected is slip parking platform 4, so connecting rod 41 drives slip parking platform 4 to slide while slip, slip parking platform 4 is in the interior slip of slide rail 3, slide rail 3 also carries out the bottom around axle 21 simultaneously, the bottom is mainly by controlling the flexible of hydraulic cylinder 12, drive contiguous block 33 oscilaltions, contiguous block 33 is connected with slide rail 3, so flexible lifting that can drive slide rail 3 of hydraulic cylinder 12, because slip parking platform slides on slide rail, so slip parking platform is the synchronous bottom also, in this example, controlling motor and hydraulic cylinder all can control by switch.
As shown in Figure 4, slip parking platform 4 slides into low order end, and slide rail is swinging to bottom simultaneously, now slide wedge-shaped part 44 kiss the earths of parking platform 4 right-hand members, also kiss the earth of support wheel 45 simultaneously, automobile can be by the inclined-plane upper slip parking platform 4 that travels, until front-wheel travels to wheel stopper slot 43, drawn parking brake, driver leaves automobile, now Push switch, hydraulic cylinder 12 is slowly risen, the parking platform 4 that simultaneously slides slides to the left, until return to the state in Fig. 1, stops and finishes.
Below only just the present invention preferably example be described, but can not be interpreted as it is limitations on claims.The present invention not only limits to and above example, and its concrete structure allows to change, and those skilled in the art can make according to the present invention various changes and distortion, only otherwise depart from spirit of the present invention, all should belong to the defined scope of claims of the present invention.
Claims (8)
1. a double-layer parking frame, it is characterized in that: the column that comprises 4 rectanglar arrangements, wherein between two left columns (2) top by axle (21) hinged two parallel slide rails (3), slide rail (3) right-hand member is flexibly connected with two right columns (1), the interior hollow of right column (1) is also provided with hydraulic cylinder (12), it is up and down that hydraulic cylinder supports slide rail (3), on described two slide rails (3), be separately installed with two slip parking platforms (4), between former and later two slip parking platforms (4), connect connecting rod (41) connecting drive device by connecting rod (41).
2. double-layer parking frame according to claim 1, it is characterized in that: the lateral surface of described slide rail (3) right-hand member is provided with groove slideway (32), contiguous block (33) is installed in groove slideway, described contiguous block (33) rear end embeds groove slideway, contiguous block middle part slides in right column (1) vertical chute in top (11), the leading section of contiguous block is circular platform, be embedded in the cavity of right column, described hydraulic cylinder (12) is located at circular platform supported underneath, and it is up and down.
3. double-layer parking frame according to claim 2, is characterized in that: on described two slide rails (3) medial surface, have connecting rod slideway (34), described connecting rod (41) slides in connecting rod slideway.
4. double-layer parking frame according to claim 3, it is characterized in that: described drive unit comprises chain (5), chain (5) is connected with connecting rod (41), described two slide rails (3) are provided with driving shaft (35) between right-hand member medial surface, driving shaft is connected with motor, in the middle of driving shaft, be provided with sprocket wheel and carry out chain drive-belt (5) rotation, chain (5) left end is on described axle (21).
5. double-layer parking frame according to claim 4, is characterized in that: described slip parking platform (4) upper surface is distributed with anti-skidding projection (42), is provided with wheel stopper slot (43) at slip parking platform upper surface left end.
6. double-layer parking frame according to claim 5, is characterized in that: described slip parking platform (4) low order end is provided with wedge-shaped part (44).
7. double-layer parking frame according to claim 6, is characterized in that: described slip parking platform right-hand member soffit is provided with support wheel (45).
8. according to the double-layer parking frame described in claim 1 to 7 any one, it is characterized in that: described two left columns and two right column top sides are fixed with jack (22).
