Abstract
A diamond saw blade with a cambered surface comprises a central hole, a flange plate mounting plane, the cambered surface, water channels and tool bits. The central hole is formed in the flange plate mounting plane, the cambered surface is connected with the flange plate mounting plane, and the water channels and the tool bits are evenly distributed on the outer edge of the cambered surface. The tool bits are in an arc shape, the radian of the tool bits is equal to that of the outer edge of the cambered surface, and the outward-stretching direction of the tool bits is consistent with the tangential direction of the edge of the cambered surface. According to the diamond saw blade with the cambered surface, the appearance of a saw blade base body is designed to be in the shape with an arc, the tool bits are designed to be in the arc shape, the outward-stretching direction of the tool bits of the saw blade is consistent with a base body extending direction, the saw blade can directly cut out the cambered surface at one time by being driven by a sawing machine, cambered surface cutting difficulty is reduced, cambered surface machining efficiency is improved, the material use ratio is improved, the quantity of sawing waste residues is greatly reduced, cutting cost is effectively lowered, cutting noise is effectively reduced, and cutting safety is improved.
Description
Technical field
The present invention relates to saw blade, be specifically related to especially a kind of diamond saw blade with cambered surface.
Background technology
Diamond disc has advantages of cutting quick and stable, at aspects such as the manufacture fields such as building materials and construction and decoration, rescue and relief works, is widely used, and has good Practical Performance.In stone material, concrete cutting field, using at present more is diamond flat circle saw blade, and diamond flat circle saw blade is faced directly aspect cutting and had advantages of that working (machining) efficiency is high, stock utilization is high in rough stone block cutting, the cutting of stone plate stock column material, the cutting of concrete slab stock column material etc.; But the Machining of Curved Surface aspect of stone material etc., is used diamond flat circle saw blade to show the shortcomings such as repeatedly cutting processing difficulty is large, working (machining) efficiency is low, stock utilization is low, waste material waste residue is many, power consumption is polluted greatly, degree of danger is high.
Summary of the invention
Technical problem to be solved by this invention is to provide a kind of diamond saw blade with cambered surface, makes this saw blade can be used for the directly disposable curved surface that cuts out, and improves curved surface cutting processing efficiency, improves stock utilization, reduces sawing waste residue amount.
In order to solve the problems of the technologies described above, technical scheme of the present invention is: a kind of diamond saw blade with cambered surface, comprise centre bore, ring flange mounting plane, cambered surface, tank, cutter head, centre bore is arranged on ring flange mounting plane, cambered surface is connected with ring flange mounting plane, is evenly distributed with tank and cutter head on cambered surface outward flange.The dual-side of described tank is not parallel.Described cutter head is curved, and cutter head radian is identical with the outer peripheral radian of cambered surface, and the overhanging direction of cutter head is consistent with the tangential direction at cambered surface edge.
Diamond saw blade with cambered surface provided by the invention, the configuration design of saw bit matrix becomes the shape with arc, and cutter head is made as to arc, the overhanging direction of guaranteeing saw blade tip is consistent with matrix propagation direction, the direct disposable curved surface that cuts out after this saw blade can be driven by saw, not only reduce curved surface cutting processing difficulty and improved curved surface cutting processing efficiency, and improved stock utilization, greatly reduced sawing waste residue amount, effectively reduce cutting cost, reduced cutting noise, improved cutting security, there is the feature of good energy-conserving and environment-protective.Tank side is not parallel, can reduce processed complex degree, reduce to be hot pressed into the single piece of water groove cutting amount of cambered surface flat-plate laser cutting tank operation before, be that the requirement of finished product tank is not parallel time, the tank of laser cutting flat board only needs the simplest straight parallel tank, thereby effectively improves batch machining efficiency.
Accompanying drawing explanation
Below in conjunction with drawings and Examples, the invention will be further described.
Fig. 1 is Facad structure schematic diagram of the present invention.
Fig. 2 is side of the present invention sectional structure schematic diagram.
Fig. 3 is cutter head structure schematic diagram of the present invention.

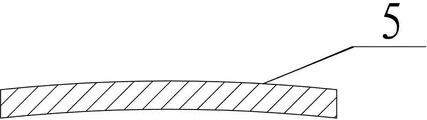

Fig. 4 is cutter head sectional view of the present invention.
The specific embodiment
Structure of the present invention as Figure 1-4, comprises centre bore 1 with the diamond saw blade of cambered surface, and centre bore 1 is arranged on ring flange mounting plane 2, and cambered surface 3 is connected with ring flange mounting plane 2, is evenly distributed with tank 4 and cutter head 5 on cambered surface 3 outward flanges.
The dual-side 6 of described tank 4 is not parallel.
Described cutter head 5 is curved, and cutter head 5 radians are identical with the outer peripheral radian of cambered surface 3, and the overhanging direction of cutter head 5 is consistent with the tangential direction at cambered surface 3 edges.
Occupation mode of the present invention is identical with common saw blade, due to cutter head 5 is designed to arc, and make the overhanging direction of cutter head 5 consistent with matrix propagation direction, the direct disposable curved surface that cuts out after this saw blade can be driven by saw, can reduce curved surface cutting difficulty and improve Machining of Curved Surface efficiency, improving stock utilization, having greatly reduced sawing waste residue amount, effectively reduce cutting cost, reduced cutting noise, improved cutting security.
Claims (3)
1. the diamond saw blade with cambered surface, comprise centre bore (1), tank (4) and cutter head (5), it is characterized in that: centre bore (1) is arranged on ring flange mounting plane (2), cambered surface (3) is connected with ring flange mounting plane (2), is evenly distributed with tank (4) and cutter head (5) on cambered surface (3) outward flange.
2. the diamond saw blade with cambered surface according to claim 1, is characterized in that: the dual-side (6) of described tank (4) is not parallel.
3. the diamond saw blade with cambered surface according to claim 1, it is characterized in that: described cutter head (5) is curved, cutter head (5) radian is identical with the outer peripheral radian of cambered surface (3), and the overhanging direction of cutter head (5) is consistent with the tangential direction at cambered surface (3) edge.
